PLCD9MR

OWNER’S MANUAL

Mobile Audio System

• CD Player

• PLL Synthesizer Stereo Radio

• Compact Disc Player

• Automatic Memory Storing

• Full Detachable Panel

• Preset Equalization

• Electronic Shockproof (ESP) Function

• Auxiliary Input Function

• Remote Control

www.pyleaudio.com

CONTENTS

Installation ...........................................3

Take out screw before installation.........3

DIN Front-Mount (Method A) ................3

Installing the unit.................................3

Removing the unit...............................4

DIN Rear-Mount (Method B) .................5

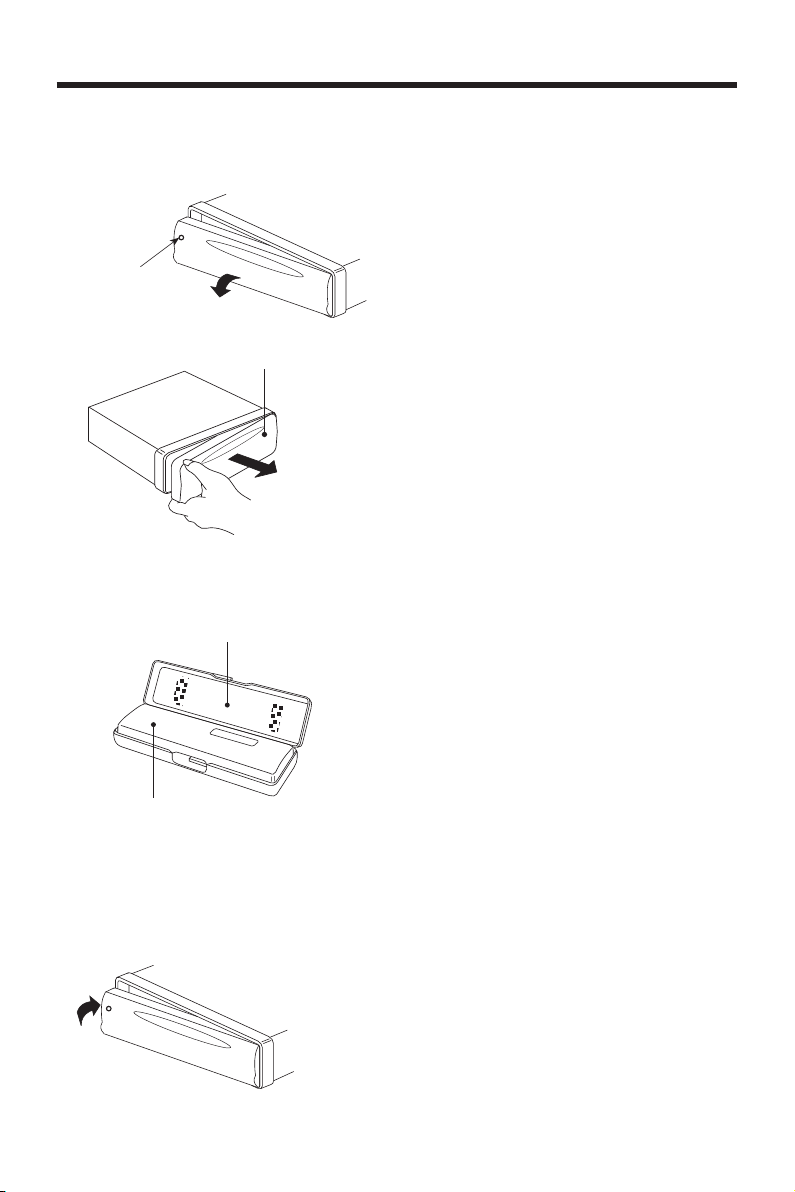

Using the detachable front panel ......6

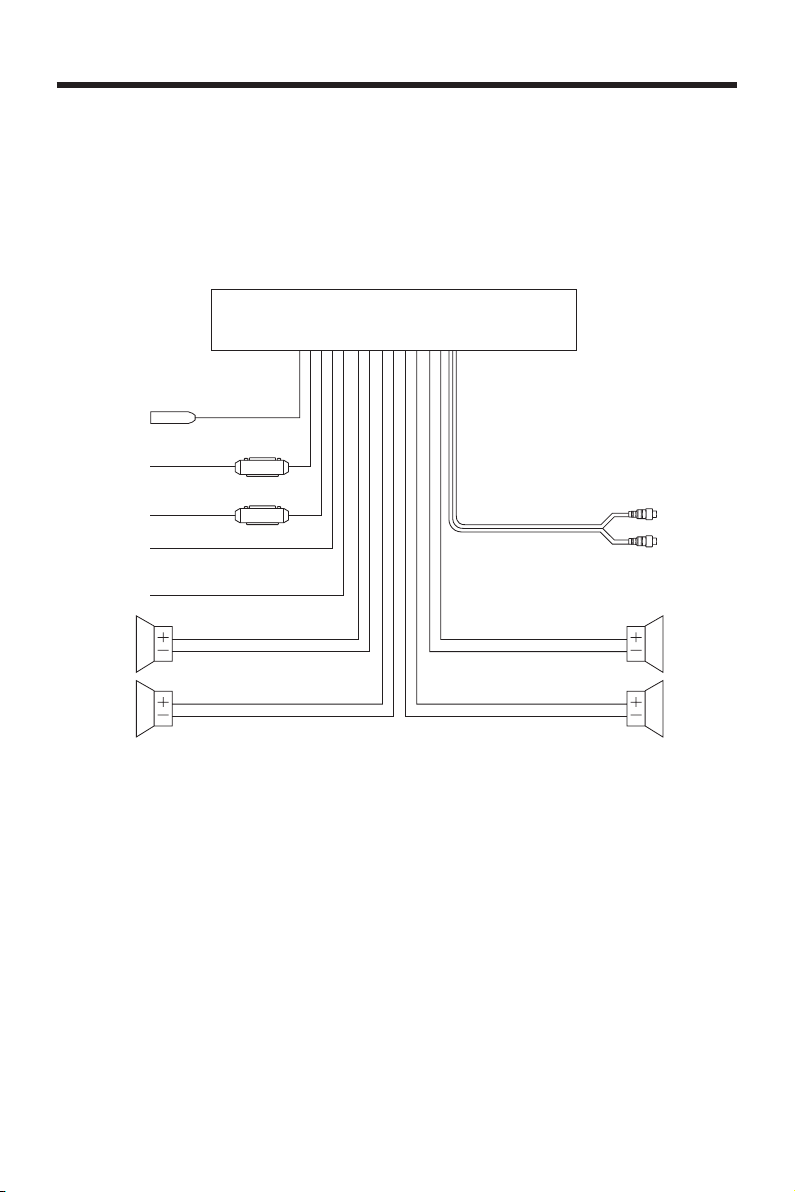

Wiring Connection ..............................7

Operation .............................................8

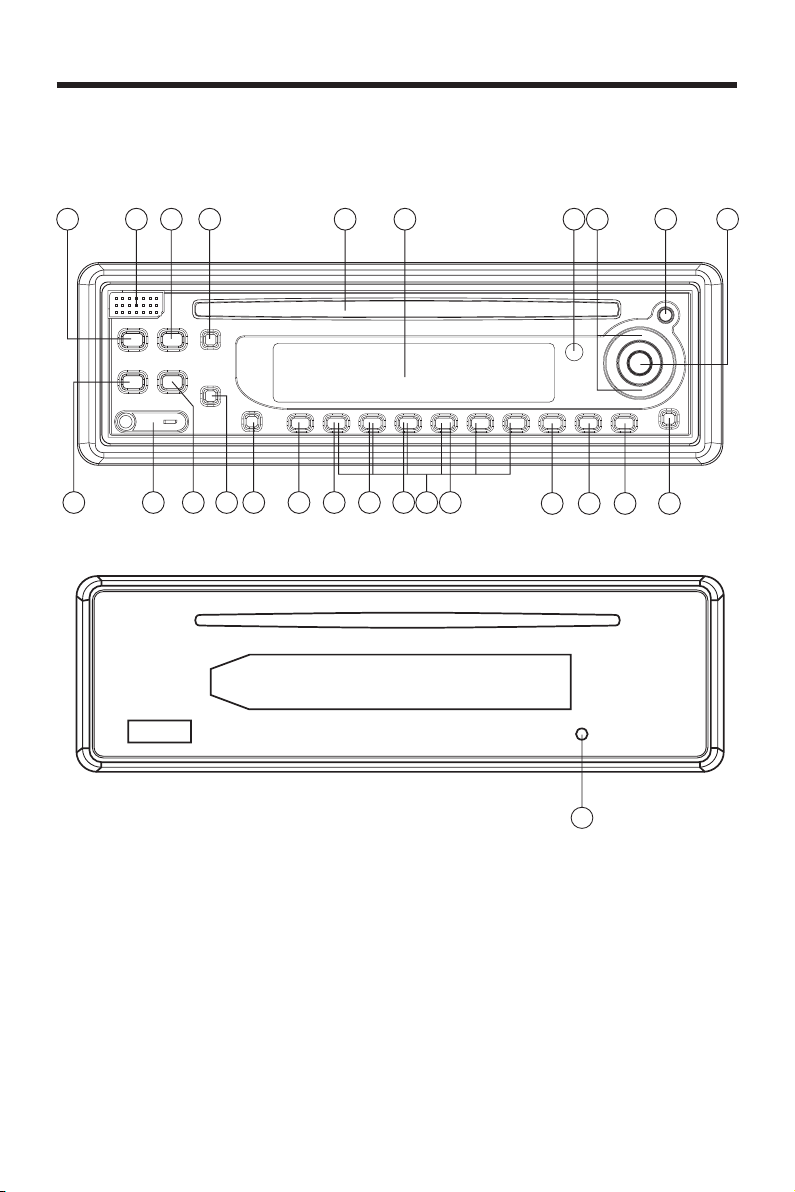

Location of keys....................................8

Switching on/off the unit ......................9

Faceplate release..................................9

Sound adjustment.................................9

Loudness ..............................................9

DISPLAY................................................9

Mute ......................................................9

Equalization...........................................9

Display (8) .............................................9

Auxiliary input........................................9

Remote sensor......................................9

ESP Function ........................................9

Reset function.......................................9

Radio operation ..................................10

Switching to radio mode...................10

Selecting the frequency band...........10

Selecting station ...............................10

Automatically memory storing & program

scanning ...........................................10

Station storing ..................................10

Local/distant .....................................10

Mono/stereo .....................................10

CD operation.......................................10

Switching to CD mode......................10

Selecting tracks ................................10

Pausing playing ................................10

Previewing all tracks.........................10

Repeating the same track.................10

Playing all tracks in random..............11

Ejecting a disc ..................................11

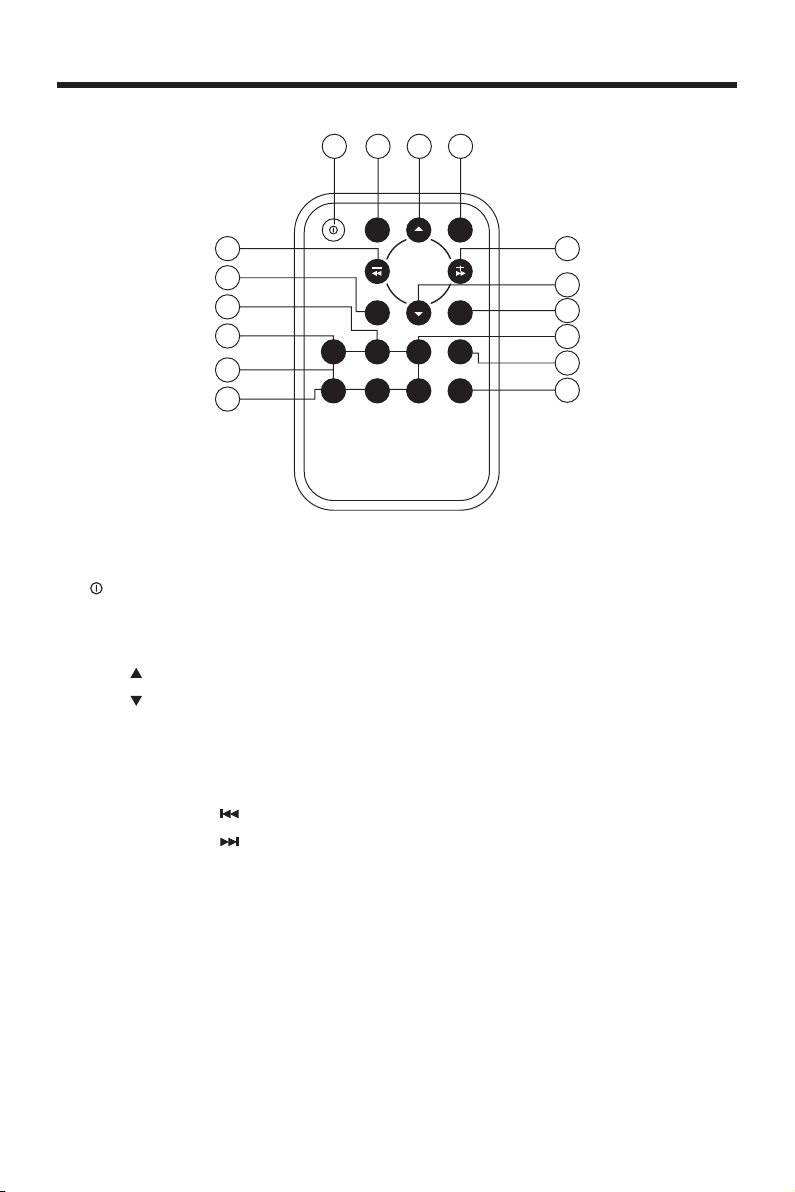

Remote Control Handset ....................12

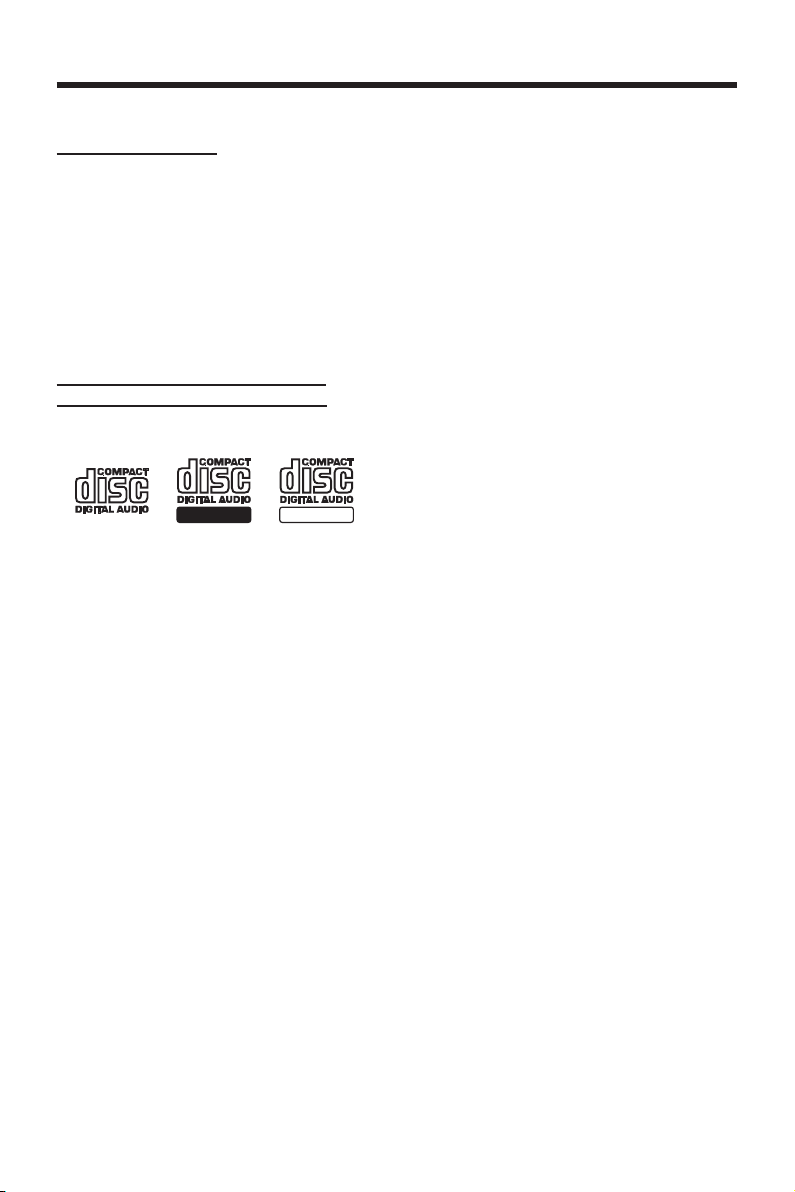

Disc notes ...........................................13

Specification..................................... 14

Trouble shooting .............................. 15

INSTALLATION

Notes:

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.

• Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.

• Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.

• Install the unit where it does not get in the driver’s way and cannot injure the passenger if there is a sudden stop, like an emergency stop.

• If installation angle exceeds 30˚ from horizontal, the unit might not give its optimum performance.

30˚

• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from “Front” (conventional DIN Frontmount) or “Rear” (DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

TAKE OUT SCREW BEFORE INSTALLATION

Before install the unit, please remove the two screws.

Take out screw before installation

DIN FRONT-MOUNT (Method A)

Installation Opening

This unit can be installed in any dashboard having an opening as show below:

53 mm

182 mm

Installing the unit

Be sure you test all connections first, and then follow these steps to install the unit.

1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal.

2. Disconnect the wire harness and the antenna.

3. Press the release button on the front panel and remove the control panel (see the steps of “removing the front panel”).

4. Lift the top of the outer trim ring then pull it out to remove it.

5. The two supplied keys release tabs inside the unit's sleeve so you can remove it. Insert the keys as far as they will go (with the notches facing up) into the appropriate slots at the middle left and right sides of the unit. Then slide the sleeve off the back of the unit.

INSTALLATION

Sleeve

L Key

Outer Trim Ring

Front Panel

R Key

6. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective. Bending open the appropriate tabs behind the dashboard to secure the sleeve in place.

Dashboard

Tabs

Screwdriver

Sleeve

7. Reconnect the wire harness and the antenna and be careful not to pinch any wires or cables.

8. Slide the unit into the sleeve until it locks into place.

9. To further secure the unit, use the supplied metal strap to secure the back of the unit in place. Use the supplied hardware (Hex Nut (M5mm) and Spring Washer) to attach one end of the strap to the mounting bolt on the back of the unit. If necessary, bend the metal strap to fit your vehicle's mounting area. Then use the supplied hardware (Tapping Screw (5x25mm) and Plain Washer) to attach the other end of metal strap to a solid metal part of the vehicle under the dashboard. This strap also helps ensure proper electrical

grounding of the unit. Note to install the short threading terminal of the mounting bolt to the back of the unit and the other long threading terminal to the dashboard.

Spring Washer

Metal Strap

Mounting Bolt

Hex Nut

Plain Washer

Tapping Screw

10. Reconnect the cable to the vehicle battery's negative (-) terminal. Then replace the outer trim ring and install the unit's front panel. (see the steps of “installing the front panel”).

Removing the unit

1. Make sure the ignition is turned off, then disconnect the cable from the vehicle battery's negative (-) terminal.

2. Remove the metal strap attached the back of the unit (if attached).

3. Press the release button to remove the front panel.

4. Lift the top of the outer trim ring then pull it out to remove it.

5. Insert both of the supplied keys into the slots at the middle left and right sides of the unit, then pull the unit out of the dashboard.

INSTALLATION

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota, follow these mounting instructions. Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle.

Side view showing Screw Holes marked

T, N

Factory Radio Mounting Bracket

Screw

Dashboard or Console

Screw

To fasten the unit to the factory radio mounting brackets. Align the screw holes on the bracket with the screw holes on the unit, and then tighten the screws (5x5mm) on each side.

Note: the outer trim ring, sleeve and the metal strap are not used for method B installation.
