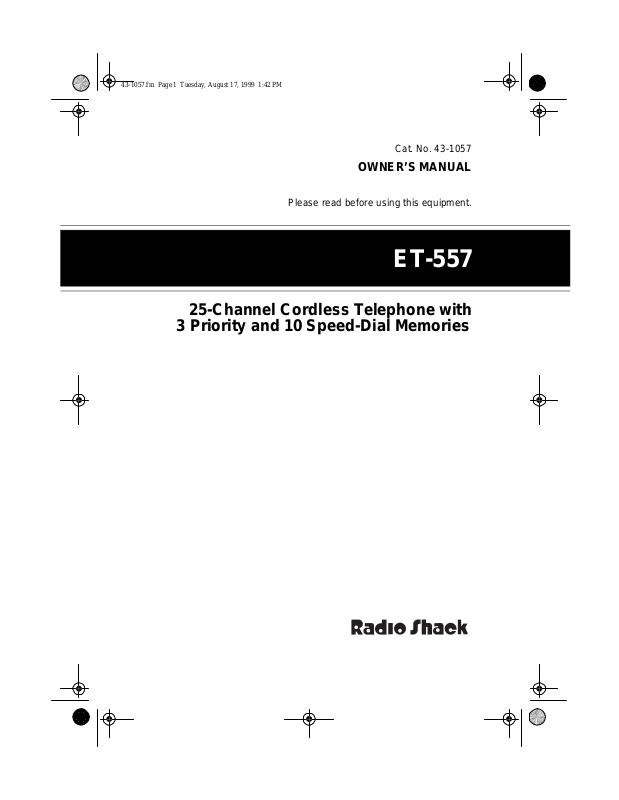

25-Channel Cordless Telephone with
3 Priority and 10 Speed-Dial Memories
Cat. No. 43-1057
OWNER’S MANUAL
Please read before using this equipment.
ET-557
y
y
g
y
g
g
g
y
43-105 7.fm Page 2 Tuesday, August 17, 1999 1:42 PM
Your ET-557 25-Channel Cordless Telephone with 3 Priority and 10 Speed Dial Memories is designed to exacting standards that ensure reliabil­ity, long life, and outstanding perfor­mance.
Its features include:
25 Channels
— so you can switch to the one that provides the least interfer­ence
Super CCT Noise-Reduction Cir-
— provides clear telephone
cuitr
conversations, giving you sound clarity comparable to that of a corded phone.
Securit
Access-Protection Code
— automatically sets the first time you use your phone to prevent other co rd­less phone users from using your phone line while the handset is off the cradle.
®
COM-LOK
— ensures that other cordless phone users cannot u se your phone line when the handset is on the cradle.
— lets you send a paging signal
Pa
e
from the base to the hands et to page someone or locate t he handset if you misplace it.
13-Memor
Automatic Dialin
— lets you store frequently called numbers then dial them with the touch of a but ­ton (from three priority dialing mem o­ries), or by entering one of 10 speed­dial memory location numbers.
Redial
— lets you quickly redial the last number dialed by touching a single button.
— sends an electronic switch-
Flash
hook signal for use with special phone services, such as call waitin g.
Volume Contr ol
— lets you adjust the volume of the handset’s ringer/paging tone and your telephone conversa­tions.
Tone/Pulse Dialin
— lets you use
your phone with tone or pulse service.
Hearin
-Aid Compatibilit
— lets you use your phone with he aring aids that have a T (telephone) switch.
This telephone has been tested and found to comply with all applicable UL and FCC standards.
© 1995 Tandy Corporation.
COM-LOK and Radio Shack are registered trademarks used by Tandy Corporation.
All Rights Reserv ed .
2
CAUTION
43-105 7.fm Page 3 Tuesday, August 17, 1999 1:42 PM
Important Note: Cordless phones such as this one require AC power to operate. When the AC power is off, you cannot dial out or receive incoming calls using your ET-557. To be safe, you should also have a phone that does not need AC power to operate (not a cordless ph one) so you can still make and receive calls if there is an AC power failure.
For your records, we urge you to record the serial number of your phone in the space below. The serial number is located on the bo ttom panel of the base.
Serial Number: __________________
Warning: To prevent fire or shock haz­ard, do not expose t his product to rain or moisture.
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BA CK. NO USER-S ERVICE­ABLE PARTS INSIDE. REFER SERVIC­ING TO QUALIFIED PERSONNEL.
This symbol is intended to aler t you to the p r es en c e o f un in su lated d an ­gerous voltage within the product’s enclosure that might be of suf ficient magnitude to constitute a risk of electric shock. Do not open the product’s case.
This symbol is intended to inform you that important operating and
!
maintenance instructions are in­cluded in the literature accompany­ing this product.
!
3
43-105 7.fm Page 4 Tuesday, August 17, 1999 1:42 PM
READ THIS BEFORE INSTALLATION
Each device that you connect to the phone line draws power from the phone line. We refer to this power draw as the device’s Ringer Equivalence Number, or REN. The REN is shown on the bottom of the base.
If you are using more than one phone or other device on t he line, add up all the RENs. If the total is more than five, your phones might not ring. In rural ar­eas, a total REN of three might im pair ringer operation. If ringer operation is impaired, remove a device from the line.
FCC STATEMENT
This telephone complies with Part 68
FCC Rules
of quest, provide the FCC Registration Number and the REN to your phone company. These numbers are located on the bottom panel of the base.
. You must, upon re-
You must not connect your
Note:
phone to any of the following:
• coin-operated syst e ms
• party-line systems
• most electronic key phone sys­tems
Some cordless t eleph ones operat e on frequencies that may cause interfer­fence to nearby TVs and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed nea r or on top of TVs or VCRs. If interference is experi­enced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the i nterfer­ence.
4
43-105 7.fm Page 5 Tuesday, August 17, 1999 1:42 PM
CONTENTS
Installation ............................................................................................................ 6
Selecting a Location ........................................................................................ 6
Placing the Base on a Desk Top................................................................ 6
Mounting the Base on a Wall Plate............................................................ 7
Mounting the Base Directly on the Wall......................................................8
Installing and Charging the Battery ................................................................. 9
Setting the Dialing Mode ............................................................................... 11
Setting the Handset’s Volume ....................................................................... 1 1
Setting the Ringer To ne ................................................................................ 11
Using RINGER ON/OFF ................................................................................ 12
Operation ............................................................................................................ 13
Making and Receiving Calls .......................................................................... 13
Selecting the Channel ................................................................................... 13
Using Redial .................................................................................................. 13
Using Flash ................................................................................................... 14
Using Tone Services on a Pulse Line ........................................................... 14
Paging ........................................................................................................... 15
Memory Dialing ............................................................................................. 15
Storing a Number in Memory .................................................................. 15
Storing a Tone E ntry with a Memory Number.......................................... 16
Entering a Pause .................................................................................... 16
Dialing a Memory Number ...................................................................... 16
Chain-Dialing Service Numbers ............................................................. 17
Testing Stored Emergency Numbers ............................................................ 17
Troubleshooting ................................................................................................ 18
Care and Maintenance ...................................................................................... 21
Replacing the Battery......................................................................................22
The FCC Wants You to Know ............................... ..................... .....................23
Lightning ....................................................................................................... 23
5
43-105 7.fm Page 6 Tuesday, August 17, 1999 1:42 PM
INSTALLATION
SELECTING A LOCATION
You can place the phone on a desktop or table, or mount it on a wall. Select a location that is:
• near an AC outlet
• near a telephone line jack
• out of the way of normal activities
• away from electrical machinery, electrical appliances, metal walls or filing cabinets, wireless inter­coms, alarms, and room monitors
• away from other cordless phones
The base’s location affects the hand­set’s range. If you have a choice of several locations, try each to see which provides the best performance.
Notes:
• Your telephone connects directly to a modular telephone line jack. If your phone line jack is not a mod­ular jack, you can update the wir­ing yourself, using jacks and adapters available at your local Radio Shack store. Or, you can let the phone company update the wiring for you.
• The phone company will charge you for the installation of neces­sary jacks.
Placing the Base on a Desk Top
Follow these steps when you place the base on a desk, shelf, or table.
1. Plug one end of the supplied mod­ular cord into the on the back of the base.
2. Plug the modular cord’s other end into a modular phone line jack.
3. Insert the supplied AC adapter’s barrel plug into the on the back of the base.
TEL. LINE
DC IN 9V
jack
jack
• The USOC number of the jack to be installed is RJ11C (RJ11W if you want to mount it on a wall plate).
6
43-105 7.fm Page 7 Tuesday, August 17, 1999 1:42 PM
4. Route the adapt er’s cord through the strain relief slot on top of the base.
5. Plug the adapter into a standard AC outlet.
6. Fully extend the base’s antenna and place it in a vertical position.
Mounting the Base on a Wall Plate
1. Plug one end of the supplied mod­ular cord into the on the back of the base.
2. Route the modular cord through the groove on the bottom of the base.
TEL. LINE
jack
3. Plug the cord’s other end into a modular phone line jack.
4. Insert the supplied AC adapter’s barrel plug into the
DC IN 9V
jack
on the back of the base.
5. Route the adapter ’s cord through the strain relief slot on top of the base and through the groove on the bottom of the base.
6. Plug the adapter into a standard AC outlet.
7
43-105 7.fm Page 8 Tuesday, August 17, 1999 1:42 PM
7. Align the base’s keyhole slots with the wall plate studs and slide the base downward to secure it.
8. Press and lift out the handset holder, rotate it 180°, then snap it back into place so it holds the handset.
9. Fully extend the base’s antenna and place it in a vertical position.
2. Plug one end of the supplied mod­ular cord into the
TEL. LINE
jack
on the back of the base.
3. Route the modular cord through the groove on the bottom of the base.
4. Plug the cord’s other end into a modular phone line jack.
Mounting the Base Directly on the Wall
For this mounting method, you need two wood screws (not supplied) with heads that fit into the keyhole slots on the bottom of the base.
1. Drill two holes 3 inches apart. Then thread a screw into each hole, letting the heads extend about
1
/5 inch from the wall.
8
15
/
16
5. Insert the supplied AC adapter’s barrel plug into the
DC IN 9V
jack
on the back of the base.
