Cat. No. 43-1050A

OWNER’S MANUAL

Please read before using this equipment.

ET-550

25-Channel Dual Keypad

Cordless Telephone

y

y

y

y

ging

g

g

y

43-105 0a .fm Page 2 Tue sday, Augus t 17, 1999 12: 56 PM

FEATURES

Your RadioShack ET-550 25-Channel
Dual Keypad Cordless Telephone is
designed to exacting standards that
ensure reliability, long life, and out­standing performance.

Its features include:

Dual Ke

— a full set of keys on

pads

both the ET-550’s handset and base
let you use either keypad to make and
answer calls or program the phone’s
features.

Speakerphone

— lets you make or
answer calls without using the hand­set.

Super CCT Noise-Reduction Cir-

— provides clear telephone

cuitr

conversations, giving you sound clarity
comparable to that of a corded phone.

25 Channels

— lets you change to a
clearer channel during a call if you no­tice interference.

20-Number Memor

Dialing

— lets

you store up to 20 numbers in memory

— 10 on the handset and 1 0 on the

base — for easy dialing.

®

COM-LOK

— ensures that other
cordless phone users cannot use y our
phone line when the hands et is o n t he
base.

Quick Talk

— lets you make or an­swer a call by simply lifting the handset
from the base.

Pa

/Two-Way Intercom System

— lets you send a signal from the base
to the handset, or from the handset t o
the base, so you can page someone or
easily locate the handset when it is
away from the base. If someone an­swers, you can use the ET-550 like a
two-way intercom.

— lets you quickly redial the

Redial

last number dialed.

— sends an electronic switch-

Flash

hook signal for use with special phone
services, such as Call Waiting.

Tone/Pulse Dialin

— lets you use

your phone with either type of service.

Hearin

-Aid Compatibilit

— lets
you use your phone with he aring aids
that have a T (telephone) switch.

Securit

Access-Protection Code

—
automatically prevents other cordless
phone users from using your phone
line while the handset is off the base.

© 1997 Tandy Corporation.

RadioShack is a regis tered tr ademark used by Tandy Corporation .

All Rights Reserv ed .

2

g

g

g

g

CAUTION

43-105 0a .fm Page 3 Tue sday, Augus t 17, 1999 12: 56 PM

Important Note: Cordless phones
such as this one require AC power to
operate. When the AC power is off,
you cannot dial out or receive incom­ing calls using your ET-550. To be
safe, you should also have a phone
that does not need AC power t o oper­ate (not a cordless phone) so you can
still make and receive ca lls if there is
an AC power failure.

Your telephone operates on st andard
radio frequencies as allocated by the
FCC. Even though the access protec­tion code prevents unauthorized use
of your phone line, it is possible for
other radio units operating on similar
frequencies within a certain area to
unintentionally intercept your conver­sations and/or cause interference.
This lack of privacy can occur with any
cordless phone.

This telephone has been tested and
found to comply with all applicable UL
and FCC standards.

Warning: To prevent fire or shock

.

hazard, do not expose this phone
to rain or moisture.

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER-SERVICE­ABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED PERSONNEL.

This symbol is intended to alert
you to the presence of uninsu­lated dan
the phone’s enclosure that
mi
to constitute a risk of electric
shock. Do not open the phone’s
case.

erous voltage within

ht be of sufficient magnitude

!

We recommend you record your
phone’s serial number here. The num­ber is on the bottom panel of the base.

Serial Number: __________________

This symbol is intended to in­form you that important operat-

!

in

and maintenance
instructions are included in the
literature accompanyin
phone.

this

3

43-105 0a .fm Page 4 Tue sday, Augus t 17, 1999 12: 56 PM

READ THIS BEFORE
INSTALLATION

Each device that you connect to the
phone line draws power from the
phone line. We refer to this power draw
as the device’s

Number

on the bottom of the base.
If you are using more than one phone

or other device on t he line, add up all
the RENs. If the total is more than five,
your phones might not ring. In rural ar­eas, a total REN of three might im pair
ringer operation. If ringer operation is
impaired, remove a device from the
line.

, or REN. The REN is shown

Ringer Equivalence

FCC STATEM ENT

This telephone complies with Part 68

FCC Rules

of
quest, provide the FCC Registration
Number and the REN to your phone
company. These numbers are shown
on the bottom of the base.

Note:

You must not connect your

phone to any of the following:

• Coin-operated systems

• Party-line systems

• Most electronic key phone sys­tems

. You must, upon re-

4

g

43-105 0a .fm Page 5 Tue sday, Augus t 17, 1999 12: 56 PM

CONTENTS

Installation ............................................................................................................ 6

Selecting a Location ........................................................................................ 6

Placing th e Base on a Desk Top ............................................................... 6

Mounting the Base on a Wall Plate ........................................................... 7

Mounting the Base Directly on the Wall .................................................... 9

Connecting and Charging the Battery . .......................................................... 10

Setting the Dialing Mode ............................................................................... 12

Turning the Ringer On/Off ............................................................................. 12

Operation ............................................................................................................ 13

Making and Receiving Calls .......................................................................... 13

Using the Handset .................................................................................. 13

Using the Speakerphone ........................................................................ 13

Switching Between the Handset and Speakerphone ............................. 14

Using Both the Handset and Speakerphone .......................................... 14

Changing the Channel ............................................................................ 14

Putting a Call on Hold ................................................................................... 14

Using the Paging/Intercom Features ............................................................ 15

Using Redial .................................................................................................. 16

Using Flash ................................................................................................... 16

Using Tone Services on a Pulse Line ........................................................... 17

Memory Dialing ............................................................................................. 17

Storing a Number in Memory .................................................................. 17

Entering a Pause .................................................................................... 18

Dialing a Memory Number ...................................................................... 19

Chain-Dialing Service Numbers ............................................................. 19

Testing Stored Emergency Numbers ..................................................... 19

Troubleshootin

Care and Maintenance ...................................................................................... 22

Replacing the Battery .................................................................................... 23

The FCC Wants You to Know ....................................................................... 24

Lightning ....................................................................................................... 24

................................................................................................ 20

5

43-105 0a .fm Page 6 Tue sday, Augus t 17, 1999 12: 56 PM

INSTALLATION

SELECTING A LOCATION

You can place the phone on a desk top
or table, or mount it on a wall. Select a
location that is:

• near an AC outlet

• near a telephone line jack

• out of the way of normal activities

• away from electrical machinery,
electrical appliances, metal walls
or filing cabinets, wireless inter­coms, alarms, and room monitors

• away from other cordless phones

The base’s location affects the hand­set’s range. If you have a choice of
several locations, try each to see
which provides the best performance.

Caution:

adapter was designed specifically for
your ET-550. Use only the supplied
adapter.

The supplied RadioShack

Placing the Base
on a Desk Top

Follow these steps when you place
the base on a desk, shelf, or table.

1. Plug one end of the supplied mod­ular cord into the
the back of the base.

2. Insert the supplied AC adapter’s
barrel plug into the
on the back of the base.

TEL LINE

jack on

DC IN 9V

jack

Notes:

• Your telephone connects directly
to a modular telephone line jack. If
your phone line jack is not a mod­ular jack, you can update the wir­ing yourself, using jacks and
adapters available at your local
RadioShack store. Or, you can let
the phone company update the
wiring for you.

• The USOC number of the jack to
be installed is RJ11C (RJ11W if
you want to mount it on a wall
plate).

6

43-105 0a .fm Page 7 Tue sday, Augus t 17, 1999 12: 56 PM

3. Route the adapt er’s cord through
the strain relief slot on top of the
base.

4. Plug the adapter into a standard
AC outlet. The POWER indicator
on the base lights.

5. Plug the modular cord’s other end
into a modular phone line jack.

Mounting the Base
on a Wall Plate

1. Plug one end of a short modular
cord (such as Cat. No. 279-390,
not supplied) into the
jack on the back of the base.

2. Insert the supplied AC adapter’s
barrel plug into the
on the back of the base.

TEL LINE

DC IN 9V

jack

6. Fully extend the base’s antenna
and place it in a vertical position.

7

43-105 0a .fm Page 8 Tue sday, Augus t 17, 1999 12: 56 PM

3. Route the modular cord through
the upper groove and the ad apter
cord through both the upper and
lower grooves on the bottom of
the base.

Lower
Groove

Upper
Grooves

4. Plug the adapter into a standard
AC outlet. The POWER indicator
on the base lights.

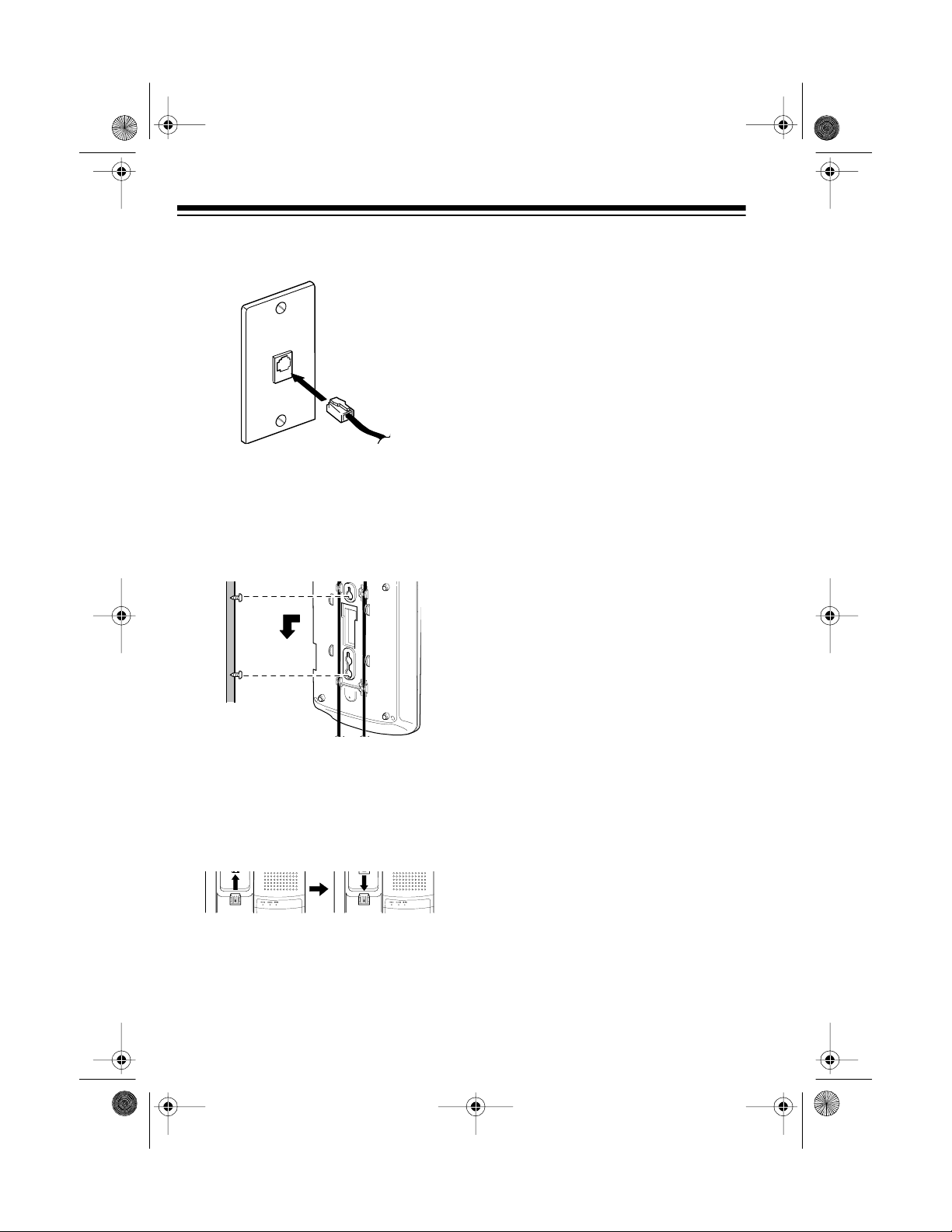

5. Plug the short modular cord’s
other end into the wall plate jack,
then align the base’s keyhole slots
with the wall plate studs and slide
the base downward to secure it.

6. Press and lift out the handset
holder, rotate it 180°, then snap it
back into place so it holds the
handset.

7. Fully extend the base’s antenna
and place it in a vertical position.

8

43-105 0a .fm Page 9 Tue sday, Augus t 17, 1999 12: 56 PM

Mounting the Base
Directly on the Wall

For this mounting method, you need
two wood screws (not supplied) with
heads that fit into the keyhole slots on
the bottom of the base.

16

5

16

/

5

16

/

jack on

1. Drill two holes 3

15

/

16

inches apart. Then
thread a screw into
each hole, letting

15

/

3

the heads extend

5

about

/16 inch from

the wall.

2. Plug one end of the supplied mod­ular cord into the

TEL LINE

the back of the base.

4. Route the supplied modular cord
and the adapter cord through both
the upper and lower grooves on
the bottom of the base.

Lower
Grooves

Upper
Grooves

5. Plug the adapter into a standard
AC outlet. The POWER indicator
on the base lights.

3. Insert the supplied AC adapter’s
barrel plug into the

DC IN 9V

jack

on the back of the base.
