FEATURES
Your RadioShack CT-501 Handheld Flip-Style Cellular Tele­phone is a state-of-the-art per sonal cellular telephone. It has all of these features:
Easy-to-Read Ten-Character Display — bright orange and green LED characters let yo u see essential call information i n almost any lighting condition.
Nine Different Ringer Styles — lets you set the phone’s ringer to help you distinguish your phone’s ring from that of another phone.
Call Tim er s — let you keep track of th e individual and cumu­lative call times (air-time), and includes a timer that you can reset as you wish (so you can track monthly airtime, for ex­ample).
Memor y Dialing — lets you store up to 40 phone numbers (of up to 32 digits each) in memory and dial any of them by pressing one, t wo, or three buttons.
Memory Scrolling — lets you rapidly search the memory lo­cations for a number you stored.
Last Number Redial — lets you quickl y redial the last num­ber you called.
Scratchpad Memory — lets you temporarily store a number (even during a cal l) , then easily dial it.
©
1997 Tandy Corporation.
RadioShack is a registered trademark used by Tandy Corporation.
All Rights Reserved.
2
17-111 0.fm Page 3 We dnesday, July 21, 1999 1:38 PM
Security Features — to prevent unauthorized phone use, you can lock the phone (so it cannot be used at all) or set it so calls can be placed only to numbers stor ed in memory lo­cations 01–10.
Special Messaging Service Features — the phone is pre­programmed t o work with special (subscription-onl y) messag­ing services offered by many cellular carriers, including calling line ID and voi ce mail notificat ion.
Ample Talk and Standby Time — the supplied battery (fully charged) provides about 2 hours of talk time or 30 hours of standby time.
Battery and Cellular Signal Strength Meters — easy-to­read graduated bar graphs let you quickly check the battery power remaining or the current cellular signal strength.
Automatic Answer — lets you set the phone to answer auto­matically after two rings (if you are using optional handsfree equipment, for exa mp le) .
Two Phone Number Capability — lets you use this one phone with two different cellular services, with a different phone number from each.
Handsfree Feature — the phone is preprogrammed to work with most optional handsfree equipment .
We recommend you record your phone’s Electronic Serial Number (ESN) here. The number is on the back of the hand­set under the battery.
Serial Number _______________
3
17-111 0.fm Page 4 We dnesday, July 21, 1999 1:38 PM
TABLE OF CONTENTS
A Look at Your Phone ............................................................... 6
Reading the Display/Indicators ............................................ 7
Using the Battery ..................................................................... 10
Installing the Battery .......................................................... 10
Charging the Battery ........................................................... 11
Checking Battery Power .................................................... 12
Replacing a Battery During a Call ...................................... 13
Important Battery Tips ........................................................ 14
Basic Operation ....................................................................... 15
Turning the Phone On/Off .................................................. 15
Signal Strength/Service Area ............................................. 15
Making a Call ..................................................................... 16
Answering a Call ................................................................ 18
Adjusting the Volume ......................................................... 19
Making Emergency Calls ................................................... 20
Redialin g Nu mb e rs ......................................... ................... 21
Displaying Numbers ........................................................... 23
Menu Functions ....................................................................... 24
Overvie w .......................................... .................................. 24
Using the Menu Functions ................................................. 27
Using Memory .......................................................................... 31
Storing Speed Dial Numbers ............................................. 31
One-Touch Dialin g ........... ...................... ............................ 32
Speed Recall/Dialing ......................................................... 32
Memory Sc ro lling/Dialing ......................................... .......... 33
Changing a Number in Memory ...... ................................... 34
Clearing a Memory ............................................................ 34
Using Scratchpad Memory ........... ................ ..................... 35
Memory Dialing Tips .......................................................... 35
Security Features .................................................................... 36
Locking Your Phone . . ...................... ...................... ............. 36
Using the Se rv ice Restri c tion ................................... .......... 39
4
17-111 0.fm Page 5 We dnesday, July 21, 1999 1:38 PM
Special Features ...................................................................... 40
Using the Messaging Functions ......................................... 40
Using the Call Timers ......................................................... 42
Selecting the Active Phone Number .................................. 45
Setting the Cellular System Type ....................................... 46
Roaming ............................................................................ 49
Using Cellular System PIN Dialing .................................... 49
Using the Phone with Handsfree Equipment ..................... 51
Using Touch-Tone Services . .............................................. 51
Troubleshooting ....................................................................... 53
Safety Information ................................................................... 54
Traffic Safety ...................................................................... 54
Operating Environment ...................................................... 54
Emergency Calls ................................................................ 55
FCC Regulations ............................................................... 56
Care and Maintenance ............................................................. 57
Specifications .......................................................................... 58
Patent Information ............................................................. 58
Display Message Glossary ..................................................... 60
5
17-111 0.fm Page 6 We dnesday, July 21, 1999 1:38 PM
A LOOK AT YOUR PHONE
3
1
2
4
Retractable Antenna
1.
5
6
Extend during a call for optimum performance.
2. Earpiece Alphanumeric Display (Ten-Character LED)
3. Displays the status indicators, phone number, memory location number, and message.
Alphanumeric Keypad
4. Enters call information or programs functions.
6
17-111 0.fm Page 7 We dnesday, July 21, 1999 1:38 PM
5. Function Keys
RCL
— Recalls a function or numbers stored in memory.
CLR
— Removes character s or clears functions.
END
— Ends a call or exits the funct ions menu.
SND
— Places or answers call s.
VOL
— Increases or decreases the ringer or earpiece
volume levels.
FCN
— Selects functions.
STO
— Stores to memory or turns on functions.
PWR
— Turns the phone on and off.
6. Flip Cover
READING THE DISPLAY/INDICATORS
Your phone’s display provides a full range of messages and special indicators to assist you with the phone’s operation. Since many of these messages contai n m ore characters than your phone can display at one time, the phone displays most messages across more than one display. For example, the phone displays
to indicate that the Emergency Call feature is turned on.
On
EMrgCY CALL
then (within about 1 second)
Note: When referr ing to a displayed message, this manu al in­cludes the entire message all together (such as
On).
CALL
EMrgCY
A few of your phone’s many indicators are briefly described on the following pages. For a complete listing of display mes­sages and indicators, see “Display Message Glossary” on Page 60.
7
17-111 0.fm Page 8 We dnesday, July 21, 1999 1:38 PM
Signal Strength Indicator
Indicates the relative strength of the signal being received by your phone.
See “Signal Strength/Service Area” on Page 15
Battery Charge Indicators
.
Represent the current voltage level of the battery.
“Checking Battery Power” on Page 12
.
IU (In-Use) Indicator
Flashes when a call is in pr ogress.
8
See
17-111 0.fm Page 9 We dnesday, July 21, 1999 1:38 PM
NS (No Service) Indicator
“Signal Strength/ Service Area” on Page 15
.
See
RM (Roam) Indicator
Flashes if the phone is accessing a service area outside of your home system (roaming).
See “Roaming” on Page 49
.
9
17-111 0.fm Page 10 We dnesday, July 21, 1999 1:38 PM
USING THE BATTERY
Warning:
injury, or burns if a metal object (such as a pen spring, bead­ed chain, or piece of jewelry) contacts the battery’s terminals and causes a short circuit. Be ca reful when placing a charge d battery inside a coat pocket, purse, or other container that might contain metal objects.
Caution:
or disposed of properly. (You can put them in the battery re­cycling box at your local RadioShack store.) They must not be disposed of in municipal waste.
A detached battery could cause property damage,
Nickel-cadmium (NiCd) batteries must be recycled
INSTALLING THE BATTERY
Align Here
Latch
1. Place the bat tery flat against the back of the phone and align the top of the battery below the raised arrows.
2. Slide the battery toward the top of the phone until it snaps into place.
10
17-111 0.fm Page 11 We dnesday, July 21, 1999 1:38 PM
To remove the battery
press the latch at the top of the battery and slide the battery toward the bott om of the phone unt il it stops. Then lift the bat ­tery off the phone.
Note: If you have an extra charged battery and the currently installed battery becomes low during a call, you can change the battery without ending the call or losing the connection. See “Replacing a Battery During a Call” on Page 13.
, be sure the phone is turned off, then
CHARGING THE BATTERY
The nickel-cadmium battery supplied with your telephone is shipped in a discharged state to extend the battery’s life. It must be full y charged before you can use your phone.
We recommend that you charge a new battery overnight, but no longer than 24 hours, using the AC charger supplied with your phone. Recharging time varies based on the type of bat­tery and the amount of charge left in the battery. See “Rec­ommended Recharging Times” on Page 12.
Follow these steps to charge the supplied (or any approved) battery using the charger supplied with your phone.
1. Install the bat tery on the phone.
2. Insert t he charger’s flat plug into the charging jack on the bottom of the phone.
Note: The plug fits into the jack only one way. If you have difficulty inserting the plug, turn it over and try again. Do not force it!
3. Plug the charger’s power cord into a standard AC outlet. The battery charge indicators appear.
11
17-111 0.fm Page 12 We dnesday, July 21, 1999 1:38 PM
Notes:
• You can use the phone while it i s charging, but charg­ing takes longer.
• For fastest charging, be sure the phone is turned off if you are not expecting a call.
4. When the battery is full y charged , disconn ect the charger from the AC outlet. Then press in the clips on the sides of the plug and pull it away from the phone to disconnect the charger.
Recommended Recharging Times
Approximate
Battery Type
NiCd Slim 2 NiCd Slim Extra Capacity 31/ NiCd Standard (suppli ed) 41/ NiCd Extra Capacity 51/
Charging Time
(Hours)
1
2
/
4
4
2
CHECKING BATTERY POWER
The phone displays a gradu ated set of up to three battery lev­el indicators ( ) when it is turned on. The more indicators that appear, the higher the battery’ s current charge level.
12
17-111 0.fm Page 13 We dnesday, July 21, 1999 1:38 PM
To see a more detailed indication of t he battery’s charge level
FCN
GHI
at any time, press . The battery strength meter ap-
4
pears on the di splay for about 5 seconds. Read this meter in the same way.
When battery power becomes low, the phone displays
and sounds a warning tone every few seconds. When
bAt
Lo
power becomes too low for the phone to operate, it automat i­cally turns off. Recharge the battery as soon as possible.
Note: Rechargeable batteries last longer and perform better if occasionally allowed to fully discharge. You can do this by leaving the phone on until the phone automatically turns off or you can use the battery discharge feature of any approved accessory available for your phone. Do not tr y to discharge the battery by any ot her means.
REPLACING A BATTERY DURING A CALL
If you have an extra charged battery and the currently in­stalled battery becomes low during a call, follow these steps to change the battery without ending the call or losing the connection.
1. Tell the other party on the line what you plan to do (tell them, for example, that they will hear some noise as you remove the battery and you will call back if for any rea­son you lose the connection).
13
17-111 0.fm Page 14 We dnesday, July 21, 1999 1:38 PM
2. Remove the battery, and within 3 seconds, install the fresh battery. Your call is still on the l ine.
Note: If you do not complete Step 2 within 3 seconds, the call disconnects.
IMPORTANT BATTERY TIPS
• Use only the supplied charger and use only batteries designed for th is phone.
• You can purchase additional standard or extended capacity batteries through your local RadioShack store.
• When you are not using the charger, disconnect it from power. Do not leave the battery connected to the charger and AC power for more than 24 hours, since overcharg­ing could short en the battery’s l if e.
• When the battery is not in use, store it uncharged in a cool and dar k place.
• The battery i s a sealed unit with no serviceable parts. Do not try to open the case.
• For the best results, be sure the battery is at or near room temperature when you charge it.
• A battery can be charged and discharged hundreds of times, but it eventually wears out. When the operating time (talk time and standby time) is noticeably shorter than normal, get a new battery and recycle or properly dispose of the ol d one.
• Do not dispose of batteries in a fire.
• Never use any charger or battery that is damaged or worn out.
14
17-111 0.fm Page 15 We dnesday, July 21, 1999 1:38 PM
BASIC OPERATION
TURNING THE PHONE ON/OFF
on
PWR
ap-
To turn on the phone
The phone performs a short self test and sounds a tone, the keypad backlight turns on for about 17 seconds, and pears. The phone is ready to use when appears (see “Signa l Str ength/Servi ce Area”) .
Notes:
• The keypad backlight turns on for about 15 seconds
every time you press a key, then it turns off and all but the green signal strength indicator disappear from the display to conserve battery power. W hen the phone is locked (see “Locking Your Phone” on Page 36), how­ever, the phone’s display goes completely blank about 15 seconds after you press the last key.
• During battery charging, the keypad backlight does not
turn off and the display does not change or go blank when the phone is turned on and unlocked.
To turn off the phone
blank.
, flip open the cover then press .
(no service) dis-
NS
, press again. The display goes
PWR
SIGNAL STRENGTH/SERVICE AREA
The phone always displays a green signal strength meter when it is turned on to indic ate the strength of the cellul ar sig­nal currently being received. The more bars that appear on the meter, the stronger the signal.
15
17-111 0.fm Page 16 We dnesday, July 21, 1999 1:38 PM
Notes:
• If few or no bars appear (meaning t he signal strength is weak) and you want to make or receive a call, move the phone to a different location so the signal strength increases.
• When all other display characters disappear to conserve battery power, the signal strength meter flashes and scrolls its bars.
If
(no service) appears on the upper left side of the dis-
NS
play, the phone is outside the cellular service area and you cannot make o r receive calls until you reach an area with ser­vice your phone can use.
MAKING A CALL
1. Extend the antenna, flip open the cover, and be sure the phone is on (
2. Press the number keys to enter the phone number you want to dial (including the area code, if necessary). The numbers appear on the display as you press them.
Notes:
• If you make a mistake, repeate dly press to delete
one digit at a time, or hold down to delete all dig­its.
• The phone can display up to 10 characters at once. If
you enter (or display a message containing) more than 10 characters, the characters autom ati cally scroll off the left side of the display. Press at any time to recall the overflow characters. See “Any Number Longer Than 10 Digits” on Page 23.
and other indicators appear).
on
CLR
CLR
RCL
16
END
17-111 0.fm Page 17 We dnesday, July 21, 1999 1:38 PM
3. Press to call the phone number. IU (in use) flashes
4. To end the call, press .
Note: Closing the cover does
and then
SND
diALin
reappears.
on
g
then the number called appear briefly,
END
not
end or disconnect the call.
System B u sy Message
In addition to the normal busy signal you hear when a num­ber you call is busy, your phone sounds tones and displays these messages to indicate that it cannot complete a call.
Tone You See Description
Fast Busy
snd to rEdiAL
High/low
snd to rEdiAL
When either of these conditions occur, you can press again to redial the number immediately (see “Using Automat­ic Redial” on Page 22), or press then dial the number again.
The cellular system is busy .
The cellular system could not complet e the call.
SND
17
CLR
17-111 0.fm Page 18 We dnesday, July 21, 1999 1:38 PM
ANSWERING A CALL
When the phone receives an incoming call, it rings and flashes on t he display. To answer the cal l, press . To end the call, pre ss .
END
CALL
SND
Notes:
• Your phone can receive calls even if the ant enna is not extended. For optimum performance or if the signal strength becomes weak, however , extend the antenna.
• If you subscribe to calling line ID service through your cellular carrier, you can view the calling party’s phone number on the phone’s display. See “Viewing/Recalling Messages” on Page 41.
• If your phone receives a call but the signa l strength is to o weak to support it,
appears and the phone sounds
CALL
a series of beeps. The caller hears the standard “cus­tomer not available” message. If this happens, press
CLR
to clear
from the di splay.
CALL
Missed Call Message
If your phone i s on and receives a call, but you do not answer it, the calling party hangs up. The next time you press any key (except , , or ), seconds to notify you that you misse d a call .
appears on the display for about 15 seconds after
CALL
CLR
END
PWR
reappears for about 15
CALL
To clear
18
from the display, pr ess or .
CALL
END
17-111 0.fm Page 19 We dnesday, July 21, 1999 1:38 PM
ADJUSTING THE VOLUME
Adjusting the Earpiece Volume
To increase or decrease the earpiece volume during a call, hold down . As you hold down the key, the volume in­creases or decreases (depending on the last adj ustment you made) and the phone displays the volume meter for about 8 seconds. The more bars that appear on the meter, the higher the volume.
To adjust the volume in the other direction (if the volume is getting louder, for example, and you w ant it to be softer) re­lease then hold it down again within 8 seconds.
Adjusting the Ringer Volume
VOL
VOL
To increase or decrease the ringer volume at any time, press
FCN VOL
then hold down until you hear the desired ring vol­ume. As you hold down the key, the phone sounds a gradual­ly louder or softer ring tone (depending on the l ast adjustment you made) and displays the volume meter for about 8 sec­onds. The more bars that appear on the m eter, the louder t he ringer sounds.
To adjust the volume in the other direction (if the ring tone is getting louder, for example, and you w ant it to be softer) re-
VOL
lease then hold it down again within 8 seconds.
19
1
17-111 0.fm Page 20 We dnesday, July 21, 1999 1:38 PM
Using Mute
To turn off the phone’s microphone during a call so the other party on the phone cannot hear you (so you can tal k privately with someone else in the room, for example), press
MNO
6
.
appears.
MUtE
FCN
MNO
To turn t he microphone on again, press again so
disappears.
MUtE
Hint:
To help you remember which key to use, note that “M”
MNO
(for mute) appear s on the key.
6
6
FCN
Note
: Pressing to end a call also turns the microphone
END
back on.
MAKING EMERGENCY CALLS
Your phone is preprogrammed t o let you dial your local e me r­gency number (such as 911) at the press of a single button, even if the phone is locked (see “Locking Your Phone” on Page 36). Before you can use this feature, however, you must first program the emergency number you want to use in memory location 01 of your phone. See “Storing Speed Dial Numbers” on Page 31.
To place an emergency call
gency number, simply hold down for about 1 second. The phone displays ber.
20
once you have stored the emer-
EMrgCY
and dials the emergency num-
17-111 0.fm Page 21 We dnesday, July 21, 1999 1:38 PM
Important Notes:
• If you disabled the emergency display (see “Disabling the Emergency Display” on Page 29), the phone does not display using the key.
EMrgCY
1
when you make emergency calls
• When you make an emergency call, give your name and cellular phone num ber, as well as the location of the inci­dent. Remember that your phone might be the only means of communication at the accident scene. Do not end the call until you are advised you may do so.
REDIALING NUMBERS
Redialing the Last Number Called
Your phone alw ays stores the last phone number you called. To recall and redial th is number, follow these steps.
RCL
OPER 0OPER
1. Press . (location 00) and th e mo st r ecent number called flashes on the display.
2. To redial this number while it appears on the display, press .
SND
To exit without redialing the number, hold down to clear the display.
0
CLR
21
17-111 0.fm Page 22 We dnesday, July 21, 1999 1:38 PM
Using Automatic Redial
To automatically redial a number when you get the cellular system busy signal (when
SND
so
rEdiAL
appears. The phone automatically redials
Snd to rEdiAL
the number at regul ar intervals for up to 4 minutes or until th e call goes through.
If the call goes through, the phone rings once to alert you. Simply begin your conversation as usual when the other par­ty answers.
appears), press
If the cal l cannot be compl eted within 4 minutes (and
rEdiAL
the redial cycle or to end the call.
appears again) , you can press again to repeat
END
SND
22
Snd to
#
17-111 0.fm Page 23 We dnesday, July 21, 1999 1:38 PM
DISPLAYING NUMBERS
Your Phone Number
To display your phone number at any time (even while a call is in progress), simply press .
Note
: If you have two phone numbers programmed into your phone (see “Selecting the Active Phone Number” on Page 45), pressing displays only t he currently ac-
RCL
tive phone number.
Any Number Longer Than 10 Digits
Your phone can dial and store numbers of up to 32 digits; however, the phone can di splay only 10 digit s at once (usual­ly the last 10 digits of the number). To review the overflow characters, press once. The phone displays the overflow digits (up to 10 digits at a time), then the last 10 digits reap­pear.
RCL
RCL
#
23
17-111 0.fm Page 24 We dnesday, July 21, 1999 1:38 PM
MENU FUNCTIONS
OVERVIEW
Turning a Function On/Off
Follow these steps to access the functions menu and turn any of the phone’s functions on or off.
Notes
:
• All functions on your phone (except for the message
reminder tone and emergency call) are preset to off (dis­abled).
• To exit without changi ng the setting during Steps 1 and
2, or before you press a key in Step 3, press .
FCN

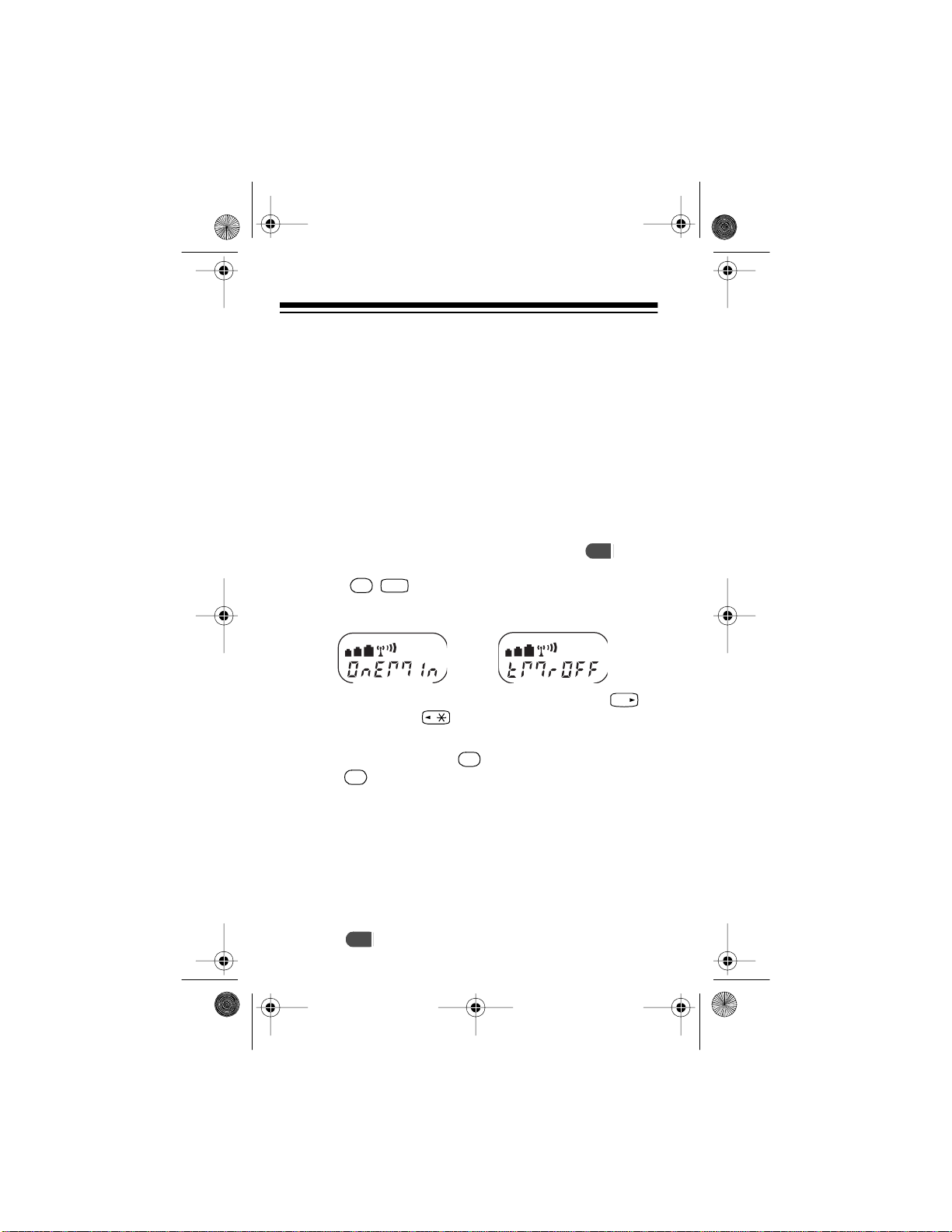

1. Press to access the functions menu. The first
1
function’s name and status appear (such as
for “one-minute timer is off”).
OFF
tMr
END
OnEMIn
2. To select a different function, repeatedly press to
#
scroll forward or to scroll backward through the menu until that funct ion and its current st atus appear.
3. Within 2 minutes, press to turn the selected functi on
CLR
on or to turn the function off.
Note:
A few seconds after you display the function name
STO
and status (Step 1 or 2), the phone alternately displays
StO-On
then
CLr-OFF
as a prompt to remind you
about what key to press .
4. To turn another function on/o ff, repeat Steps 2 and 3. The phone automatically exits the functions menu about
2 minutes after you last press a key. To exit sooner,
END
press .
24
#
17-111 0.fm Page 25 We dnesday, July 21, 1999 1:38 PM
Function Status Quick-Review
Follow these steps to perform a quick-review of all functions currently enabled on your phone.
Notes
:
• When you do a quick-review, your phone shows only
those functions for which the default setting has been changed. Since the message reminder tone and emer­gency dialing functions have a default setting of “on” (enabled), they appear in a quick-review only if they have been disabled.
• The setting
Auto HF On
appears during a quick-review, but you cannot change the phone’s hands-free setting. See “Using the Phone with Handsfree Equipment” on Page 51.
• If your phone is set to use the home cellular system type
(see “Setting the Cellular System Type” on Page 46,
appears as one of the settings during a quick-
HOME
review.
(auto hands-free on) always
FCN
OPER
1. Press
0
enabled function (such as
WXY
RCL
9
. The abbreviation for t he first
OnEMIn tMr On
for “one-
minute timer is on”) appears on the display.
Notes
: See “Display Message Glossary” on Page 60 f or
a complete list of func tion abbreviations.
2. Repeatedly press or to scroll forward or backward through al l other enabled functions (if any).
3. The phone automatically exits the quick-review about 8 seconds after you last press a key. To exit sooner, press
END
.
25
17-111 0.fm Page 26 We dnesday, July 21, 1999 1:38 PM
Functions List
Display Shows Function Description
OnEMIn tMr
OFF
or
On
ringEr StyLE
and a number
from 1–
9
Auto AnSr
OFF
or
On
Auto Lock
OFF
or
On
EMrgCY CALL
OFF
or
On
rEMInd MS
On
OF
or
SELEct LAn-
guAg
OFF
or
On
Pin inActiv
or
Activ
Phone beeps once every minute during a call t o remind you how long you have been on the phone
Sets the phone to use one of nine different ringer styles
Sets the phone to automati­cally answer after two rings
Sets the phone to automati­cally lock when you turn power off
Disables/enables the emer­gency dialing function
g
Sets the phone to alert you of messages received (with optional messaging services)
(Function not available on this phone)
Sets the phone to automati­cally send a cellular PIN with the second press of the button
See
Page
27
27
28
37
29
30
N/A
50
SND
26
9
WXY
17-111 0.fm Page 27 We dnesday, July 21, 1999 1:38 PM
USING THE MENU FUNCTIONS
Using the Call-Time Reminder Tone
The call-time reminder function lets you set the phone to sound a subtle tone about 50 seconds after you place or an­swer a call, then once ever y minute after that, to remind you of how long you have been on the phone. Follow these steps to enable or disable t he call-time reminder tone.
FCN
1. Press .
2. Press .
3. Press so appears (to disable).
4. Press to exit the function menu.
END
Changing the Ringer Style
Your phone has 9 different ringer styles for you to choose from (to help you distinguish your phone’s ring from that of another phone, for example). Follow these steps to change the ringer style.
1. Press .
2. Repeatedly press or until the phone displays
ringEr StyLE
selected ringer style).
3. Press . The phone sounds the currently selected ringer style , then it displays
4. Press the number keys ( ) on the phone’s key­pad to hear the vari ous ringer styles (or repeatedl y press
or to scroll backward or forward and hear
each of them).
1
#
OnEMIn tMr On
STO
FCN
STO
On
1
#
or
appears (to enable) or so
#
OFF
appears.
CLR
OFF
and a number from 1–9 (the last
SELEct 1–9
1
.
27
17-111 0.fm Page 28 We dnesday, July 21, 1999 1:38 PM
5. When you hear the ringer style you want to use, press
STO
to select it. The phone displays
ringEr n SEt
(where n is the number of the ringer style you selected).
6. Press to exit the function menu.
END
Using Automatic Answer
The automatic answer function lets you set the phone to au­tomatically answer incoming calls wi thout you having to press a key. When automatic answer is enabled and the phone re­ceives a call, it rings twice then automatically answers the call. Begin your conver sation as usual.
Follow these steps to turn the automatic answer function on or off.
FCN
STO
END
1
#
appears (to enable) or so
On
Auto AnSr OFF
CLR
OFF
1. Press .
2. Repeatedly press or until or On appears.
3. Press so appears (to dis able).
4. Press to exit the function menu.
Note:
If automatic answer is enabled and you set the phone to use a ringer style such as number 6 (see “Changing the Ringer Style” on Page 27), which sounds f our chirps per ring, remember that the phone answers only after two
rings
(two
sets of f our chirps, in this case).
28
17-111 0.fm Page 29 We dnesday, July 21, 1999 1:38 PM
Disabling the Emergency Display
Your phone is preset to display down to make an em ergency call; however, you c an set the phone so
1
EMrgCY
does not appear (if you did not store
EMrgCY
when you hold
an emergency number in memor y 01, for example). Follow these steps to disable (or enable) the emergency dis-
play.
FCN
1. Press .
2. Repeatedly press or until or
OFF
3. Press so
1
appears.
CLR
#
appears (to disable) or so
OFF
EMrgCY CALL On
STO
On
appears (to enable).
4. Press to exit the function menu.
END
29
17-111 0.fm Page 30 We dnesday, July 21, 1999 1:38 PM
Using Message Reminder Tones
If your cellular carrier offers a special messaging serv ice, and you subscribe to that service, your phone is preset to beep every 2 minutes until you read all new messages.
Notes
:
• If you do not subscribe to a messaging service, the reminder tone function has no effect on your phone.
• To view the message data sent to your phone by your cellular carrier, see “Viewing/Recalling Messages” on Page 41.
Follow these steps to disable or enable the message r emind­er tones.
FCN
1
1. Press
2. Repeatedly press or until or
OFF
3. Press so appears (to enabl e).
4. Press to exit the function menu.
appears.
CLR
END
.
#
appears (to disable) or so
OFF
REMInd Ms
STO
g
On
On
30
STO
17-111 0.fm Page 31 We dnesday, July 21, 1999 1:38 PM
USIN G MEM O R Y
Your phone has 40 speed-dial memory locations that can each hold a phone number of up to 32 digits.
STORING SPEED DIAL NUMBERS
Note:
If you are unable to complete Steps 2 and 3 within 2 minutes, the phone exits the procedure and it s display goes blank to conserve battery power. Press , then start ove r at Step 2.
1. Clear the display (if necessary), enter the phone number you want to st ore, then press . The phone di splays
LocATn
(location)
_ _
.
2. Within 2 minutes, enter the two-digit memory location number (01–40) where you want to store the phone number. The display confirms the memory location you have chosen.
Notes:
• Remember that your phone uses memory location 01
for one-touch e me rgency dialing. Store only your local emergency number (such as 911) in that location.
• If you enter a n invalid number (such as 41), the phone
displays
invALid LocATn
, then
reappears. Try again.
3. If you previously stored information in t he selected mem­ory locatio n, or if the phone’s memory is full, the selected location number and
appear briefly, then the
FULL
phone displays the current ly stored number followed by
ChAngE?
.
To select a different memory location
enter the new memory locat ion number, then press .
STO
END
LocATn _ _
, press ,
END
STO
STO
31
17-111 0.fm Page 32 We dnesday, July 21, 1999 1:38 PM
To use the selected memory location and replace
informati on currently stored there, press .
STO
the
ONE-TOUCH DIALING
To quickly place a call to any number stored in memory loca­tions 2 or 3 (without pressing ), simply hold down that
SND
number key for about 1 second.
SPEED RECALL/DIALING
If you know the memory number you want to use, simply en­ter that number (such as 07), then press to quickly place the call.
If you know the memory number you want to use, but you want to review the stored information (just to be sure!) before you place the call, pres s then enter the memory location
RCL
number. The location number and phone number flash on the display. To pl ace the call, press .
SND
SND
32
17-111 0.fm Page 33 We dnesday, July 21, 1999 1:38 PM
MEMORY SCROLLING/DIALING
1. Press .
2. Press to start scrolling from the first memory
RCL
OPER
0
1
location, or enter a specific memory number (suc h as 11) that you want t o start from . The location number foll owed by
(to indicate scrolling is active) and the stored phone
number flash on the display.
Note:
If the memory locat ion you selected is unused, the
location number (
3. Repeatedly press or to scroll forward or
, for example) appears steadily.
03’
#
backward through the numbers.
4. When you see the number you want to use, press
SND
to place the call.
For convenience (so you can see if you have a caller’s phone number, for example), your phone lets you scroll through memory while a call is in pr ogress. Simply follow these steps, but press instead of when you finish.
END
SND
33
STO
17-111 0.fm Page 34 We dnesday, July 21, 1999 1:38 PM
CHANGING A NUMBER IN MEMORY
1. Recall the number that you want t o change.
2. Repeatedly press to backspace and erase digits,
CLR
then enter the correct numbers; or simply add digits to the existing number. Then press and enter the two­digit location number.
3. The selected location number and
appear briefly,
FULL
then the phone displays the currently stored number fol­lowed by
Press again within 2 minutes to store the edited
ChAngE?
STO
.
number. The memory location number appears on the display to confirm the entry.
To exit without changing the number, press .
END
CLEARING A MEMORY
1. Press , then enter the two-digit memory loca-
CLR STO
tion number you want to clear.
2. The selected location number and
appear briefly,
FULL
then the phone displays the currently stored number fol­lowed by
ChAngE?
To clear the selected memory, press . The selected
.
STO
memory location number appears on the display to con­firm the entry.
To exit without clear ing the selected memory, press .
34
END
SND
17-111 0.fm Page 35 We dnesday, July 21, 1999 1:38 PM
USING SCRATCHPAD MEMORY
Your phone’s scratchpad memory lets you temporar il y store a telephone number on the display during a call. This is handy, for example, when someone gives you a number dur ing a call and you don’t have a place to write it down.
To store a number in the scratchpad memory during a call, simply press the keys to enter that number. After you press
END
to end the call, you can press to immediately dial
the scratchpad memory number.
Note
: Be sure to tell the other party on the call that they will
hear tones as you press the keys to enter the number.
MEMORY DIALING TIPS
Frequently Dialed Area Codes/Prefixes
To reduce the number of keystrokes you use to dial frequent ­ly called area codes and/or prefixes, store that area code and/or prefix (including the 1, if necessary) in memory. To dial a number using that memory, simply recall that memory, enter the remaining digits of the telephone number you are calling, then press to place the call.
SND
Banking or Other Phone Services
For convenience, you can store in your phone’s memory the touch-tone command sequences you use when calling your bank or other phone services. See “Using Touch-Tone Ser­vices” on Page 51.
35
SND
STO
17-111 0.fm Page 36 We dnesday, July 21, 1999 1:38 PM
SECURITY FEATURES
LOCKING YOUR PHONE
To prevent unauthorized use of your phone, you can enter a three-digit code to lock your phone at any time (see “Using Manual Lock”). For added convenience, you can also set the phone to automatically lock every time you turn it off (see “Using Automati c Lock” on Page37).
When the phone is locked, any key (except ). When the phone is locked and re-
PWR
Loc ’d
appears when you press
ceives a call, it rings as usual. To answer the call, you must enter the lock code and then press .
Your phone’s preset lock code is 123
. For added security, you can change the code to one that you can easily remem­ber. See “Changing the Lock Code” on Page 37.
Note
: If you lock your phone then forget the
can enter a six-digit
securi ty
code to display the lock code.
lock
code, you
See “Displaying the Lock Code” on Page 38.
Using Manual Lock
Follow these ste p s to l ock or unlock your phone at any time.
1. Press , then hold down . The phone displays
Loc ?
FCN
.
2. To lock your phone, press within 8 seconds.
Loc ’d
appears on the display.
To exit without locking the phone, press .
Note
: If you do not press within 8 seconds, your phone automatically exits the lock program without l ock­ing the phone.
STO
JKL
5
END
36
END
17-111 0.fm Page 37 We dnesday, July 21, 1999 1:38 PM
The phone remains locked until you unlock it. To unlock your phone, simply enter the three-digit lock code. If you make a mistake, press then try again.
CLR
Using Automatic Lock
The automatic lock feature lets you set your phone to auto­matically lock each time you turn it on. When automatic lock is enabled,
Loc ’d
on the phone. You can unl ock the phone as usual at anytime.
Follow these steps to enabl e or disable automatic lock.
1. Press .
FCN
2. Repeatedly press or until the phone displays
Auto Lock On
3. Press so
4. To exit the function menu, pres s .
STO
appears (to disable).
appears after the self test when you turn
1
#
or
On
.
OFF
appears (to enable) or so
CLR
OFF
Changing the Lock Code
For added security, you can change the lock code, but you must enter a preset 6- digit security code first.
preset security code is 000000
(you cannot change this
code). Follow these steps to change your phone’s lock code.
Note
: The phone’s display does not change (no characters
appear when you press the keys) until you press in Step
4.
FCN
OPER
1. Press .
0
Your phone’s
STO
37
17-111 0.fm Page 38 We dnesday, July 21, 1999 1:38 PM
2. Enter the six- digit security code.
3. Enter the new three-digit lock code you want t o use.
4. Press . The phone displays
STO
ChAngEd to
and the
new lock code.
5. When you finish, hold down for about 1 second to
CLR
clear the lock code from the display.
Displaying the Lock Code
If you change your lock code then forget it, you can use your phone’s preset security code ( lock code.
Follow these ste p s to di splay the current lock code.
Note
: The phone’s display does not change (no characters
appear when you press the keys) until you press in Step
3.
FCN
OPER
1. Press .
0
2. Enter the six- digit security code.
3. Press . The phone displays
RCL
rently set three-digit lock code.
4. When you finish, hold down for about 1 second to clear the lock code from the display.
000000
) to display the current
LocCode
CLR
RCL
and the cur-
38
17-111 0.fm Page 39 We dnesday, July 21, 1999 1:38 PM
USING THE SERVICE RESTRICTION
Your phone is preset to let you (or anyone else) dial any type of number (local or long distance) and freely access any in­formation stored in its memory. To prevent unauthorized use of your phone, however, you can enter your phone’s preset security code (
000000
) and set this serv ice restricti on.
Service
Level
Description
1 Calls can be placed only to numbers
stored in memory locations 01–10 by pressing , the memory number, then
SND
RCL
. Otherwise, the ke ypad is lo cked. Th e
memory cannot be changed.
4 No restricti ons (default set ti ng).
Note
: Your phone i s preset to service level 4.
Follow these steps to change the service restriction level on your phone.
FCN
OPER
1. Press .
0
2. Enter the six-digit securit y code.
3. Enter the serv ice level (1 or 4) you want to use.
4. Press . The phone displays where as
STO
is the service level number you entered (such
n
SErvicE LEvEL 4
).
SErvicE LEvEL n
,
39
17-111 0.fm Page 40 We dnesday, July 21, 1999 1:38 PM
SPECIAL FEATURES
USING THE MESSAGING FUNCTIONS
Some cellular systems provide services that can send calling line ID and voice mail not ification to your phone. Your phone is preprogrammed to work wi th th ese services.
Note:
In order to use these functions on your phone, your cellular carrier must provide, and you must subscribe to, these services. Otherwise, selecting or setting them will have no effect. For more information about these services, call your cellular carrier.
Overvie w/ R eceiving Messages
When your phone is turned on and receives calling line ID or voice mail notification data from your cellular carrier, it alter­nately displ ays:
You See Meaning
xx nEW
YY totAL
Your phone stores each message in a special memory area called the “message stack.” The message stack can hold up to 20 messages at once, with messages stored in order from newest (memory position 1) to oldest (memor y position 20).
40
Number (xx) of new messages received Total number (YY) of messages currently
stored in the message stack
17-111 0.fm Page 41 We dnesday, July 21, 1999 1:38 PM
Notes:
• If the message stack is full (20 messages are currently stored) and the phone receives a new message, it auto­matically stores the new message and deletes the oldest message in the stack.
• Your phone does not receive messages while it is turned off. Contact your cellular carrier to find out how the car­rier handles undeliverable/queued messages.
Viewing/Recalling Messages
Follow these steps to vi ew or recall a message.
1. Press and release , then hold it down for about 1 second. The phone displays the first (newest) message in the stack.
If the message is a calling line ID message
briefly displays ber) then the number of the party that called (up to 14 characters).
If the message i s voice mail notification
plays the message data (such as a message number and/or number of total/new messages waiting) sent by your cellular carrier. The type and format of the message waiting information sent varies by carrier — contact your cellular carrier for more information.
Note: If there are no messages in the stack, the phone displays
no MSgS
message displa y. To exit sooner, press .
RCL
, the phone
cId yy
(where yy is the message num-
, the phone di s-
for about 8 seconds then exits the
CLR
41
17-111 0.fm Page 42 We dnesday, July 21, 1999 1:38 PM
2. To view another message, repeatedly press (to scroll backwards) or ( to scroll forwards) until that
#
message appears .
3. When you finish, press to exit the message func-
END
tion.
Deleting Messages
To delete an individual message
hold down until the phone displays
CLR
To delete al l messages in the stack
sage, hold down until the phone displays (briefly) then
CLR
ErASE ALL
, recall that message, then
dELEtEd
.
, while viewing any mes-
dELEtEd
. Then press again to confirm
CLR
the deletion .
When you finish, pr ess to exit the message f unction.
END
USING THE CALL TIMERS
Your phone has three call timers that let you chec k the length of your calls ( “ai r time”):
Individual call timer
• answer in minutes and seconds, and automatically resets each t ime you make or answer a call or turn off the phone. See “Displaying the Individual Call Timer” on Page 43.
Resettable call timer
answer in minutes, and it can be reset at any time. See “Using the Resettable Call Timer” on Page 44.
— times each call you make or
— times all the calls you make or
42
17-111 0.fm Page 43 We dnesday, July 21, 1999 1:38 PM
Cumulative call timer
— times the calls you make or answer in minutes, and it cannot be reset. See “Display­ing the Cumulative Call Timer” on Page 44.
Notes:
• Each call t imer begins counting when you hear the first ring (during an outgoing call) or when your phone rings to signal an incomi ng call.
• If your phone receives a call but you do not answer it, each timer resets to the time it had before it received that incoming call.
Displaying the Individual Call Timer
The individual call timer tracks each call you make in minutes and seconds, and automatically resets each time you make or answer a call or when you turn off the phone.
00 45
RCL
to
To display the individual call timer for the last call, press
# #
. The air time of your last call (such as show 45 seconds) appears for about 15 seconds. Press any key to clear the display sooner.
RCL
If you press during a call, the air time of the
# #
call flashes on the display until you cl ear the display or end the call.
43
17-111 0.fm Page 44 We dnesday, July 21, 1999 1:38 PM
Using the Resettable Call Timer
The resettable call timer tracks the calls you make or answer in minutes, and it can be reset at any time. You can reset this timer to coincide with your cellular bi lling statement date, for example, then tr ack your monthly air ti me .
RCL
To display the resettable call timer, press
#
.
rESEtbL
(resettable) and the number of air time min-
# #
utes accumulated since you last reset the t imer appear.
FCN
OPER
PRS
To reset th e tim e r w h ile it is disp la yed, press
CLR
.
0
To clear the timer from the display, press any key.
Displaying the Cumulative Call Timer
The cumulative call timer tracks all the calls you make or an­swer in minutes. It cannot be reset.
7
RCL
To display the cumulative call timer, press ,
# #
.
and the num ber of air time minutes accu-
CUMUL
# #
mulated since the first call was made or answered on your phone appears. Press any key to clear the t imer from the dis­play.
44
RCL
17-111 0.fm Page 45 We dnesday, July 21, 1999 1:38 PM
SELECTING THE ACTIVE PHONE NUMBER
If you subscribe to two cellular services (for example, com­petitive cellular systems in your area or cellular systems in different cities), your dealer programs your phone with two different phone num bers.
If you have two phone numbers programmed into your phone, the phone displays one of the following messages each time you turn it on, to indicate which cellular system type and phone number are curr ently active.
Phone
Number
1 Non-wireline (type A) 2 Non-wireline (type A) 1 Wireline (type B) 2 Wireline (type B)
Note
: To set the cellular system type, see “Selecting the Cel-
Cellular System Type Display Shows
A1 A2 b1 b2
lular System Type” on Page 48.
To deactivate the phone number currently selected and acti-
STO
vate the other phone number, press . The dis-
#
play briefly blanks, then the cur rently active number appears to confirm your select ion. To clear the display when you fin­ish, press .
CLR
45
17-111 0.fm Page 46 We dnesday, July 21, 1999 1:38 PM
Notes:
• Calls can be made on your phone from only one phone
number at a time, and you cannot activate the other phone number while a cal l i s in pr ogress.
• To receive call s on both numbers at th e same time (if you
subscribe to no-answer transfer or call forwarding ser­vice through your cellular carrier), you can set both num­bers to forward to the other number if not answered. Otherwise, a caller who calls the inactive number receives the st andard “not in service” message.
SETTING THE CELLULAR SYSTEM TYPE
Each cellular market area has two cellular service providers. One of the providers is designated
Provider B
from your dealer whether your cellular pr ovider is type A or B.
. When your phone is activated for s ervice, find out
Provider A
and the other
Notes:
• Usually, it is less expensiv e to use the same compan y for
cellular service when you are in your home city and when you roam (see “Roaming” on Page 49). To do this, you need to know whether your cellular service provider is type A or B in your home city and in each city where you plan to travel.
• It is possible for a cellular service provider to be (or have
agreements with) Provider A in some cities and Provider B in others.
46
17-111 0.fm Page 47 We dnesday, July 21, 1999 1:38 PM
Your phone’s selectable system registration function lets you select one of seven poss ibl e roaming modes:
Roaming Mode Description Display
Standard Mode
system, then i t seeks a non-home type. If you are using a type A (non-wireline) home system
If you are using a type B (wireli ne) home system
Invert Preference Mod e
non-home type system, then it seeks a home type. (Select this setting while on the fringe of your home area or in certain roaming situa tions.)
If your home system is non-wireline (type A):
RM
RM
flashes slowly — call on home system
IU
If your h ome system is wireline (type B):
RM
RM
flashes slowly — call on home system
IU
Home Only Mode
side you r home system.
Scan A Mode
non-wireline (A) systems.
Scan B Mode
wireline (B) systems.
SID Mode
or more preferred systems to use systems grammed by dealer; preferred system (SID) featur e requires special service (contact your cellular car­rier).
— the phone first seeks a home type
— the phone first seeks a
flashes rapidly — call on syste m B flashes slowly — call on home type system
flashes rapidly — call on syste m A flashes slowly — call on home type system
— the phone will not operate out-
— the phone will operate only within
— the phone will operate only within
— the phone automatically scans for one
one or more
to use. System IDs must be prepro-
not
and
Std Ab Std bA
SCAnbA
SCAnAb
HOME
SCAn A
SCAn b
P SCAn
47
17-111 0.fm Page 48 We dnesday, July 21, 1999 1:38 PM
Displaying the Currently Selected System Type
To display the system type currently sel ected on your phone,
RCL
press . The currently selected system type (such as
) appears for about 8 seconds. To clear the display
HOME
sooner, press .
END
Selecting the Cellular System Type
Note
: If you are unable to complete Steps 2 and 3 within 8 seconds, the display clears without changing the system type. Start at Step 1 and t ry again.
1. Press . The currently selected system type
RCL
appears.
2. Repeatedly press or until you see the system
#
type you want to use.
3. Press to store the displayed system type.
STO
appears to confi rm the change. To exit without changing the system type, press .
END
48
SEt
17-111 0.fm Page 49 We dnesday, July 21, 1999 1:38 PM
ROAMING
In some areas, the cellular system’s computer automatical ly recognizes roaming telephones. In other areas, you must contact the service provider before it can recognize your phone. The operator needs to know your telephone number, your phone’s ESN (Electronic Serial Number), and how you plan to pay for your calls. There is normally an additional charge for roaming calls.
Note
: Your phone’s ESN is under the phone’s battery; how­ever, the roaming cellular service provider can usually auto­matically determine your phone’s ESN when you call.
When you roam, phone is using a home-type cellular system. The indicator flashes rapi dly when the phone is using a cellular s ystem that is different from your home system.
flashes slowly on the di splay when the
RM
USING CELLULAR SYSTEM PIN DIALING
Your cellular carrier might require that you use a personal identification number (PIN) when you make calls. This num­ber assures t he cellular system that the person placing the call is an authorized user.
Contact your cellular service provider to determine if a PIN is required and obtain the PIN (seven digits or less) to place calls through the cellular system you subscribe to. If a PIN is required, follow the steps in “Storing Speed Dial Numbers” on Page 31 to store your PIN in memory 07, then follow the steps in “Enabling/Disabling PIN Dialing” on Page 50 to en­able PIN dialing on your phone.
49
END
17-111 0.fm Page 50 We dnesday, July 21, 1999 1:38 PM
Notes:
• Enable PIN dialing on your phone only if it is required by
your cellular provider.
• You must store your PIN in memory 07, otherwise your
phone cannot properly make calls through your cellular system.
• If you enter a service area which does not r equire PIN
dialing, disable PIN dialing on your phone.
Enabling/Disabling PIN Dia ling
FCN
1. Press .
2. Repeatedly press or until the phone displays
Pin inActiv
3. Press so
inActiv
4. To exit the function menu, press .
1
or
Activ
STO
Activ
appears (to enable) or so
appears (t o disable).
#
.
CLR
Making a Call Using Your PIN
1. With PIN dialing enabled, dial or speed dial the number you want to call, as usual, then press .
2. When you hear the tones (2 beeps), press again. The phone automatically sends your PIN code to finish dialing the call.
Note: If you did not store your PIN in memory 07, or you stored an incorrect PIN,
InvALId PIn
your PIN is correct, then try again.
50
SND
SND
appears. Be sure
17-111 0.fm Page 51 We dnesday, July 21, 1999 1:38 PM
USING THE PHONE WITH HANDSFREE EQUIPMENT
Your phone is preprogrammed to work with most optional handsfree equipment in your vehicle that lets you automati­cally switch from handset to handsfree mode when you place the phone in the handsfree holder.
Some handsfree equipment might require you to turn off (mute) the phone’s microphone when switching to handsfree, using the pr ocedure described in “Using Mute” on Page 20. See the owner’s manual provided with your handsfree equi p­ment for more information, or contact your local RadioShack store for assis tance.
USING TOUCH-TONE SERVICES
To use your cellular phone to control answering machines and special telephone services (such as bank-by-phone or voicemail), simply enter touch-tone commands using your phone’s keypad aft er the service answers (and when prompt­ed).
Or, you can store the service’s command sequence in a memory location, then foll ow these steps after the service an­swers (for each sequen ce you want to send).
1. Recall the memory location that contains the command sequence.
RCL
2. Press .
SND
51
17-111 0.fm Page 52 We dnesday, July 21, 1999 1:38 PM
Adding a Pause
Some services, such as voicemail, require you to enter an ac­cess code then wait before entering additional digits. To in­clude one or more pauses in a sequence when storing it in memory, press phone displays
FCN
SND
so o appears, then press . The
o
wherever you insert a pause.
STO
Note
: If you do not press within 8 seconds, the display
STO
clears to conserve battery power. If this happens, simply press the key for the next digit you want to enter or store. The characters you previously entered appear along with the pause you just entered.
When you send a sequence with pauses stored in it, the phone stops at each place in the sequence where you en­tered a pause. To send the next group of numbers in the se­quence, press again.
SND
52
17-111 0.fm Page 53 We dnesday, July 21, 1999 1:38 PM
TROUBLESHOOTING
If the phone’s power does not come on or stay on:
• Make sure the battery is properly installed and charged.
• Be sure the contacts on the battery are cl ean, If they are not, clean them with a soft clot h or pencil eraser.
• The battery charge might be too low for oper ati on. Check the display and list en for the low battery warning tones.
If the power comes on, but the phone does not work:
• Make sure that the antenna is fully extended.
• Be sure you selected the correct cellular system type (see “Setting the Cellular System Type” on Page 46).
• Make sure that functions you might have previously selected (but forgotten) are not causing the phone to operate differently than you expect it to (see “Function Stat us Quick-Re view” on Page 25).
• Check the display for error mess ages.
If you see an error mes sage that is not covered in any secti on in this Owner’s Manual, or if your phone does not seem to be operating properly, contact your local RadioShack store for assistance.
53
17-111 0.fm Page 54 We dnesday, July 21, 1999 1:38 PM
SAFETY INFORMATION
TRAFFIC SAFETY
• Do not use a handheld phone while driving a vehicle. If using a handheld phone, park the vehicle before taking or mak ing a call.
• Always secure the phone in its holder; do not place the phone on the passenger seat or where it can brea k loose in a collision or sudden stop.
• Never install a phone alert device that operates your vehicle’s lights or horn. This is illegal in most areas.
Remember, always put road safety first!
OPERATING ENVIRONMENT
• Remember to follow all special regulations and always turn off your phone whenever you are required to do so, or when it might cause int erference or be dangerous.
• Any radio transmitting equipment, including cellular phones, might interfere with inadequately protected medical devices. Consult a physician or the manufac­turer of the medical device if you have any questions. Other electronic equipment might also be subject to interference.
• As with other mobile radio transmitting equipment, for your safety, only use your phone in the normal operating position (held to your ear with the antenna pointing over your shoulder) .
• Turn off the phone while getting gasoline (at a filling sta­tion). Observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, or ar ound blasting operations.
54
17-111 0.fm Page 55 We dnesday, July 21, 1999 1:38 PM
• Do not store or carry flammable liquids, gases, or explo-
sive materials in the same compartment as a cellular phone or any of its parts or accessories.
• Only qualified personnel should install or service the
phone in a vehicle. Faulty installation or service might be dangerous and could inv alidate the phone’s warranty.
• Electronic fuel injection systems, electronic anti-lock
braking systems, electronic cruise cont rol systems, and other electronic systems can malfunction due to the lack of protection from radio signals. Check regularly that all cellular phone equipment in your vehicle is mounted and operating properly.
• Turn off your cellular phone when in an aircraft. The use
of cellular phones in an aircraft might be dangerous to the operation of the aircraft, disrupt cellular networks, and is illegal.
Failure to observe t hese instructions could lead t o suspen­sion or denial of cellular telephone services, legal action, or both.
EMERGENCY CALLS
IMPORTANT!
using radio signals, cellular, and land-line networks, as well as user-programmed functions. These factors make it impos­sible to guarantee connection in all conditions. Therefore, you should never rely solel y upon any cellular phone for ess ential communications (such as medical emergencies).
Remember, to make or receive any calls, the phone must be turned on and in a service area with adequate cellular signal strength.
This phone, like any cellular phone, operates
55
17-111 0.fm Page 56 We dnesday, July 21, 1999 1:38 PM
You might not be able to make emergency calls on all cellular phone networks or when certain network services or phone features are set. Check with your local ser vice providers.
FCC REGULATIONS
A cellular phone might cause TV or radio interference, even when it is operating properly. The FCC can require you to stop using your cellular phone if you cannot eliminate the in­terference. If you need assistance, contact your local Ra­dioShack store.
This device complies with Part 15 of the tion is subject to the condition that this device does not cause harmf u l interference.
56
FCC Rules
. Opera-
17-111 0.fm Page 57 We dnesday, July 21, 1999 1:38 PM
CARE AND MAINTENANCE
Your RadioShack CT-501 Handheld Flip-Style Cellular Tele­phone is an example of superior design and craftsmanship. The following suggestions will help you care for your phone so you can enjoy it for years.
• Keep the phone and all of its parts and accessories out
of the reach of childre n.
• Keep the phone dry. Liquids might contain minerals that
corrode electronic cir cuits.
• Do not use or store the phone in dust y, dirty areas. its
moving parts can be damaged.
• Do not store the phone in hot areas. Temperature
extremes can shorten the life of electronic devices, dam­age batteries, and warp or melt plastic parts.
• Do not store the phone in cold areas. When the phone
warms up (to its normal operating temperature), mois­ture can form inside the phone, which could damage the phone’s elect ronic circuits .
• Do not drop, knock, or shake the phone. Rough handling
can break internal circuit boards.
• Wipe the phone with a damp cloth occasionally to keep it
looking new. Do not use harsh chemicals, cleaning sol­vents, or strong detergents to clean your phone.
Modifying or tampering with the phone’s internal components can cause a malfunction and invalidate your phone’s warran­ty and void your FCC authorization to operate it. If your phone is not performing as i t should, take it to your local Ra­dioShack store for assistance.
57
17-111 0.fm Page 58 We dnesday, July 21, 1999 1:38 PM
SPECIFICATIONS
Dimens io ns ....... .. ... .......... ......... ... ...... 55/8 × 23/8 × 11/2 Inches
Weight (with Supplied Battery) .................................. .. 9.6 oz
(272 g)
Transmitting Power .................................. 0.6W + 2dB – 4dB
Operating Voltage ........... ........... .........................µ5.2–7.5 DC
Internal Battery......................................................... 6.0V DC
Input to AC Charger ........................ .. .. .. .................. 110V AC
Frequency Band ............... .. ........ .. ........... 824–849 MHz (TX)
869–894 MHz (RX)
Specifications are typical; individual unit s might vary. Specifi­cations are subject t o change and improvem ent without no­tice.
PATENT INFORMATION
This phone is manufactured under one or more of the follow­ing U.S. patents.
4121218 4617520 D295975 4965537 D327061 5261119 4124879 D286778 4751737 4972355 5128834 5262710 4127824 4626309 D296187 4972432 D328302 5263052 4128740 4628529 4761621 4972455 5142551 5276707 4138681 4629829 4764737 4975808 5142696 5278994 4193036 4630304 D297734 4984290 5146620 D343173 4254382 4630305 D297735 D314173 5148471 5280637 4302845 4633141 4777564 D315330 5148473 D344087 4312074 4636593 Re32768 D315346 5148961 5287553 4327319 4636741 D299136 D315543 5150359 5287555 4329666 D288432 4797929 D315559 5150384 5287556 4369516 4648125 4798975 D315565 5152006 D344511 4369522 4649543 4800348 5004992 5157693 5301365 4378603 D288683 4802236 D315907 5163159 5321847 4390963 4654655 4809356 5008925 5164652 D348880
D269873 D289156 4811377 D316417 5166596 5349588
4389265 4662691 4811404 D316859 5175759 5359696 4400584 4667333 4827226 5017856 5175874 5361400
58
17-111 0.fm Page 59 We dnesday, July 21, 1999 1:38 PM
4400585 4668917 4827507 5018188 D332261 5363071 D270835 4670747 4829274 5020091 5182749 5365549 D271491 4672502 4837534 5020092 D332785 D352497 Re31470 4680787 D301476 5020093 5185566 5366826
4431977 4681476 4843621 5028083 5187809 5375143
4434461 4683585 4845772 5028859 5193223 5375258
4455534 4692726 D302015 5029044 5195106 5379324
4462098 4704588 4851966 5029233 5195108 D354055 D275951 D292578 4868576 5031028 5201069 D354062
4484153 4706036 4870686 5036532 5204977 5384825
4485486 D292920 D303656 5053924 5210793 D356084
4486624 4710724 4876552 5057762 5214675 5402447 D276809 4711361 4879533 D320780 5222104 5406146
4491972 4715063 D305427 5059885 5222251 5406562 D277667 4716319 4896124 5060294 D337332 D357224
4504834 4716391 4897873 D322783 5230007 D357457 D278708 4723305 D305717 D322955 5230093 5410741
4523155 D294257 4904549 5081674 5233633 D357680
4546329 4727306 4905288 5083304 5235492 D357681
4550426 4727583 4905301 D324024 5237257 5428836
4551696 4730195 D306293 D324388 5239127 D359734
4564821 4734635 D306441 5095503 5241545 D359735 D282169 4736277 D306594 D325028 5241548 D 359959
4571595 4737976 4912602 D325583 5241650 5432017
4573017 4740794 4918732 5109536 5241693 D360632
4574243 4741018 4922178 D325915 5242767 5438684
4585957 4741034 4945570 5113436 D339582
4602218 4742562 4954796 5117450 5249302 D284759 D295627 4959851 5121047 5251331 D285439 4746242 4963812 5122480 D340710
4616314 D295973 4963843 5122722 5260988
59
17-111 0.fm Page 60 We dnesday, July 21, 1999 1:38 PM
DISPLAY MESSAGE GLOSSARY
Message Description See
Page(s)
o Auto Ansr Auto Lock
A1
A2
b1
b2
CALL
ChAngE?
ChAngEd to
EMrgCY
EMrgCY Call
FULL
Auto HF On
(Apostrophe) Memory scrolling active
Shows a paus e st or e d in me m o ry 52 Automa tic answer 28 Automatic lock 37 Two-system operation; non-wire-
line s ystem is active, using phone number 1
Two-system operation; non-wire­line s ystem is active, using phone number 2
Two-system operation; wi reline sys­tem is ac tive, using phone number 1
Two-system operation; wi reline sys­tem is ac tive, using phone number 2
Call now be in g, or w as prev io us ly, received
Memory prompt to caution before overwriting previously stored infor­mation
Appears when you change the pre­set lock code
Emergency call in progress (using )
Emergency dialing display sta tus 29 Requested memory is full 31 Handsfr e e op er a tio n enabled 25
1
33
45
45
45
45
18
31
38
20
60
g
g
17-111 0.fm Page 61 We dnesday, July 21, 1999 1:38 PM
e Description See
Messa
HOME
LEvEl 1 or 4
LocCode
Loc’d
Lo bAt
MutE
on
OnEMIn tMr
Pin Activ or
inActiv
P SCAn
rEdiAL
rEMInd MSg
SCAn A
SCAn Ab
SCAn b
SCAn bA
Std Ab
Std bA
Home system-type selected 47 Service restriction level currently
selected Appears before lock code 38
Phone is locked 36 Battery power is low 13 Microphone is turned off 20 Appears when display is clear 15 Call-time re minder tone 27 PIN dialing function enabled or dis-
abled Specific cellular ID required (sys-
tem-typ e selected) Automatic redial in pr ogress 22 Message reminder tones 30 Non-wireline A system-type
selected A then B scan system-type selected 47 Wireli ne B scan system-type
selected B then A scan system-type selected 47
Standa r d no n- wi r el in e sy stem-typ e selected
Standard wireline system-type selected
Pa
e(s)
39
50
47
47
47
47
47
61
17-111 0.fm Page 62 We dnesday, July 21, 1999 1:38 PM
NOTES
62
17-111 0.fm Page 63 We dnesday, July 21, 1999 1:38 PM
63
17-111 0.fm Page 64 We dnesday, July 21, 1999 1:38 PM
Limited One-Year Warranty
This product is warranted by RadioShack against manufacturing defects in mate­rial and workmanship under normal use for one (1) y ear from the date of pur­chase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, IN­CLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICU­LAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PRO­VIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RESPONSIBIL­ITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY , LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR AR ISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDEN­TAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN AD­VISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow the limitations on how long an implied warranty lasts or the exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to you. In the event of a product defect during the warranty period, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShac k store. RadioShack will, at its option, unless otherwise provided by law: (a) correct the defect by product repair without charge for parts and labor; (b) replace the product with one of the same or similar design; or (c) ref und the purchase price . All replaced parts and products, and products on which a refund is made, be­come the property of RadioShack. New or reconditioned parts and products may be used in the performance of warranty s ervice. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnormal usage, failure to fol­low instructions, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current; (b) a ny repairs other than those provided by a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs of product removal, installation, set-up service adjustment or reinstallation. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
RadioShack Customer Relations, Dept. W, 100 Throckmorton St., Suite 600,
Fort Worth, TX 76102
We Service What We S ell
3/97
A Division of Tandy Corporation
RadioShack
Fort Worth, Texas 76102
68P09398A54-A
7/28/97 - RGC
10/97 Printed in the USA
Loading...
