Quantum STDX24000N User Manual
CERTANC E
Online User's Guide
DAT24 Tape Drive
i
Copyright and Trademarks
Copyright © 2004 by Certance LLC. All Rights Reserved.
Part Number 50001756
April 2004
Certance and the Certance logo are trademarks of Certance LLC. Other product names are trademarks or registered trademarks of their respective owners.
Certance reserves the right to change, without notice, product offerings or specifications. No part of this publication may be reproduced in any form without written permission from Certance LLC.
Certance provides this manual “as is,” without warranty of any kind, either expressed or implied, including, but
not limited to, the implied warranties of merchantability and fitness for a particular purpose. Certance reserves
the right to change, without notification, the specifications contained in this manual.
Certance assumes no responsibility for the accuracy, completeness, sufficiency, or usefulness of this manual, nor
for any problem that might arise from the use of the information in this manual.
Warnings
All safety and operating instructions should be read before this product is operated, and should be retained for
future reference. This unit has been engineered and manufactured to assure your personal safety. Improper use
can result in potential electrical shock or fire hazards. In order not to defeat the safeguards, observe the follow-
ing basic rules for installation, use and servicing.
CAUTION: This symbol should alert the user to the presence of “dangerous voltage” inside the
product that might cause harm or electric shock.
Caution! Risk of electric shock! Do not open!
To reduce the risk of electric shock, do not remove the cover (or back). No user-serviceable parts
are inside. Refer servicing to qualified service personnel.
• Heed warnings — All warnings on the product and in the operating instructions should be adhered to.
• Follow instructions — All operating and use instructions should be followed.
• Ventilation — The product should be situated so that its location or position does not interfere with proper
ventilation.
• Heat — The product should be situated away from heat sources such as radiators, heat registers, fur-
naces, or other heat producing appliances.
• Power sources — The product should be connected to a power source only of the type directed in this
document or as marked on the product.
• Power cord protection — The power cord should be routed so that it is not likely to be walked on or
pinched by items placed upon or against it, paying particular attention to the cord at the wall receptacle,
and the point where the cord exits from the product.
• To complete the disconnection of the electricity, please remove the power (electric) cord and the SCSI
cable from their connections in the back of the product. The plugs should be placed near the product for
easy access.
• Object and liquid entry — Care should be taken to insure that objects do not fall and liquids are not
spilled into the product's enclosure through openings.
• Servicing — The user should not attempt to service the product beyond that described in the operating
instructions. All other servicing should be referred to qualified service personnel.
Precautions
• Do not use oil, solvents, gasoline, paint thinners, or insecticides on the unit.
• Do not expose the unit to moisture or to temperatures higher than 151 °F (66 °C) or lower than
-40 °F (-40°C).
• Keep the unit away from direct sunlight, strong magnetic fields, excessive dust, humidity, and
electronic/electrical equipment, which generate electrical noise.
• Hold the power cord by the head when removing it from the AC outlet; pulling the cord can damage the
internal wires.
• Use the unit on a firm level surface free from vibration, and do not place anything on top of the unit.
FCC Notice
This equipment generates and uses radio frequency energy and, if not installed and used properly — that is, in
strict accordance with the manufacturer's instructions — may cause interference to radio communications or
radio and television reception. It has been tested and found to comply with the limits for a Class B computing
device in accordance with the specifications in Part 15 of FCC Rules, which are designed to provide reason
able protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television
reception, which can be determined by turning the equipment on and off, you are encouraged to try to correct
the interference by one or more of the following measures:
• Reorient the receiving antenna.
• Relocate the computer with respect to the receiver.
• Move the computer into a different outlet so that the computer and receiver are on different branch
circuits.
If necessary, you should consult the dealer or an experienced radio/television technician for additional suggestions. You may find the booklet, How to Identify and Resolve Radio-TV Interference Problems, prepared by the
Federal Communications Commission, helpful. This booklet (Stock No. 004-000-00345-4) is available from the
U.S. Government Printing Office, Washington, DC 20402.
WARNING: Changes or modifications made to this equipment, which have not been expressly
approved by Certance, may cause radio and television interference problems that could void
the user's authority to operate the equipment.
-
Further, this equipment complies with the limits for a Class B digital apparatus in accordance with Canadian
Radio Interference Regulations.
Cet appareil numérique de la classe B est conforme au Règlement sur brouillage radioélectrique, C. R. C., ch.
1374.
The desktop device drive described in this manual requires shielded interface cables to comply with FCC emission limits.
WARNING: To prevent fire or electrical shock hazard, do not expose the unit to rain or
moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel.
Contents
Chapter 1 – Introduction .................................................. 9
Chapter 2 – Installation ................................................. 10
Introduction ........................................................................................10
Unpacking and Inspection ...................................................................10
Installing an Internal DAT24 Drive .........................................................10
Installing the Desktop DAT24 Drive .......................................................18
Chapter 3 – Operation................................................... 20
Introduction .......................................................................................20
Loading a Cartridge ...........................................................................20
Unloading a Cartridge ........................................................................21
Initializing a Blank DAT Cartridge .........................................................21
DAT Cartridge Compatibility ................................................................22
Write-Protecting a DAT Cartridge ..........................................................22
Cleaning the Tape Heads ....................................................................23
LED Codes .........................................................................................23
Chapter 4 – UNIX Settings ............................................. 26
Introduction ........................................................................................26
Setting DIP Switches for UNIX Support ..................................................26
Configuring Inquiry Strings ..................................................................27
Configuring for the DEC UNIX Environment ...........................................28
Configuring for the Sun Environment .....................................................29
Configuring for the SGI Environment .....................................................30
Configuring for the HP-UX Workstation Environment ................................32
Configuring for the IBM AIX Environment ...............................................33
Configuring for the SCO Environment ...................................................34
vi
List of Figures
Figure 1. DIP Switches and Jumpers for Internal DAT24 Tape Drives ......................... 11
Figure 2. DIP Switch Settings for Internal DAT24 Drives........................................... 12
Figure 3. Location of Jumper Blocks on Internal DAT2 Drives.................................... 14
Figure 4. Mounting Holes for Internal DAT24 Drive in a 3.5-inch Configuration
(no mounting brackets) .......................................................................... 16
Figure 5. Mounting Holes for Internal DAT24 Drive in 5.25-inch Configuration
(with mounting brackets) ........................................................................ 16
Figure 6. Locations of SCSI Interface and Power Connectors on the Internal Drive ...... 17
Figure 7. Rear Panel of the Desktop Drive.............................................................. 19
Figure 8. SCSI Termination Examples.................................................................... 19
Figure 9. Loading a DAT Tape Cartridge (3.5-inch drive) ........................................ 20
Figure 10. Location of Tape Eject Button and Drive Status LED.................................. 21
Figure 11. Write-protect Tab on a DAT Cartridge................................................... 22
Figure 12. Status LEDs on the Front of the Drive...................................................... 24
vii
List of Tables
Table 1. DAT24 Models Covered in This User’s Guide.............................................. 9
Table 2. LED Flash Codes.................................................................................... 24
Table 3. Cartridge Status LED .............................................................................. 25
Table 4. Drive Configuration Settings.................................................................... 26
Table 5. Inquiry Strings ....................................................................................... 27
Table 6. DAT24 PRTNO Value............................................................................. 27
viii
1 Introduction
The Certance DAT24 is a digital audio tape (DAT) drive that supports the Digital Data Storage (DDS-
3) tape format. The DAT24 drive provides a typical capacity of 24 Gbytes, assuming 2:1 data com
pression (native capacity is 12 Gbytes).
The DAT24 tape drive can connect to a standard, single-ended SCSI or SCSI-2 interface. You can
use a 50-conductor flat cable or a 25-signal twisted-pair cable to connect the drive to a SCSI host
adapter. The cable should not exceed 6 meters (19.5 feet).
The DAT24 drive is offered as internal and desktop versions:
• The internal version is available as a 3.5-inch or 5.25-inch tape drive. It provides a 50-pin,
dual-row single-ended SCSI connector at the back of the drive.
• The desktop version provides two 50-pin, shielded connectors (ANSI Alternative 2) on the
back panel. These connectors consist of two rows of ribbon contacts spaced 2.16 mm
(0.085
Tab le 1 on page 9 identifies the Certance DAT24 drive models and model numbers covered by this
User’s Guide.
Table 1. DAT24 Models Covered in This User’s Guide
in) apart. Either connector can be used as a SCSI IN or SCSI OUT connection.
-
Model Model Number
3.5-inch internal model STD124000N
5.25-inch internal model STD224000N
Desktop model STD624000N
9
2 Installation
Introduction
This chapter explains how to install the internal and desktop DAT24 tape drives.
Topics covered in this chapter are:
• “Unpacking and Inspection” on page 10
• “Installing an Internal DAT24 Drive” on page 10
• “Installing the Desktop DAT24 Drive” on page 18
Unpacking and Inspection
Although drives are inspected and carefully packaged at the factory, damage may occur during
shipping. Follow these steps for unpacking the drive.
1. Visually inspect the shipping containers and notify your carrier immediately of any damage.
2. Place shipping containers on a flat, clean, stable surface; then carefully remove the contents. If
the equipment is damaged, notify your Certance representative.
3. Always save the containers and packing materials for any future reshipment.
Installing an Internal DAT24 Drive
Installing the internal DAT24 drive involves the following steps:
1. Observe the guidelines and cautions for handling internal tape drives. See “Internal Tape
Drive Guidelines and Cautions” on page 11.
2. Configure the drive. See “Configuring the Internal DAT24 Drive” on page 11.
3. Mount the drive. See “Mounting an Internal DAT24 Drive” on page 15.
4. Connect the power and interface cables. See “Connecting Power and Interface Cables” on
page 17.
5. Registering the tape drive. After you install the DAT24, register it. Registering it ensures that
you will receive the latest information about the drive, as well as other product, service, and
support information. For your convenience, you can register the DAT24 through our Web site
at http://register.certance.com.
NOTE: Internal drives come in two mounting configurations. Drives configured for 5.25-inch
bays are identical to those designed for 3.5-inch bays, except that drive-mounting brackets have
been added on each side of the drive. Installation procedures are the same for both drive
configurations.
10
Installation Installing an Internal DAT24 Drive
Internal Tape Drive Guidelines and Cautions
The following guidelines and cautions apply to handling and installing the internal DAT24 tape
drive. Keep them in mind as you install the internal drive.
• Handle the drive by the sides rather than by the top cover to reduce the risk of dropping the
drive or damaging it during installation.
• Internal drives contain some exposed components that are sensitive to static electricity. To
reduce the possibility of damage from static discharge, the drives are shipped in a protective
antistatic bag. Do not remove the drive from the antistatic bag until you are ready to install it.
• Before you remove the drive from the antistatic bag, touch a metal or grounded surface to dis-
charge any static electricity buildup from your body.
• Always lay the drive either on top of the antistatic bag or place it inside of the bag to reduce
the chance of damage from static discharge.
Configuring the Internal DAT24 Drive
Before you install the internal DAT24 tape drive in your computer, you may need to set the drive's
SCSI ID or other drive features. Most features are set using a bank of dip-switches on the underside
of the drive (see
figure the drive for remote SCSI address selection, use the jumpers on the back of the drive, above
the interface and power connectors.

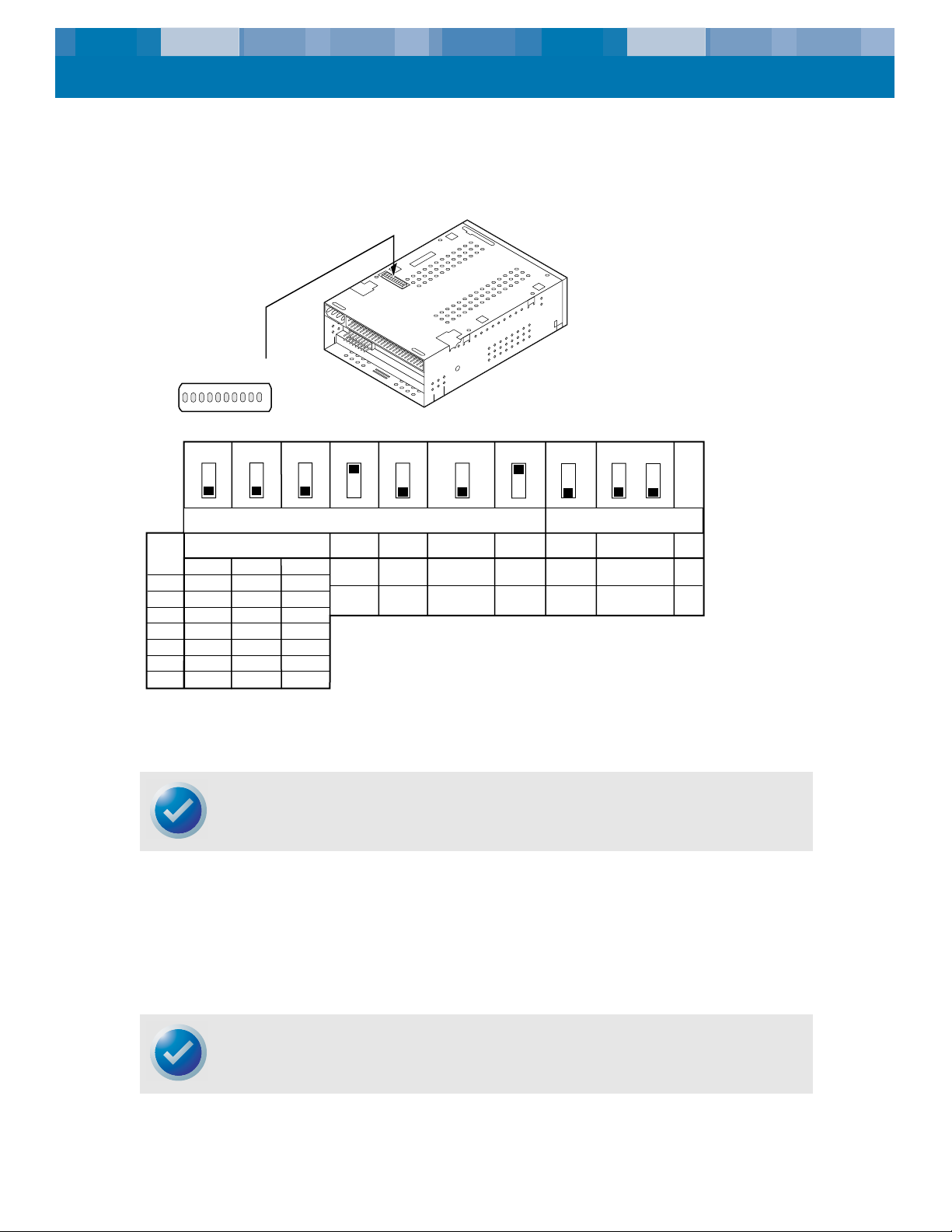

Figure 1 on page 11). To control SCSI termination and terminator power, or to con-
Dip switches
Note:
Drive is shown upside down
SCSI jumper block
Figure 1. DIP Switches and Jumpers for Internal DAT24 Tape Drives
The default settings for internal DAT24 tape drives are:
• SCSI ID is 0.
• Drive reads and writes both MRS and non-MRS 4-mm media.
• Parity checking is disabled.
• Data compression is enabled.
• Power-on self-test diagnostics are disabled.
• SCSI termination is disabled.
If the default settings are appropriate for your computer system, skip ahead to “Mounting an Internal
DAT24 Drive” on page 15. Otherwise, proceed to “Changing DIP Switch Settings” on page 12.
11
Loading...
