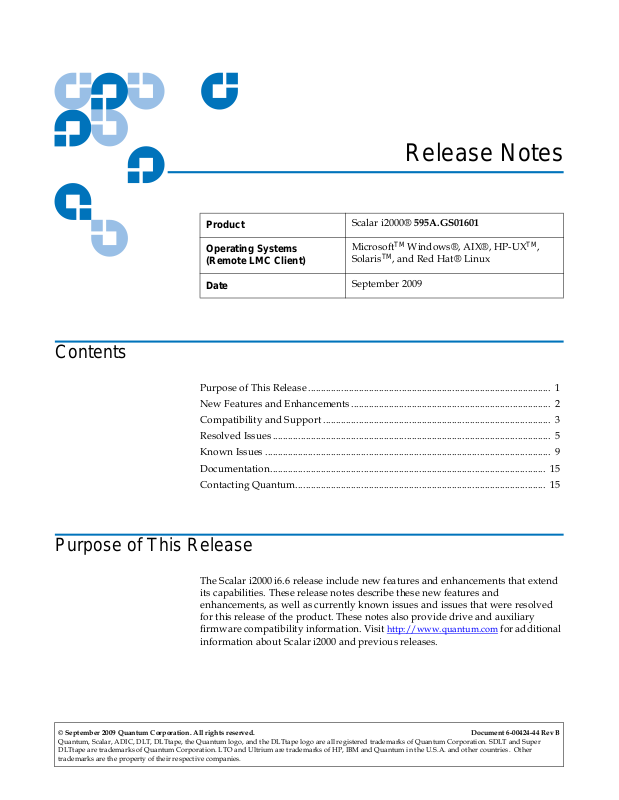

Quantum SCALAR I2000 I6.6 User Manual
Release Notes
Product
Operating Systems
(Remote LMC Client)
Date
Scalar i2000® 595A.GS01601
MicrosoftTM Windows®, AIX®, HP-UXTM,
TM
Solaris
September 2009
, and Red Hat® Linux
Contents 0
Purpose of This Release ................................................................................................ 1
New Features and Enhancements............................................................................... 2
Compatibility and Support .......................................................................................... 3
Resolved Issues .............................................................................................................. 5
Known Issues ................................................................................................................. 9
Documentation............................................................................................................. 15
Contacting Quantum................................................................................................... 15
Purpose of This Release 0
The Scalar i2000 i6.6 release include new features and enhancements that extend
its capabilities. These release notes describe these new features and
enhancements, as well as currently known issues and issues that were resolved
for this release of the product. These notes also provide drive and auxiliary
firmware compatibility information. Visit
information about Scalar i2000 and previous releases.
© September 2009 Quantum Corporation. All rights reserved. Document 6-00424-44 Rev B
Quantum, Scalar, ADIC, DLT, DLTtape, the Quantum logo, and the DLTtape logo are all registered trademarks of Quantum Corporation. SDLT and Super
DLTtape are trademarks of Quantum Corporation. LTO and Ultrium are trademarks of HP, IBM and Quantum in the U.S.A. and other countries. Other
trademarks are the property of their respective companies.
http://www.quantum.com for additional
Release Notes
September 2009
New Features and Enhancements 0
i.6.6 0
Quantum Key Manager (QKM) Support 0
Quantum Key Manager (QKM) generates, protects, stores, and maintains data encryption
keys that are used to encrypt information being written to, and decrypt information being
read from, LTO-4 tape media.
QKM acts as a process awaiting key generation or key retrieval requests sent to it through
a secure TCP/IP communication path between QKM and the tape library.
i6.5 0
Lightweight Directory Access Protocol (LDAP) Enhancements 0
The Scalar i2000 i6.5 release provides enhancements to the Lightweight Directory Access
Protocol (LDAP) features. LDAP is the industry standard Internet protocol that provides
centralized user account management. For more information, see the Scalar i2000
Addendum (06-01244-05).
Any LDAP configurations from i6.3.1 and earlier will not import into the i6.5 LDAP
configuration. You must reconfigure LDAP after you install the i6.5 update.
DNS Support 0
If DHCP is disabled, you can specify primary and secondary Domain Name System (DNS
servers). DNS servers provide IP address resolution of fully qualified domain names.
DNS settings are optional.
After you change the DNS settings, you must reboot the library for these changes to take
affect.
StorageCare Vision/Guardian 0
Enhancements were made to improve StorageCare Vision/Guardian functionality.
HTTP Improvements 0
You can now disable or enable the HTTP setting via the Security menu. To prevent access
to the library using the web browser client, Setup > Security > and select Disable. If you
choose to disable HTTP, access to the library is limited to the library’s operator panel or
the AMC application. To permit access to the library GUI using a web browser client,
select Enable.
Ability to Send Data Files 0
Along with sending drive utilization reports in the form of PDFs, you can now e-mail data
using the comma delimited text files (.csv).
A .csv file is a plain text file that stores basic database-style information in a simple
format, with one record on each line, and each field within that record separated by a
comma. When you save and send the data using comma delimited text files (.csv) it is
easier to view and manipulate the data in spreadsheets.
2 New Features and Enhancements
Release Notes
Document 6-00424-44 Rev B
September 2009
SMTP 0
The library now supports the capability to test the SMTP Server settings.
Library Email 0
The library now has the capability to email configuration reports.
Resolved Issues 0
The Scalar i2000 i6.6 release address previously identified issues. For more information
about issues corrected in this release, see
Resolved Issues on page 5.
Compatibility and Support 0
Encryption and Q-EKM and QKM Drive Support
0
Encryption Option HP LTO-4 IBM LTO-4
Compatibility Matrix 0
Application Managed Encryption Supported Supported
Q-EKM Not Supported Requires License
(Requires per drive license)
QKM Requires a per
Not Supported
drive license
See the following table for information on drive and auxiliary firmware compatibility
with this release of Scalar i2000. This information is current as of this product release. For
the most up to date information on Quantum Global Services, please visit:
www.quantum.com/support
Drive Firmware
i6.6 Release
Library Firmware: 595A.GS01601
Component Firmware Version
LMC Remote Client 1.6.6
AMC Server and San
3
4.6.6/1.6.6
4
Manager Client
Drive Types
Quantum SDLT 320 (SCSI) v94
Quantum SDLT 600 (FC) v53
Compatibility and Support 3
1
1
Release Notes
September 2009
Drive Firmware
i6.6 Release
Library Firmware: 595A.GS01601
Component Firmware Version
Quantum DLT-S4 v42
2
IBM LTO-1 (SCSI) 5AU1
IBM LTO-1 (FC) 5AU1
IBM LTO-2 (SCSI) 93T0
IBM LTO-2 (FC) 93T0
IBM LTO-3 (FC) 2 Gb 93G0
IBM LTO-3 (FC) 4 Gb 93G0
IBM LTO-4 (FC) 4 Gb 94D4
HP LTO-3 (FC) 2 Gb L67Z
HP LTO-3 (FC) 4 Gb M69Z
HP LTO-4 (FC) 4 Gb H57Z
UDS Drive Sled i2000 640Q.GU003
1. Logical serial number addressing (drive spoofing) is not supported. It is recommended that all
customers move to the latest drive firmware.
2. Check with Quantum Customer Service for the latest firmware.
3. Install the LMC remote client from the Quantum website.
4. Install the AMC 4.6.6 Server and SAN manager remote client from the Quantum website.
4 Compatibility and Support
Release Notes
Document 6-00424-44 Rev B
September 2009
Resolved Issues 0
This release of Scalar i2000 i6.6 firmware resolved the following issues:
Change
Request
Number
18793 TDM - Drive does not show up in GUI after a library reboot.
21111 Enhanced GET profile for HP drives.
21358 RCU - Replacement drive fails to auto-level and come online.
22428 Retrieve the last reported FSC from IBM drives.
22603 Add encryption settings for all partitions to user-accessible configuration record.
22921 Blades lost from GUI / snapshot because of NFS mount failure.
23094 ECC errors on the CMB incorrectly reported against the MCB.
23638 rrmd shouldn't core during mcb shutdown.
24147 SNMP V3 broken.
17430 846550 Need the capability to configure DNS.
Service
Request
Number
Description
595A.GS01601
590A.GS01501
18042 768878
813508
18124 783438 SNMP failure causes the AMC/LMC to not come ready after power cycle or reboot.
18228 788760 The UDS code is reporting a E_DDC_DP_DRIVE_COMMS_WARNING during normal
18320 After library reboot, AMC/LMC on the front panel reports “library interface disabled”.
18652 SOIP communications hangs causing need for system reboot.
18692 749402
788332
849884
18755 786790
786650
901680
18781 683512
76894
18785 RCU NFS problems cause a mismatched on FW upgrade from build 570A.GS00501 to build
Status Monitor failure causes AMC to not get updated when FCB status changes.
operations and causing tickets to post.
Drive brick firmware auto-update settings are being reset by the MCB after an auto-update.
Top reach assembly of the picker robotics operation has Failed - GRP MCSVIS REACH NOT
ALIVE.
Robotics fail to come ready after Gripper replacement.
570A.GS00601 robotics disabled.
Resolved Issues 5
