EPA CERTIFIED WOODBURNING FIREPLACE

Owner’s Manual

Installation and Operation

Model:

7100FP-BK-B 7100FP-GD-B

7100FP-NL-B

7100FP

Beaverton

Oregon USA

Tested and

Listed by

O-T

OMNI-Test Laboratories, Inc.

CAUTION

DO NOT DISCARD THIS MANUAL

•

Important operating and maintenance instructions included.

WARNING

If the information in these instructions is not followed exactly, a ﬁ re may result causing property damage, personal injury, or death.

• Do not store or use gasoline or other ﬂ am- mable vapors and liquids in the vicinity of this or any other appliance.

• Do not overﬁ re - If heater or chimney connec- tor glows, you are overﬁ ring. Overﬁ ring will void your warranty.

• Comply with all minimum clearances to combustibles as speciﬁ ed. Failure to comply may cause house ﬁ re.

• Read, understand and follow these instructions for safe installation and operation.

DO NOT

DISCARD

• Leave this manual with party responsible for use and operation.

WARNING

HOT! DO NOT TOUCH. SEVERE BURNS MAY RESULT. CLOTHING IGNITION MAY RESULT.

Glass and other surfaces are hot during operation and cool down.

• Keep children away.

• CAREFULLY SUPERVISE children in same room as appliance.

• Alert children and adults to hazards of high temperatures.

• Do NOT operate with protective barriers removed or door open.

• Keep clothing, furniture, draperies and other combustibles away.

Installation and service of this appliance should be performed by qualiﬁ ed personnel. Hearth & Home Technologies recommends NFI certiﬁ ed profes- sionals, or technicians supervised by an NFI certiﬁ ed professional.

www.quadraﬁ re.com

433-1390D

WARNING

Fire Risk.

For use with solid wood fuel only. Other fuels may overﬁ re and generate

poisonous gases (i.e. carbon monoxide).

September 7, 2007

7100FP EPA Woodburning Fireplace

and Welcome to the Quadra-Fire Famil

Hearth & Home Technologies welcomes you to our tradition of excellence! In choosing a Quadra-Fire appliance, you have our assurance of commitment to quality , durability, and performance.

This commitment begins with our research of the market, including ‘Voice of the Customer’ contacts, ensuring we make products that will satisfy your needs. Our Research and Development facility then employs the world’s most advanced technology to achieve the optimum operation of our stoves, inserts and ﬁ replaces. And yet we are old- fashioned when it comes to craftsmanship. Each unit is

With warm regards,

___________________________

Alan Trusler

Senior

Vice President

Dealer Channel

___________________________

Dan Henry

Vice President

Advanced Technolgies

SAMPLE: CLEARANCE TO COMBUSTIBLES LABEL

LOCATION: on hang tag on right side of ﬁ replace

meticulously fabricated and gold and nickel surfaces are hand-ﬁ nished for lasting beauty and enjoyment. Our pledge to quality is completed as each model undergoes a quality control inspection. From design, to fabrication, to shipping: Our guarantee of quality is more than a word, it’s QuadraFire tradition, and we proudly back this tradition with a Limited Lifetime Warranty.

We wish you and your family many years of enjoyment in the warmth and comfort of your hearth appliance. Thank you for choosing Quadra-Fire.

_________________________

Jason Olmstead Vice President &

General Manager

___________________________

Steve Tate

Quadra-Fire

Brand Manager

Tested and

Listed by

OMNI-Test Laborat ories, Inc.

Report #061-S-41-2

UL 127, ULC-S610-M87

LISTED FIREPLACE, SOLID FUEL TYPE, ALSO SUITABLE FOR MOBILE HOME INSTALLATION. (UM) 84 HUD.

Installand use only in accordancewith manufacturer's installation,venting andoperating instructions.

Anyarea incorporatingwarm orcold airducts shall be enclosedin accordancewith themanufacturer's installation instructions.

Contact Your Local Building Or Fire Officials Or Authority Having Jurisdiction About Restrictions, Installation Inspection And Permits Required In Your Area.

WARNING - For Mobile Homes:

must be provided and unrestricted while unit is in use. The structural integrity of the mobile home floor, ceilingand walls mustbe maintained. The fireplace needs to be properly grounded to the frame of the mobile home.

Components required for installation: HTI SLSeries Pipe or Dura Plus System, Termination Cap, Hearth Extension and required accessory ChimneyAir Kit Part CAK4A.

Do not connect this unit to a chimney serving another appliance.

DANGER: Risk of electrical shock. Disconnect power supply before servicing. Electrical Rating: 115 VAC <3.0 AMPS 60 Hz Do not use grate or elevat e fire. Build wood fire directly on f i rebri c k.

Do not overfire. If heater or chimney connector glows, you are overfiring.

Do not use a fireplace insert or other products not s pec if ied for use with this produc t. WARNING-

TO REDUCE RISK OF FIRE OR INJURY, DO NOT INSTALL AN UNVENTED GAS LOG SET OR ANY LOG SET INTO FIREPLACE.

Mustprovide asource ofair toprevent airstarvationfrom combustionwhich couldresult of high levels of carbon monoxide.

Replace glass only with 5mm ceramic available from your dealer. Optional Fire Screen Part Mesh-EPA, may be used ONLY in

Product covered by US Patents 4,766,876; 5, 113,843; 5,341,794 Patent pending

Beaverton

Oregon USA

TESTED TO:

"For Use with Solid Wood Fuel Only."

Do not install in a sleeping room. An outside combustion air inlet

THIS FIREPLACE HAS NOTBEEN TESTED WITH ANUNVENTED GAS LOGSET OR ANYLOG SET.

U.S. ENVIRONMENTAL PROTECTION AGENCY - Certified to comply with July 1990 particulate emission standards.

USA

Model:

2007 2008 2009 Jan Feb Mar Apr May June July Aug Sept Oct. Nov. Dec.

Mfg by:

www.quadrafire.com

DO NOT REMOV E THIS LABEL

Made in U.S.A

Serial No / Numéro De Série

007

Minimum Clearances To Combustible Material

Chimney sections at any level require a 2” (51mm) minimum air space clearance between the framing and chimney section.

WITHIN ENCLOSURE AREA

Appliance to backwall 1/2" (13mm) Appliance to sidewall 1" (25mm) Duct boots to framing 0" (0mm)

Top standoffs to header 0" (0mm")

EXPOSED SURFACES

Faceplate to sidewall 16" (406mm) Remote outlet air grills to ceiling 12" (305mm)

MANTEL

Mantel from base of fireplace 60" (1524mm) Maximum mantel depth 12" (305mm)

FLOOR PROTECTION

Combustible flooring 20" (508mm) in front of and 8" (203mm) to either side of the fuel opening must be insulated with non-combustible floor protection with a minimum thickness of 1" (25mm) and ("k" value = 0. 43

In Canada: The hearth extension must be installed accordingto the installation instruct ions.

433-1400

Serial Number

Model Name

Test Lab & Report No.

Manufactured Date

Page 2

433-1390D

September 7, 2007

TABLE OF CONTENTS

Section 1: Listing and Code Approvals

A. Appliance Certiﬁ cation . . . . . . . . . . . . . . . . . . . .4

B. Mobile Home Approved . . . . . . . . . . . . . . . . . . . .4

C. Glass Speciﬁ cations . . . . . . . . . . . . . . . . . . . . . .5

D. BTU & Efﬁ ciency Speciﬁ cations . . . . . . . . . . . . .5

Section 2: Getting Started

A. Design and Installation Considerations . . . . . . . .6

B. Negative Pressure. . . . . . . . . . . . . . . . . . . . . . . .6

C. Typical Fireplace System . . . . . . . . . . . . . . . . . .8

D. Tools and Supplies Needed . . . . . . . . . . . . . . . .9

E. Inspect Fireplace and Components . . . . . . . . . .9

Section 3: Framing and Clearances

A. Selecting Fireplace Location . . . . . . . . . . . . . . .10

B. Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

C. Frame the Fireplace . . . . . . . . . . . . . . . . . . . . .12

D. Electrical Access and Wiring Diagram . . . . . . .13

E. Construct the Chase . . . . . . . . . . . . . . . . . . . . .14

Section 4: Installation of Fireplace

A. Install the Outside Air Kit . . . . . . . . . . . . . . . . . .15

B. Auxiliary Convection Air System . . . . . . . . . . . .17

C. Convection Air Lock . . . . . . . . . . . . . . . . . . . . .18

D. Secure the Fireplace . . . . . . . . . . . . . . . . . . . . .19

Section 5: Chimney Assembly

A. Chimney Requirements. . . . . . . . . . . . . . . . . . .21

B. Chimney Termination Requirements . . . . . . . . .21

C. Using Offsets/Returns . . . . . . . . . . . . . . . . . . . .22

D. Assemble the Chimney Sections . . . . . . . . . . .23

E. Assembling Chimney Sections

for SL-300 Series . . . . . . . . . . . . . . . . . . . . . . .23

F. Install the Ceiling Firestops . . . . . . . . . . . . . . . .24

G. Install the Attic Insulation Shield . . . . . . . . . . . .25

H. Double-check the Chimney Assembly. . . . . . . .25

I. Secure the Chimney . . . . . . . . . . . . . . . . . . . . .25

Section 6: Complete the Enclosure

A. Chimney Termination (2-10-03 Rule) . . . . . . . .26

B. SL-300 Series Ceiling/Roof Thimble . . . . . . . . .28

C. Chase Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

D. Install the Termination Cap . . . . . . . . . . . . . . . .29

Section 7: Accessories

A. Blower Replacement . . . . . . . . . . . . . . . . . . . . .31

B. Bafﬂ e Removal and Installation. . . . . . . . . . . . .32

C. Door and Door Gasket . . . . . . . . . . . . . . . . . . .32

D. Heat Zone Kit . . . . . . . . . . . . . . . . . . . . . . . . . .33

E. Timer Assembly Replacement . . . . . . . . . . . . .36

Section 8: Finishing

A. Hearth Extension. . . . . . . . . . . . . . . . . . . . . . . .38

B. Calculating Alternate Floor Protection . . . . . . . .38

C. Position the Hearth Extension . . . . . . . . . . . . . .41

D. Finishing Material . . . . . . . . . . . . . . . . . . . . . . .41

E. Non-Combustible Facing Material Installation. .42

F. Mantel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Section 9: Operating Instructions

A. General Information . . . . . . . . . . . . . . . . . . . . .44

B. Outside Air. . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

C. Clear Space Near the Fireplace . . . . . . . . . . . .45

D. Firescreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

E. Glass Doors . . . . . . . . . . . . . . . . . . . . . . . . . . .45

F. Blower Operation . . . . . . . . . . . . . . . . . . . . . . .46

G. Heat Zone Operation. . . . . . . . . . . . . . . . . . . . .46

H. Wood Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

I. Starting a Fire . . . . . . . . . . . . . . . . . . . . . . . . . .48

J. Burning Process . . . . . . . . . . . . . . . . . . . . . . . .49

K. Automatic Combustion Control (ACC) . . . . . . .49

L. Burning Guidelines . . . . . . . . . . . . . . . . . . . . . .50

M. Burn Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

N. Opacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

O. Overﬁ ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

P. Chimney Fire . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Q. Fire Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Section 10: Troubleshooting

A. Understanding Vent Problems . . . . . . . . . . . . .52

B. Draft Problems . . . . . . . . . . . . . . . . . . . . . . . . .52

C. Diagnostics and Problem Solving . . . . . . . . . . .54

Section 11: Maintenance and Servicing the Fireplace

A. General Maintenance . . . . . . . . . . . . . . . . . . . .56

B. Glass Replacement . . . . . . . . . . . . . . . . . . . . . .57

C. Brick Replacement . . . . . . . . . . . . . . . . . . . . . .58

D. Care and Cleaning of Plated Surfaces . . . . . . .59

E. Maintenance Task List . . . . . . . . . . . . . . . . . . . .59

Section 12: Reference Materials

A. Fireplace Dimensions . . . . . . . . . . . . . . . . . . . .60

B. Chimney Components. . . . . . . . . . . . . . . . . . . .61

C. Components Diagrams and Schematics . . . . . .63

D. Fireplace Diagram . . . . . . . . . . . . . . . . . . . . . . .64

E. Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . .65

F. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

G. Warranty Policy . . . . . . . . . . . . . . . . . . . . . . . . .67

H. Contact Information . . . . . . . . . . . . . . . . . . . . . .68

September 7, 2007

433-1390D

Page 3

7100FP EPA Woodburning Fireplace

Listing and Code Approvals

A. Appliance Certiﬁ cation

Model:

Laboratory: OMNI Test Laboratories, Inc. Report No: Type: Standard: UL127 and ULC-S610-M87 and

This ﬁ replace system has been tested and listed in accordance with UL127 and ULC-S610-M87 standards, and has been listed by OMNI Test Laboratories, Inc., for installation and operation in the United States and Canada as described in this manual. This ﬁ replace has been tested and listed for use with the SL-300 Series chimney (with the the CAK4A Air Kit) and ﬁ replace components listed in Section 12. The Dura-Plus is also an approved venting system manufactured by Dura-Vent Systems.

Check with your local building code agency before you begin your installation to ensure compliance with local codes, including the need for permits and follow-up inspections. Be sure local building codes do not supersede UL speciﬁ cations and always obtain a building permit so that insurance protection beneﬁ ts cannot be unexpectedly cancelled.

7100FP EPA Certiﬁ ed Woodburning Fireplace

061-S-41-2 Wood Fireplace

(UM) 84-HUD, Mobile Home Approved.

2. The ﬁ replace is to be secured to the mobile home structure. Use same holes that attached the ﬁ replace to the pallet to secure it to the ﬂ oor using 1/4 in. x 2 in. (6 mm x 51 mm) lag bolts or equivalent.

3. Unit must be grounded with #8 solid copper grounding wire or equivalent and terminated at each end with N.E.C. approved grounding device.

Refer to Minimum Clearances to Combustibles on pages 11-12 and chimney components on pages 62-63.

5. Floor protections requirements on pages 39-41 must be followed precisely.

6. Use silicone to create an effective vapor barrier at the location where the chimney or other component penetrates to the exterior of the structure.

Follow the chimney and chimney connector manufacturer’s instructions when installing the ﬂ ue system for use in a mobile home.

If unit burns poorly while an exhaust blower is on in home, (i.e., range hood), increase combustion air.

NOTE: Top sections of chimney must be removable to allow maximum clearance of 13.5 ft (41 1 cm) from ground level for transportation purposes.

B. Mobile Home Approved

This appliance is approved for mobile home installations when not installed in a sleeping room and when an outside combustion air inlet is provided. The structural integrity of the mobile home ﬂ oor, ceiling, and walls must be maintained. The ﬁ replace must be properly grounded to the frame of the mobile home and use only listed double-wall connector pipe.

Outside Air must be installed in a mobile home installation.

An outside air termination cap is supplied with your 7100 Fireplace for installation in a mobile home. If you use an alternative material it must be designed to prevent material from dropping into the area beneath the mobile home, and to prevent rodents from entering from the outside.

1. An outside air inlet must be provided for combustion and must remain clear of leaves, debris, ice and/or snow. It must be unrestricted while unit is in use to prevent room air starvation which can cause smoke spillage and an inability to maintain a ﬁ re. Smoke spillage can also set off smoke alarms.

WARNING

Fire Risk.

For use with solid wood fuel only. Other fuels may overﬁ re and generate

poisonous gases (i.e. carbon monoxide).

CAUTION

Maintain structural integrity of mobile home:

• Floor, wall, ceiling and/or roof. Do NOT cut through:

• Floor joist, wall, studs or ceiling trusses.

• Any supporting material that would affect the structural integrity.

WARNING

Asphyxiation Risk.

• Never install in a sleeping room. Consumes oxygen in the room.

Page 4

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

C. Glass Speciﬁ cations

This ﬁ replace is equipped with 5mm ceramic glass. Replace glass only with 5mm ceramic glass. Please contact your dealer for replacement glass.

D. BTU & Efﬁ ciency Speciﬁ cations

EPA Certiﬁ ed: Efﬁ ciency: BTU Output

with EPA test fuel: with cord wood:

Heating Capacity: Vent Size: Max Wood Length: Fuel: Shipping Weight:

3.1 grams per hour up to 77%

58,500/ hr. 90,000/hr

up to 3,500 sq ft 6 inches 24 inches Cord Wood 570 lbs

WARNING

NOTE: Hearth & Home Technologies, manufacturer of

this appliance, reserves the right to alter its products, their speciﬁ cations and/or price without notice.

Fire Risk

• Do not install or operate damaged ﬁ replace.

• Do not modify ﬁ replace.

• Installation other than as instructed by Hearth & Home Technologies Inc. is strictly prohibited.

• Do not operate the ﬁ replace without fully assembling all components.

• Do not overﬁ re.

• Do not install an unvented gas log set. This ﬁ replace has not been tested for use with unvented gas log sets.

• Installation and/or use of any component part not approved by Hearth & Home Technologies.

Hearth & Home Technologies disclaims any responsibility for, and the warranty and agency listing will be voided by the above actions.

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this ﬁ replace. For assistance or addi- tional information consult a qualiﬁ ed installer, service agency or your dealer.

September 7, 2007

433-1390D

Page 5

7100FP EPA Woodburning Fireplace

Getting Started

A. Design and Installation Considerations

CAUTION

Check building codes prior to installation.

• Installation MUST comply with local, regional, state and national codes and regulations.

• Consult insurance carrier, local building inspector , ﬁ re ofﬁ cials or authorities having jurisdiction about restrictions, installation inspection and permits.

When planning a ﬁ replace installation, it is necessary to de- termine the following information before installing:

• Where the fireplace is to be installed. See Sections 3 and 4.

• The vent system conﬁ guration to be used. See Sections 5 and 6.

• Electrical wiring. See Section 3.

• Framing and ﬁ nishing details. See Sections 3, 6 and 8.

• Whether optional accessories are desired. See Section 12.

Draft is the pressure difference needed to vent ﬁ replaces successfully. Considerations for successful draft include:

• Preventing negative pressure

• Location of ﬁ replace and chimney

• Upper level air leaks: recessed lighting, attic hatch opening, duct leaks.

To minimize the effects of negative air pressure, the following must be considered:

• Install the outside air kit.

• Ensure adequate outdoor air is supplied for combustion appliances and exhaust equipment.

• Ensure furnace and air conditioning return vents are not located in the immediate vicinity of the ﬁ replace.

• Avoid installing the ﬁ replace near doors, walkways or small isolated spaces.

• Recessed lighting should be a “sealed can” design; attic hatches weather stripped or sealed; attic mounted duct work and air handler joints and seams taped or sealed.

Location of the ﬁ replace and chimney will affect performance. As shown in Figure 7.1, on page 7, the chimney should:

• Be installed through the warm airspace enclosed by the building envelope. This helps to produce more draft, especially during lighting and die-down of the ﬁ re.

• Penetrate the highest part of the roof. This minimizes the effects of wind turbulence.

• Be located away from trees, adjacent structures, uneven roof lines and other obstructions.

WARNING

Asphyxiation Risk

Negative pressure can cause spillage of combustion fumes and soot. Fire needs to draft properly for safe operation.

B. Negative Pressure

Negative pressure results from the imbalance of air avail-

able for the ﬁ replace to operate properly. Causes for this imbalance include:

• Exhaust fans (kitchen, bath, etc.).

• Range hoods.

• Combustion air requirements for furnaces, water heaters and other combustion appliances.

• Clothes dryers.

• Location of return-air vents to furnace or air conditioning.

• Imbalances of the HVAC air handling system.

Offsets can restrict draft so their use should be minimized. Consider the ﬁ replace location relative to ﬂ oor and ceiling and attic joists.

The 7100FP Fireplace requires a minimum ﬂ ue draft of -0.10 inches of water column on High, and -0.04 inches of water column on Low, as measured with a draft meter. Most dealers have draft meters available to measure your ﬂ ue draft if you suspect a problem.

If the ﬁ re is difﬁ cult to start, and smoke spills out of the door, or you ﬁ nd it hard to establish and maintain a moderately high burn rate, then the ﬂ ue draft is too low and corrective measures must be taken.

NOTE: Cold air inﬁ ltration can cause frosting on glass.

Page 6

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

Marginal Location

Location

Not

Recommended

Windward

Figure 7.1 Recommended Chimney Locations

Recommended

Location

Recommended

Location

Location NOT

Recommended

Leeward

Multi-level Roofs

September 7, 2007

433-1390D

Page 7

7100FP EPA Woodburning Fireplace

C. Typical Fireplace System

The Quadra-Fire ﬁ replace system consists of the following:

• Fireplace

• Firebrick

• Chimney termination cap

• Chimney system

• Hearth extension

• Outside air

Required components include:

• Chimney Air Kit (with SL 300 Series Pipe)

Optional components include:

• Firescreen

• Lintel Bar

• Heat Zone Kit

• Top Vent Kit

Termination Cap

Note: Junction box should be installed during initial setup

to avoid major reconstruction.

NOTE: Illustrations used throughout these instructions reﬂ ect “typical installations” and are for design purposes only. Actual installation may vary slightly due to individual design preferences. However, minimum clearances must be maintained at all times.

The illustrations and diagrams used throughout these installation instructions are not drawn to scale.

Additional lateral support for chimney above roof (or enclosed in chase) if needed

Chimney penetrates roof preferably without affecting roof rafters

Offset/Return (with hanger straps)

Attic insulation shield (not shown) must be used here to keep insulation away from chimney if attic is insulated

Framing headed off in ceiling joists

Chimney system

Combustible framing/header on top of V-shaped standoffs (spacers)

Factory-built fireplace

Decorative facing and trim

Hearth extension

Storm Collar

Mantel

Non-combustible roof flashing maintains minimum clearance around chimney

Support straps on rafter supports chimney (not shown)

Ceiling firestop on floor of attic

Outside combustion air

Enclosed space above and around fireplace

Outside combustion air

Page 8

Protective metal hearth strip(s)

Figure 8.1 Typical Fireplace System

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

D. Tools and Supplies Needed

Before beginning the installation be sure the following tools and building supplies are available:

Reciprocating saw Framing material Pliers High temp caulking material Hammer Gloves Phillips screwdriver Framing square Flat blade screwdriver Electric drill and bits Plumb line Safety glasses Level Tape measure 1/2-3/4 in. length, #6 or #8 self-drilling screws Misc. screws and nails

CAUTION

• Keep ﬁ replace dry.

• Mold or rust may cause odors.

E. Inspect Fireplace and Components

WARNING

Fire Risk Explosion Risk

Inspect fireplace and components for

damage. Damaged parts may impair safe operation.

• Do NOT install damaged components.

• Do NOT install incomplete components.

• Do NOT install substitute components Report damaged parts to dealer.

• Carefully remove the ﬁ replace and components from the packaging.

• Doors are shipped on the ﬁ replace.

• Report to your dealer any parts damaged in shipment.

WARNING

Fire Risk.

• Do not operate appliance before reading and understanding operating instructions.

• Failure to operate appliance properly may cause a house ﬁ re.

September 7, 2007

433-1390D

Page 9

7100FP EPA Woodburning Fireplace

Framing and Clearances

WARNING

Fire Risk

Provide adequate clearances.

• Around air openings

• To combustibles

• For service access. Locate ﬁ replace away from trafﬁ c areas.

A. Selecting Fireplace Location

Several options are available to you when choosing a location for your ﬁ replace. This ﬁ replace may be used as a room divider, installed along a wall, across a corner or used in an exterior chase. See Figure 10.1.

Locating the ﬁ replace in a basement, near frequently opened doors, central heat outlets or returns, or other locations of

Note: A minimum 1/2 in. air clearance must be maintained at the

back and 1 in. minimum clearance to the sides of the ﬁ replace assembly.

Chimney sections at any level require a 2 in. minimum air space clearance between the framing and chimney sections.

Note:

• Illustrations and photos reﬂ ect typical installations and

are FOR DESIGN PURPOSES ONLY.

• Illustrations/diagrams are not drawn to scale.

• Actual installation/appearance may vary due to individual

design preference.

• Hearth & Home Technologies reserves the right to alter its products.

considerable air movement can affect the performance and cause intermittent smoke spillage from the front of the ﬁ re- place when no outside air is used. Outside air must be used for combustion. The 7100FP comes equipped with an outside air inlet to feed combustion air from outside the home, along with an outside air termination cap. Consideration should be given to these factors before deciding on a location. See Sections 2 and 10.

Note: In addition to these framing dimensions, also reference the

following sections:

• Clearances (Section 3.B.)

• Mantel (Section 8.F.)

• Fireplace Dimensions (Section 12.A.)

Model #7100FP

(Dimensions for ﬁ nished walls)

In an exterior chase or projecting into a garage

Across a corner

24 in.

(610mm)

Along a wall

As a room divider

(1219mm)

in. 41-7/8 16 89-1/2 63-5/16 22-7/16 44-3/4 14-1/16 55-15/16 50-7/8

mm 1063 406 2273 1608 570 1137 357 1421 1292

48 in.

ABC D E FG H I

24 in.

(610mm)

24 in.

(610mm)

Figure 10.1 Fireplace Locations

Page 10

433-1390D

September 7, 2007

B. Clearances

7100FP EPA Woodburning Fireplace

WARNING

Fire Risk

• Comply with all minimum clearances to combustibles as speciﬁ ed.

• Framing or ﬁ nishing material used on the front of, or in front of, the appliance closer than the minimums listed, must be constructed entirely of non-combustible materials (i.e., steel studs, concrete board, etc.).

Failure to comply may cause ﬁ re.

0 in. to level

of standoffs

Storm Collar

Roof Flashing

2 in. min.

(attic)

2 in. (51 mm) min.

Ceiling Firestop

2 in. (51 mm) min.

(51 mm)

(

2 in. (51 mm) min.

Insulation

Shield

Ceiling Firestop

(ceiling)

2 in. (51 mm) min.

Offset/Return with

hanger straps

(ceiling)

2 in. (51 mm) min.

Must have 2 in. (51 mm)

Attic

minimum clearance

to header

September 7, 2007

0 in.

to floor

Figure 11.1 Clearances to Combustible Materials

(except at nailing flanges where it is 1/2 in. [13 mm])

433-1390D

1/2 in. (

3 mm

)

of applian

1 in. (25mm) to side of appliance

to back ce

Page 11

7100FP EPA Woodburning Fireplace

Minimum Clearances to Combustibles WITHIN ENCLOSURE AREA:

Appliance to backwall 1/2 in. (13 mm) Appliance to sidewall 1 in. (25 mm) Duct boots to framing 0 in. (0 mm) Top standoffs to header 0 in. (0 mm) Door opening to sidewall 22-7/8 in. (581 mm)

EXPOSED SURFACES

Faceplate to sidewall 16 in. (406 mm) Heat zone air grills to ceiling 12 in. (305 mm)

MANTEL

Combustible and non-combustible mantel minimum height from base of ﬁ replace to underside of mantel 60 in. (1524 mm)

Maximum mantel depth 12 in. (305 mm)

WARNING

Fire Risk

• Non-combustible mantels installed at a reduced height may GET EXTREMELY HOT during use of the ﬁ replace.

• DO NOT TOUCH or place heat sensitive combustible items on the mantel.

CHIMNEY SECTIONS

Chimney sections at any level require a 2 in. (51 mm) minimum air space clearance between the framing and chimney section.

C. Frame the Fireplace

NOTE: Wiring for blowers must be done before framed enclosure is completed. If using a Heat Zone kit, it also must be installed before enclosure is complete.

OPTIONAL FRAMING CONSTRUCTION / REDUCED MANTEL HEIGHT:

Non-combustible mantel material minimum height from base of ﬁ replace to underside of mantel 46 in. (1168mm) when the following enclosure construction materials are used:

Non-combustible framing materials must be used above ﬁ re- place to height of 84 in. (2134mm) from base of ﬁ replace for all construction materials, framing members, sheeting, and all ﬁ nish materials.

Non-Combustible Materials

Materials which will not ignite and burn. Such materials are those consisting entirely of steel, iron, brick, tile, concrete, slate, glass or plasters, or any combination thereof.

Materials that are reported as passing ASTM E 136, Standard Test Method for Behavior of Materials, in a Vertical Tube Furnace at 750°C, shall be considered non-combustible materials.

Combustible Materials

Materials made of or surfaced with wood, compressed paper, plant ﬁ bers, plastics, or other materials that can ignite and burn, whether ﬂ ame proofed or not, or whether plastered or un-plastered shall be considered combustible materials.

The 7100FP Fireplace will ﬁ t a framed opening height of 45-7/8 in. (1165 mm) tall and width of 42 in. (1067 mm). The ﬁ nished cavity depth must be no less than 24 in. (610 mm). Framing must extend straight up all the way to the ceiling.

Figure 12.1 shows a typical framing (using 2 x 4 lumber) of the ﬁ replace, assuming combustible materials are used. All required clearances to combustibles around the ﬁ replace must be adhered to. See Figure 1 1.1, on page 11. Any framing across the top of the ﬁ replace must be above the level of the top standoffs. (No recess above standoffs.)

2 in.

(51mm)

12 in.

(305mm)

Position combustible/ non-combustible mantel 60 in.

45-7/8 in.

(1165mm)

(1524mm) from base of the ﬁ replace

Page 12

WARNING

Fire Risk

Hearth & Home Technologies is not responsible for discoloration, cracking or other material failures of ﬁ nishing materials due to heat exposure or smoke.

• Choose ﬁ nishing materials carefully.

433-1390D

24 in.

(610mm)

Figure 12.1 Framing the Fireplace

42 in.

(1067mm)

September 7, 2007

Suggestions:

1. Insulate chase.

2. Finish chase walls with dry wall 5/8 in. (16mm) Type X face tape.

3. All dimensions are to ﬁ nished walls and ceilings.

Figure 13.1 Sheetrocked Chase

WARNING

Fire Risk

Comply with all minimum clearances speciﬁ ed.

• A minimum 1/2 in. (13mm) air clearance must be maintained at the back and 1 in. (25mm) to the sides of the fireplace assembly.

• Chimney sections at any level require a 2 in. (51mm) minimum air space clearance between the framing and chimney section.

7100FP EPA Woodburning Fireplace

WARNING

Fire Risk

Do not apply combustible ﬁ nishing materials over any part of the front of this ﬁ replace.

• The metal ﬁ replace face may only be covered with noncombustible materials such as ceramic tile, brick, or stone.

• Do not cover or block any cooling air slots.

The decorative fascia must be removable for future serviceability of the Automatic Combustion Control.

WARNING

Fire Risk

• Maintain clearances.

• Use only non-combustible material below standoffs, material such as cement board is acceptable.

• Framing or ﬁ nishing material used on the front of, or in front of, the appliance closer than the minimums listed, must be constructed entirely of noncombustible materials (i.e., steel studs, concrete board, etc.).

D. Electrical Access and Wiring Diagram

NOTE: The manual override switch, rheostat

speed control and cover plate are supplied. You will need to supply: 14-3 wire with ground; 14-2 wire with ground; standard wall mount junction box; wire nuts.

1. Remove junction box cover plate on the bottom right side of the ﬁ replace.

2. Thread the 14-3 with ground wire through the opening with the strain relief on the cover plate.

3. Match colors to wire harness, (red to red, white to white, etc) and secure with wire nuts.

NOTE: Wiring for blowers must be done before framed enclosure is completed. If using a Heat Zone kit, it also must be installed before enclosure is complete.

September 7, 2007

14-3 w/ground

Match colors to wire harness (red to red, white to white, etc) and secure with a wire nut

Power to the Fireplace

Snap Disc bypass switch

Figure 13.2 Fan Wiring Diagram

433-1390D

RED

WHITE

BLACK

Standard wall mount with Junction Box

14-2 w/ground

WIRE NUT

WHITE

GREEN

Incoming Power

BLACK

(110V)

Page 13

7100FP EPA Woodburning Fireplace

E. Construct the Chase

A chase is a vertical boxlike structure built to enclose the ﬁ re- place and/or its vent system. Vertical chimneys that run on the outside of a building must be installed inside a chase.

In cold climates, it is recommended that the chase be well insulated using batt type insulation between the joists.

Construction of the chase may vary with the type of building. These instructions are not substitutes for the requirements of local building codes. Local building codes MUST be checked.

Chases should be constructed in the manner of all outside walls of the home to prevent cold air drafting problems. The chase should not break the outside building envelope in any manner. All outer walls need to be insulated.

Building codes require false ceiling and ceiling ﬁ restops at each ﬂ oor of the chase or every 10 ft (3048 mm) of clear space to control spread of ﬁ re.

Walls, ceiling, base plate and cantilever ﬂ oor at the ﬁ rst level of the chase should be insulated. See Figure 14.1. Vapor and air inﬁ ltration barriers should be installed in the chase as per regional codes for the rest of the home. Additionally, Hearth & Home Technologies recommends that the inside surfaces be sheet rocked and taped (or the use of an equivalent method) for maximum air tightness.

Holes and other openings should be caulked with high temperature caulk or stuffed with unfaced ﬁ ber glass insulation.

Round Termination Cap

Storm Collar

Metal Chase Top

Ceiling

Firestop

False Ceiling

Attic

Tabs

Insulation

False Ceiling

Figure 14.1 Chase Assembly

Insulation

Shield

Ceiling

Firestop

Insulation

False Ceiling

Chimney

Insulation in the

outside walls

of the chase

Materials

a. The chase is constructed using framing materials much

the same as the walls in your home. A variety of siding materials may be used including brick, stone, veneer brick, or standard siding materials.

b. In constructing the chase, several factors must be con-

sidered:

1) Maintain a 2 in. (51 mm) air space around the chimney.

2) The chase top must be constructed of non-combustible material.

3) In cold climates, a ﬁ restop spacer should be installed in an insulated false ceiling at the 8 ft. (2438 mm) level above the ﬁ replace assembly. This reduces heat loss through the chase.

4) In cold climates, the walls of the chase should be insulated to the level of the false ceiling as shown in Figure 14.1. This will help reduce heat loss from the home around the ﬁ replace.

Three examples of chase applications are shown in Figure 14.2.

1. Fireplace and chimney enclosed in an exterior chase.

2. Chimney offset through exterior wall and enclosed in chase.

3. Chase constructed on roof.

All outside walls should be insulated.

1 2 3

Figure 14.2 Chase Constructions

Page 14

433-1390D

September 7, 2007

Installation of Fireplace

CAUTION

Sharp Edges

• Wear protective gloves and safety glasses during installation.

A. Install the Outside Air Kit

This ﬁ replace will operate correctly only if adequate ventila- tion is provided to allow proper draft to the ﬁ replace system. See Section 2.

Using an outside air kit must be used for combustion to minimize the effects of negative pressure within the structure. We recommend you utilize the shortest duct run to optimize the performance of the outside air kit. The outside air kit inlet should be positioned in a manner that will not allow snow, leaves, etc. to block the inlet. In some installations the air duct may need to be run vertically. In such an installation, a 3 ft (914 mm) height difference must be maintained from the top of the uppermost chimney section to the outside combustion air inlet. See Figure 16.1 on page 16.

See Figure 16.2 on page 16 for proper placement of outside air inlet.

The outside air kit is installed on the right hand side of the ﬁ replace. See Figure 15.1 for handle location/operation.

7100FP EPA Woodburning Fireplace

Cut a 6 in. (152 mm) hole in outside wall to accommodate air piping. The outside air is located on top, auxiliary convection air intake is located on the bottom. See Figure

15.1.

2. Use 6 in. (152 mm) metal ﬂ ex or rigid piping (not supplied) to directly connect outside air to ﬁ replace intake. Insulate the pipe to prevent frost condensation.

3. Use the supplied termination caps.

4. Seal between the wall and the pipe with silicone to prevent moisture penetration and air leaks.

5. Seal between the termination cap and the house with silicone to prevent air inﬁ ltration.

NOTE: A control knob allows you control of the outside air

inlet. Use of outside air for combustion is required to conserve heated air within the structure and to provide make up air to keep the ﬁ replace venting properly.

IMPORTANT!

TURN CLOCKWISE TO “OPEN” POSITION.

OUTSIDE AIR KNOB MUST BE IN THE “OPEN” POSITION TO OPERATE FIREPLACE PROPERLY.

MAY BE CLOSED WHEN NOT IN USE TO PREVENT COLD AIR INFILTRATION.

Figure 15.1 Outside Air Installation

September 7, 2007

Open/Close

Knob for

outside air

CLOSED

OUTSIDE AIR

OPEN

Outside Air

intake

Auxiliary

Convection

Air

433-1390D

Termination

Caps supplied

with fireplace

6 in. (152 mm) rigid or flex pipe

(not provided)

Page 15

7100FP EPA Woodburning Fireplace

WARNING

Fire Risk Asphyxiation Risk

Do not draw outside combustion air from:

• Wall, ﬂ oor or ceiling cavity.

• Enclosed space such as an attic or garage.

• Close proximity to exhaust vents or chimneys.

Fumes or odor may result.

CAUTION

Risk of Smoke Spillage

Outside air inlet must be located to prevent blockage from:

• Leaves

• Snow/ice

• Other debris Blockage may cause combustion air starvation.

Handle Left - Closed Handle Right - Open

Figure 16.2 Locating the Outside Air Control

Attic insulation shield must be used to keep insulation away from chimney.

Ceiling firestop on floor of attic.

Figure 16.1 Outside Air Inlet Locations

3 ft min. from top of uppermost chimney section to air inlet.

Page 16

433-1390D

September 7, 2007

Outlet placed

higher than 3 ft

below the

termination cap

Attic space

Garage or

combustible

liquids storage

Use only duct materials specified by manufacturer

7100FP EPA Woodburning Fireplace

Outlet blocked by

snow, leaves, etc.

Figure 17.1 Outside Convection Air Placement

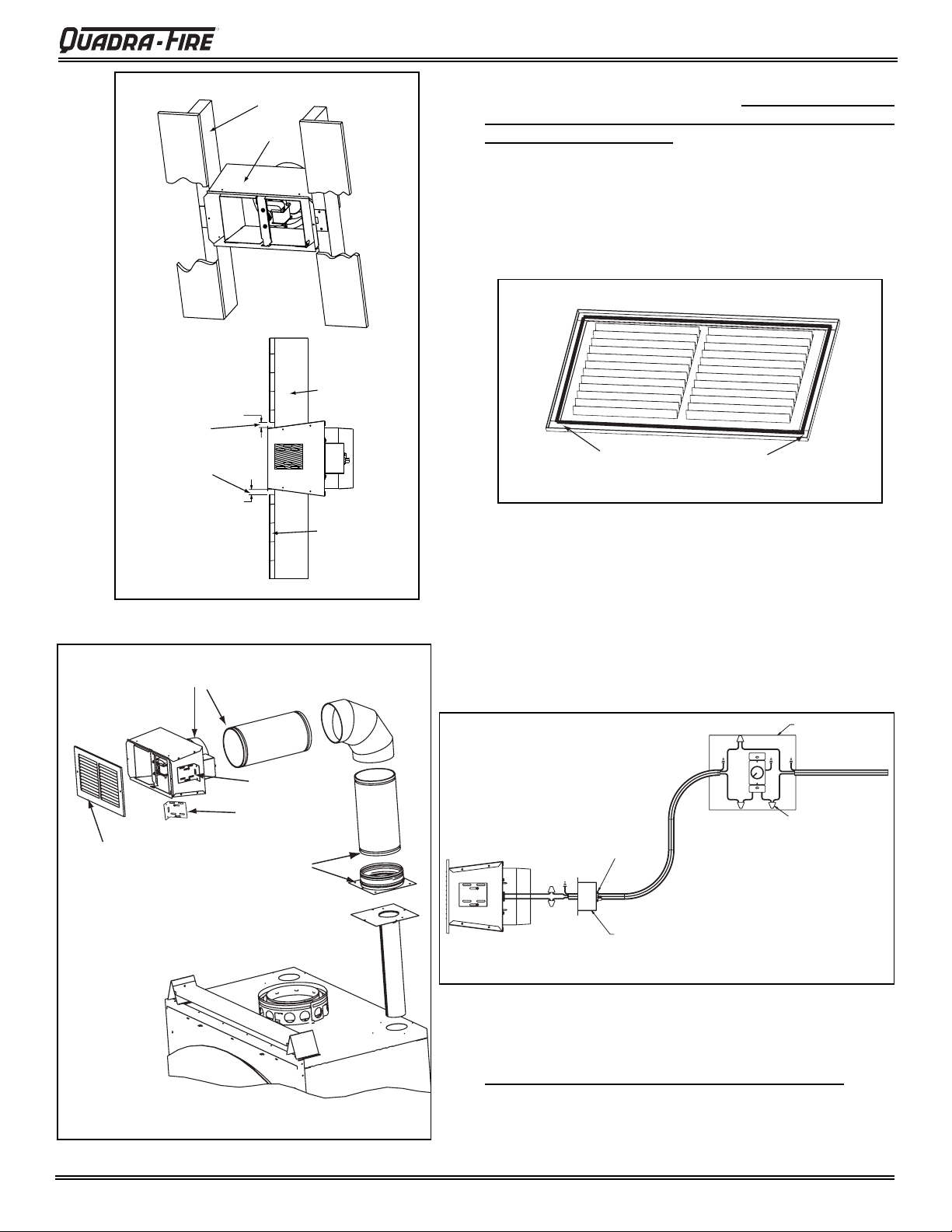

B. Auxiliary Convection Air System

Both the Outside Air and Auxiliary Air kits are installed

on the right hand side of the ﬁ replace.

Auxiliary convection air allows you to use outside air to ﬂ ow over the blowers, where it is heated and then distributed into the room producing positive pressure inside the home. Alternatively , you can also run a 6 in. (152 mm) duct to another location in your home and use as a cold air return within the home.

The auxiliary convection lever allows you to change the ﬁ replace from a zone heater into a whole house heater.

LEFT: Slide to the left and use the ﬁ replace as a zone heater. This option pulls room air into the bottom grille of the ﬁ replace, heats the air and re-circulates it to the room(s).

RIGHT: house heater for room convection air.

Slide to the right and use the ﬁ replace as a whole

Left = Room Air Right =Auxiliary Air

The auxiliary convection lever is located underneath the front lower panel. See Figure 17.2.

September 7, 2007

433-1390D

Figure 17.2 Auxiliary Convection Air Lever

Page 17

7100FP EPA Woodburning Fireplace

The auxiliary convection lever allows you to choose where the convection air is coming from. You can either use room air from the same room where the ﬁ re- place is installed (all the way to the left) or from duct work which can be run to another room in the house or to the exterior of the home to use outside air (all the way to the right).

NOTE: If you live in an area that experiences very cold winter months, you will want to pull in room air from your home as opposed to pulling in cold air from the outside of the home. This will eliminate creating a draft of cold outside air inﬁ l- trating your home when your are not using your ﬁ replace.

Figure 18.1

C. Convection Air Lock

Auxiliary convection air control is locked. If you are going to use this function for air movement you must remove the lock.

After removing the fascia, remove the one screw and plate to allow the handle to be moved in the full motion right to left. See Figure 18.2.

Discard the plate and screw. Replace fascia.

Convection Lock Bracket

8-32 Screw

Figure 18.2

Page 18

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

D. Secure the Fireplace

• Position the Fireplace

This ﬁ replace may be placed on either a combustible or non-combustible continuous ﬂ at surface. Follow the in- structions for framing in Section 3.C. Slide the ﬁ replace into position. Be sure to provide the minimum 1 in. (25 mm) air clearance at the sides and 1/2 in. (13 mm) at back of the ﬁ replace assembly. See Section 3.B.

CAUTION

Sharp Edges

• Wear protective gloves and safety glasses during installation.

WARNING

Fire Risk!

• Prevent contact with sagging, loose insulation.

• Do NOT install against vapor barriers or exposed insulation.

• Level the Fireplace

Level the ﬁ replace side-to-side and front-to-back. Shim with noncombustible material, such as sheet metal, as necessary. Secure the ﬁ replace (using the pallet mount- ing brackets located on either side of the ﬁ replace) to the subﬂ oor.

Pallet Mounting

Brackets

Metal strips 2 in. (51mm) under edge of Fireplace and Hearth Extension and 2 in. (51mm) on both side of fireplace opening. Nail or screw metal strips in place.

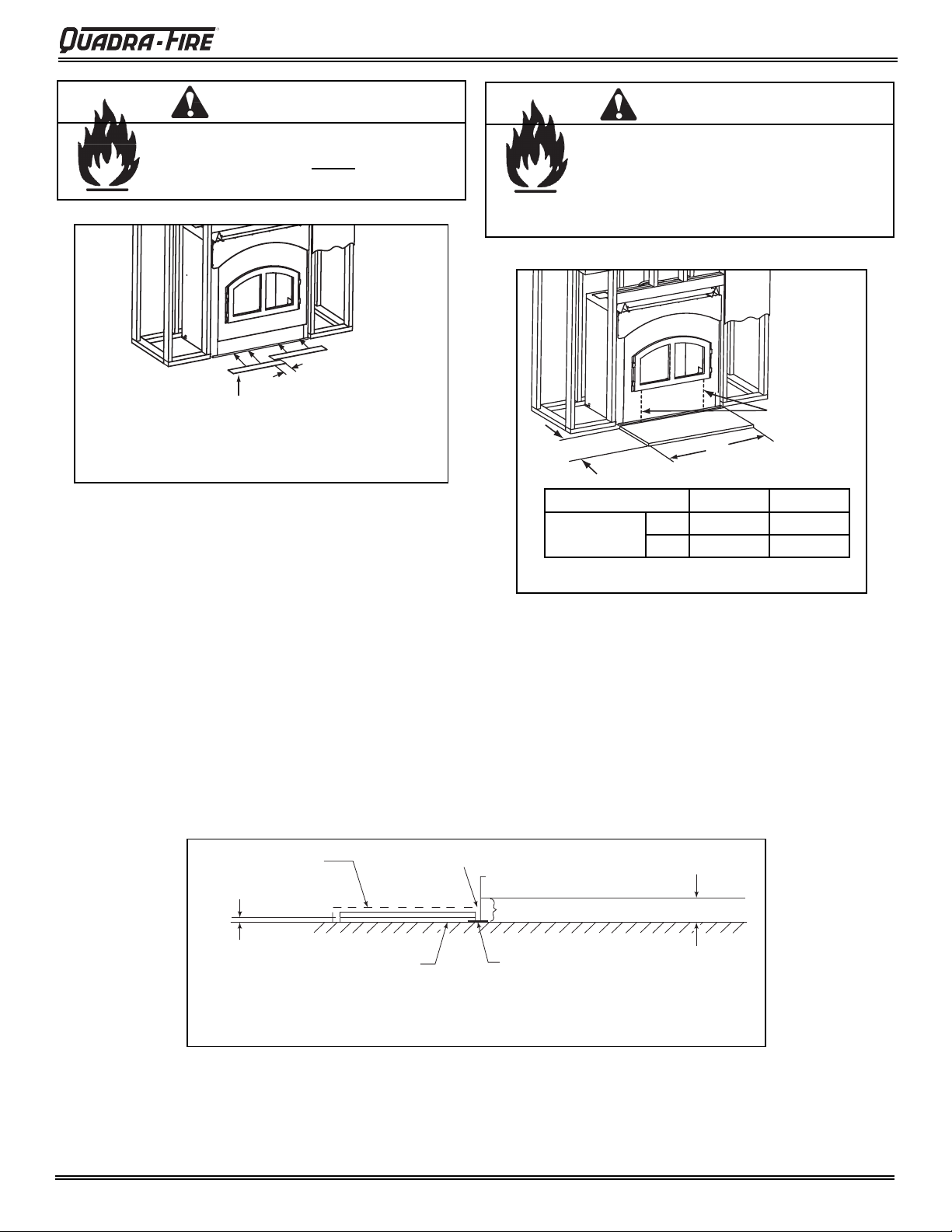

Figure 19.1 Position the Protective Metal Hearth Strips

1 in. (25mm) Overlap

WARNING

Fire Risk!

• Metal hearth strips MUST be installed. Sparks or embers may ignite ﬂ ooring.

• Place the Protective Metal Hearth Strips

Included with your ﬁ replace you will ﬁ nd two metal hearth strips measuring approximately 23 in. x 4 in. (584 mm x 102 mm). These strips are used to provide added protection where the ﬁ replace and the hearth ex- tension meet.

Slide each metal strip 2 in. (51 mm) under the front edge of the ﬁ replace. The individual pieces must overlap each other by 1 in. (25 mm) minimum in the middle of the ﬁ re- place to provide continuous coverage of the ﬂ oor. See Figure 19.1. These metal strips should extend from the front and sides of the ﬁ replace opening by 2 in. (51 mm). Nail or screw metal strips in place.

Note: When elevating the fireplace above the hearth extension the front of the elevated platform must be protected with a protective metal hearth strip (not included) as shown in Figure 19.2.

op piece must overlap

bottom piece

Raised Platform

2 in.

(51 mm)

Floor

2 in.

(51 mm)

Figure 19.2 Protect the Front of an Elevated Platform

Nail or screw metal strips in place.

1 in. (25 mm) min.

overlap

September 7, 2007

433-1390D

Page 19

7100FP EPA Woodburning Fireplace

Chimney Assembly

Chimney must extend beyond combustible roof structure

Maintain minimum height of chimney above roof

Install roof flashing according to minimum requirements

Offsets/returns may not exceed 30° from vertical

Termination Cap

Additional support for tall chimneys

Storm Collar

Maintain minimum clearances to combustibles as specified

Support straps for offsets/ returns must be secured to adequate framing

Ceiling firestops are required where chimney passes through ceiling or floor

Figure 20.1 Typical Chimney System - Guidelines for Chimney System Installation

NOTE:

• Chimney performance may vary.

• Trees, buildings, roof lines and wind conditions affect

performance.

• Chimney height may need adjustment if smoking or overdraft occurs.

Page 20

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

A. Chimney Requirements

Vertical distances are measured from the base of the ﬁ re- place as shown in Figure 21.1.

Minimum overall straight height 13 ft 3.96 m Minimum height with single offset/

14.5 ft 4.42 m

return Double offset/return minimum height 20 ft 6.1 m Maximum height 50 ft 15.24 m Maximum chimney length between an

20 ft 6.1 m

offset and return Maximum distance between chimney

35 ft 10.67 m

stabilizers Maximum unsupported chimney

6 ft 1.83 m

length between the offset and return Maximum unsupported chimney

35 ft 10.67 m

height above the ﬁ replace Maximum unsupported chimney

6 ft 1.83 m

above roof

Note: A maximum of two pairs of offsets and returns may be used.

WARNING

Fire Risk

• Must maintain 2 in. (51 mm) air clearance to insulation and other combustible materials.

6 ft (1.83 m) max. unsupported chimney above roof

6 ft (1.8 m) max. unsupported run

20 ft (6.10 m) max. pipe between an offset & return

B. Chimney Termination Requirements

To determine the chimney components needed to complete your particular installation, follow the steps below:

• Determine the total vertical height of the fireplace installation. This dimension is measured from the base of the ﬁ replace assembly to the point where the smoke exits the termination cap.

• Subtract the effective height of the ﬁ replace assembly from the overall height of the ﬁ replace installation (measured from the base of the fireplace to the bottom of the termination cap, 13 ft. (4m).

• Refer to Table 21.2 to determine what components must be selected to complete the ﬁ replace installation.

• Determine the number of ceiling ﬁ restops, stabilizers, roof flashing, etc. required to complete the fireplace installation.

Table 21.2

HEIGHT OF CHIMNEY COMPONENTS in. mm Chimney Stabilizer

SL3 4-3/4 121

Firestops Spacers

FS338 0 0 FS339 0 0 FS340 0 0

Offsets/Returns

SL315 (15º) 13-3/8 340 SL330 (30º) 15-1/2 394

Roof Flashing

RF370 0 0 RF371 0 0

Chimney Sections*

SL306 4-3/4 121 SL312 10-3/4 273 SL318 16-3/4 425 SL324 22-3/4 578 SL336 34-3/4 883 SL348 46-3/4 1187

* Dimensions reﬂ ect effective height.

Ceiling firestop

46 in.

(1168 mm)

to top of standoffs

Figure 21.1 Chimney Requirements

14.5 ft (4.42 m) min. height/single offset-return 20 ft. (6.10 m) min. height/double offset-return

September 7, 2007

35 ft (10.7 m)

max. straight

unsupported

chimney height

50 ft (15.24 m) max. height

433-1390D

WARNING

Asphyxiation Risk.

• Do NOT connect this unit to a chimney ﬂ ue servicing another appliance.

• Do NOT connect to any air distribution duct or system.

May allow ﬂ ue gases to enter the house.

Page 21

7100FP EPA Woodburning Fireplace

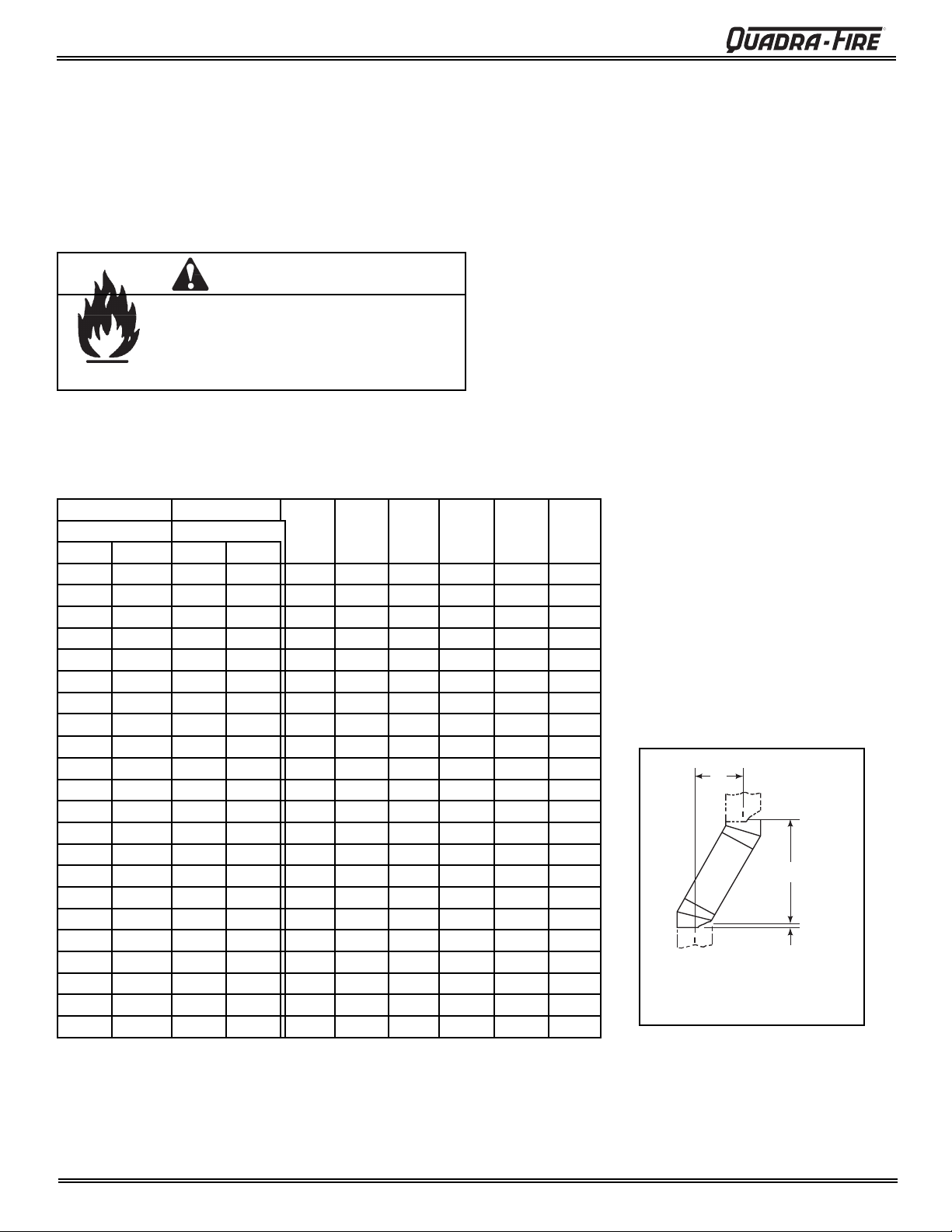

C. Using Offsets/Returns

To bypass any overhead obstructions, the chimney may be offset using an offset/return.

An offset and return may be attached together or a chimney section(s) may be used between an offset and return.

Perform the following steps to determine the correct chimney component combination for your particular installation:

• Measure how far the chimney needs to be shifted to enable it to avoid the overhead obstacle. See Figure 22.2. Use dimension “A” to determine chimney section required to achieve the needed shift.

• After determining the offset dimension, refer to Table 22.1 and ﬁ nd the “A” dimension closest to but not less than the distance of shift needed for your installation.

• The “B” dimension that coincides with the “A” dimension represents the required vertical clearance that is needed to complete the offset and return.

WARNING

Fire Risk

DO NOT combine offsets to create an offset

greater than 30° from vertical.

• Draft will be restricted.

• Read across the chart and ﬁ nd the number of chimney sections required and the model number of those particular chimney parts.

• Whenever the chimney penetrates a ﬂ oor/ceiling, a ceiling ﬁ restop must be installed.

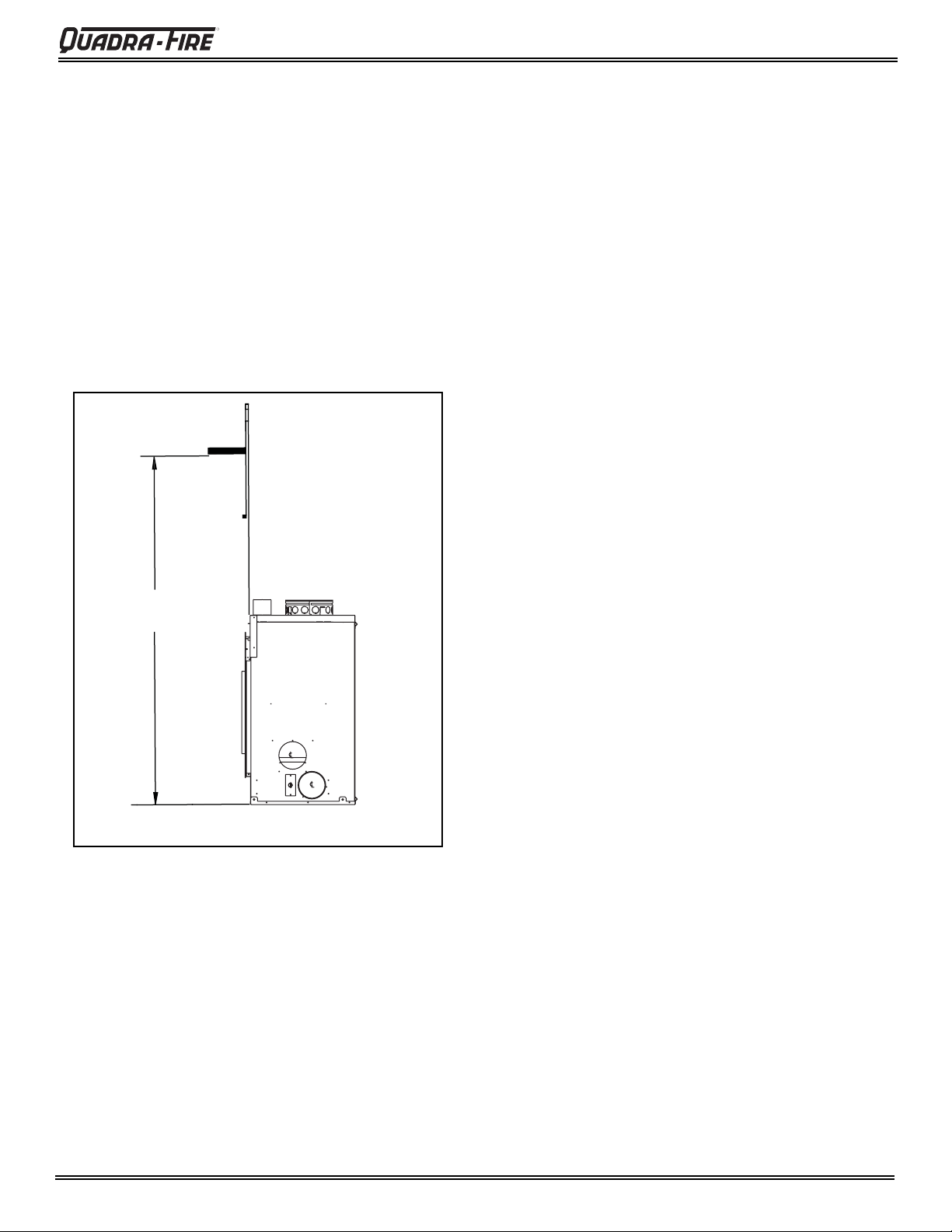

• The effective height of the ﬁ replace assembly is measured from the base of the ﬁ replace.

Table 22.1

Part SL315 Part SL315

15° 30°

ABAB

1-5/8” 13-3/8” 3-7/8” 14-1/2” - - - - - 2-7/8” 17-3/4” 6-1/4” 18-5/8” 1 - - - - -

- - 8-5/8” 22-3/4” 2 - - - - -

4-1/2” 23-5/8” 9-1/4” 23-3/4” - 1 - - - -

- - 11-5/8” 27-7/8” 1 1 - - - 6” 29-3/8” 12-1/4” 29” - - 1 - - 7-1/4” 34” 14-5/8” 33” - 2 - - - -

- - 15-1/4” 34-1/8” - - 2 1 - -

- - 17-5/8” 38-1/4” 1 - - 1 - -

- - 20-5/8” 43-1/2” - - - - - 10-5/8” 46-3/4” 21-1/4” 44-5/8” - - - - 1 11-7/8” 51-3/8” 23-5/8” 48-3/8” 1 - - - 1 -

- - 26-5/8” 53-7/8” - - - 2 - 13-3/4” 58-3/8” 27-1/4” 55-3/4” - - - - - 15” 63” 29-5/8” 59” 1 - - - - 1 16-1/2” 68-3/4” 32-5/8” 64-1/4” - 1 - - - 1 18” 74-5/8” 35-5/8” 69-1/2” - - 1 - - 1

- - 38-5/8” 74-5/8” - - - 1 - 1

- - 41” 78-3/4” 1 - - 1 - 1 22-3/4” 91-7/8” 44-5/8” 85” - - - - 1 1 24” 96-1/2” 47” 89-1/8” 1 - - - 1 1 25” 103-1/2” 50-5/8” 95-1/2” - - - - - 2

SL306 SL312 SL318 SL324 SL336 SL348

Example:

Your “A” dimension from Figure 22.2 is 14 1/2 in. (368 mm). Using Table 22.1 the dimension closest to, but not less than 14 1/2 in. (368 mm) is 14 1/2 in. (368 mm) using a 30° offset/return. It is then determined from the table that you would need 34 1/8 in. (867 mm) (Dimension “B”) between the offset and return. The chimney component that best ﬁ ts your application is one SL324.

1-1/4 in. (32 mm)

OVERLAP

Figure 22.2 Chimney Offset/ Return

Page 22

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

D. Assemble the Chimney Sections

Attach either a straight chimney section or an offset to the top of the ﬁ replace (depending on your installation require- ment). Chimney sections are locked together by pushing downward until the top section meets the stop bead on the lower section.

The inner ﬂ ue is placed to the inside of the ﬂ ue section below it. The outer casing is placed outside the outer casing of the chimney section below it. See Figure 23.1.

If you are using a different approved venting system, follow the instructions that were supplied with that system.

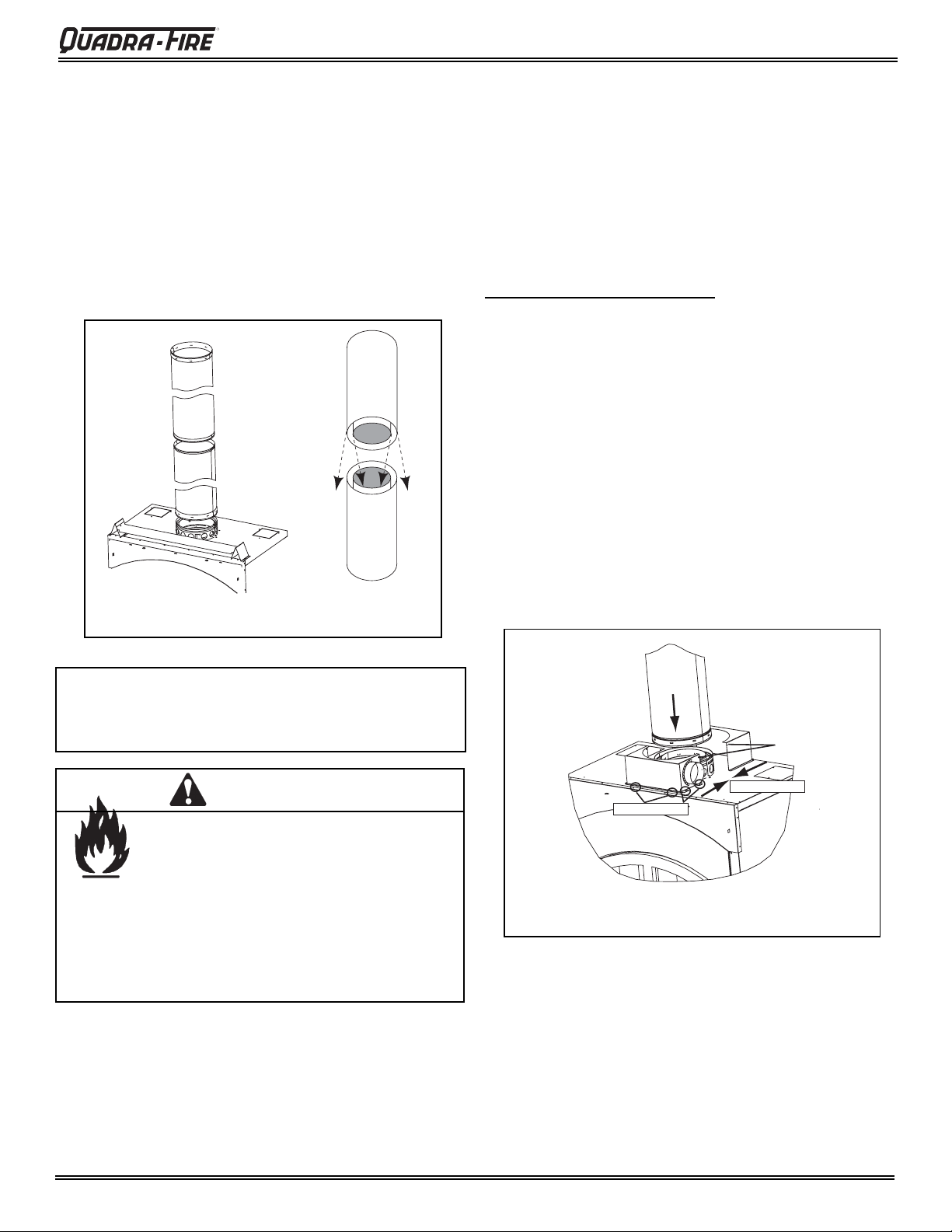

Figure 23.1 Assembling Chimney Sections

E. Assembling Chimney Sections for the SL-

300 Series

NOTE: Chimney Air Kit, Part CAK4A is REQUIRED when using the SL-300 Pipe Series. Detailed instructions are supplied with the kit.

If using the Dura-Plus System (must be 8 in. (203 mm) in diameter), the starter ring that came with the ﬁ replace must be removed and replaced with the Dura-Plus Base Plate. The CAK4A is not required with a Dura-Plus System.

Installing CAK4A and Flex Pipe NOTE: FOLLOW DET AILED INSTRUCTIONS THA T COME

WITH THE CAK4A.

1. Install the chimney pipe ﬁ rst.

2. Hand bend the tabs in position before placing on the ﬁ replace.

3. Place the box on top of the ﬁ replace around the chimney pipe, push both pieces together and secure with screws provided.

4. Use the pre-punched holes in the tabs as guides and drill holes through the ﬁ replace top.

5. Secure the CAK4A in place.

6. Seal around the kit at the ﬂ ue and at the top of the can with caulk.

Note: Inner flue and outer liner sections cannot be disassembled once locked together. Plan ahead to en su re the proper installation height is achieved with the selected chimney components.

WARNING

Fire Risk

Do NOT install substitute or damaged chimney components.

• MUST use chimney system described in this manual.

• NO OTHER chimney components may be used.

Substitute or damaged chimney components may impair safe operation.

Attach

Flue First

Secure with Screws

Provided

CAK4A

Secure to Top

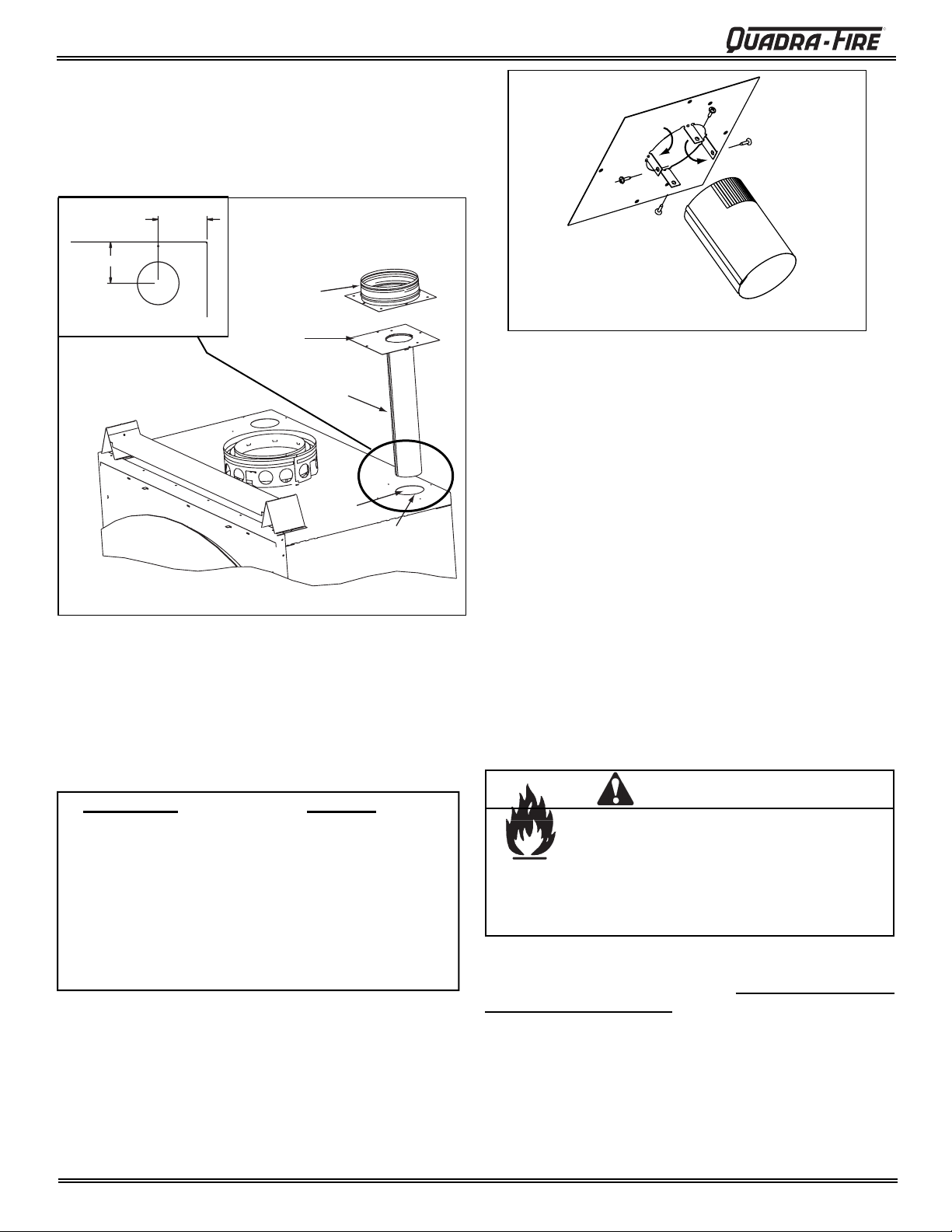

Figure 23.2 Installing the CAK4A

Push Together

NOTES:

The outside air termination cap must be a minimum of 6 ft

1. (1829 mm) above the ground and kept free of debris and must be at least 3 ft (914 mm) below the chimney top, if installed in the chase zone.

2. Seal around the cap and ﬂ ex with caulk to stop air from getting in to the chase (See Figure 24.1 on page 24).

September 7, 2007

433-1390D

Page 23

7100FP EPA Woodburning Fireplace

WARNING

Fire Risk

• The ﬂ ex hose must never be compressed or deformed!

Restricting the airﬂ ow inside the ﬂ ex pipe may increase ﬂ ue pipe temperatures causing a chase ﬁ re.

Wire Ties

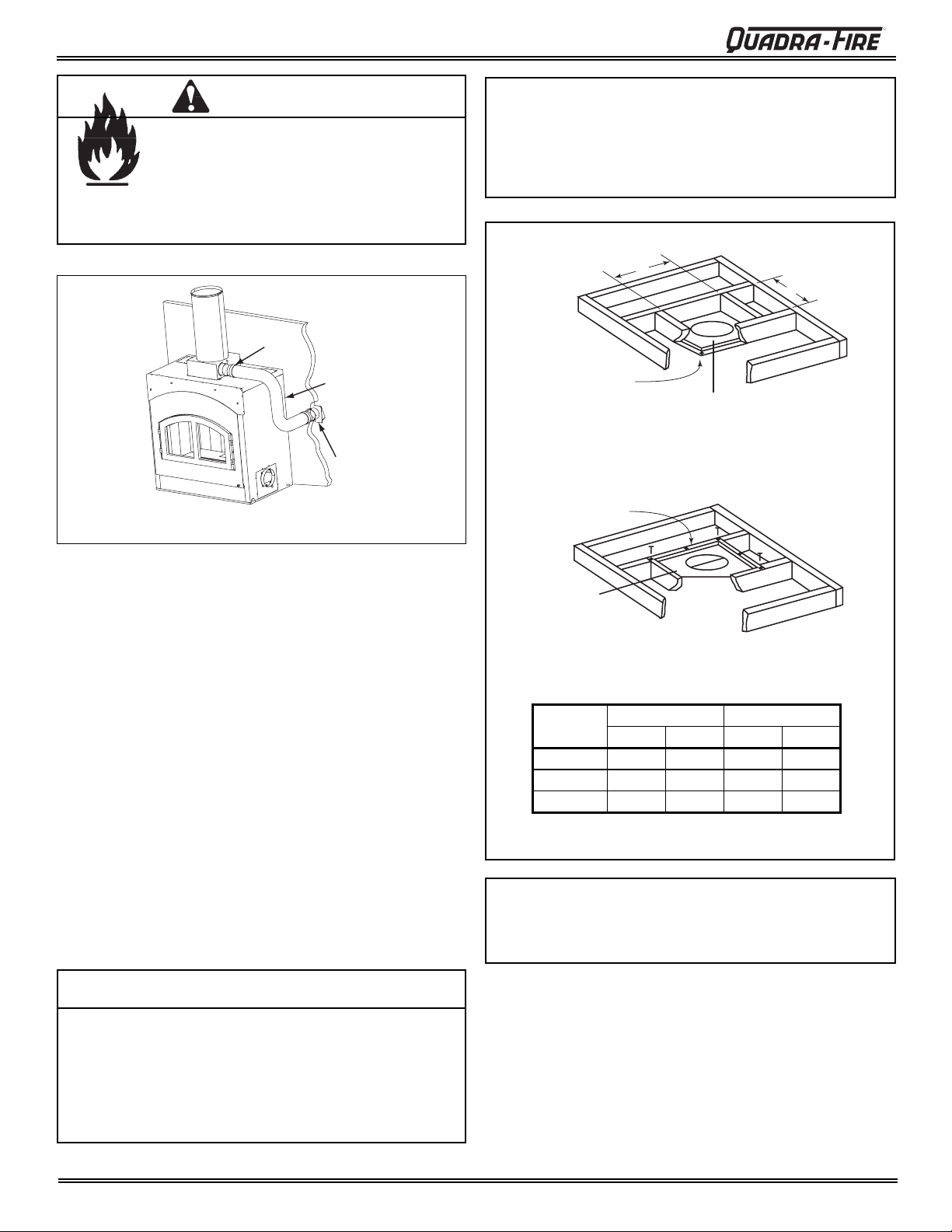

Figure 24.1 Installing Flex Pipe

4" Flex

Wire Ties

Note: The ceiling ﬁ restop MUST be nailed to the bottom of the ceiling joists EXCEPT when the space above is uninsulated and the attic insulation shield is not being used (see Figure 24.2). When the attic insulation shield is used the ceiling ﬁ restop may be above or below the joist of an insulated ceiling.

ROOM ABOVE (non-insulated ceiling)

Ceilng firestop

attached to bottom

of framing

A TTIC ABOVE (insulated ceiling)

Ceiling firestop

attached to top of

framing

2 in. (51mm)

clearance

When attic insulation

shield not used

F. Install the Ceiling Firestops

• Mark and cut an opening in the ceiling for the ceiling ﬁ restop being used. See Figure 24.2.

• Frame the opening with the same size lumber used in the ceiling joists.

• Install the ﬁ restop spacer.

These ﬁ restop spacers are designed to provide the minimum 2 in. (51 mm) air space required around the chimney. In all situations, the ﬁ restop spacers are to be nailed to the ceiling joists from the bottom or ﬁ replace side, EXCEPT when the space above is an insulated ceiling or attic space. In this situation, the ﬁ restop spacer must be nailed from the top side to prevent loose insulation from falling into the required 2 in. (51 mm) air space around the chimney.

NOTE: See Figures 25.1 and 25.2 on page 25.

CAUTION

2 in. (51mm)

clearance

Note: Use same dimensional lumber for framing

ceiling firestop and joists.

Catalog #

FS338 14-1/2 368 14-1/2 368 FS339 14-1/2 368 18-3/8 467 FS340 14-1/2 368 23 584

Figure 24.2 Installing the Ceiling Firestop

in. mm in. mm

Note: You must provide support for the pipe during construction and check to be sure inadvertent loading has not dislodged the chimney section from the ﬁ replace or at any chimney joint.

• Ceiling ﬁ restops must be used at ceiling/ﬂ oor.

• Chase construction requires ceiling ﬁ restops at each ﬂ oor or every 10 ft (3.05 m) of clear space.

• Use same dimensional lumber as joists.

Ceiling ﬁ restop slows spread of ﬁ re and reduces cold air inﬁ ltration.

Page 24

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

G. Install the Attic Insulation Shield

An insulation shield must be installed when there is a possibility of insulation coming into contact with the factory built chimney system.

• Bend the tabs at the top of the attic insulation shield inward. This will help keep the chimney section centered in the shield.

• Position the shield over the vertical chimney section where it penetrates a ceiling ﬁ restop.

• Slide the shield down until it rests on the ceiling ﬁ restop. The ceiling ﬁ restop will support the insulation shield. See Figures 25.1 and 25.2.

Tabs

14-1/2 in. (368mm)

24 in.

Insulation

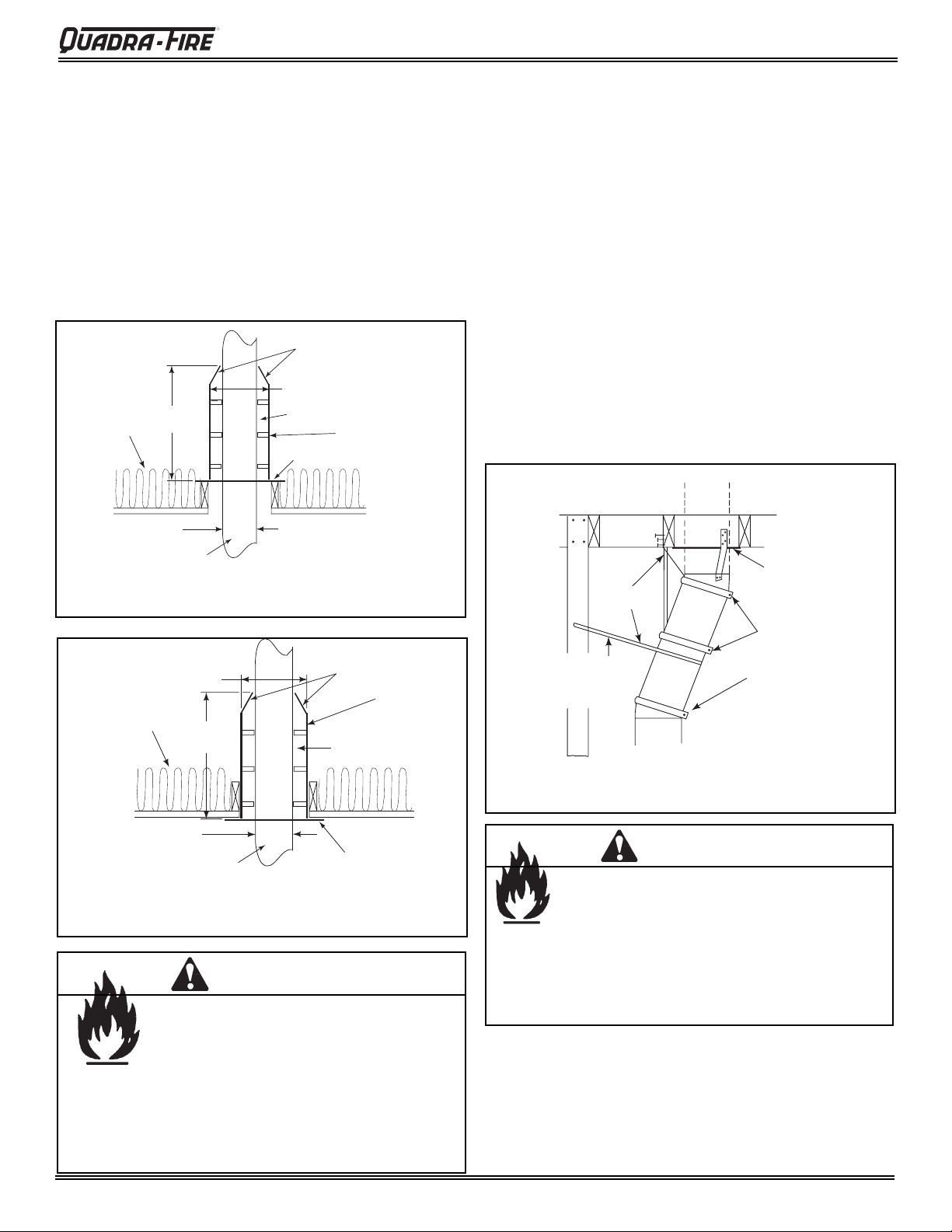

Figure 25.1 Install Attic Insulation Shield Above the Ceiling

(610mm)

10-1/2 in. (267mm)

Chimne

2 in. (51mm)

Attic Insulation

Ceiling Firestop

Shield

H. Double-check the Chimney Assembly

Continue assembling the chimney sections up through the ceiling ﬁ restops as needed. While doing so, be aware of the height and unsupported chimney length limitations given under Section 5.A. Chimney Requirements.

Check each section by pulling up slightly from the top to ensure proper engagement before installing the succeeding sections. If they have been connected correctly , they will not disengage when tested.

I. Secure the Chimney

When offsets and returns are joined to straight pipe sections, they must be locked into position with the screws provided* (outer only), using the predrilled holes. To prevent gravity from pulling the chimney sections apart, the returns and the chimney stabilizers have hanger straps for securing these parts to joists or rafters. See Figure 25.3.

* Use #6 or #8 sheet metal screw, or larger, no longer than

1/2 in. (13mm).

Ceiling Firestop

Straps

Joint Band

14-1/2 in. (368 mm)

Insulation

10-1/2 in.

(267 mm)

24 in.

(610 mm)

Chimne

Tabs

Attic

Insulation

Shield

2 in. (51mm)

Optional

dditional

Support

Figure 25.3 Secure the Chimney

WARNING

Ceiling Firestop

(Optional)

Fire Risk

• Secure offsets with screws (not to exceed

Figure 25.2 Install Attic Insulation Shield Below the Ceiling

1/2 in. / 13mm in length).

• Secure returns with strapping.

• Straight chimney sections may be secured with screws

WARNING

Fire Risk

(not to exceed 1/2 in./13 mm in length) at the joints.

Keep chimney sections from separating or twisting.

• DO NOT pack insulation or other combustibles:

between ceiling ﬁ restops; between chimney and attic insulation shield.

• ALW AYS maintain speciﬁ ed clearances around chimney and ceiling ﬁ restop systems.

• Install ceiling ﬁ restops as speciﬁ ed. Failure to keep insulation or other material away from chimney pipe may cause ﬁ re

September 7, 2007

433-1390D

Page 25

7100FP EPA Woodburning Fireplace

Complete the Enclosure

A. Chimney Termination (2-10-03 Rule)

Chimney Termination Requirements (See Figures 26.1 and 26.2)

• Must have a cap approved and listed for this ﬁ replace system

• Must not be located where it will become plugged by snow or other material

• Must terminate at least 3 ft (914 mm) above the roof and at least 2 ft (610 mm) above any portion of the roof within 10 ft (3.05 m)

• Must be located away from trees or other structures

Slanted Roofs

Chimney must extend 3 ft (914 mm) above the roof

Flat Roofs

Chimney must extend 3 ft (914 mm) above the roof

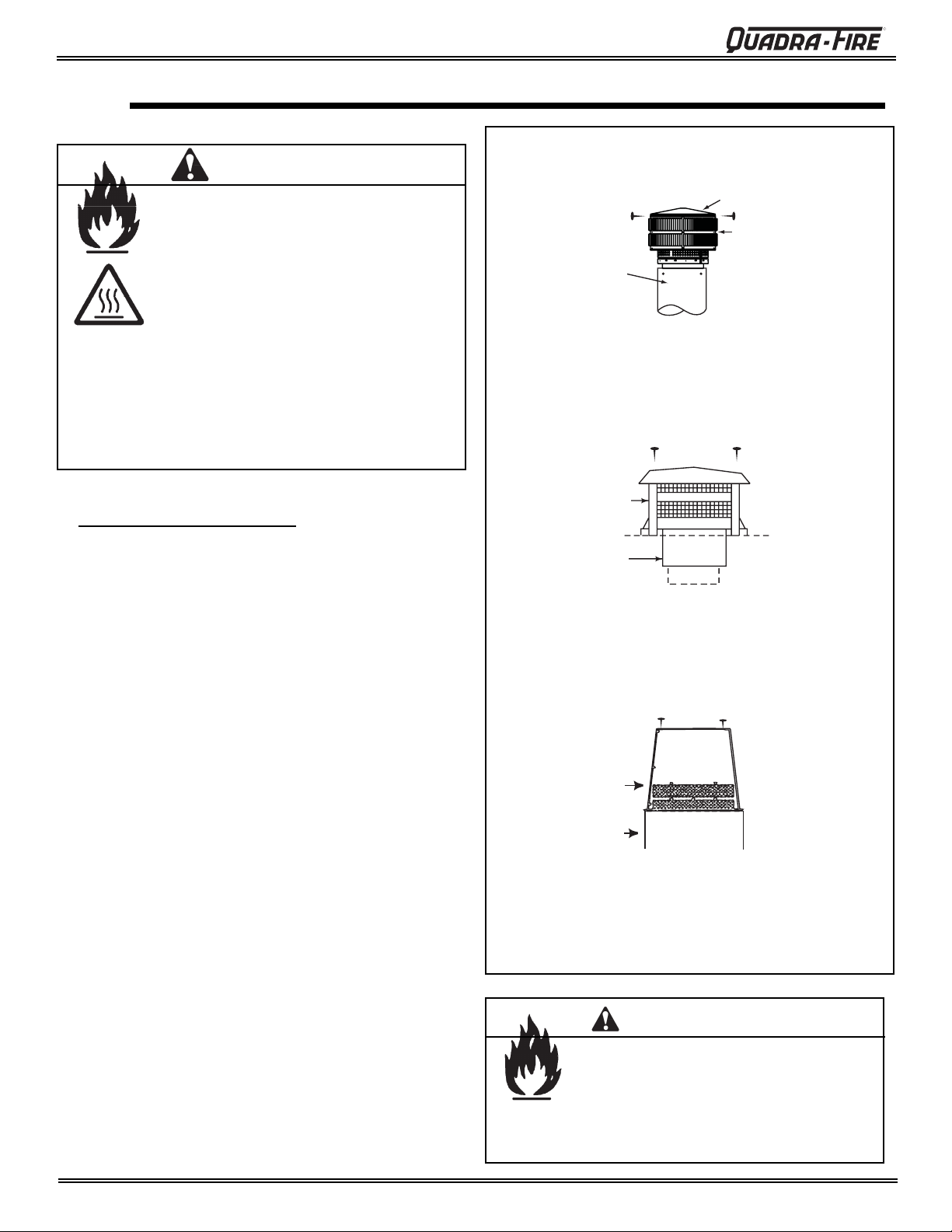

Figure 26.1 Termination Requirements

(457 mm)

Gas

Termination

Chimney must extend 2 ft (610 mm) above any portion of the roof within 10 ft (3048 mm) of the chimney

Gas, Wood or Fuel

Oil Termination

18 in.

(min. for B-Vent)

(min. for direct vent)

Chimney must extend 2 ft (610 mm) above any portion of the roof within 10 ft (3048 mm) of the chimney

8 ft

(2.44 m)

20 in.

(508 mm)

Perpendicular

Wall

Page 26

Termination Caps Staggered Height

A Gas Termination Wood or Fuel Oil Termination B 6 in. (152 mm) min. 20 in. (508 mm) min.

Figure 26.2 Multiple Chimneys

433-1390D

September 7, 2007

NOTE: Wiring for blowers must be done before framed enclosure is completed. If using a Heat Zone kit, it also must be installed before enclosure is complete.

• Mark the Exit Point of the Roof

Locate the point where the chimney will exit the roof by plumbing down to the center of the chimney. Drive a nail up through the roof to mark the center. See Figure 27.1.

• Cut Out the Hole in the Roof

Measure to either side of the nail and mark the 14-1/2 in. x 14-1/2 in. (368 mm x 368 mm) opening required. This is measured on the horizontal; actual length may be larger depending on the pitch of the roof. Cut out and frame the opening. See Chapter 25 of the Uniform Building

Code for roof framing details.

WARNING

Fire Risk

• Must maintain 2 in. (51 mm) air clearance to insulation and other combustible materials.

7100FP EPA Woodburning Fireplace

• Assemble the Chimney Sections Through the Roof

Continue to add chimney sections through the roof opening, maintaining at least a 2 in. (51 mm) air space to combustible materials.

• Install the Roof Flashing

If a roof ﬂ ashing is to be used, install the roof ﬂ ashing

appropriate to the roof pitch and install a termination cap and storm collar following the instructions shipped with the cap.

For chase installations you can use a round termination cap, a round telescoping termination cap or a square termination cap (See pages 61-62). A chase installation must use a chase top. Chase tops are available from your dealer. See page 14 for building a chase.

• Install the Chimney Air Kit (required in Canada):

When installing the chimney air kit, follow the instructions provided with this accessory. See page 23.

• Completion of the Enclosure

Complete the ﬁ replace enclosure, allowing space for outside air ducts. Electrical wiring should not come in contact with the ﬁ replace. A minimum clearance of 1/2 in.

(13 mm) must be maintained between the ﬁ replace back and 1 in. (25 mm) minimum clearances to sides and the enclosure.

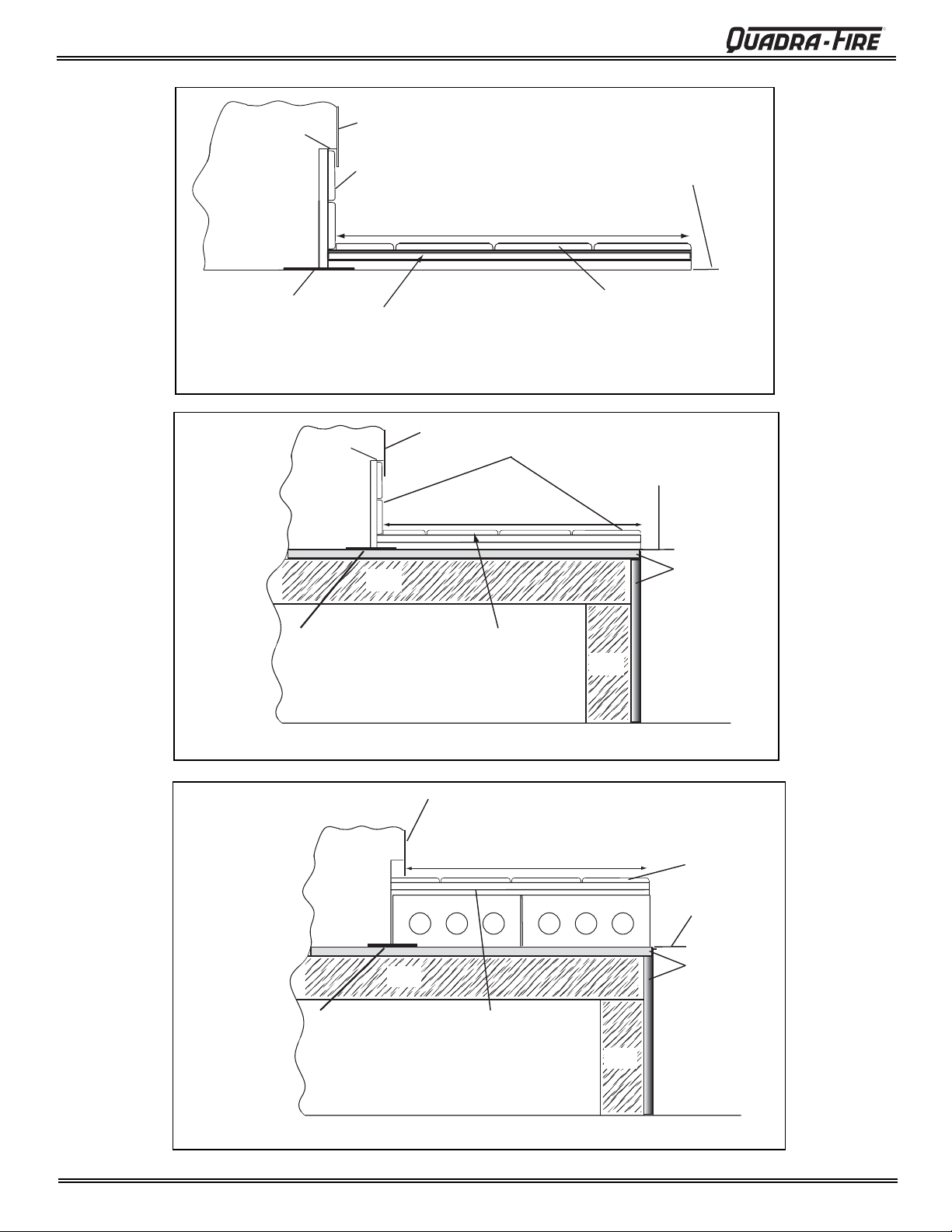

Figure 27.1 Ceiling/Attic Construction

September 7, 2007

433-1390D

Page 27

7100FP EPA Woodburning Fireplace

SL-300 Series Ceiling/Roof Thimble

NOTE: REQUIRED for manufactured homes with vaulted ceilings.

1. Locate the point where the chimney will exit the roof by

plumbing down to the center of the chimney. Lay out, cut and frame a 14-1/2 in. (368 mm) square opening (measured on the horizontal) through the ceiling and roof structure.

Consult local codes for framing details.

2. The thimble must extend completely through the roof struc-

ture shielding combustible materials. Five location holes have been provided to allow for a variety of ceiling/roof thicknesses. A Thimble Extension is required when the ceiling/roof thickness exceeds 12-1/2 in. (318 mm). The extension should overlap the thimble one inch.

3. To attach the extension to the thimble, drill 1/8 in. (3 mm)

holes through the outer shield of the thimble using the predrilled holes in the extension as guides. Attach the extension to the thimble using the screws provided with the extension.

4. Install the thimble assembly and nail it securely to the fram-

ing members.

5. Center the ﬂ ashing over the chimney and nail it to the roof

using the Stormguard nails provided. Keep gaps between the ﬂ ashing plate and the roof to a minimum. Caulk the ﬂ ash- ing plate and roof junction as well as the vertical seam on the ﬂ ashing. All nail heads must be caulked with a rooﬁ ng sealant.

CHIMNEY

FLASHING

Figure 28.2 Installing Part 12966A, Conﬁ guration 2

FLASHING

DJUSTABLE EXTENSION HOLES

Figure 28.3 Installing Part 12966A Conﬁ guration 3

PLATE

THIMBLE EXTENSION

SCREW

NAIL

THIMBLE

CHIMNEY

FLASHING PLATE

THIMBLE EXTENSION

SCREW

NAIL

THIMBLE

6. Finish assembling the chimney storm collar and termination cap following the installation instructions provided with them.

CHIMNEY

FLASHING

Figure 28.1 Installing Part: 12966A, Conﬁ guration 1

FLASHING PLATE

JOISTS

NAIL

THIMBLE

Page 28

433-1390D

September 7, 2007

C. Chase Top

A metal chase top is required to seal the top of the chase around the chimney pipe. The top should include a turndown and drip edge to prevent water from seeping into the chase. Provide a 1/8 in. (3 mm) gap around the ﬂ ue pipe and slope the top downward away from the penetration. See Figure 29.1.

• All seams must be caulked to prevent leaks.

• A chase installation must use a chase top. Chase tops are

available from your Quadra-Fire dealer or may be ﬁ eld constructed.

• Attach the chase top to the top of the chase.

Termination Cap

2 in. (51 mm) Collar

Caulk

Figure 29.1 Chase Top Construction

on Chase Top

Storm Collar

Slope Downward

Turn-down Drip Edge

Chase (Chimney)

.018 (26 ga) min. Galvanized Chase Top

7100FP EPA Woodburning Fireplace

WARNING

Fire Risk

• Never install a single wall slip section or smoke-pipe in a chase structure.

The higher temperature of this single wall pipe may radiate sufﬁ cient heat to combus- tible chase materials to cause a ﬁ re.

D. Install the Termination Cap

Note: To protect against the effect of corrosion on those

parts exposed to the weather, the termination cap can be painted with a rust-resistant paint.

WARNING

Fire Risk

• The minimum overlap of cap to pipe MUST be met or chimney may separate from cap.

Separation allows sparks, heat and embers to escape.

• Install the chimney sections up through the chase

enclosure. When using a Round Termination Cap, the uppermost top section of pipe must extend 6 in. (152 mm) above the top of the ﬂ ashing collar to allow installation of the storm collar and termination cap. See Figure 29.3.

Minimum 1-1/2 in. (38 mm) overlap of cap over pipe

• Chase Top Framing

Framing to top of chase must be constructed to support service persons, snow load, etc. Maintain 2 in. (51 mm) clearance to combustibles. Top of framing should be sheeted with plywood particle board. See Figure 29.2.

Exterior sheeting

Chase top framing

Figure 29.2

September 7, 2007

6 in. (152mm) min.

Figure 29.3 Installing a TR344 Round Termination Cap

• For installations utilizing a Round T elescoping T ermination

433-1390D

Storm Collar

2 in. (51 mm) min.

Flashing Collar

2 in. (51 mm) min. collar

Cap, the uppermost chimney section must be below the top of the chase top, but not more than 14-1/2 in. (368 mm) below the top of the chase top. Minimum overlap of chimney and termination cap must be 1-1/2 in. (38 mm). See Figure 30.1 on page 30.

Page 29

7100FP EPA Woodburning Fireplace

• For installations utilizing a Round T elescoping T ermination

Storm Collar

Flashing Collar

2 in. (51 mm) min.

Flashing

Collar

1-1/2 in.

(38 mm)

min.

overlap

Top of Pipe

2 in.

(51 mm)

min.

3 in.

(76 mm)

max.

14-1/2 in. (368mm) max.

Top of Pipe

Figure 30.1 Installing a TR342 Round Telescoping Termination

1-1/2 in. (38 mm) min. overlap

Cap

NOTE: TR342/TR344: For less air restriction to ﬂ ue

gases, use top vent kit listed in Section 12.

• For installations utilizing an ST375 Square Termination

Cap the last chimney section must not be more than 4-1/2 in. (114 mm) below the chase top. See Figure

30.2.

Flashing Collar

Cap Standoff

1-1/2 in.

(38 mm) min.

overlap

Top of Pipe

2 in. (51 mm) min.

4-1/2 in.

(114 mm)

max.

Figure 30.3 Installing a TS345/TS345P Square Termination Cap

• For chase installations you can use a Round Termination

Cap, a Round Telescoping Termination Cap, or a Square Termination Cap.

• Install termination caps following instructions provided

with them.

Figure 30.2 Installing an ST375 Square Termination Cap

• For installations utilizing a TS345/TS345P Square

Termination Cap, the uppermost chimney section must not be more than 3 in. (76 mm) below the chase top. See Figure 30.3.

Page 30

433-1390D

September 7, 2007

Accessories

A. Blower Replacement

Blower Cord Location

The 7100FP Fireplace comes standard equipped with two blowers, installed at the factory with electric access on the right side of ﬁ replace (as you face it).

CAUTION

Shock Risk

Disconnect power by turning off circuit breaker

BEFORE servicing.

Blower Replacement Instructions

1. Remove the brick from the bottom of the ﬁ replace and 3 of the back vertical bricks.

2. Remove the 2 screws from the access panel in the ﬁ re- box ﬂ oor. See Figure 31.1.

3. Pry up the access panel using the screwdriver slot and completely remove the panel.

7100FP EPA Woodburning Fireplace

Unplug wire

harness before

removing fan

Figure 31.2 Blower Motor

3. Connect new blower wires to wire harness.

4. Before installing the blower, make sure the grommets are tightly in place. Insert the right blower and place over the 2 locating pins. Repeat for other blower. Figure

31.3.

Screws

Screwdriver Slot

Figure 31.1 Accessing Blower Motor

Removing the Blower

1. Unplug the wire harness.

2. Lift blower from locating pins and remove. Repeat for second blower if necessary. See Figure 31.2.

September 7, 2007

433-1390D

Figure 31.3 Installing Blowers

5. Re-install bottom panel or ﬁ rebox access panel in reverse order as described above.

6 Replace the brick that was removed.

7. Reconnect the power.

Page 31

7100FP EPA Woodburning Fireplace

B. Bafﬂ e Removal and Installation

1. Remove all ash from ﬁ rebox, and extinguish all hot embers before disposal into a metal container.

2. Remove the bafﬂ e protection channel by turning it down and pulling it out of the ﬁ rebox. See Figure 32.1.

Figure 32.1 Removing Bafﬂ e Protection Channel

Figure 32.3 Removing Bafﬂ e (shown without ceramic blanket)

C. Door and Door Gasket

Periodically check the door gasket for proper seal. As the gasket compresses or “seats” during use, it may become necessary to adjust or tighten the door latch.

3. Remove ceramic blanket from above the bafﬂ e.

4. With a 3/16 in. Allen wrench, remove the front manifold tube retainer bolt on the air channel under the end of the front tube. See Figure 32.2.

Figure 32.2 Removing Manifold Tube

NOTE: Soak the bolt with penetrating oil for at least 15

minutes before trying to remove it.

5. To remove manifold tube, slide the tube to one side until one end is out of its hole. Then, while lifting that end of the ﬁ ber board bafﬂ e, pull tube up over the air channel and out of hole at the other end. It is only necessary to remove the ﬁ rst tube in order to remove the bafﬂ e.

6. Slide ﬁ ber board bafﬂ e forward to front of ﬁ replace and straight out through door. See Figure 32.3.

7. T o install the ﬁ ber board bafﬂ e, repeat steps 2 through 4 in reverse. Be sure the ﬁ ber board bafﬂ e and ceramic blanket are pushed back fully and the blanket is down and ﬂ at.

To Adjust or Tighten Door Latch Remove spacing washers shown in Figure 32.4. At least one spacing washer and the black washer must be left in place. OR Replace the gasket material. Wear or damage to the gasket material can cause air leakage into the ﬁ rebox resulting in overﬁ ring and loss of efﬁ ciency .

A replacement gasket is available from your dealer.

Left Door

Right Door

Latch Cam

Spacing Washers

Fiber Handle

Figure 32.4 Door Handle Assembly

Square Key

Black Washer DO NOT REMOVE

Door Handle Shaft

Locknut

Locking Pin

Hinge Pins & Washers

Left Handle Assembly is

stationary

Page 32

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

D. Heat Zone Kit

This kit is tested and safe when installed in accordance with this installation manual. It is your responsibility to read all instructions before starting installation and to follow these instructions carefully during installations.

Installation of this kit MUST by performed by a qualiﬁ ed ser- vice technician.

The Heat-Zone-Wood kit is carefully engineered and must be installed only as speciﬁ ed. If you modify it or any of its components you will void the warranty and you may possibly cause a ﬁ re hazard. Installation must be done according to

applicable local, state, provincial and/or national codes. Plan the location of the ﬁ replace and warm air duct run(s).

CAUTION

ALL wiring should be done by a qualiﬁ ed electrician and shall be in compliance with local codes and with the National Electric Code NFPA/NEC No. 70-current (in the United States), or with the current CSC22.1 Canadian Electric Code (in Canada).

DUCT RUN REQUIREMENTS

MAXIMUM Duct Run = 40 ft. (12m) MINIMUM Duct Run = 36 in. (914mm)

DUCTING MATERIAL

6 in. (152mm) B-Vent Only DO NOT DUCT into existing furnace plenum

MINIMUM CLEARANCE TO COMBUSTIBLES

1 in. (25mm) from the B-Vent 1

/2 in. (13mm) from top & bottom of outlet box 0 in. (0mm) from the sides of outlet box 12 in. (305mm) from wall register to ceiling* *(See Figure 33.1).

Possible Air Duct Runs / Locations

12 in. (305mm) minimum clearance from regist er to ceiling

Wall Register

Ceiling Register

Floor Register

Ceiling Register

Two Duct Kits

Figure 33.1 Minimum Clearances to Combustibles

September 7, 2007

433-1390D

Page 33

7100FP EPA Woodburning Fireplace

INSTALLATION

1. Remove the knockout or cover plate from the top of the ﬁ replace and discard it. See Figure 34.1.

2. Cut a 3 in. (76mm) hole in the insulation board as per the dimensions shown in Figure 34.1.

3-13/16 in.

(97mm)

3-1/8 in. (79mm)

Figure 34.1

Adapter

Mounting Plate

Starter Pipe

Knockout

Cut a 3 in. (76mm) hole

in insulation board

Figure 34.3

6. Slide the starter pipe into the ﬁ replace, matching the holes in the plate to the holes in the ﬁ replace.

7. Place the Adapter on the Mounting Plate lining up holes. Using the 4 sheet metal screws included in the kit, secure the Adapter and Mounting Plate into ﬁ replace. After secur- ing to the ﬁ replace, tape down the Adapter edges to the top of the ﬁ replace with aluminum tape to prevent leakage.

8. Determine the location for the air register and fan housing assembly. Cut a 7-5/8 in. x 13-5/8 in. (143 x 346mm) hole between framing members (wall studs or ﬂ oor joists). The brackets can be rotated 180° and mounted to the back side of the 2 x 4 if necessary. See Figure 35.2 on page 35.

3. Determine the necessary length of starter pipe from the following table and cut as required. See Figure 34.2.

4. The starter pipe is shipped ﬂ at. After cutting to the required length, manually roll the pipe together and snap lock into place. NOTE: It is important the pipe length be adhered

to or it will affect the performance of your ﬁ replace.

Run Length Cut Pipe 20 - 40 ft (6-12m) 2 in. (51mm)*

*A minimum of 2 in. (51mm) pipe must be used to cover the raw insulation to prevent it tfrom blow-

ing out through the Return Air Grille.

10 - 20 ft (3 - 6m) 8 in. (203mm) 3 - 10 ft (1 - 3m) No cut needed**

Use full 16 in. (406mm) as supplied

Figure 34.2

5. On the Mounting Plate, hand bend the tabs downward. Slide the tabs over the outside of the starter pipe. Secure with 4 sheet metal screws included in fasteners package. Figure 34.3.

NOTE: The fan and electrical connections must be accessible for servicing per local code requirements.

NOTE: If the fan housing is installed in a 2 x 4 wall, the front of the housing will protrude approximately 1/4 in. (6mm) from the ﬁ nished wall. See Figure 35.1 on page

35.

WARNING

Fire Risk

Comply with all minimum clearances speciﬁ ed.

• A minimum 1/2 in. (13mm) air clearance must be maintained at the back and 1 in. (25mm) to the sides of the ﬁ replace assembly.

9. Attach enough 6 in. (152mm) B-Vent as required for your installation to the fan housing. A maximum of (4) 90° elbows is recommended. Securely twist lock the B-Vent to the Adapter.

Also screw the B-Vent to the outlet box on the fan housing. See Figure 35.2 on page 35. greater than 4 ft (1 m) as required by local code.

Support duct at intervals of no

Page 34

433-1390D

September 7, 2007

1/2 in. (13mm) clearance to combustibles must be maintained.

2x4Wall

Fan Housing

7100FP EPA Woodburning Fireplace

NOTE: Secure the duct so that clearance to the ﬁ re- place outer wrap is maintained. Tape all seams with aluminum tape 1-1/4 in. (32mm) minimum width or as speciﬁ ed by local codes.)

10. Seal all the way around the inside of the Return Air Grille to prevent hot air being drawn back into the venting system using gasketing supplied with the kit. Leave 1/4 in. (6mm) clearance from all 4 outer edges. Trim excess gasketing. See Figure 35.3.

Seal grille using gasketing supplied with the kit

2x4wall

Leave 1/4" (6mm) clearance from all 4 outer edges

Figure 34.3

Figure 35.1

Secure B-Vent to Fan Housing with sheet metal screws

Return Air Grille Install with Louvers pointed down

Bracket

Can rotate

180

Securely Twist Lock B-Vent to Adapter

Sheet Rock

11. Install the variable speed wall rheostat (with setting on “OFF”) in a convenient location. This switch will control the Heat-Zone fan operation.

12. Remove the Junction Box. Wire 1 10 V AC service TO the wall rheostat and FROM the wall rheostat to the fan Junction Box. Use wire nuts to secure the 110 VAC service wires to the hot (black) and neutral (white) fan wires and screw the 110 VAC ground wire to the Junction Box. See Figure 35.4.

Junction Box

White

Black

Wire Nuts

Wire Clamp

Junction Box Removed

Figure 35.4

Figure 35.2

September 7, 2007

13. Secure the Return Air Grille to the fan housing making sure it is ﬂ ush. The grille must be installed with the louvers pointing down.

NOTE: DO NOT USE ADJUSTABLE REGISTERS.

14. Complete the ﬁ replace installations as per the instruc- tions found in your Owner’s Manual.

433-1390D

Page 35

7100FP EPA Woodburning Fireplace

E. Timer Assembly Replacement

CAUTION

Shock Risk

Disconnect power by turning off circuit breaker BEFORE servicing.

1. Remove both doors, fascia and brick.

2. Remove 2 Phillips head screws and pry open access door in the bottom of the ﬁ replace with a ﬂ at head screw- driver. Figure 36.1.

Remove 2 screws and pry open access door.

4. You will need to disconnect air chamber cover from timer assembly before installing in the ﬁ replace. Set screws

aside for later use. Figure 36.4.

Remove 2 screws

Figure 36.4

Figure 36.1 Open Access Door

3. Remove 2 screws and take off access cover. Figure

36.2.

Figure 36.2 Access Cover

NOTE: The timer assembly included in this kit comes with the air chamber cover attached. Figure 36.3.

Air Chamber Cover is attached toTimerAssembly

Figure 36.5

5. Remove 2 screws from timer linkage upper arm. Be careful NOT TO DROP arm in bottom of ﬁ replace. Figure

36.6.

Be careful not to

Move arm left

drop Linkage Arm down into fireplace

Figure 36.6

Figure 36.3 Timer Assembly with Air Chamber Cover (Linkage arm is not included in the kit)

Page 36

433-1390D

September 7, 2007

Remove 2 screws from timer mounting plate. Figure

37.1.

7100FP EPA Woodburning Fireplace

8. Remove old air chamber cover. Place the cover under

the bottom of the ﬁ rebox. Using a 7/16 wrench attach the (2) 1/4-20 bolts as shown in Figure 37.4.

Timer Plate

Figure 37.1

7. P

lace your hand into the access door in the ﬂ oor of the ﬁ replace. Let the timer assembly and plate drop down and rotate it up through the access door. You will be looking at the back side of the assembly . Figures 37.2 &

37.3.

tto

x B

ire

Air Chamber Cover

Attach with 1/4-20 bolts

Figure 37.4

9. Insert the new timer assembly into the access door with the back side towards you. Please note the correct postion of the linkage lower arm in Figure 37.3.

10.

After re-installing the timer assembly through the ﬁ re- box access door, re-attach the timer assembly to the air chamber cover using a Phillips head screw driver. Figure 37.5.

Figure 37.2

Arm must be in this position when re-installing

Figure 37.3

September 7, 2007

Rotate assembly up and out through access door

11. Attach the linkage upper arm to the lower linkage arm.

433-1390D

Figure 37.5

Figure 36.6 on page 36.

Page 37

7100FP EPA Woodburning Fireplace

High

other combustible materia

Finishing

A. Hearth Extension

A hearth extension must be installed with all ﬁ replaces to protect the combustible ﬂ oor in front of the ﬁ replace from both radiant heat and sparks. See Figures 38.1 below, and Figures 39.1 and 39.2 on page 39.

factor means less heat is being conducted through the noncombustible material to the combustible material beneath it. The R value of a material must be equal or larger then the required R value to be acceptable.

Converting k to R:

Divide 1 by k and multiply the results times the thickness in inch-

temperature

(300°F min.) continuous,

HX3 or HX4 Hearth Ext or equivalent insulation (see T able below)

Floor constructed of wood or

Figure 38.1 Hearth Extension Construction

non-combustible sealant

Tile, stone or other non-combustible material

2 in. (51 mm) required

Protective

Fireplace

Metal Hearth Strip

es of the material. R = 1/k x inches of thickness

Converting R to k:

Divide the inches of thickness by R. k = inches of thickness/R

Calculations:

Example: Floor protection requires k value of 0.84 and 3/4 inch thick.

Alternative material has a k value of 0.6 and is 3/4 inch thick. Divide 0.6 by .75 = k value of 0.80. This k value is smaller than

0.84 and therefore is acceptable.

WARNING

Fire Risk

• Maintain clearances.

• Use only non-combustible material below standoffs, material such as cement board is acceptable.

B. Calculating Alternate Floor Protection Material

Thermal Conductivity: k value

The k value indicates the amount of heat (in BTU’s) that will ﬂ ow in 1 hour through 1 square foot of a uniform material 1 inch thick for each degree (F) of temperature difference from one side of the material to the other. The LOWER the k factor means less heat is being conducted through the non-combustible material to the combustible material beneath it. The k value of a material must be equal or smaller then the required k value to be acceptable. (BTU) (inch) (foot2 (hour) (oF)

Table 38.2

Hearth Extension Insulation Alternatives, R Value = 1.16

Material

Hearth & Home HX3, HX4 0.49 2.18 1 in. USG Micore 300™ 0.49 2.18 1 in. USG Durock™ Cement Board 1.92 0.52 2-1/4 in. Cement Mortor 5.0 0.20 5-7/8 in. Common Brick 5.0 0.20 5-7/8 in. Ceramic Tile 12.50 0.08 14-5/8 in. Armstrong™ Privacy

Guard Plus 0.046 2.18 1/2 in. Marble 14.3-20.0 0.07-0.05 16-5/8 in. - 23-3/8 in.

k per inch

thick

R per inch

thick

Minimum thickness

required

Thermal Resistance: R value

The R value is a measure of a material’s resistance to heat transfer. R value is convenient when more than one material is used since you can add the R values together, whereas you can not do this for k value. The HIGHER the R

Page 38

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

WARNING

Fire Risk

• Metal hearth strips MUST be installed. Sparks or embers may ignite ﬂ ooring.

1in. (25mm) OVERLAP

Metal strips 2 in. (51mm) under edge of Fireplace and Hearth Extension and 2 in. (51mm) on both side of fireplace opening. Nail or screw metal strips in place.

Figure 39.1 Positioning the Protective Metal Hearth Strips

The construct ion of, and materials used for a hear th exten sion are shown in Figures 39.2 and 39.3. of this constructi on may be covered with any non-c ombustible decorative material and may have a maximum thickness as per Figure 38.1 on page 38. Seal gaps between the hearth extension and the front of the ﬁ replace with a bead of non - combus - tible sealant.

A hearth extension

WARNING

Fire Risk

• Hearth extensions must be installed exactly as speciﬁ ed.

High temperatures or hot embers may ignite concealed combustibles.

Model # 7100FP A B

in. mm

Figure 39.2 Hearth Extension Dimensions

41 20

1041 508

8 in. (203mm) from each side of fuel loading door

1. Fireplace and Hearth Extension are ﬂ ush on the ﬂ oor:

Non-combustible ﬂ ooring 20 in. (508mm) in front of and 8 in. (203mm) to either side of the fuel opening with a minimum thickness of 1 in. (25mm) and (“k” value = 0.49). See Figure

39.2 and 39.3 and Figures 40.1 and 40.2 on page 40.

NONCOMBUSTIBLE DECORATIVE MATERIAL

1 in. (51mm)

(2) HX4 MICORE FACTORY BUILT HEARTH EXTENSION (Each HX4 = 1/2 in. (13mm) thick)

Figure 39.3 Side View of Factory Built Hearth Extension

GAP (SEAL WITH NONCOMBUSTIBLE SEALANT)

2. Fireplace is installed ﬂ ush on the ﬂ oor and Hearth Extension is raised to the bottom of the fascia:

Raised hearth must be constructed of non-combustible materials such as cement block or equivalent material. Non-combustible ﬂ ooring on the raised hearth must be 20 in. in front of and 8 in. (203 mm) to either side of the fuel

(508 mm)

opening

with a minimum thickness of 1 in. (25 mm) and (“k” value =

0.49). See Figure 40.3 on page 40.

UP TO BOTTOM OF FASCIA

HEARTH METAL STRIPS

6 in. (152mm)

September 7, 2007

433-1390D

Page 39

7100FP EPA Woodburning Fireplace

Outer Can Flange

Ember Strip (Seal gap with High temp, noncombustible sealant able to withstand 300°)

Figure 40.1 Fireplace and Hearth Extension Flush on the Floor.

Fascia

Tile or Marble

Minimum 20 in. (508mm) in front and

8 in. (203mm) on sides to fuel loading doors

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Minimum 1 in. (51mm)

Cement Board or equivalent,

(or two 1/2 in. pieces) and

"k" value = 0.49.

Fascia

Outer

Tile or Marble

Can Flange

Min 20 in. (508mm) in front and 8 in. (203mm) on sides to fuel loading doors

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 x 4

Combustible Floor

Tile or Marble

Combustible Floor

3/4 in. (19mm) Plywood

Ember Strip (Seal gap with high temp, noncombustible sealant able to withstand 300°)

Minimum 1 in. 51mm) Cement Board or equivalent, (or two 1/2 in. pieces) and "k"

2 x 4

value = 0.49.

Figure 40.2 Fireplace and Hearth Extension Flush on Floor but on Raised Platform

Fascia

Min 20 in. (508mm) in front and 8 in.

Outer Can Flange

(203mm) on sides to fuel loading doors

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 x 4

Ember Strip (Seal gap with noncombustible sealant)

Minimum 1 in. (51mm) Cement Board or equivalent, (or two 1/2 in. pieces) and

2 x 4

"k" value = 0.49.

Tile or Marble

Combustible Floor

3/4 in. (19mm) Plywood

Page 40

Figure 40.3 Raised Hearth Extension to Bottom of Fascia

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

C. Position the Hearth Extension

Position and secure the hearth extension over the protective metal strips that have been placed partially under the ﬁ replace front. These strips should be protruding approximately 2 in. (51 mm) from under the ﬁ replace front and 2 in. (51 mm) on both sides of the ﬁ replace opening. See Figure 19.1 on page

19. Seal the crack between the hearth extension and ﬁ replace with a bead of non-combustible sealant. See Figure 41.1. Apply a non-combustible ﬁ nishing material of your choice to the hearth extension.

NOTE:

SEE P AGES 10-12 & 38 “CLEARANCES TO COMBUSTIBLES, HEARTH EXTENSIONS / FLOOR PROTECTION” FOR CLEARANCES REQUIRED FOR DIFFERENT HEARTH EXTENSION INSTALLATIONS. THE CLEARANCES MUST BE STRICTLY ADHERED TO.

WARNING

Fire Risk

• Hearth extensions are to be installed only as illustrated to prevent high temperatures from occurring on concealed combustible materials.

• Hearth sealing strips prevent burning or hot particles from inadvertently falling directly on combustible surfaces in the event the building should settle and disturb the original construction.

D. Finishing Material

Do not install combustible materials over the metal ﬁ replace face of the ﬁ replace! This poses a safety hazard and may start a ﬁ re. You may only use non-

combustible material over the metal face of the ﬁ replace.

NOTE: The decorative fascia must be removable for future serviceability of the Automatic Combustion Control.

• Combustible Material

tible materials.

• Non-Combustible Material

Materials which will not ignite and burn. Such materials are those consisting entirely of steel, iron, brick, tile, concrete, slate, glass or plasters, or any combination thereof.

Materials that are reported as passing ASTM E 136, Standard Test Method for Behavior of Materials, in a Vertical Tube Furnace at 750°C, shall be considered non-com-

bustible materials.

• Non-Combustible Sealant Material

Sealants which will not ignite and burn: Super Calstick After completing the framing and applying the facing material

(drywall) over the framing, a bead of non-combustible sealant must be used to close off any gaps at the top and sides between the ﬁ replace and facing to prevent cold air leaks. Large gaps can be bridged with ﬁ berglass rope gasket.

Only non-combustible materials may be used to cover the metal ﬁ replace front.

Seal with non-combustible sealant

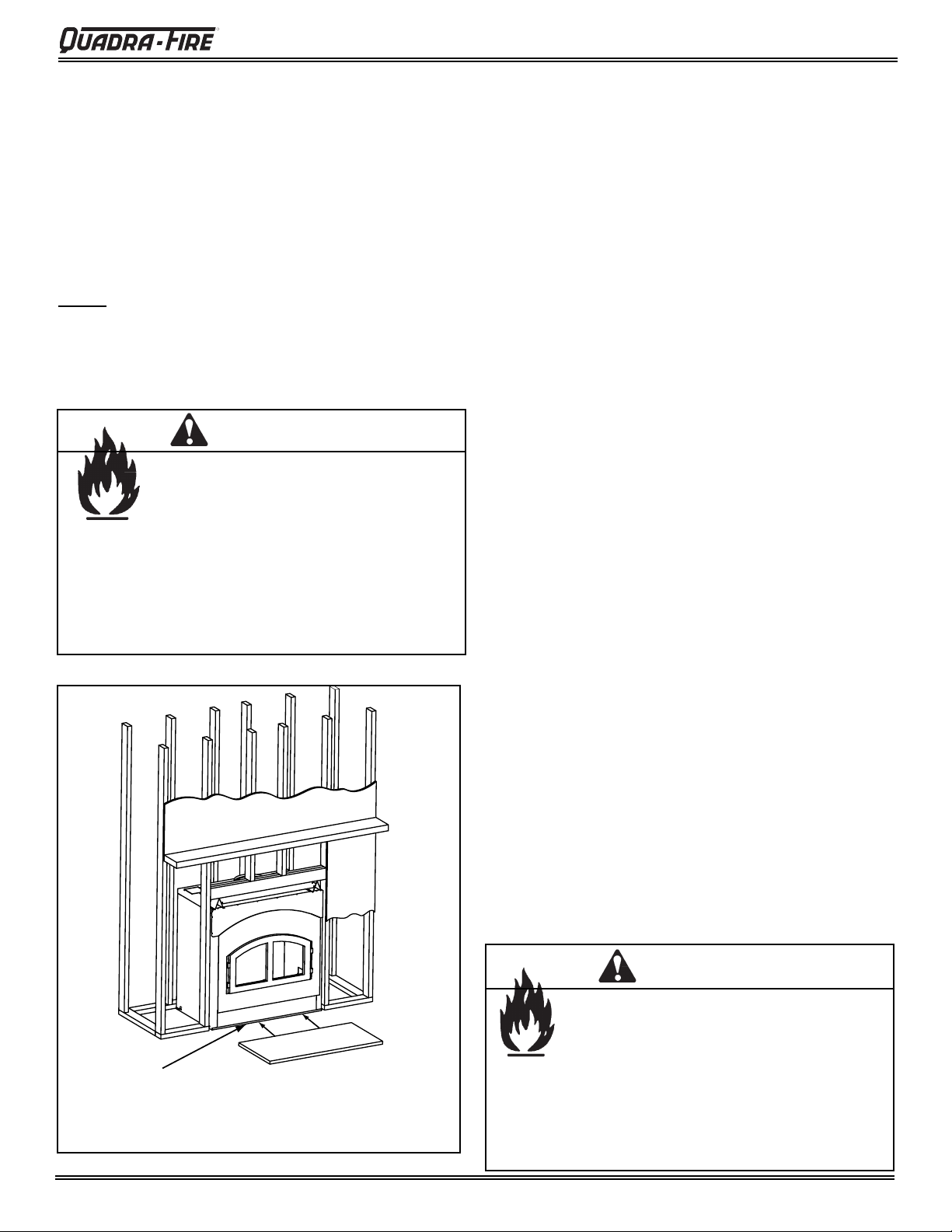

Figure 41.1 Position the Hearth Extension

September 7, 2007

• Cardboard OR Metal Template A cardboard template of the front is printed on the outside

A metal template is also available for more durable

• Framing or ﬁ nishing material used on the front of, or

433-1390D

of the shipping box. It measures 1/8 in. (3 mm) bigger all the way around than the actual front. Cut out the template along the outside of the line for use in your installation.

continued use remaining accurate over time. (See Section

12.E).

WARNING

Fire Risk

• Maintain clearances.

• Use only non-combustible material below standoffs, material such as cement board is acceptable.

in front of, the appliance closer than the minimums listed, must be constructed entirely of noncombustible materials (i.e., steel studs, concrete board, etc.).

Page 41

7100FP EPA Woodburning Fireplace

E. Non-Combustible Facing Material Installation

WARNING

Risk of Fire.

• Follow these instructions exactly.

• Facing materials must be installed properly to prevent ﬁ re.

• No materials may be substituted without authorization by Hearth & Home Technologies.

TOOLS NEEDED: Powered drill with #2 Phillips head bit; caulking gun.

1. Secure the ﬁ replace to the ﬂ oor or wall framing studs at a minimum of two attachment points to prevent further movement of the ﬁ replace. The same holes and L brack- ets that attached the ﬁ replace to the pallet may be used to secure the ﬁ replace to the sub ﬂ ooring by using a mini- mum of two 1/4 in. x 2 in. lag bolts or equivalent. to Figure 42.1 and install the two metal hearth strips at this time.

Refer

Top

Board

Side

Board

Apply bead of

Super Calstick to

edge here

Bottom

Board

Side

Board

Figure 42.2

5. Ensuring the top of the side pieces and the top board align, attach the side pieces to the outer can and framing members.

6. Use a wet or dry towel or a soft brush to remove any dust or dirt from facing material. Apply a non-combustible adhesive to attach tile, stone or other non-combustible ﬁ n- ishing materials per manufacturer’s instructions.

7. The non-combustible Super Calstick may be used for sealing between the ﬁ replace and the hearth extension. Refer to Figure 42.3.

1in. (25mm) OVERLAP

Metal strips 2 in. (51mm) under edge of Fireplace and Hearth Extension and 2 in. (51mm) on both side of fireplace opening.

Figure 42.1

Nail or screw metal strips in place.

NOTE: All boards are pre-drilled for your convenience. Boards MUST be attached in the following order: bottom, top, and then the two sides.

2. Attach the bottom board to the bottom of the outer ﬁ re- place can with enclosed screws, ensuring the board is centered.

3. Center and attach the top board to the outer can and framing members.

4. Using the Super Calstick, run a light bead (1/8 in. minimum) on the butt edges of the top board.

42.2.

See Figure

Figure 42.3

Figure 42.4

Seal with non-combustible sealant

Complete installation

Page 42

433-1390D

September 7, 2007

F. Mantel

A combustible mantel may be positioned no lower than 12 in. (305 mm) above the top of the ﬁ replace opening, or 60 in. (1524 mm).

The combustible mantel may have a maximum depth of 12 in. (305 mm). Combustible trim pieces that project no more

than 1-1/2 in. (38 mm) from the face of the ﬁ replace can be placed no closer than 6 in. (152 mm) from the top of the ﬁ replace opening. See Figure 43.1. Combustible trim must not cover the metal surfaces of the ﬁ replace. This man- tel clearance is in accordance with Section 7-3.3.3 of ANSI/ NFPA211.

Refer to page 12 for reduced mantel heights.

7100FP EPA Woodburning Fireplace

Mantel

Clearances are from bottom of appliance to lower edge of mantel

60in.

(1524mm)

Figure 43.1 Mantel Speciﬁ cations

September 7, 2007

433-1390D

Page 43

7100FP EPA Woodburning Fireplace

Operating Instructions

WARNING

Fire Risk

• Do not operate ﬁ replace before reading and understanding operating instructions.

Failure to operate ﬁ replace properly may cause ﬁ re.

A. General Information

Fireplaces, as well as other woodburning appliances, have been used safely for many years. It has been our experience that most problems are caused by improper installation and operation of the ﬁ replace. Make certain that installation and operation of the ﬁ replace system is in accordance with these instructions.

It is extremely important that the ﬁ re be supervised when- ever the ﬁ replace is in use. It is also recommended that an annual inspection be performed on the ﬁ replace system to determine if the ﬂ ue system needs to be cleaned, or as in the case of any appliance, if minor repairs are required to maintain the system in top operating condition.

WARNING

HOT! DO NOT TOUCH. SEVERE BURNS MAY RESULT. CLOTHING IGNITION MAY RESULT.

Glass and other surfaces are hot during operation and cool down.

• Keep children away.

• CAREFULLY SUPERVISE children in same room as ﬁ replace.

• Alert children and adults to hazards of high temperatures.

• Do NOT operate with protective barriers removed.

• Keep clothing, furniture, draperies and other combustibles away.

Page 44

Automatic Combustion

Control Handle

Figure 44.1 General Operating Parts

Auxiliary

Convection

Air Lever

433-1390D

Outside Air Control Handle

(Keep open during use. )

September 7, 2007

7100FP EPA Woodburning Fireplace

B. Outside Air

A source of air (oxygen) is required in order for combustion to take place. Whatever air is consumed by the ﬁ re must be replaced through cracks around windows, under doors, etc. Most newly constructed houses or existing homes ﬁ tted with tightly sealed doors and windows are relatively air tight. In this case, an outside air source must be made available to feed combustion air from outside the home.

The 7100FP Fireplace comes equipped with an outside air intake to feed combustion air from outside the home, along with an outside air termination cap. The 6 in. (152 mm) solid/ ﬂ ex pipe is not supplied.

Outside air is required to minimize the effects of negative pressure within the structure. It is recommended to utilize the shortest duct run to optimize the performance of the Outside Air ﬂ ex tubing. The outside air inlet thimble should be positioned above the ground level, and must remain clear of leaves, debris, ice and/or snow. If you live in an area that experiences deep snow levels, this must be taken into consideration when determining the height placement above ground level. It must be unrestricted while unit is in use to prevent room air starvation which can cause smoke spillage and an inability to maintain a ﬁ re. Smoke spillage can also set off smoke alarms.

This ﬁ replace will operate correctly only if adequate ventilation is provided to allow proper draft to the ﬁ re- place system. Hearth & Home Technologies assumes no responsibility for the improper performance of the fireplace system caused by inadequate draft due to environmental conditions, down drafts, tight sealing construction of the structure, or mechanical exhausting devices which create a negative air pressure within the structure where the ﬁ replace is located.

C. Clear Space Near the Fireplace

Combustible materials must not be stored on the hearth extension. Room furnishings such as drapes, curtains, chairs or other combustibles must be at least 4 ft (1219mm) from the open front of the ﬁ replace.

D. Firescreen

A ﬁ rescreen is optional to control sparks. It must be in place whenever the ﬁ replace is in use. Glass doors or ﬁ rescreens must not be used to hold burning material inside the ﬁ re- place. Only those glass doors speciﬁ cally tested and listed for use with the speciﬁ c ﬁ replace model should be used.

Use both hands to stabilize the screen. Ensure that the screen is fully attached. Be careful not to stack wood close to the front or too high that logs could roll out the front. Start with a small ﬁ re and adjust your heat to desired setting. If smoke spillage occurs, put on gloves and then remove the screen and close the doors. Refer to Troubleshooting Draft Problems on page 52.

WARNING

Fire Risk

• Close ﬁ rescreen when burning ﬁ replace.

• Do not use ﬁ rescreen or glass doors to

hold burning material in ﬁ replace.

Firescreen controls sparks. Glass may break or burning material may

roll out.

• Always wear gloves when installing or removing the screen as the screen may become extremely hot while in use.

NOTE: OUTSIDE AIR IS REQUIRED.

An outside air control handle allows you control of the outside air inlet. This may be closed only when the ﬁ replace is not in use to prevent cold air inﬁ ltration. Use of outside air for combustion is required to conserve heated air within the structure and to provide make up air to keep the ﬁ replace venting properly.

See Figure 44.1, on page 44, for location and operation.

CAUTION

Outside air control handle may be warm. Adjust before lighting ﬁ re.

September 7, 2007

433-1390D

E. Glass Doors

This ﬁ replace has been tested and listed for use with doors as speciﬁ ed in Section 12.E. Please refer to the manual packed with each set of doors for installation instructions.

WARNING

Fire Risk Smoke Risk

• Doors must be fully opened or fully closed

when operating ﬁ replace.

Partially opened doors may draw ﬂ ame, smoke or heat from ﬁ replace.

Page 45

7100FP EPA Woodburning Fireplace

F. Blower Operation

Instructions with Blower Override Switch in manual position.

1. Initial (cold) Startup: Leave blower off until your ﬁ re- place is hot and a good coal bed is established, approximately 30 minutes after fuel is lit.

2. High Burn Setting: The blower may be left on throughout the burn.

3. Medium or Medium High Burn Setting: The blower should be left off until a good burn is established, then turned on medium or high rate.

4. Low Burn Setting: The blower tends to cool off the ﬁ replace. Leave blower off until the burn is well established; then, if you wish, turn the blower on at a low rate.

NOTE: The blower is equipped with a snap disc that will turn the blower on and off depending on the temperature of the

ﬁ replace. If the blower is not coming on at the desired time, ﬂ ip the override switch to manual and operate the blower as

described above. The override switch and the blower speed control are hard

wired at time of installation and installed in a standard wall mount with junction box on the wall.

G. Heat Zone Operation

The Heat-Zone accessory kit conveys warm air from the ﬁ replace through air duct(s) to remote locations in the same room or other rooms of the building. You may install 1 or 2 Heat-Zone kits on the ﬁ replace. Follow the instructions that is supplied with the kit. Installation of this kit MUST be performed by a qualiﬁ ed service technician. If any parts are missing or damaged, contact your local dealer before starting installation. DO NOT install a damaged kit.

The Heat-Zone kit is carefully engineered and must be installed only as speciﬁ ed. If you modify it or any of its com- ponents, you will void the warranty and you may possibly cause a ﬁ re hazard. Installation must be done according to applicable local, state, provincial, and/or national codes.

DUCT RUN REQUIREMENTS

MAXIMUM Duct Run = 40 ft. (12m) MINIMUM Duct Run = 36 in. (914mm)

DUCTING MATERIAL

6 in. (152mm) B-Vent Only DO NOT DUCT into existing furnace plenum

CAUTION

H. Wood Fuel

Hardwood vs. Softwood

Your ﬁ replace’s performance depends a great deal on the quality of the ﬁ rewood you use. Contrary to popular belief, one species of wood varies very little to the other in terms of energy content. All seasoned wood, regardless of species, contains about 8,000 BTU’s per pound. The important factor is that hardwoods have a greater density than softwoods. Therefore, a piece of hardwood will contain about 60% more BTU’s than an equal size piece of softwood. Since ﬁ rewood is commonly sold by the cord (128 cu. ft) a volume measurement, a cord of seasoned oak (hardwood) would contain about 60% more potential energy than a cord of seasoned pine (softwood).

There are many deﬁ nitions of hardwood and softwood. Although not true in every case, one of the most reliable is to classify them as coniferous or deciduous. Softwoods are considered coniferous. These are trees with needle-like leaves that stay green all year and carry their seeds exposed in a cone. Examples of softwood trees are Douglas ﬁ r, pine, spruce and cedar . Softwoods, being more porous, require less time to dry, burn faster and are easier to ignite than hardwoods. Deciduous trees are broadleaf trees that lose their leaves in the fall. Their seeds are usually found within a protective pod or enclosure. Hardwoods fall into this category. Some examples of deciduous trees are oak, maple, apple, and birch. However, it should be noted that there are some deciduous trees that are deﬁ nitely not considered hardwoods such as poplar, aspen and alder . Hardwoods require more time to season, burn slower and are usually harder to ignite than softwoods. Obviously, you will use the type of wood that is most readily available in your area. However, if at all possible the best arrangement is to have a mix of softwood and hardwood. This way you can use the softwood for starting the ﬁ re giving off quick heat to bring the appliance up to operating temperature. Then add the hardwood for slow, even heat and longer burn time.

MINIMUM CLEARANCE TO COMBUSTIBLE

1 in. (25mm) from the B-Vent 1/2 in. (13mm) from top and bottom of outlet box 0 in. (0mm) from the sides of outlet box 12 in. (305mm) from wall register to ceiling

Page 46

433-1390D

September 7, 2007

Moisture content

Regardless of which species of wood you burn, the single most important factor that affects the way your ﬁ replace operates is the amount of moisture in the wood. The majority of the problems ﬁ replace owners experience are caused by trying to burn wet, unseasoned wood. Freshly cut wood can be as much water as it is wood, having a moisture content of around 50%. Imagine a wooden bucket that weighs about 8 pounds. Fill it with a gallon of water, put it in the ﬁ rebox and try to burn it. This sounds ridiculous but that is exactly what you are doing if you burn unseasoned wood. Dead wood lying on the forest ﬂ oor should be considered wet, and requires full seasoning time. Standing dead wood can be considered to be about two-thirds seasoned, if cut at the dry time of the year.

The problems with burning wet, unseasoned wood are two fold. First, you will receive less heat output from wet wood because it requires energy in the form of heat to evaporate the water trapped inside. This is wasted energy that should be used for heating your home. Secondly , this moisture evaporates in the form of steam which has a cooling effect in your ﬁ rebox and chimney system. When combined with tar and other organic vapors from burning wood it will form creosote which condenses in the relatively cool ﬁ rebox and chimney. See the maintenance section of this manual for more information regarding creosote formation and need for removal.

Even dry wood contains at least 15% moisture by weight, and should be burned hot enough to keep the chimney hot for as long as it takes to dry the wood out - about one hour. To tell if wood is dry enough to burn, check the ends of the logs. If there are cracks radiating in all directions from the center, it is dry. If your wood sizzles in the ﬁ re, even though the surface is dry, it may not be fully cured.

Seasoning

Seasoned ﬁ rewood is nothing more than wood that is cut to size, split and air dried to a moisture content of around 20%. The time it takes to season wood varies from around nine months for soft woods to as long as eighteen months for hardwoods. The key to seasoning wood is to be sure it has been split, exposing the wet interior and increasing the surface area of each piece. A tree that was cut down a year ago and not split is likely to have almost as high a moisture content now as it did when it was cut.

7100FP EPA Woodburning Fireplace

WARNING

Fire Risk

• Do NOT burn wet or green wood.

• Store wood in dry location.

• Stack wood so both ends are exposed to air.

Wet, unseasoned wood can cause accumulation of creosote.

Storing Wood

Splitting wood before it is stored reduces drying time. The following guideline will ensure properly seasoned wood:

a. Stack the wood to allow air to circulate freely around

and through the woodpile.

b. Elevate the woodpile off the ground to allow air cir-

culation underneath.

c. The smaller the pieces, the faster the drying process.

Any piece over 6 in. (152 mm) in diameter should be split.

d. Wood should be stacked so that both ends of each

piece are exposed to air, since more drying occurs through the cut ends than the sides. This is true even with wood that has been split.

e. Store wood under cover, such as in a shed, or cov-

ered with a tarp, plastic, tar paper, sheets of scrap plywood, etc., as uncovered wood can absorb water from rain or snow, delaying the seasoning process. Avoid covering the sides and ends completely . Doing so may trap moisture from the ground and impede air circulation.

WARNING

Fire Risk

Do NOT store wood:

• Closer than required clearances to combustibles to ﬁ replace.

• Within space required for loading or ash removal.

September 7, 2007

433-1390D

Page 47

7100FP EPA Woodburning Fireplace

I. Starting a Fire

Before lighting your ﬁ rst ﬁ re in the ﬁ replace, make cer- tain that the bafﬂ e and the ceramic blanket are correctly positioned. It should be resting against the rear support.

Also refer to care and cleaning of plated surfaces on page 58 before lighting your ﬁ rst ﬁ re.

NOTE: REMOVE ALL LABELS FROM GLASS BEFORE

LIGHTING THE FIRST FIRE IN YOUR APPLIANCE.

There are many ways to build a ﬁ re. The basic principle is to light easily-ignitable tinder or paper, which ignites the fast burning kindling, which in turn ignites the slow-burning ﬁ rewood. Here is one method that works well:

1. Place several wads of crushed paper on the ﬁ re- box ﬂ oor. Heating the ﬂ ue with slightly crumpled newspaper before adding kindling keeps smoke to a minimum.

2. Lay small dry sticks of kindling on top of the paper.

3. Fully open the Slide Air Control by moving it completely to the right.

4. Make sure that no matches or other combustibles are in the immediate area of the ﬁ replace. Be sure the room is adequately ventilated and the ﬂ ue unob- structed.

5. Light the paper in the ﬁ replace. NEVER light or

rekindle ﬁ replace with kerosene, gasoline, or charcoal lighter ﬂ uid; the results can be fatal.

6. Once the kindling is burning quickly, add several full-length logs 3 in. (76 mm) or 4 in. (102 mm) in diameter. Be careful not to smother the ﬁ re. Stack the pieces of wood carefully: near enough to keep each other hot, but far enough away from each other to allow adequate air ﬂ ow between them.

7. When ready to reload the ﬁ replace, add more logs. Large logs burn slowly, holding a ﬁ re longer. Small logs burn fast and hot, giving quick heat.

8. Adjust the Slide Air Control; the more you close down the Control, (sliding left) the lower and slower the ﬁ re will burn. The more you open the Air Control, (sliding right) the more heat will be produced and the faster the wood will burn.

Note: The ﬁ rst three or four ﬁ res should be of moderate size to allow the oils and binders to be burned from the ﬁ replace and the refractory and paint to cure. You may notice an industrial odor the ﬁ rst few ﬁ res. This is considered normal.

CAUTION

Odors and vapors released during initial operation.

• Curing of high temperature paint.

• Open windows for air circulation. Odors may be irritating to sensitive individuals.

WARNING

Fire Risk

Keep combustible materials, gasoline and other ﬂ ammable vapors and liquids clear of ﬁ replace.

• Do NOT store ﬂ ammable materials close to the ﬁ replace.

• Do NOT use gasoline, lantern fuel, kerosene, charcoal lighter ﬂ uid or similar liquids to start or “freshen up” a ﬁ re in this ﬁ replace.

• Keep all such liquids well away from the ﬁ replace while it is in use.

Combustible materials may ignite.

WARNING

Fire Risk.

For use with solid wood fuel only. Other fuels may overﬁ re and generate

poisonous gases (i.e. carbon monoxide).

As long as there are hot coals, repeating steps 7 and 8 will maintain a continuous ﬁ re throughout the season.

NOTE: The special high temperature paint that your ﬁ replace is ﬁ nished with will cure as your ﬁ replace heats. You will notice an odor and perhaps see some vapor rise from the ﬁ replace surface; this is normal. We recommend that you open a window until the odor dissipates and paint is cured.

NOTE: Fireplace should be run full open for a minimum of 30 minutes a day during heating season to keep air passages clean.

Page 48

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

J. Burning Process

Fire requires 3 things to burn: fuel, air and heat. If heat is robbed from the ﬁ replace during the drying stage, the new load of wood has reduced the chances for a good clean burn. For this reason, it is always best to burn dry , seasoned ﬁ rewood. We do not advise burning unsea- soned wood, however if it happens, you must open the Slide Air Control and burn the ﬁ replace at a high burn setting for a longer time to start it burning.

Kindling or 1st stage:

It helps to know a little about the actual process of burning in order to understand what goes on inside a ﬁ replace. The ﬁ rst stage of burning is called the kindling stage. In this stage, the wood is heated to a temperature high enough to evaporate the moisture which is present in all wood. The wood will reach the boiling point of water (212°F) and will not get any hotter until the water is evaporated. This process takes heat from the coals and tends to cool the ﬁ replace.

2nd stage:

The next stage of burning, the secondary stage, is the period when the wood gives off ﬂ ammable gases which burn above the fuel with bright ﬂ ames. During this stage of burning it is very important that the ﬂ ames be main- tained and not allowed to go out. This will ensure the cleanest possible ﬁ re. If you are adjusting your ﬁ replace for a low burn rate, you should close down the air to the point where you can still maintain some ﬂ ame. If the ﬂ ames tend to go out, the ﬁ replace is set too low for your burning conditions.

K. Automatic Combustion Control (ACC)

Typically, when you build a ﬁ re, you need to open the

controls to give the ﬁ re more air so the wood will start burning. You would then have to physically watch the ﬁ re and shut down the air controls so the ﬁ replace does not overﬁ re and burn up your wood too quickly. With the Automatic Combustion Control (ACC) system, you do not have to physically watch the ﬁ re. Once you set the ACC system it will monitor the ﬁ re for you.

Set the ACC slide control to HIGH by moving it all the way to the right. As you move the control rod to the right, about 3/4 of the way you will feel some resistance. You must move past that resistance approximately 3/4 in. (19 mm) to reach the HIGH setting. Start your ﬁ re and then

move the slide control to the left to the desired burn rate. (See page 50 for the position of the slide control for the different burn rates.) The ﬁ replace will automatically go to that level after the ﬁ re is fully established. This allows for less manual monitoring of the ﬁ re and more efﬁ cient use of fuel while maintaining the desired heat output.

NOTE: Close controls when not burning.

Left - Close

Right - Open

Final stage:

The ﬁ nal stage of burning is the charcoal stage. This occurs when the ﬂ ammable gases have been mostly burned and only charcoal remains. This is a naturally clean portion of the burn. The coals burn with hot blue ﬂ ames.

It is very important to reload your ﬁ replace while enough lively hot coals remain in order to provide the amount of heat needed to dry and rekindle the next load of wood. It is best to open the air control for a short while before reloading. This livens up the coalbed. Open door slowly so that ash or smoke does not exit ﬁ replace through opening. Y ou should also break up any large chunks and distribute the coals so that the new wood is laid evenly on hot coals.

CAUTION

Fireplace operation does require air. Do not take air from other fuel burning appliances which can result in improper venting (smoking) or air dilution. Always provide adequate makeup air.

Low

Setting

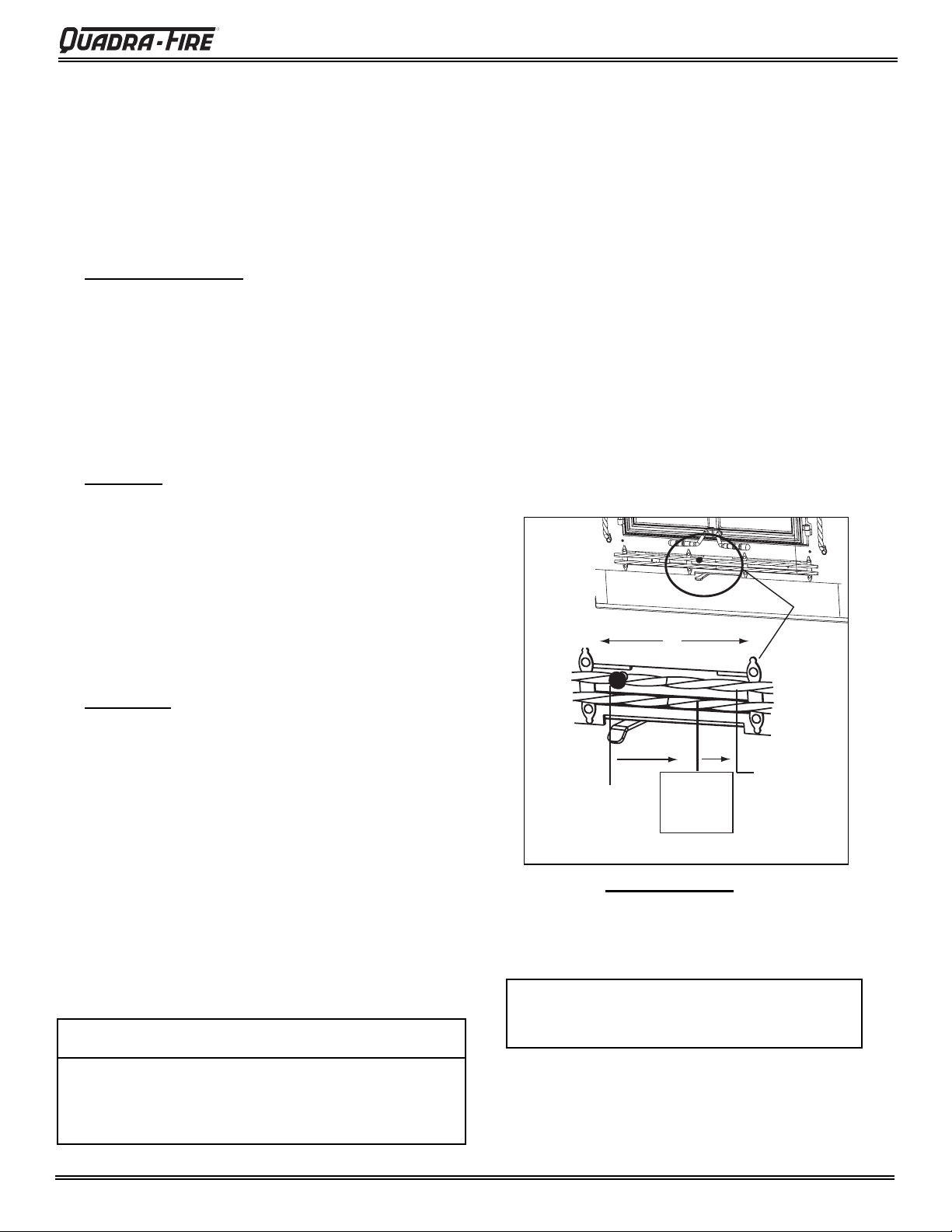

Figure 49.1 Operating the ACC Controls

Meet

Resistance

Move past

3/4" to High

High Setting

*Slide Air Control

Slide LEFT to Stop Stop to 1/8 in. -1/2 in. open Stop to 1/2 in. - 1-1/2 in. open All the way to RIGHT

THE DECORATIVE FASCIA MUST BE REMOVABLE ON YOUR FIREPLACE IN ORDER TO SERVICE THE AUTOMATIC COMBUSTION CONTROL SYSTEM.

September 7, 2007

433-1390D

Page 49

7100FP EPA Woodburning Fireplace

L. Burning Guidelines

For maximum operating efﬁ ciency with the lowest emissions, follow these operating procedures:

1. Regardless of desired heat output, when loading the ﬁ replace, burn your ﬁ replace with the Slide Air Control wide open (fully to the right) for a minimum of 5 to 15 minutes.

2. Regulate burn rate (heat output) by using the Slide Air Control. See Figure 49.1 on page 49.

3. Heat output settings: Follow the burn rate instructions listed below.

NOTE: T o establish your settings, always begin with the air control all the way to the left to STOP and then move it to the right for your desired setting.

Burn Rate

Low Medium Medium High High

*These are approximate settings, and will vary with type of

wood or chimney draft.

NOTE: If reloading a bright, hot coal bed for longer (low) burn time, setting the ACC may not be required.

BTU / Hr

Below 10,000 10,000 - 15,000 15,000 - 30,000 Maximum Heat

*Slide Air Control

Slide LEFT to Stop Stop to 1/8 in. -1/2 in. open Stop to 1/2 in. - 1-1/2 in. open All the way to RIGHT

N. Opacity

his is the measure of how cleanly your ﬁ replace is burn- ing. Opacity is measured in percent; 100% opacity is when an object is totally obscured by the smoke column from a chimney , and 0% opacity means that no smoke column can be seen. As you become familiar with your ﬁ replace, you should periodically check the opacity. This will allow you to know how to burn your ﬁ replace as nearly smoke-free as possible (goal of 0% opacity).

WARNING

Fire Risk.

Keep combustible materials, gasoline and other ﬂ ammable vapors and liquids clear of appliance.

• Do NOT store ﬂ ammable materials in the appliance’s vicinity.

• Do NOT use gasoline, lantern fuel, kerosene, charcoal lighter ﬂ uid or similar liquids to start or “freshen up” a ﬁ re in this heater.

• Keep all such liquids well away from the heater while it is in use.

• Combustible materials may ignite.

NOTE: BURN DRY, WELL-SEASONED WOOD.

M. Burn Rates

HIGH - Maximum Heat: Fully open (slide air control

all the way to the right). It is important to do this when reloading the ﬁ replace. Failure to do this could result in excessive emissions (smoke).

MEDIUM HIGH BURN RATE - 15,000 to 30,000 BTU: After a wood load has been burning on high for 5 to 15 minutes, close the Slide Air Control to 1/2 in. - 1-1/2 in. (13 mm-38 mm) distance open. (Move the handle to left to stop and then to right for the proper setting).

MEDIUM - 10,000 - 15,000 BTU: After a wood load has been burning on high for 5 to 15 minutes (longer for very large pieces or wet wood), slide Slide Air Control left to 1/8 in. -1/2 in. (3 mm-13 mm) distance open. (Move the handle to left to stop and then to right for the proper setting).

LOW - Below 10,000 BTU: After a wood load has been burning on high for 5 to 15 minutes (longer for very large pieces or wet wood), gradually slide the Air Control left to close down the air, making sure to maintain ﬂ ames in the ﬁ replace. It is very important to maintain ﬂ ames in your ﬁ replace during the ﬁ rst few hours of a low burn to avoid excessive air pollution.

WARNING

Fire Risk.

Do NOT store wood:

• Closer than required clearances to combustibles to appliance

• Within space required for loading or ash removal.

Do NOT operate appliance:

• With appliance door open.

• With ash removal system door open.

WARNING

Fire Risk.

• Do NOT burn wet or green wood.

• Store wood in dry location.

• Stack wood so both ends are exposed to air.

Wet, unseasoned wood can cause accumulation of creosote.

Page 50

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

O. Overﬁ ring

Do not overﬁ re. Using ﬂ ammable liquids or too

much wood, burning trash in the ﬁ replace, or allowing too much air into the ﬁ replace, may result in overﬁ ring. If the chimney connector or ﬁ replace glows red or even worse, white, the ﬁ replace is overﬁ red. This condition may ignite creosote in the chimney, which can be dangerous, possibly causing a house ﬁ re. If you overﬁ re, immediately close the air controls and door, if open, to reduce the air supply to the ﬁ re. Overﬁ ring will void the

ﬁ replace warranty.

P. Chimney Fire

In the event of a chimney ﬁ re:

• Have the chimney and adjacent structure inspected by qualiﬁ ed professionals. Hearth & Home Technologies recommends that NFI or CSIA certiﬁ ed professionals, or technicians under the direction of certiﬁ ed professionals, conduct a minimum of an NFPA 211 Level 2 inspection of the chimney.

• Replace components of the chimney and ﬁ replace as speciﬁ ed by the professionals.

Q. Fire Safety

To provide reasonable ﬁ re safety, the following should be given serious consideration:

1. Install at least one smoke detector on each ﬂ oor of your home to ensure your safety. They should be located away from the heating appliance and close to the sleeping areas. Follow the smoke detector manufacturer’s placement and installation instructions, and be sure to maintain regularly.

2. A conveniently located Class A ﬁ re extinguisher to contend with small ﬁ res resulting from burning embers.

3. A practiced evacuation plan, consisting of at least two escape routes.

4. A plan to deal with a chimney ﬁ re as follows:

In the event of a chimney ﬁ re:

a. Notify ﬁ re department b. Prepare occupants for immediate evacuation. c. Close all openings into the stove. d. While awaiting ﬁ re department, watch for ignition of

adjacent combustibles from overheated stove pipe, hot embers or sparks from the chimney.

• Ensure all joints are properly engaged and the chimney is properly secured.

A chimney ﬁ re can permanently damage your chimney sys- tem. Failure to replace damaged components and make proper repairs creates risk of ﬁ re.

September 7, 2007

433-1390D

Page 51

7100FP EPA Woodburning Fireplace

This ﬁ replace will operate correctly only if adequate ventila- tion is provided to allow proper draft to the ﬁ replace system. Hearth & Home Technologies assumes no responsibility for the improper performance of the ﬁ replace system caused by inadequate draft due to environmental conditions, down drafts, tight sealing construction of the structure, or mechanical exhausting devices which will create a negative air pressure within the structure where the ﬁ replace is located.

Troubleshooting

A. Understanding Vent Problems

If smoke spillage occurs from a ﬁ replace opening when the door is open and the proper chimney height, ﬂ ue size, and conﬁ guration requirements for the installation have been met, there is either a leakage in the ﬂ ue, a blockage in the

ﬂ ue, or some condition is in effect to draw smoke from the ﬁ replace into the house. Understanding and dif ferentiating

the conditions which can cause each of these kinds of spillage problems is essential to their solution.

• Flue Leakage

Check for improperly connected ﬂ ue joints or a damaged

ﬂ ue joint in the chimney system. Such leakage would reduce draft (air would be drawn in through the leaks rather than through the ﬁ replace). The result might be difﬁ cult start-up and smoky ﬁ res that might spill if other adverse draft conditions accompany this problem.

If the ﬁ re is hard to start and smoke spills out of the ﬁ replace, or you ﬁ nd it difﬁ cult to establish and maintain a moderately high burn rate, then the ﬂ ue draft is too low and corrective measures must be taken.

Be sure you have air available for combustion and that your ﬁ rewood is dry and well seasoned. Build your ﬁ res properly and according to the instructions given in operating instructions, “Starting a Fire”. Be sure your ﬂ ue system is installed correctly and that it is the proper diameter and height. Check for the following:

• All chimney sections are properly installed.

• The chimney is clean and free of creosote or soot buildup.

• Make sure overhanging trees and branches are cut back within ten feet of the top of the chimney and is free of debris from animals.

• Ensure the chimney cap is clean and free of any buildup of soot or creosote. if cap is equipped with a spark arrestor screen.

• Be sure the ceramic blanket (above the bafﬂ e) and the bafﬂ e are in their proper positions

• Flue Blockage The damper should be open.

B. Draft Problems

This ﬁ replace will operate correctly only if adequate ventila- tion is provided to allow proper draft to the ﬁ replace system. Hearth & Home Technologies assumes no responsibility for the improper performance of the ﬁ replace system caused by inadequate draft due to environmental conditions, windy conditions, down drafts, tight sealing construction of the structure, or mechanical exhausting devices which will create a negative air pressure within the structure where the ﬁ replace is located.

Flue draft is measured as negative pressure in the chimney . The amount of negative pressure determines how strong the draft is. The draft is important because it draws the combustion air into the ﬁ replace and pulls the smoke out of the chimney.

There are three basic criteria essential in establishing and maintaining ﬂ ue draft:

• Availability of combustion air.

• Heat generated from the ﬁ re.

• Diameter and height of the ﬂ ue system.

These three factors work together as a system to create the ﬂ ue draft. Increasing or decreasing any one of them will affect the other two and thus change the amount of draft in the entire system.

• The wood being used in dry and well seasoned.

If you still suspect you have a low draft problem it may be necessary to increase the volume of air in your ﬂ ue system. Since the diameter of your ﬂ ue system is matched with the size of the ﬂ ue collar and should not be changed, then the height of the system must be increased. Add chimney sections a little at a time until the draft improves.

In some cases, regardless of what you do, it can still be difﬁ cult to establish the proper ﬂ ue draft. This is especially evi- dent when using an exterior factory-built chimney or exterior masonry chimney. Try placing several sheets of crumpled paper on top of your kindling as close to the ﬂ ue outlet of the ﬁ replace as possible. Light this paper ﬁ rst then the paper under the kindling. The heat generated from the rapidly burning paper on top of the kindling should help get the draft established.

Still other factors can affect how well your ﬂ ue system per- forms. Neighboring structures, high winds, tall trees, even hillsides can affect air currents around the chimney. Well designed chimney caps are available that can help. Y our ﬁ place dealer is the local expert in your area. He can usually make suggestions or discover problems that can be easily corrected allowing your ﬁ replace to operate correctly as it has been designed, providing safe and economical heat for your home.

re-

Page 52

433-1390D

September 7, 2007

Overhead fan operating?

Another appliance in home also exhausting air (furnace, fan, dryer, etc.)?

Air register from furnace near fireplace?

Unsealed can lights?

7100FP EPA Woodburning Fireplace

Overhanging tree?

Bird's nest or leaves in termination cap?

Structural changes in chimney area?

Creosote buildup in flue?

Doors opening and closing? Window closed for start-up?

Figure 53.1 Factory-built Fireplaces: Troubleshooting

Combustion air control

Outside air closed?

September 7, 2007

433-1390D

Page 53

7100FP EPA Woodburning Fireplace

C. Diagnostics and Problem Solving

1. If I can’t get a good ﬁ re going, what am I doing wrong?

Diagnostic Question Possible Causes of Condition Solutions

Are the air controls open? • No draft

• No combustion air Is there enough paper? Insufﬁ cient heat to ignite kindling Use more paper Is there enough kindling?

Is the kindling dry? Is there enough or too much wood?

Is it too large? Is it dry enough?

Insufﬁ cient heat to ignite fuel Use drier kindling

• Insufﬁ cient heat to establish draft

• Insufﬁ cient air passage

• Insufﬁ cient surface area

• Ignition temperature high due to

moisture

Open air controls

Use small split wood that is well seasoned (split, covered on top minimum 6 months, preferably a year)

Are there adequate air spaces between fuel pieces?

Is the chimney pre-warmed? Exposed, cold chimney downdrafting Use lighted rolled newspaper at ﬂ ue

Is there smoke in the house? • Obstruction in chimney

Does the kindling wood not ignite? Condition, amount, arrangement of

Does the kindling ignite, but the fuel doesn’t?

Does the fuel ignite, but not burn well? • Draft problem

Insufﬁ cient combustion air and exposed surface area

• Downdraft from chimney tempera-

ture or from negative house pressure

kindling and fuel

• Amount of kindling

• Condition of fuel

Arrange kindling and wood for air movement

opening to start upward air movement

• Have chimney checked if it worked previously

• Pre-warm chimney

• Shut off exhaust devices

• Open window slightly

Use more, drier, well-spaced kindling and fuel.

• Use more kindling

• Use smaller, dry wood

• Use well-seasoned wood and sufﬁ cient amount

• Turn exhaust fans off

• Open window slightly

2. I smell smoke in the house after we have had a ﬁ re. What is the cause/what can I do?

Diagnostic Question Possible Causes of Condition Solutions

Is the chimney clean? No: Creosote odor Have chimney cleaned

3. I smell smoke in the house during operation. What is causing it?

Diagnostic Question Possible Causes of Condition Solutions

Do ﬁ res start and burn well? No:

Page 54

• Chimney obstruction

• Not enough kindling and/or fuel to establish draft

• Inadequate combustion air

• Air controls not open

Yes: Competition with exhaust devices

433-1390D

No:

• Check & clean chimney if needed

• Use adequate kindling & fuel

• Open air controls

• Open window

• Check for need for balanced air make-up (Outside Air)

• Check door rope for seal.

Yes:

• Do not use exhaust fans during startup

• Check for need for balanced air make-up (Outside Air)

September 7, 2007

4. I don’t get enough/any heat. What can I do about it?

Diagnostic Question Possible Causes of Condition Solutions

How much wood is used for ﬁ re? Insufﬁ cient fuel Make larger ﬁ res How well seasoned is the wood? Condition of fuel Burn seasoned wood: (split, covered

Did you install a blower? Snap disc may be faulty Replace snap disc

7100FP EPA Woodburning Fireplace

on top minimum 6 months, preferably a year) (about 20% moisture)

How much heat ouput do you expect? • Unrealistic expectations

• Heat output too low for square footage

How are air controls set? Operational problems Follow manufacturer’s instructions

Replace appliance with one with greater heat output

5. The wood burns too fast. What can I do?

Diagnostic Question Possible Causes of Condition Solutions

What is the condition of the wood? Extremely dry wood Mix in less seasoned wood after ﬁ re

established How are air controls set? Operational problems Follow manufacturer’s instructions Fireplace won’t shut down. ACC Timer is not working properly Call qualiﬁ ed Quadra-Fire dealer

September 7, 2007

433-1390D

Page 55

7100FP EPA Woodburning Fireplace

Maintenance and Servicing the Fireplace

WARNING

Asphyxiation Risk Fire Risk

Annual inspection by qualified technician

recommended.

Check:

• Condition of doors, surrounds and fronts

• Condition of glass and glass assembly

• Obstructions of combustion and ventilation air

• Obstructions of termination cap

Clean:

• Glass

• Air passageways, grilles

A. General Maintenance

1. Creosote (Chimney) Cleaning

• Frequency: As necessary; at least annually before lighting

stove or once every 2 months during heating season.

• By: Homeowner / Chimney Sweep

• Task: See the following instructions.

Remove all ash from the ﬁ rebox and extinguish all hot embers before disposal. Allow the appliance to cool completely. Remove bafﬂ e and ceramic blanket from appliance before cleaning chimney . Otherwise residue can pile up on top of the bafﬂ e and ceramic blanket and the appliance will not work properly. (See Bafﬂ e Removal on page 32). Close the door tightly. The creosote or soot should be removed with a brush speciﬁ cally designed for the type of chimney in use. Clean out fallen ashes from the ﬁ rebox. A chimney sweep can perform this service.

It is also recommended that before each heating season the entire system be professionally inspected, cleaned and repaired if necessary.

Inspection: Inspect the system at the appliance connection and at the chimney top. Cooler surfaces tend to build creosote deposits quicker, so it is important to check the chimney from the top as well as from the bottom.

Formation and Need For Removal: When wood is burned slowly, it produces tar and other organic vapors which combine with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney ﬂ ue of a newly-started or a slow-burning ﬁ re. As a result, creosote residue accumulates on the ﬂ ue lining. When ignited, this creosote creates an extremely hot ﬁ re which may damage the chimney or even destroy the house. The chimney connector and chimney should be inspected once every 2 months during the heating season to determine if a creosote or soot buildup has occurred. If creosote or soot has accumulated, it should be removed to reduce the risk of a chimney ﬁ re.

Remove screws, lift top cover.

Top Cover

Cap

Chimney

TR344/TR342

Round

Termination Cap

Remove 4 screws and lift top pan off.

Cap

Slip Section

ST375

Square

Termination Cap

1. Remove the 4 screws.

2. Remove the screen.

3. Remove the baffle.

Cap

Chase

TS345/TS345P

Square

Termination Caps

Figure 56.1 Chimney & Termination Cap Cleaning

WARNING

Fire Risk.

Prevent creosote buildup.

• Inspect chimney connector and chimney once every two months during heating season.

• Remove creosote to reduce risk of chimney ﬁ re.

• Ignited creosote is extremely HOT.

Page 56

433-1390D

September 7, 2007

WARNING

Fire Risk.

• Do not use chimney cleaners or ﬂ ame colo- rants in your appliance.

Will corrode pipe.

2. Disposal of Ashes

• Frequency: As necessary

• By: Homeowner

• Task: See the following instructions.

Ashes should be placed in a metal container with a tight ﬁ tting lid. The closed container of ashes should be placed on a non-combustible ﬂ oor or on the ground, well away from all combustible materials, pending ﬁ nal disposal. If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed container until all cinders have thoroughly cooled.

WARNING

Fire Risk.

Disposal of Ashes

• Ashes should be placed in metal container with tight ﬁ tting lid.

• Do not place metal container on combustible surface.

• Ashes should be retained in closed container until all cinders have thoroughly cooled.

7100FP EPA Woodburning Fireplace

B. Glass Replacement

1. Ensure that the ﬁ re is out and the appliance is cool to the touch.

2. Protect a table or counter top with padding or towels.

3. Remove door with broken glass from the appliance by lifting door up and off of the hinges.

4. Lay door face down on a table or counter making sure handle and handle attachment knob hang over the edge of the table top so door lays ﬂ at, on a soft surface.

5. Remove screws from the top and bottom glass frames (5 on each door) using a #2 Phillips Head screwdriver. Set frames aside and retain screws.

HINT: Soak screws in penetrating oil for easy removal.

6. Remove the glass and discard.

7. Position the new glass with edges evenly overlapping the opening in the front door.

8. Replace the glass frames. Be careful not to cross thread the screws.

9. Start screws to secure glass frames to door, keeping them loose for adjusting the glass. Then continue to tighten each screw alternately, a few turns at a time, until the glass panel is tightened snugly . DO NOT OVERTIGHTEN SCREWS.

10. Replace the door on the appliance.

11. After the ﬁ rst burn, recheck the tightness of the screws.

NOTE: REMOVE ALL LABELS FROM GLASS BEFORE

LIGHTING THE FIRST FIRE IN YOUR APPLIANCE.

3. Glass Cleaning

• Frequency: As necessary

• By: Homeowner

• Task: See the following instructions.

Clean glass with a non-abrasive glass cleaner. Abrasive cleaners may scratch and cause glass to crack. If the deposits on the glass are not very heavy, normal glass cleaners work well. Heavier deposits may be removed by using a damp cloth dipped in wood ashes or by using a commercially available oven cleaner. After using an oven cleaner, it is advisable to remove any residue with a glass cleaner or soap and water. Oven cleaner left on during the next ﬁ ring can permanently stain the glass and damage the ﬁ nish on plated metal surfaces.

A portion of the combustion air entering the ﬁ rebox is deﬂ ected down over the inside of the door glass. This air ﬂ ow “washes” the glass, helping to keep smoke from adhering to its surface. When operated at a low burn rate, less air will be ﬂ owing over the glass and the smoky, relatively cool condition of a low ﬁ re will cause the glass to become coated. Operating the appliance with the Burn Rate Air Control and Start-Up Air Control all the way open for 15-20 minutes should remove the built up coating.

WARNING

Fire Risk. Injury Risk.

• Use only glass speciﬁ ed in manual.

• DO NOT REPLACE with any other material. Glass breakage will occur.

September 7, 2007

433-1390D

Page 57

7100FP EPA Woodburning Fireplace

C. Brick Replacement

The ﬁ rebox of your ﬁ replace is lined with high quality ﬁ rebrick, which has exceptional insulating properties.

There is no need to use a grate; simply build a ﬁ re on the ﬁ rebox ﬂ oor. Do not operate the ﬁ replace

without ﬁ rebrick.

IMPORTANT: The bricks are very similar in size. Be

certain you have the proper brick in the correct location. Measure the brick size for accuracy.

1. After the coals are completely cooled, remove all old brick and ash from unit and vacuum out ﬁ rebox.

2. Remove the brick from the box and lay out to diagram as shown in Figure 58.1.

3. Lay bottom bricks in unit.

4. Install rear bricks on the top of the bottom bricks. Slide top of bricks under clip on back of ﬁ rebox wall and push bottom of brick back.

5. Install side bricks. Slide top of brick under clips on side of ﬁ rebox and push the bottom of the brick until it is ﬂ ush with the side of the unit.

Figure 58.1 Brick Pattern

Use Part 832-2370 when ordering individual brick. Provide brick dimension or copy this page, mark the desired brick and take it to your authorized dealer.

Back

Left Side

5555

Floor

Figure 58.2 Brick Pattern

# Brick Size Qty. In Set 1 9” x 3-1/4” x 1-1/4” Angled (see drawing) 2 2 6-1/4” x 4-1/2” x 1-1/4” 5 3 9” x 2” x 1-1/4” 2 4 6-1/4” x 3-1/2” x 1-1/4” 2 5 9” x 4.5” x 1-1/4” 16

Right Side

3-1/4"

9.0"

1-1/4"

Page 58

433-1390D

September 7, 2007

D. Care and Cleaning of Plated Surfaces

Clean-plated surfaces with vinegar or a glass cleaner before lighting your ﬁ rst ﬁ re to prevent permanent staining.

CAUTION

Clean all the ﬁ ngerprints and oils from the surface before ﬁ r- ing the appliance for the ﬁ rst time.

• Use a glass cleaner or vinegar and towel to remove the oils.

•

Oils can cause permanent markings on plating, if not

removed.

• After plating is cured, oils will not affect the ﬁ nish.

CAUTION

• Do not use polishes with abrasives. It will scratch plated surfaces.

7100FP EPA Woodburning Fireplace

E. Maintenance Task List

Inspect Maintenance Tasks

Screens 1. Assess condition of screen and replace as necessary.

2. Verify maintenance of proper clearance to combustible household objects.

Glass Doors 1. Inspect glass panels for cracks. Replace if this condition is present.

2. Conﬁ rm there is no damage to glass or glass frame. Replace as necessary.

3. Inspect door rope. Conﬁ rm glass does not move around in glass frame

4. Clean glass using a non-abrasive cleaner.

Door Rope (Dollar Bill Test)

Air Intakes 1. Remove any foreign objects.

Firebox 1. Inspect condition of brick. Replace if crumbly, deteriorated, or if cracks exceed 1/4 in. (6 mm). Chimney 1. Inspect for blockage or obstruction such as bird nests, leaves, etc.

1. Open door, place half of dollar bill inside, and close door.

2. Attempt to pull the bill out.

3. If the bill gives good resistance or is not removable, the rope is adjusted correctly. If the bill comes out too easily, the door rope needs adjustment to create an even thickness all around door.

2. Verify unobstructed air circulation.

2. Conﬁ rm that termination cap remains clear and unobstructed by plants, etc.

3. Verify that termination cap clearance to subsequent construction (building additions) has been maintained.

4. Inspect for corrosion or separation.

5. Verify weather stripping, sealing and ﬂ ashing remain intact.

6. Inspect for creosote and remove as needed.

September 7, 2007

433-1390D

Page 59

7100FP EPA Woodburning Fireplace

Reference Materials

A. Fireplace Dimensions

FRONT VIEW

SIDE VIEW

Blower Electric Access

(right side of fireplace)

TOP VIEW

7100FP A B C D E F G

in.

3-1/2 32-1/2 38 40 42-5/16 45-13/16 23-7/16

89 826 965 1016 1075 1148 595

HIJKLMN

13-3/16 10-13/16 4-5/16 13-3/4 9-7/16 6 1

335 259 109 349 240 152 25

Figure 60.1

Page 60

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

B. Chimney Components

The following drawings show the SL-300 Series chimney and ﬁ replace components which may be safely used with this ﬁ replace.

Catalog

Description Catalog No. Description

No.

CAK4A Chimney Air Kit CB876 Chimney Bracket ID4 Insulated Duct / Outside Air RF370 Roof Flashing - Flat to 6/12 Pitch UD4 Uninsulated Duct / Outside Air RF371 Roof Flashing - 6/12 to 12/12 Pitch SL306 Chimney Section - 6 in.

(152mm) Long TR344 Round Termination Cap

SL312 Chimney Section - 12 in. (305mm) Long TR342 Round Telescoping Termination Cap SL318 Chimney Section - 18 in. (457mm) Long ST375 Square Termination Cap SL324 Chimney Section - 24 in. (610mm) Long TS345 Square Termination Cap SL336 Chimney Section - 36 in. SL348 Chimney Section - 48 in.

(914mm) Long CT35M Chase Top (Sold in pack of 10) (1219mm) Long 12966A Mobile Home Thimble

SL3 Chimney Stabilizer MH841 Mobile Home Thimble Extension, 20 in. SL315 Chimney Offset / Return - 15° HX4

MICORE Hearth Extension, 20 in. (508 mm) wide SL330 Chimney Offset / Return - 30° HEATZONE-WOOD Heat Zone Kit FS338 Firestop - Straight SCR-433 Fire Screen FS339 Firestop - 15° TMP-433 Metal Face Template FS340 Firestop - 30° TV-TRK Round Termination Top Vent Kit AS8 Straight Attic Insulation Shield 9201 Simpson Dura-Plus Base Plate JB877 Chimney Joint Band

(508 mm)

8 in.

(203 mm)

Chimney Sections

Catalog No.

SL306 6 in.

(152 mm)

SL312 12 in.

(305 mm)

SL318 18 in.

(457 mm)

SL324 24 in.

(610 mm)

SL336 36 in.

(914 mm)

SL348

(1219 mm)

10-1/2 in.

(267 mm)

4-3/4 in.

(121 mm)

10-3/4 in.

(273 mm)

16-3/4 in.

(425 mm)

22-3/4 in.

(578 mm)

34-3/4 in.

(883 mm)

48 in.

46-3/4 in.

(1187 mm)

INSULATED DUCT

4 in.

(102 mm)

42 in.

(10669 mm)

ID4

Firestop Spacer

14-1/2 in.

(368 mm)

Catalog No. A B

FS338 0° 14-1/2” (368 mm) FS339 15° 18-3/8” (467 mm) FS340 30° 16-3/4” (425 mm)

UNINSULATED DUCT

4 in.

(102 mm)

42 in.

(10669 mm)

UD4

12 in.

(305 mm)

24-5/8 in. (625 mm)

27-3/8 in.

(695 mm)

RF370 - Roof Flashing Flat to 6/12 Pitch

12in.

(305 mm)

24-5/8 in.

(625 mm)

31 in.

A = Actual Length B = Effective length (length of chimney part

after it has been snapped to another)

September 7, 2007

433-1390D

RF371 - Roof Flashing 6/12 to 12/12 Pitch

Page 61

7100FP EPA Woodburning Fireplace

20-3/4 in.

(527 mm)

SL3 - Chimney Stabilizer

Inside

Diameter

8 in.

(203 mm)

Outside Diameter 10-1/2 in.

(267mm)

Inside

Diameter

8 in.

(203 mm)

10-1/2 in.

CB876 Chimney Bracket

(267 mm)

29 in.

(737 mm)

JB877 Joint Band

24-5/8 in.

(625 mm)

12966A Mobile Home Thimble

10-1/2 in

(267 mm)

2 in.

(51 mm

16-5/8 in.

(422 mm)

24 in.

(610 m

AS8 Straight Attic Insulation Shield

16-5/8 in.

(422 mm)

SL315-SL330 - Offset/Return

15-3/4 in.

(400 mm)

TR344 Round Termination Cap

14-1/2 in.

(368 mm)

MAX.

DISTANCE

TR342 Round Telescoping Termination Cap

Outside Diameter 10-1/2 in.

(267 mm)

TR342

TERMINATION CAP

CHASE TOP

TOP OF

UPPERMOST

CHIMNEY

SECTION

MH841 Mobile Home Thimble Extension 20 in.

13-1/4 in. (337 mm)

16-1/4 in. (413 mm)

22 in.

(559 mm)

18 in.

(457 mm)

TS345/TS345P Square Termination Cap

23 in.

(584 mm)

19 in.

(483 mm)

15-5/8 in. (397 mm)

ST375 Square Termination Cap

(508 mm)

23-1/8 in.

(587 mm)

5-1/4 in.

(133 mm)

72 in.

(1829 mm)

10-7/8 in.

(276 mm)

CT35M Chase Top

TR-TVK - Round Termination Top Vent Kit

12 in.

(305 mm)

10-1/2 in.

(305 mm)

CAK4A Chimney Air Kit

(914 mm)

2 in.

(51 mm)

12 in.

(305 mm)

36 in.

4 in.

(102 mm)

Page 62

433-1390D

September 7, 2007

C. Components Diagrams and Schematics

7100FP EPA Woodburning Fireplace

Glass Size: 12-3/50” w x 15” h

Item Description SKU

2 Door Handle, Left 433-2030 3 Handle, Fiber 7000-403 4 Door Handle, Right 433-0770 5 Glass Assembly 433-5750

6 Glass Frame, Bottom 433-1620

7 Glass Frame, Top 433-1610 30 Screw, 6-32 x 1/4 31 Door, Cast, Left

32 Gasket, 1/8 x 1/2

available only in assy.

33 Set Pin, 1/8 x 5/8 7000-163 34 Washer, 3/8 222-0010

35 Latch Cam Key 430-1151 36 Washer, 5/8 x 0.406

available only in assy.

37 Cam Latch 32084 38 Nut, Lock 3/8-16 39 Door, Cast, Right

available only in assy.

40 Washer, 1/4 28758

41 Hinge Pin GD: 229-1240

NL: 229-1250

42 Screw, 8-32 x 1/2 220-0490

Figure 63.1 - Door, Glass & Door Handle Assembly

Item Description SKU

43 Grille Bar Assembly, Bottom 433-5120 44 Grill Bar Assembly, Side 433-5210 45 Combustion Air Label 46 Fascia Stiffener 47 Bracket, Fascia Support 48 Bracket, Mission Hill Support 49 Fascia Assembly 50 Screw, 1/4-20 x 1/2

available only in assy.

51 Grille Bar Assembly, Top 433-5130 52 Screw, 1/4-20 x 1-1/4

available only in assy.

Figure 63.2 - Valley Forge Fascia Assembly

September 7, 2007

433-1390D

Page 63

7100FP EPA Woodburning Fireplace

D. Fireplace Diagram

Item

1 Fascia, Valley Forge 10 Unit Collar 19 Snap Disc 2 Door Handle, Left 11 Starter Plate Assembly 20 Hearth Strip 3 Handle, Fiber 12 Blanket, Ceramic 21 Outside Air Kit 4 Door Handle, Right 13 Bafﬂ e, Fiberboard 22 Fascia, Mission Hill 5 Glass Assembly 6 Glass Frame, Bottom 15 Junction Box Cover Plate 24 Timer Control Arm 7 Glass Frame, Top 16 Blower 25 Timer Arm, Upper 8 Brick, Set 17 Bracket, Blower 26 9 Manifold Tube(s) 18 Blower Access Panel 27 Secondary Control Arm

Description Item

14 Clamp, Cable 3/8-1/2 in. 23 Timer Assembly

Description Item

Description

Wiring Harness

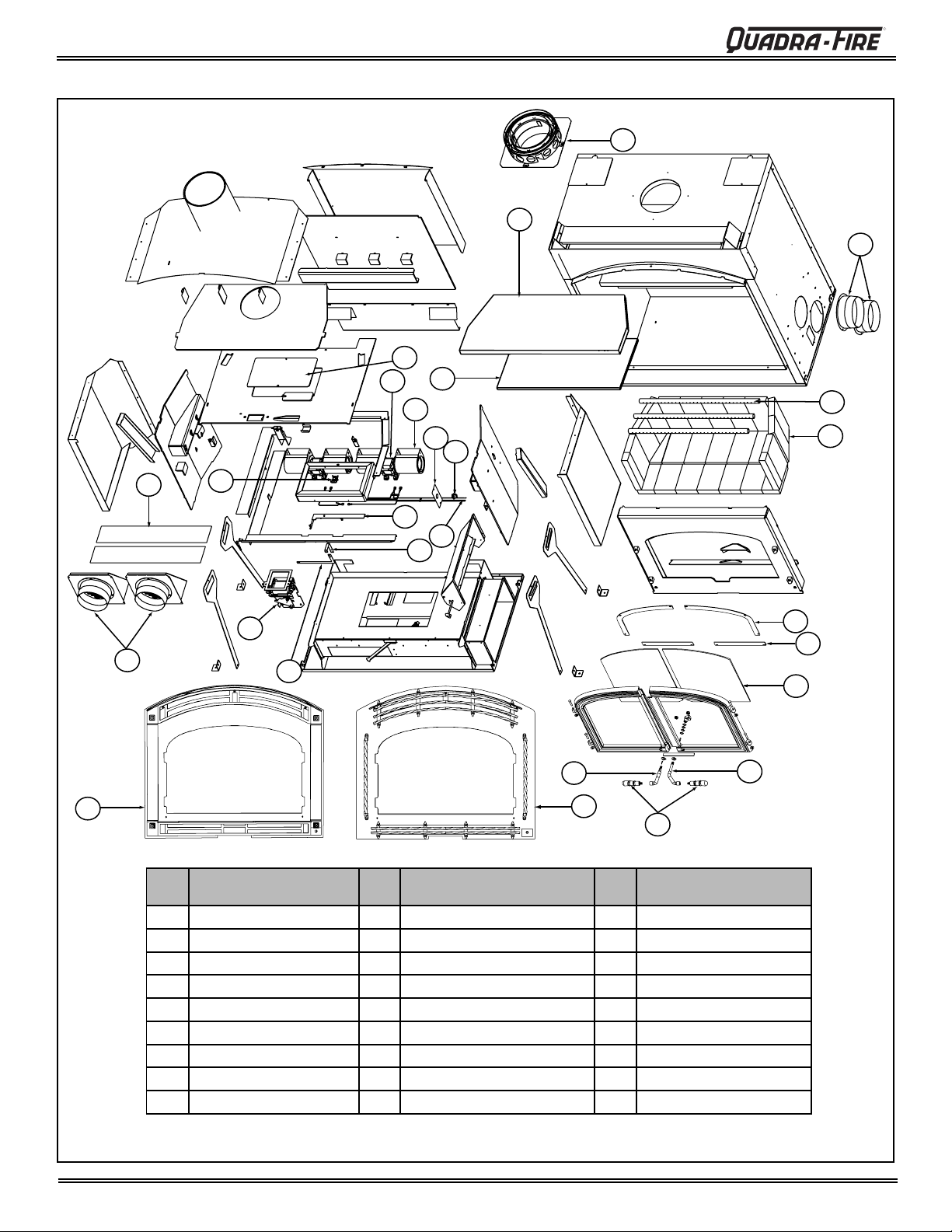

Figure 64.1 - Fireplace Diagram

Page 64

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

E. Service Parts

IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on the Quadra-Fire web site at www.

quadraﬁ re.com. When ordering, supply serial and model numbers to ensure correct part.

Item

13 12 18 17

2 4

5 6 7

3 20 41 41 15

Part Description

Alphabetical Order

Bafﬂ e, Fiberboard Blanket, Ceramic Blower Access Panel Bracket, Blower Bracket, Mounting, Snap Disc Brick, Set BRICK-433 Brick, Single, Uncut, Clay Brick, Uncut, Set Of 6, Clay Cam Latch Clamp, Connector, 3/8-1/2 Component Pack

Light Switch; Light Switch Cover Plate; Fan Speed Control; Touch-up Paint; and Quadra-Fire Warranty Card.) Component Pack, Fascia Front (Includes 5/32 Allen Wrench; Fasteners; Instructions; and OAK Knob

Label.) Door Handle, Left Door Handle, Right Door Trim, Gold, Left Door Trim, Gold, Right Door Trim, Nickel, Left Door Trim, Nickel, Right Door, Handle, Kit 7100FP HANDLES-433 Face Board Assembly Gasket, Rope, 1/2 in., 10 ft. Gasket, Rope, 1/4 in., 10 ft. Gasket, Timer Glass Assembly Glass Frame, Bottom Glass Frame, Top Handle Only, Fiber (1) SRV433-1380 Hearth Strip Hinge Pin, Gold (order quantity needed) Hinge Pin, Nickel (order quantity needed) Junction Box Cover Plate Knob, Air Control Knob, Air Shut Off with Set Screw Knob, Chad, Mission Hill Front Light Switch Light Switch Cover Plate Louver Assembly, Bottom, Valley Forge, Front Louver Assembly, Top, Valley Forge, Front Manifold Clip/Screws (4) Manifold Tube Set, 7100FP TUBES-433 Manifold, Tube (1)

(Includes Clamp Connector, 3/8-1/2; Knob; Owner’s Manual; EPA Label; Sales Efﬁ ciency;

SKU

433-0910 832-3401 433-0450 414-0600 410-2521

832-2370 832-3030 32084 230-1670 433-5180

433-5520

433-2030 433-0770 433-7160 433-7150 733-7340 433-7330

433-5720 834-4170 834-1460 433-1290 433-5750 433-1620 433-1610

480-1190 229-1240 229-1250 480-1050 32284 7000-246 2005-193 480-1260 480-1270 433-5120 433-5130 832-0661

433-0570

September 7, 2007

433-1390D

Page 65

7100FP EPA Woodburning Fireplace

IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on the Quadra-Fire web site at www.

quadraﬁ re.com. When ordering, supply serial and model numbers to ensure correct part.

Item

Outer Can Cover Plate Outer Can Lower Flange Outside Air Hood, 6 in. Outside Air Termination Cap, 6 in. Paint, Touch-up, Matte Black Rivnut Repair Kit 1/4-20 Screw, BH, 1/4-20, Fascia, Pkg. Of 24 Side Bar Assembly, Valley Forge, Front

Snap Disc Speed Control, (Blower) Timer Arm Upper

25 23

Timer Assembly SRV433-5080

Timer Control Arm Timer Replacement Assembly (Timer Only) SRV480-1940

Unit Collar Wire Harness SRV480-0990

F. Accessories

Item

Blower 812-4900 Chimney Air Kit CAK4A Door Assembly , Black 433-5580 Door Assembly , Gold 433-5590 Door Assembly , Nickel 433-5600

Fascia, Mission Hill DF-7100MH-B

Fascia, Valley Forge DF-7100VF-B Firescreen, 7100FP SCR-433 Heat Zone Kit HEAT-ZONE-WOOD

Lintel Bar 21 Outside Air Kit 11

Starter Plate Assembly SL1

Template, 7100 TMP-433

Termination Cap, Outside Air, with Door 832-3620

TR Top Vent Kit TR-TVK

Part Description

Alphabetical Order

Part Description

Alphabetical Order

SKU

480-1300 433-0970 480-5170 480-1160 7000-304 RIVNUT-REPAIR 225-0630/24 433-5210 480-1730 7000-143 433-1550

433-0950

659-125

SKU

LINTEL-433 480-5170

Page 66

433-1390D

September 7, 2007

7100FP EPA Woodburning Fireplace

G. Warranty Policy

Lifetime Warranty

LIMITED LIFETIME WARRANTY

The Hearth & Home Technologies limited Lifetime Warranty guarantees that the following components will work as designed for the lifetime of the stove or Hearth & Home Technologies will repair or replace them. These items include but are not limited to steel and cast iron components, all gas burners, gas logs, combustion chambers, heat exchanger systems, stainless steel ﬁ rebox components, plating, doors, glass damaged by thermal breakage, steel bafﬂ e supports, steel and ceramic bafﬂ es and manifold tubes. Labor is for the ﬁ rst ﬁ ve years.

THREE YEAR WARRANTY

Our pellet ﬁ repots are covered under Hearth & Home Technologies three-year warranty program. Labor is for 3 years.

TWO YEAR WARRANTY

All electrical components such as but not limited to blowers, wiring, vacuum switches, speed controls, control boxes, thermodisc switches, pilot assembly, gas valves, thermostats and remotes are covered under Hearth & Home Technologies two-year warranty program. Effective April, 2005 igniters are also covered under the two year warranty. Labor is for two years.

ONE YEAR WARRANTY

Porcelain and Powder Coat ﬁ nishes are warranted against manufacturer defects for one year. Labor to repair or replace these parts is covered for one year, reimbursed per our warranty service fee schedule.

CONDITIONS

This warranty is non-transferable and is made to the original retail purchaser only provided that the purchase was made through an authorized dealer of Hearth & Home Technologies. It must be installed and operated at all times in accordance with the Installation and Operating Instructions furnished with this product, as well as any applicable local and national codes. Any alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.

Labor to repair or replace items covered under the limited Lifetime Warranty will be covered for the ﬁ rst ﬁ ve years per our warranty ser- vice fee reimbursement schedule. Parts covered under the limited Lifetime Warranty will be covered for the lifetime of the appliance up to a maximum of ten (10) years after Hearth & Home Technologies discontinues the model and two (2) years for optional accessories. Adjustments, regular maintenance, cleaning and temporary repairs do not qualify for a service call fee and will not be covered. The replacement of consumer replaceable items and installation of upgraded component parts do not quality for a service call fee, and will not be covered.

This limited Lifetime Warranty does not extend to or include surface ﬁ nish on the appliance, door gasketing, glass gasketing, glass, ﬁ re- brick, pellet logs, kaowool or other ceramic insulating materials. It does not cover installation or operational-related problems such as overﬁ ring, use of corrosive driftwood, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, moun- tains, inadequate venting or ventilation, excessive offsets, or negative air pressures caused by mechanical systems such as furnaces, fans, clothes dryers, etc.

Any installation, construction, transportation, or other related costs or expenses arising from defective part(s), repair, replacement, etc., will not be covered by this warranty, nor will Hearth & Home Technologies assume responsibility for them. Further, Hearth & Home Technologies will not be responsible for any incidental, indirect, or consequential damages, except as results in damage to the interior or exterior of the building in which this appliance is installed. This limited Lifetime Warranty does not apply to the venting components, hearth components or other accessories used in conjunction with the installation of this product not manufactured by Hearth & Home Technologies

This warranty is void if the stove has been overﬁ red or operated in atmospheres contaminated by chlorine, ﬂ uorine, or other damaging chemicals, the stove is subjected to prolonged periods of dampness or condensation, or there is any damage to the stove or other components due to water or weather damage which is the result of, but not limited to, improper chimney or venting installation. Hearth & Home Technologies may, at its discretion, fully discharge all obligations with respect to this warranty by either repairing or replacing the unit, or refunding the wholesale price of the defective part(s).

This limited Lifetime Warranty is effective on all appliances sold after May 1, 2002 and supersedes any and all warranties currently in existence.

Policy 250-8620 Rev K

September 7, 2007

433-1390D

Page 67

_______________________________________

__________________

H. Contact Information

Please contact your Quadra-Fire dealer with any questions or concerns.

CONTACT INFORMATION:

Hearth & Home Technologies

1445 North Highway

Colville, WA 99114

Division of HNI INDUSTRIES

For the number of your nearest Quadra-Fire dealer,

visit our web site at www.quadraﬁ re.com

CAUTION

Do NOT discard this manual.

• Important operating and maintenance instructions included.

• Read, understand and follow these instructions for safe installation and operation.

• Leave this manual with party responsible for use and operation.

Your Records for Model:

7100FP EPA Certiﬁ ed

Woodburning Fireplace

DEALERSHIP WHERE PURCHASED:

SERIAL NUMBER:

DATE PURCHASED:

DATE INSTALLED:

This product may be covered by one or more of the following patents: (United States) 4593510, 4686807, 4766876, 4793322, 4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495, 5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112, 5996575, 6006743, 6019099, 6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940, 6748942, 6769426, 6774802, 6796302, 6840261, 6848441, 6863064, 6866205, 6869278, 6875012, 6880275, 6908039, 6919884, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403, 1418504 or other U.S. and foreign patents pending.

__________________

_______________________________________

DEALER TELEPHONE:

__________________

Page 68

433-1390D

September 7, 2007

Quadra-Fire 7100FP-NL-B, 7100FP-BK-B, 7100FP-GD-B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
