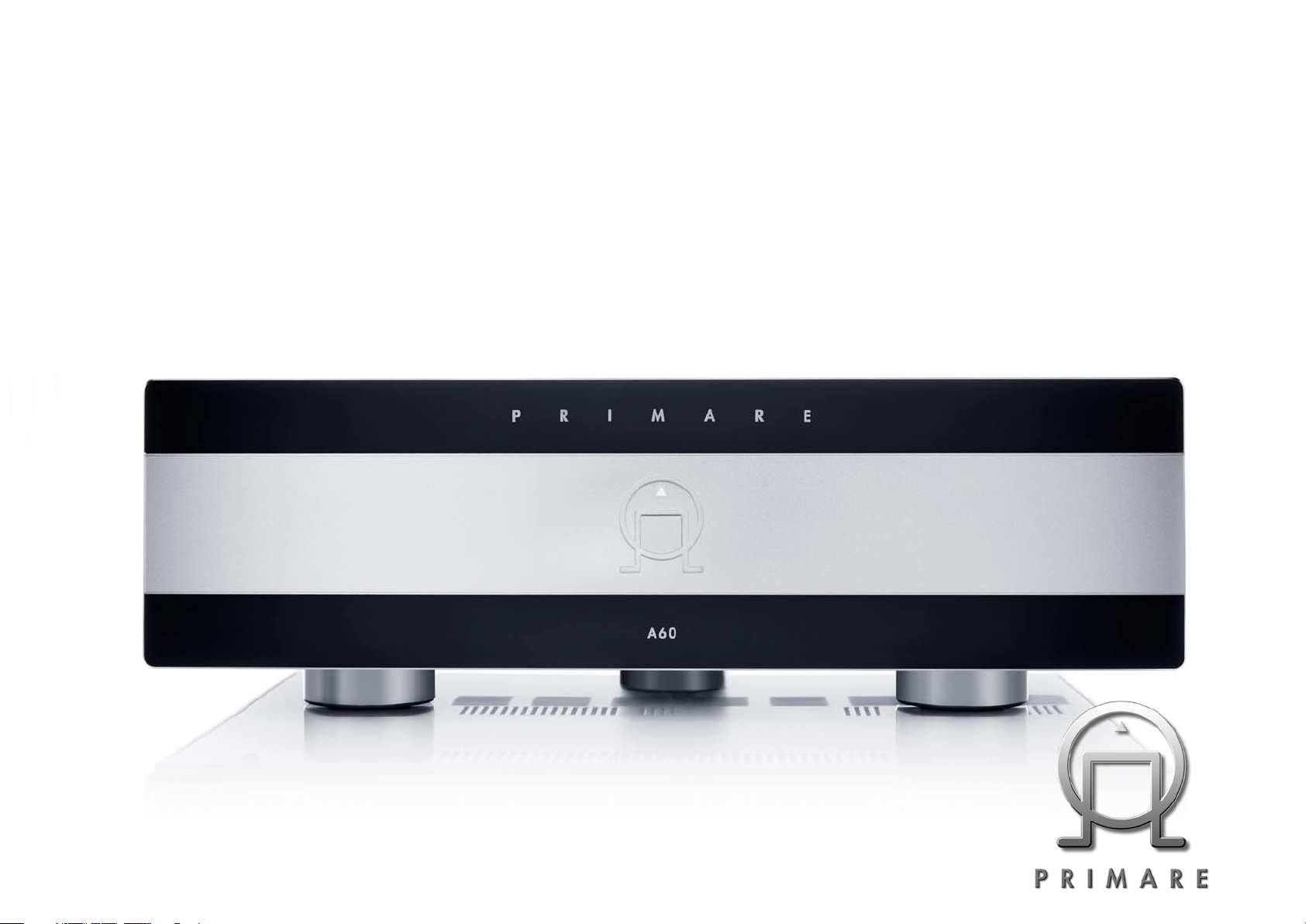

A60 TWOCHANNEL POWER AMPLIFIER
User Guide
COPYRIGHT AND
ACKNOWLEDGMENTS
Copyright © 2014 Primare AB.
All rights reserved.
Primare AB
Limstensgatan 7
21616 Limhamn
Sweden
http://www.primare.net
Issue: A60/1
The information in this guide is believed to be correct
as of the date of publication. However, our policy is one
of continuous development and so the information is
subject to change without notice, and does not represent
a commitment on the part of Primare AB.
Primare is a trademark of Primare AB.
This guide was produced by
Human-Computer Interface Ltd.
http://www.interface.co.uk
A60 Two-Channel Power Amplifier User Guide2
CONTENTS
WELCOME! 4
GETTING STARTED 5
1 Unpack the A60 5
2 Positioning 5
3 Connect speakers 5
4 Connect inputs 5
5 Connect power 5
BACKPANEL CONNECTIONS 6
TECHNICAL SPECIFICATION 7
Outputs 7
Inputs 7
Performance 7
General 7
ADDITIONAL INFORMATION 8
Best sound 8
Burn-in 8
RS232 8
Trigger input/output 8
INDEX 10
A60 Two-Channel Power Amplifier User Guide 3
WELCOME!
Dear Music Enthusiast,
Congratulations on selecting your new PRIMARE product, and thank you for choosing the PRIMARE 60-series
Reference Class.
This user guide explains how to set up the unit for the best sound quality, and operate the unit to enjoy the music
from all your sources.
To get support and assistance not covered by this guide please contact your local authorised Primare dealer, or
visit our website at www.primare.net.
A60 Two-Channel Power Amplifier User Guide4
GETTING STARTED
1 UNPACK THE A60
Your A60 is supplied with the following components:
Trigger cable.
•
Mains cable.
•
One pair of white gloves.
•
Please use the gloves when handling the unit to avoid
leaving fingerprints.
If any of these are missing please contact your supplier.
We recommend you retain the packaging in case you need
to transport the unit at a later date.
2 POSITIONING
For BEST results position the A60 on a stable audio rack.
WARNING: Leave a space of at least 50mm
The on/off switch is on the back panel.
Front-panel indicator
The front-panel indicator shows the standby/on status:
around the sides and top of the amplifier to allow
adequate ventilation.
3 CONNECT SPEAKERS
The A60 is designed to be connected directly to two
loudspeakers.
The terminals can accept speaker cables terminated with
spade terminals or banana plugs.
To connect to two loudspeakers
Connect the LEFT SPEAKER + and – terminals to the
•
appropriate terminals on the left speaker.
Connect the RIGHT SPEAKER + and – terminals to the
•
appropriate terminals on the right speaker.
For best results with single-wire connections use the
lower pair of terminals.
To bi-wire to two loudspeakers
The A60 provides two pairs of loudspeaker terminals for
each channel, to allow you to connect to the treble and
bass units of each speaker using separate cables.
Connect one pair of the LEFT SPEAKER + and
•
– terminals to the treble unit on the left speaker.
Connect the other pair of the LEFT SPEAKER + and
•
– terminals to the bass unit on the left speaker.
Wire the right speaker in a similar way.
•
For best results when bi-wiring use the lower pairs of
terminals for the mid/high units and the upper pairs of
terminals for the bass units.
4 CONNECT INPUTS
Connect the A60 to each channel of the preamplifier or
•
processor using either the unbalanced RCA input, or
the balanced XLR input, as appropriate.
Put the INPUT switch in the appropriate position for
•
the inputs you are using.
If you are using the RCA inputs use high quality stereo
RCA leads.
If you are using the XLR inputs use balanced XLR cables.
5 CONNECT POWER
Connect the power connector on the back panel to your
power outlet using the mains cable supplied with the A60.
If this cable is not suitable for your power outlets please
contact your supplier for an alternative cable.
See
Best sound
the best sound from your A60.
WARNING: Before connecting power check that
If a different voltage is stated on the type plate do not
connect the amplifier to the mains power, and seek
advice from your dealer.
the required supply voltage, indicated on the back
panel, corresponds to your local AC supply.
WARNING: Always disconnect the A60 from the
mains power before connecting or disconnecting
any cables.
, page 8, for information about getting
Low intensity indicates standby.
•
Bright indicates on.
•
A60 Two-Channel Power Amplifier User Guide 5

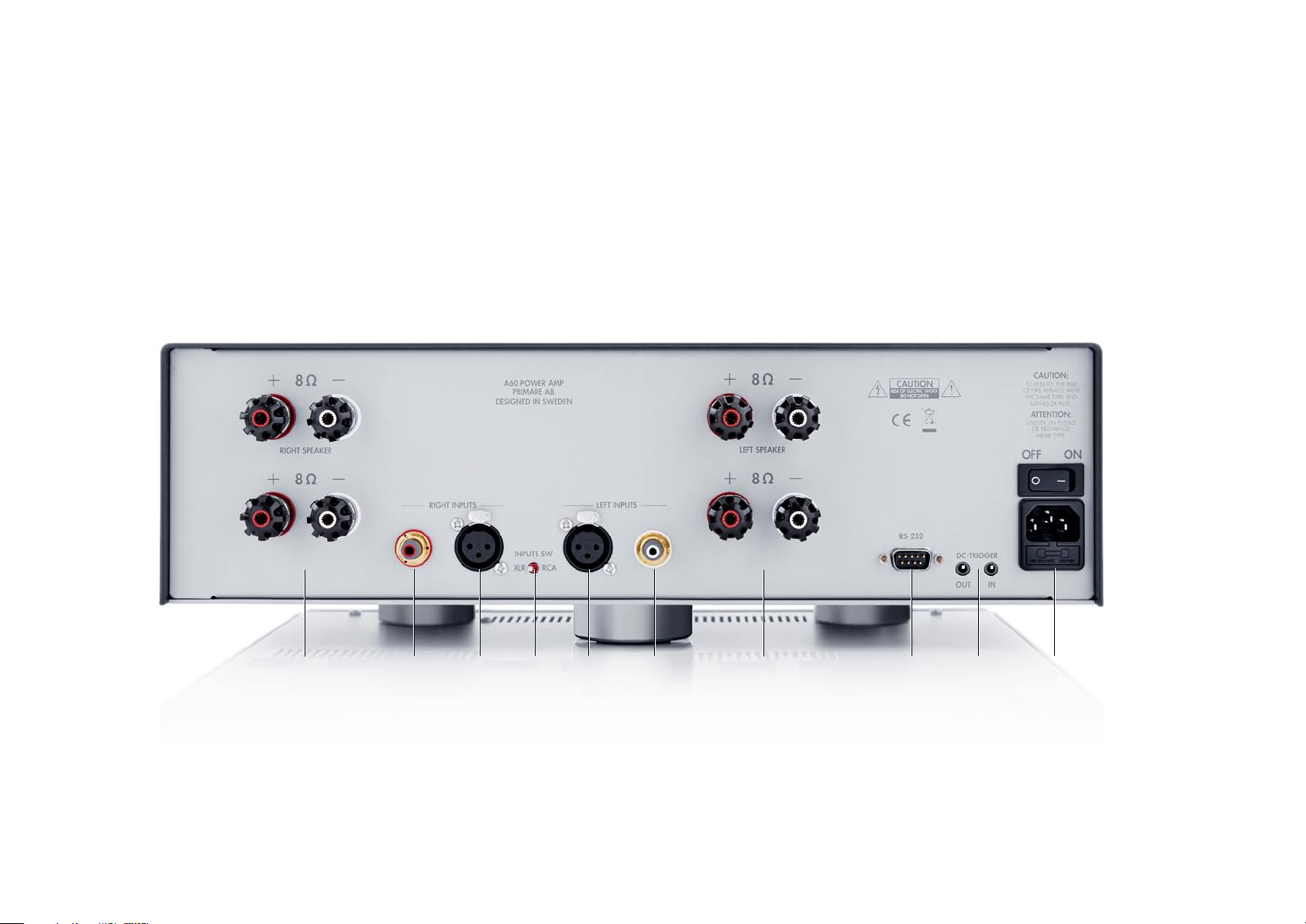

BACKPANEL CONNECTIONS
XLR XLR
Unbalanced Unbalanced
Input
selector
Left speaker RS232Right speaker Trigger
in/out
On/off
and power
Right inputs
Left inputs
The following diagram explains the function of each of the connectors on the back panel:
A60 Two-Channel Power Amplifier User Guide6
TECHNICAL SPECIFICATION
OUTPUTS
Power
2 x 250W / 8Ω (both channels driven), max 610W.
2 x 500W / 4Ω (both channels driven), max 1230W.
Note: Although the loudspeaker terminals are labelled 8Ω
on the back panel this is for regulations only, and the A60
is perfectly suitable for use with 4Ω speakers.
Distortion
THD+N
Output impedance
0.01Ω.
INPUTS
2 x RCA, 2 x XLR switchable
Input impedance
20kΩ.
PERFORMANCE
Gain
26dB unbalanced, 20dB balanced
Frequency response
20Hz – 20kHz, -0.5dB
THD+N
<0.02% (1kHz 250W 8Ω)
<0.002 (10W 8Ω).
Signal to noise ratio
20Hz – 20kHz unweighted -105dBV
GENERAL
Power consumption
Standby: 0.5W, Operate: 32W.
Control
1 x 12V trigger input
1 x 12V trigger output
1 x RS232
Colour
Two-tone or black
A60 Two-Channel Power Amplifier User Guide 7
Live
ADDITIONAL INFORMATION
BEST SOUND
The phase of the AC supply can make a significant
difference to the sound.

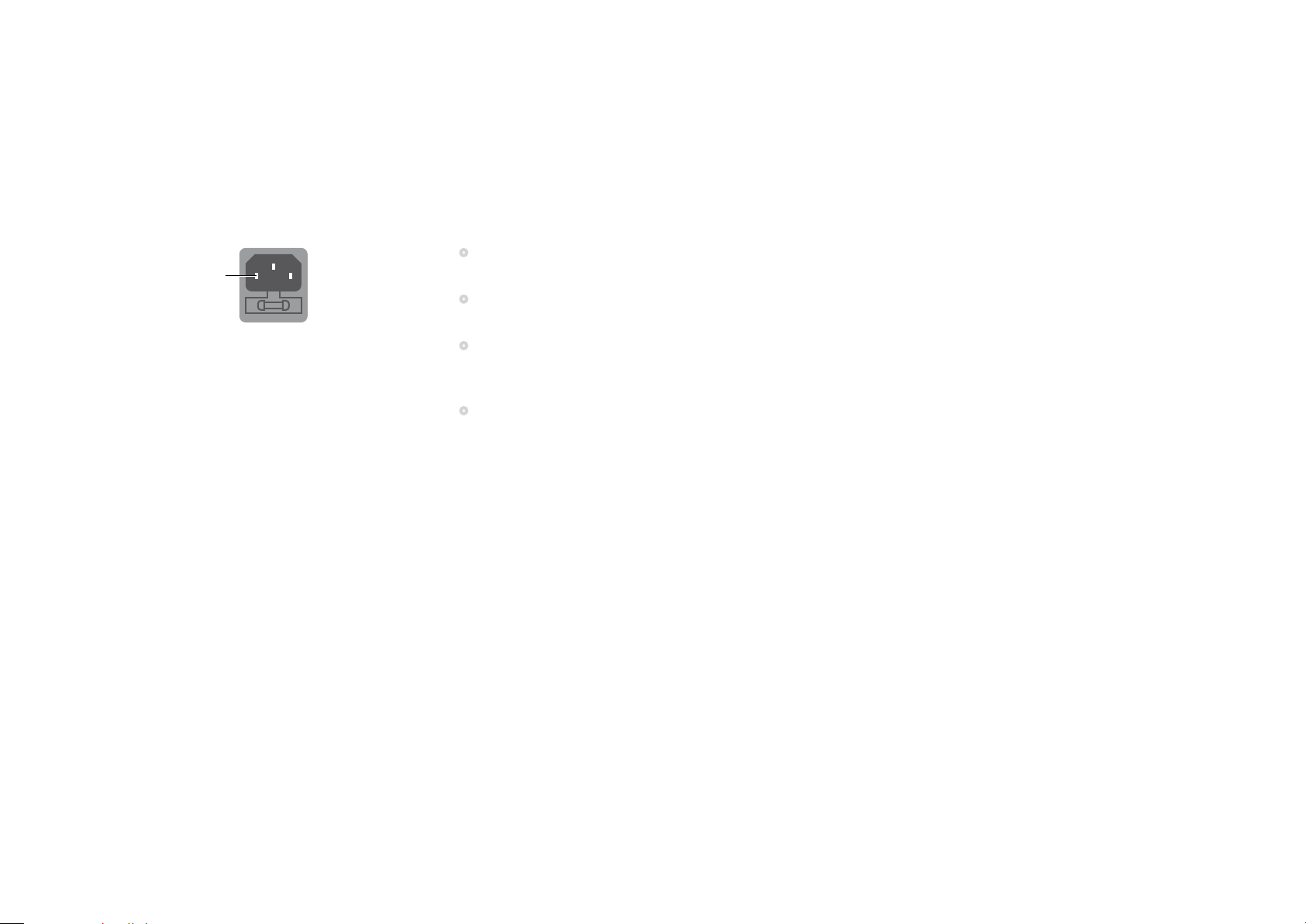

Ensure that the live pin of the AC power cable is
connected to the left-hand pin of the power connector,
viewed from the back panel:
BURNIN
Your Primare will sound best after an initial burn-in of
approximately 24 hours.
You will notice a further smaller improvement in sound
quality for at least another 3 days’ playing.
RS232
The RS232 input allows you to connect the A60 to a
controller system. For more information please contact
Primare or visit www.primare.net.
TRIGGER INPUT/OUTPUT
The trigger input and output allow you to link your
Primare products together, using the trigger cable
supplied with each product, so they switch on or to
standby in sync with the PRE60.
To link the PRE60 to a Primare source
Connect the trigger cable from the PRE60 TRIG OUT to
•
the source TRIG IN.
If necessary, configure the source to TRIG ON.
•
To link the Primare source to the A60
Connect the trigger cable from the source TRIG OUT to
•
the A60 TRIG IN.
To link two A60 amplifiers for bi-amping
Connect the trigger cable from the first A60 TRIG OUT
•
to the second A60 TRIG IN.
A60 Two-Channel Power Amplifier User Guide8
A60 Two-Channel Power Amplifier User Guide 9
Safety compliance
This product has been designed to meet the IEC 60065
international electrical safety standard.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
The lightning flash with an arrowhead symbol
CAUTION: To reduce the risk of electrical shock do not
remove cover (or back). No user serviceable parts inside.
Refer servicing to qualified service personnel.
WARNING: To reduce the risk of fire or electrical shock,
do not expose this apparatus to rain or moisture.
CAUTION: In Canada and the USA, to prevent electric
shock, match the wide blade of the plug to the wide slot
in the socket and insert the plug fully into the socket.
This product is designed and manufactured to meet strict
quality and safety standards. However, you should be aware
of the following installation and operation precautions.
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
'dangerous voltage' within the product's
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
1. Take heed of warnings & instructions
You should read all the safety and operating instructions
before operating this appliance. Retain this handbook
for future reference and adhere to all warnings in the
handbook or on the appliance.
2. Water and moisture
The presence of electricity near water can be dangerous.
Do not use the appliance near water – for example next to
a bathtub, washbowl, kitchen sink, in a wet basement or
near a swimming pool, etc.
3. Object or liquid entry
Take care that objects do not fall and liquids are not spilled
into the enclosure through any openings. Liquid-filled objects
such as vases should not be placed on the equipment.
4. Ventilation
Do not place the equipment on a bed, sofa, rug or similar
soft surface, or in an enclosed bookcase or cabinet, since
ventilation may be impeded. We recommend a minimum
distance of 50mm around the sides and top of the
appliance to provide adequate ventilation.
5. Heat
Locate the appliance away from naked flames or heat
producing equipment such as radiators, stoves or other
appliances (including other amplifiers) that produce heat.
6. Climate
The appliance has been designed for use in moderate
climates.
7. Racks and stands
Only use a rack or stand that is recommended for use with
audio equipment. If the equipment is on a portable rack it
should be moved with great care, to avoid overturning the
combination.
8. Cleaning
Unplug the unit from the mains supply before cleaning.
The case should normally only require a wipe with a soft,
damp, lint-free cloth. Do not use paint thinners or other
chemical solvents for cleaning.
We do not advise the use of furniture cleaning sprays or
polishes as they can cause indelible white marks if the
unit is subsequently wiped with a damp cloth.
9. Power sources
This appliance must be connected to a mains socket
outlet using the supplied power cord. To disconnect
this apparatus from power, you must disconnect the
power cord. Make sure the power cord is always easily
accessible.
Only connect the appliance to a power supply of the type
described in the operating instructions or as marked on
the appliance.
This is a Class 1 device and must be earthed.
The power switch is a single-pole switch. When the switch
is in the “Off” position, the appliance is not completely
disconnected from the main power.
10. Power-cord protection
Power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon
or against them, paying particular attention to cords and
plugs, and the point where they exit from the appliance.
11. Grounding
Ensure that the grounding means of the appliance is not
defeated.
12. Power lines
Locate any outdoor antenna/aerial away from power lines.
13. Non-use periods
If the unit has a stand-by function, a small amount of
current will continue to flow into the equipment in this
mode. Unplug the power cord of the appliance from the
outlet if left unused for a long period of time.
14. Abnormal smell
If an abnormal smell or smoke is detected from the
appliance, turn the power off immediately and unplug the
unit from the wall outlet. Contact your dealer immediately.
15. Servicing
You should not attempt to service the appliance beyond
that described in this handbook. All other servicing
should be referred to qualified service personnel.
16. Damage requiring service
The appliance should be serviced by qualified service
personnel when:
A. the power-supply cord or the plug has been damaged,
or
B. objects have fallen, or liquid has spilled into the
appliance, or
C. the appliance has been exposed to rain, or
D. the appliance does not appear to operate normally or
exhibits a marked change in performance, or
E. the appliance has been dropped or the enclosure
damaged.
A60 Two-Channel Power Amplifier User Guide10
INDEX
B
Balanced inputs 6
Bi-wiring 5
Burn-in 8
G
Gloves 5
I
Indicator 5
Inputs, connecting 5
Input selector 6
L
Loudspeaker outputs 6
Loudspeakers
bi-wiring 5
connecting 5
U
Unbalanced inputs 6
P
Positioning 5
Power, connecting 5
R
RS232 6, 8
S
Specification 7
Standby indicator 5
T
Trigger input/output 6, 8
A60 Two-Channel Power Amplifier User Guide 11
P R I M A R E A B
L I M S T E N S G A TA N 7
S E - 2 1 6 1 6 L I M H A M N
S W E D E N
P R I M A R E . N E T
Loading...
