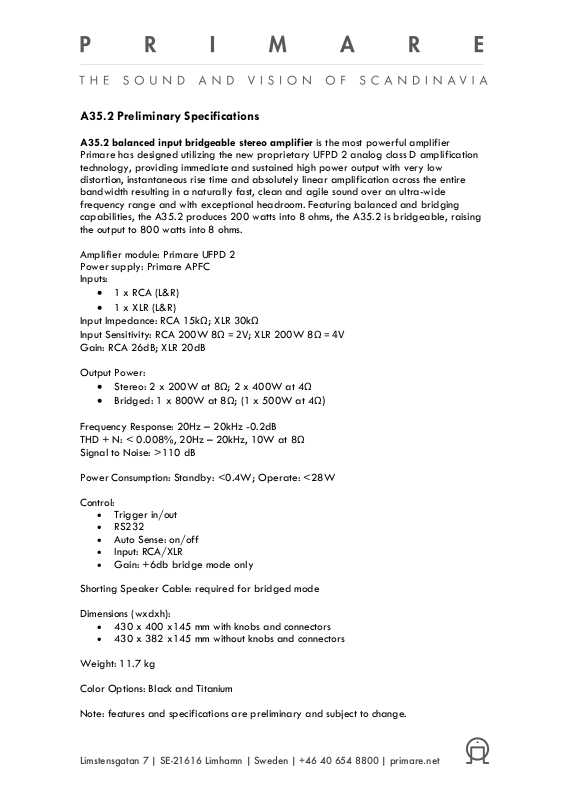

A35.2 Preliminary Specifications

A35.2 balanced input bridgeable stereo amplifier is the most powerful amplifier

Primare has designed utilizing the new proprietary UFPD 2 analog class D amplification
technology, providing immediate and sustained high power output with very low
distortion, instantaneous rise time and absolutely linear amplification across the entire
bandwidth resulting in a naturally fast, clean and agile sound over an ultra-wide
frequency range and with exceptional headroom. Featuring balanced and bridging
capabilities, the A35.2 produces 200 watts into 8 ohms, the A35.2 is bridgeable, raising
the output to 800 watts into 8 ohms.

Amplifier module: Primare UFPD 2
Power supply: Primare APFC
Inputs:

• 1 x RCA (L&R)

• 1 x XLR (L&R)

Input Impedance: RCA 15kΩ; XLR 30kΩ
Input Sensitivity: RCA 200W 8Ω = 2V; XLR 200W 8Ω = 4V

Gain: RCA 26dB; XLR 20dB

Output Power:

• Stereo: 2 x 200W at 8Ω; 2 x 400W at 4Ω

• Bridged: 1 x 800W at 8Ω; (1 x 500W at 4Ω)

Frequency Response: 20Hz – 20kHz -0.2dB
THD + N: < 0.008%, 20Hz – 20kHz, 10W at 8Ω
Signal to Noise: >110 dB

Power Consumption: Standby: <0.4W; Operate: <28W

Control:

• Trigger in/out

• RS232

• Auto Sense: on/off

• Input: RCA/XLR

• Gain: +6db bridge mode only

Shorting Speaker Cable: required for bridged mode

Dimensions (wxdxh):

• 430 x 400 x145 mm with knobs and connectors

• 430 x 382 x145 mm without knobs and connectors

Weight: 11.7 kg

Color Options: Black and Titanium

Note: features and specifications are preliminary and subject to change.
