PRESONUS V-FIRE - V1.0, V-FIRE User Manual

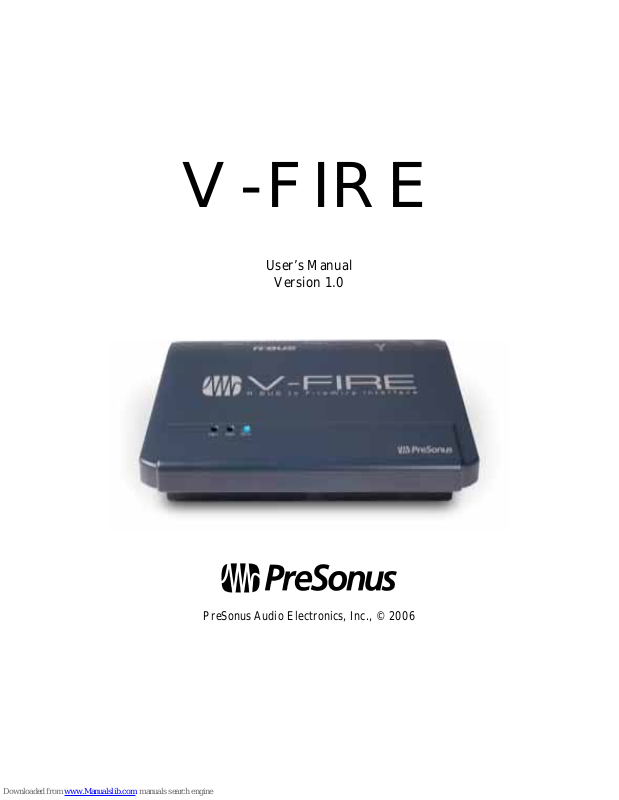

V-FIRE
User’s Manual
Version 1.0
PreSonus Audio Electronics, Inc., © 2006
PreSonus Limited Warranty
PreSonus Audio Electroni cs Inc. wa rran ts thi s produ ct to be free o f defects in material and workm anship fo r
a period of one year from the date of original retail purchase. This warranty is enforceable only by the
original retail purchaser. To be protected by this warranty, the purchaser must complete and return the
enclosed warran ty card within 14 days of purchase. During the warranty period PreSonus shall, at its sole
and absolute option, either, repair or replace, free of charge, any product that proves to be defective on
inspection by PreSonus or its authorized service representative. To obtain warranty service, the purchaser
must first call or write PreSonus at the address and telephone number printed below to obtain a Return
Authorization Number and instructions of where to return the unit for service. All inquiries must be
accompanied by a descr iption of the problem. All authori zed returns must be sent to th e PreSonus repair
facility postage prepaid, insured and properly packaged. PreSonus reserves the right to update any unit
returned for repair . PreSonus re serves the right to change or im prove the design o f the produc t at any time
without prior notice. This warranty does not cover claims for damag e due to abuse, neglect, alteration or
attempted repair by unauthorized personnel, and is limited to failures arising during normal use that are due
to defects in material or workmanship in the product. Any implied warranties, including implied warranties
of merchantability and fitness for a particular pur pose, are limited in duration to the length of this limited
warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above
limitation may not ap ply to you. In no event will PreSonus be liable for incidental, consequential or other
damages resulting from the breach of any express or implied warranty, including, among other things,
damage to property, damage based on inconvenience or on loss of use of the product, and, to the extent
permitted by law, damages for personal injury. Some states do not allow the exclusion of limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
This warranty only applies to products sold and used in the United States of America. For warranty
information in all other countries please refer to your local distributor.
PreSonus Audio E l ectr onics, Inc.
7257 Florida Blvd.
Baton Rouge, LA 70806
www.presonus.com
Table of Contents
1 Overview
1.1 Introduction......................................................................................................4
1.2 What is in the Box.............................................................................................5
1.3 Back and Top Panel Layout...............................................................................6
2 Installation
2.1 Computer Requirements.....................................................................................8
2.2 Installation........................................................................................................9
3 Control Panel
3.1 Control Panel Operation ..................................................................................12
4 DAW Set Up
4.1 General DAW Set Up for V-FIRE Operation.....................................................13
5 Roland VS Settings for V-FIRE Operation
5.1 VS-2480CD/DVD............................................................................................14
5.2 VS-2400CD ....................................................................................................16
5.3 VSR-880.........................................................................................................19
5.4 VM-3100 Pro .................................................................................................20
5.5 XV-5080.........................................................................................................21
5.6 MV-8000........................................................................................................21
5.7 VM-7000........................................................................................................23
6 Technical
6.1 Sample Hook Up Diagram...............................................................................25
6.2 Troubleshooting...............................................................................................26
6.3 Specifications..................................................................................................27
1 OVERVIEW
4
1.1 INTRODUCTION
Thank you for pur chasin g the Pre Sonus V -FIRE. Pr eSonus A udio El ectro nics has des igned t he
V-FIRE utilizing high-grade components to insure optimum performance that will last a
lifetime. The V-FIRE is a 24 bit/96k R-BUS to FireWire computer recording system for both
Windows XP and Apple OSX . The V-FIRE allows users to convert Roland’s R-BUS digital
audio format to FireWire ( IEEE 1394), thus providing a mul ti-channel computer interface for
most Roland prod ucts equipped with R -BUS output.
The V-Fire features two R-BUS ports and two FireWire ports allowing sixteen channels of
digital audio to st ream at up 24-bit 96K sam ple rate. The V-FIRE has LE D indicators for RBUS1, R-BUS 2 and master sync.
The V-FIRE is accessed via a software control panel enabling the user to select the sample
rate(44.1K,48K,88.2K and 96K), latency, buffer size and clock source.
We suggest that you use this manual to familiarize yourself with the features, applications and
correct connection procedure for your V-FIRE before trying to connect it to your computer.
This will hopefully alleviate any unforeseen issues that you may encounter during installation
and set up.
We encourage you to contact PreSonus customer support at 1-225-216-7887 with any
questions or comme nts you may h ave regar di ng your PreSo nus V-Fir e. There is als o a Gloss ary
of Terms located in the back of this manual. Most of the technical terms in this manual are
defined in the Glossary for quick reference.
Thank you, once again, for buying our pr oduct and we hope yo u enjoy your V-FIRE!
1 OVERVIEW
5
1.2 WHAT IS IN THE BOX
Your V-FIRE package contains the following :
• V-FIRE Interface
• Driver and Control Panel CDROM ( need image)
• 1 FireWire cable
• 1 R-BUS Cable
• Warranty Card
1 OVERVIEW
6
1.3 BACK AND TOP PANEL LAYOUT
Back Panel
Your V-FIRE is e quipped with tw o R-BUS ports a nd two six pin FireW ire ports. Ther e is also
an input for an optional 12VDC or 16VAC power supply. Typically the V-Fire receives its
power from the computer via the FireWire BUS. If you are using your V-FIRE with a
computer that onl y has a four pin F ireWire port, such as most PC laptops, then you will nee d
to use the optional external power suppl y.
1 OVERVIEW
7
Top Panel
The top panel of the V-FIR E has s t atus LED s for the pres enc e o f dat a on R -B US 1 and R -BUS
2 as well as the LED indicating sy nc. Proper driver s ync prevents digit al interfaces from ha vin g
pops, clicks, or distortion i n the audio signal. The Sync LED will alternately fl ash blue and red
when looking for sync. W hen sync is achieved the LED is a s teady blue.
2 INSTALLATION
8
2.1 COMPUTER REQUIREMENTS
Below are the required computer system specs for your V-FIRE:
Windows
- OS: Microsoft Windows XP Service Pack 1 or late r
- Computer: Windows compatible computer with 1394 port (PCI or built-in)
- CPU/Clock: Pentiu m, 1.6MHz or higher
- Memory (RAM): 512 MB (1GB recommended)
Macintosh
- OS: Mac OSX 10.3.7 or later
- Computer: Apple Macintosh series with 1394 port (PCI or built-in).
- CPU/Clock: PowerPC G4/1.2Mhz or higher, all Intel/Mac models
- Memory(RAM): 512 MB (1GB recommended)
Note that the speed of your proc essor, amount o f R AM and size and sp eed of your hard drive
will greatly affect the overall performance of your recording system.
2 INSTALLATION
9
2.2 Installation
PC:
The following is a detailed procedure for ins tallation of your V-FI RE Drivers:
*YOU MUST INSTALL DRIVERS BEFORE CONNECTING YOUR V-FIRE*
1.) Quit all currently running applications.
2.) Insert the Driver CD included with your V-FIRE int o your computer . (Do not connec t your
V-FIRE to the computer at this time).
3.) CD should auto run.* (I f not, navigate to CD and double click on V-FIRE_Installer.exe)
*There are several parts to the installation of
your V-FIRE. The installer will take you
through each step. Please read each message
carefully as the time at which you connect and
power on your V-FIRE for the first time is
critical to a successful installation.
*If at any point durin g installation a “Softwar e
Installation” message appears from Windows
regarding Windows Logo testing click
“Continue Anyway” to continue installation.
