Prescolite TCA-1 User Manual

InstructionSheet
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .05201400
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard. Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
INSTALLATION INSTRUCTIONS

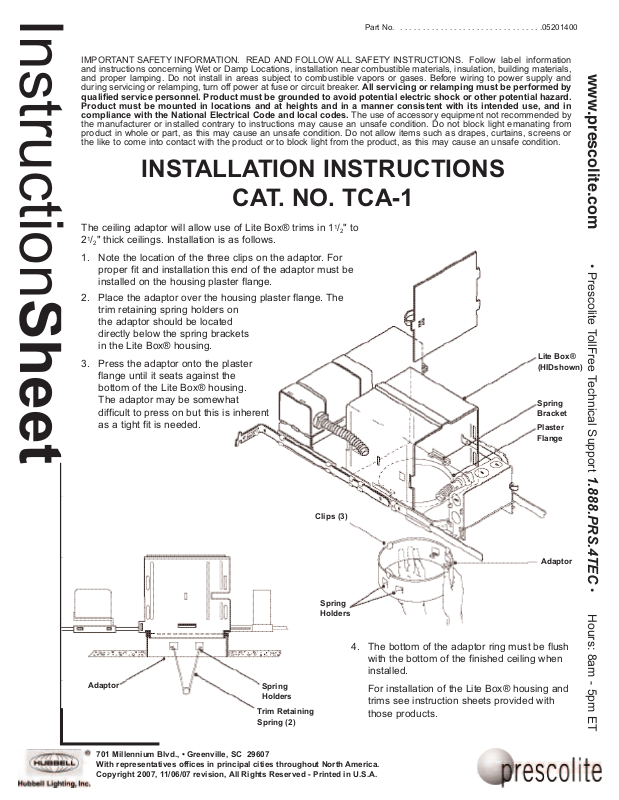

The ceiling adaptor will allow use of Lite Box® trims in 11/2" to 21/2" thick ceilings. Installation is as follows.
1. Note the location of the three clips on the adaptor. For proper fit and installation this end of the adaptor must be installed on the housing plaster flange.
2. Place the adaptor over the housing plaster flange. The trim retaining spring holders on the adaptor should be located directly below the spring brackets in the Lite Box® housing.
3. Press the adaptor onto the plaster flange until it seats against the bottom of the Lite Box® housing. The adaptor may be somewhat difficult to press on but this is inherent as a tight fit is needed.
Lite Box® (HIDshown)
Spring Bracket
Plaster Flange
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC Hours: 8am - 5pm ET
Clips (3)
Spring Holders
4. The bottom of the adaptor ring must be flush
Adaptor
701 Millennium Blvd., • Greenville, SC 29607 With representatives offices in principal cities throughout North Copyright 2007, 11/06/07 revision, All Rights Reserved - Printed in U.S.A.
Spring Holders
Trim Retaining Spring (2)
America.
Adaptor
with the bottom of the finished ceiling when installed.
For installation of the Lite Box® housing and trims see instruction sheets provided with those products.
