InstructionSheet
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

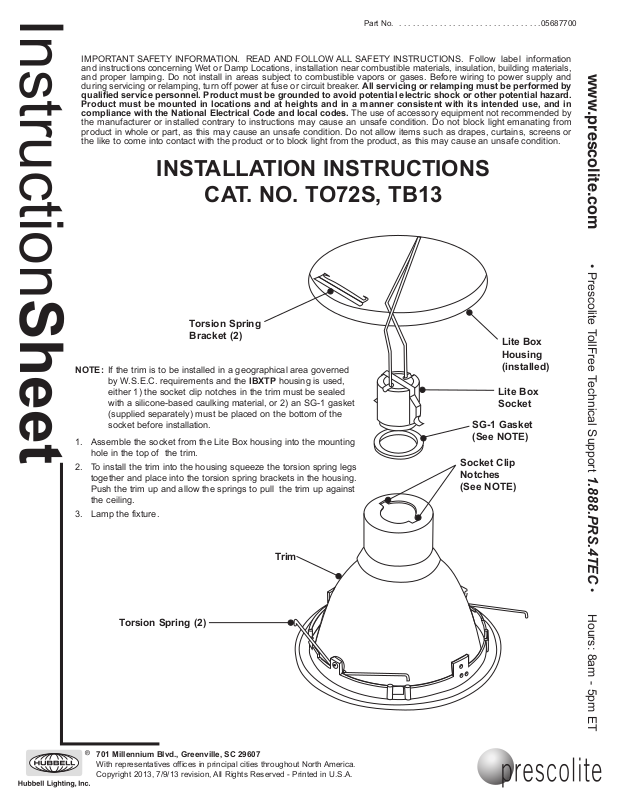

INSTALLATION INSTRUCTIONS
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .05687700
www.prescolite.com
breaker. All servicing or relamping must be performed by
CAT. NO. TO72S, TB13
• Prescolite TollFree Technical Support
Torsion Spring
Bracket (2)
NOTE: If the trim is to be installed in a geographical area governed
by W.S.E.C. requirements and the IBXTP housing is used,
either 1) the socket clip notches in the trim must be sealed
with a silicone-based caulking material, or 2) an SG-1 gasket
(supplied separately) must be placed on the bottom of the
socket before installation.
1. Assemble the socket from the Lite Box housing into the mounting
hole in the top of the trim.
2. To install the trim into the housing squeeze the torsion spring legs
together and place into the torsion spring brackets in the housing.
Push the trim up and allow the springs to pull the trim up against
the ceiling.
3. Lamp the fixture.
Trim
Lite Box
Housing
(installed)
Lite Box
Socket
SG-1 Gasket
(See NOTE)
Socket Clip
Notches
(See NOTE)
1.888.PRS.4TEC • Hours: 8am - 5pm ET
Torsion Spring (2)
701 Millennium Blvd., Greenville, SC 29607
With representatives offices in principal cities throughout North America.
Copyright 2013, 7/9/13 revision, All Rights Reserved - Printed in U.S.A.
