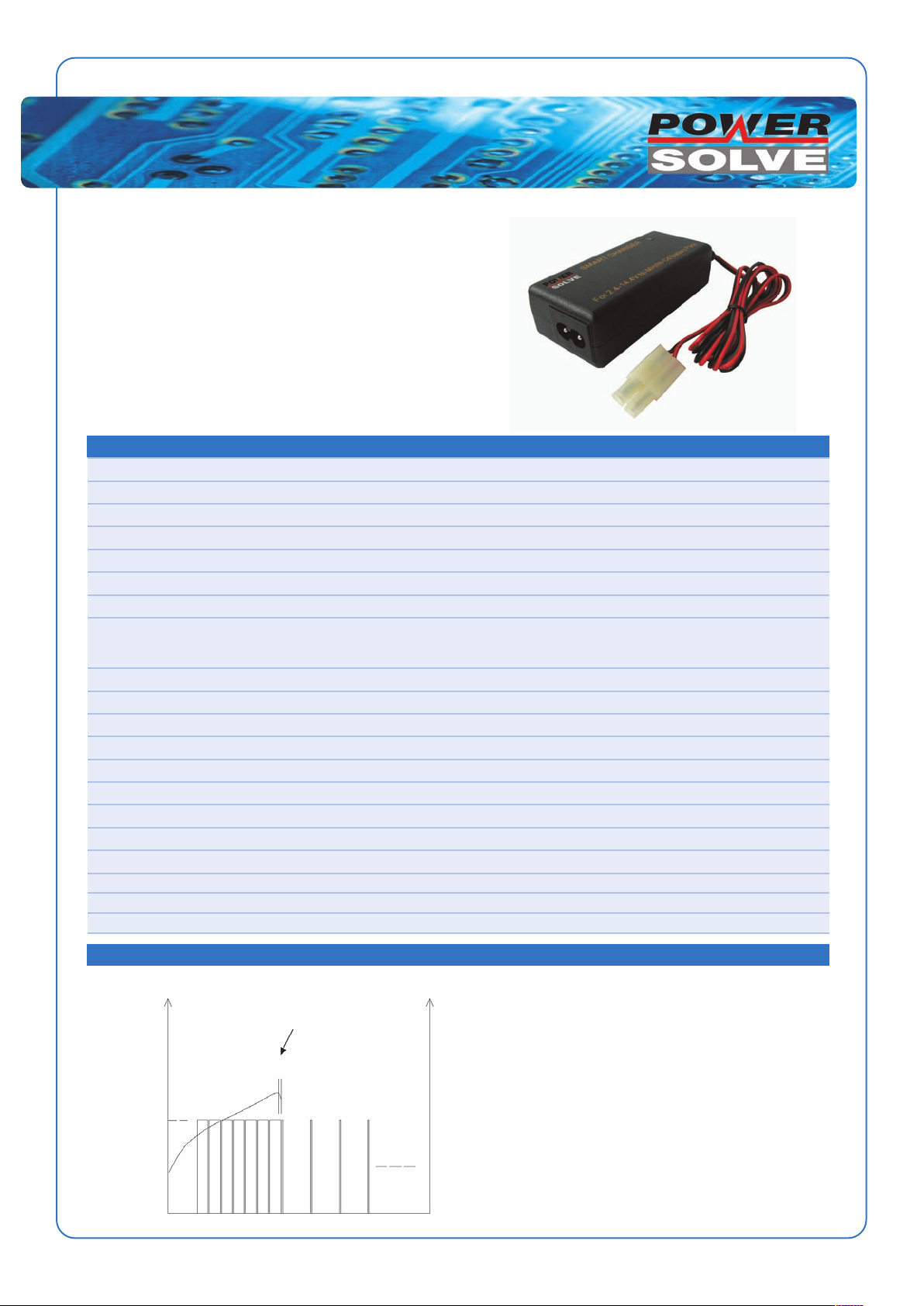

Powersolve PSCH15 User Manual

Universal Battery Charger

PSCH15

www.powersolve.co.uk

NiMH/NiCD Smart Charger

Features

• Universal 90-264VAC Input

• IEC320 C8 2 pin AC Input Connector

• Auto detect output can charge 2 to12 NiMH or NiCD cells in series

• Automatic cut off when batteries fully charged

• EMC to EN55022’B’, CISPR22 ‘B’ & FCC ‘B’

• Compact Desk Top Plastic Enclosure

• Optional DC Output Connectors

Electrical Specification

INPUT

Input Voltage 90-264VAC 1A max

Input Frequency 47-63Hz

Safety Ground Leakage Current <0.5mA

OUTPUT

Output Voltage Varies to charge 2.4V to 14.4V DC battery pack

Charging Current 500mA to 1A

LED Charge Status Indicator LED flashes Red then Green twice after power on then switches off in standby

Over Voltage Protection Sense level 18V, OVP at 24V max

Short Circuit Protection Short circuit with auto recovery

Reverse Polarity Protection Reverse polarity of battery on output will not damage charger

Efficiency 75% minimum at full load and 115VAC input

ENVIRONMENTAL

Operating Temperature 0 to 40ºC, ambient

Storage Temperature -40ºC to +70ºC

Relative Humidity 20-85% max operating

SAFETY & EMC

Safety UL/cUL1310 Class 2, EN60335-2-29:2004, EN60335-1, CE

EMI/EMC CISPR22 ’B’, FCC Part 15 ’B’, EN55022 ‘B’

MECHANICAL UL94V-1 plastic enclosure, dimensions 96 x 44 x 30mm, output cable 1.2 metre

LED is Red when charging and turns Green when battery fully charged.
LED will flash on and off RED for error status

Charge Curve

Charge
Current (A)

1.0A

Voltage (V)

-ΔV

D=1/20

Time

This charger can charge between 2 and 12 NiMH or NiCd
cells connected in series and will detect and provide the
correct output voltage and current to suit.
End charge is by -Δ V(about 5mV for each cell) detection,
after -Δ V. It will turn to trickle-off charge, it’s charger
current is fast charging current of 1/20.

Warning: This charger should only be used to charge

NiMH or NiCD batteries with a capacity of more than
1000mHA

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
