ISW-514PSxx

4-Port 10/100Mbps with PoE + 1-Port 100FX Industrial Web Smart Switch

Physical Port

ISW-514PS

• 4-Port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector

• 1-Port 100Base-FX Multi-mode SC interface - 2km

ISW-514PS15

• 4-Port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector

• 1-Port 100Base-FX single mode SC interface - 15km

ISW-514PSF

• 4-Port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector

• 1-Port 100Base-FX SFP interface

PLANET ISW-514PS series, a Web Management Industrial PoE Switch, is designed to

transmit power and data over single Ethernet cable to remote PoE capable devices and

performs intelligent PoE control, power usage monitoring and smart Layer 2 switching

management in industrial harsh environments. The ISW-514PS series provides four

10/100Mbps copper ports supporting IEEE 802.3af Power over Ethernet injector and one

100Base-FX ber optic interface delivered in an IP30 rugged strong case. Supporting up

to 15.4-watt power per port for any remote IEEE 802.3af powered device (PD) such as

PoE IP cameras and PoE wireless LAN access point, the ISW-514PS series is an ideal

solution to deploying surveillance system and wireless service in climatically demanding

wide temperature range (-10 to 60 degrees C) environments.

IEEE 802.3af Power over Ethernet Industrial Switch

PoE feature is more often supported in the industrial Ethernet devices for efficient

operation in harsh environments. The ISW-514PS series in-line power follows standard

IEEE 802.3af and able to give power to 4 PoE compliant devices at the distance up to

100 meters through the 4-pair Cat 5 / 5e UTP wire. With Data and Power over Ethernet

from one unit, the ISW-514PS series can reduce cables deployment and eliminates the

need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire

that carries both data and power lowers the installation costs, simplifies the installation

effort and eliminates the need for electricians or extension cords. Furthermore, as there

is only 24V DC input in some industrial environments, the ISW-514PS series supports

24V DC or 48V DC dual voltages input and is able to provide more wide-ranging

industrial IEEE 802.3af PoE applications.

PoE IP Camera

UTP

PoE

24V DC Input

802.3af PoE

Output

PoE

100Base-TX UTP with PoE

Data Sheet

IEEE 802.3af PoE

• Complies with IEEE 802.3af Power over Ethernet End-Span

PSE

• Up to 4 IEEE 802.3af devices powered

• Supports PoE Power up to 15.4 watts for each PoE port

• Auto detects powered device (PD)

• Circuit protection prevents power interference between ports

• Remote power feeding up to 100m

PoE Management

• Total PoE Power Budget Control

• Enable / Disable PoE Function on each port

• PoE port Power Feeding priority

• Power limit on PoE port

• PD Classication Detection

Web Management

• Web interface for remote management

• Firmware upgrade through Web interface

• PLANET Smart Discovery utility automatically nds PLANET

devices on the network

• SNMP Trap for alarm notication of events

• VLAN and QoS conguration

Layer 2 Features

• Supports auto-negotiation and 10/100Mbps half / full duplex

and auto MDI/MDI-X

Fiber Optic Link Capability for Flexible Distance Extension

The ISW-514PS series is equipped with one 100Base-FX port that provides more

flexibility for Transportation, Manufacturing, Security and Surveillance on distance

extension without any limitation. The ISW-514PS series offers high performance switch

architecture as shown below:

ISW-514PS comes with 4 10/100Mbps UTP ports and 1 100FX (SC interface within 2km)

ISW-514PS15 comes with 4 10/100Mbps UTP ports and 1 100FX (SC interface within 15km)

ISW-514PSF comes with 4 10/100Mbps UTP ports and 1 100FX (LC interface within

optional of Single / multi-mode SFP module)

Excellent Web Smart Features

For efficient management, the ISW-514PS series is built with Web-based management

design to offer a user-friendly configuration interface. It makes the ISW-514PS series

easy to survey and control the PoE power provision to the devices via the Web

interface. The ISW-514PS series features Web Smart functions including 802.1Q VLAN,

bandwidth control, QoS, PoE Conguration, Port Management, Alert Trap Conguration

and more. These features provide a cost-effective way to manage the network devices

through the Internet whenever you are at work or at home.

Environmentally Hardened Design

With IP30 industrial case protection, the ISW-514PS series provides a high level of

immunity against electromagnetic interference and heavy electrical surges which are

usually found on plant oors or in curbside trafc control cabinets. The aluminum metal

case helps cooling much faster and enables the Industrial PoE Switch to operate stably

under the harsh temperature environment ranging from -10 to 60 degrees C. Therefore,

the web management Industrial PoE Switch can be placed in almost any difficult

environment. It also offers dual-redundant, reversible polarity 24V DC or 48V DC power

supply inputs for high availability applications requiring dual or backup power inputs.

ISW-514PSxx

• High performance Store and Forward architecture, runt/

CRC ltering eliminates erroneous packets to optimize the

network bandwidth

• Prevents packet loss with back pressure (half-duplex) and

IEEE 802.3x PAUSE frame ow control (full-duplex)

• Automatic address learning and address aging

• Integrated address look-up engine, supports 1K absolute

MAC addresses

• CSMA/CD Protocol

Industrial Case / Installation

• IP30 aluminum metal case protection

• DIN Rail and Wall Mount design

• Redundant Power design

• 24 or 48V DC, redundant power with polarity reverse

protect function

• Supports EFT protection 6000V DC for power line

• Supports 6000V DC Ethernet ESD protection

• -10 to 60 degrees C operation temperature

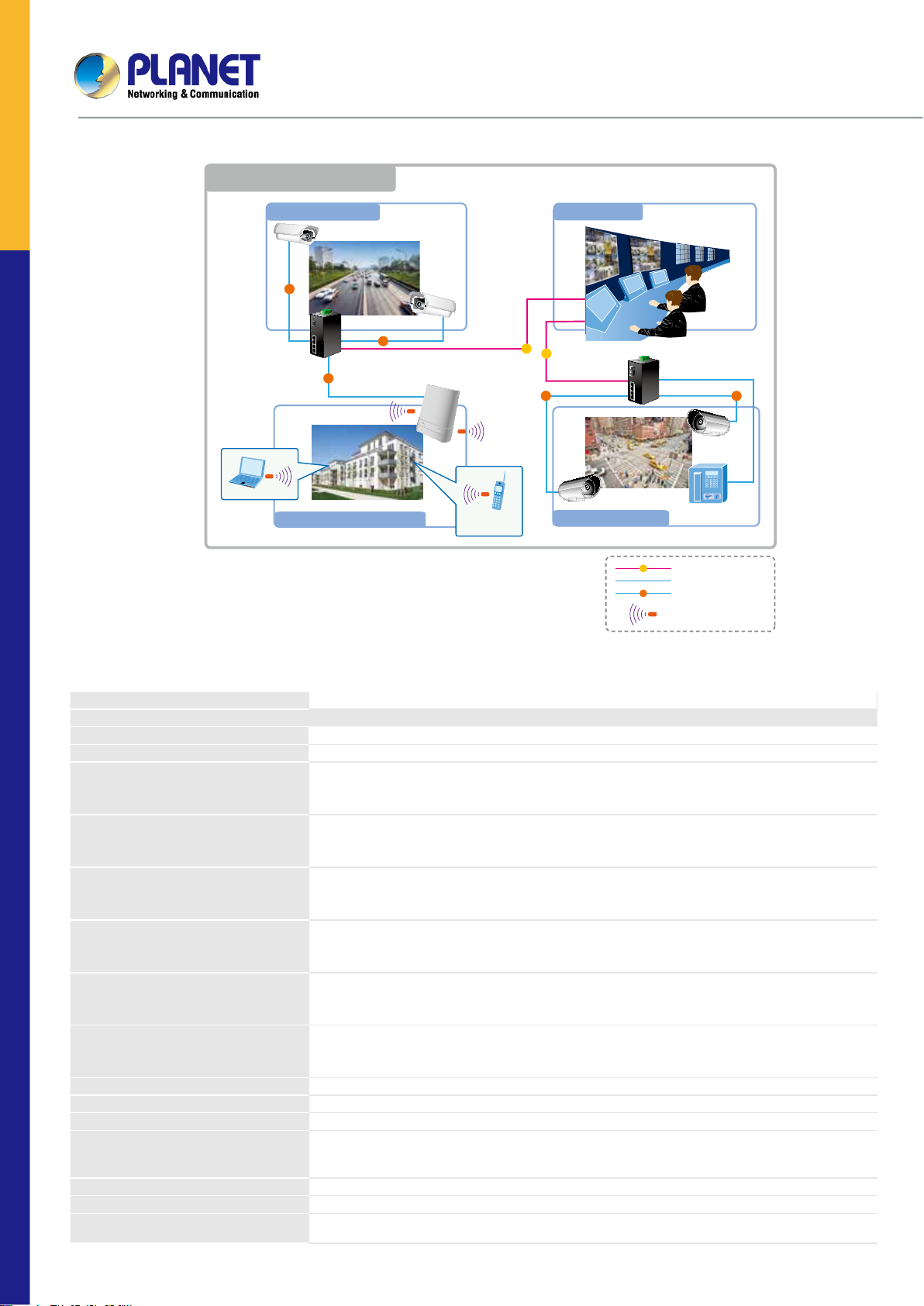

Applications

Industrial Area Department / Workgroup PoE Switch

Providing up to 4 PoE, in-line power interface, the ISW-514PS Industrial Switch series can easily build a power centrally-controlled IP phone system, IP

surveillance system, and wireless AP group for the enterprise. For instance, 4 cameras / APs can be easily installed around the corner of the company

for surveillance demands or building a wireless roaming environment in the office. Without the power-socket limitation, the ISW-514PS series makes the

installation of IP cameras or WLAN AP easier and more efcient.

Management interfaces

PoE

PoE IP Cam

PoE

PoE IP Phone

ISW-514PSF

Steel Factory (1)

PoE IP Phone

PoE

Fiber

Control Center

PoE

ISW-514PSF

PoE IP Cam

Steel Factory (2)

100100

100

Fiber

ISW-514PS

PoE

PoE IP Cam

PoE Wireless AP

PoE

Warehouse

PoE

100

100BASE-FX Fiber-optic

100BASE-TX UTP

PoE

100BASE-TX UTP with PoE

Control level

ISW-514PSxx

PoE

ISW-514PSF

b/g

Wireless Community

Freeway

Outdoor PoE Camera

PoE

Data Center

PoE

20km

b/g

Wireless PoE AP

b/g

VoIP Phone

100

PoE

2km

Outdoor IP Camera

IP Surveillance

ISW-514PS

100

PoE

b/g

PoE

Outdoor PoE Camera

Emergency VoIP Phone

100BASE-FX Fiber-optic

100BASE-TX UTP

100BASE-TX UTP with PoE

2.4GHz 802.11b/g

Specications

ISW-514PS / ISW-514PS15 / ISW-514PSF

Hardware Specications

10/100 Bas e-TX Ports

100Base -F X Por t 1

Fiber Por t Type

Connector Type

Maximum Distance

Optical Frequency

Launch Power (dBm)

Receive Sensitivity (dBm)

IEEE 802.3af PoE Ports 4

Dimensions (D x W x H) 135 x 87.8 x 56 mm

Weight 871g

Power LED

Power Requirements 24 or 48V DC, Redundant power with polarity reverse protection function

Enclosure IP30 aluminum metal case

Protection

ISW-514PS: Multi-Mode ISW-514PS15: Single M ode ISW-514PSF: Multi / Single Mode (Vary on SFP)

ISW-514PS: SC ISW-514PS15: SC ISW-514PSF: SFP

ISW-514PS: 2km ISW-514P S15: 15km ISW-514PSF: Vary on SFP

ISW-514PS: 1300 nm ISW-514PS15: 1310nm ISW-514PSF: Vary on SFP

ISW- 514PS: Max.:-14 Min.:-20 ISW-514PS15: Max.: 0 Min.: -20 ISW-514PSF: Vary on SFP

ISW-514PS: -32 ISW-514PS15: -32 ISW-514PSF: Vary on SFP

Power1, Power2 and Fault Port 1~4: PoE In-Use, LNK /ACT Port 5: LNK/ACT

ESD (Ethernet): 6KV DC Surge (Power): 6KV DC

ISW-514PSxx

Installation DIN Rail kit and Wall Mount ear

Alarm

Power over Ethernet

PoE Standard

PoE Power Supply Type End-Span

PoE Power Output Per Port 4 8V DC, 350mA . Max. 15.4 watts

Power Pin Assignment

Switch Specications

Switch Processing Scheme

Switch Fabric 1Gbps

Throughput (packet per second) 0.74Mpps@64bytes

Address Table 1K entrie s

Maximum Frame Size 1536 Byte s

Pack Buffer 512k bits

Flow Control

Network cables

Layer 2 Function

Management

VLAN

QoS

Bandwidth Control Inbound Rate Limit and Outbound Trafc shaping

Storm Control Disable, 12.5%, 25%, 50%, 62.5% 4 levels

Security Suppor ts 5 IP addresses that have permission to access the Switch

Standards Conformance

Regulation Compliance FCC Part 15 Class A, CE

Stability Testing

Standard Compliance

Environment

Temperature

Humidity

One relay output for power failure Alarm Relay current carr y ability: 1A @ DC 24V

IEEE 802.3af Power over Ethernet / PSE

1/2(+), 3/6(-)

Store-and-Forward

Back pressure for half duplex IEEE 802.3x Pause frame for full duplex

10/100Base-TX: –4-Pair UTP Cat. 3, 4, 5, 5e, 6 (100meters, max.) –EIA/TIA-568 100-ohm STP (100meters, max.) 100Base-FX: –Multi-Mode optic ber 62.5/125μm or 50/125μm –Single-Mode optic ber 9/125μm

Web management, SNMP Trap

Port-Based VLAN IEEE 802.1Q Tag-based VLAN, Up to 16 VLAN groups

2 priority queues for three type of Class of Service

–Port-based VLAN –IEEE 802.1p priority tag –TCP/IP header’s DSCP classier

Weighted Round Robin queue scheduling

IEC60 068 -2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)

IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.1p Class of Ser vice IEEE 802.1Q VLAN Tagging

Operating: -10~6 0 degrees C Storage: -40 ~85 degrees C

Operating: 5~90% Storage: 5~90% (non-condensing)

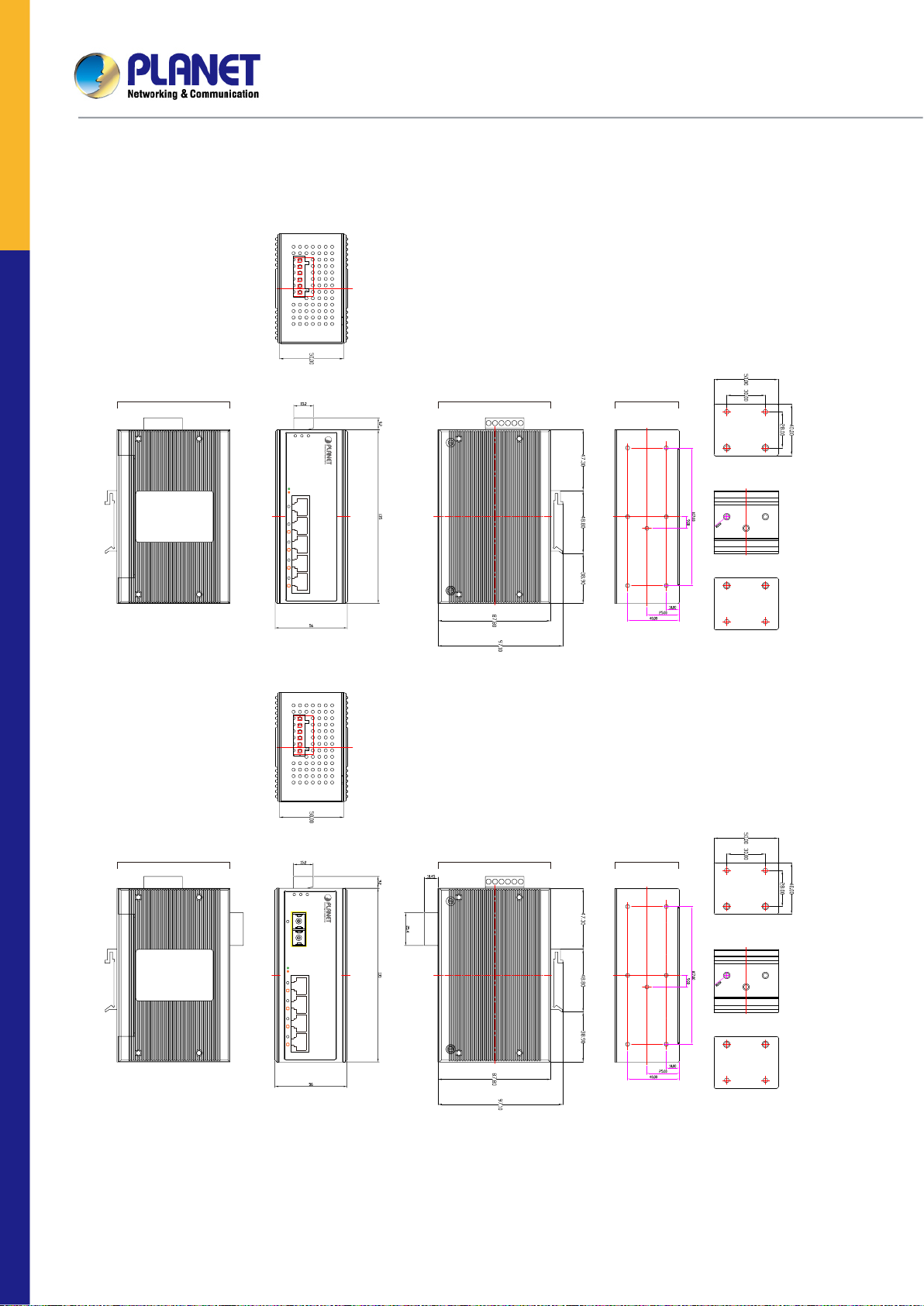

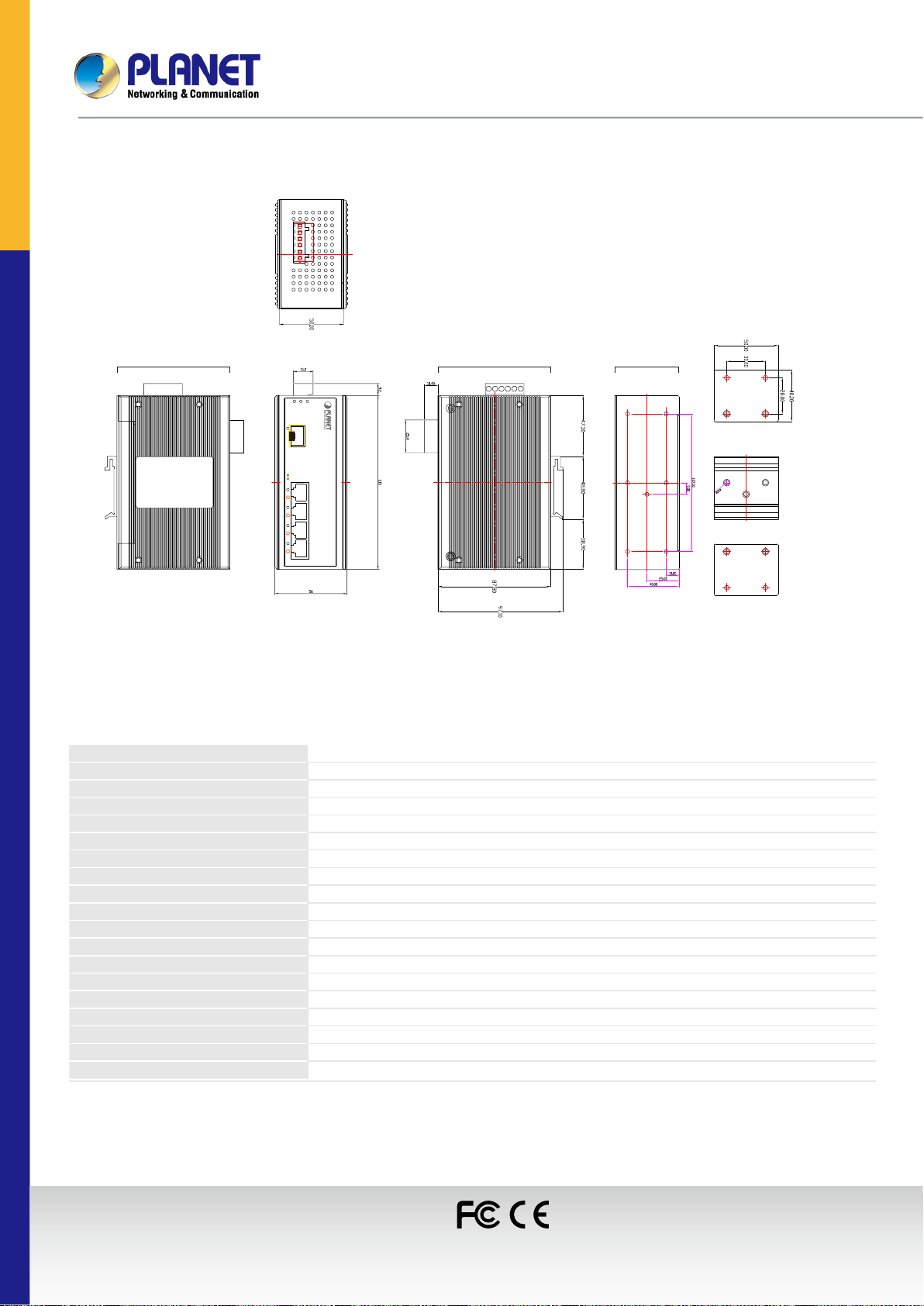

Dimensions

ISW-514PSxx

ISW-504PT :

Side View

Bottom View Front View

P1 P2 FAULT

RESET

LNK/ACT

LNK/ACT PoE In-Use

PoE In-Use

LNK/

ACT

LNK/

ACT

PoE

In-Use

ISW-504PS

ISW-504PT

Mounting Kit

Top View Rear View

DIN-Rail Kit

Mounting Kit

ISW-514PT :

Side View

Bottom View Front View

P1 P2 FAULT

RESET

LNK/

ACT

LNK/ACT

LNK/ACT PoE In-Use

PoE In-Use

LNK/

ACT

LNK/

ACT

PoE

In-Use

ISW-514PS

ISW-514PT

Dimensions ( unit = mm )

Mounting Kit

Top View Rear View

DIN-Rail Kit

Mounting Kit

Dimensions ( unit = mm )

Side View

Bottom View Front View

Mounting Kit

DIN-Rail Kit

Dimensions ( unit = mm )

Top View Rear View

Bottom View Front View

Mounting Kit

DIN-Rail Kit

Dimensions ( unit = mm )

Top View Rear View

P1 P2 FAULT

RESET

ISW-504PS

PoE

In-Use

LNK/ACT PoE In-Use

LNK/

ACT

LNK/

ACT

LNK/

ACT

P1 P2 FAULT

RESET

ISW-514PS

PoE

In-Use

LNK/ACT PoE In-Use

LNK/

ACT

LNK/

ACT

P1 P2 FAULT

ISW-504PT

PoE

In-Use

LNK/ACT PoE In-Use

LNK/

ACT

LNK/

ACT

LNK/

ACT

P1 P2 FAULT

ISW-514PT

PoE

In-Use

LNK/ACT PoE In-Use

LNK/

ACT

LNK/

ACT

ISW-514PTF :

Bottom View Front View
