IPOE-162S

Industrial IEEE 802.3at Gigabit High Power over Ethernet Splitter

Interface

• 2-port RJ-45 interfaces

–1-port PoE Power+ Data input

–1-port Data output

–2 DC out (4-pin Terminal Block)

Power over Ethernet Splitter

• Complies with IEEE 802.3at High Power over Ethernet,

• Splits the 48~56V DC power over RJ-45 Ethernet cable

The Best Industrial Grade Data Link and Power Sourcing for Non-PoE

Solution

Planet IPOE-162S is an Industrial High Power PoE Splitter that can split the 48~56V

DC over the existing Ethernet cable into the selectable 12V or 24V DC power output. It

supports passive 10/100/1000Mbps Ethernet connection ability and complies with IEEE

802.3at High Power over Ethernet standard that supports up to 25-watt output power to

powered device. To fulll the growing industrial applications, the IPOE-162S is designed

to work under the operating temperature range from -40 to 75 degrees C (-40 to 167

degrees F). The IPOE-162S is an ideal solution to transferring power to traditional

network device with high power demand directly without the need to install additional

power outlets and electrical cabling in the industrial environment.

Innovative, Selectable DC Power Output Voltage

Via the innovative 12 volt / 24 volt DIP switch on the front panel, the IPOE-162S can

supply either 24V DC power to industrial equipment or 12V DC output to the common

network devices, such as wireless access point or IP camera. It highly increases the

exibility of the product applications.

Dual Power Output Capability

By supporting up to 25-watt 802.3at Power over Ethernet cable, the IPOE-162S can

satisfy not only single power-hungry equipment but also able to share the 25-watt output

power to two non-PoE Ethernet devices simultaneously through a 4-pin terminal block.

For example, the two power output can be applied as shown below to completely solve

the need of electric source:

■ IP camera (Power 1) + Outdoor housing with fan and heater (Power 2)

■ IP camera (Power 1) + Pan & Tilt motor (Power 2)

■ Analog camera (Power 1) + IP video server (Power 2)

into DC 12V / 24V output

• Auto-detects IEEE 802.3at PoE equipment, protecting

devices from being damaged by incorrect installation

• Two different adjustable output voltage options (12V /

2A, 24V / 1A) to t various devices

• Distance up to 100 meters

Industrial Case / Installation

• IP30 metal case protection

• DIN rail and wall mount design

• Supports EFT 6000V DC protection for power line

• Supports 6000V DC Ethernet ESD protection

• -40 to 75 degrees C operating temperature

Standard Compliance

• IEEE 802.3 10Base-T

• IEEE 802.3u 100Base-TX

• IEEE 802.3ab 1000Base-T

• IEEE 802.3at High Power over Ethernet standard

• FCC Part 15 Class A, CE

Data Sheet

Powered

Device

Maximum Output 25 Watts

Powered

Device

Powered

Device

IPOE-162S

Total Maximum

Output 25 Watts

100 meters

IEEE 802.3at Injector

ICA-HM351

IP Camera with Fan, Heater

RJ-45

Data

12V DC for Camera

12V DC for

Fan & Heater

IPOE-162S

802.3at PoE Splitter

PoE

Data + DC Power

Environmentally Hardened Design

With compact, slim type IP30 industrial case protection, the space saving Industrial High Power PoE Splitter IPOE-162S can be placed in almost any difcult

environment. It allows either DIN rail or wall mounting for efcient use of cabinet space. Being able to operate under the temperature range from -40 to 75

degrees C, the IPOE-162S is the ideal product for co-working with Industrial High Power Injector which can feed the power to non-PoE devices up to 100

meters (328 feet) away in those harsh environments.

PTZ Speed Dome

Data

Power

PoE

Power Line (DC)

1000Base-T UTP

PoE

1000Base-T UTP with PoE

IPOE-162S

Plug and Play, Easy Cabling Installation

With IEEE 802.3at Gigabit High Power over Ethernet devices installed, the system administrator only has to use one single RJ-45 Ethernet cable to carry

both power and data to each device. Besides, connecting through the Industrial High Power PoE Injector with the IPOE-162S, you can also have benefits

including cost saving, easy networking planning and high network reliability.

Applications

IEEE 802.3at Injector and Splitter Installation

Due to the capability of IEEE 802.3at standard, the IPOE-162S can co-work with the IEEE 802.3at Gigabit PoE injector devices (like PLANET POE-161),

High Power Switch or High Power Media Converter and transform non-PoE equipment into IEEE 802.3at PoE application. For a place where is hard to nd

the power inlet, the High Power PoE devices and the IPOE-162S operate as a pair to provide the easiest way to power your Ethernet devices that need high

power input, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome camera, color touch-screen voice over IP (VoIP) telephones, and multi-

channel wireless LAN access points.

802.3at PoE Switch + IPOE-162S

802.3at PoE Switch

802.3at PoE Media Converter + IPOE-162S

Industrial Fiber

1000

Switch

DIN-RAIL Power Supply

Data

Power

PoE

Data

Power

100 meters

Data

Power

Industrial 802.3at

Media Converter

IPOE-162S

100 meters220m to 10km

IPOE-162S

PoE

Power 12V/24V

1000Base-T UTP

PoE

1000Base-T UTP with PoE

Power Line (DC)

Data

Power

Power 12V/24V

1000

1000Base-SX/LX Fiber-optic

1000Base-T UTP

PoE

1000Base-T UTP with PoE

Power Line (DC)

Data

Power

PTZ Camera

-40

PTZ Camera

℃

-40

℃

℃ ℃

Specications

IPOE-162S

Model

Camera

Interface

LED Indicator System: Power Ready x 1 (Green)

Network Cable

Data Rate

DIP Switch 12V DC / 24V DC output voltage

Power Input 802.3at PoE 48~56V DC

Power Output 12V / 24V DC, max 2A (adjustable)

Dimensions (W x D x H) 135 x 87.8 x 32 mm

Weight 421g

Enclosure IP30 metal case

Installation DIN rail kit and wall mount ear

ESD / EFT Protection 6KV DC

Power over Ethernet

PoE Standard IEEE 802.3at High Power over Ethernet

Number of devices that c an be powered

Standards Conformance

Standards Compliance

Regulation Compliance FCC Part 15 Class A, CE

Stability Testing

Environment

Operating Temperature -40 ~ 75 degrees C

Storage Temperature -40 ~ 85 degrees C

Humidity

IPOE-162

“PoE (Power + Data)” Input Por t : 1 x RJ- 45 10/100/1000Base-T “Data” Out Port: 1 x RJ-45 10/100/1000Base-T DC Out Plug Connector: 1 removable 4 -Pin terminal block

10/100/1000Base-T: 4-Pair UTP Cat. 5, 5e, 6

Distance up to 100m (328ft)

EIA/ TIA- 568 100- ohm STP (100m)

10/100 /1000 Mbps (vary on Ethernet device attached)

1 or 2

(Vary on device’s power requirement; DC1 + DC2 cannot be over 25 watts.)

IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet

IEC60068 -2-32(Free Fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration)

5 ~ 95% (non- condensing)

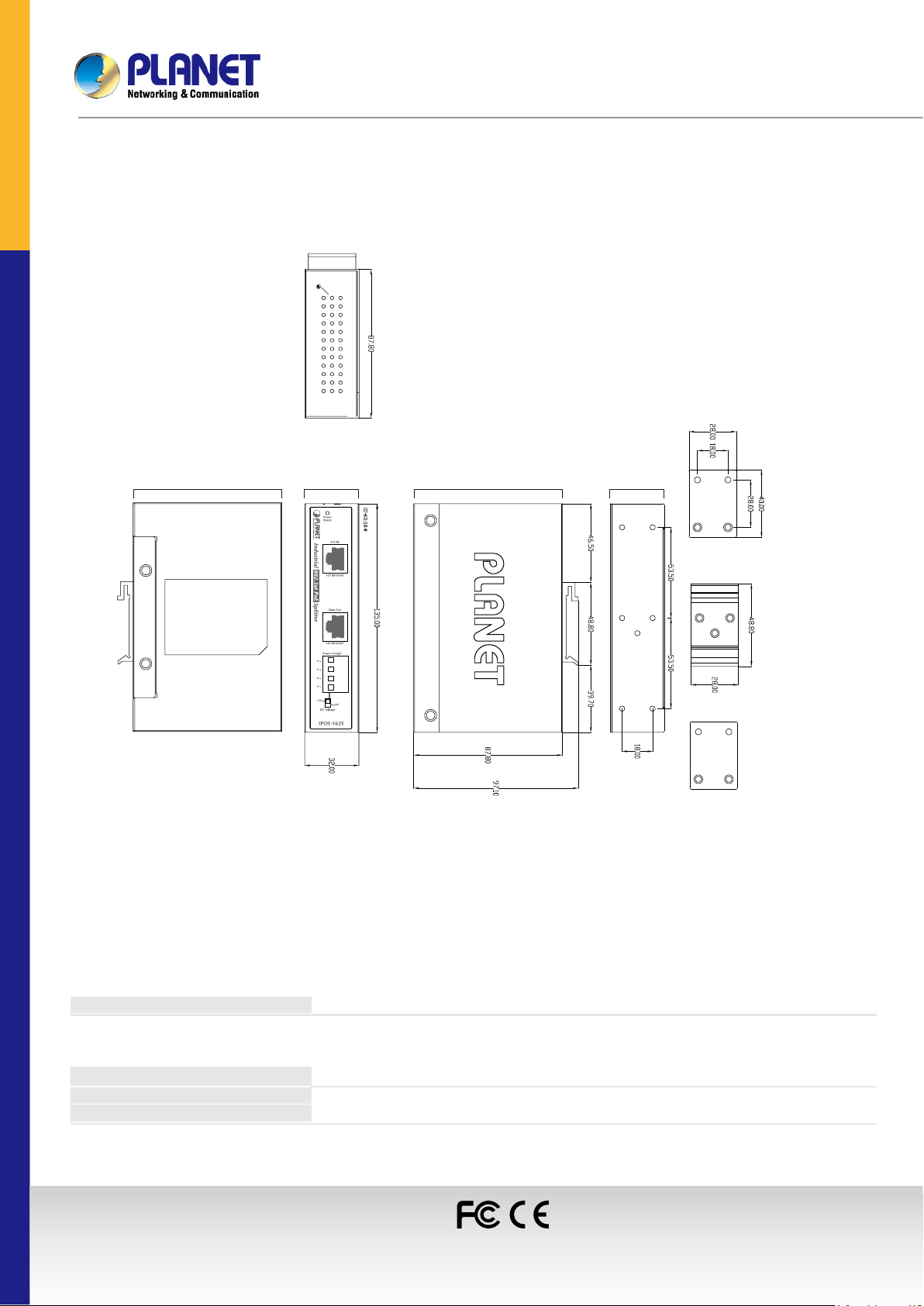

Dimensions

IPOE-162S:

IPOE-162S

Side View

Bottom View Front View Top View

Rear View

Mounting Kit

DIN-Rail Kit

Mounting Kit

Dimensions ( unit = mm )

Ordering Information

IPOE-16 2S Industrial IEEE 802.3at Gigabit High Power over Ethernet Splitter
