Pioneer XDP-300R Instruction Manual

Digital Audio Player

XDP-300R

Read this first

Playing Music

USB output

Bluetooth® function

Various settings

Others

Instruction Manual

Read this first

Switching the screen

The home screen

The app list screen

Customizing the home screen

Entering text

Switching the screen

Home screen App list screen

This is a portable music player that uses the

Android screen and the app list screen. Tap the icons at the bottom of the screen to switch between the screens.

OS. The basic screens are the home

These icons are shown in all screens even if you switch screens.

Returns to the previous screen.

Switches to the home screen.

Displays a thumbnail list of apps you have recently used. You can delete the app from the list by tapping on the " " on the upper right of the thumbnail or flicking the thumbnail left to right.

The home screen

Home screen 1 Home screen 2

The screen that appears immediately after you turn the unit on is called the home screen. Flick left to right to switch the home screen.

Home screen 1

1. Status bar

Manual

Useful Apps

Play Store

Google

A folder containing a collection of Google apps, such as the Google Chrome browser to view web pages and the YouTube

Gives you access to this document.

A collection of installers to download apps.

Gives you access to the "Google Play Store" where you can download apps for the Android OS. You may not be able to access this store in some areas.

app.

The Music app for playing music.

Music

Settings

Switches to the app list screen.

Takes you to the settings screen where you can set "Wi-Fi", "Language & input", "Date & time", etc.

Home screen 2

3. Music widget You can play music, pause, skip, etc.

Ìéîå Ïõô

You can switch the headphone output to the line output mode to connect external equipment.

Уфбод

бмпое

You can improve sound quality by turning off

Wi-Fi

, the Blueto oth® function, and the

LCD.

Вбмбогед

A mode suitable for when you have connected balanced headphones. Compared to the normal single-ended operation, you can get a larger output and the high voltage is not grounded together with the small signal, so you can anticipate a superior effect in the background of the music. Because you get a larger output, you can drive headphones with a higher impedance.

ÁÃÇ

A mode suitable for when you have connected balanced headphones. The basic operating method is the same as the balanced mode, but uses technology to even more forcefully fix grounding standards, so you can enjoy a sound quality with improved clarity and more stability than the balanced mode. Output volume is the same as the regular single-ended operation, however.

The app list screen

When you tap the app list icon in the home screen, the app list screen is displayed.

When there are a lot of apps, flick to the left or right to change the screen.

Customizing the home screen

You can put shortcuts for apps and widgets* such as clocks on the home screen, and you can customize it to suit yourself. * Widgets are small apps that you can put in the

home screen so that a clock is shown all the time or shortcuts to your favorite home pages can be shown.

∫ Creating an app shortcut on the

home screen

Tap the app list icon in the home screen.

Long tap on the app in the app list screen.

The background changes to the home screen, so drag to the desired position and release your finger.

∫ Adding a widget to the home screen

Tap the app list icon in the home screen.

Tap "WIDGETS" at the top left of the screen.

Long tap the widget you want to add.

The background changes to the home screen, so drag to the desired position and release your finger.

∫ Changing the wallpaper in the home

screen

Long tap in an area of the home screen

where there is nothing.

Tap "Wallpapers".

Select "Photos" to set a favorite photo or image as your wallpaper. To take a screen shot, press and hold the power button (Í) and the skip button (:) at the same time.

Tap the wallpaper you want to change to.

Tap "Set wallpaper".

∫ Deleting shortcuts and widgets

Long tap the shortcut or widget you want to

delete.

Drag to "Remove" and release your finger.

Entering text

² ³

When you tap a text box or other place to enter text, a keyboard is automatically displayed.

1. Tap to enter text.

2. Tap to switch between upper case and lower case. Double-tap to lock upper-case.

3. Tap to change the type of text.

4. Enters a space.

5. Removes a character on the left of the cursor.

6. Tap to confirm.

Playing Music

Playing from a microSD card

Copying from a computer and playing

Play operation details

Editing a play list

Equalizer settings

Slide menu

Playing from a microSD card

Insert a microSD card that has music files on it and play them.

Insert the microSD card into the card slot (either 1 or 2).

0 With the contacts facing up, push in

completely so the card clicks into place.

Tap Music in the home screen.

0 Do not connect headphones that have an

impedance outside the rated range as this may result in damage.

See here for headphone ratings

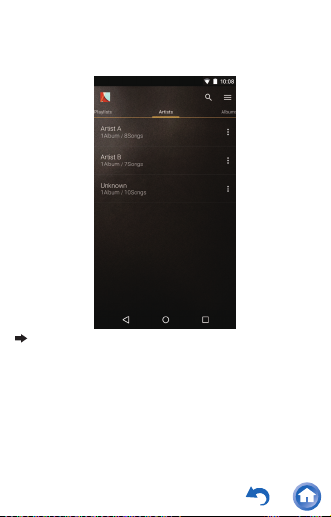

In the library, tap the track you want to play.

0 It may take some time for tracks to be

displayed in the library.

Tap or click here Play operation details.

∫ Removing the microSD card

Settings

Unmount the microSD card using the following procedure before removing it. The card can be damaged or may stop working properly if you fail to unmount the card first.

Tap "Settings" in the home screen.

Tap "Storage" - "Unmount SD card" - "OK".

Push the microSD card in until you hear a click and then pull straight out.

0 The microSD card will spring out so take

care not to lose it.

Copying from a computer and playing

You can copy music data stored on your computer to the built-in storage on this unit or to a microSD card in this unit.

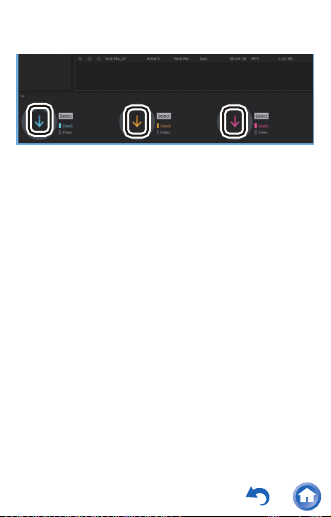

∫ Copy with the data copying software

"X-DAP Link" and play

X-DAP Link is compatible with Windows 10 (32 bit/64 bit), Windows 8/8.1 (32 bit/64 bit), Windows 7 (32 bit/64 bit), and Mac OS X 10.11 and OS X 10.10.

Start your computer and download the installer for X-DAP Link from the following site. http://pioneer-headphones.com/support.html

On a Windows computer double-click "setup.exe" and on a Macintosh computer double-click "XDAPLink.pkg" to install.

0 Follow the on-screen instructions to install.

A shortcut is created on the desktop after installation on a Windows computer. On a Macintosh computer, "X-DAP Link.app" is added within the "Applications" folder.
