Pioneer XDJ-1000MK2 User Manual

Page 1
MULTI PLAYER
XDJ-1000MK2
http://pioneerdj.com/support/ http://rekordbox.com/
For FAQs and other support information for this product, visit the above site.
http://kuvo.com/
Operating Instructions
Page 2

Contents

How to read this manual
! Thank you for buying this Pioneer DJ product. Be sure to read both this manual and the Operating Instructions
(Quick Start Guide). Both contain important information that you should understand before using this product.
After you have finished reading the instructions, put them away in a
safe place for future reference.
! In this document, names of screens, menus and touch keys dis-
played on the computer screen as well as the names of buttons and terminals on the product etc., are indicated within [ ] brackets.
Examples:
Touch [SLIP]. Press the [CUE] button. The [UTILITY] screen is displayed. Click [All Programs] > [Pioneer] > [rekordbox x.x.x] > [rekord-
box x.x.x] from the Windows [Start] menu.
Connect the LAN cable properly to the [LINK] terminal.
Before start
Features ....................................................................................................... 3
Before you start
Supported sources ..................................................................................... 6
Usable media .............................................................................................. 6
Playable music file formats ....................................................................... 6
Preparing the software ............................................................................... 7
Changing track ratings
Displaying details of tracks loaded in other DJ players ........................ 33
............................................................................ 33
Changing the settings
Storing settings on USB devices ............................................................. 34
Calling out settings stored on a USB device .......................................... 34
Changing the color set in the USB device. ............................................. 34
Displaying the [UTILITY] screen ............................................................. 35
Changing the settings Duplicating the settings onto DJ players connected by PRO DJ LINK
........................................................................................................... 36
.............................................................................. 35
Using the DJ software
Operating the DJ software ....................................................................... 37
Additional information
Troubleshooting ........................................................................................ 39
About the liquid crystal display ............................................................... 40
Error messages ......................................................................................... 40
Cleaning the touch display ...................................................................... 40
List of icons displayed on the main unit display section ....................... 40
About iPods/iPhones/iPads ..................................................................... 41
About trademarks and registered trademarks ...................................... 41
Software license notice ............................................................................ 41
Connections
Descriptions of terminals ........................................................................... 8
Basic style.................................................................................................... 9
Using a DJ controller ................................................................................ 12
Using the DJ software .............................................................................. 12
Part names and functions
Control panel ............................................................................................. 13
Rear panel ................................................................................................. 15
Normal playback screen (display part) ................................................... 16
Normal playback screen (touch keys) .................................................... 18
Performance screen ................................................................................. 19
Jog dial display section
............................................................................ 19
Basic Operation
Turning the power on ............................................................................... 20
Turning the power off ............................................................................... 20
Connecting and disconnecting USB devices
Playback .................................................................................................... 20
Operating the jog dial ............................................................................... 22
Adjusting the playback and stopping speeds
........................................ 20
........................................ 22
Advanced Operation
Setting Cue ................................................................................................ 23
Setting loops ............................................................................................. 23
Setting Hot Cue
Storing cue or loop points ........................................................................ 25
Deleting stored cue or loop points .......................................................... 25
Setting the cue point for auto cueing ..................................................... 25
Using beat jump
Using loop move ....................................................................................... 26
Using the slip mode .................................................................................. 26
Playing from the position on the waveform which was touched ......... 27
Using the beat sync function ................................................................... 27
Adjusting the beat grid ............................................................................. 28
Operating the XDJ-1000MK2 in combination with other devices ........ 28
Browsing tracks ........................................................................................ 28
Other browsing operations
Checking the playing history (HISTORY) ............................................... 30
Editing tag lists ......................................................................................... 31
Displaying the details of the currently loaded track .............................. 33
......................................................................................... 24
....................................................................................... 26
...................................................................... 29
En
Page 3

Before start

Before start

Features

This unit is a DJ player equipped with the technology of the Pioneer DJ’s CDJ series, the world standard for club players. Full-fledged DJ performances can be made using tracks not only on USB devices and computers but also on mobile devices (smartphones, etc.). It is not only equipped with a wide range of features for DJ performances, includ­ing the PRO DJ LINK, quantize and beat sync functions, it also has a high sound quality, high reliability design and a panel layout provid­ing high operability, thereby offering strong support for all types of DJ performances.
MULTI MEDIA, MULTI FORMAT
Music files stored on USB devices (flash memory devices or hard disks), mobile devices, and computers can be played. The supported music file formats are MP3, AAC, WAV, AIFF, FLAC, and Apple Lossless. The rekordbox music management software can be used to carefully prepare the playlists, cues, loops, beat grids, etc. you will need for a DJ performance at home. You can easily devote your attention to the DJ performance at the disco or club. This makes for a deejaying cycle smoothly integrating all the steps, from acquiring the music files to the actual DJ performance.
rekordbox (Mac/Windows)
rekordbox is a composite software that enables track management and DJ performances. Music files on computers can be managed (analysis, setting, creation, history storage) with the music management software rekordbox (Mac/ Windows) that can be downloaded for free. An excellent DJ performance can be achieved by using the music files managed by rekordbox (Mac/Windows) together with this unit. ! In these operating instructions, the version of rekordbox for Mac/
Windows is referred to as “rekordbox (Mac/Windows)”. “rekordbox” is used to indicate the versions of rekordbox (Mac/Windows) and rekordbox (iOS/Android) simultaneously, as well as when referring to rekordbox functions directly.
At home or in a studio
rekordbox
! Add music files to collections and analyze them. ! Make the preparations on rekordbox.
rekordbox
Write the rekordbox data on a USB device.
At the disco or club
Connect the USB device to the DJ player.
rekordbox (iOS/Android)
rekordbox (iOS/Android), a smartphone application that can be down­loaded free of charge, can be used for the management (analysis, set­tings, creation, history storage) of music files on mobile devices. Using music files managed with rekordbox (iOS/Android) in combination with this unit makes it possible to achieve outstanding DJ performances. ! In these operating instructions, the version of rekordbox for mobile
devices is referred to as “rekordbox (iOS/Android)”.
PRO DJ LINK
Functions include “USB Export” using USB devices (flash memory drives and hard discs) and “rekordbox LINK Export” using the computer on which rekordbox is installed.
USB Export
This function can be used to transfer rekordbox music files and man­agement data using USB devices. This eliminates the need to take your computer to the disco or club.
! Use the rekordbox data for the performance. ! Share the rekordbox data using the PRO DJ LINK function.
Date:2011.11.5 Title:ProDJMusic, Artist:PioneerDJ
...
The playing history is stored on the USB device.
At home or in a studio
Date:2011.11.5 Title:ProDJMusic, Artist:PioneerDJ
...
rekordbox
Check and manage the playback history with rekordbox.
En
Page 4
rekordbox LINK Export
When this unit and a computer are connected with a USB or LAN cable, rekordbox music files and management data can be exchanged directly. This eliminates the need to export the data to a USB device.
At home or in a studio
rekordbox
! Add music files to collections and analyze them. ! Make the preparations on rekordbox.
At the disco or club
rekordbox
Connect the computer and DJ player.
rekordbox
TOUCH DISPLAY
This unit is equipped with a large, high-resolution full-color LCD so that the information required for DJ performances is easily visible. This unit not only displays the information required for DJ performances con­veniently, but also helps you achieve reliable and aggressive DJ per­formances through its wide variety of functions including AUTO BEAT LOOP or HOT CUE and BEAT JUMP/LOOP MOVE.
BROWSE
The combination of the list display of music files and an easy-to-operate rotary selector lets you select tracks without stress. In addition, the display of track artwork lets you find the desired tracks instinctively.
KEYWORD SEARCH
A keyboard is displayed on the touch display so that you can type the keywords and search them. It is possible to search the target music files much faster in this manner.
TRACK FILTER
Tracks can be searched for by the tag information added to tracks using rekordbox or the information such as BPM and KEY. You can quickly find the tracks that match the specified condition.
WAVE/WAVE ZOOM
The overall waveform (“WAVE”) can be displayed so that you can grasp the overall composition of the track visually. Also, the frequency bands are color-coded, and a zoomable enlarged waveform (“WAVE ZOOM”) can be displayed so that the development of the track can be grasped instantaneously.
NEEDLE SEARCH
Just touch the overall waveform (WAVE) with your finger to instantly play the tune next to the touched one. A quick point search can be done by instinctive operation.
! Use the rekordbox data for the performance. ! Share the rekordbox data using the PRO DJ LINK function.
At home or in a studio
Date:2011.11.5 Title:ProDJMusic, Artist:PioneerDJ
...
rekordbox
Check and manage the playback history with rekordbox.
BEAT JUMP/LOOP MOVE
You can move the playing position with the specified beat count instantly. A wide range of beats can be improvised without changing the music rhythm.
HOT CUE
This unit has a hot cue that can instantly play back from the cue points that have been set in advance.
AUTO BEAT LOOP
Auto beat loops are prepared for setting loops automatically based on the tempo of the music.
BEAT SYNC
Based on the GRID information of tracks analyzed with rekordbox, the tempo (BPM) and beat position of tracks playing on this unit can auto­matically by synchronized with other DJ players connected by PRO DJ LINK. The beat sync function helps you mix tracks and create mixing and effect performances, greatly expanding the range of DJ performances.
QUANTIZE
This unit is equipped with a quantize function that automatically cor­rects the timing when using such functions as looping, reversing or slip looping, even if you perform operations off-beat, as long as the track has been analyzed with rekordbox. This enables accurate performances without breaking the rhythm of the currently playing track.
En
Page 5
SOUND CARD
This unit is equipped with a dedicated interface for controlling the DJ software and a MIDI interface. It also has a built-in sound card, allowing simple connections to other devices.
KUVO
KUVO is a service helping people to enjoy the club culture both inside and outside clubs connecting clubbers, DJs and clubs using the con­cept of “creating the next generation space to enjoy dance music”. See here for the service details. http://kuvo.com/
Before start
En
Page 6

Before you start

Supported sources

This unit supports the sources listed below.
! USB devices ! Computer

Usable media

This unit can play music files recorded on USB mass storage class USB devices (external hard disks, portable flash memory devices, etc.).
Folder layers
Max. number of folders
Max. number of files
Supported file systems
!
Tracks managed by rekordbox can be played by connecting the mobile device on
which rekordbox (iOS/Android) is installed via USB. For supported devices, see the Pioneer DJ support site (http://pioneerdj.com/support/). For rekordbox (iOS/ Android), see the rekordbox online support site (http://www.rekordbox.com).
! When there are many folders or files, some time may be required for loading. ! Folders and files exceeding the limits cannot be displayed.
Max. 8 layers (files in folders beyond the 8th layer cannot be played)
Unlimited (folders beyond the 10 000th folder within a single folder cannot be displayed)
Unlimited (files beyond the 10 000th file within a single folder cannot be displayed)
FAT16, FAT32 and HFS+ (NTFS is not supported.)
USB devices that cannot be used
! Optical disc type devices such as external DVD/CD drives, etc., are
not supported.
!
USB hubs cannot be used.
! iPods cannot be used. (Music data on an iPad, iPod touch or iPhone
can only be played on this unit if it is added to the rekordbox (iOS/ Android) library.)
Cautions on using USB devices
! Some USB devices may not operate properly. Please note that
Pioneer DJ will accept no responsibility whatsoever for loss of data stored by the user on USB devices or other direct or indirect prob­lems arising due to connection of USB devices to this unit.
! When the current above the permissible level is passed through the
USB device insertion slot of this unit, the USB indicator will flash. The communication may be stopped by stopping the power supply to the USB device. To return to normal conditions, please remove the USB device connected to this unit. Avoid re-using the USB device for which the excess current has been detected. If you cannot return to the normal condition (cannot communicate) using the above­mentioned procedure, turn off the power supply unit once and then turn the power on again.
! If multiple partitions are set on the USB device, only the first partition
can be used. (When rekordbox library information is present, the partition containing the rekordbox library information has priority.)
! USB devices equipped with flash card readers may not operate. ! Depending on the USB device you are using, the desired perfor-
mance may not be achieved.

Playable music file formats

This unit supports music files in the formats shown below. Some files cannot be played with this unit even if the files are in the formats supported by this unit.
Type File extension Compatible formats Bit depth Bit rate Sampling frequency
MP3 .mp3
AAC
WAV .wav WAV 16 bit, 24 bit 44.1 kHz, 48 kHz
AIFF .aif, .aiff AIFF 16 bit, 24 bit 44.1 kHz, 48 kHz
Apple Lossless .m4a ALAC 16 bit, 24 bit 44.1 kHz, 48 kHz
FLAC .flac, .fla FLAC 16 bit, 24 bit 44.1 kHz, 48 kHz
.m4a, .aac and .mp4
About MP3 files
MP3 files can have a constant bit rate (CBR) or a variable bit rate (VBR). Both types of files can be played on this unit, but the search and super fast search functions are slower with VBR files. If your priority is oper­ability, we recommend recording MP3 files in CBR.
About AAC files
! AAC is the abbreviation of “Advanced Audio Coding”, a basic format
of audio compression technology used for MPEG-2 and MPEG-4.
MPEG-1 AUDIO LAYER-3 16 bit 32 kbps to 320 kbps 32 kHz, 44.1 kHz, 48 kHz CBR, VBR
MPEG-2 AUDIO LAYER-3 16 bit 8 kbps to 160 kbps 16 kHz, 22.05 kHz, 24 kHz CBR, VBR
MPEG-4 AAC LC 16 bit 16 kbps to 320 kbps
MPEG-2 AAC LC 16 bit 16 kbps to 320 kbps
The file format and extension of AAC data depends on the applica-
!
16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz
16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz
tion used to create the data.
! On this unit, in addition to AAC files encoded with iTunes® and with
the extension “.m4a”, files with the extensions “.aac” and “.mp4” files can also be played. However, AAC files that are copyright-protected, such as those purchased from the iTunes Store, cannot be played. Also, depending on the version of iTunes in which the file was encoded, it may not be possible to play the file.
Encoding method
CBR, VBR
CBR, VBR
Uncompressed PCM
Uncompressed PCM
Lossless compression
Lossless compression
En
Page 7
About ID3 tags
The tag information types which can be registered from a music file are ID3 tags (v1, v1.1, v2.2.0, v2.3.0, and v2.4.0) or meta tags.
About music file artwork
The file format for artwork images that can be added to music files is JPEG (extensions: “.jpg” or “.jpeg”).
Files larger than 800 x 800 dots cannot be displayed.
!
Using the online support site
Before making inquiries on rekordbox operating procedures or technical issues, read the rekordbox (Mac/Windows) user’s manual and online manual and check the FAQ provided on the rekordbox online support site.
<rekordbox online support site>
http://www.rekordbox.com
About the driver software
Before you start
About character displays
When displaying track names, etc., to display characters written in local codes other than Unicode, change the [LANGUAGE] setting. = Changing the language (p. 36 )

Preparing the software

Music management software rekordbox and driver software are not included. To use rekordbox and the driver software, access the rekordbox site and Pioneer DJ Support site, and download the software. ! The user is responsible for preparing the computer, network devices
and other elements of the Internet usage environment required for a connection to the Internet.
About rekordbox
 Acquiring rekordbox (Mac/Windows)
1 Open your web browser on your computer, and access the rekordbox site.
http://www.rekordbox.com
2 Click [Download] in the rekordbox site and download rekordbox from the download page.
! For inquiries on rekordbox (Mac/Windows), please see the support
site indicated above.
About rekordbox (iOS/Android)
Tracks managed by rekordbox can be played by connecting the mobile device on which rekordbox (iOS/Android) is installed via USB. For sup­ported devices, see the Pioneer DJ support site (http://pioneerdj.com/ support/). ! For details on installing rekordbox (iOS/Android), see the Pioneer DJ
website (http://www.rekordbox.com).
Audio driver software (Windows)
! This driver software is an exclusive ASIO driver for outputting audio
signals from the computer.
! There is no need to install the driver software when using Mac OS X.
 USB (LINK Export) connections driver software
for rekordbox (Mac/Windows)
! The driver software is an dedicated driver for connecting this unit
and rekordbox (Mac/Windows) via USB (LINK Export).
Obtaining the driver software
1 Launch a web browser on the computer and access the Pioneer DJ support site below.
http://pioneerdj.com/support/
2 Click [Software Download] under [XDJ-1000MK2] on the Pioneer DJ support site.
3 Click the icon of the driver software to download the driver software from the download page.
! For information on installing the driver software, see the Pioneer DJ
support site.
Cautions on copyrights
rekordbox restricts playback and duplication of copyright-protected music contents. ! When coded data, etc., for protecting the copyright is embedded in
the music contents, it may not be possible to operate the program normally.
When rekordbox detects that coded data, etc., for protecting the
!
copyright is embedded in the music contents, processing (playback,
reading, etc.) may stop. Recordings you have made are for your personal enjoyment and accord­ing to copyright laws may not be used without the consent of the copy­right holder.
!
Music recorded from CDs, etc., is protected by the copyright laws of
individual countries and by international treaties. It is the full respon-
sibility of the person who has recorded the music to ensure that it is
used legally. ! When handling music downloaded from the Internet, etc., it is the
full responsibility of the person who has downloaded the music to
ensure that it is used in accordance with the contract concluded
with the download site.
En
Page 8

Connections

3
451
2
! Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections. ! Refer to the operating instructions for the component to be connected. ! Connect the power cord after all the connections between devices have been completed.
! When using a LAN cable for connection, be sure to use either the LAN cable included with this product or an STP (shielded twisted pair) cable. ! Do not disconnect the LAN cable when music files and/or information are being shared using PRO DJ LINK.

Descriptions of terminals

1 AC IN
Connect this to a power outlet. Connect the power cord after all the connections between devices have been completed. Be sure to use the included power cord.
2 AUDIO OUT L/R terminals
Connect the audio cables (included) here.
3 DIGITAL OUT terminal
Connect a digital audio cable here.
4 LINK terminal
Connect the LAN cable (included) here.
5 USB port
Connect to a computer.
En
Page 9

Basic style

To power outlet
USB device on which rekordbox
Playback on this unit is performed mainly using tracks prepared with rekordbox installed on a computer. ! For rekordbox operations, see the rekordbox (Mac/Windows) user’s manual. You can see the rekordbox (Mac/Windows) user’s manual from [Help]
menu of rekordbox (Mac/Windows). ! If LAN cables (CAT5e) are used to connect PRO DJ LINK compatible DJ devices (DJ mixer, DJ player, etc.), you can use the PRO DJ LINK function.
Up to four DJ players can be connected. ! A switching hub (commercially available) may be necessary depending on the models to be combined, such as when connecting with a mixer that
has only one LAN port. Use a switching hub of 100 Mbps or greater. Correct operation may not be possible depending on the switching hub. ! When connecting with a mixer that has enough LAN ports for all the DJ players and computers to be combined, connect directly to the LAN ports
on the mixer’s rear panel without using a switching hub. ! To use rekordbox’s music file management functions to their maximum, set the channel of the audio or digital audio cable connected to the mixer
and the player number to the same number. If the player number is different, change the [PLAYER No.] setting on the [UTILITY] screen.
PRO DJ LINK (USB Export)
rekordbox music files and data can be exchanged with this unit using a memory device (flash memory, hard disk, etc.), eliminating the need to take a computer into the DJ booth. Such information as playlists, cues, loops and hot cues set in advance with rekordbox can be used for playback.
Connections
Switching hub
LAN cable
Audio cable
DJ player DJ Mixer
LAN cable
Computer
Audio cable
rekordbox
LAN cable
R
data is recorded
L
Rear panel
Power cord
PRO DJ LINK (LINK Export)
When a computer on which rekordbox is installed is taken into the DJ booth and connected to this unit using a LAN cable (CAT5e), USB cable or wire­less LAN (Wi-Fi) router, tracks in rekordbox can be selected and played. This makes it possible to use the information such as playlists, cues, loops and hot cues that have been set ahead of time with rekordbox for performances. Tracks in rekordbox can be selected and played when connected to a mobile device on which rekordbox (iOS/Android) is installed by USB cable or wireless LAN (Wi-Fi) router. Performances can be held using such information as playlists, cues, loops and hot cues that have been set ahead of time with rekordbox.
! With wired LAN or USB (LINK Export) connections, up to two computers on which rekordbox (Mac/Windows) is installed can be connected. ! With wireless LAN (Wi-Fi) connections, up to four computers or mobile devices on which rekordbox is installed can be connected.
En
Page 10
When making a wired connection
Computer Computer
To power outlet
To power outlet
Computer
Computer
! Use your cable to connect this unit with an iPod, iPhone or iPad. ! A switching hub (commercially available) may be necessary depending on the models to be combined, such as when connecting with a mixer that
has only one LAN port.
When connecting with a mixer that has enough LAN ports for all the DJ players and computers to be combined, connect directly to the LAN ports
on the mixer’s rear panel without using a switching hub.
! Driver software must be installed in advance when making a USB (LINK Export) connection with a computer on which rekordbox (Mac/Windows) is
installed. For details, see About the driver software on page 7 .
Mobile device on which rekordbox
USB cable
L
R
is installed
LAN cable×3
Audio cable×3
rekordboxrekordbox
LAN cable
Switching hub
LAN cable
Audio cable
DJ player×3
DJ mixer
Power cord
Rear panel
Using a wireless router and access points
! Use a wireless router (commercially available) and access point (commercially available) that conform to either IEEE802.11n or IEEE802.11ac, and
offer sufficient speeds. Depending on the signal conditions in the usage environment and the wireless router or access point, PRO DJ LINK con­nections may not operate properly.
Mobile device on which rekordbox is installed
Wireless router and access point
LAN cable
L
R
Rear panel
Power cord
rekordbox
LAN cable×3
Audio cable×3
DJ player×3DJ Mixer
rekordbox
Audio cable
iPods/iPhones/iPads that can be connected to this product
This product supports iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPad Pro (9.7-inch), iPad Pro (12.9-inch), iPad mini4, iPad Air2, iPad mini3, iPad Air, iPad mini2, iPad mini, iPad (3rd and 4th generation), iPad2 and iPod touch (5th gen­eration and 6th generation). For the latest supported devices, see the Pioneer DJ website (http://pioneerdj.com/support/).
En
10
Page 11
Connecting to a mixer with only one LAN port
PLAYER
When connecting to a mixer with only one LAN port using a switching hub, for optimum usage of rekordbox’s music file management functions, set the channel number of the mixer to which the audio or digital audio cable is connected and the player number displayed at the bottom left of the main unit display to the same number.
1
To change the player number, follow the procedure below.
1 Disconnect the USB device and LAN cable. 2 Touch [MENU (UTILITY)] for over 1 second to display the [UTILITY] screen. 3 Turn the rotary selector to select [PLAYER No.], then press the rotary selector. 4 Turn the rotary selector to select the player number, then press the rotary selector to enter it.
5 Touch [MENU (UTILITY)] to complete setting.
! When a storage device is connected to this unit, [PLAYER No.] is displayed in gray and the player number cannot be changed. In such a case,
change the player number after first disconnecting the storage device and then turning off the link by, for example, disconnecting the LAN cable.
Audio cable
AL GND
CH 1
CH 1
PHONO
L
R
CD/ LINE
Connections
En
11
Page 12

Using a DJ controller

To power outlet
USB cable
To power outlet
If you use a USB cable to connect this unit and a DJ controller, you can use the DJ controller to control some of the performance functions of this unit. For example, if you use DDJ-SP1, you can control functions such as the hot cue function and beat loop function. Furthermore, one DJ controller can be used to control up to four players connected with PRO DJ LINK.
! For the DJ controllers that can be used and function compatibility table, see the Pioneer DJ support site (http://pioneerdj.com/support/). ! Only players that support connecting a DJ controller can be controlled.
SYNC
DJ Controller
Switching hub
LAN cable×3
Audio cable×3
LAN cable
Audio cable
L
R
DJ player×3
DJ mixer
Rear panel
Power cord

Using the DJ software

This unit outputs the operation information of buttons, tempo adjustment dial, etc. in universal MIDI or HID format. When connected by a USB cable to a computer on which a MIDI- or HID-compatible DJ software is installed, the DJ software can be operated from this unit. The sound of the music file that is playing on the computer can be output from this unit. For details, see About the driver software on page 7 and Using the DJ software on page 37 .
Computer
DJ software
Audio cableAudio cable
DJ player DJ Mixer
USB cableUSB cable
L
R
Power cord
Rear panel
12
En
Page 13

Part names and functions

4
3
1
2
p
qr
8
b
9
a
c
e
d
5
6
7
fgh
i
j k
l
m
n
o

Control panel

Part names and functions
1 PLAY/PAUSE f button
This lights when playing tracks and flashes when in the pause mode.
= Pausing (p. 21 )
2 CUE button
This lights when a cue point is set (except during track searching),
and flashes when a new cue point can be set in the pause mode.
= Setting Cue (p. 23 )
3 SEARCH m, n buttons
The track is forwarded/reversed while the button is held in.
= Forward and reverse scanning (p. 21 )
4 TRACK SEARCH o, p buttons
Use these to search for the beginnings of tracks.
= Finding the beginnings of tracks (Track Search) (p. 21 )
5 DIRECTION REV button
Use this to turn reverse playback on and off.
= Playing in reverse (p. 22 )
6 IN/4BEAT (IN ADJUST) button
Use this to set and fine-adjust the loop in point.
Setting loops (p. 23 )
=
7 OUT (OUT ADJUST) button
Use this to set and fine-adjust the loop out point. = Setting loops (p. 23 )
8 RELOOP/EXIT button
Use this to return to loop playback (reloop) or cancel loop playback (loop exit). = Returning to Loop playback (Reloop) (p. 24 )
9 QUANTIZE button
Press this to use the quantize function. When the quantize function is set to on, points are automatically set to the nearest beat position when setting loop in points, loop out points, hot cues and cues. Also, the hot cue, loop, reverse and slip functions can be used with­out breaking the beat. ! When the quantize function is set to on, [QUANTIZE] and the
QUANTIZE beat size are displayed on the main unit display.
= Normal playback screen (display part) (p. 16 ) The quantize function does not work in the following situations ([QUANTIZE] is displayed in gray): ! When playing music files that have not been analyzed with
rekordbox
En
13
Page 14
a TIME MODE/AUTO CUE button
When pressed once, the main unit display’s time display mode (remaining time display or elapsed time display) switches. When pressed for over 1 second, auto cue turns on and off. = Setting auto cue (p. 23 )
b USB STOP button
Press for at least 2 seconds before disconnecting the USB device.
=
Disconnecting USB devices (p. 20 )
c USB indicator
This flashes when this unit is communicating with the USB device. The color of the USB indicator changes to the color set in the USB device.
=
Changing the color set in the USB device. (p. 34 )
d USB device insertion slot
Load the USB device here. = Connecting and disconnecting USB devices (p. 20 )
e Touch display
= Normal playback screen (display part) (p. 16 )
f BACK button
Press this once to return to the previous screen. Press for over 1 second to move to the top layer. = Playing media connected to or inserted in this unit (p. 20 )
g STANDBY indicator
This lights when in the standby mode. = Setting the auto standby mode (p. 36 )
h TAG TRACK/REMOVE button
Use these to add and remove tracks from the tag list. = Editing tag lists (p. 31 )
i Rotary selector
When selecting tracks or setting items, the cursor moves when the rotary selector is turned. Press the rotary selector to enter.
j SHORTCUT button
Use this to start the [TRACK], [PLAYLIST] and [SEARCH] category screens or to change the settings of this unit.
k TRACK FILTER/EDIT button
Tracks can be searched for by the tag information added to tracks using rekordbox or the information such as BPM and KEY. = Other browsing operations (p. 29 )
l VINYL SPEED ADJUST TOUCH/RELEASE control
= Adjusting the playback and stopping speeds (p. 22 )
m JOG MODE VINYL button
The mode switches between VINYL and CDJ each time this is pressed. When the VINYL mode is selected, the indicator lights. = Switching the jog dial mode (p. 22 )
n TEMPO ±6/±10/±16/WIDE button
Use this to switch the playing speed adjustment range.
Adjusting the playing speed (Tempo control) (p. 21 )
=
o MASTER TEMPO button
Use this to turn the master tempo function on and off.
= Adjusting the playing speed without changing the pitch (Master
Tempo) (p. 22 )
p TEMPO slider
Use this to adjust the track playing speed. = Adjusting the playing speed (Tempo control) (p. 21 )
q Jog dial
This can be used for such operations as scratching, pitch bending, etc. = Operating the jog dial (p. 22 )
r Jog dial display section
= Jog dial display section (p. 19 )
14
En
Page 15

Rear panel

12
For the terminals used for connections, see Descriptions of terminals on page 8 .
1 u switch
Turns this unit’s power on and off.
2 Kensington security slot
Part names and functions
En
15
Page 16

Normal playback screen (display part)

1
2
3
4
g
f
e
a b
c d
9
n mo
l
h
ijk
1 Player number (1 – 4)
This indicates the player number (1 – 4) assigned to this unit.
2 A. CUE
This lights when auto cue is set. = Setting auto cue (p. 23 )
3 HOT CUE AUTO LOAD
This is displayed when [HOT CUE AUTO LOAD] is turned on. = Calling out hot cues (p. 25 )
4 Information display section
The enlarged waveform analyzed with rekordbox, etc., is displayed here. ! The enlarged waveform color can be changed with rekordbox, or
[MENU (UTILITY)] or the [SHORTCUT] screen of the unit.
= Changing the color set in the USB device. (p. 34 ) ! If touching the waveform display during playback, the enlarged
waveform of the touched point is displayed.
5 Track names
You can set background color on rekordbox or this unit. = Changing the color set in the USB device. (p. 34 )
6 Phase Meter
This indicates the amount of divergence of the bars and beats with the master player when using the beat sync function. ! Touch this to switch the [PHASE METER] display. It can also
switched on the [SHORTCUT] screen.
7 Beat count down
! This indicates the number of bars or beats from the currently
playing position to the nearest stored cue point.
!
If touching the waveform display during playback, the number of
bars and beats from the current playing position to the touched point is displayed. The scale is displayed in 16-bar interval.
8 Key
This indicates the track’s key.
9 REMAIN
This lights when the time display is set to the remaining time.
a QUANTIZE
This is displayed when the quantize function is ON.
b QUANTIZE BEAT VALUE
This indicates the beat size of the quantize function.
En
16
765
8
c Time display (minutes, seconds and msec)
This displays the remaining time or elapsed time.
d ZOOM and GRID ADJUST mode display
When the rotary selector is pressed for over 1 second, the mode switches between the [ZOOM] mode and the [GRID ADJUST] mode. ! [ZOOM] mode: The waveform zooms in or out when the rotary
selector is turned.
! [GRID ADJUST] mode: When the rotary selector is turned, the
beat grid is adjusted.
! The beat grid can be adjusted using [MENU (UTILITY)]. = Adjusting the beat grid (p. 28 )
e MT
This lights when the master tempo is set.
= Adjusting the playing speed without changing the pitch (Master
Tempo) (p. 22 )
f Playing speed display
The value changes according to the position of the [TEMPO] slider.
g BPM display
Displays BPM (Beats Per Minute) of the track currently being played. ! The BPM measured by this unit may differ from the BPM indi-
cated on the audio source or that of a Pioneer DJ’s DJ mixer, etc. This is due to the different methods used for measuring the BPM, and is not a malfunction.
h Loop beat display
Beat count set in the loop is displayed.
i Playing speed adjustment range display
This indicates the range in which the playing speed can be adjusted with respect to the original playing speed recorded on the medium.
j Waveform display
This displays the sound as a waveform. The overall waveform color can be changed with rekordbox, or [MENU (UTILITY)] or the [SHORTCUT] screen of the unit.
=
Changing the color set in the USB device. (p. 34 )
k Playing address display/scale display (1-minute interval/16-bar interval)
The track is displayed as a bar graph. The current playback posi­tion is displayed as a white vertical line. When the elapsed time is displayed, the left edge of the graph lights. When the remaining time is displayed, the display turns off from the left side. The entire graph flashes slowly when there are less than 30 seconds remaining in the track, then begins flashing rapidly when less than 15 seconds remain.
Page 17
l Cue/loop/hot cue point display
This displays the position of cue point, loop point and hot cue point
that have been set using the mark.
m Cue/loop/hot cue point memory display
This displays the position of cue point, loop point and hot cue point
recorded on the USB device by using the mark.
n Cache meter
This indicates how much of the currently playing track is cached in
the memory.
o Track number display
This indicates the track number (01 – 999).
Part names and functions
En
17
Page 18

Normal playback screen (touch keys)

4
3
1
d
2
e
f
c
a b
56 89
1 SLIP
= Using the slip mode (p. 26 )
2 USB
Touch to play a music file stored on a USB device. = Playing media connected to or inserted in this unit (p. 20 )
3 LINK
Touch to play a music file on some other DJ player. = Playing music files on other DJ players (p. 21 ) Touch this to use DJ software for performances. = Using the DJ software (p. 37 )
4 rekordbox
Touch to play a music file on rekordbox. = Playing the rekordbox library on a computer or mobile device
(p. 21 )
5 BROWSE (SEARCH)
Touch to display the Browse screen. Touch [BROWSE (SEARCH)] for over 1 second to search tunes.
= Switching to the browse screen (p. 28 ) = Searching for tracks (p. 29 )
6 TAG LIST
Touch to display the Tag list screen. = Editing tag lists (p. 31 )
7 INFO (LINK INFO)
Touch to display track details. If you touch and hold [INFO (LINK INFO) details of the track loaded in another DJ player are displayed. = Displaying the details of the currently loaded track (p. 33 )
] for over 1 second, the
8 MENU (UTILITY)
Touch to display menu screen. If you touch for over 1 second, [UTILITY] screen is displayed. = Displaying the [UTILITY] screen (p. 35 )
9 PERFORM
Touch to display the Performance screen.
a MEMORY
Use this to store cue and loop points in the memory.
=
Storing cue or loop points (p. 25 )
b DELETE
Use this to delete cue and loop points. = Deleting stored cue or loop points (p. 25 )
7
c CUE/LOOP CALL c(LOOP 1/2X), d(LOOP 2X)
Use these to call out stored cue and loop points. = Calling out stored cue or loop points (p. 25 ) When pressed during loop playback, the loop is cut or extended.
= Cutting loops (Loop Cut) (p. 24 ) = Extending loops (loop doubling) (p. 24 )
d BEAT SYNC (INST.D.)
Use this to turn on the beat sync function. = Using the beat sync function (p. 27 )
e BEAT SYNC MASTER
Use this to set the track loaded in this unit as the master for the beat sync function. = Using the beat sync function (p. 27 )
f NEEDLE SEARCH
= Playing from the position on the waveform which was touched
(p. 27 )
18
En
Page 19

Performance screen

41 532
1 2 3 4 5
Part names and functions
1 HOT CUE/BEAT JUMP
Use this to switch between [HOT CUE] and [BEAT JUMP] modes.
2 HOT CUE DELETE (CALL)
= Deleting hot cues (p. 25 )
= Calling out hot cues (p. 25 )
3 HOT CUE BANK
Use this to switch between [HOT CUE] (A, B, C, D) and [HOT CUE]
(E, F, G, H).

Jog dial display section

4 HOT CUE (A to H)/BEAT JUMP
! In [HOT CUE] mode = Playing hot cues (p. 24 ) ! In [BEAT JUMP] mode = Using beat jump (p. 26 )
Loop move function can be used in loop status. = Using loop move (p. 26 )
5 BEAT LOOP
= Setting the loop automatically based on the track’s tempo (Auto
Beat Loop) (p. 24 )
4 Jog touch detection display
When the jog mode is set to VINYL, the top of the jog dial lights when pressed.
5 VINYL
This lights when the jog mode is set to VINYL. = Switching the jog dial mode (p. 22 )
1 Operation display
This displays a playback position with 1 loop of 1.8 seconds. It turns
during playback and stops in the pause mode.
2 Cue point display/slip play display
3 Audio memory status display
This flashes when the audio memory is being written. It stops flash-
ing, remaining lit, when writing is completed.
It may not be possible to perform the real time cue operation while
the audio memory is being written.
The display also flashes when there is not enough memory due to
scratch play.
En
19
Page 20

Basic Operation

USB STOP butto

Turning the power on

1 Plug the power cord into a power outlet after all the connections between devices are completed.
= Connections (p. 8 )
2 Press the [u] switch.
This unit’s indicators light up and the power turns on.

Turning the power off

Press the [u] switch.
This unit’s power turns off. ! Do not remove the USB device or turn Off the power of the unit while
the USB indicator is flashing. The management data in the unit may get deleted. Also, the USB device may become unreadable.

Connecting and disconnecting USB devices

Connecting USB devices
USB indicator
n
2 Disconnect the USB device.
3 Close the cover of the USB device insertion slot.

Playback

This section describes basic track selection operations and how to switch the screen.
= Playing music files on other DJ players (p. 21 ) = Playing the rekordbox library on a computer or mobile device (p. 21 )
Playing media connected to or inserted in this unit
1 Load the medium in this unit.
= Connecting USB devices (p. 20 )
2 Touch [USB].
The tracks or folders are displayed on a list.
1 Press the [u] switch to turn the unit’s power on.
2 Open the cover of the USB device insertion slot and connect the USB device.
The USB indicator blinks during communication. The color of the USB indicator changes to the color set in the USB device.
= Changing the color set in the USB device. (p. 34 )
Disconnecting USB devices
1 Press and hold the [USB STOP] button until the USB indicator stops flashing.
! Do not remove the USB device or turn Off the power of the unit while
the USB indicator is flashing. The management data in the unit may get deleted. Also, the USB device may become unreadable.
The contents of the media to be displayed on the main unit display can be switched. ! [USB]: Displays music files in the connected USB device or mobile
device on which rekordbox is installed.
! [LINK]: Displays music files in other DJ player. ! [rekordbox]: Displays music files in rekordbox.
3 Turn the rotary selector.
Move the cursor and select the item.
! Press the rotary selector to move to a lower level in the folder. Press
the [BACK] button to return to the level above.
!
If the [BACK] button is pressed for over 1 second or the media but-
ton of the media being browsed is touched, the display moves to the topmost level.
! Tracks in the currently playing track’s category/folder of can also be
selected using the [TRACK SEARCH o, p] buttons.
4 Select the track and press the rotary selector.
When the track is loaded, the screen switches to the normal playback screen.
= Normal playback screen (display part) (p. 16 )
20
En
Page 21
! When [LOAD LOCK] on the [UTILITY] menu is set to [LOCK], it is
not possible to load other tracks during playback. Either set [LOAD
LOCK] to [UNLOCK] or press the [PLAY/PAUSEf] button to
pause, then load the track. ! When auto cue is turned on, the disc pauses at the audio start posi-
tion. In this case, press the [PLAY/PAUSEf] to start playback.
= Setting auto cue (p. 23 )
Playing music files on other DJ players
The contents of the storage device installed in other DJ players con­nected to PRO DJ LINK or mobile device in which rekordbox is installed are displayed on the unit screen.
1 Set the storage device, or mobile device in which rekordbox is installed, to another player while is connecting to PRO DJ LINK.
2 Touch [LINK].
The tracks and folders of the recording medium connected to another player or of the mobile device on which rekordbox is installed are displayed. ! When multiple media are connected, a screen for selecting the
medium appears.
3 Turn the rotary selector.
Move the cursor and select the item.
3 Select the track and press the rotary selector.
When the track is loaded, the screen switches to the normal playback screen. The track is loaded and playback starts.
= Normal playback screen (display part) (p. 16 )
Load previous tracks
The names of the last seven tracks that were played can be displayed and these tracks can be selected.
1 Display the normal playback screen.
= Normal playback screen (display part) (p. 16 )
2 Touch [MENU (UTILITY)].
3 Turn the rotary selector to select the track, then press the rotary selector to set playback.
! If you touch [MENU (UTILITY)] or press [BACK] button, the song
name display turns Off.
Pausing
During playback, press the [PLAY/PAUSE f] button.
The [PLAY/PAUSEf] and [CUE] buttons flash. When the [PLAY/PAUSEf] button is pressed again, playback resumes.
Forward and reverse scanning
Basic Operation
4 Select the track and press the rotary selector.
The track is loaded and playback starts. When the track is loaded, the screen switches to the normal playback screen.
= Normal playback screen (display part) (p. 16 )
If the medium contains the rekordbox library
If the USB device connected to this unit or another DJ player connected by PRO DJ LINK contains rekordbox library information, the rekordbox library is displayed. ! Music files are displayed in the categories (album, artist, etc.) set
with rekordbox. ! The types of items on the category menu can be changed in rekord-
box’s preferences.
Playing the rekordbox library on a computer or mobile device
Music files are displayed in the categories (album, artist, etc.) set with rekordbox.
1 Touch [rekordbox].
The rekordbox library is displayed on this unit’s main unit display.
! With wireless LAN (Wi-Fi) connections, if [Please push the rotary
selector to permit mobile connection.] appears on this unit’s main
unit display when connecting, connection is possible by pressing the
rotary selector. ! Touch [USB] when you want to select a mobile device connected to
USB. Touch [LINK] when you want to select a mobile device connected to
other DJ players connected to PRO DJ LINK.
2 Turn the rotary selector.
Move the cursor and select the item.
Press one of the [SEARCH m, n] buttons.
The track is scanned in the forward or reverse direction while one of the [SEARCH m, n] buttons is pressed.
It is not possible to move to a different category or folder during
!
forward or reverse scanning.
Finding the beginnings of tracks (Track Search)
Press one of the [TRACK SEARCH o, p] buttons.
Press the [p] to move to the beginning of the next track. When [o] is pressed, playback returns to the beginning of the cur­rently playing track. When pressed twice in a row, playback returns to the beginning of the previous track. ! It is not possible to move to a different category or folder with the
track search function.
! rekordbox (iOS/Android) tracks operate in the single mode, so
searching for the beginnings of other tracks is not possible.
Adjusting the playing speed (Tempo control)
Press the [TEMPO ±6/±10/±16/WIDE] button.
The [TEMPO] slider’s adjustment range switches each time the button is pressed. The adjustment range setting is indicated on the main unit display.
Setting value Units of adjustment
±6
±10
±16
WIDE
[WIDE] adjustment area is ±100 % when playing back formats other than ALAC and FLAC, and from –100 % to +50 % for ALAC and FLAC. Playback stops when –100 % is set. ! The adjustment range is set to ±10 % when the power is turned on.
0.02 %
0.05 %
0.05 %
0.5 %
En
21
Page 22
Move the [TEMPO] slider forward or backward.
The tempo increases when moved to the [+] side (down), decreases when moved to the [–] side (up). The rate at which the playing speed is changed is indicated on the playing speed display.
Adjusting the playing speed without changing the pitch (Master Tempo)
1 Press the [MASTER TEMPO] button.
The [MASTER TEMPO] button and [MT] indicator on the main unit display light.
2 Move the [TEMPO] slider forward or backward.
The pitch does not change even when the playing speed is changed with the [TEMPO] slider.
! The sound is digitally processed, so the sound quality decreases. ! The master tempo setting remains in the memory, even when the
power is turned off.
Scratch
When the jog mode is set to the VINYL mode, tracks can be played according to the direction and speed at which the jog dial is spun by spinning the top of the jog dial while pressing it.
1 Press the [JOG MODE VINYL] button.
Set the jog mode to VINYL.
2 During playback, press the top of the jog dial.
Playback slows then stops.
3 Spin the jog dial in the desired direction and at the desired speed.
The sound is played according to the direction and speed at which the jog dial is spun by spinning the top of the jog dial while pressing it.
4 Release your hand from the top of the jog dial.
Normal playback resumes.
Playing in reverse
! When the quantize function is on, there may be a slight delay in
operation of this function in order to synchronize the beat.
Press the [DIRECTION REV] button.
The button lights and reverse playback starts. ! When the music files are recorded in a folder structure, only tracks
within the same category/folder can be played in reverse. Also note that reverse playback may not start immediately.
The direction in which the playing speed is increased or decreased
!
according to the direction in which the jog dial is turned is reversed.
! When such operations as track searching and loop playback are
performed during reverse playback, the audio memory status display on the jog dial display section flashes and scratch play may not be possible.

Operating the jog dial

! The top of the jog dial has an embedded switch. Do not place objects
on the jog dial or subject it to strong forces.
! Water or other liquids getting into the set will lead to malfunction.
Switching the jog dial mode
Press the [JOG MODE VINYL] button.
The mode switches between VINYL and CDJ each time the button is pressed.
VINYL mode: When the top of the jog dial is pressed during play-
back, playback stops, and when the jog dial is spun at this time sound is produced according to the direction in which the jog dial is spun.
CDJ mode: Playback does not stop even when the top of the
jog dial is pressed. Such operations as scratching cannot be performed.
! The jog dial mode is retained even when the power is turned off.
Pitch bend
During playback, spin the outer section of the jog dial without touching the top.
The playing speed increases when spun clockwise, decreases when spun counterclockwise. When spinning is stopped, playback returns to the normal speed.
When the jog mode is set to the CDJ mode, the same operation can
!
be performed by spinning the top of the jog dial.
Frame search
In the pause mode, spin the jog dial.
The pause position can be moved. ! The position is moved in the direction of the playback when the jog
dial is spun clockwise, in the reverse direction when it is spun coun­terclockwise. The position moves 1.8 seconds for one revolution of the jog dial.
Super fast search
Turn the jog dial while pressing one of the [SEARCH m, n] buttons.
The track is fast-forwarded/fast-reversed in the direction in which the jog dial is spun. ! When the [SEARCH m, n] button is released, this function is
canceled.
! When you stop the jog dial from spinning, normal playback resumes. ! The fast-forward/fast-reverse speed can be adjusted according to the
speed at which the jog dial is spun.
Super fast track search
Turn the jog dial while pressing one of the [TRACK SEARCH o, p] buttons.
The track is advanced at high speed in the direction in which the jog dial was turned.

Adjusting the playback and stopping speeds

This function is only valid when the jog mode is set to the VINYL mode. Use this to adjust the speed at which playback slows down and stops when the top of the jog dial is pressed and the speed at which normal playback resumes when the top of the jog dial is released.
Turn [VINYL SPEED ADJUST TOUCH/RELEASE].
The speed increases when turned clockwise, decreases when turned counterclockwise. ! When the jog mode set to the VINYL mode, the speed at which play-
back starts and stops when [PLAY/PAUSEf] is pressed changes simultaneously.
22
En
Page 23

Advanced Operation

Setting Cue

1 During playback, press the [PLAY/PAUSE f] button.
Playback is paused.
2 Press the [CUE] button.
The point at which the track is paused is set as the cue point. The [PLAY/PAUSEf] indicator flashes and the [CUE] indicator lights. No sound is output at this time. ! When a new cue point is set, the previously set cue point is canceled.
Adjusting the cue point position
1 Press the [SEARCH m, n] buttons while pausing at the cue point.
The [PLAY/PAUSEf] and [CUE] indicators flash.
2 Press one of the [SEARCH m, n] buttons.
The cue point can be fine-adjusted in steps of 0.5 frames.
! The same operation is possible using the jog dial. ! The approximate time for 0.5 frame is 6.7 msec.
3 Press the [CUE] button.
The position at which the button was pressed is set as the new cue point. ! When a new cue point is set, the previously set cue point is canceled.
Returning to Cue Point (Back Cue)
During playback, press the [CUE] button.
The set immediately returns to the currently set cue point and pauses. ! When the [PLAY/PAUSE f] button is pressed, playback starts
from the cue point.
Checking Cue Point (Cue Point Sampler)
Keep pressing the [CUE] button after returning to the cue point.
Playback starts from the set cue point. Playback continues while the [CUE] button is pressed. ! If the [PLAY/PAUSE f] button is pressed while sampling the cue,
playback continues even if the [CUE] button is released.
Setting Cue Point during playback (Real Time Cue)
During playback, press the [IN/4BEAT (IN ADJUST)] button at the point at which you want to set the cue point.
The point at which the button was pressed is set as the cue point.
Setting auto cue
When a track is loaded or the track search operation is performed, the silent section at the beginning of the track is skipped and the cue point is automatically set at the point immediately before the sound starts.
Press the [TIME MODE/AUTO CUE] button for over 1 second.
[A. CUE] lights.
! When [TIME MODE (AUTO CUE)] is pressed again for at least 1
second, auto cue is set to off.
! The auto cue level setting remains in the memory, even when the
power is turned off.

Setting loops

This function can be used to play specific sections repeatedly. ! When the quantize function is on, there may be a slight delay in
operation of this function in order to synchronize the beat.
1 During playback, press the [IN/4BEAT (IN ADJUST)] button at the point at which you want to start loop playback (the loop in point).
Loop In Point is set. ! This operation is not necessary if you want to set the currently set
cue point as the loop in point.
2 Press the [OUT (OUT ADJUST)] button at the point at which you want to end loop playback (the loop out point).
The loop out point is set, and loop playback begins.
Fine-adjusting the loop in point (loop in adjust)
1 During loop playback, press the [IN/4BEAT (IN ADJUST)] button.
The [IN/4BEAT (IN ADJUST)] button starts flashing rapidly, and the [OUT (OUT ADJUST)] button turns off. The loop in point’s time is displayed on the main unit display.
2 Press one of the [SEARCH m, n] buttons.
The loop in point can be adjusted in units of 0.5 frames.
! The same operation is possible using the jog dial. ! The loop in point’s range of adjustment is ±30 frames. ! The loop in point cannot be set at a point beyond the loop out point.
3 Press the [IN/4BEAT (IN ADJUST)] button.
Loop playback resumes. ! Normal loop playback also resumes if no operation is performed for
over 10 seconds.
Fine-adjusting the loop out point (loop out adjust)
1 During loop playback, press the [OUT (OUT ADJUST)] button.
The [OUT (OUT ADJUST)] button starts flashing rapidly, and the [IN/4BEAT (IN ADJUST)] button turns off. The loop out point’s time is displayed on the main unit display.
2 Press one of the [SEARCH m, n] buttons.
The loop out point can be adjusted in units of 0.5 frames.
! The same operation is possible using the jog dial. ! The loop out point cannot be set at a point before the loop in point.
3 Press the [OUT (OUT ADJUST)] button.
Loop playback resumes.
Normal loop playback also resumes if no operation is performed for
!
over 10 seconds.
Advanced Operation
En
23
Page 24
Canceling Loop playback (Loop Exit)
During loop playback, press the [RELOOP/EXIT] button.
Playback continues beyond the Loop Out Point without returning to the Loop In Point.
Emergency loops
With this unit, a 4-beat loop is set automatically to prevent the sound from being interrupted if a track can no longer continue to play. ! DJ playback is restricted during emergency looping. To cancel emer-
gency looping, load the next track.
Returning to Loop playback (Reloop)
After canceling loop playback, press the [RELOOP/EXIT] button during playback.
Playback returns to the previously set Loop In Point, and Loop playback resumes.
Setting the loop automatically based on the track’s tempo (Auto Beat Loop)
A loop with the specified number of beats is set and loop playback starts.
1 Touch [PERFORM].
2 Touch the number of beat for [BEAT LOOP] during playback.
Loop playback starts with the selected beat. ! When a track that has not been analyzed is playing, the loop is set
according to the track’s BPM.
! If the track’s BPM cannot be detected, the BPM is set to 130.
4 beat loop
During playback, press the [IN/4BEAT (IN ADJUST)] button for over 1 second.
A loop of 4 beats starting from the point at which the button was pressed is set automatically according to the BPM of the currently playing track, and loop playback starts. ! If the track’s BPM cannot be detected, the BPM is set to 130.
Cutting loops (Loop Cut)
Touch [LOOP 1/2X] during loop playback.
The Loop playing time is cut in half each time the touch key is touched.
Extending loops (loop doubling)
Touch [LOOP 2X] during loop playback.
The Loop playing time is doubled each time the touch key is touched.

Setting Hot Cue

When a hot cue is set, that point can be called out and played instanta­neously. Up to 8 hot cues can be set per music track. ! Touch [BANK] to switch between [HOT CUE] (A, B, C, D) and
[HOT CUE] (E, F, G, H).
! When the quantize function is on, there may be a slight delay in
operation of this function in order to synchronize the beat.
1 Touch [PERFORM].
2 During playback or pause, touch one of the [HOT CUE] (A to H) at the point at which you want to set a hot cue.
The point touched is set as a hot cue, and the corresponding [HOT CUE] lights. ! During loop playback, the loop is registered as a hot cue. The direction of playback is not recorded for hot cues. While the hot cue is being recorded, it is not possible to record other
hot cues, to set cue points, to scan in the forward or reverse direction or to scratch.
! When a hot cue is set during scratch play, playback may stop
temporarily.
! Hot cues cannot be set to the [HOT CUE] (A to H) buttons that a hot
cue is already set to. To set a new hot cue, first delete the hot cue stored on the button.
Playing hot cues
1 Touch [PERFORM].
2 This switches to the hot cue playback mode.
When set to hot cue delete or call mode, touch [HOT CUE DELETE(CALL)].
3 Touch any [HOT CUE] (A to H) during playback or pause.
The stored hot cue is called out and playback starts. ! The information of the loop play stored on [HOT CUE] is different
from the loop play set by the [IN/4BEAT (IN ADJUST)] and [OUT (OUT ADJUST)] buttons.
! After the loop stored on [HOT CUE] is called out, you can cancel the
loop playback with the [RELOOP/EXIT] button. You can also fine-tune the loop in point with the [IN/4BEAT (IN ADJUST)] button or the loop out point with the [OUT (OUT ADJUST)] button. Adjusting this alters the information recorded in [HOT CUE] (A to H).
Using active loops
Load a track for which an active loop has been set with rekordbox.
One loop stored in rekordbox can be played back as the active loop. The set active loop point is indicated with a red line on the waveform display, as shown below.
When the set point is reached, the loop is set automatically and loop playback begins.
En
24
Lighting color of the [HOT CUE] (A to H) buttons
When [HOT CUE COLOR] of the [UTILITY] menu is set to [OFF]
Contents recorded as hot cue Light color
Cue Point Green
Loop Orange
Nothing is recorded. Not lit
When [HOT CUE COLOR] of the [UTILITY] menu is set to [ON]
Contents recorded as hot cue Light color
Cue Point
Loop Orange
Nothing is recorded. Not lit
! The hot cue colors can be set with rekordbox.
Fixed color of each button
Page 25
Calling out hot cues
1 Load the track whose hot cue you want to call out.
2 Touch [PERFORM].
3 Touch [HOT CUE DELETE (CALL)] for over 1 second.
The unit switches to the hot cue call-out mode and [HOT CUE] (A to H) on which a hot cue is stored flash.
4 Touch [HOT CUE] (A to H) whose hot cue you want to call out.
The hot cue is called out, and [HOT CUE] (A to H) lights in green or orange. If the hot cue color has been set using rekordbox or this unit, the button lights in the set color. ! If you do not want to call out the hot cue, touch [HOT CUE DELETE]
(CALL) without pressing the [HOT CUE] (A to H) button. The light
turns off when hot cue is not called out.
!
If you accidentally cancel the hot cue call-out mode, press the
[HOT CUE DELETE] (CALL) button again and hold for at least one
second.
 Calling out hot cues automatically when tracks
are loaded
The player settings can be changed to automatically call out hot cues when tracks are loaded.
1 Press the [SHORTCUT] button.
2 Select [ON], [rekordbox SETTING] or [OFF] of [HOT CUE AUTO LOAD] on the [SHORTCUT] screen.
[ON]:
is displayed for all tracks and hot cues are automatically
called out when the tracks are loaded. Hot cues are also auto­matically called out when the track search is performed.
[A. HOT CUE] on the main unit display lights in red.
[rekordbox SETTING]:
is displayed only for the tracks set with rekordbox, and hot
cues are automatically called out when the tracks displayed with are loaded. Hot cues are not called out when the track search is performed.
[A. HOT CUE] on the main unit display lights in white.
[OFF]:
is not displayed. Hot cues are not called out when tracks are
loaded.
! The setting can also be changed in [UTILITY].
Canceling the hot cue call out mode
Perform one of the operations below to cancel the hot cue call out mode.
Call out all [HOT CUE] (A to H). Touch [HOT CUE DELETE (CALL)].
— — Change the track to be played.
Deleting hot cues
1 Touch [HOT CUE DELETE (CALL)].
The mode switches to delete mode.
2 Press one of the [HOT CUE] (A to H) buttons.
The hot cue stored on the corresponding button is deleted, and a new hot cue can be stored on the button.

Storing cue or loop points

1 Set Cue Point or Loop Point.
2 Touch [MEMORY].
[ MEMORY] is displayed on the main unit display for several seconds, then the point information is stored on the USB device.
Stored cue and loop points are indicated [b] at the top of the waveform display. ! To store loop points, touch [MEMORY] during loop playback. The
stored loop points are shown on the playing address display.
Calling out stored cue or loop points
1 Load the track whose cue or loop points you want to call out.
2 Touch [CUE/LOOPCALLc] or [CUE/LOOPCALLd].
To call a point before the currently playing position, touch [CUE/LOOPCALLc]. To call out a point after the currently playing posi­tion, touch [CUE/LOOP CALLd]. The track cues to the called out point and pauses. ! When multiple points are stored, a different point is called out each
time the button is pressed.
! Loops set as active loops can also be called out as stored loops by
rekordbox.
! If a comment is set to the called out point by rekordbox, the com-
ment is displayed in the area where the track name is displayed.
3 Touch [PLAY/PAUSEf].
Normal or loop playback starts from the point that was called out.

Deleting stored cue or loop points

1 Load the track containing the cue point or loop points you want to delete.
2 Touch [CUE/LOOPCALLc] or [CUE/LOOPCALLd] to call out the point to be deleted.
The track cues to the called out point and pauses. ! When multiple points are stored, a different point is called out each
time the buttons [CUE/LOOP CALL c] or [CUE/LOOP CALL d] are touched.
3 Touch [DELETE].
[ DELETE] is displayed on the main unit display, then the selected point information is deleted. ! When a stored loop set as an active loop is deleted, the active loop is
also deleted.

Setting the cue point for auto cueing

The cue point to be set as the auto cue can be selected using one of the methods below.
Setting the cue point by the acoustic pressure level identified as a silent section (8 levels)
–36 dB, –42 dB, –48 dB, –54 dB, –60 dB, –66 dB, –72 dB and –78 dB
Automatically setting stored cues as cue points
The stored cue point in [MEMORY] nearest to the beginning of the track is set as the cue point for auto cueing.
When [MEMORY] is set, [A. CUE] lights in white on the main unit
!
display. The setting of the cue point for auto cueing can be changed using one of the methods below.
1 Touch [MENU (UTILITY)] for over 1 second.
The [UTILITY] screen is displayed.
2 Turn the rotary selector then press it.
Select [AUTO CUE LEVEL].
3 Turn the rotary selector then press it.
Select the acoustic pressure level or [MEMORY].
Advanced Operation
En
25
Page 26

Using beat jump

The playback position can be moved according to the length of the selected beat. ! If a loop is set, it operates as a loop move.
1 Touch [PERFORM].
2 Select the length of the beat and touch.
The playback position is moved according to the length of the selected beat.
! If the track’s BPM cannot be detected, the BPM is set to 130. ! When the quantize function is on, the sound is matched to the beat,
so there may be a slight delay in the function’s operation.

Using loop move

The playback position of the loop can be moved according to the length of the selected beat.
1 Touch [PERFORM].
2 Set the loop.
3 Select the length of the beat and touch.
The loop playback position is moved according to the length of the selected beat.

Using the slip mode

When the slip mode is turned on, normal playback with the original rhythm continues in the background while in the pause (vinyl mode), scratch play, loop play, hot cue play and reverse play modes. When the slip mode is canceled, normal playback resumes from the point reached while the slip mode was turned on. ! When the quantize function is on, there may be a slight delay in
operation of this function in order to synchronize the beat.
(slip beat loop, slip reverse, slip hot cue and slip loop move only)
Screen display in slip mode
! When in slip mode, [SLIP] on the screen bottom left lights up in blue. ! During sleep mode, the current play position is indicated by a yel-
low line on the main unit’s waveform display (overall waveform or enlarged waveform). The position playing in the background is indicated by a white line on the main unit display’s waveform display (overall waveform). It is also displayed on the jog dial’s slip play display.
! If the track’s BPM cannot be detected, the BPM is set to 130. ! When the quantize function is on, the sound is matched to the beat,
so there may be a slight delay in the function’s operation.
Slip pausing
1 Press the [JOG MODE VINYL] button.
Set the jog mode to VINYL.
= Switching the jog dial mode (p. 22 )
2 Touch [SLIP].
The mode switches to the slip mode.
3 During playback, press the [PLAY/PAUSE f] button.
Normal playback continues in the background even while in the pause mode.
4 Press the [PLAY/PAUSE f] button to cancel the pause mode.
! When the slip pause mode is canceled, normal playback of the
sound that was playing in the background resumes. At this time, the value adjusted with the [VINYL SPEED ADJUST TOUCH/RELEASE] control is disabled and playback starts at the normal speed.
Slip scratching
1 Press the [JOG MODE VINYL] button.
Set the jog mode to VINYL.
=
Switching the jog dial mode (p. 22 )
2 Touch [SLIP].
The mode switches to the slip mode.
3 During playback, press the top of the jog dial.
The scratch play mode is set. Normal playback continues in the background even while scratching.
4 Release your hand from the top of the jog dial.
Normal playback of the sound that was playing in the background resumes.
26
En
Page 27
Slip looping
1 Touch [SLIP].
The mode switches to the slip mode.
2 Press the [IN/4BEAT (IN ADJUST)] button, then press the [OUT (OUT ADJUST)] button.
Loop playback starts. Normal playback continues in the background even during loop playback.
! Loops of over 8 seconds cannot be set. ! The same operation is performed when the [IN/4BEAT (IN ADJUST)]
button is pressed for over 1 second and a loop is set.
3 Press the [RELOOP/EXIT] button.
Looping is canceled, and normal playback of the sound that was playing in the background resumes.
Slip beat looping
1 Touch [SLIP].
The mode switches to the slip mode.
2 Touch [PERFORM].
3 Touch and hold the beat selected in [BEAT LOOP].
The loop is set automatically and loop playback begins. Normal playback continues in the background even during loop playback.
4 Release [BEAT LOOP].
Normal playback of the sound that was playing in the background resumes.
5 Press the [RELOOP/EXIT] button.
The last loop that was set is played and the slip loop mode is set. ! When slip beat looping is canceled after selecting a different beat
without releasing [BEAT LOOP], the loop set first (during playback) is called out with the [RELOOP/EXIT] button.
Slip loop move
Touching the length of the beat during the slip loop activates the slip loop move mode.
1 Touch [SLIP].
The mode switches to the slip mode.
2 Touch [PERFORM].
3 Select and continue to touch and hold the length of the beat during the slip loop playback.
The loop starts moving. Normal playback continues in the background even when the slip loop move mode. ! Depending on the length of the loop, the loop move may not be
enabled.
4 Release your finger.
This cancels the slip loop move and returns to the slip loop playback before playing back the slip loop move.
! Slip reverse play is automatically cancelled after 8 beats have
elapsed from the position at which the [DIRECTION REV] button was
pressed. Normal playback of the music playing in the background
resumes. ! If [DIRECTION REV] button is pressed again before 8 beats have
elapsed, the slip reverse play is cancelled and the normal playback of
the sound that was playing in the background resumes.
Slip hot cue
1 Touch [SLIP].
The mode switches to the slip mode.
2 Touch [PERFORM].
3 Touch and hold one of [HOT CUE] (A to H).
Hot cueing begins. While [HOT CUE] (A to H) is touched, background playback continues normally. ! At the point 4 beats after hot cueing began, the slip hot cue mode is
automatically canceled and normal playback of the sound that was
playing in the background resumes.
4 Remove your finger from [HOT CUE] (A to H).
If [HOT CUE] (A to H) is released before 4 beats elapse from the start­ing position of the hot cue, normal playback of the sound playing in the background resumes.
Canceling the slip mode
Touch [SLIP] in slip mode.
The slip mode is canceled. ! The slip mode is also cancelled when a new track is loaded.

Playing from the position on the waveform which was touched

Touch the waveform with your finger to easily play the audio starting from the position touched. Keep touching the waveform and move your finger to move to the desired position. You can perform track search by touching the waveform only in the fol­lowing conditions.
In the pause mode While the jog dial is being pressed with the jog mode set to VINYL
Touch the waveform during pause.
The current playing position on the playing address display moves to the touched point. ! If you move your finger quickly, the playing address display may not
be shown properly.
Advanced Operation
Slip reverse
1 Touch [SLIP].
The mode switches to the slip mode.
2 During playback, press the [DIRECTION REV] button.
The button lights and reverse playback starts. Normal playback continues in the background even during reverse playback.

Using the beat sync function

When beat sync is turned on, the BPM and beat position of tracks played on this unit can automatically be synchronized with the DJ player con­nected by PRO DJ LINK that is set as the sync master. ! The beat sync function does not operate for tracks that have not be
analyzed with rekordbox.
1 Touch [BEAT SYNC MASTER] of the DJ player to use sync master.
Set the DJ player you want to be the sync master.
En
27
Page 28
When the beat sync function is on, the BPM display on the DJ player set as the sync master changes to orange. ! rekordbox (Mac/Windows) can also be set as the sync master.
For the procedure to set rekordbox (Mac/Windows) as a sync
master, see the rekordbox (Mac/Windows) user’s manual.
2 Touch [BEAT SYNC (INST.D.)].
The BPM and beat position of the currently playing track are synchro­nized to the sync master. ! During synchronization, tempo control with the tempo slider is
disabled and the playing speed display switches to the tempo slider position’s BPM display, displayed in gray.
Changing the DJ player set as the sync master
The sync master can be changed to another DJ player connected by PRO DJ LINK as described below.
Change or pause the track on the DJ player set as the sync master. Touch [BEAT SYNC MASTER] of the DJ player set as the sync
master.
Touch [BEAT SYNC MASTER] of the DJ player not set as the sync
master.
Starting playback from the same playback position as the track loaded in the DJ player set as the sync master
You can start playback of the track loaded in the DJ player not set as the sync master from the same playback point as the track loaded in the DJ player set as the sync master. For details on the operations, see the following. ! Load the track loaded in the DJ player set as the sync master to the
DJ player not set as the sync master.
! Touch [BEAT SYNC (INST.D.)] on DJ players other than the sync
master for at least one second.
Canceling synchronization

Operating the XDJ-1000MK2 in combination with other devices

When connected by a LAN cable to a Pioneer DJ’s DJ mixer, operations such as starting playback on this unit can be controlled with the DJ mixer’s fader.
Connect this unit to a Pioneer DJ’s DJ mixer beforehand. For instruc-
!
tions on connecting, see Connections on page 8 .
! For details on player number settings, see Connecting to a mixer
with only one LAN port on page 11 .
! Also refer to the description of the fader start function included in
the operating instructions of Pioneer DJ’s DJ mixer.
Starting playback using a DJ mixer’s fader (Fader Start)
1 Connect this unit to a Pioneer DJ’s DJ mixer using a LAN cable.
For instructions on connecting, see Basic style on page 9 .
2 Turn on the DJ mixer’s fader start function.
3 Set cues on this unit.
4 Move the DJ mixer’s channel fader or cross fader.
This unit’s pause mode is canceled and the track is played instantaneously. ! When the channel fader or cross fader is set back to its original posi-
tion, playback cues back to the set cue point and the pause mode is set (Back Cue).

Browsing tracks

The various devices and the rekordbox library on the connected com­puter can be browsed to display a list of the tracks. ! When a USB device that does not contain the rekordbox library infor-
mation is browsed, the folders and tracks (music files) are displayed in a list with a tree structure.
Touch [BEAT SYNC (INST.D.)].
! If the synchronized playing tempo (BPM) and the slider posi-
tion’s tempo (BPM) do not match, the playback continues by maintaining the synchronized playing tempo (tempo control with the [TEMPO] slider remains disabled). Normal operation is restored when the position of the [TEMPO] slider is moved to the synchro­nized playing tempo position.
! If the pitch is bent using the DJ player not set as the sync master, the
synchronization is canceled and [BEAT SYNC (INST.D.)] blinks.

Adjusting the beat grid

The enlarged waveform displays the beat grid with red lines. The beat grid can be adjusted by the following procedure.
1 Press the rotary selector for at least 1 second.
The mode switches to the [GRID ADJUST] mode.
2 When the rotary selector is turned, the beat grid is adjusted.
You can adjust from the menu screen by touching [MENU (UTILITY)].
[RESET]: Resets the adjusted beat grid. [SNAP GRID (CUE)]: Moves the first beat to the position of the
currently set cue.
[SHIFT GRID]: Reflects the results adjusted during synchroniza-
tion (pitch bend, etc.) on the beat grid.
3 Press the rotary selector for at least 1 second.
Return to [ZOOM] mode.
Switching to the browse screen
Touch the touch key corresponding to the media.
This displays the list of contents of each source.
[USB]: Displays music files in the connected USB device or
mobile device on which rekordbox is installed.
[LINK]: Displays music files in other DJ player. [rekordbox]: Displays music files in rekordbox.
! When [BROWSE (SEARCH)] is touched while the browser screen
is displayed, the browser screen closes and switches to the normal playback screen.
If you touch [BROWSE (SEARCH)] again, the last browser screen
opens.
28
En
Page 29
Description of the screen
52
631 47
Media select
1
List of contents The contents of the selected medium are displayed.
2
Jacket photo
3
Uppermost level
4
Cursor
5
User-set
6
categories
Mode select
7
The indicator corresponding to the media that was pressed ([USB], [LINK], [rekordbox]), lights. The medium on which the track is loaded flashes.
Part of the artwork registered in rekordbox is displayed here. When [INFO (LINK INFO)] is touched, the jacket photo turns off and the track names are displayed along the left edge. For lists of playlists and playing histories, a serial number is displayed. If there is no rekordbox library, the track names are constantly displayed along the left edge.
Displays the name of the upper folder or media of the displayed item.
Turn the rotary selector to move the cursor up and down.
The categories displayed with rekordbox can be selected. When [INFO (LINK INFO)] is touched, the details of the track selected with the cursor are displayed. If there is no rekordbox library, the details of the track selected with the cursor are displayed.
The indicator corresponding to the touched key ([BROWSE (SEARCH)], [TAG LIST], [INFO (LINK INFO)], [MENU (UTILITY)] or [PERFORM]) lights.
Basic operations on the browse screen
 Selecting items
1 Display the browse screen.
= Switching to the browse screen (p. 28 )
2 Turn the rotary selector to select an item.
When there is a lower layer, that layer opens. When a menu, etc., is displayed, the selected item is entered. When the rotary selector is pressed while the cursor is set at a track, that track is loaded in this unit.
Moving back up to a higher layer
Press the [BACK] button while the browser screen is displayed.
The screen moves back to the layer above.
When the [BACK] button is pressed for over 1 second or the media
!
being browsed is touched, the display moves to the topmost level. ! To play a track on a USB device or a track in the rekordbox library on
a computer or a mobile device, the information below can be viewed
by pressing the [BACK] button at the topmost level.
When there is no rekordbox library information on the USB
device: That medium’s free space and used space
When there is rekordbox library information on the USB device:
That medium’s free space and used space, as well as the num­ber of tracks, number of playlists and last modified dates in the library information
rekordbox on a computer or mobile device: The number of tracks
and playlists in the library information

Other browsing operations

Rearranging tracks (Sort menu)
While browsing, the sort menu can be used to change the order of the tracks. ! This function only works in the following cases:
When browsing the rekordbox library on a computer or mobile
device
When browsing the rekordbox library on a USB device
1 Display the rekordbox library.
= Playing media connected to or inserted in this unit (p. 20 )
= Playing music files on other DJ players (p. 21 )
= Playing the rekordbox library on a computer or mobile device
(p. 21 )
2 When the list of the tracks is displayed, touch [MENU (UTILITY)].
The sort menu appears on the screen.
3 Use the rotary selector to select and enter the sort item.
The tracks on the list are sorted according to the selected item. ! The sort items displayed on the sort menu can be changed in the
rekordbox settings. The rekordbox library on the USB device is
reflected once it is re-exported after changing the settings.
Advanced Operation
The jump function can be used by pressing the rotary selector for over 1 second.
= Searching using the jump function (p. 30 )
3 Press the rotary selector to enter the item.
Searching for tracks
! This function only works in the following cases:
When browsing the rekordbox library on a computer or mobile
device
When browsing the rekordbox library on a USB device
Searching using the [SEARCH] category
In the library browse mode, tracks can be search for using the [SEARCH] category.
1 Display the rekordbox library.
= Playing media connected to or inserted in this unit (p. 20 )
= Playing music files on other DJ players (p. 21 )
= Playing the rekordbox library on a computer or mobile device
(p. 21 )
En
29
Page 30
2 Use the rotary selector to select and enter the [SEARCH] category.
The keyboard is displayed on the touch display. The [SEARCH] screen can be started by the following methods.
Touch [BROWSE (SEARCH)] button for over 1 second. Touch [SEARCH] on the [SHORTCUT] screen.
3 Input the characters using the keyboard on the touch display.
Only the tracks including the character you have input are displayed. ! When more characters are input, tracks, etc. including the input
characters are displayed.
! When the [BACK] button is pressed, the category selection screen
reappears.
Searching using [TRACK FILTER]
1 Display the rekordbox library.
= Playing media connected to or inserted in this unit (p. 20 ) = Playing music files on other DJ players (p. 21 ) = Playing the rekordbox library on a computer or mobile device
(p. 21 )
2 When a track list is displayed, press the [TRACK FILTER] button.
Only the tracks that match the conditions specified with BPM, KEY, etc. are displayed. ! The condition setting screen appears if the [TRACK FILTER] button is
pressed for over 1 second, and the [TRACK FILTER] conditions (tag information added to tracks, BPM, KEY, RATING, COLOR) can be set on the screen. The [TRACK FILTER] conditions can also be set with rekordbox.
! BPM and KEY of the DJ player set as the sync master can be used for
the [TRACK FILTER] conditions by touching [MASTER PLAYER].
!
The set conditions are recorded on each USB device.
In the page jump mode
1 Display a list not sorted in alphabetical order.
Displays the list without sorting in alphabetical order such as folders on a USB device.
2 Press the rotary selector for at least 1 second.
The mode switches to the page jump mode.
3 Turn the rotary selector to select the page.
The display moves to the selected page.
Using the information jump function
The categories to which tracks belong can be displayed by selecting items displayed in the details. This function is convenient for search­ing for tracks in the same genre as the loaded track, tracks with similar BPMs, etc.
1 Load a track.
2 Touch [INFO (LINK INFO)] on the normal playback screen.
The track’s details are displayed.
= Displaying the details of the currently loaded track (p. 33 )
3 Select and enter the item.
The screen switches to the browse screen and the category for the selected item is displayed.
! Touch [BROWSE (SEARCH)] to close the browser screen. ! It may not be possible to select items, for example for items with
nothing to be displayed on the browse screen, items for which only icons are displayed in the details, etc.
! When a track is selected, the browse screen displayed directly before
the track was loaded is displayed.
! Only the tracks can be selected from a USB device if it does not
contain the rekordbox library.
Searching using the currently playing track’s key
The icon for tracks whose keys are a good match with the key of the track loaded in the DJ player set as the sync master changes to the key icon (green).
Searching using the jump function
The jump function can be used to instantaneously move to the track, category or folder you want to play. The jump function includes the two modes below. Letter jumping: Use this when the tracks are arranged or sorted in
alphabetical order.
Page jumping: Use this when tracks are not in alphabetical order or
are not sorted.
In the letter jump mode
1 Display a list sorted in alphabetical order.
Display a list sorted in alphabetical order, such as the rekordbox library or the track list on a USB device.
2 Press the rotary selector for at least 1 second.
Switch to the letter jump mode. The first letter of the track or category selected with the cursor is enlarged.
3 Turn the rotary selector to select the character or symbol.
The cursor moves to tracks or categories starting with the selected character or symbol. ! If there are no tracks or categories starting with the selected charac-
ter on the list, the cursor does not move.
The characters displayed in the letter jump mode are letters A to Z,
numbers 0 to 9 and certain symbols.
Using hot cue banks
Hot cue banks that have been set with rekordbox ahead of time can be loaded as a set into this unit’s [HOT CUE] (A to H) buttons.
1 Connect the USB device on which the hot cue banks are stored to this unit.
2 Use the rotary selector to select and enter the [HOT CUE BANK] category on the browse screen.
A list of hot cue banks is displayed.
3 Use the rotary selector to select and enter the hot cue bank you want to call out.
The hot cues registered in the hot cue bank are displayed on the screen.
4 Press the rotary selector.
The hot cues set at this unit’s [HOT CUE] (A to H) buttons are overwrit­ten with the hot cues registered in the hot cue bank. ! When the hot cues stored on this unit’s [HOT CUE] (A to H) buttons
are overwritten with new hot cues after loading the hot cue bank, all the hot cues registered from the hot cue bank are deleted.
! Hot cue banks cannot be edited on this unit. Use rekordbox to
edit hot cue banks. For details, see the rekordbox (Mac/Windows) user’s manual.

Checking the playing history (HISTORY)

The track playing history is stored and displayed at the [HISTORY] cat­egory on the browse screen. ! Playlists can be created based on the playing history at [HISTORY]
using rekordbox. For details, see the rekordbox (Mac/Windows) user’s manual.
30
En
Page 31
Storing the playing history
1
4
52 3
1 Connect the USB device to this unit.
2 Play tracks.
Tracks that have been played for approximately 1 minute are stored on the playing history list. ! When a USB device is connected to this unit for the first time or
when it is reconnected to this unit, a new playing history is automati­cally created on the USB device.
! The names of playing history lists can be preset at [UTILITY].
= Setting the playing history list name (p. 36 )
! When the same track is played two or more times consecutively, it
may not be stored in the history.
! The maximum number of tracks that can be stored on a playing
history list is 999. From the 1 000th track on, the oldest entries on the playing history are deleted to make room for the new entries. Up to 999 playing history lists can be created.
! When tracks are registered on the playing history list, their track
names, etc., are displayed in green (indicating that they have been played).
! Track names etc. of the tracks at the [PLAYLIST] category can be
changed to green (played) using [MENU (UTILITY)]. When changed, the tracks are registered on the playing history list.
Deleting the playback history
1 Connect the USB device to this unit.
2 Display the rekordbox library.
= Playing media connected to or inserted in this unit (p. 20 ) = Playing music files on other DJ players (p. 21 ) = Playing the rekordbox library on a computer or mobile device
(p. 21 )
3 Use the rotary selector to select and enter the [HISTORY] category.
A list of the playing history lists is displayed.
4 Turn the rotary selector and select the playing history list to be deleted.
5 Touch [MENU (UTILITY)].
The remove menu is displayed.
6 Turn the rotary selector to select and enter the range to be deleted.
[DELETE]: The currently selected playing history list is deleted. [ALL DELETE]: All the playing history lists are deleted.
! When a USB device’s playing history is loaded as a rekordbox playl-
ist, the previously loaded playing history is deleted from the USB device.
! For tracks in the [PLAYLIST] category, the tracks can be changed
from green (played) to white (not played) using [MENU (UTILITY)]. When this change is made, the tracks are deleted from the playing history list.
7 Use the rotary selector to select and enter [OK].

Editing tag lists

Tracks to be played next or tracks selected according to DJ situations can be marked and collected on lists. The list of collected tracks is called the “tag list”. These tag lists can be shared in real time among multiple DJ players connected by PRO DJ LINK.
! Up to 100 tracks per device can be added to a tag list. ! One tag list can be created per USB device. It is not possible to make
a tag list containing tracks on different USB devices. ! It is not possible to register the same track in the same folder twice.

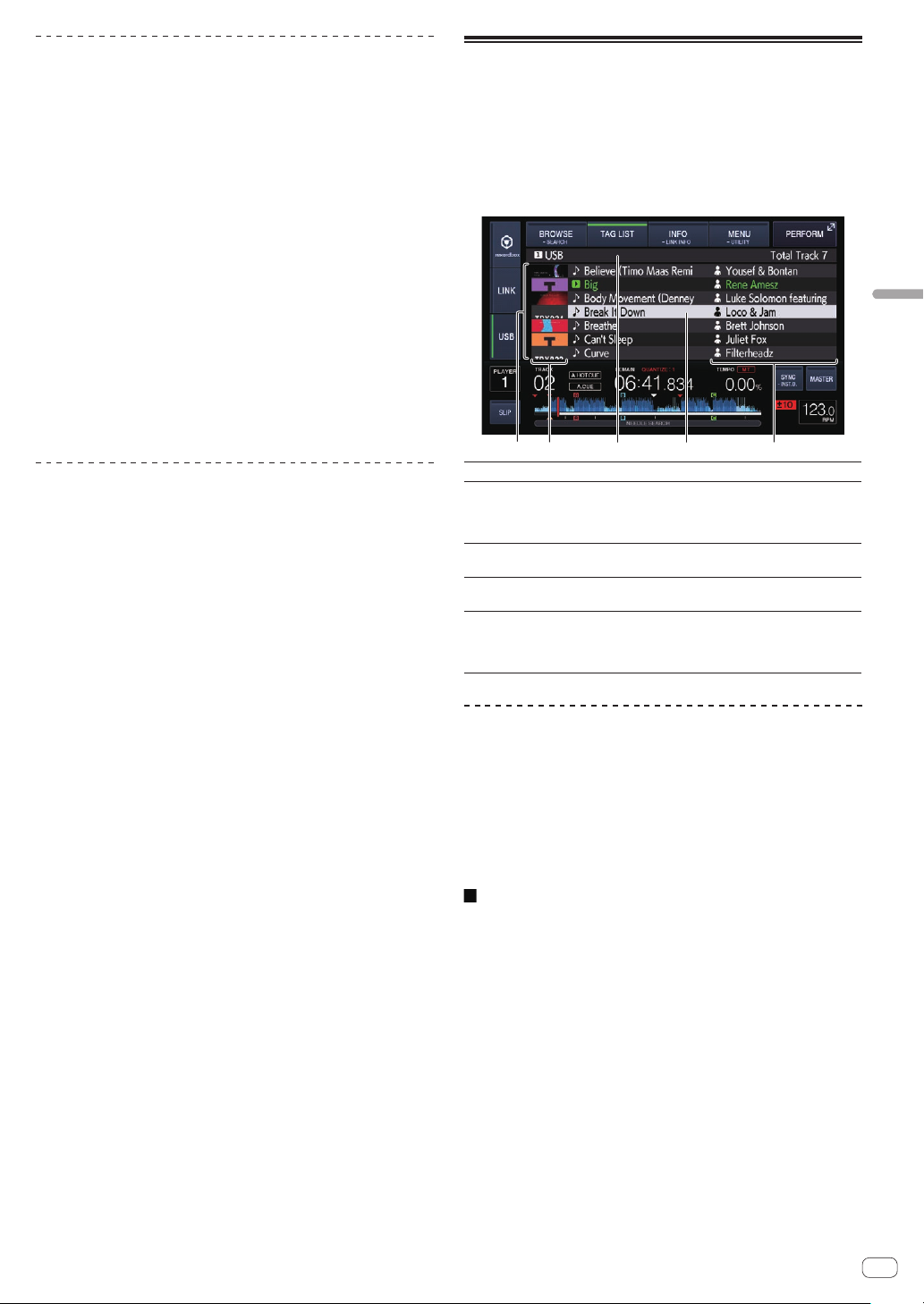

List of contents The contents of the tag list are displayed here.
1
Part of the artwork registered in rekordbox is displayed
Jacket photo
2
Medium name
3
Cursor
4
User-set
5
categories
Adding tracks to the tag list
 Selecting tracks and adding them
1 Switch to the browse screen and display the list of tracks.
2 Set the cursor to the track and press the [TAG TRACK/ REMOVE] button.
is displayed to the left of the track and the track is added to that medium’s tag list. ! Tracks can be recorded in the tag list ahead of time using rekordbox.
For detailed operating procedure, see the rekordbox (Mac/
Windows) user’s manual.
Adding loaded tracks
here. On touching [INFO (LINK INFO)], he jacket photo turns off and sequential number are displayed.
The name of the medium on which the track is recorded is displayed here.
Turn the rotary selector to move the cursor up and down.
The categories displayed with rekordbox can be selected. When [INFO (LINK INFO)] is touched, the details of the track selected with the cursor are displayed.
Advanced Operation
1 Load a track.
2 Press the [TAG TRACK/REMOVE] button.
The track loaded in this unit is added to the tag list. In the following cases, the loaded tracks can be added to the tag lists by pressing the [TAG TRACK/REMOVE] button. ! When the track’s details screen is displayed while loading a track.
Adding entire categories or folders
All the tracks in a selected category or folder can be added to the tag list.
En
31
Page 32
1 Switch to the browse screen and select a category or folder that has tracks directly under it.
A list of the tracks is displayed on the right half of the information display screen.
2 Set the cursor to the category or folder, then press the [TAG TRACK/REMOVE] button.
The category or folder name flashes, and all the tracks in that category or folder are added to the tag list. ! When folders are added while in the folder browse mode, tracks for
which ID3 tags, etc., have not been loaded a single time are regis­tered using the file name as the track name. The artist names are not registered.
!
After tracks have been added to the tag list, when the registered
tracks are displayed on the track list on the browse screen or are loaded in a player and their ID3 tags, etc., are loaded, the file names switch to the track names and the artist names are also registered.
Adding tracks from playlists
All the tracks on a selected playlist can be added to the tag list.
1 Switch to the browse screen and select and enter the [PLAYLIST] category.
A list of the playlists is displayed, and a list of the tracks is displayed on the right half of the information display screen.
2 Set the cursor to the play list, and press the [TAG TRACK/REMOVE] button.
The playlist name flashes, and all the tracks on that playlist are added to the tag list.
Loading tracks from the tag list
1 Touch [TAG LIST].
The tag list is displayed.
Removing one track at a time
1 Touch [TAG LIST].
The tag list is displayed.
2 Use the rotary selector to select and enter the medium.
When a medium is selected, that medium’s tag list is displayed.
3 Use the rotary selector to set the cursor to the track you want to remove.
4 Press the [TAG TRACK/REMOVE] button for over 1 second.
Tracks can be removed from tag lists by pressing the [TAG TRACK/ REMOVE] button at the screens and situations described below.
! When the cursor is set to a track registered in the tag list on the
browse screen
! When the normal playback screen, performance screen or
track’s details screen is displayed while loading a track registered in the tag list.
Removing all the tracks
1 Touch [TAG LIST].
The tag list is displayed.
2 Use the rotary selector to select and enter the medium.
When a medium is selected, that medium’s tag list is displayed.
3 Touch [MENU (UTILITY)].
[LIST MENU] is displayed.
4 Use the rotary selector to select and enter [TAGLIST MENU].
[TAGLIST MENU] is displayed.
5 Use the rotary selector to select and enter [REMOVE ALL TRACKS].
6 Use the rotary selector to select and enter [OK].
! When multiple mediums are connected to a DJ player, the player
number of the player to which that medium is connected and the rekordbox icon are displayed in front of the medium’s name.
2 Use the rotary selector to select and enter the medium.
When a medium is selected, that medium’s tag list is displayed.
3 Use the rotary selector to select and enter the track you want to load.
The track is loaded and playback starts.
Removing tracks from the tag list
Tracks can be removed from tag lists. ! If a track that has been added to the tag list is removed from the tag
list while it is playing, the track is played to the end, then the stop mode is set. The next track is not played.
En
32
Transforming the tag list into a playlist
Tracks collected in tag lists can be converted into playlists. ! Converted playlists are displayed as items in the [PLAYLIST]
category.
1 Touch [TAG LIST].
The tag list is displayed.
2 Use the rotary selector to select and enter the medium.
When a medium is selected, that medium’s tag list is displayed.
3 Touch [MENU (UTILITY)].
[LIST MENU] is displayed.
4 Use the rotary selector to select and enter [TAGLIST MENU].
[TAGLIST MENU] is displayed.
5 Use the rotary selector to select and enter [CREATE PLAYLIST].
6 Use the rotary selector to select and enter [OK].
The contents of the tag list are converted into a playlist with the name [TAG LIST XXX]. ! If no rekordbox library information is stored on the medium, the tag
list cannot be converted into a playlist.
When tag lists include both tracks being managed with rekordbox
!
and tracks not being managed with rekordbox, only the tracks being managed with rekordbox are converted into playlists.
Page 33
Displaying the details of the
2 3 4
currently loaded track
The details of the currently loaded track can be checked.

Displaying details of tracks loaded in other DJ players

Advanced Operation
1
Track details
1
Medium/player
2
number
Jacket photo and
3
comment
Source indicator
4
The source indicator (4) is not displayed when the media inserted in this unit is loaded.
The details of the tracks loaded in the DJ player are displayed here.
The place where the track information is stored is displayed here.
The jacket photo and comment about the track loaded in the DJ player are displayed here.
This indicates the location of the currently loaded track.
1 Load a track.
2 Touch [INFO (LINK INFO)] on the normal playback screen.
The track’s details are displayed. ! The details of the tracks being loaded can be displayed by press-
ing [INFO (LINK INFO)] for over 1 second on the browse or tag list screen.

Changing track ratings

The tracks’ ratings can be changed.
1 Load a track.
2 Touch [INFO (LINK INFO)] on the normal playback screen.
The track’s details are displayed.
3 Select the rating displayed in the detailed information (display example: ).
4 Press the rotary selector for over 1 second, then turn the rotary selector clockwise or counterclockwise.
The rating of the loaded track is changed.
5 Press the rotary selector and enter the rating.
When another DJ player is connected by PRO DJ LINK, the details of the track loaded on the other DJ player can be checked.
1 Connect this unit and the other DJ players by PRO DJ LINK.
2 Touch [INFO (LINK INFO)] for over 1 second.
The [LINK INFO] screen appears.
3 Use the rotary selector to select and enter the DJ player whose track details you want to see.
The details of the tracks loaded in the selected DJ player are displayed.
En
33
Page 34

Changing the settings

Storing settings on USB devices

The [UTILITY] settings and other settings can be stored on USB devices. The stored settings can be exported to rekordbox. It is also possible to store this unit’s settings on USB devices after mak­ing them with rekordbox then load these settings onto another player.
The stored settings are shown below.
!
[UTILITY] settings PLAY MODE, LOAD LOCK, QUANTIZE BEAT VALUE, HOT
CUE AUTO LOAD, HOT CUE COLOR, AUTO CUE LEVEL, SLIP
FLASHING, ON AIR DISPLAY, LANGUAGE, LCD BRIGHTNESS Other settings TIME MODE (time display format on the main unit display), AUTO
CUE, JOG MODE, TEMPO RANGE, MASTER TEMPO, QUANTIZE,
BEAT SYNC, PHASE METER
1 Connect the USB device onto which you want to store the settings.
2 Touch [USB].
If the USB device onto which the settings are to be stored is connected to another PRO DJ LINK connected DJ player, touch [LINK] to select the storage device.
3 Touch [MENU (UTILITY)].
4 Use the rotary selector to select and enter [SAVE] at [MY SETTINGS].
The settings are stored. ! The settings can also be stored on the [SHORTCUT] screen.

Calling out settings stored on a USB device

[UTILITY] settings and other settings stored on a USB device can be called out.
1 Sets the USB device for calling out the setting details.
2 Touch [USB].
If the USB device onto which the settings are to be stored is connected to another PRO DJ LINK connected DJ player, touch [LINK] to select the recording medium.
3 Touch [MENU (UTILITY)].
4 Use the rotary selector to select and enter [LOAD] at [MY SETTINGS].
The settings are called out. ! The settings can also be called out on the [SHORTCUT] screen.

Changing the color set in the USB device.

The USB indicator color displayed when the USB device is connected to this unit and a part of the display color on the screen can be changed.
1 Loading USB devices.
2 Touch [USB].
If the USB device onto which the settings are to be stored is connected to another PRO DJ LINK connected DJ player, touch [LINK] to select the recording medium.
3 Touch [MENU (UTILITY)].
4 Select [BACKGROUND COLOR] of [MY SETTINGS] or [WAVE FORM COLOR] using the rotary selector.
[BACKGROUND COLOR]: Select to change the color of the USB
indicator or a part of the display.
[WAVE FORM COLOR]: Select to change the color of overall
waveform or enlarged waveform.
! The colors can be changed for the USB device that include music
files or management data exported from rekordbox.
5 Use the rotary selector to choose and decide the color to be set.
34
En
Page 35

Displaying the [UTILITY] screen

21

Changing the settings

Touch [MENU (UTILITY)] for over 1 second.
The [UTILITY] screen is displayed.
1 Touch [MENU (UTILITY)] for over 1 second.
The [UTILITY] screen is displayed.
2 Use the rotary selector to select the setting item.
Description of the screen
3 Set the cursor to the item you want to change, then press the rotary selector.
The cursor moves to the setting.
4 Turn the rotary selector and change the setting.
5 Press the rotary selector to enter the setting.
The cursor returns to the setting. ! When the [BACK] button is pressed before entering the setting, the
change is aborted.
6 Touch [MENU (UTILITY)].
Returns to the last screen before [MENU (UTILITY)] was touched.
Options settings This unit’s settings items are displayed here.
1
Setting The settings for the various items are displayed here.
2
Setting preferences
Options settings Setting ranges Descriptions
PLAY MODE
LOAD LOCK
QUANTIZE BEAT VALUE
HOT CUE AUTO LOAD ON/rekordbox SETTING*/OFF For details, see Calling out hot cues automatically when tracks are loaded on page
HOT CUE COLOR
AUTO CUE LEVEL
SLIP FLASHING
ON AIR DISPLAY
LANGUAGE
HISTORY NAME
PLAYER No.
LINK STATUS
MIDI CHANNEL
DIGITAL OUT
AUTO STANDBY
LCD BRIGHTNESS
TOUCH DISPLAY CALIBRATION
SCREEN SAVER
DUPLICATION
VERSION No.
CONTINUE*/SINGLE
LOCK/UNLOCK* Sets whether to disable or enable loading of new tracks during playback.
1/8, 1/4, 1/2, 1*
ON/OFF*
–36 dB/–42 dB/–48 dB/–54 dB/–60 dB/–66 d B/–72 dB/–78 dB/MEMORY*
ON*/OFF
ON*/OFF
Sets the main unit display’s language.
For details, see Setting the playing history list name on page
AUTO*, 14
When PRO DJ LINK connections are made, the connection status is displayed here.
1* to 16 For details, see Changing the MIDI channel setting on page
16 bit/24 bit* This switches the number of bits of the audio signals output from the [DIGITAL OUT] terminal.
ON*/OFF For details, see Setting the auto standby mode on page
1 – 3* – 5 Sets the main unit display’s brightness.
For details, see Correct the alignment of touch display on page
ON*/OFF
DEFAULT*, ALL, PLAYER1–4
Displays this unit’s software version.
*: Setting upon purchase
Changes the way the tracks loaded in this unit are played. For details, see Changing the play mode on page
Changes the beat size of QUANTIZE. The setting can also be changed on the [SHORTCUT] screen.
The lighting color of the [HOT CUE] (A to H) buttons can be changed. For details, see Lighting color of the [HOT CUE] (A to H) buttons on page
For details, see Setting the cue point for auto cueing on page 25 .
Sets whether or not the indicators of buttons, etc., for which the slip function is activated should flash when [SLIP] is touched.
Sets whether or not to display the tracks’ ON AIR status on the main unit display. When connected by PRO DJ LINK to a mixer supporting the ON AIR DISPLAY function (e.g. DJM­2000nexus), it is possible to display the ON AIR status in association with the operation of the mixer’s channel fader and crossfader. Also see the operating instructions of the mixer support­ing the ON AIR DISPLAY function.
Sets this unit’s player number. The player number cannot be changed when a medium is loaded in this unit.
When set to [ON], the screensaver starts up in the following cases:
When no track is loaded in this unit for over 5 minutes
! ! When no operation is performed for over 100 minutes while in the pause or cue standby
mode or when [END] is displayed on the main unit display.
For details, see Duplicating the settings onto DJ players connected by PRO DJ LINK on
36 .
page
36 .
24 .
36 .
37 .
36 .
36 .
Changing the settings
25 .
En
35
Page 36
Changing the play mode
1 Display the [UTILITY] screen.
= Displaying the [UTILITY] screen (p. 35 )
2 Use the rotary selector to select and enter [PLAY MODE].
3 Use the rotary selector to select and enter [CONTINUE] or [SINGLE].
[CONTINUE]: Moving to the previous or following track is pos-
sible in all modes. [SINGLE]: The letters [TRACK] on the main unit display switch
to [SINGLE] and it is no longer possible to move to the previous
or following track other than with the [TRACK SEARCH] and
[SEARCH] buttons.
Setting the auto standby mode
1 Display the [UTILITY] screen.
= Displaying the [UTILITY] screen (p. 35 )
2 Use the rotary selector to select and enter [AUTO STANDBY].
3 Use the rotary selector to select and enter [ON] or [OFF].
When [AUTO STANDBY] is set to [ON], the auto standby function is activated and the standby mode is set in the cases described below.
!
When absolutely no operation is performed for over 4 hours with no
USB device connected, no PRO DJ LINK connections or computer connected to the [USB] terminal (on this unit’s rear panel).
When this unit is operated, the standby mode is canceled.
! ! This unit is shipped with the auto standby function turned on. If you
do not want to use the auto standby function, set [AUTO STANDBY] to [OFF].
Setting the playing history list name
Names of playing history stored on USB devices can be preset.
1 Display the [UTILITY] screen.
= Displaying the [UTILITY] screen (p. 35 )
2 Use the rotary selector to select and enter [HISTORY NAME].
3 Input the characters using the keyboard shown on the touch display.
4 Press the rotary selector to enter.
The name is changed to the name you have input. ! When the name of the playing history list is changed, the number
after the playing history list name returns to 001. This number is incremented each time a playing history list is created.
! The maximum number of characters that can be set for the
[HISTORY] name is 32, including both letters, numbers and symbols.
Changing the language
Select the language to be used for displaying track names and mes­sages on the screen. ! When the language is changed, the messages on the main unit
display are displayed in the selected language.
! When displaying track names, etc., to display characters written in
local codes other than Unicode, change the [LANGUAGE] setting.
1 Display the [UTILITY] screen.
= Displaying the [UTILITY] screen (p. 35 )
2 Use the rotary selector to select and enter [LANGUAGE].
3 Use the rotary selector to select and enter the language.
The language of the on-screen display is changed.
Correct the alignment of touch display
1 Display the [UTILITY] screen.
= Displaying the [UTILITY] screen (p. 35 )
2 Use the rotary selector to select and enter [TOUCH DISPLAY CALIBRATION].
3 Touch [+] displayed on the screen, in order.
Touch 16 places in all. ! If [+] does not move when you release it, touch it a little longer and
then release it.
4 Press the rotary selector to enter.
The changed settings are stored. ! This unit has been shipped after calibration. Set the calibration if you
cannot touch properly.
! When setting the calibration, do not use a pointed object like a
ball-pen.

Duplicating the settings onto DJ players connected by PRO DJ LINK

The [UTILITY] settings and other settings can be duplicated onto DJ players connected by PRO DJ LINK. ! The duplicated settings are as shown below.
[UTILITY] settings PLAY MODE, LOAD LOCK, QUANTIZE BEAT VALUE, HOT
CUE AUTO LOAD, HOT CUE COLOR, AUTO CUE LEVEL, SLIP FLASHING, ON AIR DISPLAY, LANGUAGE, LCD BRIGHTNESS
Other settings
TIME MODE (time display format on the main unit display), AUTO
CUE, JOG MODE, TEMPO RANGE, MASTER TEMPO, QUANTIZE, BEAT SYNC, PHASE METER
1 Select [DUPLICATION] and enter.
2 Stop playback on the DJ player(s) on which you want to reflect the settings.
3 Use the rotary selector to select and enter [PLAYER X] or [ALL].
! [PLAYER1]–[PLAYER4]: The settings are duplicated on the specified
DJ player. Currently playing DJ players cannot be selected.
! [ALL]: The settings are duplicated on all the DJ players connected by
PRO DJ LINK. The settings cannot be duplicated on currently playing DJ players.
[DUPLICATED] is displayed on the specified player’s display and this
unit’s [UTILITY] settings and other settings are duplicated on the specified player.
! [DEFAULT]: Restores this unit’s settings to the settings set upon
purchase.
36
En
Page 37

Using the DJ software

Operating the DJ software

This unit outputs the operation information of buttons and controls, etc. in universal MIDI or HID format. When connected by a USB cable to a computer on which a MIDI- or HID-compatible DJ software program is installed, the DJ software can be operated from this unit. The sound of the music file that is playing on the computer can be output from this unit. To use this unit as an audio device, install the driver software on the computer beforehand (p. 7 ). This unit must also be selected in the DJ software’s audio output device settings. For details, see your DJ soft­ware’s operating instructions.
1 Connect the USB port on this unit to your computer.
For instructions on connecting, see Using the DJ software on page 12 .
2 Touch [BROWSE (SEARCH)], and then touch [LINK].
[CONTROL MODE] and [USB MIDI] are displayed on menu screen.
3 Select [CONTROL MODE] and enter.
The connecting screen is displayed.
4 Select [USB MIDI] and enter.
This unit switches to the control mode.
5 Launch the DJ software.
Communication with the DJ software starts. ! The DJ software on the computer can be operated using the buttons
and rotary selector on this unit.
! It may not be possible to use some buttons to operate the DJ
software.
! The control mode is canceled when a track is loaded in this unit. ! For messages output by this unit, see List of MIDI Messages on
page 38 .
Using the DJ software
Changing the MIDI channel setting
1 Touch [MENU (UTILITY)] for over 1 second.
The [UTILITY] screen is displayed.
2 Select [MIDI CHANNEL] and enter.
3 Turn the rotary selector.
Select the MIDI channel and change the setting. A setting from 1 – 16 can be selected.
4 Press the rotary selector to enter.
5 Touch [MENU (UTILITY)].
The previous screen reappears.
En
37
Page 38
List of MIDI Messages
SW Name SW Type
JOG (TOUCH) Bn 10 dd
NEEDLE POSITION GUI Bn 1C dd OFF = 0 1 to 127 position data from left to right side TEMPO SLIDER VR Bn 1D dd 0 – 127, 0 on the – side, 127 on the + side TOUCH/RELEASE VR Bn 1E dd 0 – 127, 0 (min.) on the left side, 127 (max.) on the right side
JOG RING Bn 30 dd
ROTARY SELECTOR General Purpose Controller Bn 4F dd
PLAY/PAUSE SW 9n 00 dd OFF=0, ON=127 CUE SW 9n 01 dd OFF=0, ON=127 SEARCH FWD SW 9n 02 dd OFF=0, ON=127 SEARCH REV SW 9n 03 dd OFF=0, ON=127 TRACK SEARCH NEXT SW 9n 04 dd OFF=0, ON=127 TRACK SEARCH PREV SW 9n 05 dd OFF=0, ON=127 LOOP IN SW 9n 06 dd OFF=0, ON=127 LOOP OUT SW 9n 07 dd OFF=0, ON=127 RELOOP SW 9n 08 dd OFF=0, ON=127 QUANTIZE SW 9n 09 dd OFF=0, ON=127 MEMORY GUI button 9n 0A dd OFF=0, ON=127 CALL NEXT GUI button 9n 0B dd OFF=0, ON=127 CALL PREV GUI button 9n 0C dd OFF=0, ON=127 DELETE GUI button 9n 0D dd OFF=0, ON=127 TIME MODE/AUTO CUE SW 9n 0E dd TEMPO RANGE SW 9n 10 dd OFF=0, ON=127 MASTER TEMPO SW 9n 11 dd OFF=0, ON=127 JOG MODE SW 9n 12 dd OFF=0, ON=127 HOT CUE DELETE (CALL) GUI button 9n 13 dd OFF=0, ON=127 HOT CUE E GUI button 9n 14 dd OFF=0, ON=127 HOT CUE F GUI button 9n 15 dd OFF=0, ON=127 HOT CUE G GUI button 9n 16 dd OFF=0, ON=127 HOT CUE H GUI button 9n 17 dd OFF=0, ON=127 HOT CUE A GUI button 9n 18 dd OFF=0, ON=127 HOT CUE B GUI button 9n 19 dd OFF=0, ON=127 HOT CUE C GUI button 9n 1A dd OFF=0, ON=127 HOT CUE D GUI button 9n 1B dd OFF=0, ON=127 MASTER GUI button 9n 1E dd OFF=0, ON=127 SYNC GUI button 9n 1F dd OFF=0, ON=127 JOG TOUCH SW 9n 20 dd OFF=0, ON=127 DIRECTION REV SW 9n 21 dd OFF=0, ON=127 BEAT LOOP 1/2 GUI button 9n 27 dd OFF=0, ON=127 BEAT LOOP 1 GUI button 9n 28 dd OFF=0, ON=127 BEAT LOOP 2 GUI button 9n 29 dd OFF=0, ON=127 BEAT LOOP 4 GUI button 9n 2A dd OFF=0, ON=127 BEAT LOOP 8 GUI button 9n 2B dd OFF=0, ON=127 BEAT LOOP 16 GUI button 9n 2C dd OFF=0, ON=127 TAG TRACK TRACK FILTER SW 9n 31 dd OFF=0, ON=127 BACK SW 9n 32 dd OFF=0, ON=127 ROTARY SELECTOR PUSH SW 9n 33 dd OFF=0, ON=127 BEAT JUMP 1 FWD GUI button 9n 38 dd OFF=0, ON=127 BEAT JUMP 1 REV GUI button 9n 39 dd OFF=0, ON=127 SLIP GUI button 9n 3A dd OFF=0, ON=127 BEAT JUMP 2 FWD GUI button 9n 3C dd OFF=0, ON=127 BEAT JUMP 2 REV GUI button 9n 3D dd OFF=0, ON=127 BEAT JUMP 4 FWD GUI button 9n 3E dd OFF=0, ON=127 BEAT JUMP 4 REV GUI button 9n 3F dd OFF=0, ON=127 BEAT JUMP 8 FWD GUI button 9n 40 dd OFF=0, ON=127 BEAT JUMP 8 REV GUI button 9n 41 dd OFF=0, ON=127 BEAT JUMP 16 FWD GUI button 9n 42 dd OFF=0, ON=127 BEAT JUMP 16 REV GUI button 9n 43 dd OFF=0, ON=127 BEAT JUMP 32 FWD GUI button 9n 44 dd OFF=0, ON=127 BEAT JUMP 32 REV GUI button 9n 45 dd OFF=0, ON=127
SW 9n 30 dd OFF=0, ON=127
n is the channel number.
MIDI Messages MSB
Notes
A linear value corresponding to the speed, from stop to 4X: 64 for stop, 65 (0.06X) – 127 (4X) in the forward direction, 63 (0.06X) – 0 (4X) in the reverse direction.
A linear value corresponding to the speed from 0.5X to 4X: 64 when stopped (under
0.49X), 65 (0.5X) to 127 (4X) in the forward direction, 63 (0.5X) to 0 (4X) in the reverse direction. 98 – 127, 1 – 30 Difference of count from previous time is sent (±1 – ±30) When over ±30, set at ±30
OFF=0, ON=127
38
En
Page 39

Additional information

Troubleshooting

! Incorrect operation is often mistaken for trouble or malfunction. If you think that there is something wrong with this component, check the points
below and the [FAQ] for the [XDJ-1000MK2] on the Pioneer DJ support site.
http://pioneerdj.com/support/ Sometimes the problem may lie in another component. Inspect the other components and electrical appliances being used. If the problem cannot
be rectified, ask your nearest service center or your dealer to carry out repair work.
! This unit may not operate properly due to static electricity or other external influences. In this case, proper operation may be restored by turning the
power off, waiting 1 minute, then turning the power back on.
Problem Check Remedy
File cannot be played. Is the file copyright-protected (by DRM)? Copyright-protected files cannot be played.
No sound is produced, or sound is distorted or noisy.
File information is not properly displayed.
Track search operation takes too long. Is the auto cue function activated? Track searching may take some time when there are long silent sections
Back cue function does not work. Is a cue point set?
Loop play function does not work. Are loop points set? Set loop points (p. 23 ).
Settings are not stored in the memory. Has the power been turned off directly after
USB device is not recognized. Is the USB device properly connected? Connect the device securely (all the way in).
Cue points or loops are not stored on a USB device.
Cue or loop points of tracks recorded on USB devices are not displayed.
Playback does not start immediately after pressing the button to reloop or play in reverse.
The playing address display is not displayed in the remaining time mode.
Time is required to read USB devices (flash memory drives and hard discs).
Library browsing is not possible. Is a medium on which library information is
[HISTORY] is not displayed. Is a USB device loaded? The [HISTORY] function can only be used for DJ players on which a USB device
Nothing is displayed. Is the auto standby function activated? This unit is shipped with the auto standby function set to on. If you do not want
Are you operating the connected DJ mixer properly?
Is this unit placed near a TV? Turn the TV’s power off or install this unit and TV away from each other.
Is [LANGUAGE] properly set? Set [LANGUAGE] to the proper language.
Is the information recorded in a language not sup­ported by this unit?
If track searching is not possible within 10 seconds, a cue point is set at the
changing the setting?
Is the USB device connected via a USB hub? USB hubs cannot be used.
Is the USB device supported by this unit? This player only supports USB mass storage class devices.
Is the file format supported by this unit? Check the file format of the connected USB device. For the file formats sup-
Turn the power off then back on.
Are you trying to store more points than the limit? Ten cue points or loop points per track can be stored on a USB device.
Is the USB device write-protected? If the USB device is write-protected, [USB FULL] is displayed and the points
Is there sufficient free space on the USB device? If there is not enough free space on the USB device, [USB FULL] is displayed
Was the USB device properly stopped before it was disconnected the last time?
Is the quantize function on? When the quantize function is on, playback starts from the nearest beat position
When playing files recorded in VBR, it may happen that the set cannot detect the
Is there a large number of folders or files recorded on the USB device?
Are files other than music files stored on the USB device?
recorded loaded?
Check the operation of the DJ mixer.
When creating files using DJ software, etc., record the information in a language supported by this unit.
between tracks.
beginning of the track.
Set the cue point (p. 23 ).
After changing settings, wait at least 10 seconds before turning the power off.
This player supports portable flash memory and digital audio playback devices.
ported by this unit, see Usable media on page
If you try to store more points than the limit, [CUE/LOOP POINT FULL] is dis­played and the points cannot be stored. In this case, delete some points before storing new ones.
cannot be stored. Disable the write-protection then store the cue or loop points again.
and the points cannot be stored. Free up some space then store the cue or loop points again.
The contents might not be displayed if the device is removed without stopping it or if the unit is turned off. Check that the USB indicator has turned completely off before disconnecting the USB device and turning this unit’s power off.
at the time the button is pressed. If you want the operation to be performed the instant the button is pressed, turn the quantize function off.
length of the track immediately and that some time is required for the playing address display to appear.
When there are many folders or files, some time may be required for loading.
When files other than music files are stored in folders, time is required to read them as well. Do not store files or folders other than music files on the USB device.
The library browse mode is only set when media on which library information is recorded are loaded. When a medium on which no library information is recorded is loaded, the folder browse mode is set.
is loaded.
to use the auto standby function, set [AUTO STANDBY] on the [UTILITY] menu to [OFF
]. (p. 36 )
6 .
Additional information
En
39
Page 40
Problem Check Remedy
The scale is not displayed. Is the track over 15 minutes long? The scale is not displayed for tracks whose playing time is over 15 minutes.
PRO DJ LINK does not work well. Are the player numbers properly set? Set [PLAYER No.] to [AUTO] or to a number different from the number currently
Is the LAN cable properly connected? Connect the LAN cable properly to the [LINK] terminal.
Is the switching hub’s power turned on? Turn the switching hub’s power on.
Is an unnecessary device connected to the switch­ing hub?
Is it connected by USB cable? For a USB connection, install the USB (LINK Export) connections driver
There is no response when you touch the screen, or the response is bad. A position different from the actually touched location responds.
The enlarged waveform is not displayed.
Calibration adjustment of touch display is deviating.
Is the track over 60 minutes long? The enlarged waveform is not displayed for tracks whose playing time is over 60
(p. 16 )
set. (p. 35 )
Disconnect the unnecessary device from the switching hub.
software.
Adjust the touch display by using the [TOUCH DISPLAY CALIBRATION] settings in the [UTILITY] screen. When the power is OFF, users can view the [TOUCH DISPLAY CALIBRATION] settings screen by switching the power ON while keeping the [OUT(OUT ADJUST)] button pressed.
minutes.

About the liquid crystal display

! Small black or shining points may appear on the liquid crystal display. This is a phenomenon inherent to liquid crystal displays; this is not a
malfunction.
! When using in cold places, the liquid crystal display may be dark for a while after this unit’s power is turned on. It will reach the normal brightness
after a while.
! When the liquid crystal display is exposed to direct sunlight, the light will reflect off it, making it difficult to see. Block the direct sunlight.

Error messages

When this unit cannot operate normally, an error code appears on the display. Check the table below and take the measures indicated. If an error code not shown on the table below is displayed, or if the same error code is displayed again after taking the indicated action, contact your store of purchase.
Error code Error type Description of error Cause and action
E-8302
E-8304 E-8305
CANNOT PLAY TRACK(****)
UNSUPPORTED FILE FORMAT
Track data (files) in the USB cannot be read correctly.
Music files that cannot be played normally are loaded.
The track data (file) may be corrupt. dCheck whether the track (file) can be played on another player, etc., capable of playing the same formats as this unit.
Format is wrong.dReplace with music files in the proper format.

Cleaning the touch display

Do not use organic solvents, acids or alkalis for cleaning the surface of the touch display. Wipe with a dry soft cloth or a cloth immersed in neutral detergent and squeezed properly.

List of icons displayed on the main unit display section

Genre Player number (1 – 4) Computer Close folder WAIT
Artist Edit the rating Year Remixer rekordbox
Album Registered in tag list Label Original artist Mixer
Track/file name Tempo (BPM) Key Search Hot cue
Playlist
40
HISTORY Hot Cue Bank List
Rating USB Playing Date library added
Time SD Open folder Comment
En
Color Bit rate DJ play count
Page 41

About iPods/iPhones/iPads

! This product has been developed and tested based on the iPod/
iPhone/iPad software versions indicated on the Pioneer DJ support site. (http://pioneerdj.com/support/)
! Compatibility with this product may be lost if software of a ver-
sion other than the one indicated on the Pioneer DJ support site is installed on your iPod/iPhone/iPad.
! Note that Pioneer DJ does not offer any guarantee regarding opera-
tion of iPods/iPhones/iPads.
!
Pioneer DJ will accept no responsibility whatsoever for loss of iPod/
iPhone/iPad data during use.
! With iPods/iPhones/iPads, material that is not copyrighted or mate-
rial for which duplication and playback is legally permitted may be duplicated and played by individuals on a private basis. Infringement of copyrights is prohibited by law.

About trademarks and registered trademarks

! Pioneer DJ is a trademark of the PIONEER CORPORATION and is
used under license. rekordbox and KUVO are trademarks or regis­tered trademarks of the Pioneer DJ Corporation.
! Windows is a registered trademark of Microsoft Corporation in the
United States and other countries.
! Adobe and Reader are either registered trademarks or trademarks
of Adobe Systems Incorporated in the United States and/or other countries.
! ASIO is a trademark of Steinberg Media Technologies GmbH. ! “Made for iPod,” “Made for iPhone,” and “Made for iPad” mean
that an electronic accessory has been designed to connect specifi­cally to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.
! iPad mini and iPad Pro are trademarks of Apple Inc. ! Apple, iPad, iPhone, iPad Air, iPod, iPod touch, iTunes, Mac, Mac
OS, and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
! iOS is a trademark on which Cisco holds the trademark right in the
US and certain other countries.
! Android™ is a trademark of Google Inc. ! Wi-Fi is a registered mark of the Wi-Fi Alliance. ! The names of companies and products mentioned herein are trade-
marks or registered trademarks of their respective owners.

Software license notice

! This software is based in part on the work of the Independent JPEG
Group.
About using MP3 files
This product has been licensed for nonprofit use. This product has not been licensed for commercial purposes (for profit-making use), such as broadcasting (terrestrial, satellite, cable or other types of broadcast­ing), streaming on the Internet, Intranet (a corporate network) or other types of networks or distributing of electronic information (online digi­tal music distribution service). You need to acquire the corresponding licenses for such uses. For details, see http://www.mp3licensing.com.
Copyright © 2000-2002 Opsycon AB (www.opsycon.se) Redistribution and use in source and binary forms, with or without modi­fication, are permitted provided that the following conditions are met: 1 Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
2 Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3 All advertising materials mentioning features or use of this software
must display the following acknowledgement: This product includes software developed by Opsycon AB. 4 The name of the author may not be used to endorse or promote
products derived from this software without specific prior written
permission. THIS SOFTWARE IS PROVIDED BY THE AUTHOR “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Apple Lossless Audio Codec Copyright © 2011 Apple Inc. All rights reserved. Licensed under the Apache License, Version 2.0. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0
FLAC Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modi­fication, are permitted provided that the following conditions are met: ! Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright
!
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution. ! Neither the name of the Xiph.org Foundation nor the names of its
contributors may be used to endorse or promote products derived
from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
! The music management software rekordbox is not covered under
free repair, etc. given in the warranty. Before using the rekordbox,
read carefully the terms given in the “Software License Agreement”
of rekordbox.
!
The specifications and design of this product are subject to change
without notice. © 2016 Pioneer DJ Corporation. All rights reserved. <DRI1396-A>
En
Additional information
41
Loading...
