PROJECTION MONITOR RECEIVER

SD-582HD5

SD-532HD5

Operating Instructions

FEATURES

Dual System Component Input for NTSC/ Progressive

Connection to a DVD player with a component output terminal makes possible high-picture-quality display superior to that of S-VIDEO terminal connection. Also handles high resolution component input (1080i, 480p), which will function as an interface for high-quality images in future.

DUAL TUNER (SPLIT screen and SEARCH screen function)

Two TV tuners are provided, making it possible to split the screen vertically in two and display moving images simultaneously on them. In addition, the channel search function makes it possible to check, etc., on the program in the back. Its convenience will be limited only by your imagination.

GLOW-IN-THE-DARK remote control

Makes it easier to operate the TV and other components in low-light environments.

Lens System for HDTV

Adoption of a lens system for high-resolution HDTV that faithfully reproduces HDTV 1080i signals allows highly colorsaturated images to be displayed at high resolution.

Whole Screen IR Receiver

The remote control sensor is installed behind the screen, allowing you to operate this monitor with the remote control unit in those installations where only the screen is revealed.

3D Y/C Separation Circuit

This three-dimensional Y/C separation circuit reproduces clearer picture quality.

Multi-Point Convergence System

Thanks to new convergence system digital technology, not only can the center of the screen be adjusted, so can an amazing 72 other points (full mode) across the viewing area. This makes it possible to display clear images with no color distortion around the entire screen. The adjustment is easily done using the remote control.

Program Block (V. CHIP)

You can block selected programs based on the established rating system for television and movies. The TV Parental Guidelines are used to rate television programming: <TV-Y>, <TV-Y7>, <TV-G>, <TV-PG>, <TV-14> and <TV-MA>. The Motion Picture Association of America (MPAA) guidelines are used to rate movies: <G>, <PG>, <PG-13>, <R>, <NC-17>, <X> and <NR>. In order to block programming you feel is inappropriate, rating limits can be set on both systems using the remote control and a password.

Read and understand these 'Operating Instructions' before operating your Monitor. Follow the 'IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS' section and all the warnings on the product.

Thank you for purchasing this PIONEER Projection Monitor Receiver. Please read the precautionary instructions enclosed with these operating instructions please do so before proceeding. After learning how to operate the Projection Monitor, be sure to keep this manual handy for future reference.

WARNING:

TO REDUCE THE RISK OF THE FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO WET LOCATIONS.

IMPORTANT NOTICE

The model number and the serial number of this Projection Monitor are located on the rear panel. Please write the serial number on the enclosed warranty card and keep it in a safe place for future reference.

In this manual, we refer to the 'PROJECTION MONITOR RECEIVER', as the 'Projection Monitor' or the 'Monitor'.

Note on the SPLIT screen and SEARCH screen functions

The SPLIT screen and SEARCH screen functions provided in this monitor are intended for private viewing only. Use of the above video processing functions for profitmaking purpose or for public viewing (clubs, hotels, etc.) without prior authorization from the transmitter and/or owner of the video program (s) may be an infringement of existing copyright laws.

CAUTION:

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

ATTENTION:

POUR EVITER UNE DECHARGE ELECTRIQUE, NE PAS UTILISER CETTE PRISE (POLARISEE) AVEC UNE RALLONGE, UNE PRISE OU UNE AUTRE SORTIE A MOINS QUE LES LAMES PUISSENT ETRE COMPLETEMENT INTRODUITES ET NE SOIENT PAS EXPOSEES.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building, as close to the point of cable entry as practical.

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

INTRODUCTION

IMPORTANT

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

NOTICE ON ADVERSE EFFECTS ON THE TV TUBE

When playing TV games, operating computers or displaying still pictures with your Monitor, be sure to keep in mind the following points;

1. Select the 'GAME' mode. (Refer to page 46 of the Operating Instructions)

2. Do not use your Monitor for more than two hours.

3. Watch normal TV broadcast's for three times longer than the time of playing TV games, operating computers or displaying still pictures.

Still patterns can scar the Monitor causing performance damage to the CRT.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The following symbols are found in this manual and on the labels on the product. They alert the operators and service personnel of this equipment to potentially dangerous conditions.

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

WARNING

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury

This symbol indicates an action that is

prohibited.

or property damage.

WARNING

IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS

• Read all of these instructions.

• Keep these instructions for later use.

• Follow all warnings and instructions marked on the Monitor.

FOR YOUR PERSONAL SAFETY

1. This Monitor is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

2. If the power cord or plug becomes damaged or frayed, unplug this Monitor from the wall outlet and refer to qualified service personnel for servicing.

3. Do not overload wall outlets and extension cords as this can result in fire or electrical shock.

4. Do not allow anything to rest on or roll over the power cord, and do not place the Monitor where the power cord maybe subject to traffic or abuse. This may result in electrical or fire hazard.

5. Do not attempt to service this Monitor yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified personnel.

6. Never push the objects of any kind into this Monitor through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the Monitor.

7. If the Monitor has been dropped or the cabinet has been damaged, unplug this Monitor from the wall outlet and refer to qualified service personnel for servicing.

8. If liquid has been spilled into the Monitor, unplug the Monitor from the wall outlet and refer servicing to qualified service personnel.

9. Do not subject your Monitor to impact of any kind. Be particularly careful not to damage the screen surface.

11-1. Do not place this Monitor on an

unstable, uneven or an inclined location. The Monitor may overturn, causing serious injury (to a person), and serious damage

10. Unplug the Monitor from the wall

to the appliance. outlet before cleaning. Do not use liquid cleaners or spray-type cleaners. Use a damp cloth for cleaning.

11-2. Be careful when placing the

Monitor on a cart to move it.

Quick stops, excessive force, and

uneven surfaces may cause the

Monitor and cart to overturn.

PROTECTION AND LOCATION OF YOUR PROJECTION MONITOR RECEIVER

12. •Do not use the Monitor near

water, for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

•Never expose the Monitor to rain

water. If the Monitor system has been exposed to rain or water, unplug the Monitor from the wall outlet and refer servicing to qualified service personnel.

13. Choose a place where light (artificial or sunlight) does not shine directly on the screen.

14. Avoid dusty places since the buildup of dust inside the Monitor's chassis may result in the malfunctioning, when high humidity persists.

15. •The Monitor has slots, or

openings in the cabinet for ventilation purposes to ensure the reliable operation of the Monitor, and to protect it from overheating. These openings must not be blocked or covered.

•Never cover the slots or openings

with cloth or other material.

•Never block the bottom

ventilation slots of the Monitor by placing it on a bed, sofa, rug, etc.

•Never place the Monitor near or

over a radiator or heat register.

•Never place the Monitor in a built-

in enclosure such as a bookcase, unless proper ventilation is provided.

16. If an outside antenna is connected through other equipment, be sure the antenna system is grounded so as to provide protection against voltage surges and builtup static charges. In the U. S. A., section 810 of the National Electrical Code, ANSI/NFPA 70, provides information on proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrode, and requirements for the grounding electrode.

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

FIG. A

GROUNDING CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

EXAMPLE OF ANTENNA GROUNDING IN NATIONAL ELECTRICAL CODE INSTRUCTIONS

NEC-NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

INTRODUCTION

17. An outdoor antenna system should not be located in the vicinity of overhead power lines/ electric lights or power circuits, or where it can fall onto such power lines or circuits. When installing an outdoor antenna system, extreme care should be taken to keep it from touching such power lines or circuits as contact with them might be fatal.

18. For added protection during a lightning storm, or when it is left unattended and unused for long periods of time, unplug the Monitor from the wall outlet and disconnect the antenna. This will prevent damage due to lightning and power-line surges.

OPERATION OF YOUR PROJECTION MONITOR RECEIVER

19. The Monitor should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply at your home, consult your dealer or local power company.

20. If you are unable to restore normal operation by following the detailed procedure in your operating instructions, unplug it from the wall outlet and refer to qualified service personnel for servicing. Do not adjust other controls than those described in this manual. Improper adjustments may result in damage and will often require extensive work by a qualified technician to restore the Monitor to normal operation.

21. If your Monitor is to remain unused for a period of time, for instance, when you go on a holiday, turn the Monitor 'off' and unplug it from the wall outlet.

IF THE PROJECTION MONITOR RECEIVER

24. It is normal for some Monitor to make occasional snapping or popping sounds, particularly when being turned on or off. If the snapping or popping is continuous or frequent, unplug the Monitor and consult your dealer or service technician.

FOR SERVICING AND MODIFICATION

25. Do not use attachments not recommended by the Monitor's manufacturer as they may result in the risk of fire, electrical shock or injury to persons.

26. When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electrical shock, or injury.

27. Upon completion of any service or repairs to the Monitor, ask the service technician to perform routine safety checks to determine that the Monitor is in a safe operating condition.

DOES NOT OPERATE PROPERLY

22. If you are unable to restore normal operation by following the detailed procedure in your operating instructions, do not attempt any further adjustment. Unplug the Monitor and call your dealer or service technician.

23. Whenever the Monitor is damaged or fails, or there is a distinct change in performance, unplug the Monitor and have it checked by a professional service technician.

CONTENTS

INTRODUCTION

HOW TO READ THIS OPERATING INSTRUCTIONS ...................... 8

INSTALLING THE MONITOR ........................................................ 9

BASIC OPERATIONS

BEFORE USE .............................................................................. 10

CONNECTING THE ANTENNA ................................................... 12

CONNECTING VIDEO/AUDIO EQUIPMENT ................................ 14

FRONT PANEL FUNCTIONS ....................................................... 18

REMOTE CONTROL UNIT FUNCTIONS ..................................... 20

TO WATCH TV ............................................................................ 22

CHECKING THE MENU ............................................................... 24

AUTO CHANNEL PRESET .......................................................... 26

CONVERGENCE ADJUSTMENT ................................................ 28

BASIC FUNCTIONS

PROGRAM BLOCK (V.CHIP) FUNCTION ..................................... 30

CHANGING PASSWORD ............................................................ 34

CHANGING SCREEN SIZE .......................................................... 36

MULTI-SCREEN FUNCTION ....................................................... 38

CLOSED CAPTION DECODE FUNCTION .................................... 40

CHANGING CHANNEL SET UP .................................................. 41

PICTURE ADJUSTMENTS .......................................................... 46

SOUND ADJUSTMENTS ........................................................... 52

DPO FUNCTION ......................................................................... 56

MULTI-POINT CONVERGENCE ADJUSTMENT .......................... 57

VARIOUS FUNCTIONS

CONNECTING THE SYSTEM REMOTE CONTROL ..................... 59

REMOTE CODE SET UP .............................................................. 60

OTHERS

MENU INDEX ............................................................................. 70

TROUBLESHOOTING ................................................................. 72

SPECIFICATIONS ........................................................................ 74

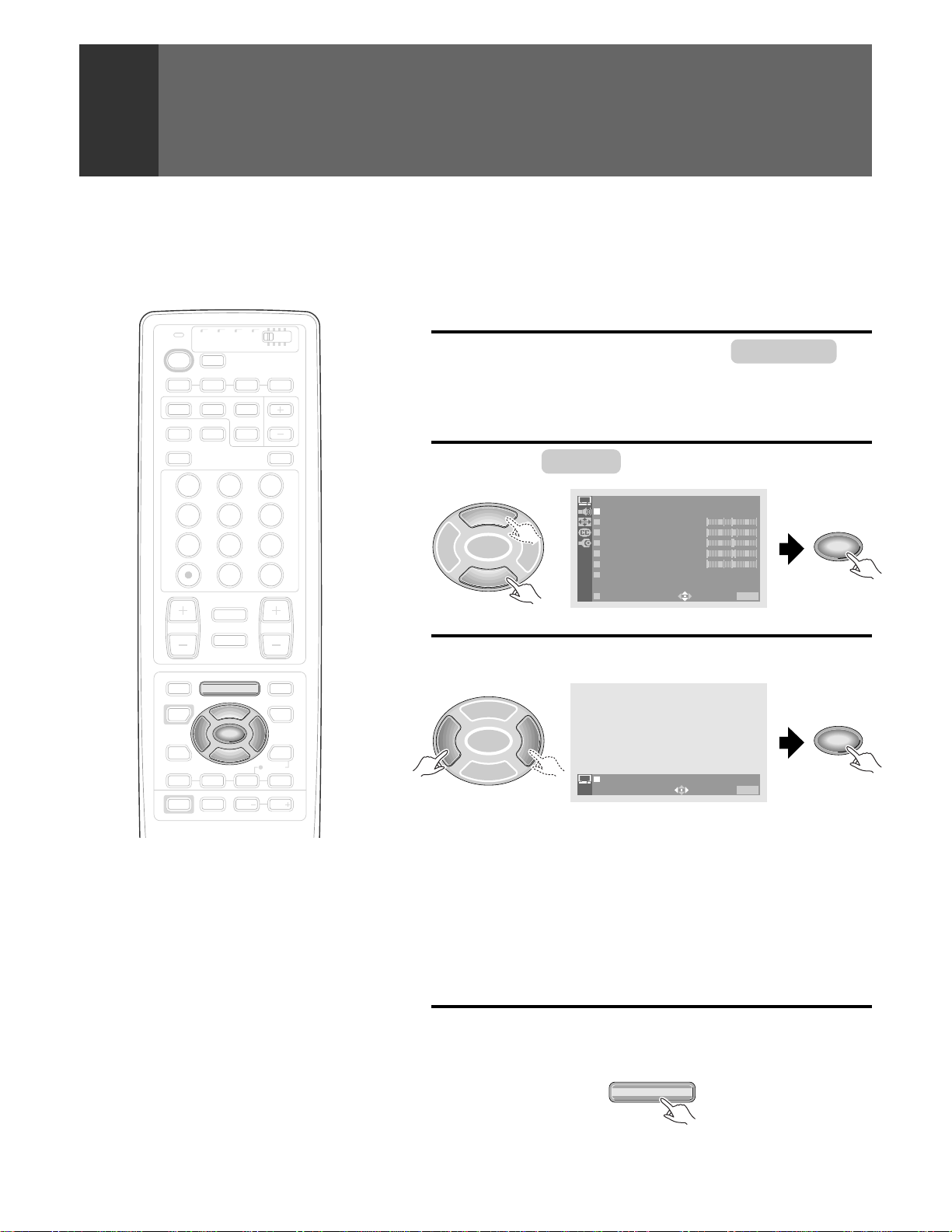

HOW TO READ THIS OPERATING INSTRUCTIONS

The following page is an example of the way that basic operating instructions are shown in this manual. The explanation method varies from page to page.

The button that is operated is shown in dark gray.

Precautions etc.

AUTO CHANNEL PRESET

The broadcast frequencies that can be received depend on your area. Memorize the broadcast stations that can be received in your area in the preset.

Select TV.

TV CBL

DVD

VCR

/SAT

/LD

/DTV

POWER

INPUT

1 2 3 4

SELECT

SPLIT

SCREEN

MODE

DTV

AUDIO

SUB CH

FREEZE

ANT

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

TV/SAT/DVD

SET/

2 3

ENTER

∞

FAVORITE CH

RECEIVER

INPUT

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

EDIT/

LEARN

SOURCE

POWER

17 3¡

POWER

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

NOTE:

The CHANNEL SET UP cannot be selected unless the function is set up for TV.

Press MENU and select SET UP

the 5 or ∞ button and then pressing SET/ ENTER. (Refer to page 24.)

Select CHANNEL SET UP in the same way.

SET/

2 3

ENTER

∞

Select AUTO CHANNEL PRESET .

SET/

2 3

ENTER

∞

Select ANTENNA , then select A or B.

SET/

2 3

ENTER

∞

SET/

2 3

ENTER

∞

SET UP

CHANNEL SET UP

CONVERGENC PROGRAM BL OCK DPO:OFF CHANGE PASSWORD

EXI T

SET UP CHANNEL SE

AUTO CHANN

CHANNEL FAVOR I E C

EXI T

SET UP AUTO CHANN

ANTENNA :A

TV /CABLEELMPORDEES:

AUTO PRESET START

EXI T

SET UP AUTO CHANN

ANTENNA :A B

TV /CABLEELMPORDEES:

AUTO PRESET START

EXI T

USE: END:MENU

ETLADPDR/EDSEELT

HAUNNE L

USE: END:MENU

CATV STD

USE: END:MENU

CATV STD

USE: END:MENU

by using

SET/

ENTER

SET/

ENTER

SET/

ENTER

SET/

ENTER

Explanation of the function on this page.

Operating procedure

Screen during operation

Buttons operated

INSTALLING THE MONITOR

INSTALLATION PRECAUTIONS:

• Keep away from magnetic fields The picture may be distorted if strong magnetic fields are nearby. External speakers should be set at least 2 feet (60cm) away from the Projection Monitor. Electric fans and other motor driven appliances and toys may also be sources of magnetism.

• Bright light or direct sunlight will dull the picture. Position the Projection Monitor so that the screen faces away from windows.

• While the Projection Monitor is operating, it is cooled by airflow through ventilation holes in the rear and bottom. Therefore, avoid placing it in a location where the cooling airflow is hindered (e. g. against a wall).

• Avoid places subject to extremely high temperatures or humidity, or to temperatures of 41°F (5°C) or lower. Also avoid dusty places.

• If setting the Projection Monitor on a floor made of soft material, make sure that the floor will not damaged by the weight of the Projection Monitor.

• Do not put the Projection Monitor on a surface that is tilted, unsteady or prone to shake or vibrate. A shaky or slanted platform is dangerous.

• Cover shiny surfaces (floor and walls) with non reflective materials (carpet, rugs, wallpaper, etc.).

CARE OF YOUR PROJECTION MONITOR

DO NOT:

• Do not use strong cleansers, solvents, polishes, or chemically treated cloths to clean the screen or cabinet.

• Do not touch or scratch the screen.

• Do not fasten or place rubber or vinyl items on the Monitor.

• Do not stick adhesive tape onto the Monitor.

• Do not put any object on the Monitor.

DO:

• Use a soft cloth to dust the screen and cabinet.

• Handle the screen with care to avoid scratches or damages.

• Ask your dealer or a Pioneer authorized service center to clean the interior of the monitor in your area if the picture brightness is too low even with the max. level. This may be caused by dust buildup inside.

INTRODUCTION

OPERATING PRECAUTIONS

Optimum viewing distance

10 to 23 feet is the range recommended for viewing comfort.

Adjust room illumination

Excessively bright or dim lighting may strain your eyes. Draw the curtains if necessary to shut out direct sunlight.

Condensation and picture blurring

• If the room temperature suddenly rises (or if the Projection Monitor is moved from a cool place to a hot place), condensation may form on the lenses resulting in picture distortion or color fading. If this occurs, simply wait a while (with the power switch ON) and the condensation will disappear.

• A gradual change in temperature can prevent condensation from forming.

BEFORE USE

Before you watch the TV, perform the following procedure.

This manual's illustrations shows model SD-582HD5.

UHF VHF

Connect the cables of the VHF antenna and UHF antenna to the ANTENNA A terminal. (See pages 12 and 13)

Mixer

ANTENNA

/CABLE

Connect the CATV converter to the ANTENNA B terminal. (See pages 12 and 13)

CATV

converter

Connect the power cord to the AC wall socket.

Turn on the MAIN POWER switch.

When the MAIN POWER is on, the red STANDBY/ ON indicator lights up. In this state, the POWER STANDBY/ON button or the POWER button of the remote control unit can be used to turn on and off the Monitor.

Red indicator

STANDBY/ON

DPO

MAIN POWER

POWER

Inserting batteries into the remote control unit

BEFORE USE

Remote control operation range

• Furniture and other obstacles may block the infrared light

beam so that it cannot reach the sensor behind the Projection Monitor's screen.

• Performance of the remote control unit is adversely affected

by strong fluorescent light. Keep such lights away from the screen in particular.

Two DURACELL® 'AA' MN1500 1.5V ALKALINE dry cell batteries

(

30˚

23 feet (7m)

CAUTION

Incorrect use of batteries may lead to leakage or rupture. Always be sure to follow these instructions.

Never mix new and used batteries.

Batteries of the same size may have different voltages depending on their type. Do not mix different types of batteries.

Battery replacement

Replace the batteries when any of the following phenomena is observed.

• The transmitting LED does not blink even when the TV POWER button is pressed.

• The remote control operation range has reduced.

When replacing the batteries, prepare new batteries before removing the old batteries. Be sure to close the battery case cover after battery replacement.

NOTE:

• Even when batteries are removed, learned commands remain in memory for about 15 minutes.

• If you remove the batteries, and press a button, the memory is erased in a few seconds.

BASIC OPERATIONS

CONNECTING THE ANTENNA

• A good color picture depends on a good TV signal. So does good multichannel (stereo program and SAP) sound. Ask your dealer for advice on how to install your external antenna to receive the best possible signal.

• If you subscribe to Cable TV or have a central antenna for your building, you will not need an external antenna.

Connecting VHF/UHF antenna

VHF antenna

U/V mixer

VHF

Connecting VHF/UHF antenna with VCR

Antenna

Cable TV

Splitter

UHF

Connect the TV signal source to your Monitor properly. Use a 75-ohm coaxial cable with an F-type connector and connect the cable as shown in the illustration.

ANTENNA

/CABLE

UHF antenna

ANTENNA

/CABLE

Cable TV

Splitter

CATV converter

VCR

OUTIN

ANTENNA

Connecting the CATV converter

ANTENNA

/CABLE

Connecting the CATV converter with VCR

CONNECTING THE ANTENNA

ANTENNA

/CABLE

Cable TV

VHF antenna

Splitter

CATV converter

VCR

OUTIN

ANTENNA

Connecting VHF/UHF antenna and CATV converter

UHF antenna

BASIC OPERATIONS

ANTENNA

/CABLE

Cable TV

VHF

CATV converter

U/V mixer

UHF

CONNECTING VIDEO/AUDIO EQUIPMENT

VCR

DVD/LD player

VCR

Digital tuner

• Refer to the instructions of your VCR or DVD/LD player for the detailed connections.

• Before making or changing connections, set the power switch to off and unplug the power cord from the AC outlet.

• If both the VIDEO terminal (pin-jack type) and S-VIDEO terminal are connected, the signals from the S-VIDEO terminal will have priority.

Video movie, etc.

SAT tuner

• Only the INPUT 1 and INPUT 2 jacks can input the component video signal.

• When the component signal and other signals are input to the INPUT 1 or INPUT 2 jacks, the component signal will be given priority.

DVD/LD player

SIGNAL

CONNECTING VIDEO/AUDIO EQUIPMENT

VCR

OUTPUT

VIDEO

AUDIO RL

S-VIDEO

BASIC OPERATIONS

SIGNAL

ANTENNA

/CABLE

CONTROL

IN OUT

SIGNAL

S-VIDEO/VIDEO

RGB

S-VIDEO/VIDEO

RGB

INPUT 3 SELECT

INPUTS

INPUT 1

INPUT 2

INPUT 3

S-VIDEO

VIDEO

(MONO)

AUDIO

COMPONENT VIDEO

OUTPUT

MONITOR

INPUT 3

INPUT

Rear panel

Use these terminals to input signals from a DVD player which has component video output terminals (Y, P

B, PR).

SAT/DTV tuner

CONNECTING VIDEO/AUDIO EQUIPMENT

Front panel

VIDEO L-AUDIO-RVIDEO

INPUT 4

(MONO)

INPUT jacks

There are 4 sets of inputs for VCR and DVD/LD players. Use RCA-type pin plug cords (the same as those used in Hi-Fi systems) for connections. When the audio source to be connected is monaural, connect the source to the L-(MONO) jack.

MONITOR OUTPUT jacks

These are used for connecting the monitor to a VCR for recording, or for linking it to another monitor. These jacks output the video and audio signals of the source currently selected by the INPUT SELECTOR. Connect these output jacks to your VCR's inputs. Connect the VCR's outputs to the monitor's VIDEO inputs.

S-VIDEO INPUT jacks

• Inputs S-VHS video signals or signals from a DVD/LD player that has an S-VIDEO output jack.

• When the signal input from the S-VIDEO INPUT jack is output from the MONITOR OUTPUT jack, the output signal will be a composite of Y and C.

RLVIDEO

S-VIDEO

OUTPUT

Video movie/VCR

COMPONENT VIDEO INPUT jack

Inputs three signals – Y, PB (CB) and PR (CR) – output from DVD players and the like.

Input formats in which images can be received.

Format

Horizontal Vertical frequency frequency

DVD player, etc. 480 i 15.734 kHz 60 Hz

Digital tuner, etc.

1080 i 33.75 kHz 60 Hz

480 p 31.468 kHz 60 Hz

RGB INPUT jack

Inputs five signals – R, G, B, H and V – output from digital tuners and the like.

Input format in which images can be received.

Format

Digital tuner 1080 i 33.75 kHz 60 Hz

Horizontal Vertical frequency frequency

NOTES:

• SPLIT screen, FREEZE screen and SEARCH screen functions cannot be used when 1080i or 480p component signals are input.

• Signals from MONITOR OUTPUT jacks will not be output when component signals or RGB signals are input.

• The RGB input jack is designed for use in connecting a digital tuner with RGB signal output, and it should accordingly never be used for connecting to a personal computer or other device.

CONNECTING VIDEO/AUDIO EQUIPMENT

ANTENNA

/CABLE

Rear panel

S-VIDEO

VIDEO

(MONO)

AUDIO

COMPONENT VIDEO

INPUTS

INPUT 1 INPUT 2

INPUT 3

OUTPUT

MONITOR

CONTROL

IN OUT

S-VIDEO/VIDEO

RGB

SIGNAL

S-VIDEO/VIDEO

INPUT 3 SELECT

INPUT 3

INPUT

RGB

INPUT 3 SELECT

BASIC OPERATIONS

OUTPUT

AUDIO RL

Digital tuner

NOTE:

Setting the INPUT 3 SELECT switch to ‘RGB’ will cause all S-Video and composite images input from the INPUT 3 jack to be suppressed. Similarly, setting the INPUT 3 SELECT switch to ‘SVIDEO/VIDEO’ will cause all images input from the RGB input jack to be suppressed.

RGB

FRONT PANEL FUNCTIONS

A flip-down door conceals the control panel. Push gently and release, to open the door. To close the door, lift it back up into place.

NOTE:

If you accidentally pull the door, it may not shut properly. Push the door back in to shut it.

1 POWER STANDBY/ON indicator

red: STANDBY green: ON

2 DPO sensor

Sensor to detect the room brightness.

3 MAIN POWER switch

Press once to turn on the main power (ST ANDBY mode). Press again to turn off the main power.

4 POWER button (STANDBY/ON)

Press once to turn on the Monitor. Press again to turn off the Monitor.

5 INPUT SELECTOR button

Press to select your program source. Each press of the INPUT SELECTOR changes the selection to the next source.

TV INPUT 1

INPUT 4 INPUT 3 INPUT 2

6 CHANNEL buttons

Press plus (+) or minus (–) to tune to a higher or lower channel. Only the preset channels can be tuned in using these buttons.

PUSH

STANDBY/ON

2 3 4 5671

DPO

In some cases, the door may only open slightly when pushed. In such cases, open the door with your finger as shown in the figure at left.

STANDBY/ON

MAIN POWER

POWER

INPUT

SELECTOR

CHANNEL

RETURN

FRONT PANEL FUNCTIONS

7 RETURN button

Press to set the Projection Monitor to its initial mode.

Initial mode

Input selector: Set to TV. TV channel: Remains at the last channel set. VOLUME: Remains at the last setting. MUTING: OFF PICTURE

MODE: STD Parameters: Set to 0. 3D Y/C LEVEL: 3 3D NR LEVEL: 3 COLOR TEMP: STD FLESH TONE: ON

SOUND

MTS: MAIN Parameters: Set to 0. SURROUND: OF F SUPER BASS: OFF

SCREEN

MODE: NA TURAL WIDE

V. POSITION: Set to 0. CC: OFF DPO: OFF

• When this button is pressed while adjusting the MUL TI-

POINT convergence, the MUL TI-POINT convergence returns to the initial mode.

8 VOLUME buttons

Press plus (+) button to increase the volume, press minus (–) button to decrease it.

CAUTION:

Do not press any operation button on the Projection Monitor or the remote control unit while recording. Signals from the MONITOR OUTPUT jacks may be temporarily interrupted when a button is pressed.

ATTENTION

The Projection Monitor Receiver will not function properly in the following cases.

• An electrical discharge in the CRT.

• Lightning storms.

• High static electricity environment.

• Poor voltage regulation in the power source.

If the Projection Monitor does not operate properly, reset it as follows:

1. Turn off the power of the unit with the 3 MAIN POWER switch.

2. After approximately 1 minute, turn on the power with 3 MAIN POWER switch and 4 POWER button.

If the normal operation cannot be restored after the above treatment, immediately unplug the power cord and call your nearest PIONEER-authorized service center.

NOTE:

On rare occasions, an electrical discharge may occur inside the CRT. It makes a short, sharp pop and either no sound is produced or the volume level changes by itself. The SPLIT screen and SEARCH screen functions will be cancelled automatically if an electrical discharge occurs when this function is engaged.

BASIC OPERATIONS

9 INPUT 4 jacks

These inputs are for Video Movie and VCR. Use RCA-type pin plug cords (the same as those used in Hi-Fi systems) and SVIDEO cords for connections. When the audio source to be connected is monaural, connect the source to the L-(MONO) jack.

8 9

VIDEO L-AUDIO-RVIDEO

VOLUME INPUT 4

(MONO)

REMOTE CONTROL UNIT FUNCTIONS

Set the mode switch to TV .

Mode switch

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

ANT

DTV

AUDIO

1 4 7

EDIT/

LEARN

SOURCE

POWER

2 3

17 3¡

POWER

INPUT

VCR /SAT /DTV

INPUT

SELECTSEARCH

FREEZE

2 3 5 8 0

RETURN

MUTING

TV/SAT/DVD

SET/

ENTER

∞

FAVORITE CH

RECEIVER

DVD /LD

SUB CH

6 9

ENTER

VOL

DTV/DVD TOP

DTV/SAT

VCR REC

DISPLAY

GUIDE

DTV/(SAT)

INFO

VOLVOL

= ~

! @

1 TV POWER button (STANDBY/ON)

Turns the power of the monitor on and off.

2 Input Selector buttons (TV, INPUT 1 to INPUT 4)

Press the button to select the source you wish to watch. The screen will display your selection.

3 SCREEN MODE button

Press to select the SCREEN MODE.

4 ANT (antenna selector) button

Press to switch between ANTENNA-A and ANTENNA-B when you wish to watch TV .

5 Direct channel selection buttons

Press the button (or buttons) that corresponds to the channel that you wish to watch.

6 CH (channel) +, – button

Press plus (+) or minus (–) to tune in a higher or lower channel. Only the preset channels can be tuned in using these buttons.

7 MUTING button

Press to temporarily turn off the sound. Press again to return to the previous volume level.

8 Select/Adjust/Set buttons (SET/ENTER, 2, 3, 5, ∞)

2, 3, 5, ∞: Press to select or adjust items on the menu

screen.

SET/ENTER: Press to activate the selected function.

9 FAVORITE CH buttons

These buttons call up the channels that have been assigned to them.

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

0 SPLIT/SEARCH screen buttons

SPLIT: Press to turn the SPLIT screen function on

and off. SEARCH: Press to select the SEARCH screen mode. SELECT: Selects the screen for switching the channel

or input source.* FREEZE: When this button is pressed with the regular

screen, the screen will change to the SPLIT

screen and the picture at the time the button

was pressed will become the sub-picture,

displayed as a frozen image. SUB CH +, –: Used to switch the channel for the sub-

picture of the SPLIT screen.

- DISPLAY button

Press to display the input source, channel, setting and other screen indicators for a few seconds.

= CH ENTER button

Fix the selected channel with the direct channel selection buttons.

~ CH RETURN (channel return) button

Press to switch between the current channel and the channel you were watching immediately before.

REMOTE CONTROL UNIT FUNCTIONS

BASIC OPERATIONS

! VOL (volume) +, – buttons

Press plus (+) button to increase the volume, press minus (–) button to decrease it. Volume level will appear on the screen as numbers and a bar graph. The maximum volume level is “63”. The display will disappear from the screen after 2 seconds.

@ MENU button

Press to turn on the menu screen for use in function selection. Press again to return to normal TV screen.

*1 With the 9-SEARCH screen, the search picture’ s input

source and channel cannot be switched.

NOTE:

If the remote control unit is left in total darkness for a long period of time, it will not emit light, but will not be damaged. In this case, place it in a bright place for a little while before using it.

TO WATCH TV

CA.TNAH2

Best Horizontal and Vertical Viewing Angle

• The optimum viewing angle is 140˚ in horizontal and 45˚ in vertical.

• Watch from at least 10 feet (3m) away from the screen (optimum viewing distance is 10 to 23 feet).

45˚

140˚

Remote control unit

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

1 4 7

EDIT/

LEARN

SOURCE

POWER

17 3¡

POWER

TV CBL

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

2 3 5 8 0

RETURN

MUTING

TV/SAT/DVD

SET/

2 3

ENTER

∞

FAVORITE CH

RECEIVER

INPUT

VOL

SUB CH

DISPLAY

6 9

ENTER

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

Turn on the MAIN POWER switch.

Turn on the POWER.

The green STANDBY/ON indicator lights up.

Control panel of the monitorRemote control unit

POWER

Set the mode switch to TV and

Green indicator

STANDBY/ON

then press the TV button.

Remote control unit

TV CBL

/SAT /DTV

Select antenna A or B.

Check the input signals at the ANTENNA A and B terminals.

Remote control unit

ANT

Select a channel.

There are three methods for this.

VCR

DVD

/LD

STANDBY/ON

POWER

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

Control panel of the monitor

STANDBY/ON

POWER

INPUT

SELECTOR

CHANNEL RETURN

1 Select by pressing the number button

(Example)

ENTER

Channel 5

→

(Or press 0 and then press 5 within 2 seconds of during so.)

and then press 2 within 2 seconds of

ENTER

VOLUME

Channel 12 Press

during so. →

• After pressing a number button, even if you do not press the CH ENTER button, the channel will be switched to the one selected within 2 seconds.

• Depending on the channel, this switch may occur immediately after the number button is pressed.

TO WATCH TV

SUPER HYPER UHF

7-13 14-69

W+1(37) W+2(38) W+3(39) W+4(40) W+5(41) W+6(42) W+7(43) W+8(44) W+9(45)

W+10(46)

7-13

J(23) Q(30) K(24) R(31)

L(25) S(32) M(26) T(33) N(27) U(34) O(28) V(35) P(29) W(36)

CATV

VHF L

2-6

(STD)

1-6

(HRC)

(IRC)

MID

A-5(95) A-4(96) A-3(97) A-2(98) A-1(99)

VHF H

A(14) B(15) C(16) D(17)

E(18) F(19)

G(20)

H(21)

I (22)

CABLE (CATV) CHANNEL ASSIGNMENT TABLE

In the cable tuning mode, channels can only be assigned to numbers 01 to 125. The specific channel number assignments and the corresponding alphabet designation are shown at the bottom left of the channel table. For example: Channel number '14' corresponds to midband cable channel 'A'.

NOTE:

Cable (CATV) services can vary according to area. The channel number assignments shown in the channel table may not correspond with the channel numbers used by your local cable company. Direct tuning to cable channels without using the cable company converter 'or preselector' will depend on the specific channels in use by the cable company. Direct tuning to cable channels is limited to unencoded (unscrambled) channels only. Check with your local cable company for compatibility requirements.

W+11(47) W+12(48) W+13(49) W+14(50) W+15(51) W+16(52) W+17(53) W+18(54) W+19(55) W+20(56)

W+21(57) W+22(58) W+23(59) W+24(60) W+25(61) W+26(62) W+27(63) W+28(64) W+29(65) W+30(66)

W+31(67) W+32(68) W+33(69) W+34(70) W+35(71) W+36(72) W+37(73) W+38(74) W+39(75) W+40(76)

W+41(77) W+42(78) W+43(79) W+44(80) W+45(81) W+46(82) W+47(83) W+48(84) W+49(85) W+50(86)

W+51(87) W+52(88) W+53(89) W+54(90) W+55(91) W+56(92) W+57(93) W+58(94)

W+59(

100

W+60(

101

W+61( W+62( W+63( W+64( W+65( W+66( W+67( W+68( W+69(

)

W+70(

)

102 103 104 105 106 107 108 109 110 111

W+71(

) )

W+72(

)

W+73(

)

W+74(

)

W+75(

)

W+76(

)

W+77(

)

W+78(

)

W+79(

)

W+80(

112 113 114 115 116 117 118 119 120 121

W+81(

)

W+82(

)

W+83(

)

W+84(

) ) ) ) ) ) )

122 123 124 125

2 Select using the TV CH+/– button

The channels will switch according to the order set by channel preset (See page 26).

Control panel of the monitorRemote control unit

CHANNEL

3 Select using the FAVORITE CH button

Select your desired channel from the 4 in the memory of each

button: blue, green, red and yellow.

Remote control unit

FAVORITE CH

17 3¡

) ) ) )

BASIC OPERATIONS

To turn off the sound

Press the MUTING button.

MUTING

When mute is turned on, a volume indicator will appear in red on the screen (and will disappear in a few seconds). If the MUTING button is pressed while a closed caption signal is being received, CC/TEXT will be displayed. Press MUTING again to return to the previous volume level.

Auto power off function

If the monitor is receiving no input signals in TV mode, its power will turn off (go on standby) after some time has passed.

• Each time the button is pressed, the channel will be changed in order of the 4 channels in that button's memory.

• The desired channels can be set. (See page 44.)

• When you select a channel using the FAVORITE CH button, step 3 (Select antenna A or B) is not necessary.

Adjust the volume.

VOL

Control panel of the monitorRemote control unit

VOLUME

CHECKING THE MENU

2 3

SET/

ENTER

∞

EDIT/

SOURCE

INFO

RECEIVER

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

VOL

INPUT

VOL

GUIDE

LEARN

POWER

VCR REC

FAVORITE CH

17 3¡

DTV/SAT

DTV/DVD TOP

DTV/(SAT)

TV/SAT/DVD


MODE : USER

(

MOV I E

)

CONTRAST 0

5 2 3 01–

1– BLACK LVL. COLOR TINT SHARP OTHER

EXI T

USE: END: MENU


3D Y/C LEVEL:3

3D NR LEVEL : 3 COLO FLESHRTTOENMEP::OSN

OTHER

EXI T

USE: END: MENU

MTS :MA I N

BASS 0

5 2R

1– TREBLE BALANCE SURROUND

EXI T

USE: END: MENU

SOUND

:OFF

SUPER ASBS

:OFF

Press MENU on the remote control unit. The MAIN MENU will be displayed on the screen. Select the desired menu item using 5 or ∞ button of the remote control unit, and press SET/ENTER button to perform the desired operations and settings.

• When the menu screen appears, the mode will switch from SCREEN to FULL. When all menu selections have been made, the previous screen mode will be restored.


SOUND SCREEN

TV/SAT/DVD

CC SET UP

SET/

ENTER

PICTURE adjustment menu (See page 46)

SET/

2 3

ENTER

∞

USE: END: MENU


SOUND

SCREEN CC SET UP

USE: END: MENU

SET/

ENTER

SOUND adjustment menu (See page 52)

ICNEMAWIDE

V.POSITION:–10

EXI T

USE: END: MENU

SCREEN

SET/

2 3

ENTER

PICTURE SOUND

SCREEN

CC SET UP

SET/

ENTER

CHECKING THE MENU

SCREEN setting menu (See page 37)

BASIC OPERATIONS

∞

SET/

2 3

ENTER

∞

SET/

2 3

ENTER

∞

USE: END: MENU

PICTURE SOUND SCREEN

SET UP

USE: END: MENU

PICTURE SOUND SCREEN CC

SET UP

USE: END: MENU

SET/

ENTER

SET/

ENTER

Closed Caption menu (See page 40)

CC : O

MODE : C CF–F2

EXI T

USE: END: MENU

SET UP menu (See pages 26, 28, 31, 34, 41 and 56)

SET UP

CHANNEL SET UP

CONVERGENC

E PROGRAM BLOCK DPO:OFF CHANGE PASSWORD

EXI T

USE: END: MENU

On screen indicators

USE: Indicates in light cyan the buttons that can be used on

the menu screen displayed.

END: End is for turning off the menu screen by pressing the

MENU button.

EXIT: To return to the previous menu screen, use the 5 or ∞

button to move to EXIT and then press SET/ENTER.

AUTO CHANNEL PRESET

The broadcast frequencies that can be received depend on your area. Memorize the broadcast stations that can be received in your area in the preset.

Select TV.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

1 32

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

Press MENU and select SET UP

the 5 or ∞ button and then pressing SET/

SUB CH

ENTER. (Refer to page 24.)

DISPLAY

Select CHANNEL SET UP in the same way.

by using

4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

2 3

FAVORITE CH

RECEIVER

INPUT

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

NOTE:

The CHANNEL SET UP cannot be selected unless the function is set up for TV.

SET UP

SET/

2 3

ENTER

CHANNEL SE T UP

CONVERGENC PROGRAM BL OCK DPO:OFF CHANGE PASSWORD

∞

EX IT

Select AUTO CHANNEL PRESET .

SET UP

SET/

2 3

ENTER

CHANNEL SE

AUTO CHANN

CHANNEL FAVORI E C

USE: END: MENU

ETLADPDR/EDSEELT

HAUNNE L

∞

EX IT

Select ANTENNA , then select A or B.

SET UP

SET/

2 3

ENTER

∞

SET/

2 3

ENTER

∞

AUTO CHANN

ANT ENNA : A

TV / CABLEELMPORDEES:

AUTO PRESET START

EX IT

SET UP

AUTO CHANN

ANT ENNA : A B

TV / CABLEELMPORDEES:

AUTO PRESET START

EX IT

USE: END: MENU

CATV STD

USE: END: MENU

CATV STD

USE: END: MENU

SET/

ENTER

SET/

ENTER

SET/

ENTER

SET/

ENTER

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

DVD

SELECT

FREEZE

AUTO CHANNEL PRESET

Select TV/CABLE MODE , then select

the broadcast system to be received from AIR, CATV STD, CATV HRC or CATV IRC.

• Ask your dealer or cable service station for the mode of your

/LD

SUB CH

DISPLAY

2 3

local CATV system.

SET/

ENTER

∞

SET UP

AUTO CHANN

ANTENNA:A

TV / CABLEELMPORDEES:

CATV STD

AUTO PRESET START

EX IT

USE: END: MENU

SET/

ENTER

BASIC OPERATIONS

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

ENTER

FAVORITE CH

17 3¡

RECEIVER

INPUT

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SET/

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

VOL

INFO

VCR REC

VOL

∞

SET UP

SET/

2 3

ENTER

AUTO CHANN

TV / CABLEELMPORDEES:

AIR

CATV STD

CATV HRC CATV I RC

∞

EX IT

Select AUTO PRESET START .

SET UP

SET/

2 3

ENTER

∞

AUTO CHANN

ANTENNA:A TV / CABLEELMPORDEES:

AUTO PRESET START

EX IT

USE: END: MENU

CATV STD

USE: END: MENU

• AUTO CHANNEL PRESET starts.

SET/

ENTER

SET/

ENTER

CH3

IAWESAELPT

MM I NARGOPROTUAG

NOTE:

If AUTO CHANNEL PRESET is not performed, refer to the steps on page 41 and onwards to preset channels.

• When AUTO CHANNEL PRESET ends, the Monitor will return

to step 5. Perform steps 5 to 7 if the other antenna is being used.

After setting, press MENU to turn the

menu off.

TV/SAT/DVD

CONVERGENCE ADJUSTMENT

Earth magnetism may deviate the color misconvergence in some areas. After setting up the TV, or if the picture color is misconverged, be sure to realign color convergence, after the TV has warmed up for 30 minutes or more.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

2 3

FAVORITE CH

INPUT

RECEIVER

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

Press MENU and select SET UP

by using

the 5 or ∞ button and then pressing SET/ ENTER. (Refer to page 24.)

Select CONVERGENCE in the same way.

SET UP

SET/

2 3

ENTER

∞

Select screen mode.

SET/

2 3

ENTER

∞

• Center convergence adjustment will be accessed.

When the cross pattern is white If the cross pattern shows other

CHANNEL SE T UP

CONVERGENC

PROGRAM BL OCK DPO:OFF CHANGE PASSWORD

EX IT

SET UP

CONVERGENC

NATURA L WI

CINEMA ZOOM FULL A D 4 : 3N FULL F

EX IT

USE: END: MENU

WI DE

N OR HD

USE: END: MENU

colors or when one side of the white line is red or blue

ORMA L

SET/

ENTER

SET/

ENTER

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

The color is converged. Press SET button twice, proceed onto page 57 and perform MULTI-POINT

CJDA ONVERGENCE

USE: END: MENU

It indicates that the color is misconverged. Proceed onto step 4 and perform the adjustment.

CJDA ONVERGENCE

USE: END: MENU

convergence.

CONVERGENCE ADJUSTMENT

Move the red line onto the green line.

Move the vertical line.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

ENTER

FAVORITE CH

17 3¡

RECEIVER

INPUT

SET/

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

VOL

INFO

VCR REC

VOL

∞

SET/

2 3

ENTER

CJDA ONVERGENCE

∞

USE: END: MENU

Move the horizontal line.

SET/

2 3

ENTER

CJDA ONVERGENCE

∞

USE: END: MENU

Move the blue line onto the yellow line.

CJDA ONVERGENCE

SET/

2 3

ENTER

∞

USE: END: MENU

CJDA ONVERGENCE

SET/

ENTER

SET/

ENTER

BASIC OPERATIONS

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

USE: END: MENU

SET UP

CONVERGENC NATURA L WI DE

ADJ CEN

ADJ MU T I PO I

EX IT

TER

USE: END: MENU

POINT

-LNT

• When ADJ CENTER POINT is selected, center convergence

adjustment will be accessed.

• Select ADJ MULTI-POINT to perform fine convergence tuning.

See page 57 for further information on multi-point convergence tuning.

After completing the convergence

adjustment, press MENU to turn the menu off.

PROGRAM BLOCK (V. CHIP) FUNCTION

Since laws have been passed in the United States requiring a way of blocking undesirable programming, the V-chip has become a required component in television sets. The V-chip is a computer chip which decodes signals added to broadcast signals transmitted by television broadcasters. These signals are classified by programming content (e.g., amount of violence or sexual content) and age, and viewers may specify settings which block certain types of programming. Program blocking may be set to a specific level judged by parents to be harmful to children depending on their age or the content of the programming in question, and the V-chip makes it impossible for such children to view programs with ratings exceeding the specified level.

The V-chip uses the following rating system.

MPAA RATING

RATING

G GENERAL AUDIENCES. All ages admitted.

PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.

PG-13 PARENTAL STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.

Age-Base

R RESTRICTED. Under 17 requires accompanying parent or adult guardian.

NC-17 NO ONE 17 AND UNDER ADMITTED.

X X Rating is an older rating that is unified with NC-17 but may be encoded on older movie's data.

NR NOT RATED

TV PARENTAL GUIDELINES

RATING

TV-Y ––––– TV-Y7 ‡ ––––

TV-G –––––

Age-Base

TV-PG – ‡‡‡‡ TV-14 – ‡‡‡‡ TV-MA ––‡‡‡

TV-Y All Children. This program is designed to be appropriate

for all children.

TV-Y7 Directed to Older Children. This program is designed for

children age 7 and above. Note: For those programs where fantasy violence may be

more intense or more combative than other programs in this category, such programs will be designated TV-Y7-FV.

TV-G General Audience. Most parents would find this program

suitable for all ages.

TV-PG Parental Guidance Suggested. This program contains

material that parents may find unsuitable for younger children. The program contains one or more of the following:

(D) Some suggestive dialogue (L) Infrequent coarse language (V) Moderate violence (S) Some sexual situations

Description and Content Themes

FV D L S V

FV: Fantasy Violence D: Sexually Suggestive Dialog L: Adult Language S: Sexual Situations V: Violence

TV-14 Parents Strongly Cautioned. This program contains some

material that many parents would find unsuitable for children under 14 years of age. This program contains one or more of the following:

(D) Intensely suggestive dialogue (L) Strong coarse language (S) Intense sexual situations (V) Intense violence

TV-MA Mature Audience Only. This program is specifically designed

to be viewed by adults and therefore may be unsuitable for children under 17. This program contains one or more of the following:

(L) Crude indecent language (S) Explicit sexual activity (V) Graphic violence

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

1 4 7

EDIT/

LEARN

SOURCE

POWER

2 3

17 3¡

POWER

VCR /SAT /DTV

INPUT

ANT

2 3 5 8 0

RETURN

MUTING

TV/SAT/DVD

SET/

ENTER

∞

FAVORITE CH

RECEIVER

INPUT

DVD

SELECT

FREEZE

VOL

/LD

SUB CH

6 9

ENTER

VOL

DTV/DVD TOP

DTV/SAT

VCR REC

DISPLAY

GUIDE

DTV/(SAT)

INFO

VOL

PROGRAM BLOCK (V. CHIP) FUNCTION

SETTING THE PROGRAM BLOCKING LEVEL

Press MENU and select SET UP by using

the 5 or ∞ button and then pressing SET/ ENTER. (Refer to page 24.)

Select PROGRAM BLOCK in the same

way.

SET UP

SET/

2 3

ENTER

∞

Enter password.

• Press numeric buttons ‘0’ through ‘9’ to enter a four-digit

password.

• If the password has not been changed as described in Changing

Password (p. 34), enter the default password of ‘1234’.

• If you wish to change the password, see p. 34 Changing

Password for instructions on how to do so.

1 4 7

2 3 5 8

CHANNEL SE T UP CONVERGENC

PROGRAM BL OCK

DPO:OFF CHANGE PASSWORD

EXIT

USE: END: MENU

SET UP

PROGRAM BL OCK

I NPUT YOUR PAS

SWORD

____

SET/

ENTER

BASIC FUNCTIONS

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

Select BLOCK .

SET UP

SET/

2 3

ENTER

PROGRAM BL OCK

BLOCK :OF F

RAT I NG SYSTEM

EXIT

USE: END: MENU

SET/

ENTER

∞

EXIT

USE: END: MENU

PROGRAM BLOCK (V. CHIP) FUNCTION

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

2 3

FAVORITE CH

RECEIVER

INPUT

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

Set BLOCK to ON.

SET UP

SET/

2 3

ENTER

PROGRAM BL OCK

BLOCK :ON OFF

RAT I NG SYSTEM

∞

EXIT

Select MPAA RATING or TV PARENTAL

USE: END: MENU

GUIDELINES .

SET/

2 3

ENTER

RAT I NUSA G

MPA

TV PARAENGTUAIL

RAT I NG

DEL I NES

SYSTEM

SET UP

∞

EXIT

Select and then confirm the rank of the

USE: END: MENU

MPAA RATING.

SET UP

SET/

2 3

ENTER

∞

SET/

2 3

ENTER

∞

MPAA RAT ING

1WVIE

PG– R

NC– X NR EXIT

SET UP MPAA RAT ING

PG PG– R NC– X NR EXIT

USE: END: MENU

1WVIE

USE: END: MENU

WVIE

WVIE WVIE WVIE

KLBOC

WVIE

KLBOC

WVIE

WVIE WVIE WVIE

KLBOC

SET/

ENTER

SET/

ENTER

SET/

ENTER

SET/

ENTER

NOTE:

•

Blocking programming with a low rating will cause all programming with a higher rating also to be blocked.

•

The ‘NR’ (not rated) of the MPAA RATING may be set to ‘View’ or ‘Block’ without regarded to other ratings.

Select and confirm the rank of the TV

PARENTAL GUIDELINES.

SET UP

SET/

2 3

ENTER

∞

• Each time the SET/ENTER button is pressed, the setting will

toggle between ‘B’ (Block) and ‘V’ (View).

TV PARENTA L GL .

TV–Y

7TV–

Y TV–G TV–

PG TV–14 TV–MA EXIT

FLS

B–B –

–

USE: END: MENU

VD –––– –––– –––– VVVV VVVV V–VV

SET/

ENTER

PROGRAM BLOCK (V. CHIP) FUNCTION

After setting, press MENU to turn the

menu off.

TV/SAT/DVD

HOW TO REMOVE BLOCKING FROM A PROGRAM IN PROGRESS

When a selected program or a program on a channel to which you have just changed has a rating higher than the current program blocking rating, the picture and sound will cut off and an enter password screen will appear.

PROGRAM BL OCK ED

MPAA RAT ING

____

Once the password has been entered, blocking will be removed.

NOTE:

Even when a password has been entered to cancel a block, if the monitor power is turn OFF then turned ON again, the Program Blocked screen will appear.

REMOVING BLOCKING IN MULTI-SCREEN MODE

• Just as in normal single-screen mode, programs are

blocked in SPLIT screen and SEARCH screen mode (see pages 38 and 39), but blocking may be removed only from the Main picture. To remove blocking from a Sub picture or Search picture screen, switch to the Main picture for that channel and then remove blocking.

• When viewing in FREEZE screen (p. 38) mode, only

programming on the Moving screen to the left will be blocked and the programming on the Still screen to the right will be displayed as is.

A.TNA63

Moving screen Still screen

Block

A.TNA63

PROGRAM

PROGRAM BLOCKED

BLOCKED

____

Still screen

BASIC FUNCTIONS

• When blocking is on during SEARCH screen mode, the

screen at search picture side will be blacked out (mute) without displaying: “PROGRAM BLOCKED”.

CHANGING PASSWORD

A password must be entered to turn program blocking on and off. While the password is set to ‘1234’ at shipping time, it is strongly recommended that the password be changed after purchase.

Press MENU and select SET UP by using

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

1 4 7

EDIT/

LEARN

SOURCE

POWER

2 3

17 3¡

POWER

/SAT /DTV

INPUT

ANT

2 3 5 8 0

RETURN

MUTING

TV/SAT/DVD

SET/

ENTER

∞

FAVORITE CH

RECEIVER

INPUT

VCR

DVD

SELECT

FREEZE

VOL

/LD

SUB CH

6 9

ENTER

VOL

DTV/DVD TOP

DTV/SAT

VCR REC

DISPLAY

GUIDE

DTV/(SAT)

INFO

VOL

the 5 or ∞ button and then pressing SET/ ENTER. (Refer to page 24.)

Select CHANGE PASSWORD in the same

way.

SET/

2 3

ENTER

∞

Enter current password.

• Press numeric buttons ‘0’ through ‘9’ to enter a four-digit

password.

• If no password has been set, enter the default password of

‘1234’.

1 4 7

2 3 5 8 0

SET UP

CHANNEL SE T UP CONVERGENC PROGRAM BL OCK DPO:OFF

CHANGE PASSWORD

EXIT

USE: END: MENU

SET UP CHANGE PASSWORD

I NPUT

EXIT

YOUR PA S

USE: END: MENU

SWORD

____

SET/

ENTER

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

Cut along dotted line and file after reading.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○

If you forget the password

When the message ‘INPUT YOUR PASSWORD’ shown in step 3 is displayed, press the RETURN button on the front panel and hold it down for 3 seconds or longer. The password will become “1234”.

PROGRAM BLOCK password No.

∫Û¿.˘<ÙÛ. ∫Û¿.≤<ÙÛ.

CHANGING PASSWORD

Enter new password.

• Press numeric buttons ‘0’ through ‘9’ to enter a four-digit

password and press the SET/ENTER button.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

1 4 7

EDIT/

LEARN

SOURCE

POWER

2 3

17 3¡

POWER

VCR /SAT /DTV

INPUT

ANT

2 3 5 8 0

RETURN

MUTING

TV/SAT/DVD

SET/

ENTER

∞

FAVORITE CH

RECEIVER

INPUT

DVD

SELECT

FREEZE

VOL

/LD

SUB CH

6 9

ENTER

VOL

DTV/DVD TOP

DTV/SAT

VCR REC

DISPLAY

GUIDE

DTV/(SAT)

INFO

VOL

1 4 7

2 3 5 8 0

6 9

SET UP

CHANGE PASSWORD

PRES S TO DEF I NE NEW PASSWORD

NUME R I

EXIT

C KEYS

____

USE: END: MENU

After setting, press MENU to turn the menu off.

TV/SAT/DVD

SET/

ENTER

BASIC FUNCTIONS

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

CHANGING SCREEN SIZE

SETTING SCREEN MODE

The size of the picture or the picture's range projected on the screen can be changed between five screen sizes.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN SUB CH

MODE

DTV

AUDIO

ANT

DVD

VCR /SAT

/LD

/DTV

INPUT

SELECTSEARCH

FREEZE

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

2 3

FAVORITE CH

INPUT

RECEIVER

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

Press the SCREEN MODE button.

SCREEN

MODE

• Each time the SCREEN MODE button is pressed, the mode changes in

the following order.

NATURAL WIDE CINEMA WIDE

4:3 NORMAL FULL ZOOM

NATURAL WIDE

Suitable for when viewing news or sports programs. Movies or sports programs can be viewed with an expansive powerful image.

CINEMA WIDE

Mainly suitable for viewing Vista size and other such movie images. Provides a more expansive, powerful image. This screen size is convenient when viewing a Cinemascope size image that has subtitles.

ZOOM

Mainly suitable for viewing Cinemascope size and other such movie images. Provides a more expansive, powerful image.

NOTES:

•

This Monitor is provided with modes to deal with screens of various aspect ratios. It is recommended that programs and software be watched in the appropriate mode.

•

When 4:3 images are fully displayed on a wide TV screen in the NATURAL WIDE mode, CINEMA WIDE mode, ZOOM mode, or FULL mode, some parts of the images may be cut off or distorted.

•

When 1080i or 480p component signals or RGB signals are input, SCREEN MODE will be limited to FULL.

•

Continuous operation for extended periods in 4:3 NORMAL mode may burn out the screen. We thus recommend that this mode be used only in conjunction with another SCREEN mode.

FULL

Suitable for wide screen images.

4:3 NORMAL

Suitable for when viewing news or sit coms. The video software can be viewed in its original screen frame size.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

ENTER

FAVORITE CH

17 3¡

RECEIVER

INPUT

SET/

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

VOL

INFO

VCR REC

VOL

∞

CHANGING SCREEN SIZE

TO ADJUST THE SCREEN POSITION

In the CINEMA WIDE or ZOOM mode, the screen position can be adjusted to the top or bottom.

Press MENU and select SCREEN by using

the 5 or ∞ button and then pressing SET/ ENTER. (Refer to page 24.)

Select V. POSITION in the same way.

SET/

2 3

ENTER

∞

Adjust the screen position.

• Adjustable range

CINEMA WIDE mode : –15 to 15 ZOOM mode : –25 to 25

SET/

2 3

ENTER

∞

SCREEN

ICNEMAWIDE

V . POS I T I ON : –10

EX IT

V . POS I T I ON : –1 0

USE: END: MENU

SET/

ENTER

SET/

ENTER

BASIC FUNCTIONS

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

NOTE:

Screen position cannot be adjusted in NATURAL WIDE, FULL, or 4:3 NORMAL mode.

After adjusting, press MENU to turn the

menu off.

TV/SAT/DVD

MULTI-SCREEN FUNCTION

VIEWING TWO SCREENS (SPLIT screen)

The screen can be split vertically, making it possible to view different images on the left and right.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

VOL

NOTES:

• The same image cannot be viewed as both the main picture and the sub-picture.

• Pressing the MENU button in SPLIT or FREEZE screen mode restores the screen display to normal and displays the menu on screen.

• These functions cannot be used when INPUT 1 or INPUT 2 is receiving a 1080i or 480p component signal (or the signals might not be received or noise might be generated).

• When a TV broadcast is being received, the screen on the right will not show the antenna B signal.

• RGB signals input from INPUT3 cannot be displayed.

• Continuous operation for extended periods in SPLIT or FREEZE screen mode may burn out the screen. We thus recommend that these modes only be used in conjunction with the normal screen mode.

• If the non-interlace signal for a TV game etc. is entered to the left screen during SPLIT screen mode, the right screen may be disrupted. If this occurs, use the right screen for TV game etc. entry.

Press the SPLIT button.

A.TNA52A.TNA63A.TNA63

SPLIT

(Main picture) (Sub picture)

• The screen on which is displayed is the main picture, and the other

screen is the sub-picture. Sound will be output for the main picture.

• Regular operations can be performed on the main picture.

• When the SUB CH +,- buttons are pressed, the channel for the sub-

picture will be changed.

• When the SELECT button is pressed, the

will move to the other

screen.

• The MONITOR OUTPUT terminal outputs the main picture signal.

• Pressing the SPLIT button again will restore the original screen.

MAKING NOTES ON PROGRAM CONTENT (FREEZE screen)

The screen can be frozen, such as for taking down a recipe from a cooking program or an address for entering a quiz or the like.

Press the FREEZE button.

A.TNA63A.TNA63

FREEZE

Moving screen Still screen

• This function is operable only with the normal screen.

• Pressing the FREEZE button again will restore the original screen.

MULTI-SCREEN FUNCTION

SEARCHING FOR A PROGRAM ON A DIFFERENT CHANNEL (SEARCH screen)

The screen on the right side can be made into nine or three different screens, making it possible to search for programs or enjoy multiple images.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

VOL

• Pressing the MENU button in SEARCH screen mode restores the screen display to normal and displays the menu on screen.

• These functions cannot be used when INPUT 1 or INPUT 2 is receiving a 1080i or 480p component signal (or the signals might not be received or noise might be generated).

• RGB signals input from INPUT3 cannot be displayed.

• Continuous operation for extended periods in SEARCH screen mode may burn out the screen. We thus recommend that these modes only be used in conjunction with the normal screen mode.

• The only channels displayed on the SEARCH screen will be those with input signals input from antenna A. Antenna B channels cannot be displayed on this screen.

• If the non-interlace signal for a TV game etc. is entered to the left screen during 9-SEARCH screen or 3-SEARCH screen modes, the screen may be disrupted.

Press the SEARCH button.

• Each time the SEARCH button is pressed, the screen mode changes in

the following order.

Normal screen/SPLIT screen

3-SEARCH screen 9-SEARCH screen

1 9-SEARCH screen

A.TNA63

Main picture Search picture

• On the search picture, the antenna A preset channel (see page 26) will

be displayed as a frozen image. If 9 or more channels have been preset, the screens will automatically be switched and displayed.

• The search picture cannot be operated.

• If the channel or input source is changed, SEARCH screen mode will

turn off.

2 3-SEARCH screen

A.TNA63

Main picture Search picture

• Press the SELECT button to select image that you wish to switch the

channel or input source to. When the color of the channel or input indicator changes to yellow, screen operations can be performed. (Use only the selector buttons, direct channel selection buttons and CH +,buttons.)

• Sound output is limited to the main picture.

841

038121

259414

01A

BASIC FUNCTIONS

CLOSED CAPTION DECODE FUNCTION

The closed caption broadcasting multiplexes caption signals (character information) in the video signal to allow the displaying of characters on the screen. This unit incorporates a closed caption decoder which allows, with the use of the remote control unit, to display character information when receiving character-multiplexed broadcasting signals (closed caption broadcasting) or playing a

video cassette or Video Disc with the

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

2 3

FAVORITE CH

INPUT

RECEIVER

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

VCR REC

VOL

mark etc..

GUIDE

DTV/(SAT)

INFO

VOL

Press MENU and select CC by using the

5 or ∞ button and then pressing SET/ ENTER. (Refer to page 24.)

Select CC in the same way.

SET/

2 3

ENTER

∞

Set CC to ON.

SET/

2 3

ENTER

∞

Select MODE .

CC :O

MOD E : C CF–F2

EX IT

CC :ON O

MOD E : C CF–F2

EX IT

USE: END: MENU

SET/

ENTER

SET/

ENTER

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

NOTES:

• When a video cassette or Video Disc carrying the

mark etc. is played, the closed caption signal

may not be output depending on the VCR or Video disc player.

• During TV broadcast reception, closed caption signal may not be decoded properly if the receiving broadcast signal is weak.

• Closed caption signal may not be decoded properly depending on the recording condition of the video cassette tape.

• The character information will not be displayed while the menu is displayed. To turn on the character information, press the MENU button and turn off the MENU.

• This function cannot be used when 1080i or 480p component signals are input.

SET/

2 3

ENTER

∞

Select the desired CC (Closed Caption CC-

CC :O

MOD E : CCN–2

EX IT

USE: END: MENU

1 to CC-4) or TEXT (TEXT-1 to TEXT-4).

SET/

2 3

ENTER

∞

After setting, press MENU to turn the

MOD E : CC–1

EX IT

TEXT–1

CC–2

TEXT–2

CC–3

TEXT–3

CC–4

TEXT–4

USE: END: MENU

menu off.

TV/SAT/DVD

SET/

ENTER

SET/

ENTER

CHANGING CHANNEL SET UP

TO ADD OR DELETE PRESET CHANNELS

Broadcast stations preset by auto channel preset which are unnecessary can be deleted. Broadcast stations to be watched that were not preset by auto channel preset can be preset.

ADD ........... Manually presets channels that were not preset by AUTO

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

ENTER

FAVORITE CH

17 3¡

RECEIVER

INPUT

SET/

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

VOL

INFO

VCR REC

VOL

∞

DEL ............ Deletes channels that are not required for reception. The

• Perform the following after completing AUTO CHANNEL PRESET.

Press MENU and select SET UP

the 5 or ∞ button and then pressing SET/ ENTER. (Refer to page 24.)

Select CHANNEL SET UP in the same way.

SET/

2 3

ENTER

∞

Select CHANNEL ADD/DEL .

SET/

2 3

ENTER

CHANNEL PRESET.

deleted channels can be skipped when selecting channels with the + and – CH (channel) buttons.

SET UP

CHANNEL SE T UP

CONVERGENC PROGRAM BL OCK DPO:OFF CHANGE PASSWORD

EXIT

SET UP

CHANNEL SE

AUTO CHANN

CHANNEL

FAVORI E C

USE: END: MENU

ETLADPDR/EDSEELT

HAUNNE L

by using

SET/

ENTER

SET/

ENTER

BASIC FUNCTIONS

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

∞

EXIT

Select ANTENNA , then select A or B.

SET UP

SET/

2 3

ENTER

CHANNEL

ANT E NA : A

CHANNNEL: 125 SETTI N : DG LABEL : BACDA

USE: END: MENU

ADD/DEL

SET/

ENTER

∞

USE: END: MENU

ADD/DEL

SET/

ENTER

SET/

2 3

ENTER

EXIT

SET UP

CHANNEL

ANT E NA : A B

CHANNNEL: 125 SETTI N : DG LABEL : BACDA

∞

EXIT

USE: END: MENU

CHANGING CHANNEL SET UP

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

1 32 4 65

SUB CH

DISPLAY

Select CHANNEL , then select a channel.

SET UP

SET/

2 3

ENTER

CHANNEL

ANT E NA : A

CHANNNEL : 125

SETTI N : DG LABEL : BACDA

ADD/DEL

∞

USE: END: MENU

ADD/DEL

SET/

2 3

ENTER

EXIT

SET UP

CHANNEL

ANT E NA : A

CHANNNEL: 125

SETTI N : DG LABEL : BACDA

∞

EXIT

USE: END: MENU

SET/

ENTER

SET/

ENTER

7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

FAVORITE CH

17 3¡

RECEIVER

POWER

INPUT

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

Select SETTING , then select ADD

(addition) or DEL (deletion).

SET UP

SET/

2 3

ENTER

∞

SET/

2 3

ENTER

∞

CHANNEL

ANT E NA : A CHANNNEL: 125

SETTI N : DG

LABEL : BACDA

EXIT

SET UP

CHANNEL

ANT E NA : A CHANNNEL: 125

SETTI N : DG

LABEL : B

EXIT

ADD/DEL

USE: END: MENU

ADD/DEL

A ELD CDA

USE: END: MENU

SET/

ENTER

SET/

ENTER

CHANGING CHANNEL SET UP

Select LABEL and input the label

characters.

• When ADD has been selected in step 6, a label of 4 characters

can be input for the added channel.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

ENTER

FAVORITE CH

17 3¡

RECEIVER

INPUT

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SET/

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

VOL

INFO

VCR REC

VOL

∞

SET/

2 3

ENTER

CHANNEL

ANT E NA : A CHANNNEL: 125 SETTI N : DG

LABEL : BACDA

ADD/DEL

SET UP

∞

EXIT

USE: END: MENU

• Input the first character.

When

is selected, a space can be input.

is selected and input, label character input mode will

terminate.

SET/

2 3

ENTER

∞

CHANNEL

ANT E NA : A CHANNNEL: 125 SETTI N : DG

LABEL : BACDA

EXIT

ADD/DE

USE: END: MENU

–

G N U 2 9

SET UP

• Input the second to fourth characters as well.

Repeat steps 4 to 7 to add and delete

other channels.

After setting, press MENU to turn the

menu off.

TV/SAT/DVD

SET/

ENTER

SET/

ENTER

BASIC FUNCTIONS

CHANGING CHANNEL SET UP

FAVORITE CHANNEL SET UP

Assigning your favorite channels to the four buttons (blue, green, red and yellow) on the remote control unit makes it easy to call them up. Four channels can be assigned to each button, making it possible to set a total of 16 channels.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

2 3

FAVORITE CH

INPUT

RECEIVER

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

Press MENU and select SET UP

the 5 or ∞ button and then pressing SET/ ENTER. (Refer to page 24.)

Select CHANNEL SET UP in the same way.

SET UP

SET/

2 3

ENTER

CHANNEL SE T UP

CONVERGENC PROGRAM BL OCK DPO:OFF CHANGE PASSWORD

∞

EXIT

Select FAVORITE CHANNEL .

SET UP

SET/

2 3

ENTER

CHANNEL SE

AUTO CHANN CHANNEL

FAVORI E C

USE: END: MENU

ETLADPDR/EDSEELT

HAUNNE L

∞

EXIT

Select the color of the button you wish

USE: END: MENU

to set.

by using

SET/

ENTER

SET/

ENTER

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

NOTE:

A channel set for DEL with CHANNEL ADD/DEL (page

41) cannot be set as a FAVORITE CHANNEL.

SET/

2 3

ENTER

∞

SET UP

FAVORI E CT HANNEL

BLUE GRE EN RED

YELLOW

EXIT

USE: END: MENU

SET/

ENTER

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

ENTER

FAVORITE CH

17 3¡

RECEIVER

INPUT

SET/

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

VOL

INFO

VCR REC

VOL

∞

CHANGING CHANNEL SET UP

Select number.

SET UP

SET/

2 3

ENTER

∞

Select antenna.

SET/

2 3

ENTER

∞

FAVORI E CT HANNEL

YELLOW ANT CH

2 3 4

EXIT

SET UP

FAVORI E CT HANNEL

YELLOW ANT CH

2 3 4

EXIT

A B A A

USE: END: MENU

A B

B A A

USE: END: MENU

3 5

• If you made a mistake during setting, press SET to select the

incorrect entry and set it correctly.

Select the channel.

SET UP

SET/

2 3

ENTER

∞

FAVORI E CT HANNEL

YELLOW ANT CH

2 3 4

EXIT

B B A A

USE: END: MENU

3 5

SET/

ENTER

SET/

ENTER

SET/

ENTER

BASIC FUNCTIONS

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

To set another number, repeat steps 5 to

To set a button of a different color, repeat steps 4 to 7.

• To return to step 4, press either the 5 or the ∞ button to select

EXIT and then press the SET/ENTER button.

After setting, press MENU to turn the

menu off.

TV/SAT/DVD

PICTURE ADJUSTMENTS

This device has three types of picture quality settings in memory. You can select your favorite from them or set the picture quality you desire and store it in memory.

RECALL THE DESIRED SETTINGS

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

2 3

FAVORITE CH

INPUT

RECEIVER

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

NOTE:

MOVIE or GAME mode may not be selected when receiving RGB input.

NOTES on GAME mode setting:

•

We do not recommend the use of the Monitor for

video games, still pictures, or computers due to the potential damage to the CRTs. In the event a consumer needs to use these devices for a short period of time, the GAME mode will minimize potential damage to the CRTs by lowering the relative contrast.

•

All signals output from the Projection Monitor will be unaffected. Only the original output signal is sent through the output jacks.

Press MENU and select PICTURE by

using the 5 or ∞ button and then pressing SET/ENTER. (Refer to page 24.)

Select MODE in the same way.


SET/

2 3

ENTER

∞

Select the desired setting.

MOD E : USER

CONTRAST 0 BLACK LVL. COLOR TINT SHARP OTHER

EXIT

(

USE: END: MENU

MOV I E

1–

5 2 3 01–

)

SET/

2 3

ENTER

∞

STD MOV IE GAME USER

MOD E :

USE: END: MENU

STD ............ Sets standard picture quality.

MOVIE ........ Reduces contrast making dark images easier to see.

Effective for movies that have many dark images such as night scenes etc..

GAME ........ Lowers the relative contrast of TV game and personal

computer images to minimize discomfort to the eyes. This will minimize bad effects such as discolored spots or stains on the CRT of the Monitor.

USER ......... Calls up the picture quality the user has set. See page

47 for setting.

After setting, press MENU to turn the

menu off.

TV/SAT/DVD

SET/

ENTER

SET/

ENTER

PICTURE ADJUSTMENTS

STORING THE SET PICTURE QUALITY IN MEMORY

USER mode can be set for each input source: TV and INPUT 1 to INPUT 4.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

TV/SAT/DVD

EDIT/

LEARN

SOURCE

POWER

2 3

ENTER

FAVORITE CH

17 3¡

RECEIVER

INPUT

SET/

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

VOL

INFO

VCR REC

VOL

∞

Select the input source and show the

image on the screen.

INPUT

1 2 3 4

If VCR or DVD/LD has been selected, start playback for the relevant device.

Press MENU and select PICTURE .


SET/

2 3

ENTER

∞

Adjust the desired picture quality.

SOUND SCREEN CC SET UP

USE: END: MENU

(Refer to steps 2 and 3 on page 48.)

• If any mode (STD, MOVIE, or GAME) is adjusted, USER mode

will be entered.

• The last mode that was adjusted will become the USER sub

mode (indicated in parentheses).

• A USER mode can be stored for TV and the four input sources.

SET/

ENTER

BASIC FUNCTIONS

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT


MOD E : US ER

CONTRAST 0 BLACK LVL. COLOR TINT SHARP OTHER

EXIT

After adjusting, press MENU to turn the

(

)

STD

1–

5 2 3 01–

USE: END: MENU

Indicates the adjusted picture quality setting that is the base for USER mode.

menu off.

TV/SAT/DVD

PICTURE ADJUSTMENTS

TV CBL

VCR

/SAT

/DTV

POWER

INPUT

1 2 3 4

SPLIT

SCREEN

MODE

ANT

DTV

AUDIO

1 32 4 65 7 98

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

SET/

2 3

ENTER

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

∞

FAVORITE CH

RECEIVER

INPUT

DVD

SELECT

FREEZE

VOL

/LD

SUB CH

ENTER

VOL

DTV/DVD TOP

DTV/SAT

VCR REC

DISPLAY

GUIDE

DTV/(SAT)

INFO

VOL

TO ADJUST THE PICTURE QUALITY

The CONTRAST, BLACK LEVEL (brightness), COLOR, TINT and SHARP (sharpness) can be adjusted.

Press MENU and select PICTURE .

(Refer to page 24.)

Select the adjustment item.


SET/

2 3

ENTER

∞

MOD E : US ER

CONTRAST 0

BLACK LVL. COLOR TINT SHARP OTHER

EXIT

Adjust by pressing 2 or 3 .

• The adjusting range is –30 to 30.

• The numerical value comes down to press

press 3.

SET/

2 3

ENTER

∞

CONTRAST 01–

• The set picture quality will be stored in memory as USER mode

(see page 47).

• Repeat steps 2 and 3 for other items.

(

USE: END: MENU

USE:

MOV I E

1–

5 2 3 01–

)

END: MENU

SET/

ENTER

and comes up to

SET/

ENTER

NOTES:

• The COLOR, TINT, and SHARP settings may not be changed when receiving RGB input.

• When DPO is on, CONTRAST, BLACK LEVEL and COLOR cannot be adjusted. (See page 56.)

• When picture quality has been adjusted, the user mode data will be overwritten with the new settings.

After adjusting, press MENU to turn the

menu off.

TV/SAT/DVD

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

ENTER

FAVORITE CH

17 3¡

RECEIVER

INPUT

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SET/

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

VOL

INFO

VCR REC

VOL

∞

PICTURE ADJUSTMENTS

OTHER PICTURE QUALITY ADJUSTMENTS

The following four fine adjustments are available.

1 3D Y/C LEVEL 2 3D NR LEVEL 3 COLOR TEMP (Color Temperature) 4 FLESH TONE

Press MENU and select PICTURE .

(Refer to page 24.)

Select OTHER .


SET/

2 3

ENTER

∞

MOD E : US ER

CONTRAST 0 BLACK LVL. COLOR TINT SHARP

OTHER

EXIT

1 To adjust 3D Y/C LEVEL

Perform this adjustment when noises appear at the color borders of the image.

NOTE:

This function can be used only when viewing a source that has been connected to the antenna or composite video input terminal.

Select 3D Y/C LEVEL .


SET/

2 3

ENTER

∞

OTHER

3D Y/C LEVEL:3

3D NR LEVEL : 3 COLO FLESHRTTOENMEP::OSN

EXIT

(

USE: END: MENU

MOV I E

1–

5 2 3 01–

)

USE: END: MENU

SET/

ENTER

SET/

ENTER

BASIC FUNCTIONS

NOTE:

Only the COLOR TEMP settings may be changed when receiving RGB input.

Select the desired level.

SET/

2 3

ENTER

∞

12345

Suitable for software using dynamic images

3D Y/C L :EV 3LE

USE: END: MENU

Suitable for software using still images

SET/

ENTER

PICTURE ADJUSTMENTS

TV CBL

VCR

/SAT

/DTV

POWER

INPUT

1 2 3 4

SPLIT

SCREEN

MODE

ANT

DTV

AUDIO

1 32 4 65

SELECT

FREEZE

DVD

2 To adjust 3D NR LEVEL

Reduces the noise level of the luminance and chrominance signals when there is S-VIDEO input.

NOTE:

This function can be used only when viewing a source that has been connected to the S-VIDEO input terminal.

/LD

SUB CH

DISPLAY

Select 3D NR LEVEL .

SET/

2 3

ENTER

∞

Select the desired level.


OTHER

3D Y/C LEVEL:3

3D NR LEVEL : 3

COLO FLESHRTTOENMEP::OSN

EXIT

USE: END: MENU

SET/

ENTER

7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

FAVORITE CH

17 3¡

RECEIVER

POWER

INPUT

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

SET/

2 3

ENTER

∞

3D NR L :EV 3LE

USE: END: MENU

12345

Low noise reduction High noise reduction

3 To adjust COLOR TEMPERATURE

This function enables the image to be set to five different tones.

Select COLOR TEMP .


SET/

2 3

ENTER

∞

Select the desired tone of the image.

SET/

2 3

ENTER

OTHER

3D Y/C LEVEL:3 3D NR LEVEL : 3

COLO

FLESHRTTOENMEP::OSN

EXIT

USE: END: MENU

SET/

ENTER

SET/

ENTER

SET/

ENTER

∞

CO OR ELT STMP D:

NEWS ...... Coolest color

LIVE ..........Cooler color

STD ..........Normal color

FILM .........Warmer color

B&W ........Warmest color

USE: END: MENU

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

2 3

FAVORITE CH

INPUT

ENTER

RECEIVER

SET/

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

VOL

INFO

VCR REC

VOL

∞

PICTURE ADJUSTMENTS

4 To adjust FLESH TONE

By the time video signals from a broadcast station arrive at your projection monitor (on air or cable TV), they have experienced significant degradation. Flesh tone reduces color noise, improves color uniformity and corrects unnatural flesh tones to give your natural images.

NOTE:

This function cannot be used when 1080i or 480p component signals have been input.

Select FLESH TONE .


SET/

2 3

ENTER

OTHER

3D Y/C LEVEL:3 3D NR LEVEL : 3 COLO

FLESHRTTOENMEP::OSN

∞

EXIT

USE: END: MENU

Set FLESH TONE to ON.

SET/

2 3

ENTER

∞

After setting, press MENU to turn the

FLESH TONE O:NOFF

USE: END: MENU

menu off.

TV/SAT/DVD

SET/

ENTER

SET/

ENTER

BASIC FUNCTIONS

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SOUND ADJUSTMENTS

WATCHING STEREO AND BILINGUAL PROGRAMS

The multichannel TV sound (MTS) decoder enables stereo program and Second Audio Program (SAP) to be received. (SAP is often used for a

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

DVD

SELECT

FREEZE

/LD

SUB CH

DISPLAY

second language). This MTS decoder can only be used if a broadcast of stereo program or SAP is received.

Press MENU and select SOUND by using

the 5 or ∞ button and then pressing SET/ ENTER. (Refer to page 24.)

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

2 3

FAVORITE CH

RECEIVER

INPUT

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

NOTES:

•

This function can only be used for TV input.

•

Broadcast stereo and SAP reception operate in accordance with the Broadcast Television System Committee (BTSC) standard only. Stereo audio transmission from CATV system can vary from area and may not be compatible with the BTSC standards. Check with your local cable company for specific compatibility requirements.

Select MTS in the same way.

SOUND

SET/

2 3

ENTER

∞

Select the desired audio mode.

SET/

2 3

ENTER

∞

MT S : MA I N

BASS 0 TREBLE BAL ANCE SURROUND SUPER ASBS

EX IT

SOUND

MT S : MA I N SAP MONO

BASS 0 TREBLE BAL ANCE SURROUND SUPER ASBS

EX IT

1–

5 2R

:OFF

USE: END: MENU

1–

5 2R

:OFF

USE: END: MENU

MAIN SAP MONO

After setting, press MENU to turn the

menu off.

TV/SAT/DVD

SET/

ENTER

SET/

ENTER

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

DVD

SELECT

FREEZE

1 32 4 65

SOUND ADJUSTMENTS

TO ADJUST THE SOUND QUALITY

BASS, TREBLE and BALANCE can be adjusted.

Press MENU and select SOUND .

/LD

SUB CH

DISPLAY

(Refer to page 24.)

Select the adjustment item.

SOUND

SET/

2 3

ENTER

∞

MT S : MA I N

BASS 0

TREBLE

BAL ANCE SURROUND SUPER ASBS

EX IT

1–

5 2R

:OFF

USE: END: MENU

SET/

ENTER

7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

ENTER

FAVORITE CH

17 3¡

RECEIVER

INPUT

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SET/

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

VOL

INFO

VCR REC

VOL

∞

Adjust by pressing 2 or 3 .

• Adjustable range

BASS, TREBLE : –30 to 30 BALANCE : L (Left) 30 to R (Right) 30

SOUND

SET/

2 3

ENTER

∞

MT S : MA I N

BASS 0

TREBLE

BAL ANCE SURROUND :OFF SUPER ASBS

EX IT

:OFF

USE:

1–

END: MENU

• Repeat steps 2 and 3 for other items.

After adjusting, press MENU to turn the

menu off.

TV/SAT/DVD

SET/

ENTER

BASIC FUNCTIONS

SOUND ADJUSTMENTS

TO SELECT THE DESIRED SURROUND MODE

Surround can be selected as desired.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

2 3

FAVORITE CH

RECEIVER

INPUT

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

Press MENU and select SOUND .

(Refer to page 24.)

Select SURROUND .

SOUND

SET/

2 3

ENTER

∞

Select the desired SURROUND mode.

SET/

2 3

ENTER

∞

SURROUND1 ..... This is an easy way to enjoy SURROUND during

SURROUND2 ..... This is a way to enjoy powerful SURROUND

S. STEREO (Simulated STEREO)

........................... This function transforms monaural signals into

OFF .................... Turns off the surround effect.

MT S : MA I N

BASS 0 TREBLE BAL ANCE

SURROUND

SUPER ASBS

EX IT

SOUND

SURROUND SURROUND 1:

EX IT

1–

5 2R

: OFF

:OFF

USE: END: MENU

SURROUND2

TEREOSO.FS

USE: END: MENU

a musical program.

during a movie.

simulated stereo sound. Use it when you wish to experience a sense of stereo presence when listening to monaural signal sources.

SET/

ENTER

SET/

ENTER

NOTES:

• The surround effect cannot be obtained with mono sound.

• In some cases, the surround effect may be minimal.

After setting, press MENU to turn the

menu off.

TV/SAT/DVD

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

DVD

SELECT

FREEZE

1 32 4 65

SOUND ADJUSTMENTS

TO ADJUST SUPER BASS

Use this function to enjoy powerful bass sounds.

Press MENU and select SOUND .

/LD

SUB CH

DISPLAY

(Refer to page 24.)

Select SUPER BASS .

SET/

2 3

ENTER

∞

SOUND

MT S : MA I N

BASS 0 TREBLE BAL ANCE SURROUND

SUPER ASBS

EX IT

:OFF

: OFF

USE: END: MENU

1–

5 2R

SET/

ENTER

7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

ENTER

FAVORITE CH

17 3¡

RECEIVER

INPUT

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SET/

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

VOL

INFO

VCR REC

VOL

∞

Set SUPER BASS to ON.

SOUND

SET/

2 3

ENTER

∞

After adjusting, press MENU to turn the

MT S : MA I N

BASS 0 TREBLE BAL ANCE SURROUND

SUPER ASBS

EX IT

:OFF

:ON OFF

USE: END: MENU

1–

5 2R

menu off.

TV/SAT/DVD

SET/

ENTER

BASIC FUNCTIONS

DPO FUNCTION

The sensor of the DPO (Dynamic Picture Optimizer) on the TV front panel determines brightness and adjusts the CONTRAST, BLACK LEVEL (brightness) and COLOR automatically.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

2 3

FAVORITE CH

INPUT

RECEIVER

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

Press MENU and select SET UP

the 5 or ∞ button and then pressing SET/ ENTER. (Refer to page 24.)

Select DPO in the same way.

SET UP

SET/

2 3

ENTER

CHANNEL SE T UP CONVERGENC PROGRAM BL OCK

DPO : OFF

CHANGE PASSWORD

∞

USE: END: MENU

ON OF F

Set DPO to ON.

SET/

2 3

ENTER

EX IT

SET UP

CHANNEL SE T UP CONVERGENC PROGRAM BL OCK

DPO :

CHANGE PASSWORD

∞

EX IT

After setting, press MENU to turn the

USE: END: MENU

menu off.

TV/SAT/DVD

by using

SET/

ENTER

SET/

ENTER

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

MULTI-POINT CONVERGENCE ADJUSTMENT

Convergence adjustment may be fined-tuned from here.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

ENTER

FAVORITE CH

17 3¡

RECEIVER

INPUT

SET/

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

VOL

INFO

VCR REC

VOL

∞

Press MENU and select SET UP

the 5 or ∞ button and then pressing SET/ ENTER. (Refer to page 24.)

Adjust the center point convergence.

(Refer to steps 2 to 5 on pages 28 to 29.)

Select ADJ MULTI-POINT .

SET/

2 3

ENTER

∞

Select the adjust point.

SET/

2 3

ENTER

∞

SET UP

CONVERGENC NATURA L WI DE

ADJ CEN

ADJ MU T I PO I

EX IT

ETS : SELE TC AT POINT

TER

-LNT

USE: END: MENU

POINT

by using

SET/

ENTER

SET/

ENTER

BASIC FUNCTIONS

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

NOTES:

•

The number of adjustment points varies according to the screen mode. The cursor is partially invisible around the edge of the screen according to the screen mode.

•

It is not possible to adjust all these points (points of change on the cross-hatch).

•

Some of the cross-hatch lines are not straight, but this is not a malfunction. They are not always straight on a normal TV.

Adjust the red line.

SET/

2 3

ENTER

∞

DJA MULT I-POINT ETS : BLUE POI NT

USE: END: MENU

SET/

ENTER

MULTI-POINT CONVERGENCE ADJUSTMENT

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

Adjust the blue line.

SET/

2 3

ENTER

∞

DJA MULT I-POINT ETS : NEXT POI NT

USE: END: MENU

• The brackets which shows the adjusting point will move in

order. Move to the next point to be adjusted, and repeat steps 4 to 6.

SET/

ENTER

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

FAVORITE CH

17 3¡

RECEIVER

POWER

INPUT

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

After completing the convergence

adjustment, press MENU to turn the menu off.

TV/SAT/DVD

CONNECTING THE SYSTEM REMOTE CONTROL (When operating Pioneer units with

When the control terminals of Pioneer audio/video units with the Î mark are connected, these units can be operated using the Monitor's remote control unit (see pages 64 to 69).

CONTROL

IN OUT

CONTROL CONTROL

mark)

IN OUTIN OUT

To other units bearing the Î mark.

NOTES:

• When the Pioneer unit with Î mark is connected to the CONTROL IN terminal of the projection monitor, the remote sensor of the projection monitor does not accept signals from the remote control unit. In this case, point the remote control at the first device in the chain (the equipment with no CONTROL IN connection).

• To connect the control cord, use the commercially available mini plug cord (monaural).

VARIOUS FUNCTIONS

REMOTE CODE SET UP

TV CBL

/SAT /DTV

DVD

/LD

VCR

To operate other manufacturers' audio/video units using the TV remote control unit, remote control signals need to be set. There are two methods of setting remote control signals

• For calling the other manufacturers' remote control signals preset to this remote control unit

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

1 4 7

EDIT/

LEARN

SOURCE

POWER

2 3

17 3¡

POWER

/SAT /DTV

INPUT

ANT

2 3 5 8 0

RETURN

MUTING

TV/SAT/DVD

SET/

ENTER

∞

FAVORITE CH

RECEIVER

INPUT

VCR

DVD

SELECT

FREEZE

VOL

/LD

SUB CH

6 9

ENTER

VOL

DTV/DVD TOP

DTV/SAT

VCR REC

DISPLAY

GUIDE

DTV/(SAT)

INFO

VOL

• For learning other manufacturers' remote control signals

CALLING OTHER MANUFACTURERS' REMOTE CONTROL SIGNALS PRESET

Set the mode switch to match the device

to which you want to preset the remote control signal.

• Example: To select DVD/LD.

At the same time, press the EDIT button

and number button 1.

EDIT/

LEARN

LED will begin blinking.

TV CBL

POWER

1 2 3 4

/SAT /DTV

INPUT

VCR

DVD

/LD

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

NOTES:

• To stop the EDIT mode in the middle, press the EDIT button once more.

• If mode switch is switched while in EDIT mode, EDIT mode will be canceled.

• After step 1 and step 2, if you do not press the button for one minute (no operation), the EDIT mode will be canceled.

• If the table on page 61 does not include your desired manufacturer or the remote control does not work, you can make the memory learn its signal by the learn mode (see page 62).

• The initial mode is “00” (PIONEER).

Select the desired manufacturer.

• Select from the figure on page 61.

• Example: To select 24 (PHILIPS) in the LD mode.

2 4

• If the LED blinks rapidly when the number button has been

pressed, there has been an error. Input the number again.

• After setting, you can automatically use the remote control in

the usual manner.

Manufacturer's preset remote control signals

CBL/SAT/DTV VCR DVD/LD

REMOTE CODE SET UP

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

PIONEER 1 (CABLE)

PIONEER 2 (CABLE) JERROLD 1 (CABLE) JERROLD 2 (CABLE) JERROLD 3 (CABLE) JERROLD 4 (CABLE) JERROLD 5 (CABLE) JERROLD 6 (CABLE) JERROLD 7 (CABLE) JERROLD 8 (CABLE) JERROLD 9 (CABLE)

JERROLD 10 (CABLE)

S. A. 1 (CABLE) S. A. 2 (CABLE) S. A. 3 (CABLE)

S. A. 4 (CABLE) ZENITH 1 (CABLE) ZENITH 2 (CABLE) ZENITH 3 (CABLE)

None

PIONEER (SAT)

RCA 1 (SAT) RCA 2 (SAT)

SONY (SAT)

None None None None None None

PIONEER (DTV)

SHARP (DTV)

None None None None None

PIONEER

FISHER FISHER FISHER

GOLD STAR

HITACHI HITACHI 2 HITACHI 3

MAGNAVOX 2

MITSUBISHI MITSUBISHI 2 MITSUBISHI 3 MITSUBISHI 4 MITSUBISHI 5 MITSUBISHI 6

PANASONIC PANASONIC 2 PANASONIC 3

RCA RCA 2 RCA 3

SANYO SANYO 2 SANYO 3

SHARP SHARP 2 SHARP 3

SONY (BETA)

SONY (VHS)

SONY (8mm)

TOSHIBA

JVC JVC 2 JVC 3 JVC 4 JVC 5

ZENITH

PIONEER (DVD)

PANASONIC (DVD)

SAMSUNG (DVD)

SONY (DVD)

TOSHIBA (DVD)

JVC (DVD)

None None None None None None None None None None None None None None

PIONEER (LD)

KENWOOD (LD) PANASONIC 1 (LD) PANASONIC 2 (LD)

PHILIPS (LD)

RCA (LD) SONY (MDP) SONY (LD)

None None None None None None None None None

VARIOUS FUNCTIONS

Operations can be performed using remote control button with the same markings (See pages 65 to 69).

REMOTE CODE SET UP

TO LEARN REMOTE CONTROL SIGNALS

To operate other manufacturers' remote control signals not preset using the remote control unit, have the remote control unit learn these signals.

Example) To learn the VCR power to turn on.

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

DTV

AUDIO

1 3

ANT

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

2 3

FAVORITE CH

17 3¡

RECEIVER

POWER

INPUT

SET/

ENTER

∞

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOL

Before operation:

To set the mode switch to VCR when a video cassette recorder is connected (see page 14).

At the same time, press the LEARN

button and number button 2.

LED will begin blinking.

EDIT/

LEARN

Press the SOURCE POWER button to

TV CBL

POWER

1 2 3 4

/SAT /DTV

INPUT

VCR

DVD /LD

memorize the desired operation.

LED will remain lit.

SOURCE

POWER

TV CBL

POWER

1 2 3 4

/SAT /DTV

INPUT

VCR

DVD /LD

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

• Buttons which can be learnt are as follows.

CABLE ....... SOURCE POWER, CH (+), CH (–), CH

RETURN, CH ENTER, 1 to 9, 0

SAT ........... SOURCE POWER, CH (+), CH (–), 2,

3, 5, ∞, SET/ENTER, TV/SAT/DVD

MENU, DTV/SAT GUIDE, DTV/(SAT) INFO, CH ENTER, 1 to 9, 0

DTV ........... SOURCE POWER, BLUE, GREEN,

RED, YELLOW, 2, 3, 5, ∞, SET/ ENTER, DTV/DVD TOP MENU, CH (+), CH (–), 1 to 9, 0, CH ENTER, • (DOT), SCREEN MODE, DTV AUDIO, CH RETURN, DTV (SAT) INFO, DTV/SAT GUIDE, ANT

VCR ........... SOURCE POWER, CH (+), CH (–), 8,

1, 7, 3, ¡, ¶ (VCR REC)

DVD .......... SOURCE POWER, ¢, 4, 8, 1,

7, 3, ¡, 2, 3, 5, ∞, SET/ENTER,

TV/SAT/DVD MENU, DTV/DVD TOP MENU

LD ............. SOURCE POWER, ¢, 4, 8, 1,

7, 3, ¡

• CABLE/SAT/DTV and DVD/LD cannot be selected at the same time.

REMOTE CODE SET UP

Face the remote control unit of the other

manufacturer's and the remote control unit of the Monitor to each other, and press the POWER button of the remote control unit of the other manufacturer's.

Leave about 0.8 to 2.0 inch (2 to 5 cm) between the two remote control units. If you learn how to use the remote control unit you can adjust the distance of the remote control units.

0.8 to 2.0 inch (2 to 5 cm)

NOTES:

• To stop using the LEARN mode in the middle, press the LEARN button again.

• If mode switch is switched while in LEARN mode, LEARN mode will be canceled.

• After steps 1 and 2, if you do not press the button for one minute (no operation), the LEARN mode will be canceled.

• To reset the learn setting, have the LED blinking as in step 1 and then keep the remote control unit’s TV POWER button pressed for at least 2 seconds.

• There are some remote controls which cannot learn.

(VCR)

POWER

• This ends learn.

Repeat steps 2 and 3 for learning pertaining to other VCR devices.

• If the remote control unit’s LED blink four times, it means that

learning capacity has reached its maximum and no more learning will be possible.

When the LEARN button is pressed, the

LED will blink.

TV CBL

POWER

• If blinks once, return to step 2 for other buttons.

• Flashes four times, it indicates an error has occurred.

INP

/SAT

/DTV

remote control unit return to normal states.

EDIT/

LEARN

VARIOUS FUNCTIONS

REMOTE CODE SET UP

USING THE TV REMOTE

3 4

Transmitting LED

TV CBL

/SAT

POWER

SPLIT

SCREEN

MODE

AUDIO

/DTV

1 2 3 4

ANT

DTV

1 2

4 65 7 98

RETURN

EDIT/

LEARN

SOURCE

POWER

17 3¡

POWER

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

MUTING

TV/SAT/DVD

2 3

FAVORITE CH

RECEIVER

INPUT

VCR

INPUT

SELECT

SET/

ENTER

∞

VOL VOL

FREEZE

DVD /LD

SUB CH

DISPLAY

ENTER

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

CONTROL UNIT TO CONTROL OTHER DEVICES

REMOTE CONTROL UNIT SETTING BUTTONS

1 EDIT/LEARN button

EDIT: When the EDIT/LEARN button is pressed at the

same time as number button 1, the mode will change to preset code edit mode. (See page

60.)

LEARN: When the EDIT/LEARN button is pressed at the

same time as number button 2, the unit’s capability to learn and store command codes from other remote control units will be activated. (See page 62.)

2 Mode switch

Use to switch the remote control unit modes.

RECEIVER CONTROL BUTTONS

When a Pioneer receiver is connected to the Monitor, the receiver can be operated using buttons 3 to 5. When another company’s receiver is connected to the Monitor, have the signals for 3 to 5 learned (see page 62).

3 RECEIVER POWER button (STANDBY/ON)

Turns receiver power on and off.

4 RECEIVER INPUT button

Selects the input source connected to the receiver.

5 RECEIVER VOL (volume) +, - buttons

Adjusts receiver volume level. Press the plus button (+) to increase the volume and the minus button (-) to decrease it.

6 (RECEIVER) MUTING button

Allows the receiver’s mute signal to be learned. This button is used when the mode switch has been set to something other than TV.

REMOTE CODE SET UP

CABLE CONTROL BUTTONS

Mode switch

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

ANT

DTV

AUDIO

1 4 7

EDIT/

LEARN

SOURCE

POWER

2 3

17 3¡

POWER

INPUT

VCR /SAT /DTV

INPUT

SELECT

FREEZE

2 3 5 8 0

RETURN

MUTING

TV/SAT/DVD

SET/

ENTER

∞

FAVORITE CH

RECEIVER

DVD

/LD

SUB CH

6 9

ENTER

VOL

DTV/DVD TOP

DTV/SAT

VCR REC

DISPLAY

GUIDE

DTV/(SAT)

INFO

VOLVOL

4 5

CABLE, SAT and DTV cannot be selected at the same time.

When the mode switch is set to CBL/SAT/DTV the cable converter connected to the Monitor can be operated using the buttons 1 to 5. Cable converters which are made by other makers and are not preset can also be operated using the remote control unit if buttons 1 to 5 have learnt the functions (see page 62).

1 Direct channel selection buttons

Press the button (or buttons) that corresponds to the channel that you wish to watch.

2 CH (channel) +, – buttons

Press plus (+) or minus (–) to tune in a higher or lower channel.

3 SOURCE POWER button

Turns the power of the cable converter on and off.

4 CH ENTER button *

Fix the selected channel with the direct channel selection buttons.

5 CH RETURN (channel return) button *

Press to switch between the current channel and the channel you were watching immediately before.

* Some manufacturers do not preset CH ENTER and CH

RETURN. Use these buttons to learn if necessary.

VARIOUS FUNCTIONS

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

REMOTE CODE SET UP

SAT CONTROL BUTTONS

2 3

Mode switch

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

ANT

DTV

AUDIO

1 4 7

EDIT/

LEARN

SOURCE

POWER

2 3

17 3¡

POWER

INPUT

VCR /SAT /DTV

INPUT

SELECT

FREEZE

2 3 5 8 0

RETURN

MUTING

TV/SAT/DVD

SET/

ENTER

∞

FAVORITE CH

RECEIVER

DVD /LD

SUB CH

6 9

ENTER

VOL

DTV/DVD TOP

DTV/SAT

VCR REC

DISPLAY

GUIDE

DTV/(SAT)

INFO

VOLVOL

CABLE, SAT and DTV cannot be selected at the same time.

When SAT is preset by REMOTE CODE SET UP, the remote control unit buttons will function as shown below.

• When a satellite broadcast tuner is connected to the Monitor, press the input selector button that has the same number as the connected input terminal and set the mode switch to CBL/SAT/DTV. The tuner can be operated using buttons 1 to 7.

• Satellite broadcast tuners which are made by other makers and are not preset can also be operated with the remote control unit if buttons 1 to 7 have learnt the functions (see page 62).

1 Direct channel selection buttons

Press the button (or buttons) that corresponds to the channel that you wish to watch.

2 SOURCE POWER button

Turns the power of the SAT (digital satellite system tuner) on and off.

3 Select/Set buttons (SET/ENTER, 2, 3, 5, ∞)

2, 3, 5, ∞: Press the button to select items on the SAT

GUIDE screen or SAT MENU screen.

SET/ENTER: Press to activate the selected function.

4 CH ENTER button

Fix the selected channel with the direct channel selection buttons.

• Use this button to learn if necessary.

5 SAT MENU button

When this button is pressed, the satellite broadcasting menu screen will be displayed.

6 SAT GUIDE button

When this button is pressed, the satellite broadcasting guide screen will be displayed.

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

7 SAT INFO button

When this button is pressed, information on satellite broadcasting will be displayed.

• Use this button to learn if necessary.

REMOTE CODE SET UP

DTV CONTROL BUTTONS

Mode switch

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

ANT

DTV

AUDIO

1 4 7

EDIT/

LEARN

SOURCE

POWER

2 3

17 3¡

POWER

INPUT

VCR /SAT /DTV

INPUT

SELECT

FREEZE

2 3 5 8 0

RETURN

MUTING

TV/SAT/DVD

SET/

ENTER

∞

FAVORITE CH

RECEIVER

DVD

/LD

SUB CH

6 9

ENTER

VOL

DTV/DVD TOP

DTV/SAT

VCR REC

DISPLAY

GUIDE

DTV/(SAT)

INFO

VOLVOL

CABLE, SAT and DTV cannot be selected at the same time.

When a digital tuner is connected to the Monitor, set the mode switch to CBL/SAT/DTV. The tuner can be operated using buttons 1 to -.

1 SCREEN MODE button

Press to select the SCREEN MODE.

2 DTV AUDIO button

Press to select the audio mode during multiaudio broadcasts.

3 Direct channel selection buttons

Press the button (or buttons) that corresponds to the channel that you wish to watch.

button

Used in channel selection.

5 CH (channel) +, – button

Press plus (+) or minus (–) to tune in a higher or lower channel.

6 Select/Set buttons (SET/ENTER, 2, 3, 5, ∞)

2, 3, 5, ∞: Press the button to select items on the DTV

MENU screen.

SET/ENTER: Press to activate the selected function.

7 FAVORITE CH/Colored (blue, green, red and yellow)

buttons

FAVORITE CH: Used for making FAVORITE CH settings

with the digital tuner.

Blue, Green, Red, Yellow:

Used to make selections from the digital tuner menu.

VARIOUS FUNCTIONS

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

8 CH RETURN (channel return) button

Press to switch between the current channel and the channel you were watching immediately before.

9 DTV MENU button

When this button is pressed, the DTV menu screen will be displayed.

0 DTV GUIDE button

When this button is pressed, the DTV guide screen will be displayed.

- DTV INFO button

When this button is pressed, information on DTV will be displayed.

REMOTE CODE SET UP

VCR CONTROL BUTTONS

4 5

Mode switch

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

ANT

DTV

AUDIO

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD /LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

EDIT/

LEARN

SOURCE

POWER

17 3¡

POWER

MUTING

TV/SAT/DVD

SET/

2 3

ENTER

∞

FAVORITE CH

RECEIVER

INPUT

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOLVOL

7 8

If the VCR is preset by REMOTE CODE SET UP, the remote control unit button will function as follows when the mode switch of the remote control unit is set to VCR. When the input selector button having the same number as the input terminal connecting the VCR is pressed, the VCR can be operated using buttons 1 to 8. VCR which are made by other makers and are not preset can also be operated using the remote control unit if buttons 1 to

8 have learnt the functions (see page 62).

1 CH (channel) +, – buttons

Press to select the channel of the TV tuner on the VCR.

2 SOURCE POWER button

Turns the power of the VCR on and off.

3 8 (PAUSE/STILL) button

Set pauses and still pictures.

4 1 (REW) button

Rewinds the tape and allows picture search.

5 7 (STOP) button

Stop the tape transport.

6, 8 VCR REC (record) button

Press both buttons at the same time to start recording.

7 ¡ (FF) button

Rapidly advances the tape and allows picture search.

8 3 (PLAY) button

Selects playback.

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

REMOTE CODE SET UP

DVD/LD CONTROL BUTTONS

5 6

Mode switch

TV CBL

POWER

1 2 3 4

SPLIT

SCREEN

MODE

ANT

DTV

AUDIO

/SAT /DTV

INPUT

VCR

SELECT

FREEZE

DVD

/LD

SUB CH

DISPLAY

1 32 4 65 7 98

ENTER

RETURN

MUTING

EDIT/

TV/SAT/DVD

LEARN

SOURCE

POWER

17 3¡

POWER

SET/

2 3

ENTER

∞

FAVORITE CH

RECEIVER

INPUT

VOL

DTV/DVD TOP

DTV/SAT

GUIDE

DTV/(SAT)

INFO

VCR REC

VOLVOL

7 8

DVD and LD cannot be selected at the same time.

If the DVD/LD is preset by REMOTE CODE SET UP, the remote control unit button will function as follows when the mode switch of the remote control unit is set to DVD/LD. When the input selector button having the same number as the input terminal connecting a DVD player or LD player is pressed, these players can be operated using buttons 1 to (buttons 7 to 9 are for DVD players only). DVD player/LD player which are made by other makers and are not preset can also be operated using the remote control unit if buttons 1 to - have learnt the functions (see page 62).

1 ¢ (CHAPTER SEARCH) button

Pressing quickly once takes you to the start of the next chapter. Each time you press it, you move ahead to the start of the next chapter.

2 4 (CHAPTER SEARCH) button

Pressing quickly once takes you to the start of the chapter currently playing. Each time you press it, you move back to the start of the previous chapter.

3 SOURCE POWER button

Turns the power of the DVD/LD player on and off.

4 8 (PAUSE/STILL) button

Set pauses and still pictures.

5 1 (SCAN) button

Continue pressing to rewind.

VARIOUS FUNCTIONS

6 7 (STOP) button

Playback is stopped when pressing once. With some DVD/LD players, pressing the button twice may open the disc tray.

7 DVD MENU button (DVD only)

When this button is pressed, the DVD menu will be displayed.

PROJECTION MONITOR RECEIVER REMOTE CONTROL UNIT

8 DVD TOP MENU button (DVD only)

When this button is pressed, the DVD top menu will be displayed.

9 Select/Set buttons (SET/ENTER, 2, 3, 5, ∞) (DVD only)

2, 3, 5, ∞: Press the button to select items on the DVD

MENU screen.

SET/ENTER: Press to activate the selected function.

0 ¡ (SCAN) button

Continue pressing for fast forward.

- 3 (PLAY) button

Selects playback.

MENU INDEX

Main menu (See page 24) PICTURE adjustment menu (See page 46)

PICTURE SOUND SCREEN CC SET UP

USE: END: MENU


MODE : STD

CONTRAST 0 BLACK LVL . COLOR TINT SHARP OTHER

EXIT


OTHER

3D Y/C LEVEL:3 3D NR LEVEL: 3 COLO FLESHRTTOENMEP::OSN

USE: END: MENU

0 0 0 0

SET UP

CHANNEL SE CONVERGENC PROGRAM BLOCK

DPO:OFF

CHANGE PASSWORD

EXIT

TEUP

USE: END: MENU

EXIT

USE: END: MENU

SOUND adjustment menu (See page 52)

SOUND

MTS : MA I N

BASS 0 TREBLE BAL ANCE SURROUND SUPER BA

EXIT

0 0

:OFF

SS :OFF

USE: END: MENU

SCREEN setting menu (See page 37)

SCREEN

AN TURAL WI DE V . POS I T I ON : T USEDON

EXIT

USE: END: MENU

Closed Caption menu (See page 40)SET UP menu (See page 26)

CC :O

MOD E : CCF–F1

EXIT

USE: END: MENU

MENU INDEX

CHANNEL SET UP menu (See page 26) AUTO CHANNEL PRESET menu (See page 26)

SET UP

CHANNEL SE

AUTO CHANN CHANNEL FAVOR I E C

EXIT

ETLADPDR/EDSEELT

HAUNNE L

USE: END: MENU

SET UP AUTO CHANN

ANTENNA:A TV / CABLEELMPORDEES:

AUTO PRESET START

EXIT

AIR

USE: END: MENU

CONVERGENCE menu (See pages 28 and 57)

SET UP

CONVERGENC

NATURA L WI CINEMA ZOOM FULL A D 4 : 3N FULL F

EXIT

SET UP CONVERGENC NATURA L WIDE

ADJ CEN ADJ MU T I - PO I

EXIT

WIDE

N OR HD

ORMAL

USE: END: MENU

TER

POINT

LNT

USE: END: MENU

PROGRAM BLOCK menu (See page 31)

SET UP

PROGRAM BLOCK

I NPUT YOUR PAS

____

EXIT

USE: END: MENU

SWORD

CHANNEL ADD/DEL menu (See page 41)

SET UP CHANNEL

ANT E NA : A CHANNNEL: 123 SETTI N : DG LABEL : BACDA

EXIT

ADD/DEL

USE: END: MENU

FAVORITE CHANNEL menu (See page 44)

SET UP FAVOR I E CT HANNE L

BLUE GRE EN RED YELLOW

EXIT

USE: END: MENU

CHANGE PASSWORD menu (See page 34)

SET UP

CHANGE PASSWORD

I NPUT YOUR PAS

____

EXIT

USE: END: MENU

SWORD

OTHERS

TROUBLESHOOTING

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with the Monitor, check the points below. Sometimes the trouble may lie in another component. Investigate the other component and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest PIONEER authorized service center or your dealer to carry out repair work.

SYMPTOM

The power will not turn on

The Monitor is inoperative

A TV broadcast station cannot be received

No picture appears on the screen

No sound

The Monitor cannot be operated using the remote control unit

The color is not normal The color is too dim or too sharp The color is uneven

CAUSE/REMEDY PAGES

The power plug is disconnected. The MAIN POWER switch is not turned on.

Press the RETURN button. External influences such as lightning and static electricity may prevent the Monitor from operating normally. In such cases, turn on/off the MAIN POWER supply, disconnect the power cord, connect it again a few minutes later, and try operating the Monitor.

The antenna cable is not connected properly. The antenna cable is broken or shorted. Channels have not been preset correctly.

The DVD/LD player or VCR is not connected and operated properly. The input selector has not been set to the desired input source (such as DVD/LD player and VCR).

The MUTING button has been on (volume indicator becomes red).

The batteries in the battery compartment are not correctly matching the (+ and –) polarities. The battery has worn out. Strong lights striking the remote control sensor may cause the internal microcomputer to malfunction.

Adjust the picture quality. The room is too bright. Adjust the color convergence.

10 10

28 and 57

Picture does not appear immediately after changing channels

Closed caption is not displayed

TV-CATV MODE is set incorrectly.

Check the CC menu settings. (As at October 1, 1999, limited closed caption information is broadcasted in field 1. The closed caption information that will be broadcasted in field 2 in the future may not be decoded with this unit). The character information is not displayed normally during special playback, such as slow and still play, of the VCR or Videodisc player. Closed caption signal may not be output depending on the VCR, Videodisc player or other components (for details, please consult the manufacturer of your unit). Check that the video cassette, Videodisc or broadcasting being played contains closed caption

data (The video cassette and Videodisc containing closed caption data carries the CC mark etc.).

The following symptoms may be mistakenly regarded as malfunctioning. In many cases, they are not the faults of the Monitor.

SYMPTOM CAUSE

When there are 2 or 3 layers of images (ghost phenomenon)

Influence of waves from the broadcast stations reflected by nearby mountains and high-rise buildings.

TROUBLESHOOTING

Spots appears on the screen Noises are audible

Stripes appears on the screen Noises are audible

When a crack sound is heard some time after the power is turned on

The power goes off momentarily, after a sudden pop sound

Influence of harmful waves produced by motor equipments such as hair dryers and vacuum cleaners, ignition devices such as cars and motorbikes, flashing devices such as thermostats and electricity discharge by transmission/distribution lines.

Mixing of electric waves from TV stations FM stations, amateur wireless, public wireless (simple wireless), etc., or nearby personal computer, TV, VCR, audio equipment.

Sometimes, creaking sounds will be produced when cabinets expand or contract due to changes in the surrounding temperature. Do not suspect a fault.

The power was turned off momentarily due to the protection circuit to correct the electric discharge phenomenon in the CRT. Do not suspect fault.

OTHERS

SPECIFICATIONS

Display and amplifier section

Reception system ........ American TV standard NTSC system

Screen size ................................................. 58" (SD-582HD5)

53" (SD-532HD5)

CRT .....................................................7" High focus CRT x 3

Brightness (White peak) ....... 480 Foot-Lambert (SD-582HD5)

580 Foot-Lambert (SD-532HD5)

[White window signal input contrast Max.]

without protective screen

Horizontal resolution ...... More than 1000 lines (SD-582HD5)

More than 1000 lines (SD-532HD5)

[Input digital test pattern (1000 lines resolution)]

Input terminals ............................................... 4 video inputs

4 S-VIDEO input jacks (Y/C separate INPUT)

2 COMPONENT VIDEO INPUT jacks (Y, P

4 audio inputs

Mini D-sub 15 pin INPUT jack (RGB)

Output terminals .................................................. MONITOR

Input terminal signal ratings

Input signal

Video signal:

Composite and S-VIDEO (Y): 1.0 Vp-p (75 ohms load) COMPONENT (Y): 1.0 Vp-p (75 ohms load)

B, PR): 0.7 Vp-p (75 ohms load)

Mini D-sub 15 pin (RGB): 0.7 Vp-p (75 ohms load)

Audio signal (including CENTER): 400mV rms

Input impedance .............................. Video input: 75 ohms

Audio input (including CENTER): 22 kilo-ohms

Input signal polarity (Video) .......... Synchronized negative

Output terminal signal ratings

Output signal .............Video signal: 1 Vp-p (75 ohms load)

Audio signal: 500 mV rms (100 % modulation)

Output impedance ......................... Video output: 75 ohms

Audio output: Less than 1 kilo-ohms Effective output

Front both channels driven ............................... 10 W + 10 W

(THD. 1 % 1 kHz, 8 ohms)

Built-in speaker system .......... 16 cm (6-5/16 in) full range x 2

B, PR)

or more

Electrical section, miscellaneous

Power requirements ..................................... 120 V AC, 60 Hz

Power consumption ............................. 310 W, 575 VA (CSA)

External dimensions

SD-582HD5 ................. 1378 (W) x 661 (D) x 1351 (H) mm

54-1/4 (W) x 26 (D) x 53-3/16 (H) inch

SD-532HD5 ................. 1268 (W) x 626 (D) x 1289 (H) mm

49-15/16 (W) x 24-11/16 (D) x 50-3/4 (H) inch

Weight of main unit

SD-582HD5 ........................................ 131 kg (289 lb 3 oz)

SD-532HD5 ........................................ 121 kg (267 lb 2 oz)

Wireless remote control unit

Operation system ................. Infrared remote control system

Power source ............. Two DURACELL

Dimensions ........................ 66 (W) x 24.6 (H) x 226.5 (D) mm

2-19/32 (W) x 31/32 (H) x 8-29/32 (D) inch

Weight ................................... 170 g (4 oz) (without batteries)



"AA" MN1500 1.5 V

ALKALINE dry cell batteries

Accessories

Operating instructions ........................................................ 1

Warranty card ..................................................................... 1

Remote control unit ............................................................ 1

DURACELL

Alkaline dry cell batteries .................................................... 2

NOTE:

Specifications and design are subject to possible modifications without notice due to improvements.



"AA" MN1500 1.5V

Tuner section

Circuit type ........................................ Video signal detection:

PLL full synchronous detection

PLL digital synthesizer system

Audio multiplex: BTSC system

Reception channels ........ VHF; CH2~CH13, UHF; CH14~CH69

CATV (STANDARD, IRC or HRC)

CATV 1-125 CH

Antenna terminals

..................................... Antenna terminal, 75 ohms UNBAL,

F-type connector (VHF, UHF MIXED)

OTHERS

Should this product require service in the U.S.A. and you wish to locate the nearest Pioneer Authorized Independent Service Company, or if you wish to purchase replacement parts, operating instructions, service manuals, or accessories, please call the number shown below.

8 0 0 – 4 2 1 – 1 4 0 4

Please do not ship your product to Pioneer without first calling the Customer Service Department at the above listed number for assistance.

PIONEER ELECTRONICS SERVICE, INC. CUSTOMER SERVICE DEPARTMENT P.O. BOX 1760, LONG BEACH, CA 90801-1760, U.S.A.

For warranty information please see the Limited Warranty sheet included with your product.

Should this product require service in Canada, please contact a Pioneer Canadian Authorized Dealer to locate the nearest Pioneer Authorized Service Company in Canada. Alternatively, please contact the Customer Service Department at the following address:

Pioneer Electronics of Canada, Inc. Customer Service Department 300 Allstate Parkway, Markham, Ontario L3R 0P2 (905) 479-4411 1-877-283-5901

For warranty information please see the Limited Warranty sheet included with your product.

Si ce produit doit être réparé au Canada, veuillez vous adresser à un distributeur autorisée Pioneer au Canada pour obtenir le nom de la Société de Service Autorisée Pioneer le plus près de chez vous. Ou encore, veuillez vous communiquer avec le Service de Clientèle de Pioneer:

Pioneer électroniques du Canada, Inc. Département de service au consommateurs 300 Allstate Parkway, Markham, Ontario L3R 0P2 (905) 479-4411 1-877-283-5901

Pour obtenir des renseignements sur la garantie, veuillez vous reporter au feuillet sur la Garantie Limitée gui accompagne le produit.

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS [USA] INC. P.O. BOX 1540, Long Beach, California 90801-1540 PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium TEL: 03/570.05.11 PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [03] 9586-6300 PIONEER ELECTRONICS DE MEXICO S.A. DE C.V. San Lorenzo Num 1009 3er piso Desp. 302 Col. Del Valle, Mexico D.F. C.P. 03100 TEL: 5-688-52-90

<99I00SF0W00> <ARB1528>

Printed in Japan <ARB1528-A>

Pioneer SD-582HD5, SD-532HD5 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
