Pioneer PDP-427XG, PDP-507XG User Manual

PDP-507XG PDP-427XG

PLASMA DISPLAY PANTALLA DE PLASMA MONITOR DE PLASMA

電漿顯示器

Operating Instructions Manual de instrucciones Manual de instruções

English

CAUTION

The POWER switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a_A_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230V or 120V) written on the rear panel.

D3-4-2-1-4_A_En

WARNING

This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.

D3-4-2-1-6_A_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation. For the minimum space required, see page 15.

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating

STANDBY/ON Button STANDBY: When placed into the standby mode, the main power

flow is cut and the unit is no longer fully operational.

STANDBY/ON Indicator: The indicator is lit red when the unit

is in the standby mode and is lit blue when it is in the power-on mode.

The following symbols are found on labels attached to the product. They alert the operators and service personnel of this equipment to any potentially dangerous conditions.

WARNING

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

CAUTION

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

Contents

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. In some countries of regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However the method of connecting and operating the unit are the same.

Contents

01 Important user information

02 Safety precautions

Installation precautions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

03 Supplied accessories

04 Part names

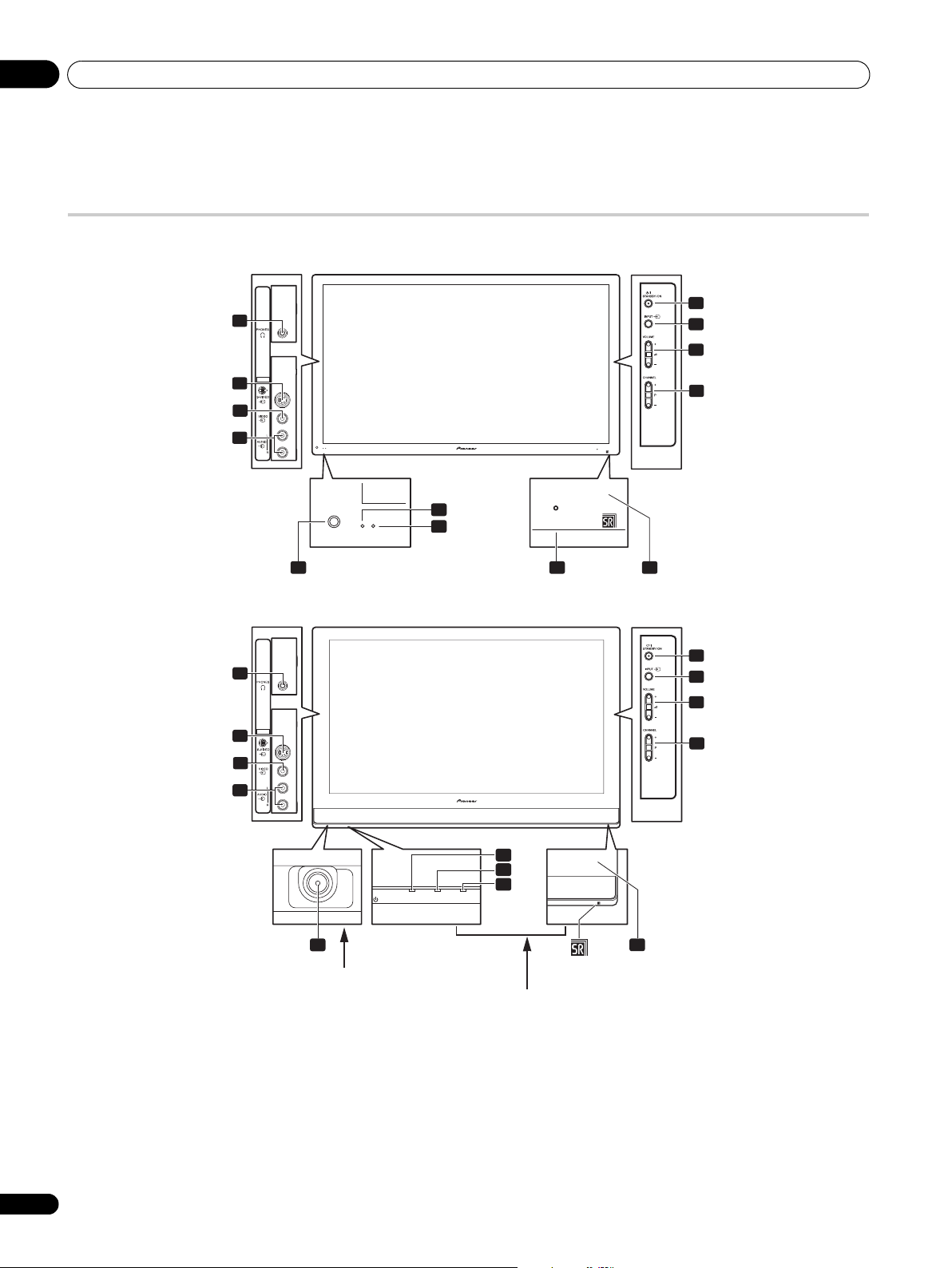

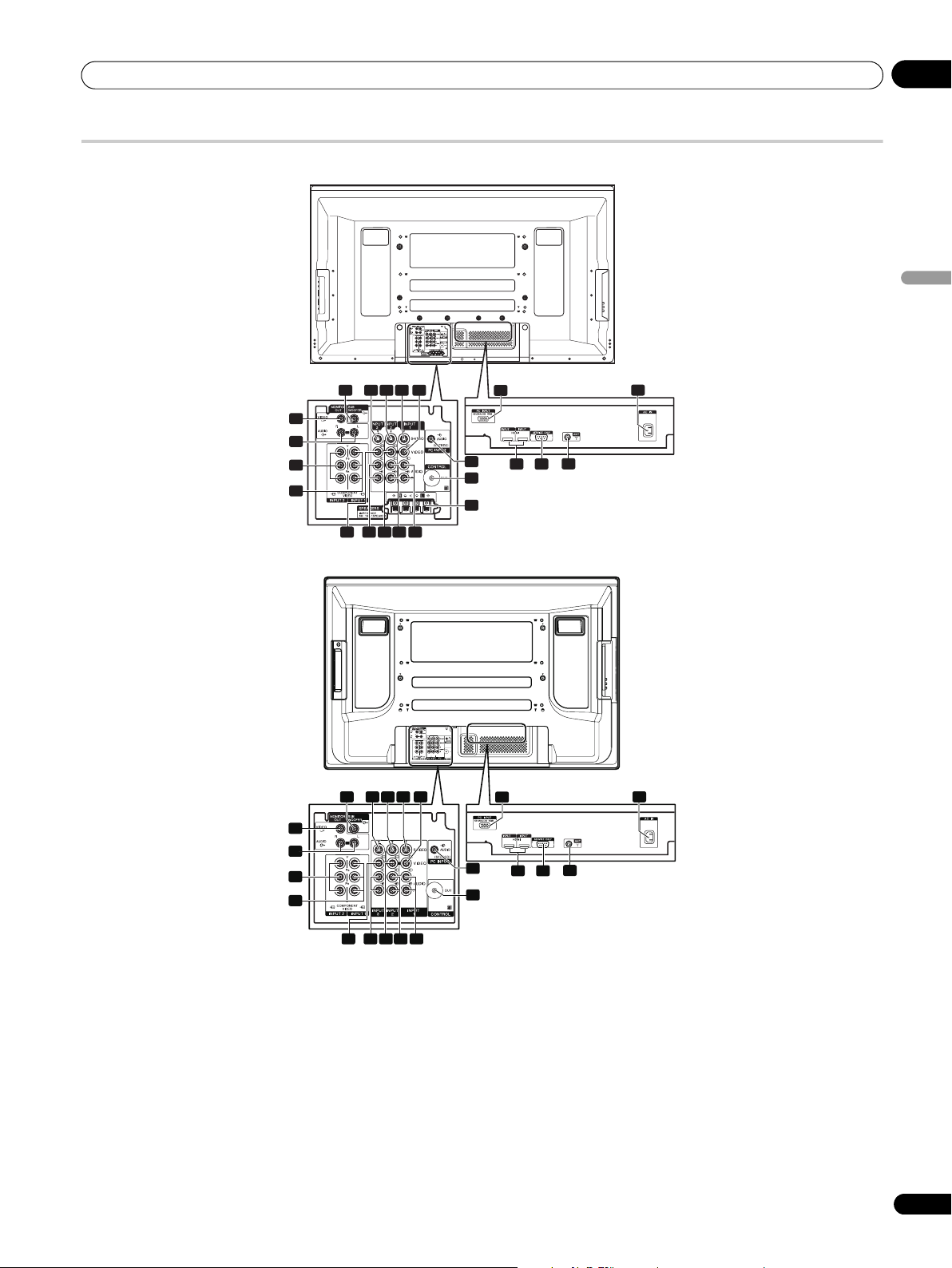

Plasma display (front) Plasma display (rear) Remote control unit

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

05 Preparation

Installing the plasma display Moving the plasma display Preventing the plasma display from falling over

Stabilizing on a table or floor Using a wall for stabilization

Basic connections

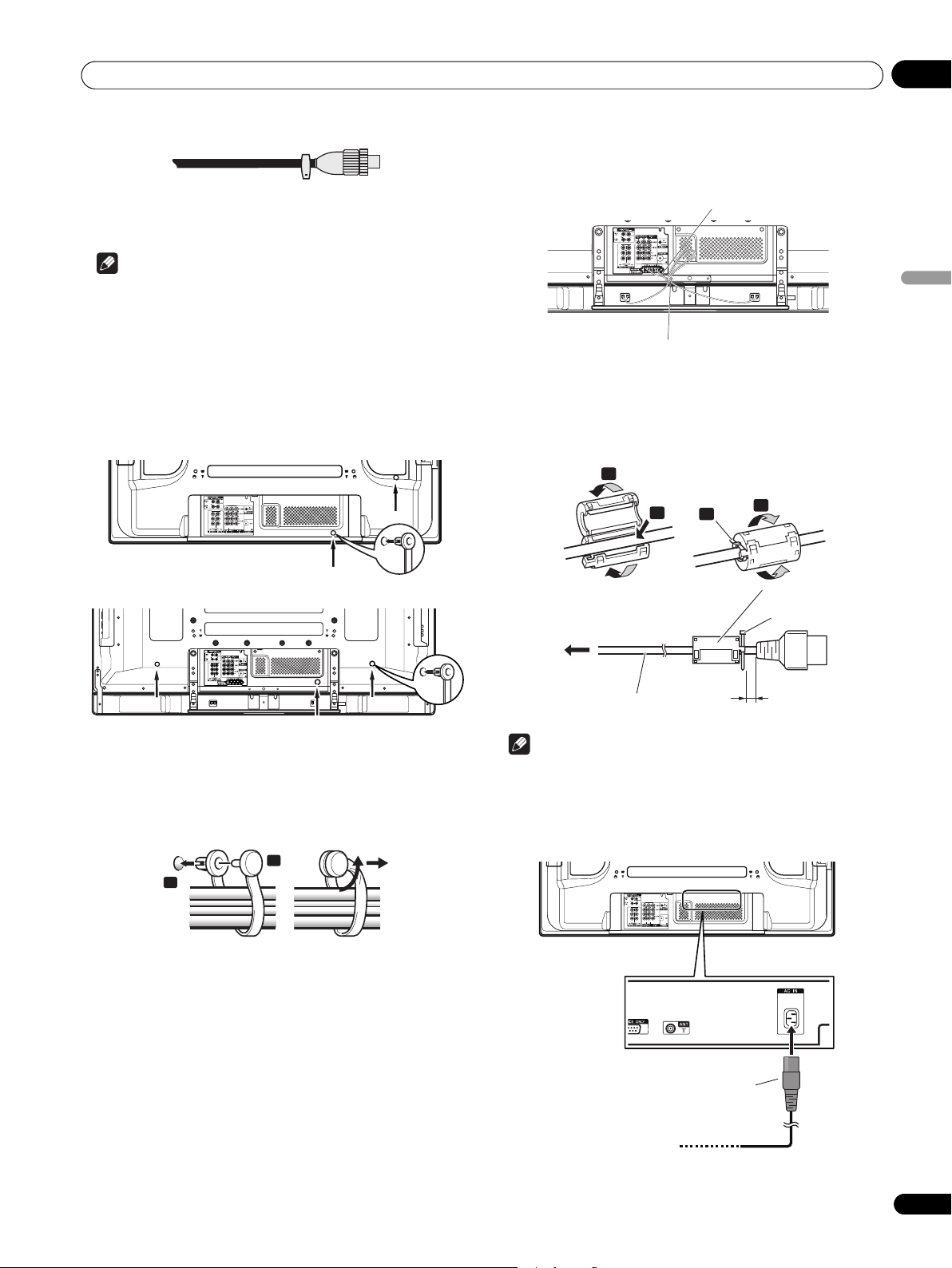

Connecting the antenna Routing cables Attaching the ferrite core Connecting the power cord

Preparing the remote control unit

Inserting batteries

Operating range of the remote control unit

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

. . . . . . . . . . . . . . . . . . . . . . . . . . .15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

. . . . . . . . . . . . . . . . . . . . . . . . . .16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

. . . . . . . . . . . . . . . . . . . . . . . . . . .17

. . . . . . . . . . . . . . . . . . . . . . .18

. . . . . . . . . . . . . . . .18

06 Watching TV

Turning the power on

plasma display status indicators

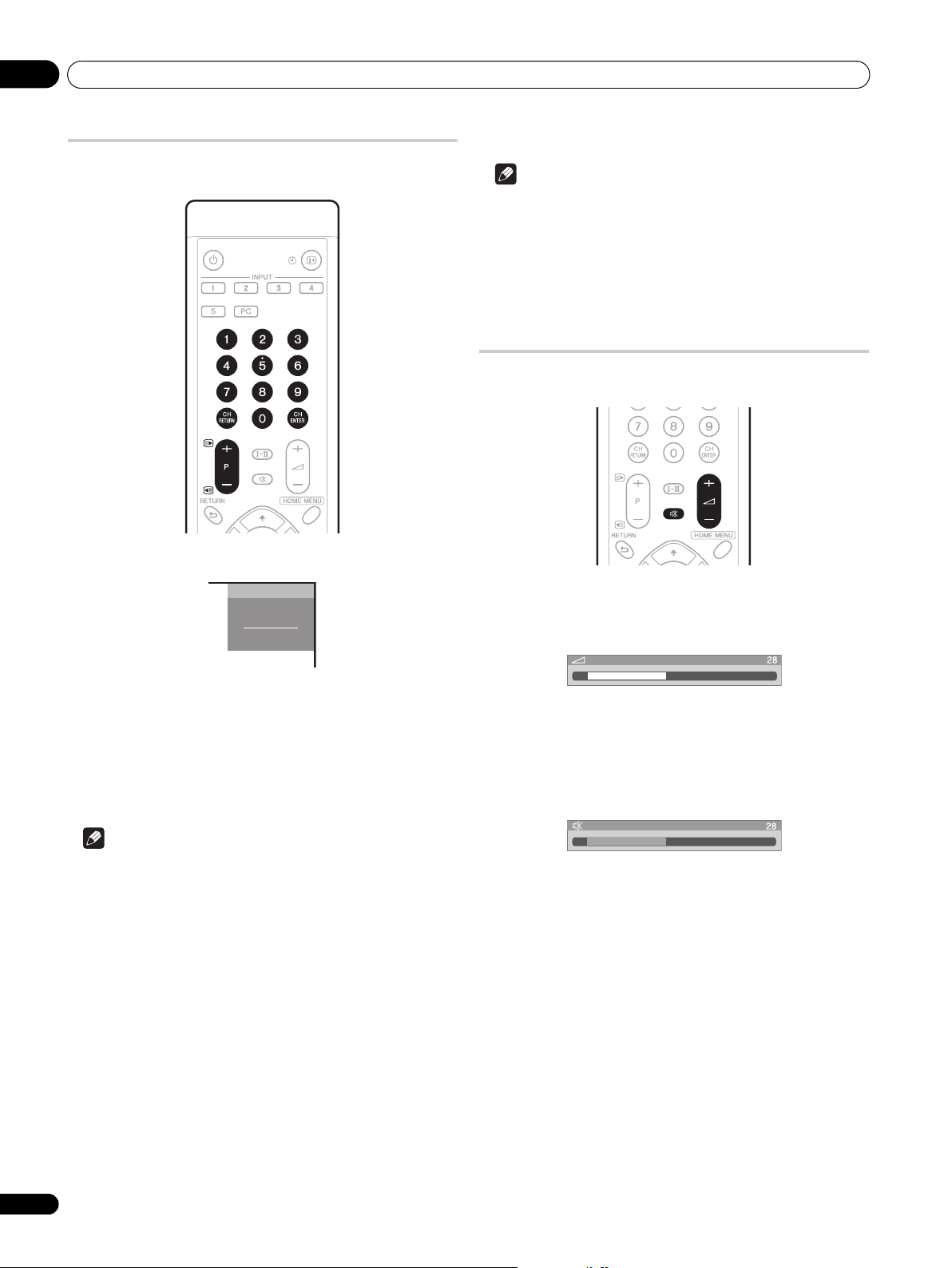

Changing channels

Using P+ / P– on the remote control unit Using 0 to 9 on the remote control unit

Changing the volume and sound

Using iiii + /iiii – on the remote control unit

Using eeee on the remote control unit Switching the broadcast audio channel Using the multiscreen functions Freezing images

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

. . . . . . . . . . . . . . . . . . . . . . .19

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

. . . . . . . . . . . . . . . .20

. . . . . . . . . . . . . . . . . .20

. . . . . . . . . . . . . . . . . . . . . . . .20

. . . . . . . . . . . . . . . . . . . .20

. . . . . . . . . . . . . . . . . . .21

. . . . . . . . . . . . . . . . . . . . . . . .21

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

07 The Home Menu

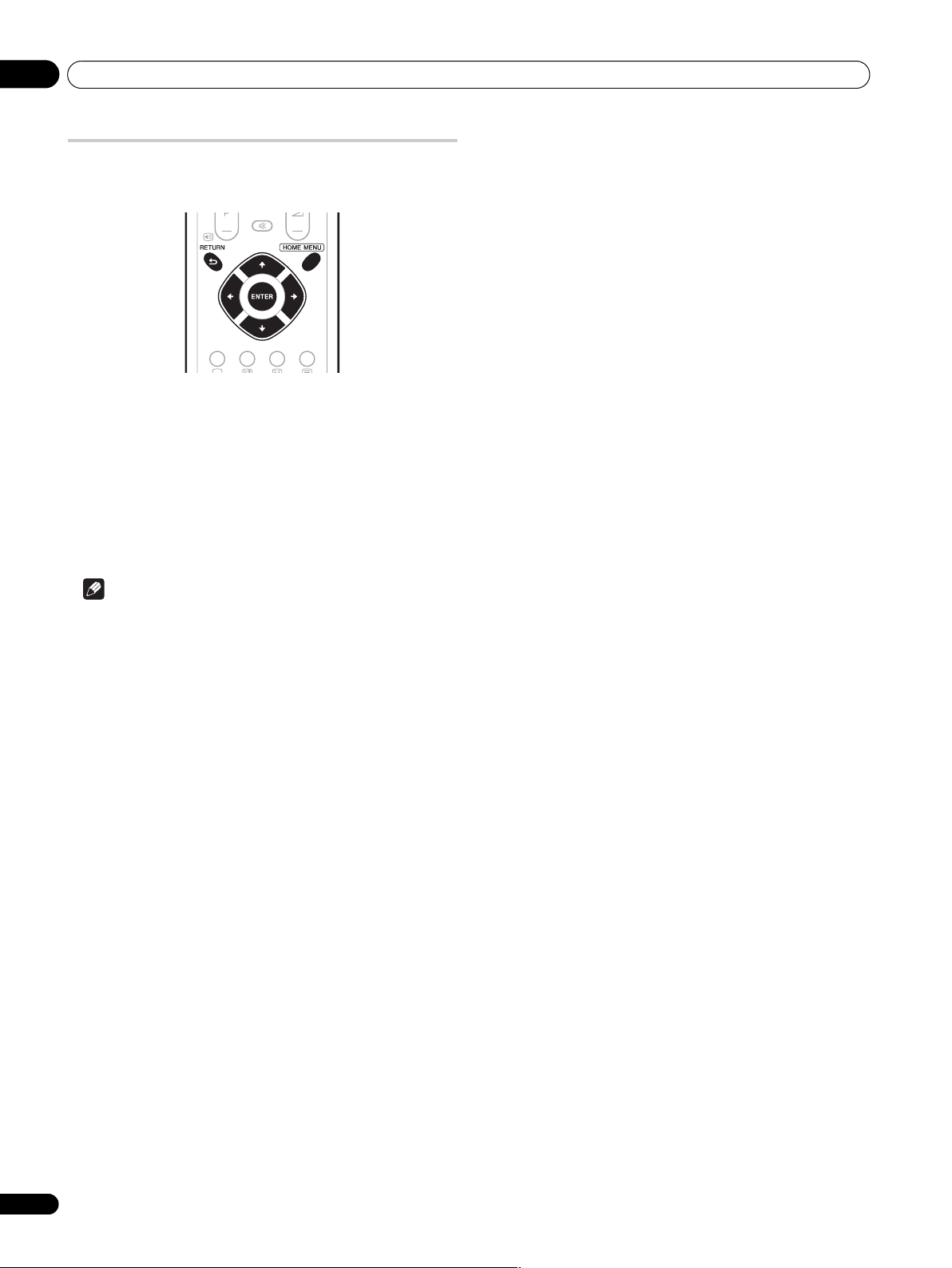

AV mode menu overview PC mode menu overview Using the Home Menu

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

. . . . . . . . . . . . .16

. . . . . . . . . .20

08 Setting up

Setting up TV channels automatically

Using Auto Installation Setting up TV channels manually Reducing video noise Setting Child Lock Suppressing audio distortion Labeling TV channels Sorting preset TV channels Language setting AV Selection Basic picture adjustments Advanced picture adjustments

Using PureCinema

Using Color Temp

Using CTI

Using Color Management

Using Color Space

Using Intelligent Color

Eliminating noise from images

Using the Dynamic Range Expander (DRE) functions

Using the 3DYC and I-P Mode Sound adjustments

FOCUS

Front Surround Listening to audio from the sub screen using headphones Power Control

Energy Save

No Signal off (AV mode only)

No Operation off (AV mode only)

Power Management (PC mode only)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

. . . . . . . . . . . . . . . . . . . . . . . . . . 26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

. . . . . . . . . . . . . . . . . . . . 25

. . . . . . . . . . . . . . . . . . . . . . . 25

. . . . . . . . . . . . . . . . . . . . . . . . . 29

. . . . . . . . . . . . . . . . . . . . . . . . 31

. . . . . . . 31

. . . . . . . . . . . . . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . . . . . . . . . 34

. . . . . . . . . . . . . . . . . . . . . . . 34

. . . . . . . . . . . . . . . . . . . . 34

09 Useful adjustment settings

Switching the vertical drive frequency Adjusting image positions (AV mode only) Adjusting image positions and clock automatically (PC mode only) Adjusting image positions and clock manually (PC mode only) Color system setting Selecting a screen size manually Selecting a screen size automatically

Selecting a screen size for 4:3 aspect ratio signals Changing the brightness at both sides of the screen (Side Mask) Sleep Timer Using a password (AV mode only)

Entering a password

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

. . . . . . . . . . . . . . . . . . . . 35

. . . . . . . . . . . . . . . . 35

. . . . . . . . . . . . . . . . . . . . . . . 36

. . . . . . . . . . . . . . . . . . . . 37

. . . . . . . . . 37

. . . . . . . . . . . . . . . . . . . . . . . 38

. . . . 33

Contents

English

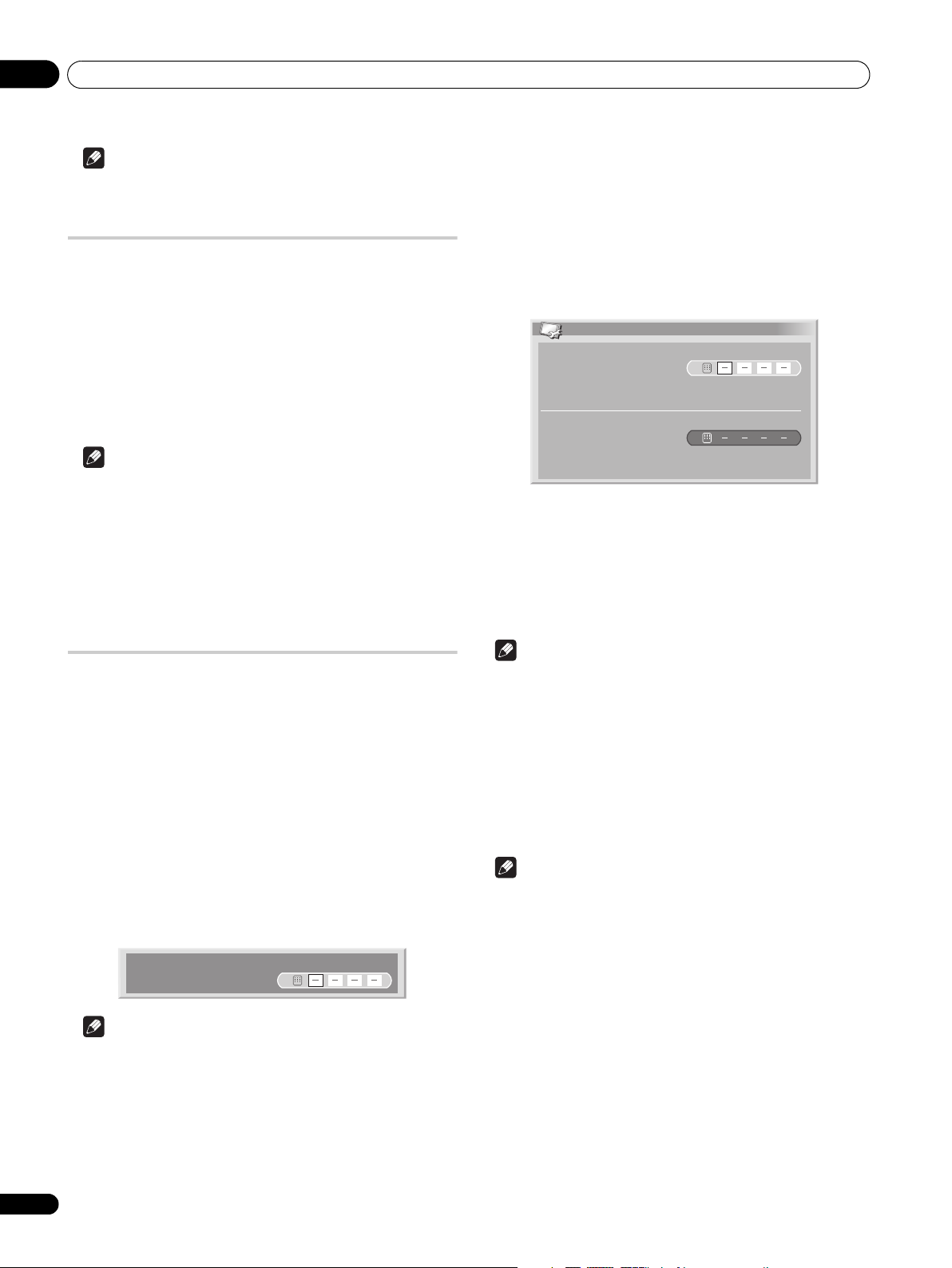

Changing the password Resetting the password function

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

. . . . . . . . . . . . . . . . . . . . . . 38

10 Using with other equipment

Connecting a digital tuner

Displaying broadcasts via a digital tuner

Connecting a DVD player

DVD playback

Connecting a VCR

VCR playback

Connecting a game console or camcorder

Displaying an image from the game console or camcorder

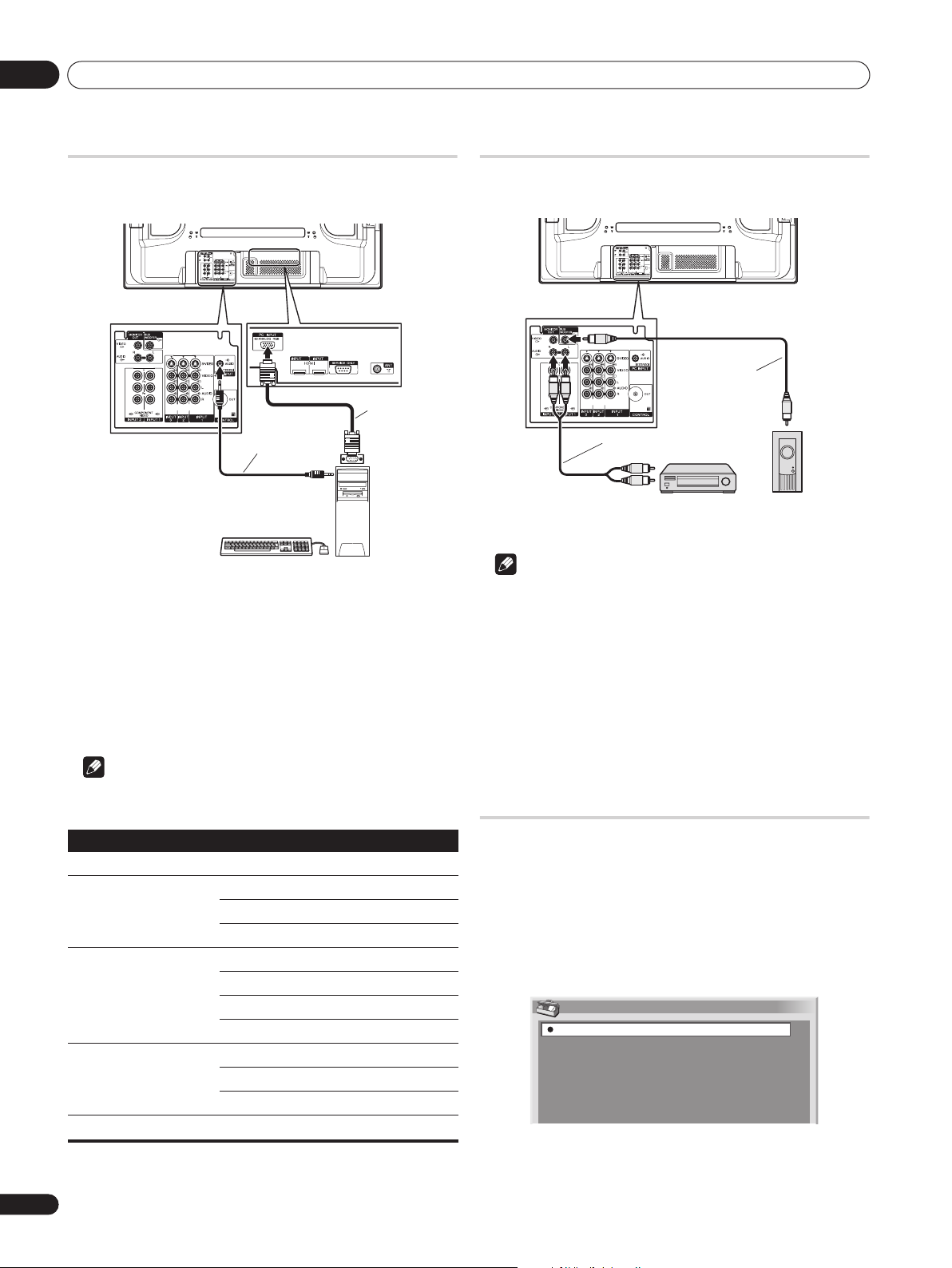

Connecting a personal computer

Displaying an image from a personal computer Connecting an amplifier/AV receiver Avoiding unwanted feedback Using the HDMI Inputs

Connecting HDMI equipment Using control cords

About SR+

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

. . . . . . . . . . . . . . . . 40

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

. . . . . . . . . . . . . . . . 41

. . . . . . . . . . . . . . . . . . . . . . . 42

. . . . . . . . . . . 42

. . . . . . . . . . . . . . . . . . . . 42

. . . . . . . . . . . . . . . . . . . . . . . . . . 42

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

. . . . . . . . . . . . . . . . . . . . . . . . 43

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

11 Using Teletext

Using the Teletext Functions

What is Teletext? Operating the Teletext basics

Turning on and off Teletext

Selecting and operating Teletext pages

Displaying subpages

Displaying TOP Over View

Displaying subtitle pages

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

. . . . . . . . . . . . . . . . . . . . . . . . . . . 46

. . . . . . . . . . . . . . . . . . . . . . . . . . 46

. . . . . . . . . . . . . . . . . . . . . . . . . . . 46

. . . . . . . . . . . . . . . . . 46

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

. . . . . . . . . . . . . . . . . . . . . . . . . . . 47

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

. . 41

12 Additional information

Troubleshooting Signal assignments for 15-pin D-sub connector Standard channel allocation selections for countries and

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

regions Specifications

Trademarks

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

. . . . . . . . . . . . 49

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Important user information

Chapter 1

Important user information

In order to obtain maximum enjoyment from this Pioneer PureVision PDP-507XG/PDP-427XG Plasma Display, please first read this information carefully.

With the Pioneer PureVision PDP-507XG/PDP-427XG, you can be assured of a high quality plasma display with long-life and high reliability. To achieve images of exceptional quality, this Pioneer plasma display incorporates state-of-the-art design and construction, as well as very precise and highly advanced technology.

The Pioneer PureVision PDP-507XG/PDP-427XG incorporates the latest in color filter technology: Direct Color Filter. This improves the color/picture reproduction of these models as compared to previous models. It also eliminates the need for a physical glass panel to be placed in front of the plasma panel, which furthers Pioneer’s continued goal of reducing environmental waste in consumer electronics, now during the manufacturing process and in the future during the recycling process.

Over the course of its lifetime, the luminosity of the Pioneer PDP507XG/PDP-427XG Plasma Display will diminish very slowly, such as with all phosphor-based screens (for example, a traditional tubetype television). To enjoy beautiful and bright images on your Pioneer plasma display for a long time, please carefully read and follow the usage guidelines below:

Usage guidelines

All phosphor-based screens (including conventional tube-type televisions) can be affected by displaying static images for a prolonged period. Plasma displays are no exception to this rule. After-image and permanent effects on the screen can be avoided by taking some basic precautions. By following the recommendations listed below, you can ensure longer and satisfactory results from your plasma:

• Whenever possible, avoid frequently displaying the same image or virtually still moving pictures (e.g. video game images which have static portions).

• Do not display Teletext for a prolonged period of time.

• Avoid viewing the On Screen Display for extended periods, from a digital tuner, DVD player, VCR and all other components.

• Do not leave the same picture freeze-framed or paused continuously over a long period of time, when using the still picture mode from a TV, VCR, DVD player or any other component.

• Images which have both very bright areas and very dark areas side by side should not be displayed for a prolonged period of time.

• When playing a game, the “GAME” mode setting within “AV Selection” is strongly recommended. However, please do not use this mode for long periods of time.

• After playing a game, displaying a PC image or any still image, it is best to view a normal moving picture in the “WIDE” or “FULL” screen setting for more than 3 times the length of the previous still moving image.

• After using the plasma display, always switch the display to “STANDBY” mode.

Installation guidelines

The Pioneer PureVision PDP-507XG/PDP-427XG Plasma Display incorporates a very thin design. To ensure safety, please take the proper measures to mount or install the plasma display, in order to prevent the unit from tipping over in the event of vibration or accidental movement.

This product should be installed by using only parts and accessories designed by Pioneer. Use of accessories other than the Pioneer stand or installation bracket may result in instability, and could cause injury. For custom installation, please consult the dealer where the unit was purchased. To ensure correct installation, experienced and qualified experts must install the unit. Pioneer will not be held responsible for accident or damage caused by the use of parts and accessories manufactured by other companies.

To avoid malfunction and overheating, make sure that the vents on the main unit are not blocked when installing to ensure proper heat emission:

• Distance the unit slightly from other equipment, walls, etc. For the minimum space required around the unit, see page 15.

• Do not fit the unit inside narrow spaces where ventilation is poor.

• Do not cover with a cloth, etc.

• Clean the vents on the sides and rear of the unit to remove dust build-up, by using a vacuum cleaner set to its lowest suction setting.

• Do not place the product on a carpet or blanket.

• Do not leave the product tilted over.

• Do not turn the product upside down.

Using the unit without proper ventilation may cause the internal temperature to rise, and could result in possible malfunction. When the surrounding or internal temperature exceeds a certain degree, the display will automatically power off in order to cool the internal electronics and prevent hazardous occurrences.

Any malfunction may occur due to: an inappropriate installation site, improper assembly, installation, mounting, or operation of this product, modifications made to the product. However, Pioneer cannot be held responsible for such accidents or malfunction.

Note

The following are typical effects and characteristics of a phosphor-based matrix display and as such, are not covered by the manufacturer’s limited warranties:

• Permanent residual images upon the phosphors of the panel.

• The existence of a minute number of inactive light cells.

• Panel generated sounds, examples: Fan motor noise, and electrical circuit humming/glass panel buzzing

Caution

• Pioneer bears no responsibility for any damage arising from incorrect use of the product by you or other people, malfunctions when in use, other product related problems, and use of the product except in cases where the company must be liable.

Important user information

Plasma display protection function

When still images (such as photos and computer images) stay on the screen for an extended period of time, the screen will be slightly dimmed. This is because the protection function of the plasma display automatically adjusts the brightness to protect the screen when detecting still images; so this does not designate malfunction. The screen is dimmed when a still image is detected for about three minutes.

Information of pixel defect

Plasma screens display information using pixels. Pioneer plasma display panels contain a very large number of pixels. (Depending on the panel size: over 2.3 million cells in case of a 42 inch display; over 3.1 million cells in the case of a 50 inch display). All Pioneer display panels are manufactured using a very high level of ultraprecision technology and undergo individual quality control.

In rare cases, some pixels can be permanently switched off, or on, resulting in either a black or colored pixel permanently fixed on the screen.

This effect is common to all plasma displays because it is a consequence of the technology.

If the defective pixels are visible at a normal viewing distance of between 2.5 meters and 3.5 meters whilst viewing a normal broadcast (i.e. not a test card, still image or single color display) please contact the supplying dealer.

If, however, they can only be seen close up or during single color displays then this is considered normal for this technology.

Infrared rays

The plasma display releases infrared rays because of its characteristics. Depending on how the plasma display is in use, the remote controls of nearby equipment may be adversely affected or wireless headphones using infrared rays are interfered by noise. If this is the case, place that equipment at a location where its remote control sensor is not affected.

Condensation

Condensation may take place on the surface or inside of the product when the product is rapidly moved from a cold place to a warm place or just after a heater is switched on in winter morning, for example. When condensation takes place, do not switch on the product and wait until condensation disappears. Using the product with condensation may result in malfunction.

English

Cleaning the surface of the screen and the glossy surface of the front cabinet

When cleaning the surface of the screen or the glossy surface of the front cabinet, gently wipe it with a dry soft cloth; the supplied cleaning cloth or other similar cloths (e.g., cotton and flannel). If you use a dusty or hard cloth or if you rub the screen hard, the surface of the product will be scratched.

If you clean the surface of the screen with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

Cleaning the cabinet

When cleaning the cabinet of this product, gently wipe it with a clean soft cloth (e.g., cotton and flannel). If you use a dusty or hard cloth or if you rub the cabinet hard, the surface of the cabinet will be scratched.

The cabinet of this product is mostly composed of plastic. Do not use chemicals such as benzene or thinner to clean the cabinet. Using these chemicals may result in quality deterioration or coating removal.

Do not expose the product to volatile gas or fluid such as pesticide. Do not make the product contact with rubber or vinyl products for a long period of time. The effect of plasticizer in the plastic may result in quality deterioration or coating removal.

If you clean the surface of the cabinet with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

Radio interference

While this product meets the required specifications, it emits a small amount of noise. If you place such equipment as an AM radio, personal computer, and VCR close to this product, that equipment may be interfered. If this happens, place that equipment far enough from this product.

Plasma display driving sound

The screen of the plasma display is composed of extremely fine pixels and these pixels emit light according to received video signals. This principle may make you hear buzz sound or electrical circuit humming from the plasma display.

Do not attach such items as labels and tape to the product

This may result in the discoloration or scratch of the cabinet.

Handles at the rear of the plasma display

Do not remove the handles from the rear of the plasma display. When moving the plasma display, ask another person for help and

use the handles attached to the rear of the plasma display. Do not move the plasma display by holding only a single handle. Use the handles as shown.

Do not use the handles to hang the product when installing or carrying the product, for example. Do not use the handles for the purpose of preventing the product from tilting over.

Fan noise

The rotation speed of the cooling fan motor increases when the ambient temperature of the plasma display becomes high. You may hear the sound of the fan motor at that time.

When not using the product for a long period of time

If you do not use the product for a long period of time, the functions of the product may be adversely affected. Switch on and run the product occasionally.

Important user information

Caution

Panel sticking and after-image lag

Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two cases.

After-image lagging due to remaining electrical load

When image patterns with very high peak luminance are displayed for more than 1 minute, after-image lagging may occur due to the remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the after-images to disappear depends on the luminance of the still images and the time they had been displayed.

After-image (lag image) due to burning

Avoid displaying the same image on the plasma display continuously over a long period of time.

If the same image is displayed continuously for a long period, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not disappear completely.

Note

• We recommend that you enjoy watching images displayed in full screen, except when doing so may result in copyright infringement (see page 36).

• To prevent screen burning, the display position is automatically changed slightly when the power is switched on or the input changed. Depending on the broadcast content, some parts of the picture may not be visible.

• The energy save function can be set to help prevent damage from screen burning (see page 34).

Safety precautions

Chapter 2

Safety precautions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your product, please read the following precautions carefully before using the product.

1. Read instructions - All operating instructions must be read and understood before the product is operated.

2. Keep this manual in a safe place - These safety and operating instructions must be kept in a safe place for future reference.

3. Observe warnings - All warnings on the product and in the instructions must be observed closely.

4. Follow instructions - All operating instructions must be followed.

5. Cleaning - Unplug the power cord from the AC outlet before cleaning the product. To clean the product, use the supplied cleaning cloth or other soft clothes (e.g., cotton, flannel). Do not use liquid cleaners or aerosol cleaners.

6. Attachments - Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.

7. Water and moisture - Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.

8. Stand - Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.

9. When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

10. Ventilation - The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/ or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

11. Power source - This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

12. Power cord protection - The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.

English

13. The plasma display used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the plasma Display breaks.

14. Overloading - Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.

15. Entering of objects and liquids - Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

16. Servicing - Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.

17. Repair - If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the power cord or plug is damaged. b. When a liquid was spilled on the product or when objects have

fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in

the operating instructions. Do not touch the controls other than those described in the

operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.

e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any

noticeable abnormality in the product indicates that the

product needs servicing.

18. Replacement parts - In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

19. Safety checks - Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

20. Wall or ceiling mounting - When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

21. Heat sources - Keep the product away from heat sources such as radiators, heaters, stoves and other heat- generating products (including amplifiers).

22. Unplug the power cord from the AC outlet before installing the speakers.

23. Never expose the screen of the plasma display to a strong impact, for example, by hitting it. The screen may be broken, resulting in fire or personal injury.

24. Do not expose the plasma display to direct sunlight for a long period of time. The optical characteristics of the front protection panel changes, resulting in discoloration or warp.

25. The plasma display weighs about 34.1 kg for the PDP-507XG and about 29.0 kg for the PDP-427XG. Because it has small depth and is unstable, unpack, carry, and install the product with one more person at least and use the handles.

Safety precautions

Installation precautions

Observe the following precautions when installing with any items such as the optional stand.

When using the optional stand, brackets, or equivalent items

Ask your dealer to perform the installation. Be sure to use the supplied bolts. For details, see the instruction manual that comes with the

optional stand (or equivalent items).

When using other items

Consult your dealer. The following six mounting holes can be used for the installation:

Rear (PDP-507XG)

Mounting holes

Median line

Mounting holes

Median line

Side view

Mounting surface

Mounting bracket

Plasma display

(or equivalent)

M8 screw

12 mm to 18 mm

Caution

• Be sure to use four or more mounting holes symmetrical to the vertical and horizontal median lines.

• Use M8 screws, which go 12 mm to 18 mm in depth from the mounting surface of the plasma display. See the side view above.

• Be careful not to block the ventilation opening at the rear of the plasma display.

• Be sure to install the plasma display on a flat surface because it contains glass.

• The screw holes other than the above are to be used only for the specified products. Never use them for mounting nonspecified products.

Rear (PDP-427XG)

Mounting holes Mounting holes

Median line

Note

• It is strongly recommended to use the optional Pioneer mounting products.

• Pioneer shall not be liable for any personal injury or product damage that results from the use of mounting items other than the optional Pioneer products.

Supplied accessories

Chapter 3

Supplied accessories

Check that all of the following accessories are supplied in the box.

Remote control

AA size batteries x 2

Ferrite core

Cable tie (for ferrite core)

Speed clamps x 3

English

Cleaning cloth

Warranty card

Operating instructions

Bead bands x 3

Power cord

Part names

Chapter 4

Part names

Plasma display (front)

PDP-507XG

Side Front Side

INPUT 5

PDP-427XG

Side Front

INPUT 5

 POWER

ONSTANDBY

 POWER

ON STANDBY

POWER

SLEEP

2 3

SLEEP

Side

2 3

SLEEPON STANDBY

1 POWER button 2 POWER ON indicator 3 STANDBY indicator 4 SLEEP indicator 5 Remote control sensor 6 STANDBY/ON button 7 INPUT button

Viewed from the underside of the display

Viewed from the front of the display

8 VOLUME +/– buttons 9 CHANNEL +/– buttons 10 PHONES output terminal 11 INPUT 5 terminal (S-VIDEO) 12 INPUT 5 terminal (VIDEO) 13 INPUT 5 terminal (AUDIO)

Part names

Plasma display (rear)

PDP-507XG

10 11 13 18

English

14 15 16 17 19

PDP-427XG

10 11 13 18

20 21

324

1 PC INPUT (analog RGB) 2 AC IN 3 INPUT 3, 4 (HDMI) 4 RS-232C terminal (used for factory setup) 5 ANT (antenna) in terminal 6 MONITOR OUT (VIDEO) 7 MONITOR OUT (AUDIO R, L) 8 INPUT 2 (COMPONENT VIDEO: Y, P

9 INPUT 1 (COMPONENT VIDEO: Y, P

B B

, PR) , PR)

10 SUBWOOFER output terminal

14 15 16 17 19

11 INPUT 3 (S-VIDEO) 12 INPUT 2 (S-VIDEO) 13 INPUT 1 (S-VIDEO) 14 INPUT 3 (VIDEO) 15 INPUT 3 (AUDIO L, R) 16 INPUT 2 (VIDEO) 17 INPUT 2 (AUDIO L, R) 18 INPUT 1 (VIDEO) 19 INPUT 1 (AUDIO L, R) 20 PC INPUT (AUDIO (STEREO)) 21 CONTROL OUT 22 SPEAKERS L, R terminals (PDP-507XG only)

Part names

Remote control unit

Point the remote control at the plasma display to operate.

4 5

9 10 11 12

1 

Turns on the power to the plasma display or places it into the standby mode.

2 INPUT

Selects an input source (INPUT 1, 2, 3, 4, 5 or PC)

30 – 9

Switches on the power to the plasma display. TV/External input mode: Selects a channel. TELETEXT mode: Selects a page.

4 CH RETURN

Returns to the previously selected channel.

5 gg

Sets the sound multiplex mode.

6 P+ / P–

TV/External input mode: Selects a channel.

wwww/xx

TELETEXT mode: Selects a page.

7 RETURN

Restores the previous menu screen.

18 19

20 21 22 23

24 25

8 ///

Selects a desired item on the setting screen.

ENTER

Executes a command.

9 Color (RED/GREEN/YELLOW/BLUE)

TELETEXT mode: Selects a page.

[[

10 [[

TV/External input mode: Jumps to the Teletext subtitle page.

11 kk

Displays hidden characters.

12 AV SELECTION

Selects audio and video settings. (AV mode: STANDARD, DYNAMIC, MOVIE, GAME, SPORT, USER. PC mode: STANDARD, USER.)

13 hh

Use to select a front-surround mode.

14 cc

Press to select 2-Screen, Picture in Picture or Single Screen mode.

15 pppp

TV/External input mode: Displays the channel information.

16 CH ENTER

Executes a channel selection by the number buttons.

17 iiii +/iiii –

Sets the volume.

18 ee

Mutes the sound.

19 HOME MENU

TV/External Input mode: Displays the Menu screen.

20 mm

Selects the TELETEXT mode (all TV image, all TEXT image, TV/TEXT image).

21 ll

TELETEXT mode: Displays an Index page for the CEEFAX/FLOF format.

22 ff

TV/External input mode: Selects the screen size.

TELETEXT mode: Switches Teletext images. (full/upper half/ lower half)

23 dd

TV/External input mode: Freezes a frame from a moving image. Press again to cancel the function.

TELETEXT mode: Stops updating Teletext pages. Press again to release the hold mode.

Moves the position of the sub screen when in Picture in Picture mode.

Swaps the main and sub screens when in Picture in Picture or 2-Screen mode.

Preparation

Chapter 5

Preparation

Installing the plasma display

Over 50 cm

Over 10 cm

English

Caution

Operating Environment

Operating environment temperature and humidity: +0 ºC to +40 ºC ; less than 85 % RH (cooling vents not blocked). Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light).

Moving the plasma display

(For PDP-507XG)

Location

• Avoid direct sunlight. Maintain adequate ventilation.

• Because the plasma display is heavy, be sure to have someone help you when moving it.

Caution

• If you do not leave sufficient space above the plasma display, it will not receive enough ventilation and will not operate properly.

Note

• Allow enough space around the upper and back parts when installing to ensure adequate ventilation of the rear of the unit.

Using the optional PIONEER stand

For details on installation, refer to the instruction manual supplied with the stand.

Using the optional PIONEER speakers(for PDP-507XG only)

For details on installation, refer to the instruction manual supplied with the speaker.

Note

• Do not use the speaker to support the weight of the plasma display.

• Always remove the speakers before moving the plasma display. Do not hold the plasma display by the speaker mounting fittings.

Preparation

Preventing the plasma display from falling over

Using a wall for stabilization

1 Attach falling prevention bolts (hooks) to the plasma display.

After installing the stand, be sure to take special care to ensure that the plasma display will not fall over.

2 Use strong cords to stabilize it appropriately and firmly to a wall, pillar, or other sturdy element.

Perform this work in the same way on the left and right sides.

Stabilizing on a table or floor

Stabilize the plasma display as shown in the diagram using screws that are available on the market.

Use hooks, cords and fittings that are available on the market. Recommended hook: Nominal diameter 8 mm Length 12 mm to

15 mm.

Note

• To stabilize the plasma display on a table or on the floor, use screws that have a nominal diameter of 6 mm and that are at least 20 mm long.

6 mm

9 mm to 15 mm

20 mm min.

12 mm to 15 mm

1. Hook

2. Cord

Fitting

Caution

•A table or an area of the floor with adequate strength should always be used to support the plasma display. Failure to do so could result in personal injury and physical damage.

• When installing the plasma display, please take the necessary safety measures to prevent it from falling or overturning in case of emergencies, such as earthquakes, or of accidents.

• If you do not take these precautions, the plasma display could fall down and cause injury.

• The screws, hooks, chains and other fittings that you use to secure the plasma display to prevent it from overturning will vary according to the composition and thickness of the surface to which it will be attached.

• Select the appropriate screws, hooks, chains, and other fittings after first inspecting the surface carefully to determine its thickness and composition and after consulting a professional installer if necessary.

Basic connections

Connecting the antenna

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable.

PDP-427XG (rear view)

Standard DIN45325 plug (IEC169-2)

75-ohm coaxial cable (round cable) (commercially available)

• Connect the 75-ohm coaxial cable (commercially available) to the ANT IN (antenna input) terminal.

Preparation

Antenna cable (commercially available)

If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325 plug (IEC169-2), plug it into the antenna terminal at the rear of the plasma display.

Note

• If the antenna is not connected correctly, the quality of reception may be impaired. If images are not displaying correctly, check whether the antenna connection is correct or not.

Routing cables

Use the speed clamps as necessary to route the connecting cables. The diagrams below show the location of the holes on the rear of the display.

PDP-427XG (rear)

Tidying the speaker cables (PDP-507XG only)

Use the supplied bead bands as necessary to tidy the speaker cables.

Speaker cables

Bead band

Attaching the ferrite core

To help prevent noise, attach the supplied ferrite core to the connector end of the power cord as shown. Use the supplied cable tie to prevent the ferrite core from slipping on the cable.

Ferrite core

English

PDP-507XG (rear)

Attaching and removing speed clamps

Insert [1] into an appropriate hole on the rear of the plasma display and snap [2] into the back of [1] to lock the clamp.

• Speed clamps are designed to be difficult to undo once in place. Please attach them carefully.

• Use pliers to twist the clamp 90º, pulling outward. The clamp may deteriorate over time and become damaged if removed.

• Be careful not to subject any connecting cables to strain.

Cable tie

To power outlet

AC power cord

As close as possible

Note

• Disconnect the power cord from the power outlet when the plasma display is not going to be used for a long period of time.

Connecting the power cord

PDP-427XG (rear view)

Power cord

To power outlet

Preparation

Preparing the remote control unit

Inserting batteries

1 Open the battery cover.

2 Load the supplied two AA size batteries while inserting their respective negative polarity (–) ends first.

Place batteries with their terminals corresponding to the (+) and (–) indicators in the battery compartment.

3 Close the battery cover.

Caution

Improper use of batteries can result in chemical leakage or an explosion. Be sure to follow the instructions below.

• When you replace the batteries, use manganese or alkaline ones.

• Place the batteries with their terminals corresponding to the (+) and (–) indicators.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not use the remote control unit for an extended period of time, remove the batteries from it.

• WHEN DISPOSING OF USED BATTERIES, PLEASE COMPLY WITH GOVERNMENTAL REGULATIONS OR ENVIRONMENTAL PUBLIC INSTITUTION'S RULES THAT APPLY IN YOUR COUNTRY/AREA.

Operating range of the remote control unit

Operate the remote control unit while pointing it toward the remote control sensor (t) located at the bottom right of the front panel of the plasma display. The distance from the remote control sensor must be within 7 m and the angle relative to the sensor must be within 30 degrees in the right, left, upward, or downward direction.

30 º

7 m

Remote control sensor

30 º

Note

• With the PDP-427XG, the SR logo is located at the lower-right on the speaker, but the location of the remote control sensor is the same as with the PDP-507XG.

Caution

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote control sensor of the plasma display is under direct sunlight or strong lighting. In such case, change the angle of the lighting or plasma display, or operate the remote control unit closer to the remote control sensor.

• When any obstacle exists between the remote control unit and the remote control sensor, the remote control unit may not function.

• As the batteries become empty, the remote control unit can function within a shorter distance from the remote control sensor. Replace the batteries with new ones early enough.

• The plasma display emits very weak infrared rays from its screen. If you place such equipment operated through infrared remote control as a VCR nearby, that equipment may not receive commands from its remote control unit properly or entirely. If this is the case, place that equipment at a location far enough from the plasma display.

• Depending on the installation environment, infrared rays from the plasma display may not allow this system to properly receive commands from the remote control unit or may shorten allowable distances between the remote control unit and the remote control sensor. The strength of infrared rays emitted from the screen differs, depending on images displayed on the screen.

Watching TV

Chapter 6

Watching TV

Important

• Before watching broadcast channels, the built-in TV tuner

must be set up. See Setting up TV channels automatically on page 25 for how to do this.

Turning the power on

• To turn on the system, press POWER on the bottom-left of the front of the plasma display.

The POWER ON indicator lights blue.

• To switch the system back into standby, press  on the remote control unit or STANDBY/ON on the plasma display’s control panel on the right-hand side.

The STANDBY indicator lights red.

PDP-427XG

POWER ON indicator STANDBY indicator

POWER

 POWER button

• You can then turn on the system again by pressing  or 0 to 9

on the remote control or STANDBY/ON on the plasma display. If you press 0 on the remote control unit, images come from the INPUT 1 source. If you press 1 to 9, TV images display.

• You can also press  POWER on the plasma display to turn off

the system. However, you cannot then turn on the system again by pressing the buttons on the remote control unit or STANDBY/ON on the plasma display.

ON STANDBY

English

PDP-507XG

 POWER ON STANDBY

 POWER button

POWER ON indicator STANDBY indicator

Note

• If you are not going to use the plasma display for a long period

of time, be sure to remove the power cord from the power outlet.

plasma display status indicators

The table below shows the operational status of the plasma display. You can check the current status of the system with the indicators on the plasma display.

Indicator status System status

POWER ON STANDBY

The power cord of the plasma display has been disconnected. Or, the power cord of the plasma display has been connected but the POWER button of the plasma display is off.

Power to the system is on.

The system is in the standby mode.

For other than the above, see Troubleshooting on page 48.

Watching TV

Changing channels

Use the remote control or the control panel on the right-hand side of the plasma display to change channels.

Channel display

AAA

STEREO

STANDARD

FULL

• View a page directly which is 3-digit page number from 100 to 899 by pressing buttons 0 to 9. See also Operating the Teletext basics on page 46.

Note

• Press CH RETURN to switch back to the previous channel. Press again to retunr to the current channel.

• After entering a channel number you can press CH ENTER to tune in the channel more quickly.

• In standby, when you press 0, the power turns on and images come from the INPUT 1 source. Or, when you press any button from 1 to 9, TV images display.

Changing the volume and sound

Use the remote control or the control panel on the right-hand side of the plasma display to adjust the volume.

Using

• To increase the volume, press iiii +.

• To decrease the volume, press iiii –.

+ /

– on the remote control unit

Using P+ / P– on the remote control unit

• Press P+ to increase the channel number.

• Press P– to decrease the channel number.

When viewing Teletext information:

• Press P+ to increase the page number.

• Press P– to decrease the page number.

See also Using the Teletext Functions on page 46.

Note

• Press CH RETURN to switch back to the previous channel. Press again to retunr to the current channel.

• The CHANNEL +/– buttons on the plasma display work in the same way as P+ / P–.

• P+ / P– cannot pick up channels that are set to skip. For Channel Skip, see steps 13 and 14 under Setting up TV channels manually on page 25.

Using 0 to 9 on the remote control unit

• Select channels directly by pressing buttons 0 to 9.

For example: To select channel 2 (1-digit channel), press 2. To select channel 12 (2-digit channel), press 1 then 2. To select channel 123 (3-digit channel), press 1, 2 then 3.

When viewing Teletext information:

Volume adjustment

• VOLUME +/– on the plasma display operates the same as

iiii + /iiii –.

Using

on the remote control unit

• Press eeee to mute the sound. eeee appears on the screen.

Muting

• Press eeee again or iiii + to restore the sound.

Watching TV

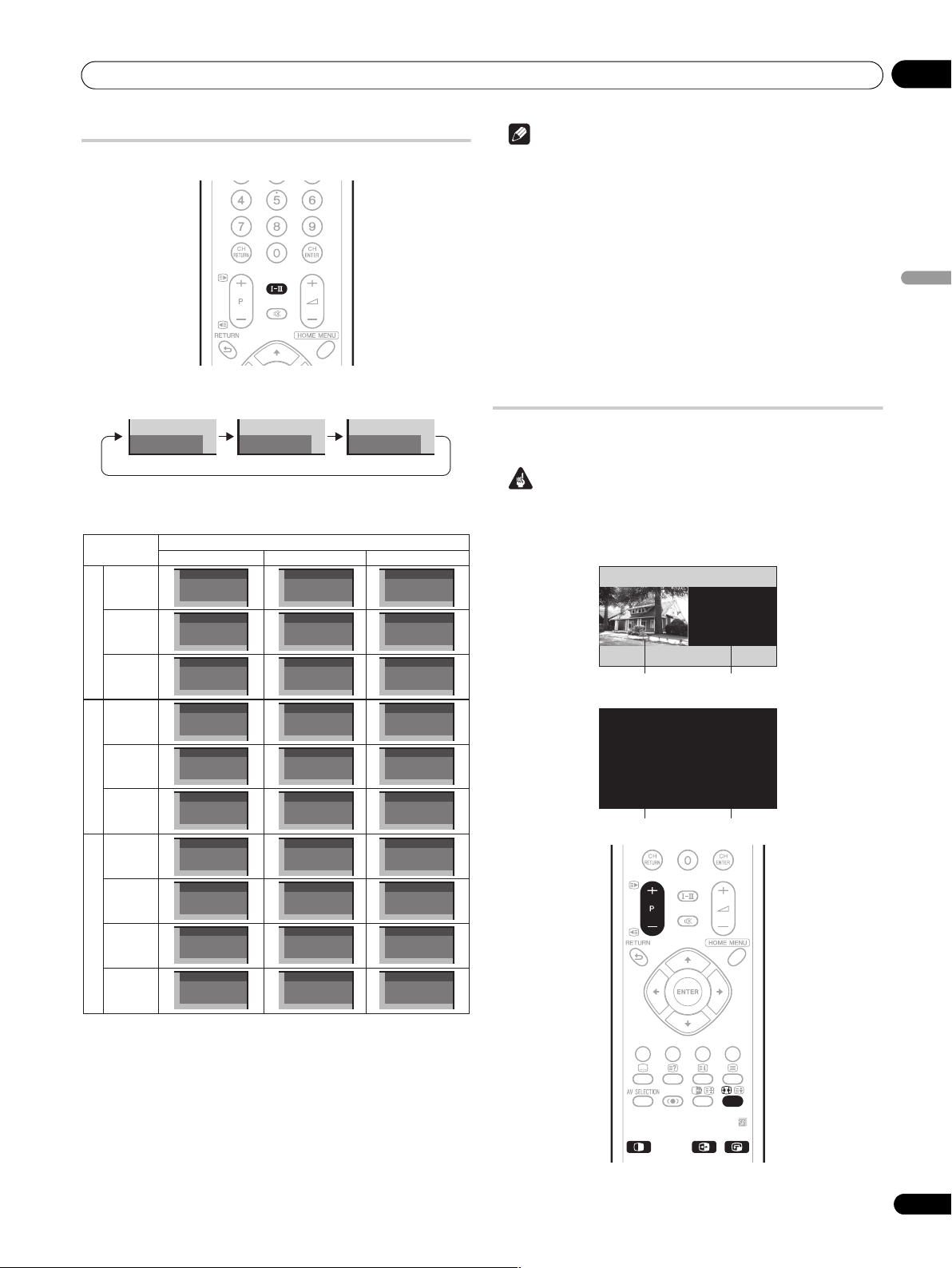

Switching the broadcast audio channel

Depending on the broadcast, you can switch the audio channel.

• Press - to change the audio channel.

 mode  mode MONO mode

IIIMONO

The table below shows the available audio channels by broadcast audio type.

Stereo

Bilingual

NICAM BroadcastsA2 BroadcastsBTSC Broadcasts

Monaural

Stereo

Bilingual

Monaural

Stereo

MAIN+SAP

Stereo+SAP

Monaural

AAA

NICAM STEREO

BBB

NICAM 

CCC

NICAM MONO

DDD

STEREO

EEE

DUAL 

FFF

MONO

GGG

STEREO

HHH

MONO(SAP)

JJJ

STEREO(SAP)

KKK

MONO

Setting

AAA

NICAM STEREO

BBB

NICAM 

CCC

NICAM MONO

DDD

STEREO

EEE

DUAL 

FFF

MONO

GGG

STEREO

HHH

SAP(MAIN)

JJJ

SAP(STEREO)

KKK

MAIN

MONO

AAA

MONO

BBB

MONO

CCC

MONO

DDD

MONO

EEE

MONO

FFF

MONO

GGG

MONO

HHH

MONO

JJJ

MONO

KKK

MONO

Note

• In each of the sound multiplex mode selected using the -

button, the display changes depending on broadcasting signals being received.

• Once the MONO mode is selected, the plasma display sound remains mono even if the system receives a stereo broadcast. You must switch the mode back to  or  mode if you want to hear stereo sound again.

• Selecting a sound multiplex mode while the input source is INPUT 1 to 5 or PC does not change the type of sound. In this case, sound is determined by the video source.

• While watching a TV channel with any High Deviation setting (page 26), you cannot change the sound multiplex mode.

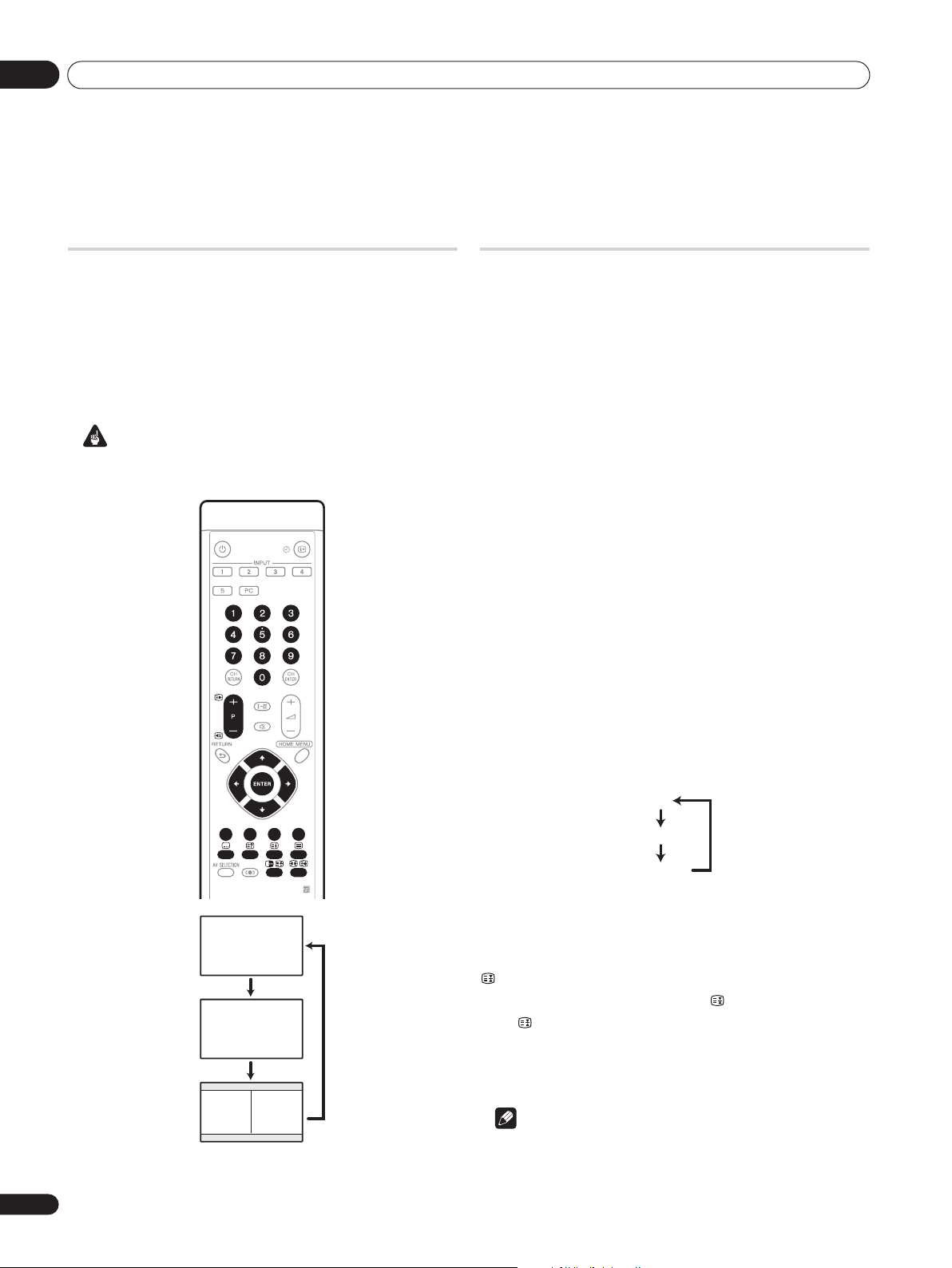

Using the multiscreen functions

Use the following procedure to select the 2-Screen or Picture in Picture mode.

Important

• Displaying a split screen for a long period of time, or for shorter periods of time everyday, may result in image retention.

2-Screen

Main screen Sub screen

Picture in Picture

Main screen Sub screen

English

Watching TV

1 Press cccc to select the display mode.

Each time you press cccc, the display mode is switched between 2-Screen, Picture in Picture, and Single-Screen modes.

• In 2-Screen or Picture in Picture mode, press to switch the position of the two screens shown.

• The left screen (in the 2-Screen mode) or the larger screen (in the Picture in Picture mode) is the active screen, indicated by a "zzzz" icon. You can use any of the normal functions to change the picture and sound.

• In 2-Screen mode, press ffff to change the size of the left screen.

• In Picture in Picture mode, press to move the position of the small screen anti-clockwise.

• If you select 1920 x 1080p@24 Hz for the main screen in the Picture in Picture or 2-Screen mode, video images may not be displayed properly because of the system's capability.

• With headphones connected, you can listen to audio coming from the sub screen when in the 2-Screen or Picture in Picture mode. For more information, see Listening to audio from the sub screen using headphones on page 33.

Freezing images

Use the following procedure to capture and freeze one frame from a moving image that you are watching.

Important

• Displaying a static image for a long period of time, or for shorter periods of time everyday, may result in image retention.

• Press dddd.

A still image appears on the right screen while a moving image is shown on the left screen.

2 To select the desired input source, press the appropriate input source button.

• If watching TV programs, press P+ / P– to change the channel.

Note

• The multiscreen function cannot display images from the same input source at the same time. If you make such an attempt, a warning message appears.

• The multiscreen function cannot display images from combinations of two external input sources (inputs 1 to 5, PC). It can display images from the following combinations of inputs sources: built-in TV tuner and one external source (inputs 1 to 5, PC).

• When you press HOME MENU, the single-screen mode is restored and the corresponding menu is displayed.

• When in the 2-Screen mode, images displayed on the right screen may look less fine, depending on images.

Normal image Still image

• Press dddd again to cancel the function.

Note

• You cannot freeze the picture when using the 2-Screen or Picture in Picture mode.

• When this function is not available, a warning message appears.

The Home Menu

Chapter 7

The Home Menu

AV mode menu overview PC mode menu overview

Home Menu Item Page

Picture AV Selection 28

Contrast 28

Brightness 28

Color 28

Tint 28

Sharpness 28

Pro Adjust 29

Reset 28

Sound Treble 32

Bass 32

Balance 32

Reset 32

FOCUS 33

Front Surround 33

Headphone Output 33

Sub Volume 33

Power Control Energy Save 34

No Signal Off 34

No Operation Off 34

Sleep Timer – 38

Option Position 35

Auto Size 37

4:3 Mode 37

Side Mask 37

HDMI Input 44

Drive Mode 35

Color System 36

Monitor Out 42

Setup Auto Installation 25

Analog TV Setup 25

Password 38

Language 28

Home Menu Item Page

Picture AV Selection 28

Contrast 28

Brightness 28

Red 28

Green 28

Blue 28

Reset 28

Sound Treble 32

Bass 32

Balance 32

Reset 32

FOCUS 33

Front Surround 33

Headphone Output 33

Sub Volume 33

Power Control Energy Save 34

Power Management 34

Sleep Timer – 38

Option Auto Setup 35

Manual Setup 35

English

The Home Menu

Using the Home Menu

The following describes the typical procedure for setting up the menus. For the actual procedures, see the appropriate pages that describe individual functions.

1 Press HOME MENU. 2 Press / to select a menu item, and then press ENTER. 3 Repeat step 2 until you access the desired submenu item.

The number of menu layers differs depending on the menu items.

4 Press / to select an option (or parameter), and then press ENTER.

For some menu items, press / instead of /.

5 Press HOME MENU to exit the menu.

Note

• You can return to the upper menu levels by pressing RETURN.

Setting up

Chapter 8

Setting up

Setting up TV channels automatically

This section describes how to automatically search for and set up TV channels.

Using Auto Installation

When the plasma display is switched on for the first time after purchase, the initial auto installation is initiated. You can set language, region and channels in successive operations.

1 Select “Language“ (/). 2 Select a language (/).

Auto Installation

Language

Region

Channel Allocation

Installation

You can select from among 5 languages; English, Spanish, Portuguese, traditional Chinese and simplified Chinese.

3 Select “Region“ (/). 4 Select your region (/).

Select the country or region in which you live. If it is not listed, select ‘Auto Detection’ for automatic setup.

5 Select “Channel Allocation“ (/). 6 Select “Normal”, “Air (US Type)“ or “Cable (US Type)” (/

).

The table on page 49 (Standard channel allocation selections for countries and regions) shows which option you should usually

select in your country or region.

Item Description

Normal Scans to locate your regional broadcasting

frequencies. The earlier the frequencies identified, the smaller the channel numbers used.

Air (US Type) Searches for the same broadcasting frequencies as for

receiving over air in the U.S. This selection is effective when the system is receiving over air.

Cable (US Type) Searches for the same broadcasting frequencies as for

watching cable TV in the U.S. This selection is effective when the system is receiving from a cable TV company.

English

Auto Detection

Normal

Start

Note

• You can start Auto Installation from the Home menu after

moving to another country, for example. Perform the following steps before starting Auto Installation: Press HOME MENU, select "Setup" (/ then ENTER), then "Auto Installation" (/  then ENTER). The password entry screen appears. Enter your 4-digit password using buttons 0 to 9.

• If no channels are found, check the antenna connections, and

then retry Auto Installation.

Setting up TV channels manually

Use the Manual Adjust function to set up TV channels manually. Steps 5 to 14 differ depending on your selection for Channel Allocation.

1 Press HOME MENU. 2 Select “Setup“ (/ then ENTER). 3 Select “Analog TV Setup“ (/ then ENTER).

The password entry screen appears. Enter your 4-digit password using buttons 0 to 9. For the password, see Using a password (AV mode only) on page 38.

4 Select “Manual Adjust“ (/ then ENTER). 5 Select “Program Entry“ (/). 6 Select a program number (/).

• With “Normal” selected, you can select 1 through 99.

• With “Air (US Type)” selected, you can select 2 through 69.

• With “Cable (US Type)” selected, you can select 1 through 125.

Manual Adjust

Program Entry

System

Color System

Store

Tun er NR

Child Lock

High Deviation

7 Select “Search“ (/). 8 Enter a frequency using buttons 0 to 9, then ENTER.

You can also press / to enter a frequency.

• With “Air (US Type)” or “Cable (US Type)” selected, you cannot

change the display frequency.

44.25MHz

B/G

Auto

Yes

View

Off

English

7 Select “Start“ (/ then ENTER).

Auto Installation automatically starts.

• To quit Auto Installation in progress, press RETURN.

8 After Auto Installation finishes, press HOME MENU to exit.

Manual Adjust

Program Entry

System

Color System

44.25MHz

B/G

Auto

Setting up

9 Select “System“ (/). 10 Select a sound system (/).

You can select from among “B/G”, “D/K”, “I” and “M/N”.

• With “Air (US Type)” or “Cable (US Type)” selected, you cannot change the factory default (“M/N”).

Program Entry

System

Color System

Store

44.25MHz

B/G

Auto

11 Select “Color System“ (/). 12 Select a color system (/).

You can select from “Auto”, “PAL”, “NTSC”, “SECAM”, “PAL-M”, “PAL-N”, and “4.43NTSC”.

• With “Air (US Type)” or “Cable (US Type)” selected, you cannot change the factory default (“Auto”).

System

Color System

Store

Tun er NR

44.25MHz

B/G

Auto

Yes

13 Select “Store“ (/). 14 Select “Yes“ (/).

• With “Air (US Type)” or “Cable (US Type)” selected, press / to select “ADD/DEL”, then press / to select “ADD”.

System

Color System

Store

Tun er NR

Child Lock

B/G

Auto

Yes

View

• With “Yes” selected, you can select the channel using P+ / P–. With “No” selected, you cannot select the channel using

P+ / P–.

15 Press HOME MENU to exit the menu.

• Alternatively, to set up for another channel, repeat steps 5 to

14.

Note

• Manual Adjust also allows you to make selections for "Tuner NR", "Child Lock", and "High Deviation". See Reducing video noise, Setting Child Lock, and Suppressing audio distortion respectively below.

• This plasma display is equipped with the auto frequency tuning function that automatically adjusts tuning frequencies according to received signals. For this reason, the Manual Adjust menu may show slightly different frequencies from your entry when you access the menu next time. You cannot deactivate the Auto Frequency Tuning function.

Reducing video noise

For the individual channels, you can specify whether the plasma display should reduce video noise depending on the levels of broadcasting signals.

1 Repeat steps 1 to 6 provided for “Setting up TV channels manually“.

After selecting a program number, perform the following steps:

2 Select “Tuner NR“ (/). 3 Select “On“ or “Off“ (/).

Color System

Store

Tun er NR

Child Lock

High Deviation

Auto

Yes

View

Off

4 Press HOME MENU to exit the menu.

Note

• This function may not achieve a satisfactory result, depending on the conditions of broadcasting signals.

Setting Child Lock

Child Lock inhibits selected TV channels from being tuned and watched.

1 Repeat steps 1 to 6 provided for “Setting up TV channels manually“.

After selecting a program number, perform the following steps:

2 Select “Child Lock“ (/). 3 Select “Block“ (/).

Tun er NR

Child Lock

High Deviation

Block

Off

• The selection is switched between "View" and "Block".

4 Press HOME MENU to exit the menu.

Suppressing audio distortion

You can suppress audio distortion that may be induced when too strong audio signals are received in the selected channel.

Note

• High Deviation is selectable only when you have selected "D/K" for "System" under Setting up TV channels manually on page 25.

1 Repeat steps 1 to 6 provided for “Setting up TV channels manually“.

After selecting a program number, perform the following steps:

Setting up

2 Select “High Deviation“ (/). 3 Select “Off“, “High”, “Mid” or “Low” (/).

Tun er NR

Child Lock

High Deviation

View

Off

Item Description

Off Deactivates the function.

High Suppresses audio distortion slightly; however, the

Mid Suppresses audio distortion moderately.

Low Suppresses audio distortion further; however, the

audio volume is slightly lowered than when Off is selected.

audio volume is further lowered.

4 Press HOME MENU to exit the menu.

Note

• While watching a TV channel with any High Deviation setting, you cannot change the sound multiplex mode.

8 Select the first character (///, then ENTER).

1234567890

BCDEFGH I J

KLMNOPQRST

UVWXYZ, . : ;

&' ( )+- * /_

Delete

Space

• The cursor moves to the second character.

9 Repeat step 8 to enter up to five characters.

• To correct entered characters, select [] or [] on the

screen, and then press ENTER. The cursor moves to the preceding or subsequent character.

• To delete the current character, select [Delete] on the screen, and then press ENTER.

• To put a space for the current character, select [Space] on the screen, and then press ENTER.

10 To complete the name entry, press / or / to select [OK] on the screen, and then press ENTER.

11 Press HOME MENU to exit the menu.

English

Labeling TV channels

You can name TV channels that you have set up, using up to five characters. This may help you easily identify the channels during selections.

1 Press HOME MENU. 2 Select “Setup“ (/ then ENTER). 3 Select “Analog TV Setup“ (/ then ENTER).

Enter your 4-digit password using buttons 0 to 9 when prompted. 4 Select “Label“ (/ then ENTER). 5 Select “Program Entry“ (/). 6 Select a program number (/).

• With “Normal” selected, you can select 1 through 99.

• With “Air (US Type)” selected, you can select 2 through 69.

• With “Cable (US Type)” selected, you can select 1 through 125.

Label

Program Entry

Label

7 Select “Label“ (/ then ENTER).

The name entry screen appears.

Sorting preset TV channels

After performing a “Normal” channel search, you can use the following procedure to change the sequence of the preset TV programs. (Sorting preset TV channels is not possible if you used “Air (US Type)” or “Cable (US Type)“ for your channel search.)

1 Press HOME MENU. 2 Select “Setup“ (/ then ENTER). 3 Select “Analog TV Setup“ (/ then ENTER).

Enter your 4-digit password using buttons 0 to 9 when prompted. 4 Select “Sort“ (/ then ENTER).

The sort screen appears.

Sort 1/4

RRRRR18

SSSSS

TTTTT

UUUUU

VVVVV

WWWWW

XXXXX

YYYYY

IIIII09

JJJJJ

AAAAA01

BBBBB02

CCCCC03

DDDDD04

EEEEE05

FFFFF06

GGGGG07

HHHHH08

KKKKK

LLLLL

MMMMM

NNNNN

OOOOO

PPPPP

QQQQQ

5 Select a channel to be shifted (/// then ENTER). 6 Select a new location (/// then ENTER).

Sorting is executed.

7 Press HOME MENU to exit the menu.

Note

• To change a page on the Sort screen in step 6, select / on the screen with / to select a page, and then press ENTER.

Setting up

Language setting

You can select the language to be used for on-screen display such as menus and instructions, from among 5 languages; English, Spanish, Portuguese, traditional Chinese and simplified Chinese.

For the language to be used in the TELETEXT mode, you can select from among West Europe, East Europe, Greece/Turkey, Russia, and Arabia.

1 Press HOME MENU. 2 Select “Setup“ (/ then ENTER). 3 Select “Language“ (/ then ENTER). 4 Select “Menu“ (/). 5 Select a language (/).

Language

Tel etext

English

West Europe

6 Select “Teletext“ (/). 7 Select a language (/). 8 Press HOME MENU to exit the menu.

AV Selection

For AV source

Item Description

STANDARD Well-defined image in a normally lit room.

This setting is shared by both the external and TV input sources.

DYNAMIC Sharp imaging with the maximum contrast.

Note that this mode does not allow manual image quality adjustment. This setting is shared by both the external and TV input sources.

MOVIE Optimized for movies.

This setting is shared by both the external and TV input sources.

GAME Lowers image brightness for easier viewing.

This setting is shared by both the external and TV input sources.

SPORT Optimized for sports programs.

This setting is shared by both the external and TV input sources.

USER Allows the user to customize settings as desired. You

can set the mode for each input source.

For PC source

Item Description

STANDARD Well defined image in a normally lit room.

USER Allows the user to customize settings as desired.

Select from the six viewing options, depending on the current environment (e.g., room brightness), the type of the current TV program, or the type of images input from external equipment.

1 Press HOME MENU. 2 Select “Picture“ (/ then ENTER). 3 Select “AV Selection“ (/ then ENTER). 4 Select the desired option (/ then ENTER).

AV Selection

STANDARD

DYNAMIC

MOVIE

GAME

SPORT

USER

5 Press HOME MENU to exit the menu.

Note

• You can also press AV SELECTION on the remote control to change the viewing option.

• If you have selected "DYNAMIC", you cannot select "Contrast", "Brightness", "Color", "Tint", "Sharpness", "Pro Adjust", and "Reset"; these menu items are dimmed.

Basic picture adjustments

Adjust the picture to your preference for the chosen AV Selection option (except DYNAMIC).

1 Press HOME MENU. 2 Select “Picture“ (/ then ENTER). 3 Select an item to be adjusted (/ then ENTER).


AV Selection

Contrast

Brightness

Color

Tint

Sharpness

Pro Adjust

Reset

STANDARD

Setting up

For a PC source, the following screen appears:


AV Selection

Contrast

Brightness

Red

Green

Blue

Reset

STANDARD

4 Select the desired level (/).

Contrast

When an adjustment screen is in display, you can also change the item to be adjusted, by pressing /.

5 Press HOME MENU to exit the menu.

For AV source

Item  button  button

Contrast For less contrast For more contrast

Brightness For less brightness For more brightness

Color For less color intensity For more color intensity

Tint Skin tones become purplish Skin tones become

Sharpness For less sharpness For more sharpness

greenish

For PC source

Item  button  button

Contrast For less contrast For more contrast

Brightness For less brightness For more brightness

Red For weaker red For stronger red

Green For weaker green For stronger green

Blue For weaker blue For stronger blue

Note

• To perform advanced picture adjustments, select "Pro Adjust" in step 3 and then press ENTER. For the subsequent procedures see Advanced picture adjustments below.

• To restore the factory defaults for all items, press / to select "Reset" in step 3, and then press ENTER. A confirmation screen appears. Press / to select "Yes", and then press ENTER.

Advanced picture adjustments

The plasma display provides various advanced functions for optimizing the picture quality. For details on these functions, see the tables.

Using PureCinema

1 Press HOME MENU. 2 Select “Picture“ (/ then ENTER). 3 Select “Pro Adjust“ (/ then ENTER). 4 Select “PureCinema“ (/ then ENTER). 5 Select the desired parameter (/ then ENTER).

For the selectable parameters, see the table.

PureCinema

Automatically detects a film-based source (originally encoded at 24 frames/ second), analyses it, then recreates each still film frame for high-definition picture quality.

Selections Off Deactivates the PureCinema.

Standard Produces smooth and vivid moving images

(film specific) by automatically detecting recorded image information when displaying DVD or high-definition images (e.g., movies) having 24 frames per second.

ADV Produces smooth and quality moving

images (as shown on theatre screens) by converting to 72 Hz when displaying DVD images (e.g., movies) having 24 frames per second.

Note

• "Standard" is not selectable when 480p or 720p@60 Hz signals are input.

• "ADV" is not selectable when PAL, SECAM, 576i, or 1080i@50 Hz signals are input.

• Neither "Standard" nor "ADV" is selectable when 576p, 720p@50 Hz, or 1080p@24 Hz signals are input.

Using Color Temp

1 Press HOME MENU. 2 Select “Picture“ (/ then ENTER). 3 Select “Pro Adjust“ (/ then ENTER). 4 Select “Color Detail“ (/ then ENTER). 5 Select “Color Temp“ (/ then ENTER). 6 Select the desired parameter (/ then ENTER).

• If you have selected a desired parameter in this step, skip steps 7 and 8.

• You may rather want to perform fine adjustment. To do this, select "Manual" first and then press and hold ENTER for more than three seconds. The manual adjustment screen appears. Then go to step 7.

English

Setting up

Color Temp

Adjusts the color temperature, resulting in a better white balance.

Selections High White with bluish tone

Mid-High Intermediate tone between High and Mid

Mid Natural tone

Mid-Low Intermediate tone between Mid and Low

Low White with reddish tone

Manual Color temperature adjusted to your

preference

7 Select an item to be adjusted (/ then ENTER). 8 Select the desired level (/).

Item  button  button

R High Fine adjustment for

G High For weaker green For stronger green

B High For weaker blue For stronger blue

R Low Fine adjustment for

G Low For weaker green For stronger green

B Low For weaker blue For stronger blue

bright portions

dark portions

For weaker red For stronger red

• To perform adjustment for another item, press RETURN, and then repeat steps 7 and 8.

• You may press / to immediately change an item to be adjusted.

9 Press HOME MENU to exit the menu.

Using CTI

1 Press HOME MENU. 2 Select “Picture“ (/ then ENTER). 3 Select “Pro Adjust“ (/ then ENTER). 4 Select “Color Detail“ (/ then ENTER). 5 Select “CTI“ (/ then ENTER). 6 Select the desired parameter (/ then ENTER).

CTI

Provides images with clearer color contours. CTI stands for Color Transient Improvement.

Selections Off

7 Press HOME MENU to exit the menu.

Deactivates CTI.

Activates CTI.

Using Color Management

1 Press HOME MENU. 2 Select “Picture“ (/ then ENTER). 3 Select “Pro Adjust“ (/ then ENTER). 4 Select “Color Detail“ (/ then ENTER). 5 Select “Color Management“ (/ then ENTER). 6 Select an item to be adjusted (/ then ENTER).

Color Management

7 Select the desired level (/).

Item  button  button

R Closer to magenta Closer to yellow

Y Closer to red Closer to green

G Closer to yellow Closer to cyan

C Closer to green Closer to blue

B Closer to cyan Closer to magenta

M Closer to blue Closer to red

• To perform adjustment for another item, press RETURN, and then repeat steps 6 and 7.

• You may press / to immediately change an item to be adjusted.

8 Press HOME MENU to exit the menu.

Using Color Space

1 Press HOME MENU. 2 Select “Picture“ (/ then ENTER). 3 Select “Pro Adjust“ (/ then ENTER). 4 Select “Color Detail“ (/ then ENTER). 5 Select “Color Space“ (/ then ENTER). 6 Select the desired parameter (/ then ENTER).

Color Space

Changes the color reproduction space.

Selections 1 Optimized for vivid, vibrant color

2 Standard color reproduction.

reproduction.

7 Press HOME MENU to exit the menu.

+ 165 hidden pages
