Pioneer PDP-4216HD, PDP-5016HD Operating Instruction

PLASMA DISPLAY SYSTEM

www.pioneerelectronics.com (US) www.pioneerelectronics.ca (Canada)

Enregistrez votre appareil sur:

www.pioneerelectronics.com (États-Unis) www.pioneerelectronics.ca (Canada)

SYSTEME D’ÉCRAN PLASMA SISTEMA DE PANTALLA DE PLASMA

PDP-5016HD PDP-4216HD

Operating Instructions Mode d’emploi Manual de instrucciones

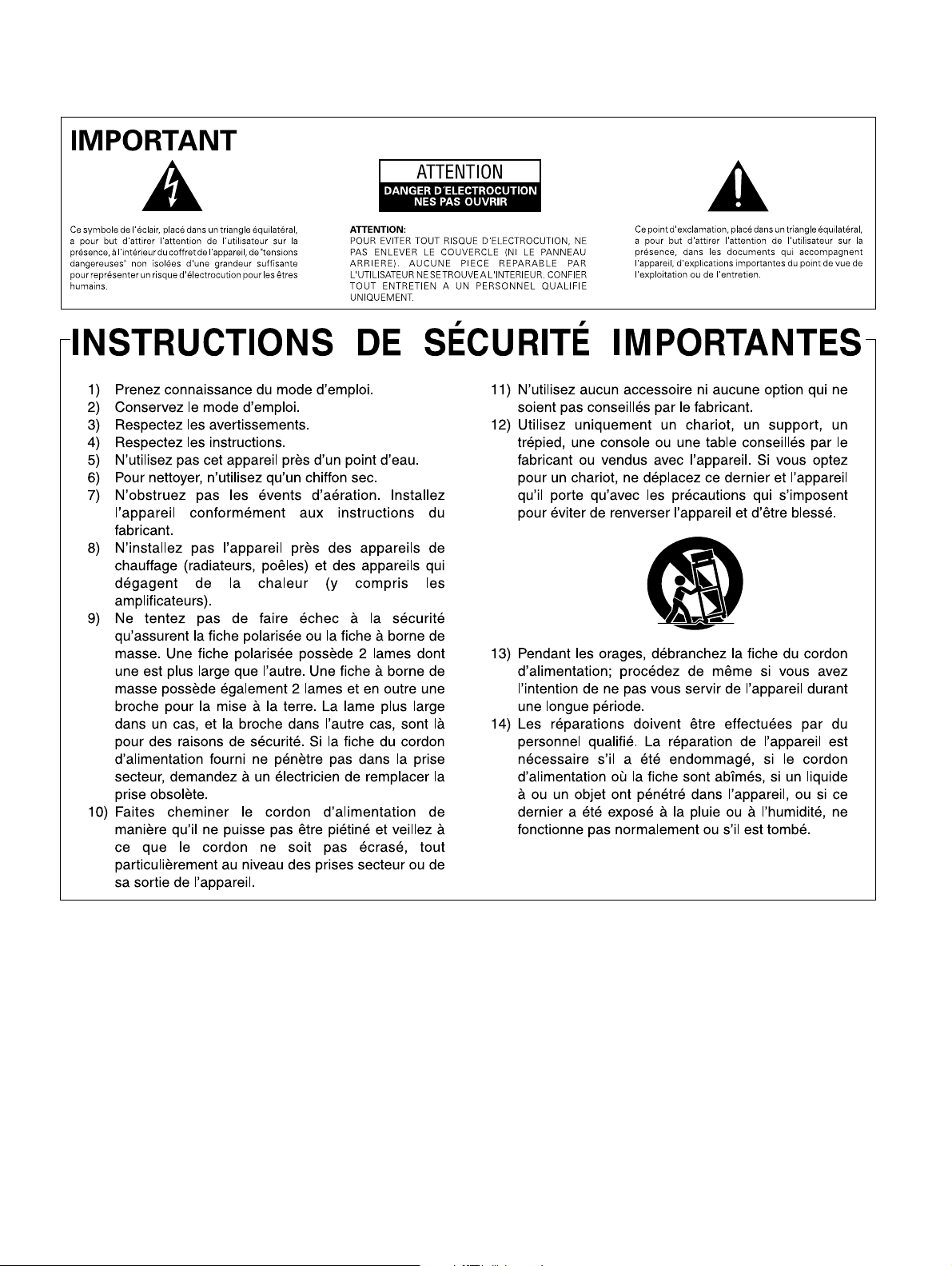

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

10)

Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

11)

12)

13)

14)

Note to CATV system installer.

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground–shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

WARNING: This equipment is not waterproof. To pre-

67-7-3_E

vent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

WARNING: Handling the cord on this product or

cords associated with accessories sold with the product will expose you to lead, a chemical known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment.

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

IMPORTANT NOTICE: The serial number for this equipment is located on the rear panel. Please write this serial number on your enclosed warranty card and keep it in a secure area. This is for your security.

WARNING: This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.

WARNING: To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

English

VENTILATION CAUTION:

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation. For the minimum space required, see page 14.

WARNING: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

STANDBY/ON Button STANDBY: When placed into the standby mode, the

main power flow is cut and the unit is no longer fully operational.

POWER Indicator: The indicator is lit red when the unit is in the standby mode and lit blue when it is in the poweron mode. No operation can be performed when the indicator is off. However, the Plasma Display system will still consume some power as long as the power cord is inserted into the power outlet.

CAUTION:

The POWER switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

This digital television is capable of receiving analog basic, digital basic cable television programming by direct connection to a cable system providing such programming. Digital premium cable television programming and certain advanced and interactive digital cable service such as video-on-demand, a cable operator’s enhanced program guide and data-enhanced television services may require the use of a set-top box. For more information call your local cable operator.

Contents

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However the method of connecting and operating the unit is the same.

01 Important User Guidance Information

02 Safety Precautions

03 Supplied Accessories

04 Part Names

Plasma Display ................................................................... 10

Remote control unit ............................................................ 12

05 Preparation

Installing the Plasma Display ............................................ 14

Preventing the Plasma Display from Falling Over ........... 14

Cable connections for watching digital and/or

conventional TV channels................................................ 15

Preparing the remote control unit..................................... 15

Inserting batteries......................................................... 15

Cautions regarding batteries .......................................16

Allowed operation range of the remote control unit . 16

Cautions regarding the remote control unit .............. 16

Connecting the power cord ............................................... 17

06 Basic Operations

Turning the power on and off (Standby) ........................... 18

Watching TV channels........................................................ 19

Selecting the analog and digital channels ................. 19

Changing channels ...................................................... 19

Changing the volume and sound ................................20

Setting MTS/SAP mode...................................................... 20

Changing the language................................................ 20

Displaying Information .......................................................21

Using the multiscreen functions ....................................... 21

07 Menu Setup

Menu configuration ............................................................ 23

Menu operations ................................................................. 23

08 Tuner Setup

Setting up TV channels ...................................................... 24

Scanning Channels Automatically ............................. 24

Setting up Analog Channels Manually ....................... 24

Setting up Digital Channels Manually ........................ 25

Editing Channel List ..................................................... 25

Displaying the Channel List .........................................26

Setting up the Parental Control ......................................... 26

Changing the Password .....................................................27

Activating the Parental Control ......................................... 27

Setting the voluntary movie rating

system (MPAA) .................................................................28

Setting the TV Ratings .................................................. 28

Setting up the Canadian rating systems .................... 29

Setting new ratings ...................................................... 30

Temporarily deactivating the Parental Control........... 30

Blocking No rating programs ...................................... 30

Viewing Closed Caption Information .......................... 30

Setting the Current Time ....................................................31

09 Adjustments and Settings

Sleep Timer.......................................................................... 32

Picture adjustments ........................................................... 32

Selecting the Picture Mode ......................................... 32

Customizing the Picture Settings ............................... 33

Using the Noise Reduction Feature ............................ 33

Setting the Color Temperature .................................... 33

Selecting the Sound Effect ................................................ 34

Customizing the Sound Settings ....................................... 34

Adjusting the Volume Automatically................................. 34

Setting the Surround Sound .............................................. 35

Setting up External Digital Sound ..................................... 35

Changing the Screen Size.................................................. 35

Setting for the language of on-screen display ................. 36

Screen Saver ....................................................................... 36

Setting Orbiter .............................................................. 36

Displaying the Full White screen................................. 36

Power Control...................................................................... 37

Switching the Plasma Display Off Automatically ...... 37

Setting the Plasma Display On Time .......................... 37

Setting the Plasma Display Off Time .......................... 37

10 Enjoying through External Equipment

About External Equipment .................................................38

Connecting HDMI equipment ........................................... 38

Displaying an image of HDMI ..................................... 38

Connecting Component Video equipment ....................... 39

Displaying an image of Component Video ................. 39

Connecting other video equipment ................................... 40

Displaying an image of video equipment ................... 40

Connecting a recorder ....................................................... 41

Connecting an AV receiver................................................. 41

Switching the optical audio signal type...................... 41

11 Appendix

Troubleshooting .................................................................. 42

Specifications ...................................................................... 44
