Pioneer DVR-505 Service manual
DVD / AV RECEIVER
DIGITAL
(OPTICAL)
S VIDEO
70%
DVR-505/7000
SERVICE MANUAL
(DVT-505/7000)**
Front panel *
(A60-)
Button(POWER)
(K29-8165-08)
Crystal window
(B10-3850-08)
Indicator select
(B19-1643-08)
© 2001-12 PRINTED IN KOREA
B51-5779-00 (K/K) 3482
Knob(VOLUME)
(K29-8164-08)
S-video jack
(E56-0045-08)
Button
(K29-8163-08)
Optical input jack
(W02-2934-08)
Phone jack
(E11-0957-08)
RCA jack
(E63-1272-08)
Oscillating module
Top cover
(A01-3863-08)
RCA jack
(E70-0165-08)
(W02-2911-08)
Tuner ass'y *
(W02-)
Phono jack
(E63-1270-08)
Oscillating module
(W02-2934-08)
** Refer to page2 if you want to know system
configuration.
In compliance with Federal Regulations, following are reproduction of labels on, or inside the product relating to laser
product safety.
Caution : No connection of ground line if disassemble
the unit. Please connect the ground line on
rear panel, PCBs, Chassis and some others.
Phono jack
(E63-1244-08)
DIN socket
(E63-1243-08)
Slide switch(SW1)
(S62-0113-08)
AC power cord *
(E30-)
Clamp cord
(J42-0350-08)
* Refer to parts list on page 24 .
KENWOOD-Corp. certifies this equipment conforms to DHHS
Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J.
DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM.
AC Plug Adaptor (1)
(E03-0115-05)
Use to adapt the plug on the
power cord to the shape of the
wall outlet.
(Accessory only for regions where
use is necessary.)
FM indoor antenna (1)
Loop antenna (1)
Remote control unit (1)
Batteries (LR03/AAA) (2)
V ideo cord (1)
SCAR T
plug
(1) (for U.K. only)
Speaker cords
(6)
(T90-0882-08)
(A70-1580-08): KPXY
(A70-1580-08): MM2M3
(A70-1581-08): TE
(E30-7265-08): Red
(E30-7266-08): Blue
(E30-7267-08): Brown
(E30-7268-08): Blue
(E30-7269-08): Gray
(E30-7270-08): Orange
(T90-0896-08)
(E69-0012-05)
(E30-1427-05)
DVR-505/7000
The marking this product has been classified as Class
1. It means that there is no danger of hazardous radiation outside the product.
Location: Back panel
CLASS 1
LASER PRODUCT
The marking of products using lasers
(Except for some areas)
Operation to reset
The microcomputer may fall into malfunction (impossibility to
operate, erroneous display, etc.) when the power cord is unplugged while power is ON or due to an external factor. In this
case, execute the following procedure to reset the microcomputer and return it to normal condition.
÷ Please note that resetting the microcomputer clears the
contents stored in and returns and to condition when it left
the factory.
Set the POWER switch to ON (set to Standby
mode). Then press the ¢ key, 4 key and STOP
key in this order.
CONTENTS / ACCESSORIES / CAUTIONS
Contents
CONTENTS / ACCESSORIES / CAUTIONS............. 2
BLOCK DIAGRAM ......................................................3
CIRCUIT DESCRIPTION ............................................4
WIRING DIAGRAM .....................................................9
PC BOARD .............................................................. 10
Accessories
SCHEMATIC DIAGRAM .......................................... 16

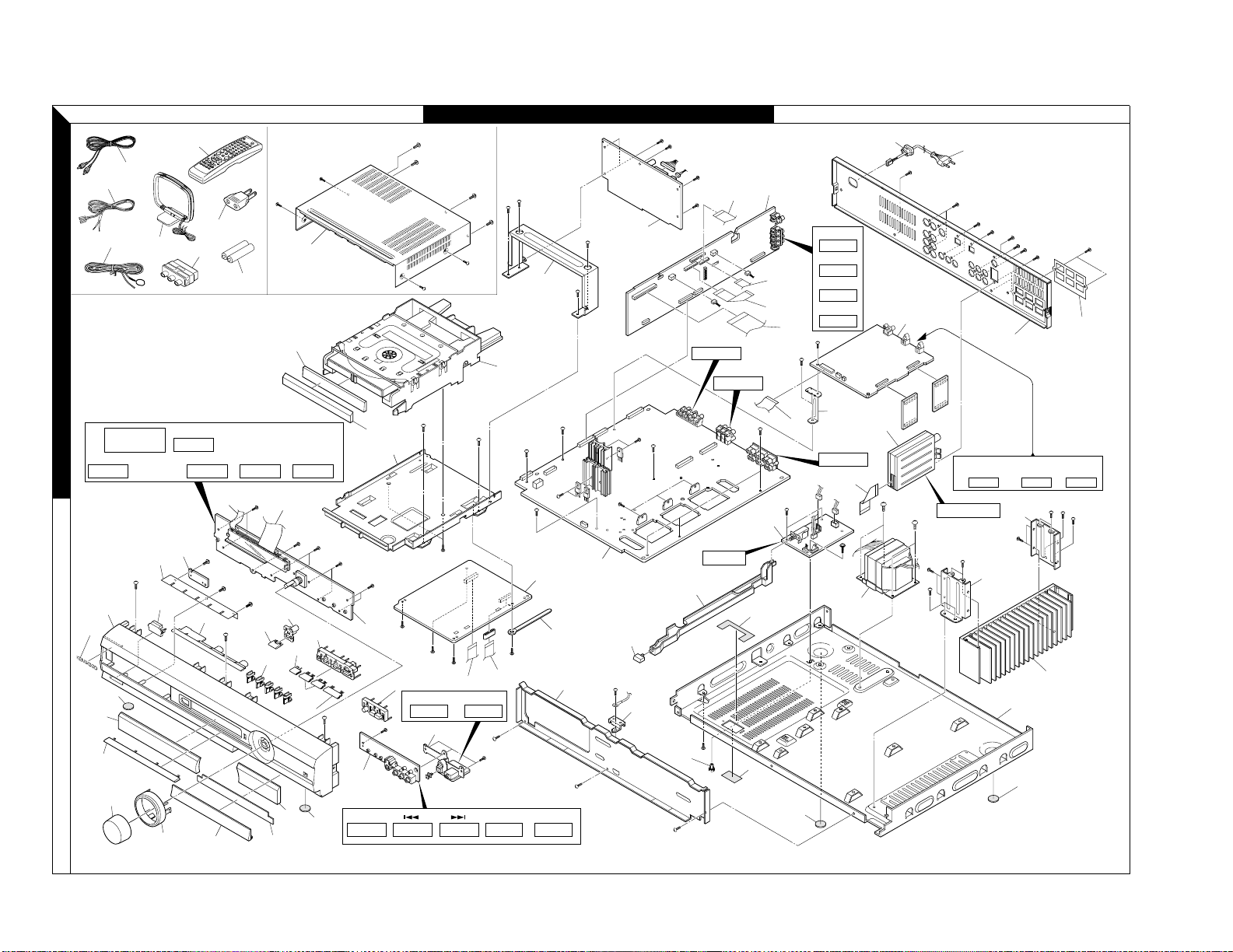

EXPLODED VIEW ....................................................28
PARTS LIST..............................................................29
SPECIFICATIONS ......................................Back cover
Cautions
2
System configuration
SYSTEM MAIN UNIT DESTINATION SPEAKER
DVT-505 DVR-505 KP
DVT-7000 DVR-7000 ETMXY KSW-7000
DVT-7000(M2) DVR-7000(M2) M2 KSW-7000
DVT-7000(M3) DVR-7000(M3) M3 KSW-7000
KS-305DV
SW-15DV
D GND
6dB
6dB
C-VIDEO
DVD
S-VIDEO
6dB
6dB
DVD
AGND
-5.6V
+5.6V
COMPOSITE
R(CR)
B(CB)
G(Y)
C
Y
+5.6V
-5.6V
AGND
R(CR)
B(CB)
G(Y)
C
Y
CVBS
FROM SYSTEM u-COM
27MHz
DAC MCLK
AGND
MGND
DGND
+5.6V
SPDIF
DGND
MGND
+5VA
AGND
+12VA
-5VA
+3.5V
+2.5V
+5V
+5.5VS
+12VM
+12VM
to
DVD & VIDEO
GND
P/C
5.5VS
P/D
to FRONT
LPF
LPF
LPF
LPF
LPF
LPF
INPUT
12.28MHz
SDATAN1
SW
CT
RS
LS
FR
FL
DVD
FROM SYSTEM u-COM
SW
CT
RS
FR
LS
FL
SW
CT
RS
LS
FR
FL
FL
GND
FR
RS
GND
LS
CENTER
GND
SW
DC PRTECTION
CHGND
AM OSCFM OSC
22 4
DGND
AGND
TUNER-L
TUNER-R
to u-COM
AGND
BUFFER
RDS DATA/CLK
GND
GND
7
4
5
6
1
2
3
1
2
3
1
2
F202
F201
RY201
ST-BY +5V
AC INPUT FOR SMPS
AC2AC1
+
VEE/S1
VDD/S1
+
-15V
+
+15V
AC1
+
AC2
OUT
GND
IN
FL AC
FL AC
+3.3V
+5V
+
FUNCTION SECTION CONTROLSECTION
VOLUME/TONETUNER DVD
CONTROL
LED
CE,CLK,DATA
4094
+5V
A/D INPUT
P/C
RDS DATA/CLK
POWER DOWN
TO SMPS
DETECT
DC
PROTECT
DGND
HEADPHONE
DETECT
H MUTE
17dB
FRONT
MUTE
SUR
MUTE
MUTE
CEN SUB/W
MUTE
SUB WOOFER
AUX(F)
VIDEO2
R/O
P/B
MONITOR
VIDEO1
MONITOR
R/O
VIDEO2
P/B
AUX(F)
VIDEO1
VIDEO
SWITCHING
AUDIO
OUTPUT
IC201
MPEG
PROCESSOR
SDRAM
FLASH
EEPROM
ADC
MECHANISM
CONTROL
LOAD
PLL IC
DAC
AUDIO-
IC1
SECTION
DVD
SMPS FOR
DVD & VIDEO
FOR DVD
AC INPUT
AUX(F)
COAXIAL
OPTICAL
COAXIAL
OPTICAL
OPTICAL
OUTPUT
DIGITAL
INPUT
DIR
PROCESSOR
SURROUND
ADC &
DAC
IC5 IC1IC14
IC11,12
IC84
VOLUME &
MASTER
TONE
CIRCUIT
IC88(2/2)
IC88(1/2)
IC87(2/2)
IC87(1/2)
IC86(2/2)
IC86(1/2)
IC89
SPKR
RLY101
IC90
RLY102
SPKR
IC91
RLY103
SPKR
JACK101-C
JACK101-A
JACK101-B
GND
AM LOOP
FM75
ANTENNA
AM RF
FRONT-END
FM
IF AMP
FM/AM
DECODER
RDS
IF+MPX
PLL
TUNER MODULE
VIDEO1
VIDEO1 REC
AUX/FRONT
SAT/VID2
IC75
IC10
AUDIO
SWITCH
CN113
CN121 CN206
AC INPUT
AC INPUT
SEL
STAND -BY
CONTROL
Q201
D70
IC501
SYSTEM u-COM
FL431
FL DISPLY
IC431
REGISTER
SHIFT
FRONT KEY
FUNCTION
HP401
PROTECTION
Q76,Q77
HEADPHONE
IC85
HEADPHONE
AMP
VIDEO INPUT
Q84,85
REC OUT
REC OUT
DIGITAL
IN
DATA D ATA
DIGITAL
DATA
SURROUND
DSP B'D
IC70
IC71
IC73
IC72
DVR-505/7000
3
BLOCK DIAGRAM
DVR-505/7000
DVR-505/7000
CIRCUIT DESCRIPTION
1. Port Description of System Microcomputer : CXP828XX(IC501)
Port No. Port Name I/O Description
1 GRID2 O FIP GRID
2 GRID1 O FIP GRID
3 NC - CONNECTED TO VDD
4 POWER DOWN I POWER DOWN CHECK
5 RDS CLK I RDS CLOCK
6 DVD RX I DVD UART INTERFACE (RX)
7 RDS OPTION - NC (CONNECTED TO GND)
8 RMC I REMOTE CONTROLLER SIGNAL
9 RDS DATA I RDS DATA
10 SM7346 CLK O VOLUME IC (IC84) CLOCK
11 SM7346 DATA O VOLUME IC (IC84) DATA
12 ENCODER UP I ENCODER (1) SIGNAL
13 ENCODER DW I ENCODER (2) SIGNAL
14 DVD TX O DVD UART INTERFACE (TX)
15 DVD RST O DVD RESET
16 DSP A. BOOST O DSP AUTO BOOT
17 H/P CHK I HEADPHONE CHECK
18 CS8415A-CE O DIR IC (IC14) CHIP ENABLE
19 EMPHASIS O CS4228 DAC IC EMPHASIS ON/OFF
20 TUNED I TUNED SIGNAL
21 DSP INTREQ O DSP INT REQUEST
22 4094CE O IC431 CHIP ENABLE
23 CS49326 CE O CS49326 DSP IC (IC5) CHIP ENABLE
24 CS4228 CE O CS4228 DAC IC (IC1) CHIP ENABLE
25 DSP CLK O CS49326 DSP IC (IC5) CLOCK
26 CS49326 DATA IN I CS49326 DSP IC (IC5) DATA
27 DSP DA OUT O CS49326 DSP IC (IC5) DATA
28 VREF I A/D REFERENCE (5V)
29 PROTECT I AMP PROTECTION IN
30 KEY IN I A/D KEY
31 EEPROM DATA I/O EEPROM (IC502) DATA
32 EEPROM CLK O EEPROM (IC502) CLOCK
33 8415 DA IN I CS8415 DIR IC (IC14) DATA
34 DVD OPTION I MODEL DISCRIMINATION
35 PLL DATA IN I PLL DATA
36 STEP OPTION I TUNER STEP OPTION
37 VSS I AVSS (ANALOG GND)
38 RST I RESET(LOW ACTIVE)
39 EXTAL I X-TAL IN(10MHz)
40 XTAL O X-TAL OUT(10MHz)
41 GND - VSS (DIGITAL GND)
42 NC O UNUSED
43 GND - GND
44 VDD I VDD (DIGITAL VDD)
45 VFDP I VFDP (FIP PULL DOWN POWER -30V)
46 STANDBY O STANDBY (POWER RELAY ON/OFF)
47 SPK RELAY O SPEAKER RELAY ON/OFF
48 SUB ON/OFF O SUB WOOFER GAIN CONTROL
49 CS8415 RST O CS8415 (IC14) RESET
50 PLL CE O PLL CHIP ENABLE
51 PLL CLK O PLL CLOCK
52 PLL D OUT O PLL DATA
53 A CLK O COMMON CLOCK(LC7821,BU4094)
54 A DATA O COMMON DATA(LC7821,BU4094)
55~59 VIDEO (SW1~SW5) O VIDEO SW (1~5)
4
DVR-505/7000
CIRCUIT DESCRIPTION
Port No. Port Name I/O Description
60 4228 RST O CS4228 (IC1) RESET
61 LC7821 CE O LC7821(TUNER PACK) CHIP ENABLE
62 SM7346 CE O SM7346 (IC84) CHIP ENABLE
63 T MUTE O TUNER MUTE
64 S MUTE O REAR SIGNAL MUTE
65 C MUTE O CENTER SIGNAL MUTE
66 F MUTE O FRONT SIGNAL MUTE
67 W MUTE O SUB WOOFER SIGNAL MUTE
68 CS49326 RST O CS49326 DSP IC (IC5) RESET
69~71 DSP (A15~A17) O DSP ROM ADDRESS (SEL 1~3)
72~88 SEG (1~17) O FIP SEGMENT
89 VDD - VDD (DIGITAL VDD)
90,91 SEG18,19 O FIP SEGMENT
92-100 GRID (11~3) O FIP GRID
2. Port list sorted by function for MPEG Processor IC(Main IC201)
Port No. Port Name I/O
Audio DAC
51 DAC SCLK O Over sampling clock EXT AUD CLOCK
52 DAC PCMOUT0 O PCM out 0 EXD AUD DATA
53 DAC PCMOUT1 - PCM out 1 (unused) EXT AUD REQ
54 DAC PCMOUT2 - PCM out 2 (unused)
55 DAC PCMCLK I/O PCM clock
56 DAC LRCLK O Left/Right clock EXT AUD WCLK
57 SPDIF OUT O SPDIF out
48 VDD PCM - VDD(+3V3)
49 VSS PCM - GND
Clock & Reset
124 RESET I Chip reset
122 VDD PLL - VDD PLL
123 VSS PLL - GND
120 PIX CLK I 27MHz main clock
PIOs and communication
186 PIO0(0) T STROBE I/O PIO0(0) UART0 data
187 PIO0(1) MOD SW I/O PIO0(1) ATAPI RD
188~191 PIO0(2)~PIO0(5) O Unused
PIO0(6) SLIDER SENSOR
192 OPEN/CLOSE I/O PIO0(6)
(DRAWER POSITION)
193
194 PIO1(0) SDA I/O PIO1(0)
195 PIO1(1) SCL I/O PIO1(1) SSC0 clock
196
197 PIO1(3) TXD(JIG) I/O PIO1(3) UART2 TXD
200 PIO1(4) RXD(JIG) I/O PIO1(4) UART2 RXD
201 PIO1(5) FRONT TXDI I/O PIO1(5) PARA SYNC UART1 RXD
202 TRIGGER IN I/O Trigger in for DCU
203 TRIGGER OUT I/O Trigger out for DCU
204 PIO2(0) H/P IND - Unused
205 PIO2(1) FRONT RXD I/O PIO2(1) PARA SYNC
206 PIO2(2) - Unused
207 PIO2(3) - Unused
208 PIO2(4) AUDIO MUTE I/O Audio mute
PIO0(7) SLIDER IN
(DRAWER CCW/CTRL)
PIO1(2) SLIDER OUT
(DRAWER CW CTRL)
I/O PIO0(7)
I/O PIO1(2) PARA DVALID
Main Alternate function
Function Input Output
SSC0 data
(MTSR out/MRST in)
5
DVR-505/7000
CIRCUIT DESCRIPTION
Port No. Port Name I/O
1 PIO2(5) RGB SEL(BLANK) I/O RGB sel.(blank) Unused
2 PIO2(6) VIDEO MUTE I/O Video mute
3 PIO2(7) 16: 9 INDICATOR I/O 16 : 9 indicator(Unused)
6 PIO3(0) SCART H(TV/AUX) I/O PIO3(0) Unused PARA DATA(0)
7 PIO3(1) I/O PIO3(1) Unused PARA DATA(1)
8 PIO3(2) I/O Unused PARA DATA(2)
9 PIO3(3) I/O Unused
10 PIO3(4) IR REMOCON I/O Unused
11 PIO3(5) I/O Unused
12 PIO3(6) I/O Unused
13 PIO3(7) DVD RESET I/O PIO3(7)
39 PIO4(0)HP MUTE - Unused
40 PIO4(1) - Unused
41 PIO4(2) - Unused
42 PIO4(3) DAC RESET - Unused
43 PIO4(4) PLL CS - Unused
44 PIO4(5) DAC CLOCK O DAC clock
45 PIO4(6) DAC DATA O DAC data
46 PIO4(7) DAC CS I/O PIO4(0 7) YC(0~7)
Reserved
20 B WCLK I/O Unused
21 B V4 I/O Unused
22 NRSS OUT I/O Unused
103 ADC SCLK I/O Unused
104 ADC LRCK I/O Unused
105 ADC DATA I/O Unused
106 ADC PCMCLK O Unused
EMI Interface
161~170 CPU ADR(1~10) O ADR(1~10)
173~183 CPU ADR(11~21) O ADR(11~21)
141~148 CPU DATA(0~7) I/O DATA(0~7)
151~158 CPU DATA(8~15) I/O DATA(8~15)
138 CPU RAS1 I/O Unused
131 CPU WAIT I Connected to GND
130 CPU RW O Unused
128 CPU BE(0) O BYTE 0 ENABLE
129 CPU BE(1) O BYTE 1 ENABLE
139 CPU CAS0 O Unused
140 CPU CAS1 O Unused
135 CPU CE(0) O Unused
134 CPU CE(1) O Unused
133 CPU CE(2) O Chip Sel. BANK2
132 CPU CE(3) O Chip Sel. BANK3
118 CPU PRO CLK O SDRAM clock
117 CPU OE I/O Output enable
Interrupt
127 IRQ(0) I Unused
126 IRQ(1) I Unused
125 IRQ(2) I IRQ(2) (MD IRQ)
Timers
116 PWM0 I/O Unused HSYNC
6
Main Alternate function
Function Input Output
PARA DATA(3)
/CAPTURE IN0
PARA DATA(5)
/CAPTURE IN2 UART2 RTS(RTS2)
PARA DATA(6)
/UART1 CTS(CTS1)
PARA DATA(7)/UART2
CTS(CTS2)
COMP OUT1
COPM OUT0
DVR-505/7000
CIRCUIT DESCRIPTION
Port No. Port Name I/O
115 PWM1 I/O Pulse width modula o Boot from ROM3
114 PWM2 I/O Unused VSYNC
JTAG
113 TCK I Test clock
112 TDI I Test data in
111 TDO O Test data out
110 TMS I Test mode select
109 TRST I Test reset
Front-end
16 B DATA I 12S data SER Data
17 B BCLK I 12S bit clock SER BCLK
18 B FLAG I 12S error flag DVD SER VALID
19 B SYNC I 12S selector/ABS time SER SYNC
Video DAC
27,26,25 R/G/B (OUT) O R/G/B output
32~34 Y/C/CV (OUT) O Y/C/CV output
29 I REF RG I I REF DAC RGB
28 V REF RG I V REF DAC RGB
36 I REF YC I I REF DAC YC
35 V REF YC I Y REF DAC YC
23 VDD RGB - YDDA RGB =2.5V
24 VSS RGB - GND
30 VDD YCC - YDDA YCC =2.5V
31 VSS YCC - GND
Shared memory interface
69~66 SMI ADR(0~3) O Address bus SDRAM
58~63 SMI ADR(4~9) O Address bus SDRAM
70~73 SMI ADR(10~13) O Address bus SDRAM
84~93 SMI DATA(0~15) I/O Data bus SDRAM
97~102
74,75 SMI CS(0,1) O Chip select bank 0,1
76 SMI RAS O RAS SDRAM
77 SMI CAS O CAS SDRAM
78 SMI WE O SDRAM write enable
79,80 SMI (DQML, DQMU) O DQ MASK EN LOW, UP
82 SMI CLKIN I SDRAM clock in
95 SMI CLKOUT O SDRAM clock out
Power supply
4,47,81,107
136,159,184
14,37,64,94
119,149,171 VDD2 5 - 2.5V Power supply
198
5,15,38,50,65
83,96,108,121
137,150,160
172,185,199
VDD3 3 - 3.3V Power supply
VSS - GND
Main Alternate function
Function Input Output
7
DVR-505/7000
CIRCUIT DESCRIPTION
3. Port Description of IC
Video Driver : MM1540AF (U1)
Port No. Port Name I/O Function
1,2 VCC1,2 - VCC
2,6,9 VIN,VIN (1,2) I Video input (Composite or Y)
3 YC MIX - YC MIX select (Unused)
4 CIN I Croma input (Open)
5 CLP - Clamp select (Connected to GND)
7,8 MUTE (1,2) O Mute select (Unused)
10 GND - GND
11,13 CbIN, CrIN I Component input
12 Dual/Single - Power select (+5V)
14,15,19,
21,22,24
16,18,20,
23,25,27
23,25,27 YOUT1, COUT,VOUT O Video output (Open)
17,26 PS2,PS1 - Power save (Connected to GND)
VEE1, VEE2 - VEE (-5V)
CrOUT, CbOUT,
YOUT2,YOUT1, O Video output
COUT,VOUT
8
CP506
CP531
CP431
CP106
CP108
CP107
CP104
CP508
CP507
CP504
CP532
CP432
CN435
CN535 CP533
CP433
CP534
CP434
JA401
VIDEO
R
L
JA402S VIDEO
CP208
JA551
OUT
JA555
JA554
JA553
MONITOR
SAT
IN
VCR
OUT
JA552
VCR
MONITOR
OUT
OUT
IN
VCR
VCR
SAT
IN
IN
CP505
CP204
CN201
CP201
CN201
CP201
CN204
(M,Y) TYPE
CN301
CP301
(K,P,J,E,T,X) TYPE
AC INPUT
CN113
CN121
CN206
CN113
CN121
CP302
SW1
CN206
CP206
CP121
CP113
CN205
CN1
CP207
CN3
CN204
CN4
CN205
CP203
Y
IN
VCR
OUT
VCR
Rch
Cr
Cb
JACK103
Lch
Rch
JACK102
SAT
IN
AUDIO
Lch
Rch
Lch
JACK101-A
JACK101-B
JACK101-C
Lch
Rch
FRONT
REAR
Rch
Lch
SUB WOOFER
CENTER
CP1
JAC4
JAC5
JAC1
OPTI-IN 1
OPTI-OUT
COAX-IN 1
HP401
JK403
OPTI-IN
CP3
CP103
CN103
CP2 CN2
CP114 C1
CP115
CP216
CP401
CP102 CP101
CP402
CP215
CP608
CN202
CN403 CP403
CP501
CN401
CN501
CP105
CP202
u-COM B'D
MAIN B'D
FRONT B'D
STANDBY
LED B'D
LED
DISPLAY B'D
FRONT
VIDEO
INPUT B'D
DVD B'D
MECHA
F/E BOARD
POWER B'D
SMPS B'D
DSP B'D
PACK
TUNER
HEADPHONE
B'D
LINK B'D-BLINK B'D-A
DVR-505/7000
1
1212
1
88
11
13 13
11
66
11
11
11 1133
33
1
1
221
113
1313
13
2
1
1
1
1919441
1
1
1
19
19
1
2
230V
F202
115V
F201
7
1
3
11
2
7
1
3
1
1
55
1
1521
1
2
1371
41
21
21 441
1
112
12 1
15
1
1
17
21
15
15
1
3
1
3
1
13
1
13
11
11
1
1
11
1
1
11111
1
11
1
11
11
1
1
2
1
10
1
10
1
17
221
1
4
1
115
9
WIRING DIAGRAM
DVR-505/7000
L206
L204
L205
C227
C226
C234
R298
RM212
C324
R216
C208
C301
C302
R309
C207
R205
R302
R301
C322
C307
C308
C309
C306
C213
C201
L209
L201
L202
L302
L203
R265
R264
C224
C403
C402
C401
R408
R407
C223
C222
C405
L415
R404
R253
R255
C220
R254
C303
C305
C304
RM208
RM211
RM209
RM210
RM201
RM202
C603
C602
C604C601
RM206
EB
C203
C205
C326
C211
C312
R315
C310
R313
R312
R311
R310
C219
R242
C404
R413
C212
C214
C209
R209
C202
C304R
R308L
C304L
R308R
R309R
R323
R322
C307R
C307L
R309L
C328
C329
CM201
RM207
Q301
D302
D301
QM202
EB
R608
L213S
L212C
C605
18 1
19
1
2
18
1
4
14
1
15
28
1
19
18
2
C229
C230
C228
C236
L211Y
C251Y
C254C
C252Y
C253C
C255S
C256S
C606
R609
R611
LM201
R610
R269
R270
R210Y
R600
R601
R602
R211C
R206B
R303R
C305L
C306L
C306R
C305R
R302L
R231
RA301
RA302
RA303
RA304
RA305
RA306
RA307
R232
R234
R207G
R212S
R213
R214
R215
R208R
RM213
RM203
R283
RA408
RA407
RA406
RA405
R401
R246
L501
R247
C504
R237
R289
R290
R240
R239
R238
R288
R241
R243
C216
R244
R245
R251
R250
C231
C217
R248
R249
R403
R405
R406
R282
RM205
RM204
CM203
R607
R606
C302R
R304R
C303R
R302R
R325
R301R
C327
C323
C301L
C303L
R304L
R303L
R235
C311
C330
BE
BE
BE
BE
BE
R303
R304
R305
R306
R307
R308
R280
R281
C502
C503
C505
R502
R503
X501
C501
C218
R501
C215
R236
JTAG JIG
DOWN LOAD
R301L
C301R
C302L
R274
R273
R203
R202
R201
R204
C610
CM205
CM204
8
1
4
8
16
1
2
54
28
27
105
156
52
1
104
53
157
208
24
25
1
1
214
15
1
214
2
1
8147
1
15
48
1
9
1
8
8
5
14
5
5
1
4
C611
C233
C204
C206
C210
C325
C225
C232
R223
R263
R262
R409
RA401
RA402
C221
C406
RA403
RA404
R402
R266
R268
R267
R233
C607
C608
C609
DVD BOARD
CN203
CN205
IC601
Q600
CP201
DM204
DM201
ICM21
IC202
IC302
IC303
Q301R
Q301L
Q302L
CN202
CN201
IC301
IC201
IC401
CP202
CP203
CN204
Q202
Q201
IC501
QM201
DM202
DM203
CP204
BE BE
C066
C057
R066
C067
C075
C016
R901
BD07
C070
R057
R058
C073
R903
C137
R902
C049
C041
R074
BD12
BD11
C206
C030
C037
C181
C902
R081
R082
R083
R084
R085
R086
R087
R088
C179
C028
C076
C077
C019
R036
C020
C079
C007
C006
C223
C042
1
10
20
11
1
10
20
11
BD09
BEAD7
C043
BD02
BD01
BD03
R060
C025
BD06
BD13
BD902
BD901
R009
R010
C034
IC02 IC03
41
1
11
14
8
15
28
14
1
1
14
B
E
28
15
5
58
41
58
41
1
11
58
41
21
31
1
216
17
1
10
20
11
1
10
20
11
39 29
7
4
1
32
30
14
20
21
29
13
5
17
18
28
6
1
44
40
58
C062
C068
FID1
R048
R065
C061
R040
C212
C211
R026
R158
C153
C060
R045
C069
C050
C071
C056
C012
BD38
C013
C901
BD35
BD37
BD31
BD34
BD10
BD18
BD27
BD19
BD30
BD17
BD32
BD20
BD16
BD26
BD29
BD14
R056
R055
R067
C021
C024
R196
C027
R072
R077
R079
C003
C120
C009
C136
C010
C140
R013
R301
R105
C029
R021
C177
C173
R302
C178
C171
C055
R007
C026
Y001
R004
C002
R162
C035
FID2
R114
CP04
C004
BD39
BD05
C033
BD04
C172
R053
R054
R008
R117
C078
R163
C046
C053
C180
R304
C170
C154
R305
R073
R033
C052
C051
R041
C047
R032
L001
L002
FID3
R159
C119
R193
R037
R194
R063
C213
C117
C214
C058
R064
R062
C118
C215
R069
R038
R161
R160
R303
C162
C141
R300
R024
R023
C032
C001
R003
R005
R012
R025
C008
C182
C038
C044
C045
R164
R110
C018
C017
R011
R050 C064
R052
R047
R046
R049
C063
R051
C065
C015
L005
C074
L004
C023
R018
C022
C224
R017
EB
J001
R027
C039
C183
R022
R001
R014
C031
C011
J002
C040
R031
R019
BD08
R059
R108
R107
R016
R113
BD25
C059
R043
C202
R044
C225
R039
C228
C072
C121
R140
C187
R071
R061
C116
C185
R070
R155
C504
C166
C186
R195
R035
R028
C048
R153
R151
C161
C184
C230
L003
R034
R030
R042
C036
R029
C231
C229
R068
1
3
2
4
R006
R002
R157
R142
C226
R188
C204
R190
IC11
IC12
W2
DSP BOARD
W1
CP02
CP03
CP01
IC18
IC19
Q002
IC05
IC04
IC14
Q001
IC08
IC06
CP402
IC07
JAC5
DIGITAL
OUT
SAT/ VCR
CABLE
SAT/CABLE VCR
COAXIAL
DIGITAL IN
OPTICAL
OPTICAL
JAC2
JAC1
JAC3
D002
JAC4
IC01
CP401
1
2
3
4
5
6
7
ACEG IBDFHJ
PC BOARD (Component side view)
Refer to the schematic diagram for the value of resistors and capacitors.
10
11
Loading...
