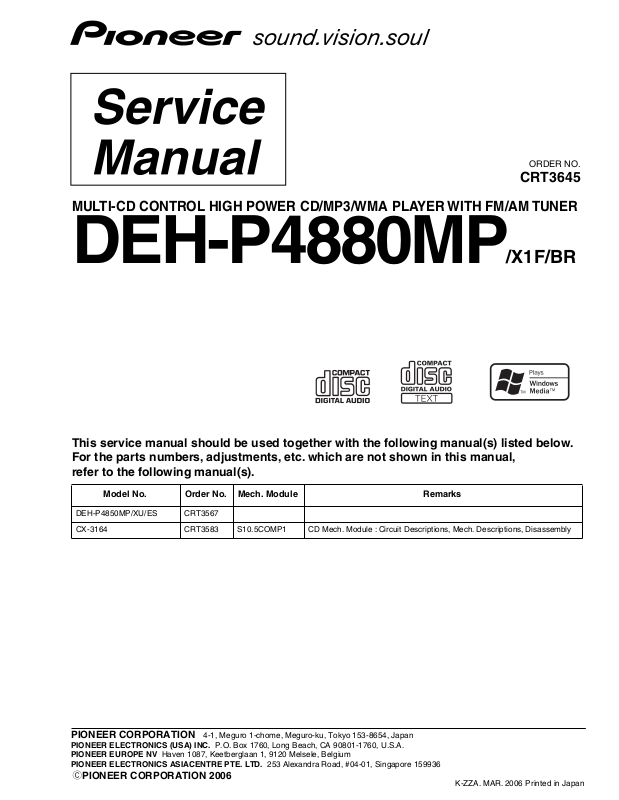

ORDER NO.
CRT3645
MULTI-CD CONTROL HIGH POWER CD/MP3/WMA PLAYER WITH FM/AM TUNER
DEH-P4880MP/X1F/BR
This service manual should be used together with the following manual(s) listed below. For the parts numbers, adjustments, etc. which are not shown in this manual,
refer to the following manual(s).
Model No. |
Order No. |
Mech. Module |
Remarks |
|
|
|
|
DEH-P4850MP/XU/ES |
CRT3567 |
|
|
|
|
|
|
CX-3164 |
CRT3583 |
S10.5COMP1 |
CD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly |
|
|
|
|
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
K-ZZA. MAR. 2006 Printed in Japan
|
1 |
|
|
|
2 |
3 |
4 |

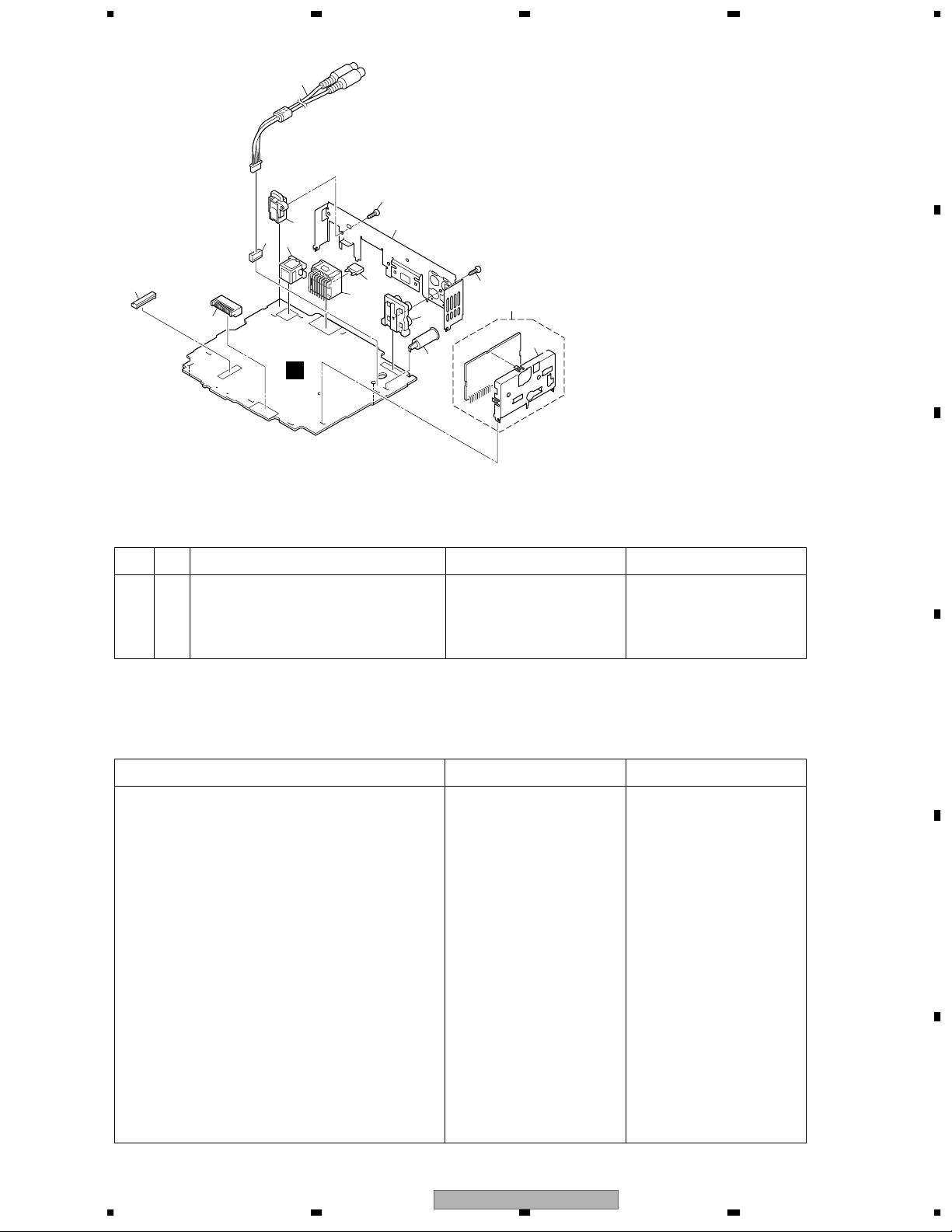

EXPLODED VIEWS AND PARTS LIST |
|
||||||
PACKING(Page 8) |
|
|
|
|
|||
PACKING SECTION PARTS LIST |
|
|
*:Non spare part |
||||
A |
|
|
|
|
|
|
|
Mark |
No. |
|
Description |
|
DEH-P4850MP/XU/ES |
DEH-P4880MP/X1F/BR |
|
|
2 |
Cord Assy |
|
|
XDE7008 |
CDE7273 |
|
|
16 |
Remote Control Assy |
|
|
CXC5719 |
YXA5173 |
|
|
18 |
Carton |
|
|
|
YHG5079 |
YHG5081 |
|
19 |
Contain Box |
|
|
YHL5056 |
YHL5058 |
|
|
22-1 |
Owner's Manual |
|
|
YRD5039 |
YRB5017(Portuguese(B)) |
|
|
22-2 |
Owner's Manual |
|
|
YRD5040 |
Not used |
|
B |
22-3 |
Installation Manual |
|
|
YRD5044 |
YRB5019(Portuguese(B)) |
|
22-4 |
Caution Card |
|
|
CRP1310 |
*CRN1084 |
||
|
|
|
|||||
* |
22-5 |
Warranty Card |
|
|
Not used |
CRY1226 |
|
* |
22-6 |
Service Network |
|
|
Not used |
CRY1227 |
|
EXTERIOR(Page 10) |
|
|
|
|
|||
EXTERIOR SECTION PARTS LIST |
|
|
|
||||
Mark |
No. |
|
Description |
|
DEH-P4850MP/XU/ES |
DEH-P4880MP/X1F/BR |
|
|
10 |
Remote Control Assy |
|
|
CXC5719 |
YXA5173 |
|
C |
13 |
Cord Assy |
|
|
XDE7008 |
CDE7273 |
|
17 |
Panel |
|
|
|
YNS5114 |
XNS7158 |
|
|
|
|
|
||||
|
18 |
Tuner Amp Unit |
|
|
YWM5097 |
YWM5095 |
|
|
32 |
Holder |
|
|
|
YNC5014 |
YNC5015 |
|
34 |
Detachable Assy |
|
|
YXA5110 |
YXX5011(Service Detachable Assy) |
|
|
42 |
Button(AUDIO,FUNCTION,SW) |
|
YAC5072 |
YAC5095 |
||
|
43 |
Button(CLOCK,DISPLAY) |
|
YAC5073 |
YAC5097 |
||
|
53 |
Grille Unit |
|
|
YXA5157 |
YXA5155 |
|
|
54 |
Button Unit(UP,DOWN,LEFT,RIGHT) |
YXC5022 |
YXC5024 |
|||
D |
73 |
Gear |
|
|
|
YNV5053 |
CNV5997 |
|
|
|
|
||||
|
77 |
Sub Panel Unit |
|
|
YXA5160 |
XXA7361 |
|
|
85 |

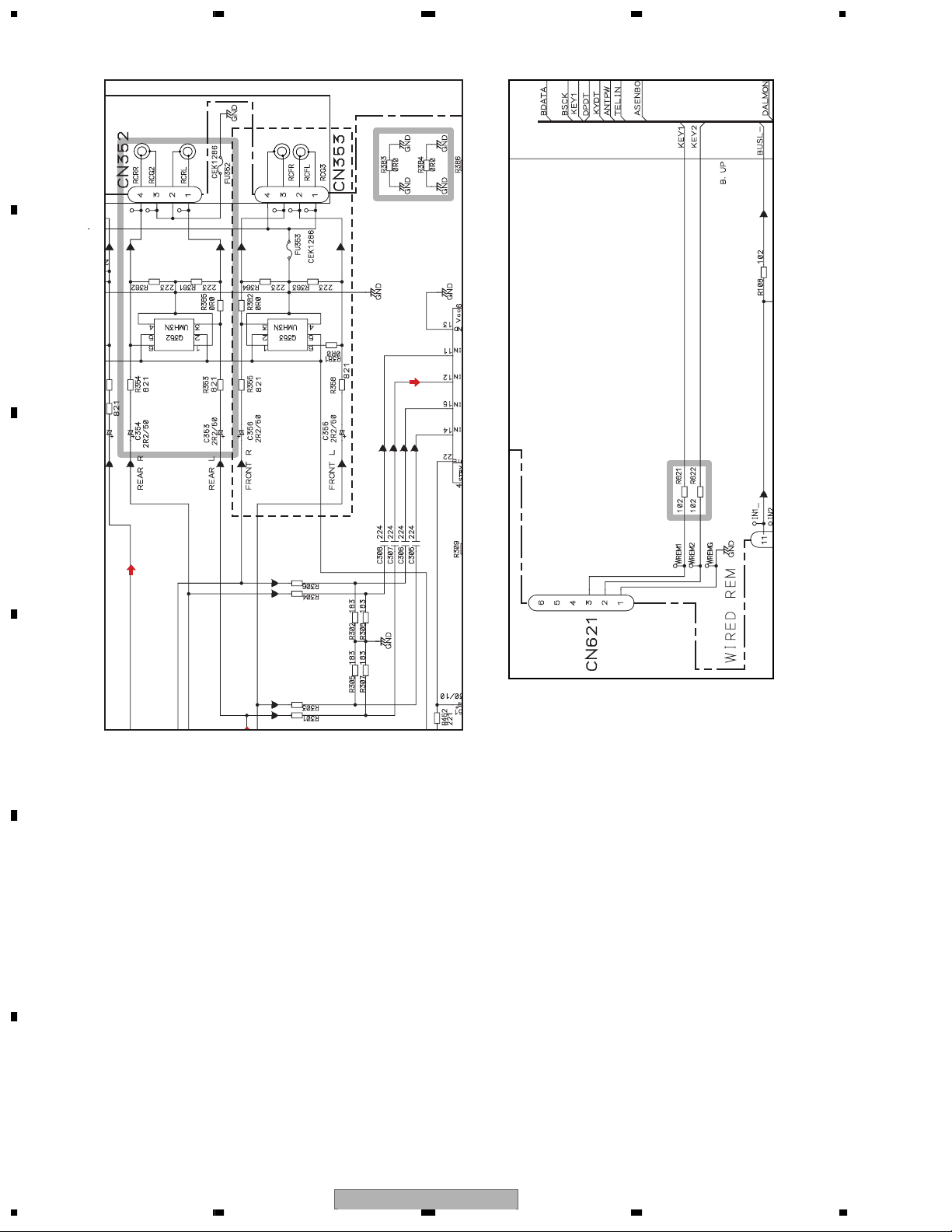

Jack(CN621) |
|
|
Not used |
YKS5002 |
|
|
86 |
Connector(CN352) |
|
|
Not used |
CKS3584 |
|
|
87 |
Cord Assy |
|
|
Not used |
YDE5014 |
|
|
88 |
Screw |
|
|
|
Not used |
BPZ26P080FTC |
E |
59 |
56 |
70 |
|
64 |
|
|
72 |
A |
|
|
|
|||
|
66 |
73 |
76 |
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
58 |
75 |
D |
74 |
65 |
|
|
|
|
63 |
55 |
|
|
|
57 |
|
61 |
6260 |
|
|
|
|
||
|
|
|
69 |
|
|
|
|
|
|
57 |
|
68 |
|
67 |
|
|
|
F |
|
77 : |
|
77 |
|
DEH-P4880MP/X1F/BR |
|
57 |
71 |
|
|
2 |
|
DEH-P4880MP/X1F/BR |
|
1 |
2 |
3 |
4 |
