Owner’s Manual

DVD RDS AV RECEIVER

AVH-P2300DVD

English

Contents

Thank you for purchasing this PIONEER product.

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGs and CAUTIONsin this manual. Please keep the manual in a safe and accessible place for future refer-

ence.

Be sure to read this

! DVD video disc region numbers 7 ! Handling guidelines 76

Precautions

IMPORTANT SAFEGUARDS 4 To ensure safe driving 4 To avoid battery exhaustion 5

Before you start

Information to User 6 For Canadian model 6 The Safety of Your Ears is in Your Hands 6 About this unit 6 About this manual 7 Operating environment 7 After-sales service for Pioneer products 7 Visit our website 7 Resetting the microprocessor 8 Demo mode 8 Adjusting the response positions of the

touch panels (Touch Panel Calibration) 8

Use and care of the remote control 8

What’s what

Head unit 10 Remote control 11

Basic operations

Basic operations 12 Operating the scroll bar and the scrubber

bar 13 Activating the touch panel keys 13 Common operations for menu settings/

lists 14 Ejecting a disc 14 Setting the clock 14

Tuner Introduction of tuner operations 15

Playing moving images

Introduction of video playback

operations 16

Playing audio

Introduction of sound playback

operations 19

Playing still images

Introduction of still image playback

operations 21

Introduction of still image playback as a

slideshow operations 22

XM/SIRIUS tuner

Introduction of XM/SIRIUS tuner

operations 23

HD Radioä tuner

Introduction of HD Radioä tuner

operations 25

Using Bluetooth wireless technology

Introduction of Bluetooth telephone

operations 26

Bluetooth audio operations 27

Detailed instructions

Storing and recalling stations 29 Storing the strongest stations 29 Tuning in to strong signals 29 Tuning in to strong HD Radio signals 29 Switching the media file type 30 Operating the DVD menu 30 Operating this unit’s iPod function from your

iPod 30 Random play (shuffle) 31 Playing all songs in random order (shuffle

all) 31 Repeating playback 31 Playing videos from your iPod 31 Browsing for a video/music on the iPod 32

Contents

Resume playback (Bookmark) 33 Frame-by-frame playback 33 Slow motion playback 33 Searching for the part you want to play 33 Changing audio language during playback

(Multi-audio) 33

Changing the subtitle language during

playback (Multi-subtitle) 34

Changing the viewing angle during playback

(Multi-angle) 34 Return to the specified scene 34 Selecting audio output 34 PBC playback 34 Selecting tracks from the track title list 35 Selecting files from the file name list 35 Using sound retriever 35 Changing audiobook speed 35 Displaying lists related to the currently

playing song (Link Search) 35 Playing DivXâ VOD content 35 Capture an image in JPEG files 36 Changing the wide screen mode 36 Switching the XM/SIRIUS channel selection

mode 37 Selecting an XM/SIRIUS channel directly 37 Using the MyMix function 38 Using the Game Alert function 40 Displaying the Radio ID 41 Switching the SIRIUS display 41 Using the Instant Replay function 41 Switching the seek mode 42 Switching the reception mode 42 Using the missed, received and dialed call

lists on the optional Bluetooth adapter 42 Setting automatic answering 42 Switching the ring tone 42 Using a cellular phone to initiate a

connection 43 Registering a connected cellular phone 43 Voice recognition 43

Connecting a Bluetooth audio player 43 Connecting to a Bluetooth device

automatically 43

Displaying Bluetooth Device address 44

Menu operations

Introduction of menu operations 45 Audio Adjustments 46 Setting up the DVD player 48 System settings 52 Entertainment settings 55 Customizing menus 56

Other Functions

Changing the picture adjustment 57 Adjusting the response positions of the

touch panels (Touch Panel

Calibration) 57 Using an AUX source 58 Using an external unit 58

Installation

Connecting the units 60 Installation 68

Additional Information

Troubleshooting 69 Error messages 71 Understanding messages 74 Indicator list 75 Handling guidelines 76 Compressed audio compatibility (disc,

USB) 78 iPod compatibility 80 Sequence of audio files 80 Using the display correctly 80 Copyright and trademark 82 Language code chart for DVD 84 Specifications 85

Section

Precautions

IMPORTANT SAFEGUARDS

Please read all of these instructions regarding your display and retain them for future reference.

1 Read this manual fully and carefully be-

fore operating your display.

2 Keep this manual handy as a reference for

operating procedures and safety information.

3 Pay close attention to all warnings in this

manual and follow the instructions carefully.

4 Do not allow other persons to use this sys-

tem until they have read and understood the operating instructions.

5 Do not install the display where it may (i)

obstruct the driver’s vision, (ii) impair the performance of any of the vehicle’s operating systems or safety features, including air bags, hazard lamp buttons or (iii) impair the driver’s ability to safely operate the vehicle.

6 Do not operate this display if doing so in

any way will divert your attention from the safe operation of your vehicle. Always observe safe driving rules and follow all existing traffic regulations. If you experience difficulty in operating the system or reading the display, park your vehicle in a safe location and make necessary adjustments.

7 Please remember to wear your seat belt at

all times while operating your vehicle. If you are ever in an accident, your injuries can be considerably more severe if your seat belt is not properly buckled.

8 Never use headphones while driving. 9 To promote safety, certain functions are

disabled unless the parking brake is on, and the vehicle is not in motion.

10 Never set the volume of your display so

high that you cannot hear outside traffic and emergency vehicles.

WARNING

! Do not attempt to install or service your

display by yourself. Installation or servicing of the display by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock or other hazards.

To ensure safe driving

WARNING

! LIGHT GREEN LEAD AT POWER CON-

NECTOR IS DESIGNED TO DETECT PARKED STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH. IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.

! To avoid the risk of damage and injury and the

potential violation of applicable laws, this unit is not for use with a video screen that is visible to the driver.

! To avoid the risk of accident and the potential

violation of applicable laws, no viewing of front seat video should ever occur while the vehicle is being driven.

! In some countries or states the viewing of

images on a display inside a vehicle even by persons other than the driver may be illegal. Where such regulations apply, they must be obeyed and this unit’s DVD features should not be used.

When you attempt to watch a video image while driving, the warning Viewing of front

seat video source while driving is strictly prohibited. will appear on the front display.

To watch a video image on the front display, park your vehicle in a safe place and apply the parking brake.

Precautions

Section

Parking brake interlock

Certain functions (Video viewing and certain touch panel keys) offered by this unit could be dangerous and/or unlawful if used while driving. To prevent such functions from being used while the vehicle is in motion, there is an interlock system that senses when the parking brake is set. If you attempt to use the functions described above while driving, they will become disabled until you stop the vehicle in a safe place, and (1) apply the parking brake, (2) release the parking brake, and then (3) apply the parking brake again. Please keep the brake pedal pushed down before releasing the parking brake.

When using a display connected to V OUT

This unit’s V OUT is for connection of a display to enable passengers in the rear seats to watch the DVD or Video CD.

WARNING

NEVER install the rear display in a location

where the driver can watch a DVD while driving.

backing up. Do not use for entertainment purposes.

! Please note that the edges of the rear view

camera images may differ slightly according to whether full screen images are displayed when backing up, and whether the images are used for checking the rear when the vehicle is moving forward.

To avoid battery exhaustion

Keep the vehicle engine running when using this unit to avoid draining the battery power. ! When no power is supplied to this unit,

such as when the vehicle battery is being replaced, the microcomputer of this unit returns to its initial condition. We recommend that you transcribe the audio adjustment data.

WARNING

Do not use with vehicles that do not feature an ACC position.

Precautions

When using the rear view camera

With an optional rear view camera, this unit can be used as an aid to keep an eye on trailers, or when backing into a tight parking spot.

WARNING

! SCREEN IMAGE MAY APPEAR RE-

VERSED.

! USE INPUT ONLY FOR REVERSE OR

MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN INJURY OR DAMAGE.

CAUTION

! The rear view camera function is to be used

as an aid to keep an eye on trailers, or while

Section

Before you start

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment.

For Canadian model

This Class B digital apparatus complies with Canadian ICES-003.

The Safety of Your Ears is in Your Hands

Get the most out of your equipment by playing it at a safe level—a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

ESTABLISH A SAFE LEVEL:

! Set your volume control at a low setting. ! Slowly increase the sound until you can

hear it comfortably and clearly, without distortion.

! Once you have established a comfortable

sound level, set the dial and leave it there.

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

! Do not turn up the volume so high that you

can’t hear what’s around you.

! Use caution or temporarily discontinue use

in potentially hazardous situations.

! Do not use headphones while operating a

motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas.

About this unit

The tuner frequencies on this unit are allocated for use in North America. Use in other areas may result in poor reception.

WARNING

Handling the cord on this product or cords associated with accessories sold with the product may expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm. Wash hands

after handling.

CAUTION: USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. CAUTION: THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.

Before you start

Section

CAUTION

! Do not allow this unit to come into contact

with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids.

! Keep this manual handy for future reference. ! Always keep the volume low enough to hear

outside sounds.

! Avoid exposure to moisture. ! If the battery is disconnected or discharged,

any preset memory will be erased.

Important (Serial number)

The serial number is located on the bottom of this unit. For your own security and convenience, be sure to record this number on the enclosed warranty card.

DVD video disc region numbers

Only DVD video discs with compatible region numbers can be played on this player. You can find the region number of the player on the bottom of this unit and in this manual (refer to Specifications on page 85).

About this manual

This unit features a number of sophisticated functions to ensure superior reception and operation. All the functions have been designed for the easiest possible use, but many are not self-explanatory. This operation manual will help you benefit fully from this unit’s potential and to maximize your listening enjoyment. We recommend that you familiarize yourself with the functions and their operation by reading through the manual before you begin using this unit. It is especially important that you read and observe WARNINGs and CAU- TIONs in this manual.

Operating environment

This unit should be used within the temperature ranges shown below. Operating temperature range: –10 °C to +60 °C (14 °F to 140 °F) EN300328 ETC test temperature: -20 °C and +55 °C (-4 °F and 131 °F)

After-sales service for Pioneer products

Please contact the dealer or distributor from where you purchased this unit for after-sales service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the companies listed below: Please do not ship your unit to the companies at the addresses listed below for repair without advance contact.

U.S.A.

Pioneer Electronics (USA) Inc. CUSTOMER SUPPORT DIVISION P.O. Box 1760 Long Beach, CA 90801-1760 800-421-1404

CANADA

Pioneer Electronics of Canada, Inc. CUSTOMER SATISFACTION DEPARTMENT 300 Allstate Parkway Markham, Ontario L3R 0P2 1-877-283-5901 905-479-4411

For warranty information please see the Limited Warranty sheet included with this unit.

Visit our website

Visit us at the following site:

Before you start

Section

Before you start

http://www.pioneerelectronics.com

1 Register your product. We will keep the details

of your purchase on file to help you refer to this information in the event of an insurance claim such as loss or theft.

2 Receive updates on the latest products and

technologies.

3 Download owner ’s manuals, order product

catalogues, research new products, and much more.

4 Your feedback is important in our continual ef-

fort to design and build the most advanced, consumer-focused product in the industry.

Serial number

Resetting the microprocessor

By pressing RESET, you can reset the microprocessor to its initial settings without changing the bookmark information. The microprocessor must be reset in the following situations: ! Before using this unit for the first time after

installation

! If the unit fails to operate properly ! When strange or incorrect messages ap-

pear on the display

1 Turn the ignition switch OFF.

2 Press RESET with a pen tip or other pointed instrument.

Note

Switch your engine ON or set the ignition switch to ACC ON before pressing RESET in the following situations:

! After completing connections ! When erasing all stored settings ! When resetting the unit to its initial (factory)

settings

Demo mode

The feature demo automatically starts when you select Off for the source and continues while the ignition switch is set to ACC or ON. To cancel the feature demo, press and hold MUTE. Press and hold MUTE again to restart. Operating the feature demo while the car engine is turned off it may drain the battery power.

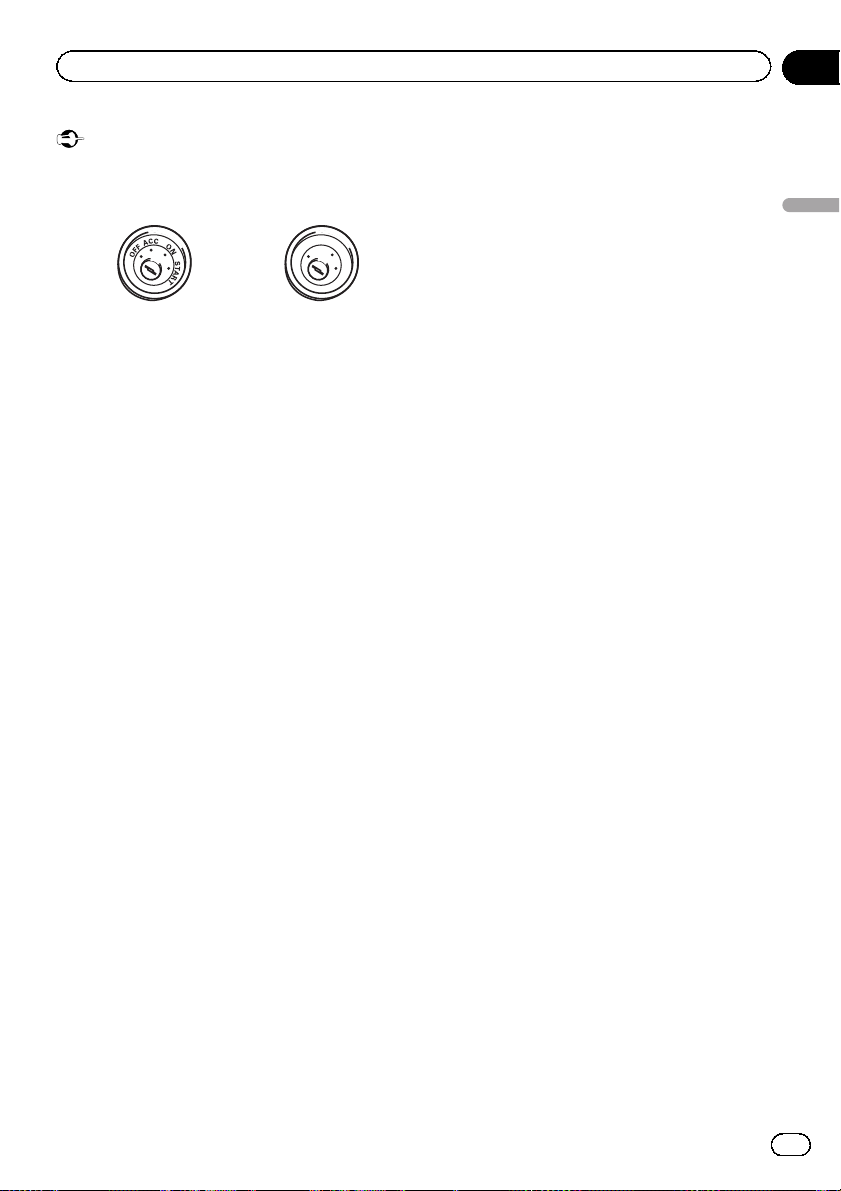

Important

Failure to connect the red lead (ACC) of this unit to a terminal coupled with ignition switch on/off operations may lead to battery drain.

Adjusting the response positions of the touch panels (Touch Panel Calibration)

If you feel that the touch panel keys on the screen deviate from the actual positions that respond to your touch, adjust the response positions of the touch panel. Refer to Adjusting

the response positions of the touch panels (Touch Panel Calibration) on page 57.

RESET button

Use and care of the remote control

Installing the battery

Slide the tray on the back of the remote control out and insert the battery with the plus (+) and minus (–) poles aligned properly.

Before you start

Section

! When using for the first time, pull out the

film protruding from the tray.

WARNING

! Keep the battery out of the reach of children.

Should the battery be swallowed, consult a doctor immediately.

! Batteries (battery pack or batteries installed)

must not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION

! Use one CR2025 (3 V) lithium battery. ! Remove the battery if the remote control is not

used for a month or longer.

! There is a danger of explosion if the battery is

incorrectly replaced. Replace only with the same or equivalent type.

! Do not handle the battery with metallic tools. ! Do not store the battery with metallic objects. ! If the battery leaks, wipe the remote control

completely clean and install a new battery.

! When disposing of used batteries, comply

with governmental regulations or environmental public institutions’ rules that apply in your country/area.

! “Perchlorate Material – special handling may

apply.

www.dtsc.ca.gov/hazardouswaste/

See perchlorate. (Applicable to California, U.S.A.)”

! The remote control may not function properly

in direct sunlight.

! Do not let the remote control fall onto the

floor, where it may become jammed under the brake or accelerator pedal.

Before you start

Using the remote control

Point the remote control in the direction of the front panel to operate.

Important

! Do not store the remote control in high tem-

peratures or direct sunlight.

Section

What’s what

Head unit

Part Part

1 RESET 7 MUTE

2 h (eject) 8

3 Disc loading slot 9

+/– (VOLUME/

VOL)

c/d (TRACK/

SEEK)

6 SRC/OFF

4 5

7 8

9 a

MODE

Turning the information display off.

Displaying the menu. Returning to the normal display.

USB port When connecting,

open the USB connector lid.

AUX input jack (3.5 mm stereo/ video jack)

Use to connect an auxiliary device.

Note

When the navigation system is connected, press

MODE to switch to the navigation display. Press MODE and hold to turn the display off. Press MODE again to turn the display on.

CAUTION

! Use an optional Pioneer USB cable (CD-U50E)

to connect the USB audio player/USB memory as any device connected directly to the unit will protrude out from the unit and may be dangerous.

! Do not use unauthorized products. ! For details on how to operate a navigation sys-

tem from this unit, refer to its operation manual.

What’s what

Section

Remote control

Part Operation

c Thumb pad

d RETURN

f a/b(FOLDER/P.CH)

d e

f 5

Use to select a menu on the DVD menu.

Press to display the PBC (playback control) menu during PBC playback.

Press to pause or resume playback.

Press to return to the previous track (chapter).

Press to go to the next track (chapter).

Press to stop playback.

Press to select the next/previous disc/ folder. Press to recall radio station frequencies assigned to preset tuning keys.

Part Operation

Press to select the tuner band when tuner is selected as a source. Also used to cancel the control mode of functions.

g BAND/ESC

TOP MENU

AUDIO

SUBTITLE

ANGLE

j REAR SRC Not used.

Press to switch between modes when playing discs with compressed audio and audio data (CDDA) such as CDEXTRA and MIXEDMODE CDs.

Press to display the DVD menu during DVD playback.

Press to return to the top menu during DVD playback.

Press to change the audio language during DVD playback. Press to switch audio output for Video CD/ DivX.

Press to change the subtitle language during DVD playback.

Press to change the viewing angle during DVD playback.

What’s what

Section

Basic operations

1 2

Wed 28 May

12:45 PM

Rear

View

3 4

Radio

Disc

iPod

AUX

! Touch panel keys

1 Displaying the source menu.

Wed 28 May

12:45 PM

Turning the unit on using the buttons 1 Press SRC/OFF to turn the unit on.

Turning the unit off using the buttons 1 Press SRC/OFF and hold until the unit turns off.

Radio

Rear View

Switching to clock adjustment display. Refer to Setting the clock on page 14.

Source icon Selecting a favorite source. When the source icon is not displayed, it can be displayed by touching the screen.

Switching the rear view image on or off.

Turning the unit off.

Selecting a source using the buttons 1 Press SRC/OFF to cycle through the sources

listed below:

Selecting a source using the touch panel keys 1 Touch the source icon and then touch the desired

source name.

! XM – XM tuner ! Sirius – SIRIUS tuner ! Radio/HD Radio – Radio/Digital Radio tuner ! AV – AV input ! Disc – Built-in DVD player ! USB/iPod – USB/iPod ! EXT1 – External unit 1 ! EXT2 – External unit 2 ! AUX – AUX ! TEL/Audio – Bluetooth telephone/audio ! When the source icon is not displayed, it can be

displayed by touching the screen.

Adjusting the volume

1 Press +/– (VOLUME/VOL) to adjust the volume.

Notes

! In this manual, iPod and iPhone will be re-

ferred to as “iPod”.

! The USB/iPod icon will change as follows:

— USB is displayed when a USB storage de-

vice is connected.

— iPod is displayed when an iPod is con-

nected.

— USB/iPod is displayed when no device is

connected.

! When appropriately set up, the image from

the rear view camera can be displayed automatically. For details, refer to Setting the rear view camera (back up camera) on page 54.

! An external unit refers to a Pioneer product,

such as those which will be available in the future. Although incompatible as a source, the basic functions of up to two external units can be controlled with this unit. When two external units are connected, the external units are automatically allocated to external unit 1 or external unit 2.

! If the HD Radio tuner is connected to this

unit, tuner source is skipped.

Basic operations

Section

Operating the scroll bar and the scrubber bar

Audio

Fader/Balance F/R 0 L/R 0

Loudness

Subwoofer

Bass Booster

High Pass Filter

101

Abcdeabcdeabcdeabcdeab

812

01:45 -02:45

1 Scroll icon

Appears when selectable items are hidden.

2 Scrubber bar

Appears when the playback point can be specified or set by dragging.

Viewing the hidden items 1 Touch the scroll icon or drag the scrubber bar to

view any hidden items.

Specifying the playback point 1 Drag the scrubber bar on the screen.

(Not available when the scrubber bar is grayed out.)

Super BassGraphic EQ

High

Off

Wed 28 May

12:45 PM

L+R

Activating the touch panel keys

Wed 28 May

12:45 PM

Return

101

Abcdeabcdeabcdeabcdeab

812

01:45 -02:45

L+R

1 Touch panel keys

Perform various operations by touching the panel.

2 Open/close keys

Control the touch panel key area by touching these keys.

Turning the display to simplified display. Returning to the normal display by touching the screen

when playing moving images. Returning to the normal display by touching same position when playing audio.

Viewing the hidden touch panel keys.

Basic operations

Shorten the touch panel area.

Section

Basic operations

Common operations for menu settings/lists

Displaying the list menu. Starting the search function.

Displaying the menu. Refer to Introduction of menu opera- tions on page 45.

Displaying still images as a slide show when listening to another source. Viewing slide shows. Refer to Introduction of still image playback operations on page 21.

Returning to the previous display. Returning to the previous list/category (the folder/category one level higher.)

! Press and hold MENU to display

Picture Adjustment.

Refer to Changing the picture adjustment on page 57.

Ejecting a disc

% Press h (eject).

Setting the clock

1 Switch to Clock Adjustment display.

Refer to Basic operations on page 12.

2 Select the item to set.

3 Touch a or b to set the correct date and time.

Tuner

Introduction of tuner operations

Section

Local

Radio

Abcdeabcdeabcde

P.ch

Band:

FM1

87.9 MHz

! Touch panel keys

Band:

Wed 28 May

12:45 PM

87.9

MHz

Turning local seek tuning on and off. Refer to Tuning in to strong signals on page 29.

Switching the equalizer curves. Refer to Using the equalizer on page 46.

Displaying the preset channel list. Refer to Storing and recalling stations on page 29. Refer to Storing the strongest stations on page 29.

Selecting a band (FM1, FM2, FM3 for FM or AM).

Tuner

Recalling radio station fre-

Manual tuning (step by step) using the buttons 1 Press c or d (TRACK/SEEK).

Seek tuning using the buttons 1 Press and hold c or d (TRACK/SEEK).

quencies assigned to preset tuning keys.

Note

Listening AM radio while an iPod is charged from this unit may generate noise. In this case, disconnect the iPod from this unit.

Section

Playing moving images

Introduction of video playback operations

You can view DVD/DVD-R/DVD-RW/CD/CD-R/ CD-RW/USB/iPod.

DVD video

Wed 28 May

12:45 PM

L+R

S.Rtrv

-02:45

Wed 28 May

12:45 PM

Return

101

Abcdeabcdeabcdeabcdeab

812

01:45 -02:45

Video CD

DivX

iPod video

iPod

ALL Songs

Abcdeabcdeabcdeabcdeab

2067/12345

01:45

When playing a disc containing a mixture of various media file types

01:45 -02:45

such as the CD-IU50V (sold separately), you can enjoy the video contents of the iPod as an iPod source.

! Touch panel keys

Selecting the repeat range.

Refer to Repeating playback on page 31.

During playback, touch the point at which you want to resume playback the next time the disc is loaded. Refer to Resume playback (Bookmark) on page 33.

Changing the screen mode. Refer to Changing the wide screen mode on page 36.

Switching the equalizer curves. Refer to Using the equalizer on page 46.

Switching between audio languages during playback. Refer to Changing audio lan-

guage during playback (Multiaudio) on page 33.

Switching between subtitle languages during playback. Refer to Changing the subti-

tle language during playback (Multi-subtitle) on page 34.

Switching among viewing angles during playback. Refer to Changing the view-

ing angle during playback (Multi-angle) on page 34.

Switching the audio output, when playing video discs recorded with LPCM audio. Refer to Selecting audio out- put on page 34. Switching between stereo and monaural audio output, when playing Video CD discs.

! If an iPod with video capabilities is con-

nected to this unit using an interface cable

Playing moving images

Section

Starting the search function. Refer to Searching for the part you want to play on page 33. Refer to Selecting files from

the file name list on page 35. Displaying iPod menus. Refer to Playing videos from

your iPod on page 31 and Browsing for a video/music on the iPod on page 32.

Pausing playback. Returning to normal playback during paused, slow motion, or frame-by-frame playback.

Displaying the DVD menu during DVD playback. Refer to Operating the DVD menu on page 30.

Returning to the top menu during DVD playback.

Stopping playback. Stopping playback at the point set in Resume playback. Touch one more time to stop playback completely when playing DivX. Refer to Resume playback (Bookmark) on page 33.

Displaying arrow keys to operate the DVD menu. Refer to Using the arrow keys on page 30.

Skipping to another title. Selecting a folder during DivX file playback.

Return

Moving ahead one frame at a time during playback. Refer to Frame-by-frame play- back on page 33. Touch and hold for more than two seconds to slow down playback speed. Speeding up the playback speed in four steps during slow motion playback on DVD video/Video CD.

Returning to the specified scene to which the DVD currently being played has been preprogrammed to return. Refer to Return to the speci- fied scene on page 34.

Playing the video on your iPod in a random order. Refer to Random play (shuf- fle) on page 31.

Switching the S.Rtrv (sound retriever) function setting when playing a video on your iPod. Refer to Using sound retriever on page 35.

Conducting operation from your iPod and listening to it using your car’s speakers. Refer to Operating this unit’s

iPod function from your iPod

on page 30.

Switching between media file types to play on DVD/CD/ USB. Refer to Switching the media file type on page 30.

Playing moving images

Speeding down the playback

speed in four steps, during slow motion playback on Video CD.

Section

Playing moving images

Playing back videos 1 Insert the disc into the disc loading slot with the

label side up. Playback will automatically start.

! If you are playing a DVD or Video CD, a menu

may appear. Refer to Operating the DVD menu on page 30 and PBC playback on page 34.

! When the automatic playback function is on, the

unit will skip the DVD menu and automatically start playback from the first chapter of the first title. Refer to Automatic playback of DVDs on page

51.

! While an iPod is connected to this unit, PIONEER,

OK to disconnect or

on the iPod.

! When the source icon is not displayed, it can be

displayed by touching the screen.

! Disconnec t headphones from the iPod before

connecting it to this unit.

! Dependin g on the iPod model and the amount of

data stored in the iPod, it may take some time for playback to begin.

! Use the touch panel keys to select the iPod after

connecting it to this unit.

! No Device is displayed when disconnecting the

iPod.

! If a message is displayed after loading a disc con-

taining DivX VOD content, touch Play. Refer to Playing DivX

Ejecting a disc Refer to Ejecting a disc on page 14.

Selecting a chapter using the buttons 1 Press c or d (TRACK/SEEK).

Fast forwarding or reversing using the buttons 1 Press and hold c or d (TRACK/SEEK). ! Fast forward/fast rewind may not always be possi-

ble on some discs. In such cases, normal playback will automatically resume.

(check mark) is displayed

VOD content on page 35.

! Some operations may not be available while

watching a DVD due to the programming of the disc. In such cases, the

icon appears

on the screen.

! To ensure proper operation, connect the dock

connector cable from the iPod directly to this unit.

! While the iPod is connected to this unit, the

iPod cannot be turned on or off.

Notes

! This DVD player can play back a DivX file re-

corded on CD-R/RW or DVD-R/RW. (Please see the following section for files that can be played back. Refer to page 78.)

! Do not insert anything other than a DVD (-R/-

RW) or CD (-R/-RW) into the disc loading slot.

! If the bookmark function is on, DVD playback

resumes from the selected point. For more details, refer to Resume playback (Bookmark) on page 33.

9758

Playing audio

Section

Introduction of sound playback operations

You can listen to DVD-R/DVD-RW/CD/CD-R/ CD-RW/USB/iPod sound files.

1 2 3 4

Wed 28 May

S.Rtrv

-02:45

S.Rtrv

-02:45

12:45 PM

Wed 28 May

12:45 PM

c d e

ROM

Disc On

Abcdeabcdeabcdeabcdeab

125

01:45

iPod audio

1 a b 3 4 5

f i

iPod

ALL Songs

Abcdeabcdeabcdeabcdea

2067/12345

01:45

Switching the equalizer

curves. Refer to Using the equali- zer on page 46.

Displaying a list of track titles/file names to select songs on a CD. Refer to Selecting tracks from the track title list on page 35. Displaying the file name

list to select the files. Refer to Selecting files from the file name list on page 35.

Playing audio

Displaying iPod menus. Refer to Browsing for a

video/music on the iPod

on page 32.

Pausing and starting playback.

Switching the text infor-

mation to display on this unit when playing MP3/ WMA/AAC files.

Selecting a folder.

You can control an iPod with this unit by using a cable such as the CD-IU50 (sold separately). ! Touch panel keys

Selecting the repeat

range. Refer to Repeating play- back on page 31.

Playing songs in random order. Refer to Random play (shuffle) on page 31.

Switching the S.Rtrv (sound retriever) function setting when playing audio. Refer to Using sound re- triever on page 35.

Switching between media file types on a

DVD/CD/USB. Refer to Switching the media file type on page

30.

Playing songs on the

iPod in random order. Refer to Random play (shuffle) on page 31.

Changing the speed of audiobook playback on

the iPod. Refer to Changing audio- book speed on page 35.

Section

Playing audio

! Text information

! Artwork display

Starting Album Link Search on your iPod when you touch the artwork display.

Refer to Displaying lists related to the currently playing song (Link Search) on page 35.

Switching to Link Search mode to play songs related to the currently playing song on the iPod. Refer to Displaying lists

related to the currently playing song (Link Search)

on page 35.

Playing all songs on the iPod in random order. Refer to Playing all songs

in random order (shuffle all) on page 31.

Conducting operation from your iPod and listening to it using your car ’s speakers. Refer to Operating this

unit’s iPod function from your iPod on page 30.

Displaying the Songs list on the iPod. Refer to Searching for a

video/music by category

on page 32.

Displaying the Artists list on the iPod. Refer to Searching for a

video/music by category

on page 32.

Displaying the Albums list on the iPod. Refer to Searching for a

video/music by category

on page 32.

Playing back sound 1 Insert the disc into the disc loading slot with the

label side up. Playback will automatically start.

! While an iPod is connected to this unit, PIONEER,

OK to disconnect or

on the iPod.

! When the source icon is not displayed, it can be

displayed by touching the screen.

! Disconnec t headphones from the iPod before

connecting it to this unit.

! Dependin g on the iPod model and the amount of

data stored in the iPod, it may take some time for playback to begin.

! Use the touch panel keys to select the iPod after

connecting it to this unit.

! No Device is displayed when disconnecting the

iPod.

Ejecting a disc Refer to Ejecting a disc on page 14.

Selecting a track using the buttons 1 Press c or d (TRACK/SEEK).

Fast forwarding or reversing using the buttons 1 Press and hold c or d (TRACK/SEEK).

(check mark) is displayed

Notes

! When playing back files recorded as VBR

(variable bit rate) files, the play time will not be correctly displayed if fast forward or reverse operations are used.

! To ensure proper operation, connect the dock

connector cable from the iPod directly to this unit.

! While the iPod is connected to this unit, the

iPod cannot be turned on or off.

! If the characters recorded on the disc are not

compatible with this unit, those characters will not be displayed.

! Text information may not be correctly dis-

played depending on the recorded environment.

! Disconnect the USB portable audio player/

USB memory when you are done using it.

! When you select Clock on Selecting the back-

ground display on page 55, the artwork is not

displayed.

76 8

Playing still images

Section

Introduction of still image playback operations

You can view still images saved in CD-R/CDRW/USB.

1 2 34


Abcdeabcdeabcde

2 2

When playing a disc containing a mixture of various media file types

01:45 -02:45

Off

Full

Capture

When loading a CD-R/CD-RW/USB containing JPEG picture files, this unit starts a slideshow from the first folder/picture on the disc/device. The player displays the pictures in each folder on the CD-R/CD-RW in alphabetical order by file name. The table below shows the controls for viewing a slideshow. ! Touch panel keys

Touch any of the following touch panel keys to select the function to be adjusted.

Wed 28 May

12:45 PM

Selecting the repeat range. Refer to Repeating playback on page 31.

Playing files in a random order. Refer to Random play (shuf- fle) on page 31.

Changing the screen mode. Refer to Changing the wide screen mode on page 36.

Displaying the file name

Playing still images 1 Insert the disc into the disc loading slot with the

label side up. Playback will automatically start.

! When the source icon is not displayed, it can be

displayed by touching the screen.

Ejecting a disc. Refer to Ejecting a disc on page 14.

Selecting a file using the buttons 1 Press c or d (TRACK/SEEK).

Fast file searching 1 Press and hold c or d (TRACK/SEEK). ! You can search 10 JPEG files at a time.

list to select the files. Refer to Selecting files from the file name list on page

35.

Starting or pausing the slideshow.

Rotating the displayed picture 90° clockwise.

Capturing an image in JPEG files. Refer to Capture an image in JPEG files on page 36.

Selecting a folder.

Switching between media file types. Refer to Switching the media file type on page 30.

Notes

! This unit can play back a JPEG file recorded

on CD-R/CD-RW/USB storage device. (Please see the following section for files that can be played back. Refer to JPEG picture files on page 78.)

Playing still images

Section

Playing still images

! Files are played back in file number order and

folders are skipped if they contain no files. (If folder 01 (ROOT) contains no files, playback commences with folder 02.)

Selecting a file.

Introduction of still image playback as a slideshow operations

You can view still images saved in CD-R/CDRW/USB as a slideshow when listening to another source.

2163

Off

The table below shows the controls for viewing a slideshow. ! Touch panel keys

Touch any of the following touch panel keys to select the function to be adjusted.

Full

Selecting the repeat range. Refer to Repeating playback on page 31.

Playing files in a random order. Refer to Random play (shuf- fle) on page 31.

Changing the screen mode. Refer to Changing the wide screen mode on page 36.

Capture

Starting or pausing the slideshow.

Rotating the displayed picture 90° clockwise.

Capturing an image in JPEG files. Refer to Capture an image in JPEG files on page 36.

1 Start slideshow when listening to another source.

Refer to Common operations for menu settings/lists on page 14.

Displaying still images as a slide show.

2 Select the device containing the files that you want to display.

! Disc – Built-in DVD player ! USB – USB

# To cancel searching, touch Cancel.

Note

When the disc or USB source is selected, this unit cannot view still images on disc/USB as a slideshow.

Selecting a folder.

9 a b c d8

8ab

XM/SIRIUS tuner

Section

Introduction of XM/SIRIUS tuner operations

SIRIUS tuner

54123

SIRIUS

Abcdeabcdeabcde

P.C H

Band:

SIRIUS

CH183

XM tuner

Abcdeabcdeabcde

P.ch

Band:

CH183

Mode All CH

Mode

All CH

Memo

Off

Team

Off

Instant Replay

Wed 28 may

12:45

CH183

Memo

Game

Memo

Info

Edit

Wed 28 may

12:45 PM

CH183

Memo

Team Setting

Memo Edit

541

When the SIRIUS tuner is used together with this unit, some operations differ slightly from those described in the SIRIUS operation manual. This manual provides information on these points. For all other information on using the SIRIUS tuner, please refer to the SIRIUS operation manual.

! With this unit, you can operate one addi-

tional function: XM/SIRIUS channel direct selection. Refer to Selecting an XM/SIRIUS channel directly on page 37.

! Touch panel keys

Selecting a channel by number or category. Refer to Switching the

XM/SIRIUS channel selection mode on page 37.

Tuning the MyMix function on or off for the SIRIUS tuner. Refer to Turning the

MyMix function on or off

on page 39.

Turning the Game Alert on or off for the SIRIUS tuner. Refer to Switching the Game Alert on or off on page 40.

Mode

All CH

Mode

Category

Memo

Off

Team

Off

XM/SIRIUS tuner

! You can use this unit to control an XM sa-

tellite digital tuner (GEX-P920XM), which is sold separately. For details concerning operation, refer to the XM tuner’s operation manuals. This section provides information on XM operations with this unit which differs from that described in the XM tuner’s operation manual.

! You can use this unit to control a SIRIUS

Satellite Radio tuner, which is sold separately.

Switching the equalizer

curves. Refer to Using the equali- zer on page 46.

Section

XM/SIRIUS tuner

Band:

Instant Replay

Memo

Displaying the preset channel list. Refer to Storing and recal- ling stations on page 29. Selecting a channel directly. Refer to Selecting an XM/

SIRIUS channel directly

on page 37. Selecting a channel from the XM channel list. Refer to Selecting a chan-

nel from the XM channel list display on page 37.

Selecting a band (XM1, XM2 or XM3) for XM

tuner. Selecting a band (SIR-

IUS1, SIRIUS2 or SIRIUS3) for the SIRIUS

tuner.

Recalling radio station frequencies assigned to preset tuning keys. Refer to Storing and recal- ling stations on page 29. Selecting the channel category when selecting Mode Category. Refer to Switching the

XM/SIRIUS channel selection mode on page 37 and Selecting a XM/SIRIUS channel from a channel category on page 37.

Selecting a track, fast forwarding/reversing or pausing/playing for the SIRIUS tuner. Refer to Using the Instant Replay function on page

41.

Storing the song title and artist name. Refer to Making the MyMix playlist on page

38.

Switching to memo edit mode. Refer to Setting up a song alert on page 39.

Memo Edit

Game

Info

Team

Setting

Refer to Deleting a song from the MyMix playlist for XM tuner on page 39. Refer to Deleting a song from the MyMix playlist for SIRIUS tuner on page

40.

Displaying information on games for the SIRIUS tuner. Refer to Displaying game information on page 41.

Selecting teams for game alert on the SIRIUS tuner. Refer to Selecting teams for Game Alert on page

40.

! SIRIUS tuner information

Switching the SIRIUS information. Refer to Switching the SIRIUS display on page 41.

Touch and hold for more than two seconds to scroll the text.

Manual tuning (step by step) using the buttons 1 Press c or d (TRACK/SEEK).

Seek tuning using the buttons 1 Press and hold c or d (TRACK/SEEK).

Note

You can also perform tuning from a desired channel category. (Refer to Selecting a XM/SIRIUS channel from a channel category on page 37.)

67 8

HD Radioä tuner

Section

Introduction of HD Radioä tuner operations

Local

Seek

Blending D/A Auto

All

Digital Radio

Abcdeabcdeabcde

P.CH

Band:

FM1

87.9 MHz

This HD Radio Ready receiver is ready to receive HD Radio broadcasts when connected to the HD Radio tuner (e.g. GEX-P20HD), sold separately.

For details concerning operation, refer to the HD Radio tuner’s operation manual. ! Touch panel keys

Seek

All

Seek

42 35

Wed 28 may

12:45 PM

87.9

MHz

Turning local seek tuning on or off. Refer to Tuning in to strong HD Radio signals on page 29.

Switching between Digital broadcasting station seek and normal seek. Refer to Switching the seek mode on page 42.

Band:

Selecting a band (FM1, FM2, FM3 for FM or AM).

Recalling radio station frequencies assigned to preset tuning keys. Refer to Storing and recalling stations on page 29.

! Digital Radio tuner information

Switching the digital radio tuner informa-

tion.

Manual tuning (step by step) using the buttons 1 Press c or d (TRACK/SEEK).

Seek tuning using the buttons 1 Press and hold c or d (TRACK/SEEK).

HD Radioä tuner

Blending D/A Auto Blending

Analog

Switching to the analog broadcast of the same frequency. Refer to Switching the recep- tion mode on page 42.

Switching the equalizer curves. Refer to Using the equalizer on page 46.

Displaying the preset channel list. Refer to Storing and recalling stations on page 29.

4 5 6 7 8 9

Section

Using Bluetooth wireless technology

Introduction of Bluetooth telephone operations

During a call

12 3

TEL

Abcdeabc

Text

REG

Scroll

Except during a call

Text

REG

Scroll

When you connect a Bluetooth adapter (e.g. CD-BTB200)(sold separately) to AVHP2300DVD, you can control Bluetooth telephone. But the available features are limited.

Important

! In some countries, CD-BTB200 is not sold on

the market.

! Since this unit is on standby to connect with

your cellular phone via Bluetooth wireless technology, using it without the engine running can drain the battery power.

! Advanced operations that require attention

such as dialing numbers on the monitor, etc., are prohibited while driving. Park your vehicle in a safe place when using these advanced operations.

! Operations available may be limited depend-

ing on the cellular phone connected to this unit.

! Touch panel keys

Wed 28 May

12:45 PM

Switching the equalizer

Text

Scroll

curves. Refer to Using the equalizer on page 46.

Accepting an incoming call. Making a phone call, when selecting a phone number from the dialed and received call history.

Ending a call. Rejecting an incoming call. Canceling call waiting.

Displaying the received/ missed call history. Selecting a phone number from the call history. Refer to Using the missed, re-

ceived and dialed call lists on the optional Bluetooth adapter on page 42.

Displaying the dialed call history. Selecting a phone number from the call history. Refer to Using the missed, re-

ceived and dialed call lists on the optional Bluetooth adapter on page 42.

Scrolling the phone number. Touch and hold for more than two seconds to activate connection mode on this unit and establish a Bluetooth wireless connection from your phone. Refer to Using a cellular

phone to initiate a connection

on page 43.

Registering connected cellular phone to take full advantage of the features available with Bluetooth wireless technology. Refer to Registering a con- nected cellular phone on page 43. Touch and hold for more than two seconds to terminate the Bluetooth wireless connection.

Using Bluetooth wireless technology

Section

Turning automatic answering on or off. Refer to Setting automatic an- swering on page 42. Touch and hold for more

than two seconds to connect to a Bluetooth telephone automatically. Refer to Connecting to a Blue- tooth device automatically on page 43.

Turning the ring tone for incoming calls on or off. Refer to Switching the ring tone on page 42. Touch and hold for more than two seconds to display the Bluetooth device address and the device name. Refer to Displaying Bluetooth Device address on page 44.

Switching between Bluetooth telephone and Bluetooth audio. Touch and hold for more than two seconds to start voice recognition. Refer to Voice recognition on page 43.

Setting up for hands-free phoning

Before you can use the hands-free phoning function you must set up the unit for use with your cellular phone. This entails establishing a Bluetooth wireless connection between this unit and your phone, registering your phone with this unit, and adjusting the volume level.

1 Connection

First, you need to connect a Bluetooth telephone to this unit. For detailed instructions on connecting your phone to this unit via Bluetooth wireless technology, see following section. Using a cellular phone

to initiate a connection on page 43 and Registering a connected cellular phone on page 43.

2 Volume adjustment

Adjust the earpiece volume of your cellular phone to your preference. ! The volume of the caller’s voice and ring tone

may vary depending on the type of cellular phone.

! If there is a large volume difference between

the ring tone and caller’s voice, the overall volume level may become unstable.

! Make sure to adjust the volume to a proper

level before disconnecting the cellular phone from the unit. If the volume is muted (zero level) on your cellular phone, the volume level of your cellular phone remains muted even after the cellular phone is disconnected.

Bluetooth audio operations

When you connect a Bluetooth adapter (e.g. CD-BTB200)(sold separately) to AVHP2300DVD, you can control Bluetooth audio.

Important

! Depending on the Bluetooth audio player con-

nected to this unit, the available operations will be limited to the following two levels: — A2DP profile (Advanced Audio Distribution

Profile): You can only playback songs on

your audio player.

— AVRCP profile (Audio/Video Remote Con-

trol Profile): You can perform playback,

pause playback, select songs, etc.

! Since there are a number of Bluetooth audio

players available on the market, available operations will vary extensively. When operating your player with this unit, refer to the instruction manual that came with your Bluetooth audio player as well as this manual.

Using Bluetooth wireless technology

Section

Using Bluetooth wireless technology

! Information related to a song (such as the

elapsed playing time, song title, song index, etc.) cannot be displayed on this unit.

! As the signal from your cellular phone may

cause noise, avoid using it when you are listening to songs on your Bluetooth audio player.

! When a call is in progress on the cellular

phone connected to this unit via Bluetooth wireless technology, the sound of the Bluetooth audio player connected to this unit is muted.

! When the Bluetooth audio player is in use,

you cannot connect to a Bluetooth telephone automatically.

! Playback continues even if you switch from

your Bluetooth audio player to another source while listening to a song.

! Touch panel keys

Switching between Bluetooth telephone and Bluetooth audio.

Skipping back or forward to another track when Auto is set for the auto/manual setting. Performing fast forward or rewind when Manual is set for the auto/ manual setting.

Pausing a song. Touch and hold for more than two seconds to activate connection

mode on this unit and establish a Bluetooth wireless connection from your player. Refer to Connecting a Bluetooth audio player on page 43.

Playback starts. Touch and hold for more than two seconds to terminate the Bluetooth wireless connection.

Setting the action for c and d icons.

Auto

Switching the equalizer curves. Refer to Using the equalizer on page 46.

Setting up for Bluetooth audio

Before you can use the Bluetooth audio function you must set up the unit for use with your Bluetooth audio player. This entails establishing a Bluetooth wireless connection between this unit and your Bluetooth audio player, and pairing your Bluetooth audio player with this unit.

1 Connection

First, you need to connect a Bluetooth audio to this unit. For detailed instructions on connecting your Bluetooth audio to this unit via Bluetooth wireless technology, see Connecting a Bluetooth audio player on page 43.

Detailed instructions

Section

Storing and recalling stations

You can easily store up to six stations for each band as presets. ! Six stations for each band can be stored in

memory.

! Channels are stored and recalled on a

broadcast station basis. This means that if the broadcast station you stored has been assigned to a different channel by SIRIUS, you can still recall the same broadcast station (though a different channel number may appear in the display).

1 Display the preset screen.

Refer to Introduction of tuner operations on page 15. Refer to Introduction of XM/SIRIUS tuner opera- tions on page 23. Refer to Introduction of HD Radioä tuner opera- tions on page 25. The preset screen appears in the display.

2 Touch and hold one of the preset tuning keys to store the selected frequency in the memory.

The selected radio station frequency has been stored in the memory.

3 Touch one of the preset tuning keys to select the desired station.

# You can also use a and b to recall stations assigned to preset tuning keys Preset1 to Preset6 when the Mode All CH mode is selected. (Function of SIRIUS tuner)

Storing the strongest stations

BSM (best stations memory) automatically stores the six strongest stations in the order of their signal strength. Storing broadcast frequencies with BSM may replace broadcast frequencies you have saved using the preset tuning keys.

1 Display the preset screen.

Refer to Introduction of tuner operations on page 15. Refer to Introduction of HD Radioä tuner opera- tions on page 25. The preset screen appears in the display.

2 Touch BSM to turn BSM on.

The six strongest broadcast frequencies will be stored under preset tuning keys in order of their signal strength.

# To cancel the storage process, touch Cancel.

Tuning in to strong signals

Local seek tuning lets you tune in to only those radio stations with sufficiently strong signals for good reception.

FM: off — AM: off — — The highest level setting allows reception of only the strongest stations, while lower levels allow the reception of weaker stations.

— — —

Tuning in to strong HD Radio signals

Local seek tuning lets you tune in to only those radio stations with sufficiently strong signals for good reception.

1 Start local seek tuning

Refer to Introduction of HD Radioä tuner opera- tions on page 25.

2 Touch On on Local to turn on.

# To turn off, touch Off.

3 Touch c or d on Level to select the desired level.

# Level1—Level2—Level3—Level4 # The highest level setting allows reception of

only the strongest stations, while lower levels allow the reception of weaker stations.

Detailed instructions

Section

Detailed instructions

Switching the media file type

When playing a disc containing a mixture of various media file types, such as DivX and MP3, you can switch between media file types to play. Audio data (CD-DA) and JPEG picture files on DVD-R/RW/ROM cannot be played back on this unit.

CD (audio data (CD-DA))—Music/ROM (compressed audio)—Video (DivX video files)— Photo (JPEG picture files)

Operating the DVD menu

(Function for DVD video) Some DVDs allow you to make a selection from the disc contents using a menu.

Using the arrow keys

1 Display arrow keys to operate the DVD menu.

Refer to Playing moving images on page 16.

2 Select the desired menu item.

Selecting the desired menu item.

Starting playback from the selected menu item.

Operating the DVD menu by directly touching the menu item.

# When operating the DVD menu by directly touching the menu item, touch the icon to operate.

Returning to the normal DVD video display.

Displaying arrow keys.

# Ways to display the menu will differ depending on the disc. # Depending on the contents of the DVD disc, this function may not work properly. In such cases, use the touch panel keys to operate the DVD menu.

Operating this unit’s iPod function from your iPod

You can listen to the sound from your iPod applications using your car's speakers, when App Mode is selected. This function is not compatible with the following iPod models.

! iPod nano 1st generation ! iPod 5th generation

APP mode is compatible with the following iPod models.

! iPhone 4 (software version 4.1 or later) ! iPhone 3GS (software version 4.1 or later) ! iPhone 3G (software version 4.1 or later) ! iPhone (software version 3.1.3 or later) ! iPod touch 4th generation (software version

4.1 or later)

! iPod touch 3rd generation (software version

4.0 or later)

! iPod touch 2nd generation (software ver-

sion 4.0 or later)

! iPod touch 1st generation (software version

3.1.3 or later)

1 Switch the control mode to App Mode.

Refer to Introduction of video playback operations on page 16. Refer to Introduction of sound playback operations on page 19.

2 Operate the connected iPod to select a video/song and play.

Detailed instructions

Section

Note

The following functions are still accessible from the unit even if the control mode is set to App Mode. However, the operation will depend on your applications.

! Pausing ! Fast forwarding/reversing ! Tracking up/down ! Moving to a chapter up/down

Random play (shuffle)

iPod-videos/songs can be played back in random order.

! Songs – Play back videos/songs in the se-

lected list in random order.

! Albums – Play back videos/songs from a

randomly selected album in order.

! Folder – Play back songs/tracks in the se-

lected folder in random order.

! Disc – Play back songs/tracks in the se-

lected disc in random order.

! On – Play back files in random order within

the repeat range, Folder and Disc.

! Off – Cancel random play.

Playing all songs in random order (shuffle all)

(Function for iPod) This method plays all songs on the iPod randomly.

Repeating playback

! Disc – Play through the current disc ! Chapter – Repeat the current chapter ! Title – Repeat the current title ! Track – Repeat the current track ! File – Repeat the current file ! Folder – Repeat the current folder

! One – Repeat just the current video/song/

track

! All – Repeat all videos/songs in the se-

lected list on the iPod and all files on the USB

! This function cannot be operated during

Video CD playback featuring PBC (playback control).

! If you perform chapter search, fast forward/

reverse, frame-by-frame playback or slow motion playback, the repeat play will stop.

! When playing discs with compressed audio

and audio data (CD-DA), playback is repeated within the type of data currently playing even if Disc is selected.

! If you select another folder during repeat

play, the repeat play range changes to Disc. If you select USB source, the repeat play range changes to All.

! If you perform track search or fast forward/

reverse during File, the repeat play range changes to Folder.

! If you perform title/chapter search or fast

forward/reverse during Chapter, the repeat play range changes to Disc.

! If you perform track search or fast forward/

reverse during Track, the repeat play range changes to Disc.

! When Folder is selected, it is not possible

to play back a subfolder of that folder.

Playing videos from your iPod

(Function for iPod) Videos can be played on this unit if an iPod with video capabilities is connected. ! This unit can play back “Movies”, “Music vi-

deos”, “Video Podcast” and “ TV show” which are downloaded from the iTunes store.

! Before you display the video screen, be

sure to change the video setting on the iPod so that the iPod can output the video to an external device.

Detailed instructions

Section

Detailed instructions

1 Display the iPod menus.

Refer to Playing moving images on page 16.

2 Switch to iPod video mode.

Video

3 Play the video from the iPod.

# If you want to switch to iPod music mode, touch the icon.

Music

Switching to iPod video mode.

Switching to iPod music mode.

Browsing for a video/music on the iPod

(Function for iPod) To make operating and searching easy, operations to control an iPod with this unit are designed to be as similar to the iPod as possible.

Searching for a video/music by category

1 Display the iPod menus.

Refer to Playing moving images on page 16. Refer to Playing audio on page 19.

2 Touch one of the categories in which you want to search for a video/music.

! Video Playlists (video playlists) ! Movies (movies) ! Music Videos (music videos) ! Video Podcasts (video podcasts) ! TV Shows (TV shows) ! Playlists (playlists) ! Artists (artists) ! Albums (albums) ! Songs (songs) ! Podcasts (podcasts) ! Genres (genres) ! Composers (composers)

! Audiobooks (audiobooks)

3 Touch the title of the list that you want to play.

Repeat this operation until you find the desired video/music.

4 Start playback of the selected list.

Starting playback of the selected list.

Searching the list by alphabet

(Function for iPod)

1 Select a category.

Refer to Searching for a video/music by category on this page.

2 Switch to alphabet search mode.

Switching to alphabet search mode.

Alphabet search mode is displayed.

3 Touch the first letter of the title of the video/song you are looking for.

While searching, touch panel key operation is not available.

# To refine the search with a different letter, touch Cancel.

4 Touch the title of the list that you want to play.

Repeat this operation until you find the desired song/video.

5 Start playback of the selected list.

Starting playback of the selected list.

Detailed instructions

Section

Resume playback (Bookmark)

(Function for DVD video) By using the Bookmark function, you can resume playback from a selected scene the next time the disc is loaded.

The selected scene will be bookmarked so that playback resumes from that point next time. ! To clear the bookmark on a disc, touch and

hold the button during playback.

! The oldest bookmark is replaced by the

new one.

Frame-by-frame playback

(Function for DVD video/video CD/DivX file)

Note

Images during frame-by-frame playback may be unclear for some discs.

Slow motion playback

Notes

! There is no sound during slow motion play-

back.

! Images during slow motion playback may be

unclear for some discs.

! Reverse slow motion playback is not

available.

! This function cannot be operated during

some DVD videos or Video CD playback featuring PBC (playback control).

1 Start the search function.

Refer to Playing moving images on page 16.

2 Touch the desired search option (e.g., Chapter).

3 Touch 0 to 9 to input the desired number.

# To cancel the entered numbers, touch C.

4 Start playback from the selected part.

Registering the numbers and starting playback.

Note

With discs featuring a menu, you can also use the DVD menu to make your selection. Refer to Playing moving images on page 16.

Detailed instructions

Changing audio language during playback (Multi-audio)

With DVDs/DivX files that provides audio playback in different languages and different audio systems such as Dolby Digital, you can switch between languages/audio systems during playback.

Searching for the part you want to play

You can use the search function to find the part you want to play. For DVD videos, you can select Title (title), Chapter (chapter) or 10key (numeric keypad). For video CDs, you can select Track (track) or 10key (numeric keypad). ! Chapter search is not available when disc

playback is stopped.

Notes

! With some DVDs, switching between lan-

guages/audio systems may only be possible using a menu display.

! You can also switch between languages/audio

systems using Video Setup menu. For details, refer to Setting the audio language on page 48.

! Depending on the setting, the video may not

be played back with the audio system used to record the DVD.

! You will return to normal playback if you

change the Audio during fast forward/fast rewind, pause or slow motion playback.

Section

Detailed instructions

Changing the subtitle language during playback (Multi-subtitle)

With DVDs/DivX files featuring multi-subtitle recordings, you can switch between subtitle languages during playback.

Notes

! With some DVDs, switching between subtitle

languages may only be possible using a menu display.

! You can also switch between subtitle lan-

guages using Video Setup menu. For details, refer to Setting the subtitle language on page

48.

! You will return to normal playback if you

change the Subtitle during fast forward/fast rewind, pause or slow motion playback.

Changing the viewing angle during playback (Multi-angle)

With DVDs featuring multi-angle (scenes shot from multiple angles) recordings, you can switch among viewing angles during playback. ! During playback of a scene shot from mul-

tiple angles, the angle icon is displayed. Use the Video Setup menu to turn the angle icon display on or off. For details, refer to Setting the multi-angle DVD display on page 49.

Note

You will return to normal playback if you change the viewing angle during fast forward/fast rewind, pause or slow motion playback.

Return to the specified scene

(Function for DVD video)

This function cannot be used if a specified scene has not been preprogrammed on the DVD disc.

Selecting audio output

When playing DVD video discs recorded with LPCM audio, you can switch the audio output. When playing video CDs, you can switch between stereo and monaural audio output. ! This function is not available when disc

playback is stopped.

! L+R – left and right ! Left – left ! Right – right ! Mix – mixing left and right

You may not be able to select or use this function depending on the disc and the playback location.

PBC playback

(Function for Video CDs) During playback of Video CDs featuring PBC (Playback Control), PBC ON is displayed.

1 Start the search function.

Refer to Playing moving images on page 16.

2 Touch 10key to display the numeric keypad.

3 Touch 0 to 9 corresponding to a menu number.

4 Start playback from the selected part.

Registering the numbers and starting playback.

Notes

! You can display the menu by touching Return

during PBC playback. For details, refer to the instructions provided with the disc.

! PBC playback of a Video CD cannot be can-

celed.

! During playback of Video CDs featuring PBC

(Playback Control), you cannot select the repeat play range or use the search function.

Detailed instructions

Section

Selecting tracks from the track title list

You can select tracks to playback using the track title list which is a list of the tracks recorded on a disc.

1 Display the track title list.

Refer to Playing audio on page 19.

2 Touch your favorite track title.

Playback begins.

Selecting files from the file name list

(Function for compressed audio/DivX/JPEG) File name list is a list of file names (or folder names) from which you can select a file (or folder) to play back.

1 Display the file (or folder) name list.

Refer to Playing audio on page 19. Refer to Introduction of still image playback op- erations on page 21.

2 Touch your favorite file (or folder) name.

# When you have selected a folder, a list of the names of the files (or the folders) in it can be viewed. Repeat this operation to select the desired file name. # If folder 01 (ROOT) contains no files, playback commences with folder 02.

3 Start playback of the selected list.

Changing audiobook speed

(Function for iPod)

! !

– Playback at a speed faster than

normal

– Playback at normal speed

– Playback at a speed slower than nor-

mal

Displaying lists related to the currently playing song (Link Search)

(Function for iPod)

1 Start Link Search.

Refer to Introduction of sound playback operations on page 19.

2 Touch one of the categories in which you want to play.

! Artist – Displays an album list of the artist

currently being played.

! Album – Displays a song list from the

album currently being played.

! Genre – Displays an album list from the

genre currently being played.

# To cancel searching, touch Cancel.

3 Touch the title of the list that you want to play.

4 Start playback of the selected list.

Starting playback of the selected list.

Detailed instructions

Starting playback of the selected list.

Using sound retriever

Automatically enhances compressed audio and restores rich sound.

Off — ! is more effective than .

—

Playing DivXâVOD content

Some DivX VOD (video on demand) content may only be playable a fixed number of times. When you load a disc containing this type of content, the remaining number of times it can be played is shown on-screen. You can then decide whether or not to play the disc.

Section

Detailed instructions

! If there is no limit to the number of times

the DivX VOD content can be viewed, then you may load the disc into your player and play the content as often as you like, and no message will be displayed.

! You can confirm the number of times that

the content can be played by checking the message displayed after “This DivX rental has used”.

Important

! In order to play DivX VOD contents on this

unit, you first need to register the unit with your DivX VOD contents provider. For details on your registration code, refer to Displaying

the DivX

! DivX VOD content is protected by a DRM (Di-

gital Rights Management) system. This restricts playback of content to specific, registered devices.

VOD registration code on page 51.

% If a message is displayed after loading a disc containing DivX VOD content, touch Play.

Playback of the DivX VOD content will start.

# To skip to the next file, touch Next Play. # If you do not want to play the DivX VOD con-

tent, touch Stop.

Capture an image in JPEG files

You can capture image data and use it as wallpaper. Images can be stored and recalled easily in this unit. ! Only one image can be stored on this unit.

Old image is overwritten with the new one.

1 Pause the slideshow when the desired image is displayed.

Refer to Introduction of still image playback operations on page 21. Refer to Introduction of still image playback as a slideshow operations on page 22.

2 Capture the image.

Refer to Introduction of still image playback operations on page 21.

Refer to Introduction of still image playback as a slideshow operations on page 22.

3 When Do you save this image? is displayed, touch Yes. While storing the image to this unit, Saving the image Don't switch off the battery. is

displayed. When the process is finished, Image saved is displayed.

# To cancel the storage process, touch No.

Changing the wide screen mode

You can select a desired mode for enlarging a 4:3 picture to a 16:9 picture.

1 Display the screen mode.

Refer to Introduction of video playback operations on page 16. Refer to Introduction of still image playback operations on page 21. Refer to Introduction of still image playback as a slideshow operations on page 22.

2 Touch the desired wide mode setting.

Full (full screen)

The 4:3 picture is enlarged in the horizontal direction only, giving you a 4:3 TV picture (normal picture) without any omissions.

Just (just)

The picture is enlarged slightly at the center and the amount of enlargement increases horizontally toward the edges of the screen, enabling you to enjoy a 4:3 picture without sensing any disparity even when viewing on a wide screen.

Cinema (cinema)

The picture is enlarged by the same proportion as Full or Zoom in the horizontal direction and by an intermediate proportion between Full and Zoom in the vertical direction; ideal for a cinemasized picture (wide screen picture) where captions lie outside the picture.

Detailed instructions

Section

Zoom (zoom)

The 4:3 picture is enlarged in the same proportion both vertically and horizontally; ideal for a cinema sized picture (wide screen picture).

Normal (normal)

The 4:3 picture is displayed as it is, giving you no sense of disparity since its proportions are the same as that of the normal picture.

Notes

! You cannot operate this function while driving. ! Different settings can be stored for each video

source.

! When a video is viewed in a wide screen mode

that does not match its original aspect ratio, it may appear different.

! Remember that using the wide mode feature

of this system for commercial or public viewing purposes may constitute an infringement on the author’s rights protected by the Copyright Law.

! The video image will appear coarser when

viewed in Cinema or Zoom mode.

Switching the XM/SIRIUS channel selection mode

You have two methods for selecting a channel: by number and by category. When selecting by number, channels in any categor y can be selected. Select by category to narrow your search down to only channels in a particular category.

Mode All CH (channel number select setting) —Mode Category (channel category select setting)

1 Select channel category selection mode.

Refer to Introduction of XM/SIRIUS tuner operations on page 23.

Mode All CH (channel number select setting)

—Mode Category (channel category select setting)

2 Touch a or b to select the desired channel category.

3 Touch c or d on the buttons to select the desired channel in the selected channel category.

Selecting a channel from the XM channel list display

The list content can be switched so you can search for the track you want to listen to not only by the channel name but also by the artist name or song title.

! This function is available for GEX-P920XM. ! The channel list shows all the channels

during Mode All CH mode, and the channels included in the selected category during Mode Category mode.

1 Display the preset channel list.

Refer to Introduction of XM/SIRIUS tuner operations on page 23.

2 Switch the channel list mode.

Switching the channel list mode to the channel name or the artist name/song title.

3 Touch the desired channel that you want to listen to.

Detailed instructions

Selecting a XM/SIRIUS channel from a channel category

Channels are organized into various program categories, e.g. Rock, Classic, Jazz while listening to a XM/SIRIUS station. You can specify channels by selecting the desired category.

Selecting an XM/SIRIUS channel directly

You can select an XM/SIRIUS channel directly by entering the desired channel number.

Section

Detailed instructions

1 Display the preset channel list.

Refer to Introduction of XM/SIRIUS tuner operations on page 23.

2 Switch to direct input display.

Switching to direct input display.

3 Touch 0 to 9 to input the desired channel number.

# To cancel the input numbers, touch C.

4 Select the XM/SIRIUS channel of the entered number.

The XM/SIRIUS channel of the entered number is selected.

Selecting the XM/SIRIUS channel of the entered number.

Using the MyMix function

The MyMix function allows you to make a MyMix song playlist. When a song in the MyMix playlist is being broadcast on a station other than the one you are listening to, you will be alerted, and you can tune in to the other station to listen to that song. ! This function is available for GEX-P920XM/

SIRIUS tuner.

! The track itself is NOT downloaded. Only

the song title and artist name are stored.

The song title and artist name of the song you are listening to are stored, and a confirmation message appears.

# To delete a song from the MyMix playlist, refer to Deleting a song from the MyMix playlist for XM

tuner on the next page and Deleting a song from the MyMix playlist for SIRIUS tuner on page 40.

# (XM tuner) The song title and artist name of up to 12 tracks can be stored. Old tracks will be overwritten when saving more than 12 tracks. # (SIRIUS tuner) The song title and artist name of up to 10 tracks can be stored. # You cannot store the song title or the artist name when “––––––––”is displayed for the title information. # You cannot store song titles or artist names from channel 000. # Stored titles may not be displayed correctly.

Making the MyMix playlist

You can add a song that is being broadcast to the MyMix playlist. When it is added, the song title and its artist name are stored to this unit. The MyMix function will start when you listen to a song that matches a song title and its artist name in the MyMix playlist.

% Store the song title and artist name.

Refer to Introduction of XM/SIRIUS tuner operations on page 23.

Detailed instructions

Section

When a song in the MyMix playlist is broadcast

(XM tuner) As soon as a song in the MyMix playlist starts being broadcast on a different station, a message is displayed. Touch Yes to switch to that station, and you can listen to that song. (SIRIUS tuner) As soon as a stored song starts being broadcast on a different station, a song alert is displayed.

Switching to the other station to listen to that track.

Not tuning in to the other station.

! (XM tuner)

If you would rather not to tune in to the other station, touch No.

! If an alert for a song in the MyMix playlist is

set to off, no alert will be provided even when the song is broadcast. Refer to Set- ting up a song alert on this page.

! If the stored title and the title of the song

being broadcast differ, no alert will be provided even if they are the same song.

MyMix playlist and then change each alert setting. Set the alert to on to receive an alert when the song is broadcast, or set it to off to stop the alert for that song.

1 Switch to memo edit mode.

Refer to Introduction of XM/SIRIUS tuner operations on page 23.

The MyMix playlist is displayed.

2 Select the song title for which you want to turn the alert on or off.

(XM tuner) The check mark is removed, and the alert for that song is off. (SIRIUS tuner)

Selecting the song title for which you want to turn the alert off.

3 Turn the alert on or off.

(SIRIUS tuner)

Turning the alert on or off.

Detailed instructions

Turning the MyMix function on or off

You can turn the MyMix function off and stop the alerts for all the songs in the MyMix playlist. To restart, turn this function on. The MyMix function is on as the default setting.

% Turn the MyMix function on or off.

Refer to Introduction of XM/SIRIUS tuner operations on page 23.

Setting up a song alert

You can set up an alert (on or off) for each song in the MyMix playlist. First, display the

Deleting a song from the MyMix playlist for XM tuner

You can delete each song in the MyMix playlist.

1 Switch to memo edit mode.

Refer to Introduction of XM/SIRIUS tuner operations on page 23.

The MyMix playlist is displayed.

2 Delete the song title.

Deleting the song title.

Deleting all the songs in the MyMix playlist.

Section

Detailed instructions

That song will be deleted from the MyMix playlist. A message to confirm deletion will appear.

3 Touch Yes.

# To cancel deletion, touch No.

Deleting a song from the MyMix playlist for SIRIUS tuner

You can delete each song in the MyMix playlist.

1 Switch to memo edit mode.

Refer to Introduction of XM/SIRIUS tuner operations on page 23.

2 Select the song title that you want to delete.

Selecting the song title that you want to delete.

3 Delete the song title.

Deleting the song title.

A message to confirm deletion will appear.

4 Touch Yes.

That song will be deleted from the MyMix playlist.

# To cancel deletion, touch No.

Selecting teams for Game Alert

1 Start Game Alert setup.

Refer to Introduction of XM/SIRIUS tuner operations on page 23.

2 Select a desired league in League.

Switching the league name.

3 Select a desired team in Team.

Switching the team name.

4 Turn the alert on or off.

Turning the alert on or off.

The game alert function is activated for that team.

# When you have already selected 12 teams, FULL is displayed and additional teams cannot be selected. In this case, first delete a selected team and then try again.

5 Repeat these steps to select other teams.

Up to 12 teams can be selected.

Using the Game Alert function

This system can alert you when games involving your favorite teams are about to start. To use this function you need to set up a game alert for the teams in advance. ! This function is available for SIR-PNR2/SIR-

PNR2C.

Switching the Game Alert on or off

Once you select the teams, you need to turn the Game Alert function on. The Game Alert function is on at the default setting.

Detailed instructions

Section

When a game of a selected team starts

When a game of the selected team is about to start (or is currently playing) on a different station, a game alert is displayed.

Switching to the other station to listen to the game.

Not tuning in to the other station.

Displaying game information

If any games of the selected teams are currently playing, you can display information on the games and tune in to the broadcast channel.

1 Display the game information for the selected team.

Refer to Introduction of XM/SIRIUS tuner operations on page 23.

2 Touch c or d to select a game.

The game is displayed, followed by more detailed game information.

! The game score will be updated automati-

cally.

3 Switch to the other station to listen to the game.

Switching to the other station to listen to the game.

# If you have not selected any teams, NOT SET is displayed. # When games involving your favorite teams are not currently playing, NO GAME is displayed.

% Select CH000.

Refer to Introduction of XM/SIRIUS tuner operations on page 23.

Switching the SIRIUS display

! Actions will differ depending on the con-

nected SIRIUS tuner.

% Touch SIRIUS information to switch the SIRIUS display.

Refer to Introduction of XM/SIRIUS tuner operations on page 23.

Channel number—Channel name—Category name—Artist name—Song title/Title name— Composer name—Play time

Note

Play time is displayed during the Instant Replay mode.

Using the Instant Replay function

The following functions can be operated in Instant Replay mode. ! To use this function, a Pioneer SIRIUS bus

interface (e.g. CD-SB10) is required.

! To use this function, a SIRIUS plug-and-

play unit with an Instant Replay Function is required.

! For details, refer to the SIRIUS plug-and-

play unit’s manuals.

% To exit from Instant Replay mode, select another source or touch the following icon.

Exiting from Instant Replay mode.

Detailed instructions

Displaying the Radio ID

Channel number selection setting

If you select CH000, the ID code is displayed.

% Select a track

Press c or d (TRACK/SEEK).

% Fast forward or reverse

Press and hold c or d (TRACK/SEEK).

Section

Detailed instructions

% Pause and play

Playing and pausing.

Switching the seek mode

There are two seek tuning settings, one is Seek HD (Digital broadcasting stations seek) and the other is Seek All (normal seek).

Seek All—Seek HD

Switching the reception mode

If the reception for a digital broadcast becomes poor, this unit automatically switches to the analog broadcast of the same frequency. If this function is set to D/A Auto, the tuner switches between digital broadcast and analog broadcast automatically. If this function is set to Analog, the tuner will only receive analog broadcasts.

D/A Auto—Analog

Note

If SEEK MODE is set to Seek HD and BLENDING is set to Analog, the tuner cannot receive broadcasts. In this case, the seek mode or reception mode is changed automatically as follows: ! When SEEK MODE is set to Seek HD, if you

switch BLENDING from D/A Auto to Analog, SEEK MODE is changed to Seek All.

! When BLENDING is set to Analog, if you

switch SEEK MODE from Seek All to

Seek HD, BLENDING is changed to D/A Auto.

Using the missed, received and dialed call lists on the optional Bluetooth adapter

The 3 most recent calls dialed, received, and missed are stored in the memory. You can browse them and call numbers from these lists.

1 Switch to the call history list.

Refer to Introduction of Bluetooth telephone operations on page 26.

2 Touch a phone number or name (if entered) you want to call.

3 Make the call.

Refer to Introduction of Bluetooth telephone operations on page 26.

4 End the call.

Refer to Introduction of Bluetooth telephone operations on page 26.

Setting automatic answering

If this function is on, this unit automatically answers all incoming calls.

% Turn automatic answering on or off.

Refer to Introduction of Bluetooth telephone operations on page 26.

Switching the ring tone

You can select whether or not to use this unit’s ring tone. If this function is set to on, the ring tone for this unit will sound.

1 Connect your cellular phone to this unit.

2 Turn ring tone on or off.

Refer to Introduction of Bluetooth telephone operations on page 26.

Detailed instructions

Section

Using a cellular phone to initiate a connection

A Bluetooth wireless connection can be established from your phone by putting the unit into initiating a connection mode. You may need to refer to the operation manual that came with your phone if you are unsure how to initiate a connection from your phone.

1 Put the unit in initiating a connection mode.

Refer to Introduction of Bluetooth telephone operations on page 26.

2 Use a cellular phone to connect to this unit.

# Operation varies depending on the type of cellular phone. # You may need to enter the link code on your cellular phone to complete the connection.

Registering a connected cellular phone

You can register a phone that is temporarily connected to this unit in order to take full advantage of the features available with Bluetooth wireless technology. Only one cellular phone can be registered.

1 Start registering a connected cellular phone.

Refer to Introduction of Bluetooth telephone operations on page 26.

2 Use cellular phone to register to this unit.

If registration is successful, you can browse the dialed, received, and missed call lists.

# To replace an assignment with a new phone, first delete the current assignment. # If registration failed, return to step 1 and try again.

Voice recognition

If your cellular phone features voice recognition technology, you can make a call by voice commands. ! Operation varies depending on the type of

cellular phone. Refer to the instruction manual that came with your cellular phone for detailed instructions.

1 Start voice recognition.

Refer to Introduction of Bluetooth telephone operations on page 26.

2 Say the name of your contact aloud.

Connecting a Bluetooth audio player

A Bluetooth wireless connection can be established by putting the unit into initiating a connection mode.

% Put the unit in initiating a connection mode.

Refer to Bluetooth audio operations on page

27. This unit is now on standby for connection from Bluetooth audio player. If your Bluetooth audio player is set ready for Bluetooth wireless connection, connection to this unit is automatically established.

Connecting to a Bluetooth device automatically

If this function is set to on, a connection between your Bluetooth device and this unit will take place automatically as soon as the two devices are less than a few meters apart. Initially, this function is set to on.

1 Touch Auto Connect to turn automatic connection on.

Refer to Introduction of Bluetooth telephone operations on page 26.

Detailed instructions

Section

Detailed instructions

If your Bluetooth device is ready for a Bluetooth wireless connection, a connection to this unit will automatically be established.

# To turn automatic connection off, touch

Auto Connect again.

2 Turn your vehicle’s ACC switch off and on.

Displaying Bluetooth Device address

This unit displays its Bluetooth Device address.

% Touch Bluetooth Version to display device information.

Refer to Introduction of Bluetooth telephone operations on page 26.

The Bluetooth Device address is displayed.

543

Menu operations

Section

Introduction of menu operations

Audio

Fader/Balance F/R 0 L/R 0

Graphic EQ

Loudness

Subwoofer

Bass Booster

High Pass Filter

1 Display menus.

Refer to Common operations for menu settings/lists on page 14.

2 Touch any of the following touch panel keys to select the menu to be adjusted.

! Touch panel keys

Video Setup menu

Refer to Setting up the DVD player on page 48.

Audio function menu Refer to Audio Adjustments on the next page.

System menu Refer to System settings on page 52.

Entertainment menu Refer to Entertainment settings on page 55.

Custom menu You can choose menus within each menu (Audio function menu, etc.) and register them to this custom menu. Refer to Customizing menus on page 56.

Super Bass

High

Off

! You cannot display the Audio function menu

when the mute function/attenuation is on or a JPEG file is playing.

Menu operations

Notes

! You can display the Video Setup menu when

a Disc or USB source is selected.

! If you start the Video Setup menu, playback

is stopped.

Section

Menu operations

Audio Adjustments

Note

When selecting FM as the source, you cannot switch to Source Level Adjuster.

Using fader/balance adjustment

You can change the fader/balance setting to provide an ideal listening environment for all of the occupied seats.

1 Display the audio function menu.

Refer to Introduction of menu operations on the previous page.

2 Touch Fader/Balance on the audio function menu.

3 Touch a or b to adjust the front/rear speaker balance. Range: Front:15 to Rear:15

# Select F/R: 0 L/R: 0 when only using two speakers. # The front/rear speaker balance cannot be adjusted when the rear output setting is

Subwoofer. Refer to Setting the rear output and subwoofer controller on page 52.

4 Touch c or d to adjust the left/right speaker balance. Range: Left:15 to Right:15

Using the equalizer

You can adjust the equalization to match the car’s interior acoustic characteristics as desired.

Recalling equalizer curves

There are seven stored equalizer curves which you can easily recall at any time. Here is a list of the equalizer curves.

Display Equalizer curve

Powerful Powerful

Natural Natural

Display Equalizer curve

Vocal Vocal

Custom1 Custom 1

Custom2 Custom 2

Flat Flat

Super Bass Super bass

! The equalizer curves for Custom1 and

Custom2 can be adjusted.

! When Flat, no changes are made to the

sound. You can check the effects of the equalizer curves by switching alternatively between Flat and another equalizer curve.

1 Display the audio function menu.

Refer to Introduction of menu operations on the previous page.

2 Touch Graphic EQ on the audio function menu.

3 Touch c or d to select the desired item. Powerful—Natural—Vocal—Custom1— Custom2—Flat—Super Bass

Adjusting the 5-band graphic equalizer

You can adjust the level of each band for the equalizer curves. ! A separate Custom1 cur ve can be created

for each source. If you make adjustments when a curve other than Custom2 is selected, the equalizer curve settings will be stored in Custom1.

! A Custom2 curve that is common for all

sources can be created. If you make adjustments when the Custom2 curve is selected, the Custom2 curve will be updated.

1 Display the audio function menu.

Refer to Introduction of menu operations on the previous page.

2 Touch Graphic EQ on the audio function menu.

Menu operations

Section

3 Touch c or d to select the desired item. Powerful—Natural—Vocal—Custom1— Custom2—Flat—Super Bass

4 Touch the Equalizer band to adjust.

5 Touch a or b to adjust the level of the equalizer band. Range: +12dB to -12dB

# You can then select another band and adjust the level.

Adjusting loudness

Loudness compensates for deficiencies in the low- and high-frequency ranges at low volume.

1 Display the audio function menu.

Refer to Introduction of menu operations on page 45.

2 Touch Loudness on the audio function menu.

3 Touch c or d to select a desired level. Off (off)—Low (low)—Mid (mid)— High

(high)

Using subwoofer output

This unit is equipped with a subwoofer output which can be turned on or off. ! The cut-off frequency and output level can

be adjusted when the subwoofer output is on.

1 Display the audio function menu.

Refer to Introduction of menu operations on page 45.

2 Touch Subwoofer on the audio function menu.

3 Touch On or Off next to Subwoofer to turn the subwoofer output on or off.

5 Touch c or d next to Level to adjust the output level of the subwoofer. Range: +6 to -24

6 Touch c or d next to Frequency to select the cut-off frequency. 50Hz—63Hz—80Hz—100Hz—125Hz

Only frequencies lower than those in the selected range are outputted from the subwoofer.

Boosting the bass

You can boost the bass level.

1 Display the audio function menu.

Refer to Introduction of menu operations on page 45.

2 Touch c or d to select a desired level. Range: 0 to +6

Using the high pass filter

When you do not want low sounds from the subwoofer output frequency range to play from the front or rear speakers, turn on the HPF (high pass filter). Only frequencies higher than those in the selected range are output from the front or rear speakers.

1 Display the audio function menu.

Refer to Introduction of menu operations on page 45.

2 Touch c or d next to Frequency to select cut-off frequency. Off (off)—50Hz—63Hz—80Hz—100Hz— 125Hz

Only frequencies higher than those in the selected range are output from the front or rear speakers.

Menu operations

4 Touch Normal or Reverse next to Phase to select the phase of subwoofer output.

Section

Menu operations

Adjusting source levels

With SLA (source level adjustment), the volume levels of each source can be adjusted to prevent significant differences between sources. ! Settings are based on the FM volume level,

which remains unchanged.

1 Display the audio function menu.

Refer to Introduction of menu operations on page 45.

2 Compare the FM volume level with the level of the source you wish to adjust.

3 Touch Source Level Adjuster on the audio function menu.

4 Touch a or b to adjust the source volume. Range: +4 to –4

Notes

! The AM volume level can also be adjusted

with this function.

! Video CD, CD, compressed audio and DivX

are automatically set to the same source level adjustment volume.

! iPod and USB storage device are automati-

cally set to the same source level adjustment volume.

! External unit 1 and external unit 2 are automa-

tically set to the same source level adjustment volume.

Setting up the DVD player

Setting the subtitle language

You can set a desired subtitle language. When available, the subtitles will be displayed in the selected language.

1 Display the Video Setup menu.

Refer to Introduction of menu operations on page 45.

2 Touch Subtitle Language on the Video Setup menu.

A subtitle language menu is displayed.

3 Touch the desired language.

The subtitle language is set.

# If you have selected Others, refer to When you select Others on this page.

Notes

! If the selected language is not available, the

language specified on the disc is displayed.

! You can also switch the subtitle language by

touching the icon during playback. (Refer to Playing moving images on page 16.)

! The setting made here will not be affected

even if the subtitle language is switched during playback using Subtitle.

When you select Others

A language code input display is shown when

Others is selected. Refer to Language code chart for DVD on page 84.

1 Touch 0 to 9 to input the language code.

# To cancel the entered numbers, touch C.

2 Registering the code.

Registering the code.

Setting the audio language

You can set the preferred audio language.

Menu operations

Section

1 Display the Video Setup menu.

Refer to Introduction of menu operations on page 45.

2 Touch Audio Language on the Video Setup menu.

An audio language menu is displayed.

3 Touch the desired language.

The audio language is set.

# If you have selected Others, refer to When you select Others on the previous page.

Notes

! If the selected language is not available, the

language specified on the disc is used.

! You can also switch the audio language by

touching Audio during playback. (Refer to Playing moving images on page 16.)

! The setting made here will not be affected

even if the audio language is switched during playback using Audio.

Setting the menu language

You can set the preferred language in which the menus recorded on a disc are displayed.

1 Display the Video Setup menu.

Refer to Introduction of menu operations on page 45.

2 Touch Menu Language on the Video Setup menu.

A menu language menu is displayed.

3 Touch the desired language.

The menu language is set.

# If you have selected Others, refer to When you select Others on the previous page.

Note

If the selected language is not available, the language specified on the disc is displayed.

Setting the multi-angle DVD display

The angle icon can be set so it appears on scenes where the angle can be switched.

1 Display the Video Setup menu.

Refer to Introduction of menu operations on page 45.

2 Touch Multi Angle on the Video Setup menu to turn angle icon display on or off.

Setting the aspect ratio

There are two kinds of display: a wide screen display that has a width-to-height ratio (TV aspect ratio) of 16:9, and regular display that has a TV aspect of 4:3. Be sure to select the correct TV aspect for the display connected to V OUT. ! When using regular display, select either

Letter Box or Pan Scan. Selecting 16 : 9 may result in an unnatural picture.

! If you select the TV aspect ratio, the unit’s

display will change to the same setting.

1 Display the Video Setup menu.

Refer to Introduction of menu operations on page 45.

2 Touch TV Aspect on the Video Setup menu to select the TV aspect ratio.

Touch TV Aspect repeatedly until the desired aspect ratio appears.

! 16 : 9 – Wide screen picture (16:9) is dis-

played as is (initial setting)

! Letter Box – The picture is the shape of a

letterbox with black bands on the top and bottom of the screen

! Pan Scan – The picture is cut short on the

right and left sides of the screen

Notes

! When playing discs that do not specify

Pan Scan, the disc is played back in Letter Box display even if you select the Pan Scan setting. Confirm whether the disc

package bears the

! The TV aspect ratio cannot be changed for

some discs. For details, refer to the disc’s instructions.

16 : 9 LB

mark.

Menu operations

Section

Menu operations

Setting the slide show interval

JPEG files can be viewed as a slide show on this unit. In this setting, the interval between each image can be set.

1 Display the Video Setup menu.

Refer to Introduction of menu operations on page 45.

2 Touch Time Per Photo Slide on the Video Setup menu to select the slide show interval.

Touch Time Per Photo Slide repeatedly until the desired setting appears.

! 5sec – JPEG images switch at intervals of 5

seconds

! 10sec – JPEG images switch at intervals of

10 seconds

! 15sec – JPEG images switch at intervals of

15 seconds

! Manual – JPEG images can be switched

manually

Setting parental lock

Some DVD video discs let you use parental lock to restrict children from viewing violent and adult-oriented scenes. You can set parental lock to the desired level. ! When you have a parental lock level set

and play a disc featuring parental lock, code number input indications may be displayed. In such cases, playback will begin when the correct code number is entered.

Setting the code number and level

A code number must be registered in order to play back discs with parental lock.

1 Display the Video Setup menu.

Refer to Introduction of menu operations on page 45.

2 Touch Parental on the Video Setup menu.

3 Touch 0 to 9 to input a four digit code number.

# To cancel the entered numbers, touch C.

4 Registering the code.

Registering the code.

The code number is set, and the level can now be set.

5 Touch 1 to 8 to select the desired level.

6 Touch Enter.

The parental lock level is set.

! 8 – Playback of the entire disc is possible

(initial setting)

! 7 to 2 – Playback of discs for children and

non-adult-oriented discs is possible

! 1 – Playback of discs for children only is

possible

Notes

! We recommend to keep a record of your code

number in case you forget it.

! The parental lock level is stored on the disc.

Look for the level indication written on the disc package, included literature or on the disc itself. Parental lock of this unit is not possible if a parental lock level is not stored on the disc.

! With some discs, the parental lock may be ac-

tive only for certain levels of scenes. The playback of those scenes will be skipped. For details, refer to the instruction manual that came with the disc.

Changing the level

You can change the set parental lock level.

1 Display the Video Setup menu.

Refer to Introduction of menu operations on page 45.

2 Touch Parental on the Video Setup menu.

3 Touch 0 to 9 to input the registered code number.

Menu operations

Section

4 Registering the code.

Registering the code.

This sets the code number, and the level can now be changed.

# If you enter an incorrect code number, the icon is displayed. Touch C and enter the correct code number.

# If you forget your code number, refer to If you forget your code number on this page.

5 Touch 1 to 8 to select the desired level.

6 Touch Enter.

The new parental lock level is set.

If you forget your code number

Press RESET.

Setting the DivX subtitle file

You can select whether or not to display DivX external subtitles. ! The DivX subtitles will be displayed even

when Custom is selected if no DivX external subtitle files exist.

1 Display the Video Setup menu.

Refer to Introduction of menu operations on page 45.

2 Touch DivX Subtitle on the Video Setup menu to select the desired subtitle setting.

! Original – Display the DivX subtitles ! Custom – Display the DivX external subti-

tles

Notes

! Up to 42 characters can be displayed on one

line. If more than 42 characters are set, the line breaks and the characters are displayed on the next line.

! Up to 126 characters can be displayed on one

screen. If more than 126 characters are set, the excess characters will not be displayed.

Displaying the DivXâVOD registration code

In order to play DivX VOD (video on demand) contents on this unit, the unit must first be registered with a DivX VOD contents provider. For registration, generate a DivX VOD registration code and submit it to your provider. ! Keep a record of the code as you will need

it when you register your unit to the DivX VOD provider.

1 Display the Video Setup menu.

Refer to Introduction of menu operations on page 45.

2 Touch DivX VOD on the Video Setup menu. Registration Code and Deregistration Code

appear.

3 Touch Registration Code.

Your registration code is displayed.

Displaying the deregistration code

If your device is already activated, deregister it by entering the deregistration code.

1 Display the Video Setup menu.

Refer to Introduction of menu operations on page 45.

2 Touch DivX VOD on the Video Setup menu.

3 Touch Deregistration Code.

# To cancel deregistration, touch Cancel.

4 Touch OK.

The deregistration is complete.

Automatic playback of DVDs

When a DVD disc with a DVD menu is inserted, this unit will cancel the menu automatically and start playback from the first chapter of the first title. ! Some DVDs may not operate properly. If

this function is not fully operated, turn this function off and start playback.

Menu operations

Section

Menu operations

1 Display the Video Setup menu.

Refer to Introduction of menu operations on page 45.

2 Touch DVD Auto Play to turn automatic playback on.

# To turn automatic playback off, touch

DVD Auto Play again.

System settings

Switching the auxiliary setting

Activate this setting when using an auxiliary device connected to this unit.

1 Display the system menu.

Refer to Introduction of menu operations on page 45.

2 Touch AUX Input on the system menu to turn AUX Input on or off.

Setting AV input

Activate this setting when using an external video component connected to this unit.

1 Display the system menu.

Refer to Introduction of menu operations on page 45.

2 Touch AV Input on the system menu to turn AV Input on or off.

Setting the rear output and subwoofer controller

This unit's rear speaker leads can be connected with full-range speaker (Full) or subwoofer (Subwoofer). If you switch the rear speaker setting to Subwoofer, you can connect the lead directly to a subwoofer without using an auxiliary amp. ! When no subwoofer is connected to the

rear output, select Full (full-range speaker).

! If the rear speaker leads are connected

with a subwoofer, select Subwoofer (subwoofer).

This unit's rear output (RCA rear output) can be used for subwoofer (Subwoofer) or rear (Rear Speaker) connection. ! When no subwoofer is connected to the

rear output, select Rear Speaker (Rear).

! When a subwoofer is connected to the rear

output, select Subwoofer (subwoofer).

1 Turn the unit off.

Refer to Basic operations on page 12.

Menu operations

Section

2 Display the system menu.

Refer to Introduction of menu operations on page 45.

3 Touch Rear Speaker on the system menu.

4 Touch Rear Speaker to switch the subwoofer output or full-range speaker.

5 Touch Preout to switch the subwoofer or rear output.

Notes

! Even if you change this setting, there will be

no output unless you turn the subwoofer output on (refer to Using subwoofer output on page 47).

! If you change this setting, subwoofer output

in the audio menu will return to the factory settings.

Switching sound muting/ attenuation

Sound from this system is automatically muted or attenuated when a signal from equipment with a mute function is received. ! Sound from this system returns to normal

when the muting or attenuation is canceled.

1 Display the system menu.

Refer to Introduction of menu operations on page 45.

2 Touch Mute/ATT until the desired setting appears.

Touch Mute/ATT until the desired setting appears in the display.

! Mute – Muting ! ATT-20dB – Attenuation (ATT -20dB has a

stronger effect than ATT-10dB)

! ATT-10dB – Attenuation ! Off – Turns the sound muting/attenuation

off

Notes

! When Mute is displayed, the sound is turned

off and no audio adjustments can be made.

! When ATT is displayed, the sound is attenu-

ated and no other audio adjustments can be made.

! Operation returns to normal when the phone

connection is ended.

Selecting the menu language

The menu language can be selected from four languages. If text information such as the title name, artist name or a comment is embedded in a European language, they can also be displayed on this unit. ! The language can be changed for the fol-

lowing:

— System menu — Video Setup — On-screen display — Multi language setting for DivX — Language for cautions

Some operations on this unit are prohib-

ited from use while driving or require

careful attention when operated. In

such cases, a caution will appear on the

display. You can change the language

for caution messages with this setting.

! If the embedded language and the selected

language setting are not the same, text information may not display properly.

! Some characters may not be displayed

properly.

! To complete this operation, switch the igni-

tion key off and on after you set this setting.

1 Display the system menu.

Refer to Introduction of menu operations on page 45.

2 Touch System Language on the system menu to select the desired language.

3 Touch the desired language. English (English)—Français (French)— Español (Spanish)—Português (Portuguese)

Menu operations

Section

Menu operations

Setting the rear view camera (back up camera)

CAUTION

Pioneer recommends the use of a camera which outputs mirror-reversed images. Otherwise, the screen image will appear reversed.

This unit features a function that automatically switches to the rear view camera video (R.C IN) when a rear view camera is installed on your car and the gear shift is moved to the RE- VERSE (R) position. (For more details, consult your dealer.) ! After you set up the rear view camera set-

ting, move the gear shift to REVERSE (R) and confirm that the rear view camera video is shown on the display.

! Change this setting if the display switches

to the rear view camera video by error while you are driving forward.

! To stop watching the rear view camera

video and return to the source display, press and hold MUTE.

! Touch the RearView source icon to display

the rear view camera image while driving. Touch the source icon again to turn the rear view camera off. For details, refer to Se-

lecting a source using the touch panel keys

on page 12.

1 Display the system menu.

Refer to Introduction of menu operations on page 45.

2 Touch Camera Polarity on the system menu to select the appropriate setting.

! Battery – When the polarity of the con-

nected lead is positive while the gear shift is in REVERSE (R) position

! Ground – When the polarity of the con-

nected lead is negative while the gear shift is in REVERSE (R) position

! Off – When a rear view camera is not con-

nected to this unit

Setting the video signal

When you connect this unit to an AV equipment to this unit, select the suitable video signal setting. ! As this function is initially set to Auto, the

unit will automatically adjust the video signal setting. However, the screen may turn black or images may not be displayed properly when Auto has been selected and the reception is weak. Normally, select the appropriate video signal.

1 Display the system menu.

Refer to Introduction of menu operations on page 45.

2 Touch Video Signal Setting on the function menu. Video Signal Setting items are displayed.

! AV – Adjusts the AV video signal ! AUX – Adjusts the AUX video signal ! Camera – Adjusts the rear view camera

video signal

3 Touch c or d to select the desired video signal appears. Auto—PAL—NTSC—PAL-M—PAL-N— SECAM

Menu operations

Section

Entertainment settings

Selecting the illumination color

This unit is equipped with multiple-color illumination.

Direct selection from preset illumination colors

You can select an illumination color from the color list.

1 Display the entertainment menu.

Refer to Introduction of menu operations on page 45.

2 Touch Appearance.

3 Touch Illumination and then touch a color on the list.

Customizing the illumination color

1 Display the entertainment menu.

Refer to Introduction of menu operations on page 45.

2 Touch Appearance.

3 Touch Illumination and then touch Custom icon.

Selecting the OSD color

The OSD color can be changed.

1 Display the entertainment menu.

Refer to Introduction of menu operations on page 45.

2 Touch Appearance.

3 Touch Screen.

4 Touch one of the colors on the list.

Selecting the background display

You can switch the background that is displayed when listening to a source.

1 Display the entertainment menu.

Refer to Introduction of menu operations on page 45.

2 Touch Background.

3 Touch the desired setting.

# If no JPEG images are stored in this unit, you cannot select photo. To store a JPEG image to this unit, refer to Capture an image in JPEG files on page 36.

Menu operations

Custom icon

4 Touch the color bar to customize the color.

5 Touch c or d to fine-tune the color.

6 Touch the Memo icon and hold to store the customized color in the memory.

Memo

The customized color has been stored in the memory. The set color will be recalled from the memory the next time you touch the same icon.

Memo icon

Section

Menu operations

Customizing menus

1 Display menu columns to register.

Refer to Introduction of menu operations on page 45. You can customize menus except

Video Setup menu.

2 Touch and hold the menu column to register it.

# To cancel registration, touch and hold the menu column again.

3 Display the custom menu and choose a registered menu.

Refer to Introduction of menu operations on page 45.

Note

You can register up to 12 columns.

Other Functions

Section

Changing the picture adjustment

You can adjust the Brightness (brightness), Contrast (contrast), Color (color) , Hue (hue), Dimmer (dimmer), Temperature (tempera- ture), Black Level (black level) and RGB Dot ADJ (RGB dot clock adjustment) for

each source and rear view camera. ! You cannot adjust Color, Hue, Contrast

and Black Level for the audio source.

1 Press and hold MENU to display Picture Adjustment.

The adjustment function names are displayed.

2 If you are adjusting the Picture Adjustment, select the unit.

NAVI

Rear

View

Source

3 Touch any of the following touch panel keys to select the function to be adjusted. Picture Adjustment items are displayed.

! Brightness – Adjusts the black intensity ! Contrast – Adjusts the contrast ! Color – Adjusts the color saturation ! Hue – Adjusts the tone of color (red or

green is emphasized)

! Dimmer – Adjusts the brightness of the dis-

play

! Temperature – Adjusts the color tempera-

ture, resulting in a better white balance

! Black Level – Emphasizes the dark portions

of images making the difference between bright and dark more distinct

! RGB Dot ADJ – Adjusts phase shifting by

dot clock when a Navigation system is connected

Adjusting the Picture Adjustment for the Navigation system.

Adjusting the Picture Adjustment for the rear view camera.

Adjusting the Picture Adjustment for the source.

# You cannot adjust the picture adjustment for the rear view camera when Camera Polarity is set to Off. (Refer to Setting the rear view camera (back up camera) on page 54.) # If the color system is set to PAL/PAL-N/PAL-M/ SECAM, you cannot adjust Hue. # With some rear view cameras, picture adjustment may not be possible.

4 Touch c or d to adjust the selected item.

Each time you touch c or d, the level of the selected item increases or decreases.

# Dimmer can be adjusted from +1 to +48. # Temperature can be adjusted from +3 to –3.

5 Touch Black Level and RGB Dot ADJ to adjust.

# Black Level can be set on or off. # RGB Dot ADJ can be set to 1 or 2.

Notes

! You cannot operate this function while driving. ! Different Brightness/Contrast/Dimmer set-

tings can be set for when the illumination switch is on and when it is off.

Adjusting the response positions of the touch panels (Touch Panel Calibration)

If you feel that the touch panel keys on the screen deviate from the actual positions that respond to your touch, adjust the response positions of the touch panel. There are two adjustment methods: 4-point adjustment, in which you touch four corners of the screen; and 16-point adjustment, in which you make fine-adjustments on the entire screen. ! Touch the screen gently for adjustment.

Forcefully pressing the touch panel may damage the touch panel. Do not use a sharp pointed tool such as a ballpoint pen or mechanical pen. Doing so may damage the screen.

Other Functions

Section

Other Functions

! If the touch panel cannot be adjusted prop-

erly, consult your local Pioneer dealer.

1 Turn the unit off.

Refer to Basic operations on page 12.

2 Press and hold MENU to display Picture Adjustment.

3 Press and hold MENU to start Touch Panel Calibration.

The 4-point touch panel adjustment screen appears.

4 Touch each of the arrows on the four corners of the screen.

# To cancel the adjustment, press and hold

MENU.

5 Press MENU to complete 4-point adjustment.

Data for the adjusted position is saved.

# Do not turn off the engine while the data is being saved.

6 Press MENU to proceed to 16-point adjustment.

The 16-point touch panel adjustment screen appears.

# To cancel the adjustment, press and hold

MENU.

7 Gently touch the center of the + mark displayed on the screen.

After you touch all the marks, the data for the adjusted position is saved.

# Do not turn off the engine while the data is being saved.

8 Press and hold MENU to complete the adjustment.

Using an AUX source

A separately sold auxiliary device such as a VCR or portable device can be connected to this unit. When connected, the auxiliary device

is automatically recognized as an AUX source and is assigned to AUX.

About AUX connection methods

You can connect auxiliary devices to this unit.

Mini pin plug cable (AUX)

When connecting an auxiliary device using a mini plug cable

iPods and portable audio/video players can be connected to this unit via mini plug cable. ! If an iPod with video capabilities is con-

nected to this unit via 3.5 mm plug (4 pole) cable (such as the CD-V150M), you can enjoy the video contents of the connected iPod.

! A portable audio/video player can be con-

nected by using a 3.5 mm plug (4 pole) with an RCA cable (sold separately). However, depending on the cable, a reverse connection between the red (right side audio) cable and yellow (video) cable may be required in order for the sound and video image to be reproduced correctly.

% Insert the stereo mini plug into the AUX input jack on this unit.

Refer to What’s what on page 10.

Using an external unit

An external unit refers to a Pioneer product, such as those which will be available in the future. Although incompatible as a source, the basic functions of up to two external units can be controlled with this unit. When two external units are connected, the external units are automatically allocated to external unit 1 or external unit 2.

Other Functions

The basic operations of the external unit are explained below. The allocated functions will differ depending on the connected external unit. For details concerning these functions, refer to the owner’s manual for the external unit.

Section

Other Functions

Function 1 to 4 Actions will differ depending on the connected external unit.

Basic operations

The functions allocated to the following operations will differ depending on the connected external unit. For details concerning these functions, refer to the owner’s manual for the connected external unit.

Auto

Audio

Switching to auto or manual.

Switching to video and audio.

Video

Changing the screen mode. Refer to Changing the wide screen mode on page 36.

Switching the equalizer curves. Refer to Using the equalizer on page 46.

Actions will differ depending on the connected external unit.

Using the functions allocated to 1 to 6 keys. Actions will differ depending on the connected external unit.

Section

Installation

Connecting the units

WARNING

! To avoid the risk of accident and the potential

violation of applicable laws, no viewing of front seat video should ever occur while the vehicle is being driven. Also, rear displays should not be in a location where they are visibly distracting to the driver.

! In some countries or states the viewing of

images on a display inside a vehicle even by persons other than the driver may be illegal. Where such regulations apply, they must be obeyed and this unit’s DVD features should not be used.

CAUTION

! PIONEER does not recommend that you in-

stall or service your display unit yourself. Installing or servicing the product may expose you to risk of electric shock or other hazards. Refer all installation and servicing of your display unit to authorized Pioneer service personnel.

! Secure all wiring with cable clamps or electri-

cal tape. Do not allow any bare wiring to remain exposed.

! Do not drill a hole into the engine compart-

ment to connect the yellow cable of the display unit to the vehicle battery. Engine vibration may eventually cause the insulation to fail at the point where the wire passes from the passenger compartment into the engine compartment. Take extra care in securing the wire at this point.

! It is extremely dangerous to allow the micro-

phone lead to become wound around the steering column or gearstick. Be sure to install the unit in such a way that it will not obstruct driving.

! Make sure that cables will not interfere with

moving parts of the vehicle, such as the gearshift, parking brake or seat sliding mechanism.

! Do not shorten any cables. If you do, the pro-

tection circuit may fail to work properly.

WARNING

! LIGHT GREEN LEAD AT POWER CON-

WARNING

! Use speakers over 50 W (output value) and be-

tween 4 W to 8 W (impedance value). Do not use 1 W to 3 W speakers for this unit.

! The black cable is ground. When installing

this unit or power amp (sold separately), make sure to connect the ground wire first. Ensure that the ground wire is properly connected to metal parts of the car’s body. The ground wire of the power amp and the one of this unit or any other device must be connected to the car separately with different screws. If the screw for the ground wire loosens or falls out, it could result in fire, generation of smoke or malfunction.

Ground wire

Other devices (Another electronic device in the car)

Metal parts of car’s body

POWER AMP

Installation

Section

Important

! This unit cannot be installed in a vehicle with-

out ACC (accessory) position on the ignition switch.

ACC position No ACC position

! Use this unit with a 12-volt battery and nega-

tive grounding only. Failure to do so may result in a fire or malfunction.

! To prevent a short-circuit, overheating or mal-

function, be sure to follow the directions below. — Disconnect the negative terminal of the

battery before installation.

— Secure the wiring with cable clamps or ad-

hesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring.

— Place all cables away from moving parts,

such as the gear shift and seat rails.

— Place all cables away from hot places,

such as near the heater outlet.

— Do not connect the yellow cable to the bat-

tery by passing it through the hole to the engine compartment.

— Cover any disconnected cable connectors

with insulating tape.

— Do not shorten any cables. — Never cut the insulation of the power cable

of this unit in order to share the power with other devices. The current capacity of the cable is limited.

— Use a fuse of the rating prescribed. — Never wire the negative speaker cable di-

rectly to ground.

— Never band together negative cables of

multiple speakers.

! When this unit is on, control signals are sent

through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle’s auto-antenna relay control terminal (max. 300 mA 12 V DC). If the vehicle is equipped with a glass anten-

na, connect it to the antenna booster power supply terminal.

! Never connect the blue/white cable to the

power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.

! IP-BUS connectors are color-coded. Be sure

to connect connectors of the same color.

Installation

Section

Installation

When connecting to separately sold power amp

Rear output or subwoofer output

To rear output or subwoofer output

To front output

Front output

This product

System remote control

Blue/white Connect to system control terminal of the power amp or auto-antenna relay control terminal. (max. 300 mA 12 V DC).

Power amp (sold separately)

Connect with RCA cables (sold separately)

Left Right



Front speaker Front speaker

Rear speaker or Subwoofer

Perform these connections when using the optional amplifier.









Rear speaker or Subwoofer

Installation

Connecting the system

HD Radio tuner

(sold separately)

IP-BUS cable (Supplied with HD Radio tuner)

IP-BUS input

Black

Microphone

for hands-free phoning

(supplied with Bluetooth adapter)

Bluetooth adapter (e.g. CD-BTB200) (sold separately)

BlackBlue

IP-BUS cable (Supplied with Bluetooth adapter)

Section

Installation

This product

Section

Installation

Connecting the power cord

26 pin cable (Supplied with Navigation system)

Insert the 26 pin cable in the direction indicated in the figure.

Navigation system can be connected (AVIC-U220 (sold separately)).

Please contact your dealer to inquire about the connectable navigation system.

Yellow Connect to the constant 12 V supply terminal.

Orange/white Connect to lighting switch terminal.

Red Connect to terminal controlled by ignition switch (12 V DC).

Black (chassis ground) Connect to a clean, paint-free metal location.

Front speaker Front speaker

Left Right

Rear speaker or Subwoofer (4 Ω)









RGB input

Antenna input

Fuse (10 A)

Fuse resistor

White Gray

Gray/blackWhite/black

Green Violet

Green/black Violet/black

This product









Rear speaker or Subwoofer (4 Ω)

When using a subwoofer of 70 W (2 Ω), be sure to connect with Violet and Violet/black leads of this unit. Do not connect anything to Green and Green/black leads.





Not used.

Green

Green/black

Violet

Violet/black

Subwoofer (4 Ω) × 2

Installation

Wired remote input

Hard-wired remote control adaptor can be connected (sold separately).

Fuse resistor

Violet/white Of the two lead wires connected to the back lamp, connect the one in which the voltage changes when the gear shift is in the REVERSE (R) position. This connection enables the unit to sense whether the car is moving forwards or backwards.

Yellow/black If you use an equipment with Mute function, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections.

Connection method

Section

Installation

1. Clamp the lead.

Note:

· The position of the parking brake switch depends on the vehicle model. For details, consult the vehicle Owner’s Manual or dealer.

Light green Used to detect the ON/OFF status of the parking brake. This lead must be connected to the power supply side of the parking brake switch.

Blue/white Connect to system control terminal of the power amp or auto-antenna relay control terminal (max. 300 mA 12 V DC).

With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers.

Power supply side

Ground side

Note:

· Change the initial setting of this unit. The subwoofer output of this unit is monaural.

2. Clamp firmly with needle-nosed pliers.

Parking brake switch

Section

Installation

When connecting the external video component and the display

Display with RCA input jacks (sold separately)

To video input

Video input (V IN)

his product

Rear monitor output (V OUT)

Audio inputs (L IN, R IN)

RCA cables (sold separately)

To audio outputs

External video component (sold separately)

! It is necessary to change AV Input in

System Menu when connecting the exter-

nal video component.

When using a display connected to rear video output

This product’s rear video output is for connection of a display to enable passengers in the rear seats to watch the DVD, etc.

WARNING

! Never install the display in a location where it

is visible to the driver while driving.

To video output

Installation

Section

When connecting with a rear view camera

When this product is used with a rear view camera, it is possible to automatically switch from the video to rear view image when the gear shift is moved to REVERSE (R).

WARNING

USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN INJURY OR DAMAGE.

CAUTION

! The screen image may appear reversed. ! The rear view camera function is to be used

as an aid to keep an eye on trailers, or while backing up. Do not use for entertainment purposes.

! Objects in the rear view may appear closer or

more distant than they actually are.

Rear view camera input (R.C IN)

This product

RCA cable (sold separately)

To video output

Fuse resistor

Rear view camera (sold separately)

CAUTION

You must use a camera which outputs mirror reversed images.

Installation

It is necessary to set Camera Polarity properly in System Menu when connecting the rear view

camera.

Section

Installation

Notes

! Check all connections and systems before

final installation.

! Do not use unauthorized parts as this may

cause malfunctions.

! Consult your dealer if installation requires dril-

ling of holes or other modifications to the vehicle.

! Do not install this unit where:

— it may interfere with operation of the vehi-

cle.

— it may cause injury to a passenger as a re-

sult of a sudden stop.

! Do not install the display where it may (i) ob-

struct the driver’s vision, (ii) impair the performance of any of the vehicle’s operating systems or safety features, including air bags, hazard lamp buttons or (iii) impair the driver’s ability to safely operate the vehicle.

! The semiconductor laser will be damaged if it

overheats. Install this unit away from hot places such as near the heater outlet.

! Optimum performance is obtained when the

unit is installed at an angle of less than 30°.

! To some types of vehicles, this unit cannot be

properly installed. In such case, use the optional installation kit (ADT-VA133).

Installation using the screw holes on the side of the unit

% Fastening the unit to the factory radiomounting bracket.

Position the unit so that its screw holes are aligned with the screw holes of the bracket,

and tighten the screws at 3 or 4 locations on each side.

1 If the pawl gets in the way, bend it down. 2 Factory radio mounting bracket 3 Use either truss (5 mm × 8 mm) or flush

surface (5 mm × 9 mm) screws, depending on the bracket screw holes.

4 Frame

In some types of vehicles, discrepancy may occur between the unit and the dashboard. If this happens, use the supplied frame to fill the gap.

5 Dashboard or console

Additional Information

Appendix

Troubleshooting

Common

Symptom Cause Action (Refer-

The power will not turn on. The unit will not operate.

Operation with the remote control is not possible. The unit does not operate correctly even when the appropriate remote control buttons are pressed.

Playback is not possible.

There is no sound. The volume level will not rise.

Leads and connectors are incorrectly connected.

The fuse is blown.

Noise and/or other factors are causing the builtin microprocessor to operate incorrectly.

Battery power is low.

Some operations are prohibited with certain discs.

The disc is dirty. Clean the disc.

The type of disc loaded cannot be played on this unit.

The disc loaded is not compatible with this video system.

Cables are not connected correctly.

The unit is performing still, slow motion or frame-by-frame playback.

ence page)

Confirm once more that all connections are correct.

Rectify the cause and then replace the fuse. Be sure to install a fuse with the same rating.

Press RESET.(Page

10)

Load a new battery.

Try operating with another disc.

Check the disc type.

Change the disc to one that is compatible with your video system.

Connect the cables correctly.

There is no sound during still, slow motion or frameby-frame playback.

Symptom Cause Action (Refer-

icon is

The parking brake cable is not connected.

The parking brake is not applied.

The operation is prohibited for the disc.

The operation is not compatible with the configuration of the disc.

The data could no longer be read during playback.

The volume level is low.

The attenuator is on.

The unit is not firmly secured.

File size and transmission rate are above recommended rates.

The aspect ratio setting is incorrect for the display.

The unit is confirming whether or not a disc is loaded.

There is no image displayed.

The displayed, and operation is not possible.

The image displayed stops (pauses) and the unit cannot be operated.

There is no sound. The volume level is low.

The sound and video skip.

The aspect ratio is incorrect and the image is stretched.

The motor sounds when the ignition switch is turned ON (or is turned to ACC).

ence page)

Connect the parking brake cable, and apply the parking brake.

This operation is not possible.

Stop playback once, and start playback again.

Adjust the volume level.

Turn the attenuator off.

Firmly secure the unit.

Create a DivX file that is within the recommended size and transmission rate.

Select the appropriate setting for your display. (Page

49)

This is a normal operation.

Additional Information

Appendix

Additional Information

Symptom Cause Action (Refer-

Nothing is displayed. The touch panel keys cannot be used.

No xxxx appears when a display is changed (No Title, for example).

Sub-folders cannot be played back.

The repeat range changes automatically.

The rear view camera is not connected.

Camera Polarity

is at incorrect setting.

There is no embedded text information.

Folder repeat play has been selected.

Another folder was selected during repeat play.

Track search or fast forward/reverse was performed during file repeat play.

ence page)

Connect a rear view camera.

Press and hold MENU to return to the source display and then select the correct setting for Camera Polarity. (Page 54)

Switch the display or play another track/file.

Select the repeat range again.

DVD

Symptom Cause Action (Refer-

Playback is not possible.

A parental lock message is displayed and playback is not possible.

Parental lock cannot be canceled.

The loaded disc has a different region number from this unit.

Parental lock is activated.

The code number is incorrect.

You have forgotten your code number.

ence page)

Replace the disc with one featuring the same region number as this unit.

Turn parental lock off or change the level. (Page 50)

Enter the correct code number. (Page 50)

Press RESET.(Page

51)

Symptom Cause Action (Refer-

Dialog language (and subtitle language) cannot be switched.

No subtitles are displayed.

Playback is not performed with the audio language and subtitle language settings selected in Video Setup menu.

The viewing angle cannot be switched.

The DVD being played does not feature multiple language recordings.

You can only switch between items indicated in the disc menu.

The DVD being played does not feature subtitles.

You can only switch between items indicated in the disc menu.

The DVD being played does not feature dialog or subtitles in the selected language.

The DVD being played does not feature scenes shot from multiple angles.

You are trying to switch to multiangle viewing for a scene that was not recorded from multiple angles.

ence page)

The language cannot be switched if they are not recorded on the disc.

Switch the language using the disc menu.

Subtitles are not displayed if they are not recorded on the disc.

Switch the language using the disc menu.

The language cannot be switched if the selected language is not recorded on the disc.

The viewing angle cannot be switched if the DVD does not feature scenes recorded from multiple angles.

Switch between multiple angles when watching scenes recorded from multiple angles.

Additional Information

Appendix

Symptom Cause Action (Refer-

The image is extremely unclear/distorted and dark during playback.

Some discs feature a signal to prohibit copying.

ence page)

Since this unit is compatible with the analog copy generation management system, when playing a disc that has a signal prohibiting copying, horizontal stripes or other imperfections may appear when viewed on some displays. This is not a malfunction.

Video CD

Symptom Cause Action

The PBC (playback control) menu cannot be called up.

Repeat play and track/time search are not possible.

The Video CD being played does not feature PBC.

The Video CD being played features PBC.

This operation is not available for Video CDs that do not feature PBC.

This operation is not available for Video CDs that feature PBC.

iPod

Symptom Cause Action

The iPod does not operate correctly.

The cables are incorrectly connected.

The iPod version is old.

Disconnect the cable from the iPod. Once the iPod’s main menu is displayed, reconnect the iPod and reset it.

Update the iPod version.

Bluetooth audio/telephone

Symptom Cause Action

The sound from the Bluetooth audio source is not played back.

There is a call in progress on a Bluetooth connected cellular phone.

A Bluetooth-connected cellular phone is currently being operated.

A call was made with a Bluetoothconnected cellular phone and then immediately terminated. As a result, communication between this unit and the cellular phone was not terminated properly.

The sound will be played back when the call is terminated.

Do not operate the cellular phone at this time.

Reconnect the Bluetooth connection between this unit and the cellular phone.

Error messages

When you contact your dealer or your nearest Pioneer Service Center, be sure to note the error message.

Tuner

Message Cause Action

No Data Provided

No Data This unit cannot

This unit cannot receive artist name/song title information.

receive program service name information.

Move to the desirable location with good reception.

Additional Information

DVD

Message Cause Action

Different Region Disc

The disc does not have the same region number as this unit.

Replace the DVD with one bearing the correct region number.

Appendix

Additional Information

Message Cause Action

Error-02-XX/ FF-FF

Unplayable Disc

Protect All the files on

Skipped The inserted disc

TEMP The temperature

Rental Expired.

Video resolution not supported

It is not possible to write it in the flash.

Your device is not authorized to play this DivX protected video.

The disc is dirty. Clean the disc.

The disc is scratched.

The disc is loaded upside down.

There is an electrical or mechanical error.

This type of disc cannot be played on this unit.

The inserted disc does not contain any playable files.

the inserted disc are embedded with DRM.

contains DRM protected files.

of the unit is outside the normal operating range.

The inserted disc contains expired DivX VOD content.

The inserted disc contains a high definition DivX file.

This unit’s flash memory used as the temporary storage area is full.

This unit’s DivX registration code has not been authorized by the DivX VOD contents provider.

Replace the disc.

Check that the disc is loaded correctly.

Press RESET.

Replace the disc with one that can be played on this unit.

Replace the disc.

Play an audio file not embedded with Windows Media DRM 9/10.

Wait until the unit returns to a temperature within the normal operating limits.

Select a file that can be played.

Message Cause Action

Unplayable File

Format Read/ Ready

Video frame rate not supported.

Audio Format not supported.

This type of file cannot be played on this unit.

Sometimes there is a delay between the start of playback and when you start to hear any sound.

DivX file’s frame rate is more than 30 fps.

This type of file is not supported on this unit.

Select a file that can be played.

Wait until the message disappears and you hear sound.

Select a file that can be played.

External storage device (USB)

Message Cause Action

Unplayable File

Format Read/ Ready

Skipped The connected

This type of file cannot be played on this unit.

There are no songs.

Security for the connected USB memory is enabled.

Sometimes there is a delay between the start of playback and when you start to hear any sound.

USB portable audio player/ USB memory contains WMA files that are protected by Windows Mediaä DRM 9/10.

Select a file that can be played.

Transfer the audio files to the USB portable audio player/USB memory and connect.

Follow the USB memory instructions to disable security.

Wait until the message disappears and you hear sound.

Play an audio file not embedded with Windows Media DRM 9/10.

Additional Information

Appendix

Message Cause Action

Protect All the files on

Incompatible USB

Check USB The USB connec-

Error-02-9X/-DXCommunication

the connected USB portable audio player/ USB memory are protected by Windows Media DRM 9/10.

The USB device connected to is not supported by this unit.

The USB device is not formatted with FAT16 or FAT32.

tor or USB cable has shortcircuited.

The connected USB portable audio player/ USB memory consumes more than maximum allowable current.

failed.

Transfer audio files not protected by Windows Media DRM 9/10 to the USB portable audio player/USB memory and connect.

Connect a USB portable audio player or USB memory that is USB Mass Storage Class compliant.

The connected USB device should be formatted with FAT16 or FAT32.

Check that the USB connector or USB cable is not caught in something or damaged.

Disconnect the USB portable audio player/USB memory and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect a compliant USB portable audio player/USB memory.

Perform one of the following operations. –Turn the ignition switch OFF and back ON. –Disconnect the USB portable audio player/USB memory. –Change to a different source. Then, return to the USB portable audio player/USB memory.

Message Cause Action

Rental Expired.

Video resolution not supported

It is not possible to write it in the flash.

Your device is not authorized to play this DivX protected video.

Format Read/ Ready

Video frame rate not supported.

Audio Format not supported.

The inserted external storage device contains expired DivX VOD content.

The inserted external storage device contains a high definition DivX file.

This unit’s flash memory used as the temporary storage area is full.

This unit’s DivX registration code has not been authorized by the DivX VOD contents provider.

Sometimes there is a delay between the start of playback and when you start to hear any sound.

DivX file’s frame rate is more than 30 fps.

This type of file is not supported on this unit.

Select a file that can be played.

Wait until the message disappears and you hear sound.

Select a file that can be played.

iPod

Message Cause Action

Format Read/ Ready

Sometimes there is a delay between the start of playback and when you start to hear any sound.

Wait until the message disappears and you hear sound.

Additional Information

Appendix

Additional Information

Message Cause Action

Error-02-6X/9X/-DX

Error-02-67 The iPod firm-

Stop There are no

Not Found No related

Communication failed.

iPod failure. Disconnect the

ware version is old.

songs.

There are no songs in the current list.

songs.

Disconnect the cable from the iPod. Once the iPod’s main menu is displayed, reconnect the iPod and reset it.

cable from the iPod. Once the iPod’s main menu is displayed, reconnect the iPod and reset it.

Update the iPod version.

Transfer songs to the iPod.

Select a list that contains songs.

Transfer songs to the iPod.

Bluetooth

Message Cause Action

Error-10 The power failed

for the Bluetooth module of this unit.

Turn the ignition switch OFF and then to ACC or ON. If the error message is still displayed after performing the above action, please contact your dealer or an authorized Pioneer Service Station.

Understanding messages

Messages Translation

Pioneer recommends the use of a camera

CAUTION: Screen image may appear reversed.

which outputs mirrorreversed images. Otherwise, the screen image will appear reversed.

Additional Information

Appendix

Indicator list

Area 1 Area 2

Area 3

Area 1

Indicates that the selected frequency is being broadcast in stereo.

Indicates that the digital format is Dolby Digital.

Indicates that the digital format is MPEG Audio.

Indicates that the digital format is Linear PCM.

Indicates the sampling frequency.

Area 2

Shows when analog audio of HD Radio signal is received.

Shows when digital audio of HD Radio signal is received.

Shows when HD Radio station information is received.

Shows while searching a song/ video in alphabet search mode.

Shows which subtitle language has been selected.

Shows which viewing angle has been selected.

Shows which audio output has been selected.

Shows the disc title of the CD text disc currently being played.

Shows the track title of the track currently being played for CD text discs. Shows the song title of the song currently being played for MP3/WMA/ AAC files.

Additional Information

1+1ch

2 ch

Mch

Indicates that the digital format is DTS.

Indicates the audio channel.

Indicates that a disc with PBC On is being played.

Shows when HD Radio signal is received.

Shows the comment currently being played.

Shows the station name currently tuned in to.

Shows the artist name of the track/ song currently being played for CD text discs. Shows the artist name of the artist currently being played for MP3/ WMA/AAC files.

Shows the category name.

Shows the folder name of the folder containing the MP3/WMA/AAC file currently being played.

Appendix

Additional Information

Area 3

Shows the file name of the MP3/ WMA/AAC file currently being played.

Shows the preset number of the station currently being tuned in to.

Shows SIRIUS information.

Shows the title number currently being played.

Shows the chapter number currently being played.

Shows the replay time currently being played.

Shows when the game alert function is on while receiving SIRIUS stations.

Indicates that the feature demo is on.

Handling guidelines

Discs and player

Use only discs featuring any of following logos.

Use 12-cm discs. Do not use 8-cm discs or an adapter for 8-cm discs.

Use only conventional, fully circular discs. Do not use shaped discs.

Do not insert anything other than a DVD (-R/-RW) or CD (-R/-RW) into the disc loading slot.

Do not use cracked, chipped, warpe d, or otherwise damaged discs as they may damage the player.

Unfinalized CD-R/CD-RW discs cannot be played back.

Do not touch the recorded sur face of the discs.

Store discs in their cases when not in use.

Do not attach labels, write on or apply chemicals to the surface of the discs.

To clean a disc, wipe the disc with a soft cloth outward from the center.

Condensation may temporarily impair the player’s performance. Let it rest for about one hour to adjust to a warmer temperature. Also, wipe any damp discs off with a soft cloth.

Playback of discs may not be possible because of disc characteristics, disc format, recorded application, playback environment, storage conditions, and so on.

Road shocks may interrupt disc playback.

Additional Information

Appendix

Read the precautions for discs before using them.

Certain functions may not be available for some DVD video discs.

It may not be possible to play back some DVD video discs.

It is not possible to play back DVD-RAM discs.

This unit is not compatible with discs recorded in AVCHD (Advanced Video Codec High Definition) format. Do not insert AVCHD discs as you may not be able to eject the disc.

External storage device (USB)

Depending on the external storage device (USB), the following problems may occur.

! Operation s may vary. ! The storage device may not be recognized. ! Files may not be played back properly.

USB storage device

Connections via USB hub are not supported.

Do not connect anything other than a USB storage device.

Firmly secure the USB storage device when driving. Do not let the USB storage device fall onto the floor, where it may become jammed un der the brake or accelerator pedal.

Depending on the USB storage device, the device may cause noise to occur in the radio.

You cannot connect a USB portable audio player/USB memory to this unit via USB hub.

Partitioned USB memory is not compatible with this unit.

Depending on the kind of USB portable audio player/ USB memory you use, the device may not be recognized or audio files may not be played back properly.

Do not leave the USB portable audio player/USB memory in direct sunlight for extended amounts of time. Doing so may cause the device to malfunction from the extreme rise in temperature.

iPod

To ensure proper operation, connect the dock connector cable from the iPod directly to this unit.

Firmly secure the iPod when driving. Do not let the iPod fall onto the floor, where it may become jammed under the brake or accelerator pedal.

About iPod settings ! When an iPod is connected, this unit changes the

EQ (equalizer) setting of the iPod to off in order to optimize the acoustics. When you disconnect the iPod, the EQ returns to the original setting.

! You cannot set Repeat to off on the iPod when

using this unit. Repeat is automatically changed to All when the iPod is connected to this unit.

Incompatible text saved on the iPod will not be displayed by the unit.

DVD-R/DVD-RW discs

Unfinalized DVD-R/-RW discs which have been recorded in the Video format (video mode) cannot be played back. Playback of DVD-R/DVD-RW discs may not be possible, due to disc characteristics, scratches or dirt on the disc, or dirt, condensation, etc. on the lens of this unit. Depending on the application settings and the environment, playback of discs recorded on a personal computer may not be possible. (For details, contact the manufacturer of the application.)

CD-R/CD-RW discs

When CD-R/CD-RW discs are used, playback is possible only for discs which have been finalized. Playback of CD-R/CD-RW discs recorded on a music CD recorder or a personal computer may not be possible due to disc characteristics, scratches or dirt on the disc, or dirt, condensation, etc., on the lens of this unit. Depending on the application settings and the environment, playback of discs recorded on a personal computer may not be possible. (For details, contact the manufacturer of the application.) Playback of CD-R/CD-RW discs may become impossible in case of direct exposure to sunlight, high temperatures, or the storage conditions in the vehicle. Titles and other text information recorded on a CD-R/ CD-RW disc may not be displayed by this unit (in the case of audio data (CD-DA)).

Additional Information

Appendix

Additional Information

DualDiscs

DualDiscs are two-sided discs that have a recordable CD for audio on one side and a recordable DVD for video on the other. Playback of the DVD side is possible with this unit. However, since the CD side of DualDiscs is not physically compatible with the general CD standard, it may not be possible to play the CD side with this unit. Frequent loading and ejecting of a DualDisc may result in scratches on the disc. Serious scratches can lead to playback problems on this unit. In some cases, a DualDisc may become stuck in the disc loading slot and will not eject. To prevent this, we recommend you refrain from using DualDisc with this unit. Please refer to the information from the disc manufacturer for more detailed information about DualDiscs.

JPEG picture files

JPEG is short for Joint Photographic Experts Group and refers to a still image compression technology standard.

Files are compatible with Baseline JPEG and EXIF 2.1 still images up to a resolution of 8 192 × 7 680. (EXIF format is used most commonly with digital still cameras.)

Playback of EXIF format files that were processed by a personal computer may not be possible.

There is no progressive JPEG compatibility.

DivX video files

The ID code of this unit must be registered to a DivX VOD provider in order to playback DivX VOD files. For information on ID codes, refer to Displaying the DivX VOD registration code on page 51.

For more details about DivX, visit the following site: http://www.divx.com/

Important

! When naming a JPEG image file, add the cor-

responding filename extension (.jpg, .jpeg, . jpe or .jfif).

! This unit plays back files with these filename

extensions (.jpg, .jpeg, .jpe or .jfif) as a JPEG image file. To prevent malfunctions, do not use these extensions for files other than JPEG image files.

Compressed audio compatibility (disc, USB)

WMA

File extension: .wma

Bit rate: 5 kbps to 320 kbps (CBR), VBR

Sampling frequency: 8 kHz to 48 kHz

Windows Media Audio Professional, Lossless, Voice/ DRM Stream/Stream with video: Not compatible

Depending on the composition of the file information, such as the number of audio streams or file size, there may be a slight delay when playing back discs.

Some special operations may be prohibited due to the composition of the DivX files.

Only DivX files downloaded from a DivX partner site are guarantee for proper operation. Unauthorized DivX files may not operate properly.

DRM rental files cannot be operated until playback is started.

Recommended file size: 2Mbps or less with a transmission rate of 4GB or less.

MP3

File extension: .mp3

Bit rate: 8 kbps to 320 kbps (CBR), VBR

Sampling frequency: 8kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)

Compatible ID3 tag version: 1.0, 1.1, 2.2, 2.3 (ID3 tag Version 2.x is given priority over Version 1.x.)

M3u playlist: Not compatible

MP3i (MP3 interactive), mp3 PRO: Not compatible

AAC

Compatible format: AAC encoded by iTunes

File extension: .m4a

Additional Information

Appendix

Sampling frequency: 8 kHz to 44.1 kHz

Bit rate: 8 kbps to 320 kbps

Apple Lossless: Not compatible

AAC file bought from the iTunes Store (.m4p file extension): Not compatible

DivX compatibility

Compatible format: DivX video format implemented in relation to DivX standards

File extensions: .avi or.divx

DivX Ultra format: Not compatible

DivX HD format: Not compatible

DivX files without video data: Not compatible

DivX plus: Not compatible

Compatible audio codec: MP2, MP3, Dolby Digital

LPCM: Not compatible

Bit rate: 8 kbps to 320 kbps (CBR), VBR

Sampling frequency: 8 kHz to 48 kHz

Compatible external subtitle file extension: .srt

Supplemental information

Some characters in a file name (including the file extension) or a folder name may not be displayed.

This unit may not operate correctly depending on the application used to encode WMA files.

There may be a slight delay at the start of playback of audio files embedded with image data or audio files stored on a USB storage device that has numerous folder hierarchies.

Packet write data transfer: Not compatible

Regardless of the length of blank sections between the songs from the original recording, compressed audio discs play with a short pause between songs.

External storage device (USB)

Playable folders: up to 6000 (up to 700 for DivX)

Playable files: up to 65535, up to 255 for one folder

Playback of copyright-protected files: Not compatible

Partitioned external storage device (USB): Only the first playable partition can be played.

There is no compatibility for Multi Media Cards (MMC).

CAUTION

! Pioneer accepts no responsibility for data lost

on the USB memory/USB portable audio player even if that data is lost while using this unit.

! Do not leave the discs/external storage device

(USB) or iPod in places with high temperatures.

Additional Information

Disc

Playable folders: up to 700

Playable files: up to 999 for CD-R/CD-RW

Playable files: up to 3500 for DVD-R/DVD-RW

File system: ISO 9660 Level 1 and 2, Romeo, Joliet, UDF 1.02, 1.50, 2.00, 2.01, 2.50 (DVD-R/DVD-RW)

Multi-session playback: Compatible

Appendix

Additional Information

iPod compatibility

This unit supports only the following iPod models. Supported iPod software versions are shown below. Older versions may not be supported.

! iPhone 4 (software version 4.1) ! iPhone 3GS (software version 4.1) ! iPhone 3G (software version 4.1) ! iPhone (software version 3.1.3) ! iPod nano 6th generation (software version 1.0) ! iPod nano 5th generation (software version 1.0.2) ! iPod nano 4th generation (software version 1.0.4) ! iPod nano 3rd generation (software version 1.1.3) ! iPod nano 2nd generation (software version 1.1.3) ! iPod nano 1st generation (software version 1.3.1) ! iPod touch 4th generation (software version 4.1) ! iPod touch 3rd generation (software version 4.0) ! iPod touch 2nd generation (software version 4.0) ! iPod touch 1st generation (software version 3.1.3) ! iPod classic 160GB (software version 2.0.4) ! iPod classic 120GB (software version 2.0.1) ! iPod classic (software version 1.1.2) ! iPod 5th generation (software version 1.3)

Depending on the generation or version of the iPod, some functions may not be available.

Operations may vary depending on the software version of iPod.

When using an iPod, an iPod Dock Connector to USB Cable is required.

When you use Pioneer CD-IU50V/CD-IU200V interface cable, consult your dealer for details.

About the file/format compatibility, refer to the iPod manuals.

Audio Book, Podcast: Compatible

CAUTION

Pioneer accepts no responsibility for data lost on the iPod, even if that data is lost while this unit is used.

Sequence of audio files

The user cannot assign folder numbers and specify playback sequences with this unit.

Example of a hierarchy

 

Level 1 Level 2 Level 3 Level 4



  

: Folder

: Compressed audio file 01 to 05: Folder number 1 to 6: Playback sequence

Disc

Folder selection sequence or other operation may differ depending on the encoding or writing software.

External storage device (USB)

The playback sequence is the same as the recorded sequence in the external storage device (USB). To specify the playback sequence, the following method is recommended.

1 Create a file name that includes numbers that

specify the playback sequence (e.g., 001xxx. mp3 and 099yyy.mp3).

2 Put those files into a folder. 3 Save the folder that contains the files to the

external storage device (USB).

However, depending on the system environment, you may not be able to specify the playback sequence. For USB portable audio players, the sequence is different and depends on the player.

Using the display correctly

CAUTION

! If liquid or foreign matter should get inside

this unit, turn off the power immediately and consult your dealer or the nearest authorized PIONEER Service Station. Do not use the unit in this condition because doing so may result in fire, electric shock, or other failure.

Additional Information

Appendix

! If you notice smoke, a strange noise or smell,

or any other abnormal signs from the display, turn off the power immediately and consult your dealer or the nearest authorized PIONEER Service Station. Using this unit in this condition may result in permanent damage to the system.

! Do not disassemble or modify this unit, as

there are high-voltage components inside which may cause electric shock. Be sure to consult your dealer or the nearest authorized PIONEER Service Station for internal inspection, adjustments, or repairs.

Handling the display

! Never touch the screen with anything be-

sides your finger when operating the touch panel function. The screen can scratch easily.

! When the display is subjected to direct sun-

light for a long period of time, it will become very hot resulting in possible damage to the LCD screen. You should avoid exposing the display unit to direct sunlight as much as possible.

! The display should be used within the tem-

perature range of –10°C to +60°C (14 °F to 140 °F). At temperatures higher or lower than this operating temperature range, the display may not operate normally.

! The LCD screen is exposed in order to in-

crease its visibility within the vehicle. Do not press it strongly on it as this may damage it.

! Do not push the LCD screen forcefully as

this may scratch it.

due to the characteristics of the LCD screen and do not indicate a malfunction.

! When using a cellular phone, keep the an-

tenna away from the display to prevent disruption of the video image by the appearance of spots, colored stripes, etc.

Additional Information

LED (light-emitting diode) backlight

! At low temperatures, using the LED back-

light may increase image lag and degrade the image quality due to the characteristics of the LCD screen. Image quality will improve with an increase in temperature.

! To protect the LED backlight, the display

will darken in the following environments:

— In the direct sunlight — Near the heater vent

! The product lifetime of the LED backlight is

more than 10 000 hours. However, it may decrease if used in high temperatures.

! If the LED backlight reaches the end of its

product lifetime, the screen will become dark and the image will no longer be projected. In such cases, please consult your dealer or the nearest authorized PIONEER Service Station.

Keeping the display in good condition

! When removing dust from the screen or

cleaning the display, first turn the system power off, then wipe with a soft dry cloth.

! When wiping the screen, take care not to

scratch the surface. Do not use harsh or abrasive chemical cleaners.

Liquid crystal display (LCD) screen

! Heat from the heater may damage the LCD

screen, and cool air from the cooler may cause moisture to form inside the display resulting in possible damage.

! Small black dots or white dots (bright dots)

may appear on the LCD screen. These are

Appendix

Additional Information

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

DVD video

is a trademark of DVD Format/Logo

Licensing Corporation.

iTunes

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

MP3

Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenuegenerating) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/ or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www.mp3licensing.com.

WMA

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessor y with iPod or iPhone may affect wireless performance.

Dolby Digital

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

DivX

, DivX Certifiedâand associated logos are trademarks of DivX, Inc. and are used under license. ABOUT DIVX VIDEO: DivX video format created by DivX, Inc. This is an official DivX Certified

device that plays DivX

is a digital

video. Visit divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified

device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in

Displaying the DivX

VOD registration code.Go

to vod.divx.com for more information on how to complete your registration.

About the SAT RADIO READY mark

iPod & iPhone

iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or

Additional Information

The SAT RADIO READY mark indicates that the Satellite Radio Tuner for Pioneer (i.e., XM tuner and Sirius satellite tuner which are sold separately) can be controlled by this unit. Please inquire to your dealer or nearest authorized Pioneer service station regarding the satellite radio tuner that can be connected to this unit. For satellite radio tuner operation, please refer to the satellite radio tuner owner’s manual. ! The system will use direct satellite-to-recei-

ver broadcasting technology to provide listeners in their cars and at home with crystal-clear sound seamlessly from coast to coast. Satellite radio will create and package over 100 channels of digital-quality music, news, sports, talk and children’s programming.

! “SAT Radio”, the SAT Radio logo and all re-

lated marks are trademarks of Sirius Satellite Radio Inc., and XM Satellite Radio Inc.

HD Radioä Technology

HD Radioä, HD Radio Readyä, and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corporation. This HD Radio Ready receiver is ready to receive HD Radio broadcasts when connected to the HD Radio tuner (e.g. GEX-P20HD), sold separately.

Appendix

Additional Information

Appendix

Additional Information

Language code chart for DVD

Language (code), input code

Japanese (ja), 1001 Dzongkha (dz), 0426 Kurdish (ku), 1121 Kinyarwanda (rw), 1823 English (en), 0514 Ewe (ee), 0505 Komi (kv), 1122 Sanskrit (sa), 1901 French (fr), 0618 Esperanto (eo), 0515 Cornish (kw), 1123 Sardinian (sc), 1903 Spanish (es), 0519 Estonian (et), 0520 Kirghiz, Kyrgyz (ky), 1125 Sindhi (sd), 1904 German (de), 0405 Basque (eu), 0521 Latin (la), 1201 Northern Sami (se), 1905 Italian (it), 0920 Persian (fa), 0601 Luxembourgish (lb), 1202 Sangho (sg), 1907 Chinese (zh), 2608 Fulah (ff), 0606 Ganda (lg), 1207 Sinhala (si), 1909 Dutch, Flemish (nl), 1412 Finnish (fi), 0609 Limburgan (li), 1209 Slovak (sk), 1911 Portuguese (pt), 1620 Fijian (fj), 0610 Lingala (ln), 1214 Slovenian (sl), 1912 Swedish (sv), 1922 Faroese (fo), 0615 Lao (lo), 1215 Samoan (sm), 1913 Russian (ru), 1821 Western Frisian (fy), 0625 Lithuanian (lt), 1220 Shona (sn), 1914 Korean (ko), 1115 Irish (ga), 0701 Luba-Katanga (lu), 1221 Somali (so), 1915 Greek (el), 0512 Gaelic (gd), 0704 Latvian (lv), 1222 Albanian (sq), 1917 Afar (aa), 0101 Galician (gl), 0712 Malagasy (mg), 1307 Serbian (sr), 1918 Abkhazian (ab), 0102 Guarani (gn), 0714 Marshallese (mh), 1308 Swati (ss), 1919 Avestan (ae), 0105 Gujarati (gu), 0721 Maori (mi), 1309 Sotho, Southern (st), 1920 Afrikaans (af), 0106 Manx (gv), 0722 Macedonian (mk), 1311 Sundanese (su), 1921 Akan (ak), 0111 Hausa (ha), 0801 Malayalam (ml), 1312 Swahili (sw), 1923 Amharic (am), 0113 Hebrew (he), 0805 Mongolian (mn), 1314 Tamil (ta), 2001 Aragonese (an), 0114 Hindi (hi), 0809 Marathi (mr), 1318 Telugu (te), 2005 Arabic (ar), 0118 Hiri Motu (ho), 0815 Malay (ms), 1319 Tajik (tg), 2007 Assamese (as), 0119 Croatian (hr), 0818 Maltese (mt), 1320 Thai (th), 2008 Avaric (av), 0122 Haitian (ht), 0820 Burmese (my), 1325 Tigrinya (ti), 2009 Aymara (ay), 0125 Hungarian (hu), 0821 Nauru (na), 1401 Turkmen (tk), 2011 Azerbaijani (az), 0126 Armenian (hy), 0825 Bokmal (nb), 1402 Tagalog (tl), 2012 Bashkir (ba), 0201 Herero (hz), 0826 Ndebele, North (nd), 1404 Tswana (tn), 2014 Belarusian (be), 0205 Interlingua (ia), 0901 Nepali (ne), 1405 Tonga (to), 2015 Bulgarian (bg), 0207 Indonesian (id), 0904 Ndonga (ng), 1407 Turkish (tr), 2018 Bihari (bh), 0208 Interlingue (ie), 0905 Nynorsk (nn), 1414 Tsonga (ts), 2019 Bislama (bi), 0209 Igbo (ig), 0907 Norwegian (no), 1415 Tatar (tt), 2020 Bambara (bm), 0213 Sichuan Yi (ii), 0909 Ndebele, South (nr), 1418 Twi (tw), 2023 Bengali (bn), 0214 Inupiaq (ik), 0911 Navajo, Navaho (nv), 1422 Tahitian (ty), 2025 Tibetan (bo), 0215 Ido (io), 0915 Chichewa (ny), 1425 Uighur, Uyghur (ug), 2107 Breton (br), 0218 Icelandic (is), 0919 Occitan (oc), 1503 Ukrainian (uk), 2111 Bosnian (bs), 0219 Inuktitut (iu), 0921 Ojibwa (oj), 1510 Urdu (ur), 2118 Catalan (ca), 0301 Javanese (jv), 1022 Oromo (om), 1513 Uzbek (uz), 2126 Chechen (ce), 0305 Georgian (ka), 1101 Oriya (or), 1518 Venda (ve), 2205 Chamorro (ch), 0308 Kongo (kg), 1107 Ossetian (os), 1519 Vietnamese (vi), 2209

Corsican (co), 0315 Kikuyu, Gikuyu (ki), 1109

Cree (cr), 0318 Kuanyama (kj), 1110 Pali (pi), 1609 Walloon (wa), 2301 Czech (cs), 0319 Kazakh (kk), 1111 Polish (pl), 1612 Wolof (wo), 2315 Church Slavic (cu), 0321 Kalaallisut (kl), 1112 Pashto, Pushto (ps), 1619 Xhosa (xh), 2408 Chuvash (cv), 0322 Central Khmer (km), 1113 Quechua (qu), 1721 Yiddish (yi), 2509 Welsh (cy), 0325 Kannada (kn), 1114 Romansh (rm), 1813 Yoruba (yo), 2515

Danish (da), 0401 Kanuri (kr), 1118 Rundi (rn), 1814

Divehi (dv), 0422 Kashmiri (ks), 1119 Romanian (ro), 1815 Zulu (zu), 2621

Panjabi, Punjabi (pa),

1601

Volapük (vo), 2215

Zhuang, Chuang (za),

2601

Additional Information

Appendix

Specifications

General

Power source ............................. 14.4 V DC (10.8 V to 15.1 V

allowable)

Grounding system ................... Negative type

Maximum current consumption

..................................................... 10.0 A

Dimensions (W × H × D):

Chassis ..................... 178mm × 100 mm ×

165 mm

(7 in. × 3-7/8 in. × 6-1/2 in.)

Nose ........................... 171 mm × 97 mm × 7 mm

(6-3/4 in.× 3-7/8 in.× 1/4in.)

Weight .......................................... 1.7 kg (3.7 lbs)

Display

Screen size/aspect ratio ....... 5.8 inch wide/16:9

(effective display area:

128.4 mm × 70.9 mm)

Pixels ............................................. 345 600 (1440 × 240)

Display method ........................ TFT active matrix, driving

type

Color system .............................. NTSC/PAL/PAL-M/PAL-N/

SECAM compatible

Durable temperature range (power off)

..................................................... –20 °C to +80 °C

Audio

Maximum power output ....... 50 W × 4

70 W × 1/2 W (for subwoofer)

Continuous power output ... 22 W × 4 (50 Hz to

15 000 Hz, 5% THD, 4 W load, both channels driven)

Load impedance ...................... 4 W (4 W to 8 W (2W for 1 ch)

allowable)

Preout maximum output level

..................................................... 2.0 V

Equalizer (5-Band Graphic Equalizer):

Frequency .......................... 100 Hz/315 Hz/1.25 kHz/

3.15 kHz/8 kHz

Gain ...................................... ±12 dB

High pass filter:

Frequency .......................... 50 Hz/63Hz/80 Hz/100 Hz/

125 Hz

Slope .................................... –12 dB/oct

Subwoofer (mono):

Frequency .......................... 50 Hz/63Hz/80 Hz/100 Hz/

125 Hz

Slope .................................... –18 dB/oct

Gain ...................................... +6 dB to –24dB

Phase .................................. Normal/Reverse

Bass boost:

Gain ...................................... +12 dB to 0 dB

DVD Player

System .......................................... DVD video, Video CD, CD,

WMA, MP3, AAC, DivX, JPEG player

Usable discs .............................. DVD video, Video CD, CD,

CD-R/RW, DVD-R/RW/R DL

Region number ........................ 1

Frequency response ............... 5 Hz to 44 000 Hz (with DVD,

at sampling frequency

96 kHz)

Signal-to-noise ratio ............... 96 dB (1 kHz) (IHF-A net-

work) (RCA level) Output level:

Video .................................... 1.0 Vp-p/75 W (±0.2 V)

Number of channels .............. 2 (stereo)

MP3 decoding format ........... MPEG-1 & 2 Audio Layer 3

WMA decoding format ......... Ver. 7, 7.1, 8, 9, 10, 11, 12

(2 ch audio) (Windows Media Player)

AAC decoding format ............ MPEG-4 AAC (iTunes en-

coded only) (.m4a) (Ver. 9.0.3 and earlier)

DivX decoding format ............ Home Theater Ver. 3, 4, 5.2,

6 (.avi, .divx)

USB

USB standard specification

..................................................... USB 1.1, USB 2.0 full speed

Maximum current supply .... 500 mA

USB Class ................................... MSC (Mass Storage Class)

File system .................................. FAT16, FAT32

MP3 decoding format ........... MPEG-1 & 2 Audio Layer 3

WMA decoding format ......... Ver. 7, 7.1, 8, 9, 10, 11, 12

(2 ch audio) (Windows Media Player)

AAC decoding format ............ MPEG-4 AAC (iTunes en-

coded only) (Ver. 9.0.3 and earlier)

DivX decoding format ............ Home Theater Ver. 3, 4, 5.2,

6 (.avi, .divx)

FM tuner

Frequency range ...................... 87.9 MHz to 107.9 MHz

Usable sensitivity ..................... 9 dBf (0.8µV/75 W, mono,

S/N: 30 dB)

Signal-to-noise ratio ............... 72 dB (IHF-A network)

AM tuner

Frequency range ...................... 530kHz to 1 710 kHz

(10 kHz)

Additional Information

Appendix

Additional Information

Usable sensitivity ..................... 25 µV (S/N: 20 dB)

Signal-to-noise ratio ............... 62 dB (IHF-A network)

CEA2006 Specifications

Power output ............................. 14 W RMS × 4 Channels

S/N ratio ....................................... 91 dBA (reference: 1 W into

(4 W and ≦ 1 % THD+N)

4 W)

Note

Specifications and the design are subject to modifications without notice.

PIONEER CORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, JAPAN

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium/Belgique TEL: (0) 3/570.05.11

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202 Australia TEL: (03) 9586-6300

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: 1-877-283-5901 TEL: 905-479-4411

PIONEER ELECTRONICS DE MEXICO, S.A. de C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270

先鋒股份有限公司

台北市內湖區瑞光路407號8樓

電話： (02) 2657-3588

先鋒電子（香港）有限公司

香港九龍尖沙咀海港城世界商業中心

9樓901-6室電話： (0852) 2848-6488

Printed in Thailand

<CRB3537-B/N> UC

Pioneer AVH-P2300DVD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
