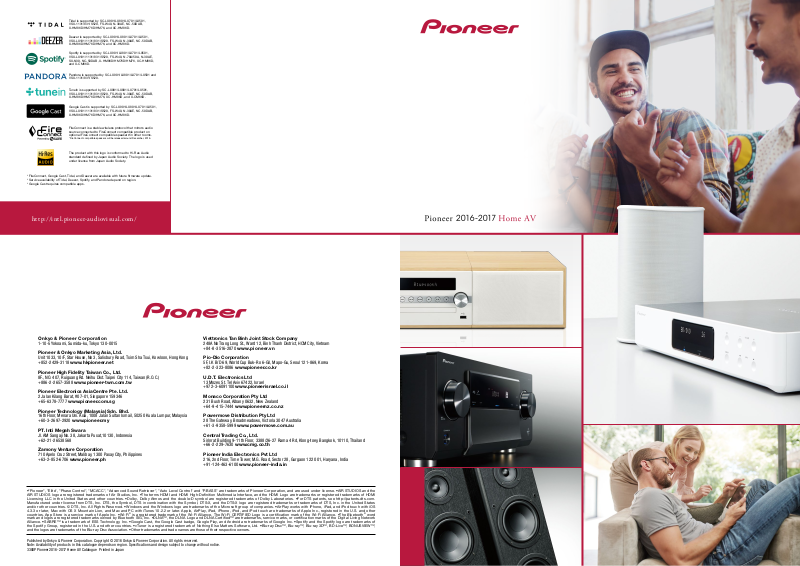

Pioneer 2016-17 Catalog

Tidal is supported by SC-LX901/LX801/LX701/LX501,
VSX-1131/831/S520, FS-W40, N-30AE, NC-50DAB,
X-HM86D/HM76D/HM76, and XC-HM86D.

Deezer is supported by SC-LX901/LX801/LX701/LX501,
VSX-LX101/1131/831/S520, FS-W40, N-30AE, NC-50DAB,
X-HM86D/HM76D/HM76, and XC-HM86D.

Spotify is supported by SC-LX901/LX801/LX701/LX501,
VSX-LX101/1131/831/S520, FS-W40, N-70A/50A, N-30AE,
SX-N30, NC-50DAB, X-HM86D/HM76D/HM76, XC-HM86D,
and X-CM66D.

Pandora is supported by SC-LX901/LX801/LX701/LX501 and
VSX-1131/831/S520.

TuneIn is supported by SC-LX901/LX801/LX701/LX501,
VSX-LX101/1131/831/S520, FS-W40, N-30AE, NC-50DAB,
X-HM86D/HM76D/HM76, XC-HM86D, and X-CM66D.

Google Cast is supported by SC-LX901/LX801/LX701/LX501,
VSX-LX101/1131/831/S520, FS-W40, N-30AE, NC-50DAB,
X-HM86D/HM76D/HM76, and XC-HM86D.

FireConnect is a stable wireless protocol that mirrors audio
source connected to FireConnect compatible product on
optional FireConnect compatible speakers*in other rooms.

*FireConnect compatible speakers will be released around December, 2016.

The product with this logo is conformed to Hi-Res Audio
standard dened by Japan Audio Society. The logo is used
under license from Japan Audio Society.

* FireConnect, Google Cast, Tidal, and Deezer are available with future rmware update.
* Service availability of Tidal, Deezer, Spotify, and Pandora depend on region.
* Google Cast requires compatible apps.

http://intl.pioneer-audiovisual.com/

Onkyo & Pioneer Corporation

1-10-5 Yokoami, Sumida-ku, Tokyo 130-0015

Pioneer & Onkyo Marketing Asia, Ltd.

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui, Kowloon, Hong Kong
[phone] www.hkpioneer.net

Pioneer High Fidelity Taiwan Co., Ltd.

8F., NO. 407, Ruiguang Rd. Neihu Dist. Taipei City 114, Taiwan (R.O.C.)
[phone] www.pioneer-twn.com.tw

Pioneer Electronics AsiaCentre Pte. Ltd.

2 Jalan Kilang Barat, #07-01, Singapore 159346
[phone] www.pioneer.com.sg

Pioneer Technology (Malaysia) Sdn. Bhd.

16th Floor, Menara Uni. Asia, 1008 Jalan Sultan Ismail, 50250 Kuala Lumpur, Malaysia
[phone] www.pioneer.my

PT. Inti Megah Swara

Jl. AM Sangaji No. 38, Jakarta Pusat, 10130, Indonesia
[phone]

Zamony Venture Corporation

710 Apelo Cruz Street, Malibay, 1300 Pasay City, Philippines
[phone] www.pioneer.ph

Viettronics Tan Binh Joint Stock Company

248A No Trang Long St., Ward 12, Binh Thanh District, HCM City, Vietnam
[phone] www.pioneer.vn

Pio-Dio Corporation

5F, I.K B/D 69, World Cup Buk-Ro 6-Gil, Mapo-Gu, Seoul 121-869, Korea
[phone] www.pioneer.co.kr

U.D.T. Electronics Ltd

13 Mozes St. Tel Aviv 67422, Israel
[phone] www.pioneerisrael.co.il

Monaco Corporation Pty Ltd

231 Bush Road, Albany 0632, New Zealand
[phone] www.pioneernz.co.nz

Powermove Distribution Pty Ltd

28 The Gateway, Broadmeadows, Victoria 3047 Australia
[phone] www.powermove.com.au

Central Trading Co., Ltd.

Sirinrat Building 9-11th Floor, 3388/26-27 Rama 4 Rd, Klong-toey, Bangkok, 10110, Thailand
[phone] www.cmg.co.th

Pioneer India Electronics Pvt Ltd

216, 2nd Floor, Time Tower, M.G. Road, Sector 28, Gurgaon 122 001, Haryana, India
[phone] www.pioneer-india.in

•"Pioneer", "Eli te", "Phase Cont rol", "MCACC", "Advanced S ound Ret riever", "Auto Level C ontrol" a nd "P.BASS" are tra demar ks of Pione er Corp orati on, and ar e used un der lice nse. •AIR S TUDIOS a nd the
AIR STUD IOS logo a re regi stered t radema rks of Ai r Studio s, Inc. •The term s HDMI an d HDMI Hig h-Defi nition M ultime dia Inter face, a nd the HDM I Logo ar e tradem arks or re giste red trad emark s of HDMI
Licen sing LLC in th e United S tates an d other co untrie s. •Dolb y, Dolby Atmos a nd the dou ble-D s ymbol ar e regis tered tr ademar ks of Dolby L abor atorie s. •For DTS pa tents, s ee http: //patents.d ts.com.
Manufa ctured u nder li cense f rom DTS, In c. DTS, the S ymbol, DT S in combi nation w ith the Sy mbol, DTS: X, and th e DTS:X logo a re regi stered t radema rks or tr ademar ks of DTS, In c. in the Un ited Sta tes
and/or ot her coun tries. © D TS, Inc. A ll Right s Reser ved. •Win dows and th e Window s logo are t radema rks of the M icros oft gro up of comp anies. •A irPlay wor ks with iP hone, iPa d, and iPod to uch with i OS

4.3.3 or la ter, Mac with O S X Mounta in Lion, a nd Mac and P C with iTunes 10. 2.2 or late r. Apple, Ai rPlay, iPad, iP hone, iPo d, and iPod to uch are t radema rks of Ap ple Inc., re gister ed in the U.S . and othe r
countr ies. Ap p Store is a s ervic e mark of A pple Inc . •Wi-Fi
mark an d logos ar e regis tered tr ademar ks owned by B luetoo th SIG, In c. •DLNA™, the DLN A Logo an d DLNA Ce rtifie d™ are tra demar ks, ser vice ma rks, or ce rtifi cation m arks of th e Digita l Living N etwor k
Allian ce. •SAB RE™ is a tra demar k of ESS Technol ogy, Inc. •Go ogle Ca st, the Go ogle Cas t badge, G oogle Pl ay, and Andr oid are tr adema rks of Goo gle Inc. •S potif y and the Sp otify l ogo are tr adema rks of
the Spoti fy Gro up, regis tered in t he U.S. and o ther cou ntries . •vTuner is a registe red tra demar k of Nothin g Else Mat ters S oftwa re, Ltd. •Blu-ray Disc™, Blu-ray™, Blu-ray 3D™, BD-Live™, BONUSVIEW™,
and the logos are trademarks of the Blu-ray Disc Association. •Other trademarks and trade names are those of their respective owners.

Publishe d by Onkyo & P ioneer Corpor ation. C opyright © 2016 Onk yo & Pioneer Corporatio n. All rights rese rved.
Note: Ava ilabilit y of products in th is catal ogue depe nds on regi on. Specicat ions and de sign subje ct to chan ge witho ut notic e.
3380P Pioneer 2016-2017 Home AV Catalogue Printed in Japan

®

is a regis tered tr adema rk of the Wi -Fi Alli ance. Th e Wi-Fi C ERTIFIE D Logo is a ce rtifi cation m ark of the W i-Fi All iance. •The

Bluetooth

®

word

True Realism

Reproducing an Impressive Sound Field

Multi-Channel
Stereophonic
Philosophy

The synergy of overwhelming soundscape and spectacular vision unfolds

before you as the utmost reality. Without compromise, we’ve dedicated

ourselves to honing our technology—all for the faithful reproduction

of what the creator intended. To unleash every piece of emotion and

passion contained in the master sound. That’s the essence of Pioneer’s

Multi-Channel Stereophonic Philosophy.

[minamoto]

source/origin/foundation

[waza]

skill/technique/ability

Design for Quality Sound

“Minamoto” of our AV receivers originates in the careful

selection of high-grade materials for precision performance.

With its overwhelming expressive power, the Direct Energy

HD Amplifier conveys the full surround atmosphere and

successfully recreates studio quality sound.

Ideal Reproduction Environment

“Waza” derived from our acoustic research and technological

resources is used to accurately reproduce the artistic expressions.

MCACC and Full Band Phase Control technologies provide

the ideal sound eld by adjusting speaker phasing. e result

is stereophonic feeling sound, just as they were originally

intended.

Sound Tuning by Experts

“Tamashi” is what ignites the listener’s emotions. Premium

sound is attained through rigorous sound tuning sessions

with the discerning ears of professional recording engineers.

[tamashi]

soul/spirit/will

2 3

The outcome is faithful reproduction of the studio master,

expressing the message exactly as instilled by the artist.

[minamoto]

Class D Amplier Assy Custom Bypass Capacitors

Direct Power FET features a simple
structure with superior heat dissipation

Direct Power FET

Direct Power FET

Audio Input

Driver

Direct Power FET

Low Pass Filter

Power Supply

Shorter signal path by linear circuit layout

Direct Energy HD Amp's signal path

180

270

Horizontal Leakage Flux Comparison

Pre-amplier Block Power Amplier Block

Direct Energy Design

AV Receivers

source/origin/foundation

AV Receivers

Direct Energy HD Amplier

The Direct Energy HD (High fidelity class D) Amplifier has
further evolved as Class D Amplifier to meet the needs of the

Speaker Systems

latest HD content. With our MOSFET, the Direct Power FET, a
simple, high-power solution is provided to fully enjoy today’s
AV entertainment. The custom bypass capacitors further
enhance the advantages of the Class D amplifier, producing
powerful bass while also featuring gentle expressiveness.

Wireless Speakers

Free Style Sound System/

Quick-Response Sound

The Direct Power FET is directly

Blu-Ray Players/DVD Players

connected to the print circuit
board without any wiring. This
simple structure maximises
audio performance by reduced
noise and improved switching,
offering a quick-responding
sound, perfect for digital
content playback.

Home Theatre Systems

High-Power Simultaneous Multi-Channel Drive

Integrated Amplifiers

Network Audio Players

CD Players/Turntables

With class AB amplifiers, driving all channels in full power is
only possible for a short time, at around 300 W to 400 W
power output. Pioneer’s Class D Amplifier has plenty of
allowance to simultaneously drive multi-channels at 560 W
(SC-LX501) to 850 W (SC-LX901) power output, letting you
fully enjoy dynamic scenes.

Simultaneous Power Output for Pioneer's Class D Amplifier (11ch)

Pioneer Class D (Digital) Amp

Pioneer

THD

11ch
2ch

General Class AB (Analogue) Amp

Model A

THD

– 67 W

Silicon

Pioneer—only one keeping up
high power with multi-channel
output

Other Models—high power for
2ch specification, but output
drops with actual 11ch drive

Power

Model B

THD

Direct contact

with print

circuit board

Print
circuit
board

High Eciency

The Direct Energy HD Amplifier has been designed with a
simple structure to take a straight and short signal path,
resulting in improved sound quality.

ESS SABRE32 Ultra DAC for SC-LX901/
SC-LX801/SC-LX701

The highly acclaimed 192 kHz/32­bit ESS SABRE32 Ultra DAC
(ES9016S) is adopted to deliver exceptional sound, with
ultra-low distortion and high signal-to-noise ratio. It offers
jitter-free performance for an astounding audio reproduction
with rich deep bass, bringing out the full potentials of
Pioneer’s Direct Energy HD amplifiers.

AKM 384 kHz/32-bit DAC for SC-LX501

The SC-LX501 features AK4458, a 384 kHz/32-bit
premium audio DAC from AKM (Asahi Kasei Microdevices
Corporation). With the latest low-distortion technology, the
DAC provides detailed and clear sound, ideal for Hi-Res
Audio playback. The 32-bit digital filter creates natural and
detailed sound.

Low ESR Custom Capacitors

Low ESR (Equivalent Series Resistance)
custom capacitors are adopted to improve
the S/N ratio. These exclusive audio parts
realise highly transparent sound.

PML MU Capacitors by Rubycon Corporation

The polymer multi-layer MU capacitors
(PML MU) co-developed with Rubycon
Corporation provide clear and open high­range sound.

NJM4585 Op Amp by JRC

The NJM4585 operation amplifier co­developed with New Japan Radio Co., Ltd.
features low distortion and high-resolution
reproduction across a wide bandwidth.
These selected parts bring out the full
potentials of the Direct Energy HD Amplifier.

Low Leakage Flux Power Transformer

The power transformer of the SC-LX901 features minimum
leakage flux, ensuring low noise with increased S/N ratio.

0 (360)

330

300

240

210

120

100

100

80

80

60

60

40

40

20

20

150

30

30

60

60

90

120

Previous power transformer
SC-LX901 power transformer

Pioneer specied coil is placed 4

inch from the power transformer,
and the inductance voltage in the
coil is measured.

* Image may differ from actual product

Separated Pre and Power Ampliers Blocks

Being compact and highly efficient, the Direct Energy HD
amplifier has allowed remarkably smaller heat sink and
greater flexibility in circuit design and layout, and the ideal
separate structure with independent pre and power amplifier
blocks is realised. Additionally, the power supply for digital
and analogue circuits has been isolated to provide clean
power, significantly contributing to clear signal transmission
which is the basis for high-quality sound.

Clean Grounding with Insulated Dual Chassis

Steel plates shield the power amplifier block to eliminate
unwanted noise caused by mutual interference, while
Pioneer-original Insulated Dual Chassis connects the power
amplifier’s chassis to the main chassis via special insulators.
The pre and power amplifier blocks are electrically
separated, enabling the optimal ground design for each
block. With thorough clean grounding and elimination of
interference between the circuits and load changes, the
sound quality and performance equivalent to separate
amplifiers combined within a single chassis is achieved.

Insulators

Anti-Standing Wave Insulator

The Anti-Standing Wave Insulator has been developed
through repeated listening tests, featuring a special form
with no parallel sides inside to prevent cavity resonance.
This makes the sound localisation, tone, and scale clearer,
while also enhancing the seamless connection between the
channels, and the response to quick sound. The insulator
enriches the realistic spatial description for movies, and the
space representation of a concert hall for music sources.

Speaker Systems

Free Style Sound System/

Wireless Speakers

Blu-Ray Players/DVD Players

Home Theatre Systems

Integrated Amplifiers

Network Audio Players

CD Players/Turntables

Micro Systems

Micro Systems

4 5

11ch
2ch

– 107 W

Power

11ch
2ch

– 146 W

Power

Adjusts group delay for each unit

For Dolby-Enabled Speakers

Free Style Sound System/

AV Receivers

Speaker Systems

Wireless Speakers

Blu-Ray Players/DVD Players

[waza]
skill/technique/ability

MCACC Auto Room Tuning

Create the optimum acoustic environment
with Pioneer’s MCACC (Multi-Channel
Acoustic Calibration System), developed
with the expertise of professional recording
studios. The system—complete with custom microphone—
automatically compensates for differences in speaker size,
level and distance, and equalises response.

Acoustic Calibration by MCACC

Before Calibration

Speaker distance, sound pressure level, and
frequency response are all uneven.

The sound field is automatically
measured using the supplied mic.

SET-UP

MIC

Calibration

Speaker sizes and number of
speakers are automatically detected.

Speaker distance, sound pressure level, and
frequency response are all equalised.

After Calibration

SET-UP

MIC

MCACC

Full Band Phase Control

The further advanced Full Band Phase Control technology
focuses on the group delay in the speaker network filter, and
compensates with special digital signal processing (DSP),
to adjust the phase of each unit as well as the group delay
for each speaker. Full Band Phase Control gives multi-range
speakers the sound coherence of full-range speakers, while
retaining the wide frequency range advantage.

Full Band Phase Control Off Full Band Phase Control On

TWEETER
(+)

MIDRANGE
(+)

WOOFER
(+)

Auto Phase Control Plus

TWEETER
(+)

MIDRANGE
(+)

WOOFER
(+)

Reex Optimizer

High directivity sound reects o

the ceiling, while low directivity
sound directly reaches the ears. When using Dolby-enabled

speakers, this dierence causes a phase shift, making the
sound feel uncomfortable. To solve this, the Reex Optimizer
optimizes the performance of your up-ring elevation

speakers for your listening environment, by aligning the
phase of direct and indirect sound, matching the basic tone,
and optimizing the upward-oriented frequencies. The result
is overall seamless sound with Dolby-enabled speakers,
allowing the ideal reproduction of three-dimensional surround
sound.

Direct sound from floor speaker

Reflected sound from Dolby-

Reflex Optimizer OFF: direct sound reaches the listener first

Direct sound from Dolby-enabled speaker

enabled speaker

Bass Management System

When using Dolby-enabled speakers, the low-frequency
components are usually all redirected to the subwoofer. Since
this will include frequencies featuring directivity, the resulting
sound lacks a seamless feel. MCACC Pro redirects the low

frequency component with directionality to the oor speaker

below the Dolby-enabled speaker element, and the lower
frequency components to the subwoofer. This optimal signal
distribution creates superior sound localisation, maximising
the advantage of Dolby Atmos content.

Mid-High

Mid-High

Bass

Deep

Subwoofer

Bass

Mid-High

Bass
Deep Bass

Subwoofer

Low range auditory
sound image

Pioneer

180 Hz

80 Hz

Deep

Dolby-enabled
speaker sound
component

20 kHz

20 Hz

Without Bass Management No horizontal sound localisation

Mid-high range
auditory sound

Bass Mid-High

Bass

3 Parts

Other Brands

Bass
Deep Bass

2 Parts

150 Hz

MCACC Pro Auto Room Tuning

MCACC Pro goes a step further by analysing
the phase and group delay characteristics
due to network filtering to precisely control
phase differences between speakers. This

Home Theatre Systems

correction is also performed between channels, providing a
smooth flow of sound as if all delivered from the same type
of speaker. Other features include independent correction
for dual subwoofers, and speaker position adjustment
in 1-millimeter increments. MCACC Pro corrects phase
differences in all ranges and all channels, from phase
difference in the original audio material to the sound emitted
from the speakers.

Integrated Amplifiers

Phase Control

When amplifying multi-channel audio signals,
receivers use a Low Pass Filter (LPF) to
process low-frequency signals for subwoofer

Phase Control Plus makes real-time analysis of the phase

dierence between the LFE (low frequency eect) and the main

signals, and automatically compensates the gap. Elimination
of phase lag enhances strong bass and clear high-frequency

sound—especially eective for audio content such as live

performance and music video clips.

* Eectiveness depends on content

Effect of Auto Phase Control Plus (data comparison)

Original disc playback

Level

Front L

LFE

Delay setting: 0 msec Time

Superior sound provided by compensating the lag in the subwoofer channel on the disc.

Playback with Auto Phase Control Plus

Level

Front L

LFE

Delay setting: 9 msec Time

Reflex Optimizer ON: direct sound, reflected sound, and sound
from the floor speaker simultaneously reach the listener

[tamashi]
soul/spirit/will

Sound Tuning

output. This causes “phase lag”—a delay of
approximately 5 msec—of the low-frequency

During Blu-ray Disc/DVD/multi-channel le playback, Auto

Network Audio Players

CD Players/Turntables

signals compared to the main channel signals. As a result,
the delayed bass makes the sound lack synchronisation.
Pioneer’s Phase Control technology effectively eliminates
phase lag and significantly improves the multi-channel sound
without any extra operation.

The "Phase Control" Compensates for the Delay of Low-Frequency Sound

Source

AV Receiver

Speakers

Subwoofer EQ

The subwoofer EQ feature allows you to adjust the subwoofer
tone. For Auto MCACC, the subwoofer EQ is automatically
adjusted with EQ type ALL CH ADJ, while manual adjustment
is available with EQ type SYMMETRY and FRONT ALIGN. As
with other EQ, the manual adjustment can be done on the AV
receiver’s GUI.

Sound Tuning in Collaboration with World­Famous Studio

Pioneer has a proven track record of applying
its audio expertise to the creation of multi­channel sound environments, collaborating with
AIR Studios in England on numerous occasions.

strong feelings on sound, and each tuning session is an
intense and serious exchange. The resulting sound is filled
with the heart and soul of the engineers, backed by the long
history of Pioneer.

http://www.airstudios.com/

Established in 1969 in London by George
Martin, AIR Studios is now an acclaimed recording complex,
favoured by many of the world’s most popular and renowned
musical talents. The SC-LX901 and SC-LX801 have received
the AIR Studios Monitor certification.

Sound tuning with AIR Studios has been adopted for the top

Micro Systems

PHASE CONTROL

model preceding the SC Series. The tuning session requires
sound quality that exceeds the previous model. Every time,
various requirements on the details of sound are presented,
and clearing all the hurdles is a challenging process. As
professional engineers, both sides have obsessions and

6 7

With Bass Management Horizontal sound localisation achieved

Ideal sound image =
Auditory sound image

Studio 3 where sound tuning is carried outThe appearance of the AIR Studios

AV Receivers

Speaker Systems

Free Style Sound System/

Wireless Speakers

Blu-Ray Players/DVD Players

Home Theatre Systems

Integrated Amplifiers

Network Audio Players

CD Players/Turntables

Micro Systems

AV RECEIVERS

Faithfully Delivers Every Sound, with Mind-Blowing
Momentum and Exquisite Delicacy

AV Receivers

AV Receivers

Speaker Systems

11.2ch AV Receiver

SC-LX901(B)

Wireless Speakers

Free Style Sound System/

• 11ch Direct Energy HD Amplification • 880 W 11ch Simultaneous Power Output (8 ohms,
1 kHz, THD 1.0 %) • 200 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven, IEC) • Dolby Atmos &
DTS:X Support • Upmix by Dolby Surround & DTS Neural:X • Reflex Optimizer for Dolby
Enabled Speakers • MCACC Pro with Full-band Phase Control • Hi-bit32 Audio Processing

• 192 kHz/32-bit Audio DAC (ES9016S) • Ultra HD (4K/60p/4:4:4) Pass-through with HDCP 2.2

• 4K Upscaling • HDR & BT.2020 Support • Hi-Res Audio (ALAC/AIFF/FLAC/WAV/DSD)
Playback • Pandora/Spotify/Tidal/Deezer/TuneIn • FireConnect/Google Cast/AirPlay • Dual
Band Wi-Fi/Bluetooth • 11.2ch Pre Out • Zone 2 (2ch) + Zone 3 (2ch) Pre/Line Out

• Power Requirements: AC 220-230/240 V, 50/60 Hz (MHB)/AC 220-230 V, 50/60 Hz (MGP)/
AC 120 V, 60 Hz (MDC) • Power Consumption/Standby: 340 W/0.2 W • Dimensions/Weight:
435 x 185 x 441 mm/18.3 kg

Blu-Ray Players/DVD Players

9.2ch AV Receiver

SC-LX801(B)

• 9ch Direct Energy HD Amplification • 770 W 9ch Simultaneous Power Output (8 ohms,
1 kHz, THD 1.0 %) • 200 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch driven, IEC) • Dolby Atmos &
DTS:X Support • Upmix by Dolby Surround & DTS Neural:X • Reflex Optimizer for Dolby
Enabled Speakers • MCACC Pro with Full-band Phase Control • Hi-bit32 Audio Processing

• 192 kHz/32-bit Audio DAC (ES9016S) • Ultra HD (4K/60p/4:4:4) Pass-through with HDCP 2.2

• 4K Upscaling • HDR & BT.2020 Support • Hi-Res Audio (ALAC/AIFF/FLAC/WAV/DSD)
Playback • Pandora/Spotify/Tidal/Deezer/TuneIn • FireConnect/Google Cast/AirPlay • Dual
Band Wi-Fi/Bluetooth • 11.2ch Pre Out • Zone 2 (2ch) + Zone 3 (2ch) Pre/Line Out

• Power Requirements: AC 220-230 V, 50/60 Hz (MGP)/AC 120 V, 60 Hz (MDC)

• Power Consumption/Standby: 320 W/0.2 W • Dimensions/Weight: 435 x 185 x 441 mm/18.1 kg

7.2ch AV Receiver

VSX-LX101(B)

• 7ch Direct Energy Amplification • 130 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch driven, IEC)

• Dolby Atmos & DTS:X Support • Upmix by Dolby Surround & DTS Neural:X • Reflex
Optimizer for Dolby Enabled Speakers • MCACC with Phase Control • 384 kHz/32-bit Audio
DAC (AK4458) • Ultra HD (4K/60p/4:4:4) Pass-through with HDCP 2.2 • 4K Upscaling • HDR
& BT.2020 Support • Hi-Res Audio (ALAC/AIFF/FLAC/WAV/DSD) Playback • Spotify/Deezer/
TuneIn • FireConnect/Google Cast/AirPlay • Dual Band Wi-Fi/Bluetooth

• Power Requirements: AC 120 V, 60 Hz • Power Consumption/Standby: 460 W/0.1 W

• Dimensions/Weight: 435 x 173 x 370.5 mm/9.0 kg

5.2ch AV Receiver

VSX-831(B)

7.2ch AV Receiver

VSX-1131(B)

• 7ch Direct Energy Amplification • 160 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch driven, IEC)

• Dolby Atmos & DTS:X Support • Upmix by Dolby Surround & DTS Neural:X • Reflex
Optimizer for Dolby Enabled Speakers • MCACC with Phase Control • 384 kHz/32-bit Audio
DAC (AK4458) • Ultra HD (4K/60p/4:4:4) Pass-through with HDCP 2.2 • 4K Upscaling • HDR
& BT.2020 Support • Hi-Res Audio (ALAC/AIFF/FLAC/WAV/DSD) Playback • Pandora/Spotify/
Tidal/Deezer/TuneIn • FireConnect/Google Cast/AirPlay • Dual Band Wi-Fi/Bluetooth

• Power Requirements: AC 220-240 V, 50/60 Hz/AC 120 V, 60 Hz (MDF) • Power Consumption/
Standby: 570 W, 580 W (MDF)/0.15 W • Dimensions/Weight: 435 x 173 x 370.5 mm/10.0 kg

5.1ch AV Receiver

VSX-531(B)

Speaker Systems

Free Style Sound System/

Wireless Speakers

Blu-Ray Players/DVD Players

Home Theatre Systems

Home Theatre Systems

9.2ch AV Receiver

SC-LX701(B)

Integrated Amplifiers

• 9ch Direct Energy HD Amplification • 760 W 7ch Simultaneous Power Output (8 ohms,
1 kHz, THD 1.0 %) • 185 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch driven, IEC) • Dolby Atmos &
DTS:X Support • Upmix by Dolby Surround & DTS Neural:X • Reflex Optimizer for Dolby
Enable d Speakers • MCACC Pro with Full-band Phase Control • Hi-bit32 Audio Processing

• 192 kHz/32-bit Audio DAC (ES9016S) • Ultra HD (4K/60p/4:4:4) Pass-through with
HDCP 2.2 • 4K Upscaling • HDR & BT.2020 Support • Hi-Res Audio (ALAC/AIFF/FLAC/WAV/
DSD) Playback • Pandora/Spotify/Tidal/Deezer/TuneIn • FireConnect/Google Cast/AirPlay

• Dua l Band Wi-Fi/Bluetooth • 11.2ch Pre Out • Zone 2 (2ch) + Zone 3 (2ch) Pre/Line Out

• Power Requirements: AC 220-230/240 V, 50/60 Hz (MHB)/AC 220-230 V, 50/60 Hz (MGP)/

Network Audio Players

AC 120 V, 60 Hz (MDC) • Power Consumption/Standby: 310 W/0.2 W • Dimensions/Weight:
435 x 185 x 441 mm/15.3 kg

7.2ch AV Receiver

SC-LX501(B)

• 7ch Direct Energy HD Amplification • 560 W 7ch Simultaneous Power Output (8 ohms,
1 kHz, THD 1.0 %) • 180 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch driven, IEC) • Dolby Atmos &
DTS:X Support • Upmix by Dolby Surround & DTS Neural:X • Reflex Optimizer for Dolby
Enabled Speakers • MCACC with Phase Control • 384 kHz/32-bit Audio DAC (AK4458)

• Ultra HD (4K/60p/4:4:4) Pass-through with HDCP 2.2 • 4K Upscaling • HDR & BT.2020
Support • Hi-Res Audio (ALAC/AIFF/FLAC/WAV/DSD) Playback • Pandora/Spotify/Tidal/
Deezer/TuneIn • FireConnect/Google Cast/AirPlay • Dual Band Wi-Fi/Bluetooth • 0.2ch
Pre Out • Zone 2 (2ch) Pre/Line Out

• Power Requirements: AC 220-230/240 V, 50/60 Hz (MHB)/AC 220-230 V, 50/60 Hz (MGP)/
AC 120 V, 60 Hz (MDC) • Power Consumption/Standby: 250 W/0.2 W • Dimensions/Weight:
435 x 185 x 395 mm/12.0 kg

• 5ch Direct Energy Amplification • 130 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch driven)

• Dolby TrueHD & DTS-HD Master Audio Support • Upmix by Dolby Pro Logic II & DTS
Neo:6 • MCACC with Phase Control • 384 kHz/32-bit Audio DAC (AK4458) • Ultra HD
(4K/60p/4:4:4) Pass-through with HDCP 2.2 • 4K Upscaling • HDR & BT.2020 Support

• Hi-Res Audio (ALAC/AIFF/FLAC/WAV/DSD) Playback • Pandora/Spotify/Tidal/Deezer/
TuneIn • FireConnect/Google Cast/AirPlay • Dual Band Wi-Fi/Bluetooth

• Power Requirements: AC 220-240 V, 50/60 Hz • Power Consumption/Standby: 390 W/0.15 W

• Dimensions/Weight: 435 x 173 x 370.5 mm/9.2 kg

• 5ch Direct Energy Amplification • 130 W, 120 W (CDF)/ch (6 ohms, 1 kHz, THD 1.0 %,
1ch driven) • Dolby TrueHD & DTS-HD Master Audio Support • Upmix by Dolby Pro Logic
II & DTS Neo:6 • MCACC with Phase Control • 192 kHz/24-bit Audio DAC • Ultra HD
(4K/60p/4:4:4) Pass-through with HDCP 2.2 • 4K Upscaling • HDR Support • MP3/WMA/AAC
Playback • Bluetooth

• Power Requirements: AC 220-240 V, 50/60 Hz/AC 110 V, 60 Hz (CDF) • Power Consumption/
Standby: 220 W/0.45 W, 210 W/0.45 W (CDF) • Dimensions/Weight: 435 x 168 x 320.5 mm/

8.0 kg

BLACK SILVER

VSX-S520(B)

Playable Hi-Res Audio Formats

Format Extension Stream Ch

WAV .wav WAV 2ch

CD Players/Turntables

Micro Systems

8 9

FLAC .flac FLAC 2ch

AIFF

Apple

Lossless

AAC

Dolby

TrueHD

DSD

* Hi-Res Audio playback not supported by VSX-531(B)/VSX-330(K)

.aif

.aiff

.m4a
.mp4

.m4a
.mp4
.aac

.3gp
.3g2

.vr

.mlp

.dsf

.dff

AIFF 2ch

ALAC 2ch

MPEG-4 AAC LC

MPEG-4 HE AAC

(aacPlus v1/2)

—

DSD 2ch

Sampling Frequency 44.1/48/88.2/96/176.4/192 kHz 44.1/48/88.2/96/176.4/192 kHz 44.1/48 kHz
Quantization Bit Rate 8 bit/16 bit/24 bit 8 bit/16 bit/24 bit 8 bit/16 bit/24 bit
Sampling Frequency 44.1/48/88.2/96/176.4/192 kHz 44.1/48/88.2/96/176.4/192 kHz 44.1/48 kHz
Quantization Bit Rate 8 bit/16 bit/24 bit 8 bit/16 bit/24 bit 8 bit/16 bit/24 bit
Sampling Frequency 44.1/48/88.2/96/176.4/192 kHz 44.1/48/88.2/96/176.4/192 kHz 44.1/48 kHz
Quantization Bit Rate 8 bit/16 bit/24 bit 8 bit/16 bit/24 bit 8 bit/16 bit/24 bit
Sampling Frequency 44.1/48/88.2/96/176.4/192 kHz 44.1/48/88.2/96/192 kHz 44.1/48 kHz
Quantization Bit Rate 16 bit/24 bit 16 bit/24 bit 16 bit/24 bit

Sampling Frequency 44.1/48/88.2/96 kHz 44.1/48/88.2/96 kHz 44.1/48/88.2/96 kHz

2ch

Quantization Bit Rate 16 bit/24 bit 16 bit/24 bit 16 bit/24 bit

2ch

Sampling Frequency 48/88.2/96/176.4/192 kHz — —

3.1ch
Quantization Bit Rate 16 bit/24 bit — —

5.1ch
Sampling Frequency 2.8/5.6/11.2 MHz 2.8/5.6/11.2 MHz —
Quantization Bit Rate 1 bit 1 bit —

USB Wired LAN Wireless LAN

Input Method

5.1ch AV Receiver

VSX-330(K)

• 5ch Direct Energy Amplification • 120 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)

• 105 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch driven) • Dolby TrueHD & DTS-HD Master Audio
Support • Upmix by Dolby Pro Logic II & DTS Neo:6 • Phase Control • 192 kHz/24-bit Audio
DAC • Ultra HD (4K/60p/4:4:4) Pass-through with HDCP 2.2 • MP3/WMA/AAC Playback

• Power Requirements: AC 220-240 V, 50/60 Hz • Power Consumption/Standby: 165 W/0.45 W

• Dimensions/Weight: 435 x 168 x 320.5 mm/7.3 kg

VSX-S520(S)

5.1ch AV Receiver

VSX-S520(B/S)

• 6ch Direct Energy Class D (Digital) Amplification • 80 W/ch (4 ohms, 1 kHz, THD 1.0 %,
1ch driven, JEITA) • Dolby TrueHD & DTS-HD Master Audio Support • Upmix by Dolby Pro
Logic II & DTS Neo:6 • MCACC with Phase Control • Ultra HD (4K/60p/4:4:4) Pass-through
with HDCP 2.2 • 4K Upscaling • HDR & BT.2020 Support • Hi-Res Audio (ALAC/AIFF/FLAC/
WAV/DSD) Playback • Pandora/Spotify/Tidal/Deezer/TuneIn • FireConnect/Google Cast/
AirPlay • Dual Band Wi-Fi/Bluetooth

• Power Requirements: AC 100-240 V, 50/60 Hz • Power Consumption/Standby: 60 W/0.38 W

• Dimensions/Weight: 435 x 70 x 325 mm/4.0 kg

* DTS:X and DTS Neural:X are available with firmware update depending on the model.

Integrated Amplifiers

Network Audio Players

CD Players/Turntables

Micro Systems
