PHONIC CORPORATION
Page 2
MM1002a/1202a USER
’
S MANUAL
SAFETY PRECAUTIONS
!!! WARNING !!!
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
Avoid exposing rain, water, or any form of liquid to this unit. IMMEDIATELY unplug its power cord
from its power source and contact a qualified technician when the unit is exposed to rain, water, or
any form of liquid.
Keep the unit is away from heat sources like radiators, heat registers, stoves and etc.
ALWAYS have a qualified technician present when repairing or modifying this unit.
The arrowhead lightning flash symbol within an equilateral triangle is intended to alert you
to the presence of uninsulated
“
dangerous voltage” inside the enclosure that may be suffi-
cient to constitute a risk of shock.
The exclamation point within an equilateral triangle is intended to remind you to the pres-
ence of important operating and maintenance (servicing) instructions in the literature ac-
companying the product.
!!! CAUTION !!!
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER OR THE BACK OF THE UNIT.
No user-serviceable parts inside. Always contact a qualified technician for repair or modification.
DO NOT open, modify, or disassemble the unit without a qualified technician present. Any change or
repair of the unit requires the present of a qualified technician in order for the warranty to remain
effective.
Clean the unit with damp cloth and dry brush. No other solvents are recommended for cleaning.
Routine cleaning and proper maintenance guarantee best performance from the unit.
Carefully packed at the manufacturing site, the packing box is designed to protect the unit from rough
handling. Please carefully examine the content inside the package and make sure the unit is well,
undamaged.
Notify your dealer and the shipping company immediately when you find the unit damaged from ship-
ping. Claims for damage or replacement would only be granted when reported properly and in a
timely manner.
Use damp cloth or dry brush to clean the unit. DO NOT use any other solvents for cleaning. Good
care and maintenance of your unit will prolong your unit
’
s operational life and insure its optimal
performance.
PHONIC CORPORATION
Page 3
MM1002a/1202a USER
’
S MANUAL
CONTENTS
INTRODUCTION..............................................4
FEATURES......................................................4
GETTING STARTED.......................................4
CONNECTING IT UP....................................5
TYPICAL CONNECTING LEAD....................6
UNBALANCED & BALANCED.......................7
INPUT CHANNEL DESCRIPTION
1 MIC / LINE...........................................8
2 GAIN....................................................8
3 3-BAND EQUALIZER.............................8
4 LOW CUT...............................................9
5 AUX (MM1202a ONLY)...........................9
6 PEAK...................................................9
7 EFX OUT...............................................9
8 PAN.....................................................10
9 LEVEL................................................10
10 STEREO INPUT..................................10
11 AUX....................................................10
12 EFX....................................................10
13 BAL....................................................10
14 LEVEL..................................................10
OUTPUT CONNECTION & MASTER SECTION
15 AUX OUT............................................10
16 EFX OUT............................................11
17 PHONES.............................................11
18 MAIN OUT...........................................11
19 CTRL RM.............................................11
20 REC.....................................................11
21 2T RTN.............................................11
22 LED LEVEL METER..........................11
23 2T RTN SIGANL PATH SELECT
BUTTON............................................11
24 AUX(MM1202a) / EFX(MM1002a)
SIGNAL PATH SELECT BUTTON......11
25 CTRL RM..........................................11
26 +48 PHANTOM PWR...........................11
27 HEADPHONES / STEREO
INDICATION SELECT BUTTON.........12
28 MAIN L / R FADER..............................12
29 EFX OUT CONTROL (MM1202a)......12
30 AUX OUT CONTROL (MM1202a)......12
31 HEADPHONES JACK..........................12
32 POWER SUPPLY INPUT SOCKET.....13
33 POWER ON / OFF SWITCH..............13
INITIAL SETUP............................................13
APPLILCATIONS
Application : USING STEREO INPUT
CHANNEL AS EFX RTN........14
Application : PC RECORDING SETUP.........15
DEMINSIONS...............................................16
SPECIFICATIONS..........................................17
SYSTEM BLOCK DIAGRAM.......................18
MM1002a 1202a
PHONIC CORPORATION
Page 4
MM1002a/1202a USER
’
S MANUAL
INTRODUCTION
Congretulation on your purchase of the MM series
Mixers. The MM series is built into a rugged con-
struction, which is ideal for small live gigs, record-
ing and fixed PA installtion. In order to get the best
perfomacne from the mixer, please read this user
manual carefully, and get yourself familiar with new
and different functions on this uniit.
FEATURE
MM1002a
• 2 balanced Mic/Line input channels with 3-
band EQ
• 4 stereo inputs
• Additional 2T return inputs, for tape input or
link to submixer, can be routed to MAIN l/R
and CTRL RM/Headphones
• Global +48V phantom power switch
• Post-Fader EFX send on every input chan-
nel
• REC output
• 5 segement level meter and with switch for
MAIN L/R and CTRL RM/Headphones
• CTRL RM/Headphone output with volume
control
• 60mm fader control for MAIN L/R output
• Balanced MAIN L/R output
MM1202a
• 4 balanced Mic/Line input channels with 3-
band EQ
• 4 stereo inputs
• Additional 2T return inputs, for tape input or
link to submixer, can be routed to MAIN l/R
and CTRL RM/Headphones
• Global +48V phantom power switch for
channle 1~4 on master section
• Pre-Fader AUX, post-fader EFX sends on
every input channel
• REC output
• 10 segement level meter and switch for MAIN
L/R and Headphones
• CTRL RM/Headphones output with volume
control
• Peak indicator and low pass filter on each
mono input channel
• Pan control on mono channel and balance
control on stereo input channel
• 60mm fader control for MAIN L/R output
• Balanced MAIN L/R output
GETTING STARTED
1. Check the Ac voltage before con-necting the
AC plug. This product is equipped with a 3-
wire grounding type plug; this is a safety fea-
ture and should not be defeated. Proper
grounding is a necessary practice to prevent
electric shock hazards to the operator, the
microphone user, and the musicians who are
wired to this unit.
2. before switching on the main power, keep all
the outptu faders or level control knob all the
way down/left to prevent damage of exces-
sive noise caused by bad level adjustment,
wrong wiring, defective cables, or bad con-
nection.
3. Always turn on the mixer before you turn on
the power amplifier; turn off the mixer after
you turn off the amplifer.
4. Always trurn off the unit before connecting
or disconnecting the unit from the power
source.
5. Never use solvents to clean the unit; clean it
with a soft, dry cloth.
INTRODUCTION / FEATURES / GETTING STARTED
PHONIC CORPORATION
Page 5
MM1002a/1202a USER
’
S MANUAL

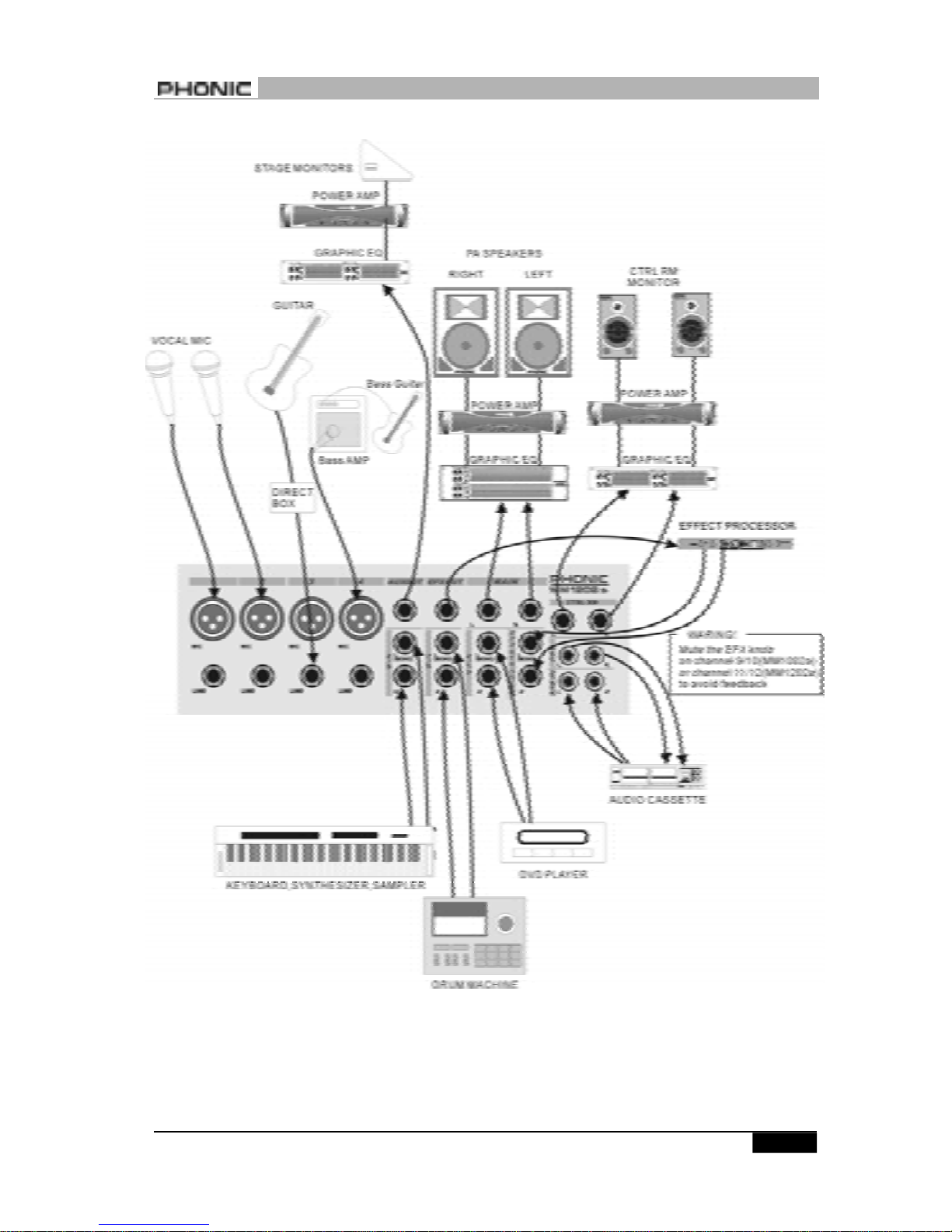

CONNECTING IT UP
PHONIC CORPORATION
Page 6
MM1002a/1202a USER’S MANUAL
TYPICAL CONNECTING LEAD
