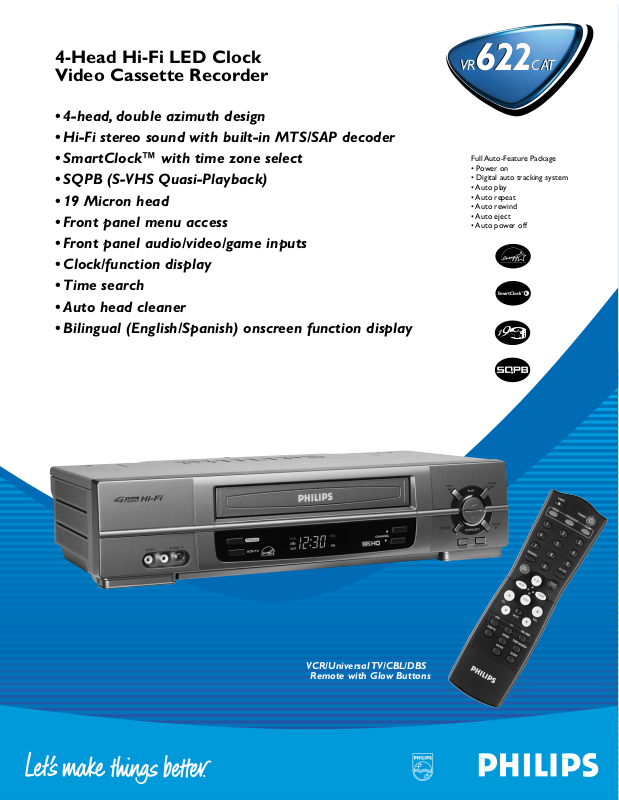

Philips VR622CAT User Manual
VR622CAT
4-Head Hi-Fi LED Clock
Video Cassette Recorder
• 4-head, double azimuth design
• Hi-Fi stereo sound with built-in MTS/SAP decoder
• SmartClock™ with time zone select
• SQPB (S-VHS Quasi-Playback)
• 19 Micron head
• Front panel menu access
• Front panel audio/video/game inputs
• Clock/function display
• Time search
• Auto head cleaner
• Bilingual (English/Spanish) onscreen function display
VR
622CAT
Full Auto-Feature Package
• Power on
• Digital auto tracking system
• Auto play
• Auto repeat
• Auto rewind
• Auto eject
• Auto power off
VCR/Universal TV/CBL/DBS
Remote with Glow Buttons
Convenience
SmartClock™ with Time Zone Select
This menu-driven feature automatically maintains the correct time,
regularly checking and updating the time if necessary.It also resets
the clock after a power failure.The menu-driven time zone feature
allows selection of appropriate time for those who live in a time
zone other than that of their cable service provider or broadcaster.
Clock/Function Display
Continuously alerts you to all important recording and playback
conditions, correct time, counter position, tape speed, channel
number, etc.
Front Panel Audio/Video/Game Inputs
Front Panel Menu Access
Bilingual (English/Spanish) Onscreen Function Display
Onscreen Real-Time Counter with Time Search
Alternate Channel (for TV)
400mm Front Panel Width
Special Effects
Still Frame
Freeze the video at the touch of a button for a smooth, clear image.
Slow Motion
View SP or SLP video recordings in slow motion in both forward
and reverse modes.
Repeat Play-Indefinite
Remote (Remote # N9216UD)
VCR/Universal TV/CBL/DBS Remote with Glow Buttons
Multifunction infrared remote controls all operating features and
functions of this VCR, plus select functions of most Philips, Magnavox
and some competitive brand television sets, as well as some cable
converter/decoders, and standard features of Philips, Magnavox,
RCA, and Sony,digital broadcast satellite receivers. Change channels
fast with the numeric direct access keypad and heads-up onscreen
display for confirmation.
Full Feature Auto Package
• Power On • Digital Auto Tracking • Auto Play
• Auto Repeat • Auto Rewind • Auto Eject
• Auto Power Off
UPC: 037849 91030 6
Product Dimensions: 15.7"W x 3.6"H x 8.8"D
Product Weight: 5.8 lbs.
Carton Dimensions: 18.1" W x 6.6"H x 11.8"D
Carton Weight: 6.7 lbs.
Master Pack: 1
Contains: 4-Head Hi-Fi LED Clock Video Cassette Recorder,VCR/Universal TV/CBL/DBS Remote Control
with Glow Buttons including Batteries, RF Coaxial Cable,Operating Instructions, Warranty Information
Printed in U.S.A.
©2001 Philips Consumer Electronics
A Division of Philips Electronics North America Corp.
KID Design 200325 Philips Consumer Electronics
As an ENERGY STAR®Partner,Philips has determined that this product meets the ENERGY STAR®guidelines for energy efficiency.
ENERGY STAR is a U.S.registered trademark.
SmartClock is a trademark of Philips Consumer Electronics.
By using environmentally-friendly materials,Philips Consumer Electronics continues to demonstrate our commitment
to a cleaner environment.This paper is made from at least 10% post-recycled stock,and the ink is v egetable based.
INTERNET ADDRESS: http://www.philipsusa.com
Specifications subject to change without notice.
Programming and Playback Features
Hi-Fi Stereo Sound with Built-In MTS/SAP Decoder
Record stereo videotapes from stereo sound sources and playback
pre-recorded hi-fi stereo tapes in hi-fi stereo sound using two audio heads and
four video heads. Delivers an excellent 90dB+ dynamic range–through a stereoequipped TV or regular TV and stereo hi-fi home audio system.The built-in
MTS/SAP decoder allows reception and recording of off-air television stereo
broadcasts and second audio program transmissions,where available. Back-up
memory logic retains the cable channel guide map indefinitely even during a
power failure or when the VCR is disconnected from its power source.
One-Touch Record
Record up to 8 hours or to the end of the tape with the touch of a single button.
Each touch of the OTR button adds 30 minutes of additional recording time.
8-Event/1-Year Smart Programming
Program your VCR for unattended recording of up to 8 separate programs
over a full 365-day period.No manual setting, adjusting,or programming of
the calendar function is required.
Remote Control Onscreen Menu Programming
Program by remote control for unattended recording, with programming
instructions onscreen for visual verification. Onscreen menus lead you
through normal, daily, or weekly programming by program number, channel
to be recorded, start and stop times, speed, and date of recording by day,
month, and year. Pressing the clear button lets you go back and reprogram
over mistakes, and pressing the menu button at the end of programming
verifies that instructions are locked into memory.
4-Head, Double Azimuth Design
Combines direct drive cylinder and capstan motors with precision digital servo
control to produce excellent special effects reproduction in Still and Slow modes in
both SP and SLP speeds.
19 Micron Head
Introducing a dramatic improvement in videotape playback capabilities.You’ll
enjoy a significantly better playback in SLP mode and a remarkable playback
in LP mode through specially-designed narrow heads which clear up
onscreen picture noise.
Digital Auto Tracking System
When tape playback begins, this feature automatically seeks the optimum
tracking position in the tracking range, and the optimum audio signal tracking
position for clearest picture and sound. Buttons on the remote transmitter
give you manual control should tracking adjustments be necessary.
Auto Head Cleaner
Gently, automatically cleans the video heads each time a tape is inserted or
removed to maintain optimum picture performance during both recording
and playback.
SQPB (S-VHS Quasi-Playback)
A revolutionary video playback technology that allows you to watch videotapes recorded in the S-VHS (Super-VHS) mode without buying expensive
S-VHS equipment.
4-Head Hi-Fi LED Clock
Video Cassette Recorder
VR622CAT
VR
622CAT
