Philips TSU7000 Users manual

ProntoPro NG
TSU7000
Home Theater Control
Panel
User Guide
FCC Compliancy....................................................................................4
FCC Information for User..................................................................... 4
@@@CE Compliancy............................................................................ 4
Taking a First Look...............................................................................5
ProntoPro NG: The Home Theater Control Panel.............................. 5
What’s New for ProntoPro Next Generation?..................................... 8
Before You Start...................................................................................9
Placing the Battery Pack........................................................................ 9
Installing the Battery Pack ....................................................................9
Charging the ProntoPro NG................................................................ 10
Getting Started ..................................................................................11
Turning on ProntoPro NG................................................................... 11
Setting Time and Date.......................................................................... 11
Operating ProntoPro NG..................................................................... 14
Customizing ProntoPro NG ................................................................16
Using the Tools...................................................................................... 16
Adjusting the Settings .......................................................................... 26
Using the Power Features ..................................................................29
Creating and Editing Macros .............................................................. 29
Activating Timers ................................................................................. 31

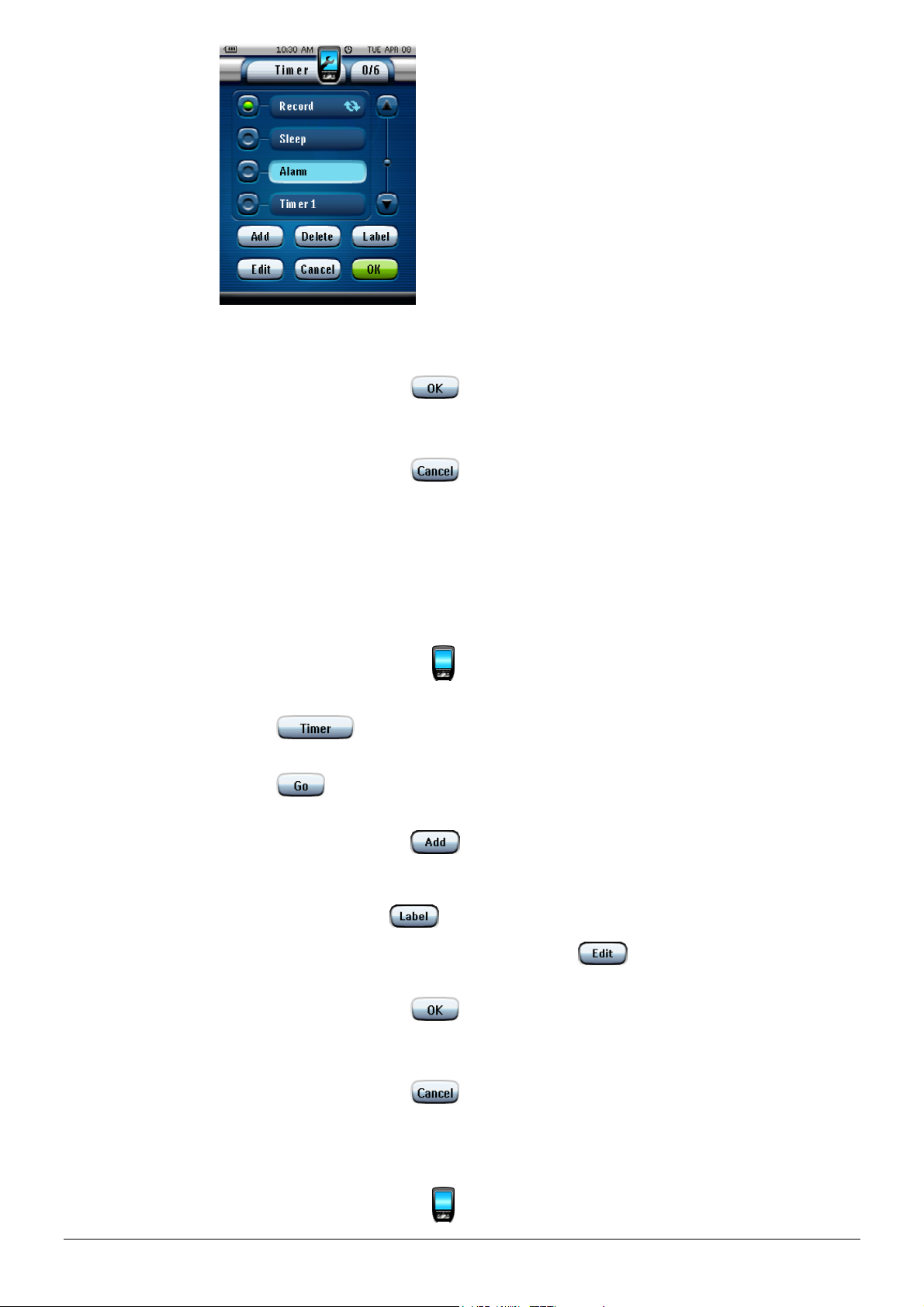

Creating and Editing Timers............................................................... 32

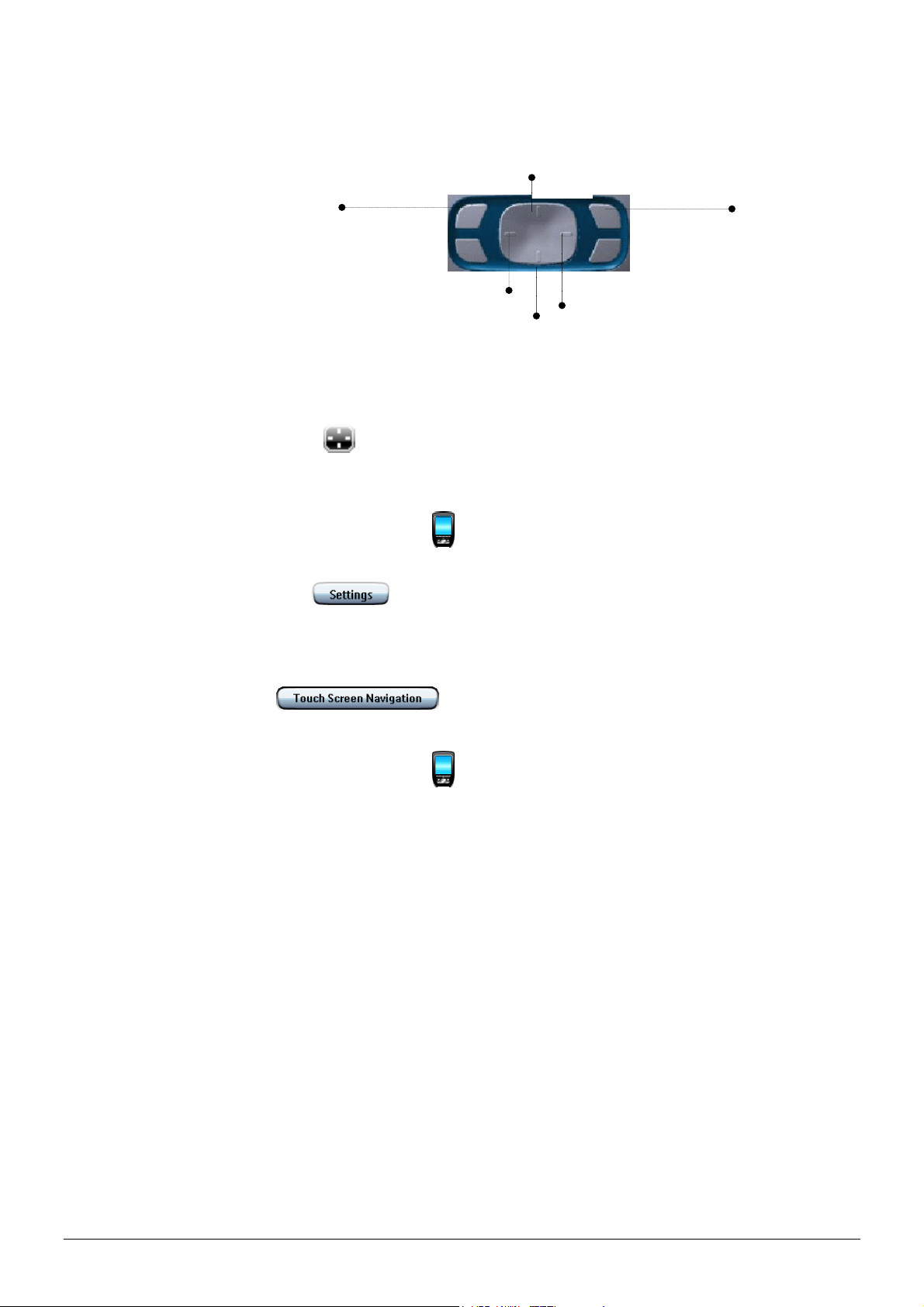

Operating ProntoPro NG with the Cursor......................................... 37
Operating ProntoPro NG with RF...................................................... 37

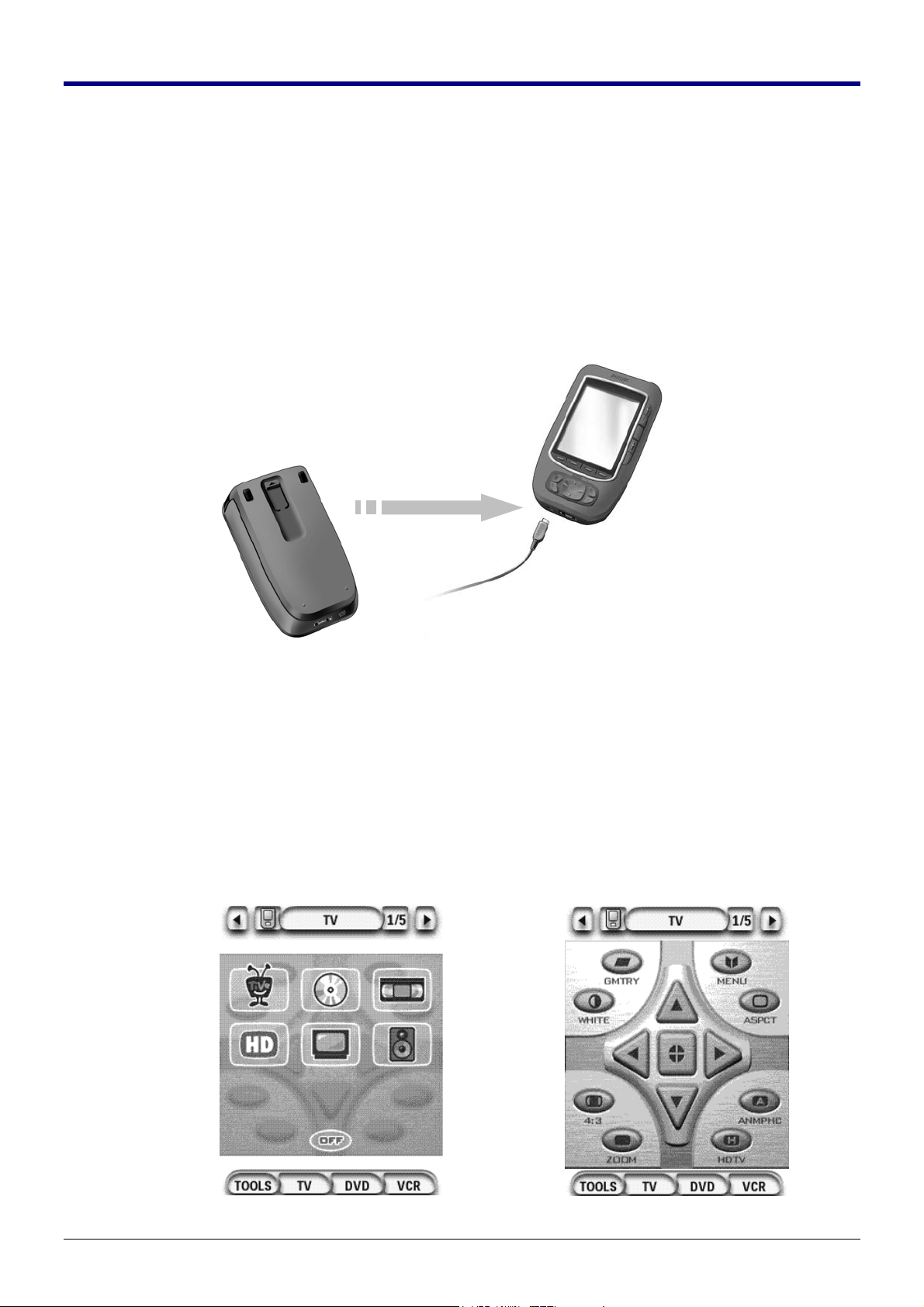

ProntoProEdit NG ...............................................................................40
FAQ..................................................................................................... 41
Troubleshooting .................................................................................43
General Problems ................................................................................. 43
Customizing Problems .........................................................................43
Memory Storage Problems .................................................................. 44
ProntoPro NG error messages............................................................. 44
Connection to the PC............................................................................ 44
Maintaining ProntoPro NG .................................................................45
Important Notices................................................................................. 45
Cleaning ProntoPro NG....................................................................... 45

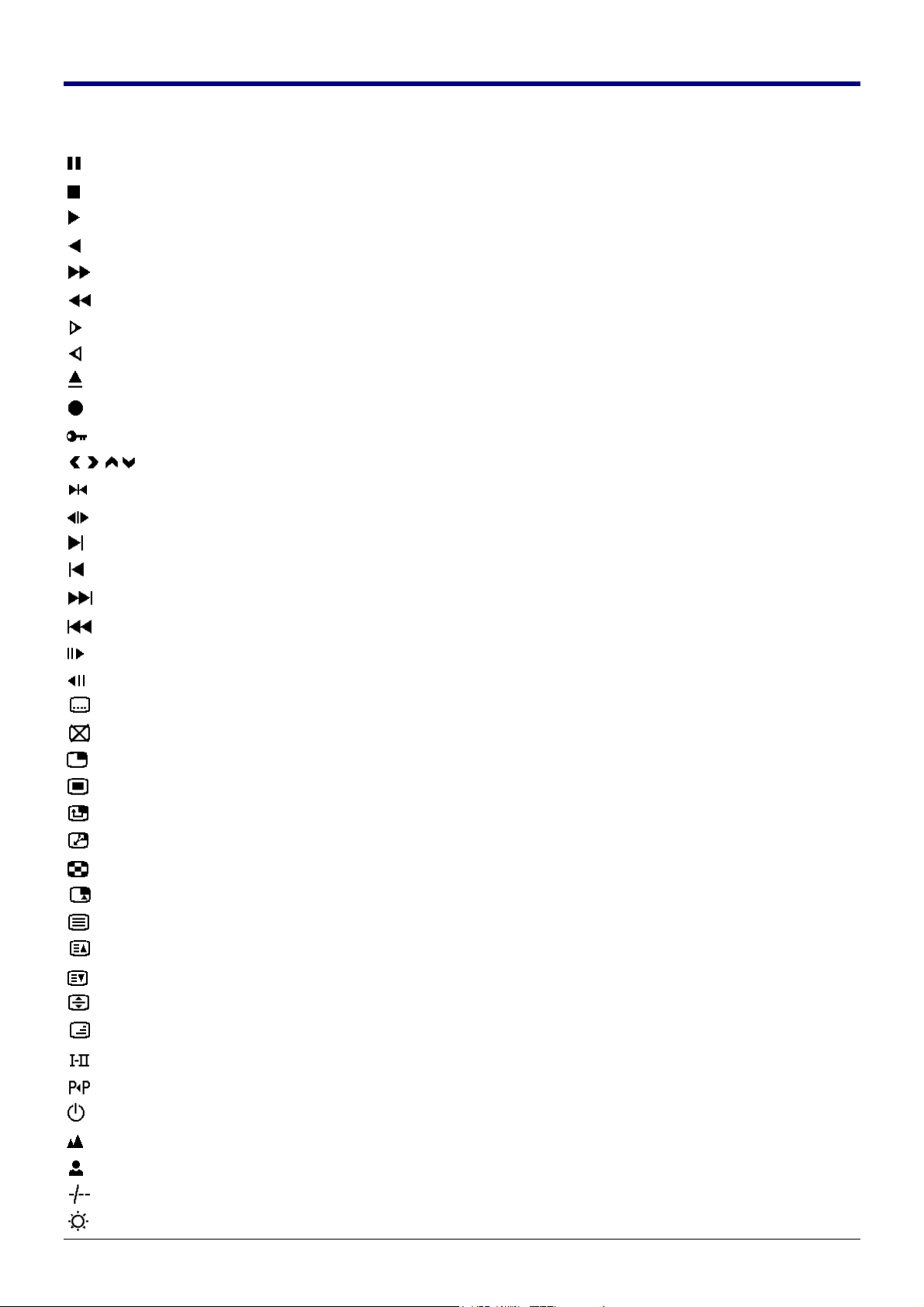

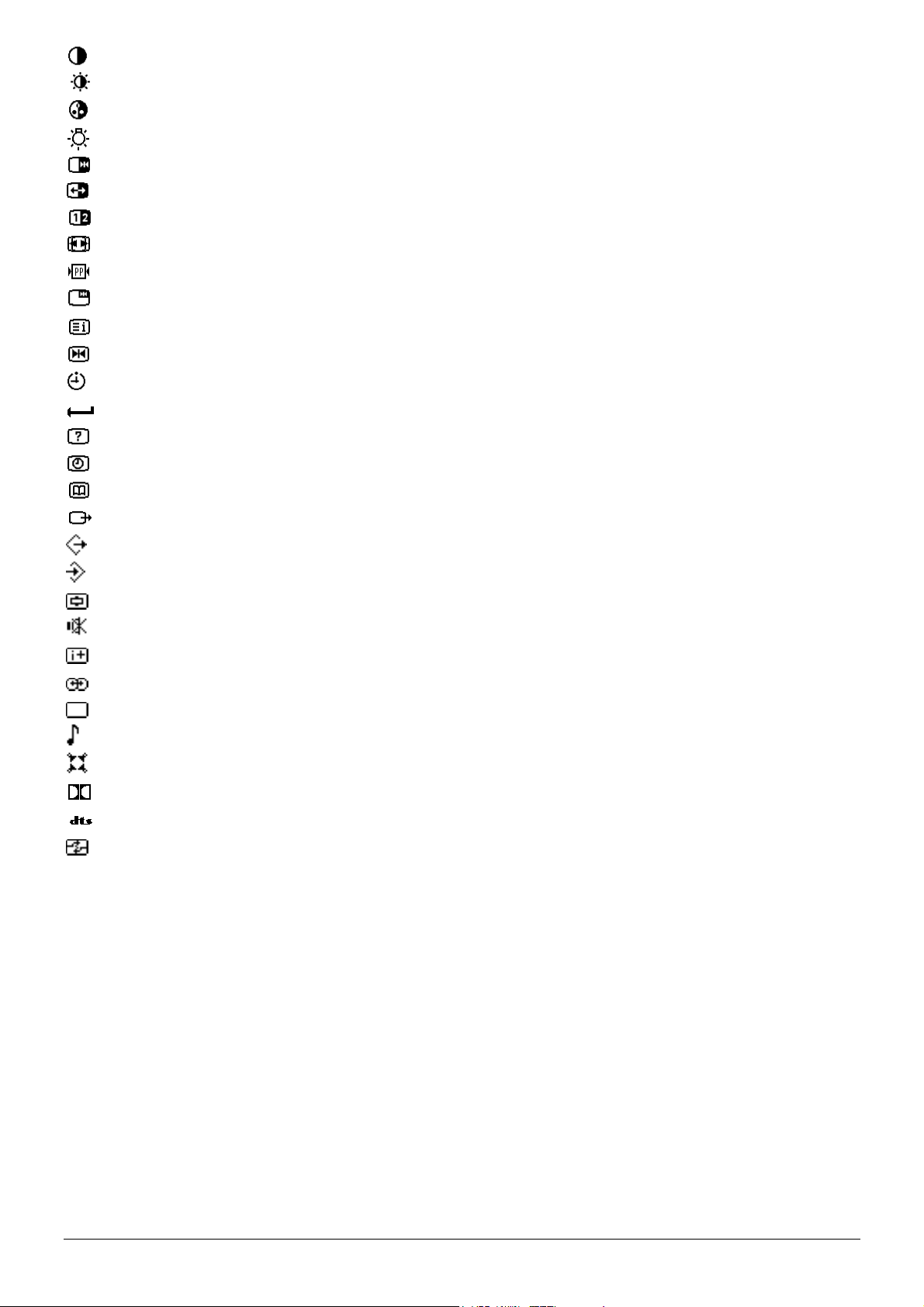

List of Symbols ...................................................................................46
Specifications .....................................................................................48
Glossary..............................................................................................49
Index..................................................................................................52
Copyright............................................................................................54

FCC Compliancy

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rule. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a different circuit from the receiver.
Consult the dealer or an experienced radio/TV technician for help.

FCC Information for User

Caution

Changes or modifications made by the user not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

@@@CE Compliancy

SBC RU980
Made in Belgium / Fabriqué en Belgique
CE0682 (!)
This device can be used in:
AT BE DE DK GR ES FI FR
IRE IT LU NL NO PT SE UK
FCC Compliancy 4

Taking a First Look

ProntoPro NG: The Home Theater Control Panel

ProntoPro NG is a Home Theater Control Panel that allows maximum flexibility and customization for even the most sophisticated home entertainment system. It can control almost any device that understands infrared (IR) remote control signals. Its intuitive interface makes it a perfect remote control for every user.
ProntoPro NG is easy to configure. It contains a huge universal database where IR codes are stored to control different brands for all kinds of video, audio devices and even home automation equipment. By default ProntoPro NG is set up to control Philips and Marantz devices. For other brands you simply choose the brands of your devices when you use ProntoPro NG for the first time.
Furthermore the ProntoPro NG is equiped with a color touch screen. This TFT-display supports 65536 colors so you can upload any color picture.
ProntoPro NG offers you some extra powerful features:
You can create and edit macros, allowing you to send a series of commands with one single touch.
You can set timers for certain actions to be carried out at predefined times, e.g switching on your
lights or recording your favourite daily TV-show with your VCR.

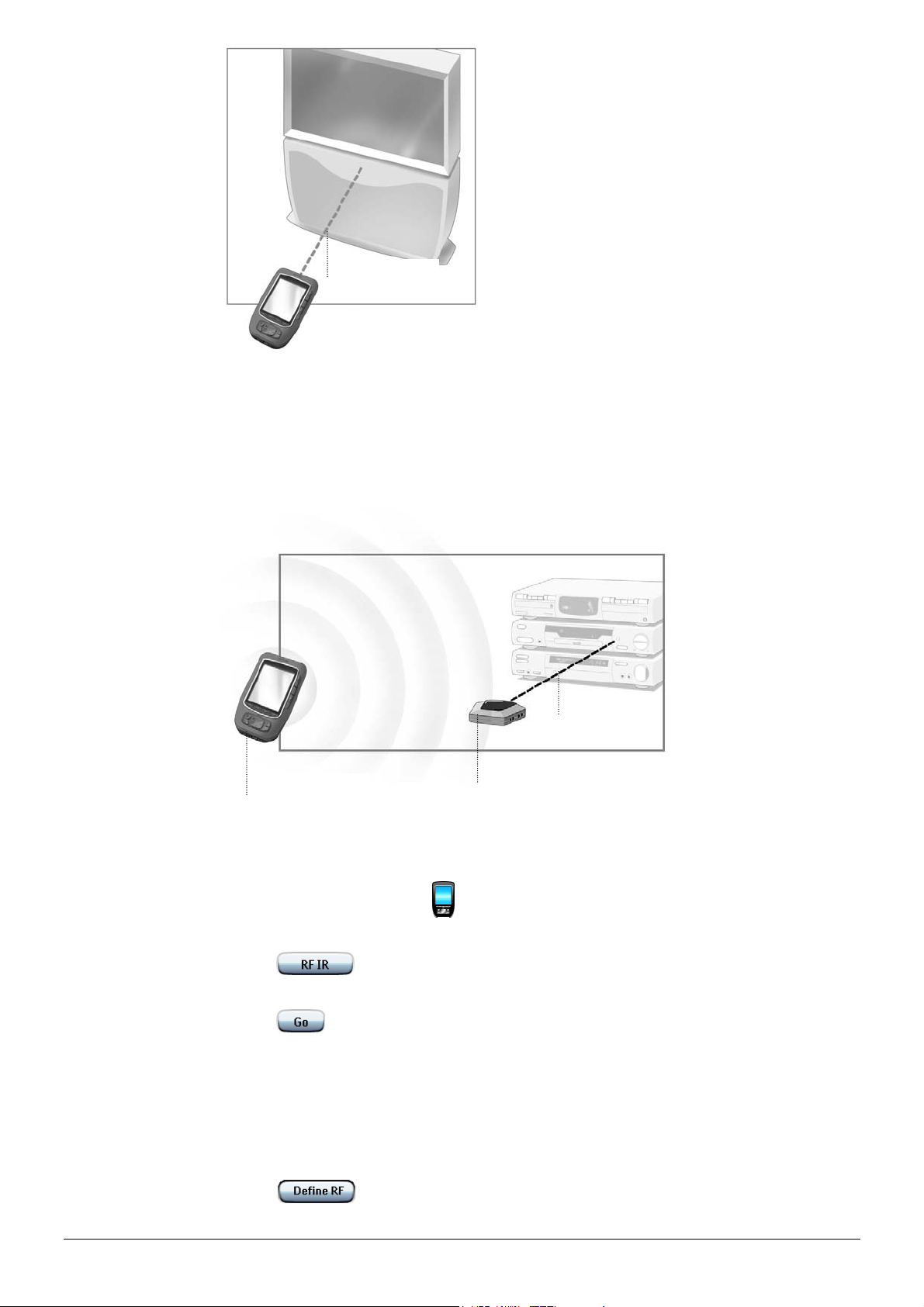

You can choose to have ProntoPro NG working with radio frequency (RF) signals to operate
devices from a distance or from an adjacent room. To do this, you need an optional RF Extender that converts ProntoPro NG RF signals into IR signals.
With ProntoProEdit NG software you can create your own screens and define a personal look. ProntoProEdit NG’s Online Help system (accessible via the ‘Help’ icon in ProntoProEdit NG) will guide you through the process. You can find ProntoProEdit NG on the included CD-ROM and on the Philips website www.pronto.philips.com
. See “ProntoProEdit NG” on page 40 for more information.

The Device

ProntoPro NG has several hard buttons. Most are freely programmable, some have a predefined function:
The buttons on the left side of ProntoPro NG of the screen have predefined functions: Page up,
Page down and Backlight
The 4 firm keys below the touch screen are freely programmable. You can reprogram the function
of these buttons and change the label on the touch screen.
The cursor and the OK and Home buttons on the right side of the cursor are programmed to
operate devices (e.g. navigating through the on screen menu of your TV). With the Toggle button you can change the working of the cursor. The buttons on the right side of the screen are used to control the volume and channel: Channel up, Channel down, Mute, Volume up and Volume down. Although these buttons each have a predefined function, you can program them yourself. If you learn one of these buttons or assign a macro to it, its predefined function for that database will be permanently lost.
Learning eye
Taking a First Look 5
LCD touch screen
K
p
Channel up
Firm keys
Cursor
Toggle button
Free
rogrammable
Home
O
Volume down
Page down
Mute
Backlight
Channel down
Volume up
Page up
Reset button
Connection to docking station
Battery compartment
USB port

The Touch Screen

Taking a First Look 6
Soft
A
buttons
Previous Device
Pronto Icon
Device Overview button
Page Overview
Next Device
@@@
Labels for the firm keys

The Docking Station

The docking station is used to charge the ProntoPro NG’s battery pack. When your ProntoPro NG is placed in the docking station, you can connect ProntoPro NG to your computer via the USB port of the docking station, instead of the USB port of the ProntoPro NG.
Connector for Pronto
USB port
dapter
Connector
Taking a First Look 7

What’s New for ProntoPro Next Generation?

This new ProntoPro NG (TSU7000) offers several new features compared to the previous model of ProntoPro (TSU6000). The most important ones are:
Transparency
ProntoPro NG supports transparency in buttons and other objects. This makes it easier to create complex user interfaces. You can now place buttons with a transparent background on top of a background image, let transparent buttons overlap or create transparency effects within buttons.
65536 colors
The number of colors has increased from 256 to 65536 (64k). Therefore the buttons look much more natural.
Integrated Macros
Macros are now better integrated in the configuration file. Each button can be a macro, this means each button can contain more than one action.
More advanced Timers
Your ProntoPro NG is able to set timers for certain actions to be carried out at any time you choose. Timers are not an entirely new feature of ProntoPro, but they are easier to use and better integrated with the configuration file. You can activate and deactivate the timers you created and you can also set them to repeat daily or weekly. For instance, you can have the lights switched on every day at sundown. You can also create a timer to set your VCR to record your favourite TV­show on wednesday and saturday.
Page Overview
The Page Overview offers you a list of all the pages for one device. Every device comes with a Page Overview, making it easier and faster to browse through the device pages.
Cursor Navigation
By default the cursor is programmed to operate devices. The functions assigned to the cursor button depend on the device active on ProntoPro NG. ProntoPro NG also offer you the possibility to use the cursor for navigating through devices and pages on the screen. The Left and Right cursor buttons allow you to scroll through the devices, with the Up and Down cursor buttons you scroll through the different pages.
Animation Mode
ProntoPro NG provides navigation feedback through graphical animations of mode transitions and page transitions. You can enable and disable the animations of your ProntoPro NG in the Settings Pages.
USB
ProntoPro NG is provided with a USB port. The USB port makes downloading much easier.
16 MB of Memory
ProntoPro NG has 16 MegaByte of memory (extendable to 32 MB). This enables you to download larger configuration files to ProntoPro NG.
.
Taking a First Look 8

Before You Start

Placing the Battery Pack

When you use ProntoPro NG for the first time, you will have to:
install the battery pack;
place ProntoPro NG in the docking station and charge it.
Attention
Use the docking station only with the Philips NiMH rechargeable battery pack.
Never plug other appliances (like mobile phones, PDA’s, …) into the docking station. This causes damage to the connector and the appliance.

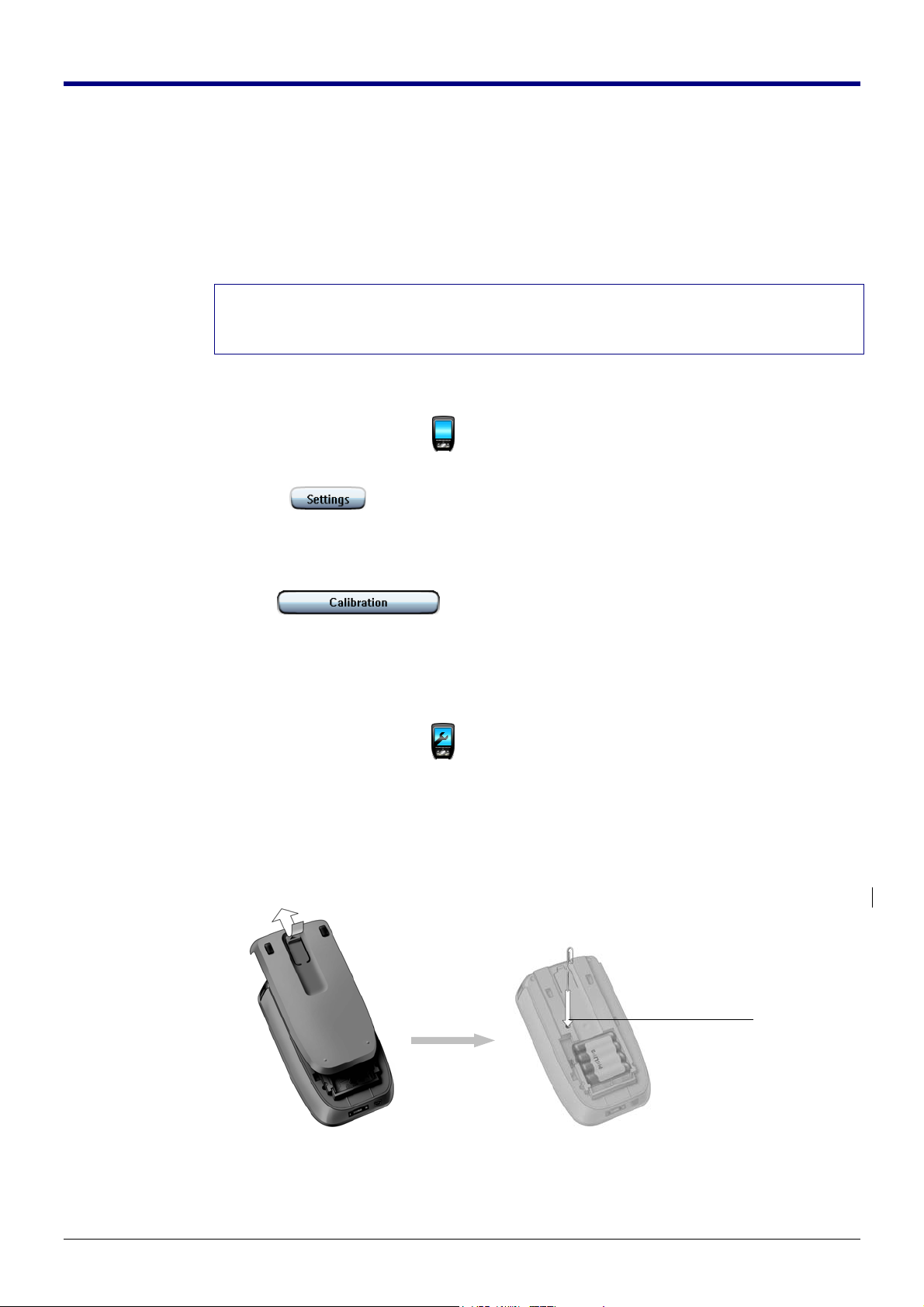

Installing the Battery Pack

1 Press the latch on the battery cover and remove the battery cover from the ProntoPro NG.
2 Place the battery pack in the battery compartment.
3 Plug the cable of the battery pack in the connector.
@@@ darken ProntoPro and integrate callout with plug
4 Slide the battery cover back on.
Make sure the wires of the battery pack do not get stuck while sliding the cover on. After a few seconds, the ProntoPro NG starts up automatically and an Introduction screen appears. The ProntoPro NG beeps twice to indicate that it has finished starting up.
Because the battery pack is not fully pre-charged, you need to charge it as described below.
Before You Start 9

Charging the ProntoPro NG

For charging the ProntoPro NG, you have to place in the docking station. When the battery pack is running low, the Low Battery icon will appear on the ProntoPro NG.
You can charge the ProntoPro NG at any time; the battery pack does not have to be entirely empty before recharging.
Note
You can continue using the ProntoPro NG while it is being charged.
When the battery pack is empty, the ProntoPro NG’s settings are retained. You only need to set the clock. However, you should recharge the ProntoPro NG as soon as possible to ensure perfect performance.
1 Plug the power adapter into a wall outlet and connect it to the docking station.
2 Slide the ProntoPro NG in the docking station until it clicks.
Make sure you hold the ProntoPro NG at an angle of 30° to 45° when you place it in the docking station.
Charging starts immediately. The blue charging LEDs on the front of the docking station indicate that the battery pack is being charged.
When the ProntoPro NG is fully charged, the charging LEDs go off. Normal charging time is 2 to 3 hours, depending on the condition of the battery pack.
When the charging LEDs are flashing, an error occurs. Try one of the following:
Make sure the battery pack is properly installed in your ProntoPro NG.
Make sure the ProntoPro NG is placed properly in the docking station.
Check if the connector in the docking station is clean and free of obstructions.
Cool down the battery pack.
Before You Start 10

Getting Started

Turning on ProntoPro NG

ProntoPro NG can be turned on in four different ways:
Tap the touch screen.
Note
Only use your finger, a stylus or a blunt soft object like a pencil eraser to operate the touch screen.
Press one of the 4 firm keys below the screen to activate the display.
Note
When you press a hard button on ProntoPro NG, the according function will be executed immediately, while the 4 firm keys below the touch screen will activate the display.
Press the Backlight button.
Tilt ProntoPro NG more than 50 degrees.
50°

Setting Time and Date

When you have installed the battery pack and turned on ProntoPro NG, you have to set the current time.
Attention
Every time you reset your ProntoPro NG you will have to set the time again.

Changing the Time Format

1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap button in the Tools Menu.
The first Settings Page appears.
Getting Started 11
@@@
3 Tap the Time Format button in the first Settings Page.
The Time Format button toggles between the three time formats:
12 hour (AM/PM): This is the default format;
24 hour;
No time.

Changing the Time

1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The first Settings Page appears.
3 Tap the Time button in the first Settings Page.
The Time button is selected. The labels ‘+’ and ‘-’ appear for the two middle firm keys.
4 To increase the time, press (and hold) the firm key labeled ‘+’.
-or­To decrease the time, press (and hold) the firm key labeled ‘-’.
5 Tap the Time button again.
The new time is set.

Changing the Date

1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The first Settings Page appears.
To change the day
1 Tap the Day button in the first Settings Page.
The Day button is selected. The labels ‘+’ and ‘-’ appear for the two middle firm keys.
2 To increase the days, press (and hold) the firm key labeled ‘+’.
-or­To decrease the days, press (and hold) the firm key labeled ‘-’.
3 Tap the Day button again.
The new day is set.
Getting Started 12
To change the month
1 Tap the Month button in the first Settings Page.
The Month button is selected. The labels ‘+’ and ‘-’ appear for the two middle firm keys.
2 To increase the months, press (and hold) the firm key labeled ‘+’.
-or­To decrease the months, press (and hold) the firm key labeled ‘-’.
3 Tap the Month button again.
The new month is set.
To change the year
1 Tap the Year button in the first Settings Page.
The Year button is selected. The labels ‘+’ and ‘-’ appear for the two middle firm keys.
2 To increase the years, press (and hold) the firm key labeled ‘+’.
-or­To decrease the years, press (and hold) the firm key labeled ‘-’.
3 Tap the Year button again.
The new year is set.

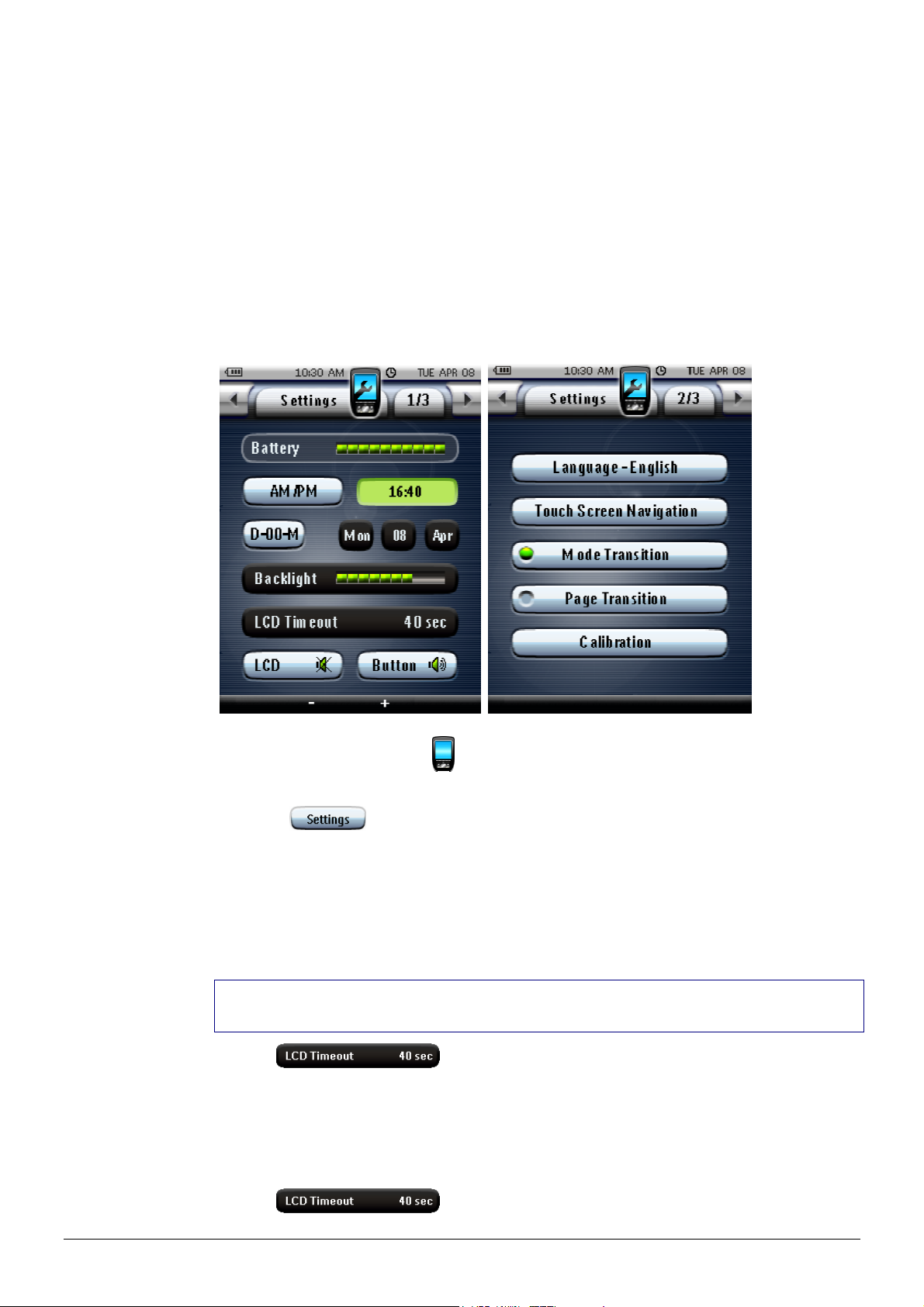

Setting the Language

You can change the language used on your ProntoPro NG.
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The first Settings Page appears.
3 Press the Page down hard button.
The second Settings Page appears.
@@@ new labels, 1 animation button
4 Tap in the second Settings Page.
The Language button toggles between five languages:
English;
French;
German;
Spanish;
Dutch.
Getting Started 13

Operating ProntoPro NG

w
ProntoPro NG contains a series of customizable devices, each consisting of several device pages. All active devices on your ProntoPro NG are listed in the Device Overview. All the available device pages are listed per device in the Page Overview.

Device Overview

The Device Overview offers you a list of all the devices you can control with ProntoPro NG. To view the Device Overview, press the Device Overview button at the top of the touch screen.
Device Overvie
button
Device Left button
Device Right button
@@@
You can navigate between the devices in two different ways:
Tap the device you want to operate from the Device Overview.
Tap the Device Left button at the top of the touch screen to navigate to the previous device.
Tap the Device Right button
at the top of the touch screen to navigate to the next device.
By default you navigate through ProntoPro NG, using this touch screen navigation. When cursor navigation is enabled, the Device Left and Device Right button disappear and the Cursor Navigation
icon
appears. You then navigate through the devices and pages using the cursor. For more information on changing the touch screen navigation to cursor navigation, see “Operating ProntoPro NG with the Cursor” on page 37.

Page Overview

The Page Overview offers you a list of all the pages for one device. To view the Page Overview, tap the Page Overview button, that displays the page number in the upper area of touch screen.
Page Overview button
@@@
Getting Started 14
You can navigate between the different pages in two different ways:
Tap the page you want to operate from the Page Overview.
Press the Page Up or Page Down hard button on the left side of ProntoPro NG.
Getting Started 15

Customizing ProntoPro NG

What makes ProntoPro NG so powerful, is the ability to extend its functionality in multiple ways, like programming additional functions, adding supplementary devices and changing the interface as it suits you best.
For full editing you can use ProntoProEdit NG software. See “ProntoProEdit NG” on page 40 for more information.

Using the Tools

ProntoPro NG provides different tools. For customizing ProntoPro NG you have to switch to the appropriate tool. ProntoPro NG offers 10 different tools in the Tools Menu, each providing different functionalities:
Settings Tool: Defining the settings of your ProntoPro NG (p. 26).
Brand Tool: Defining the brands of your audio/video equipment (page 17)

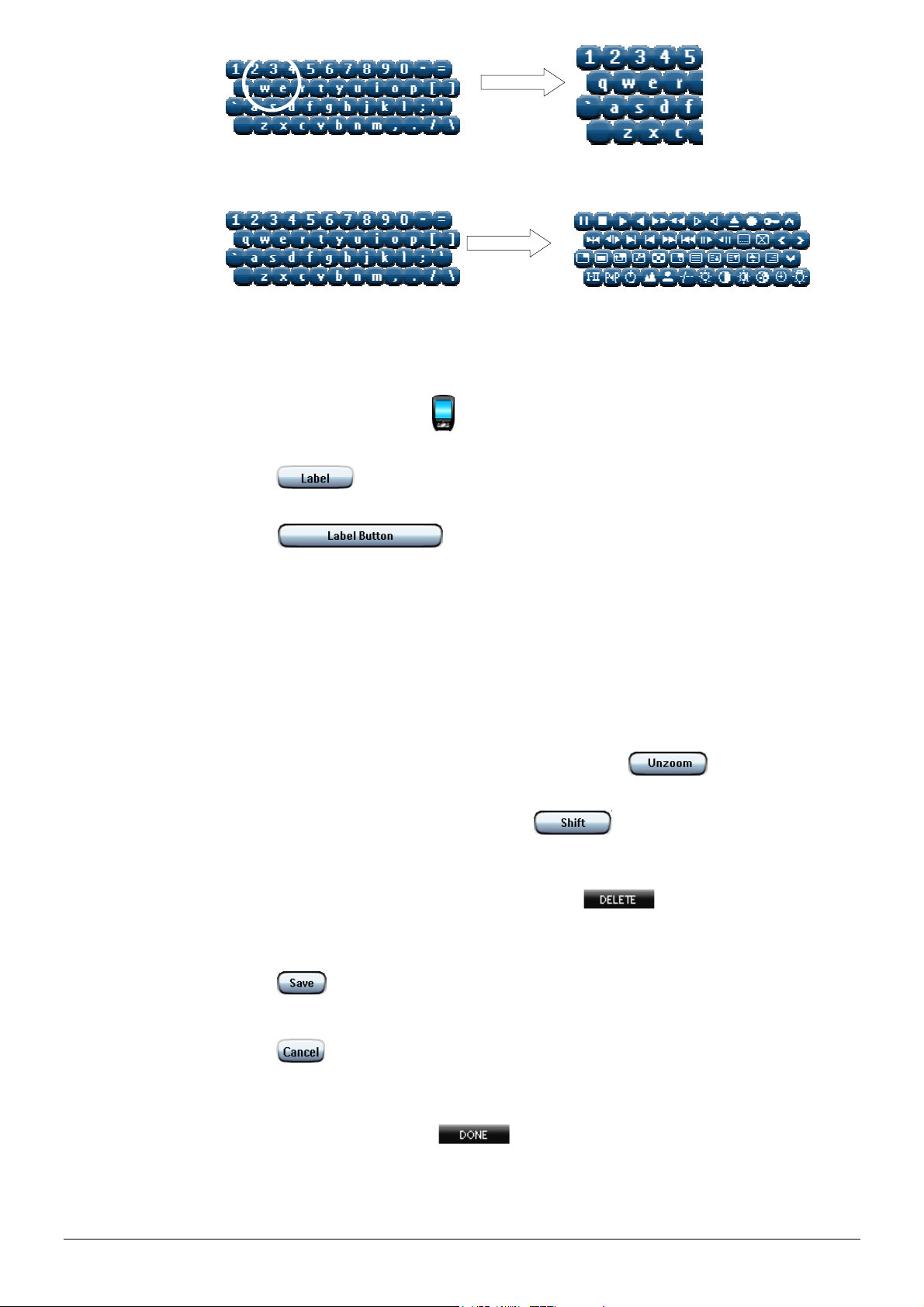

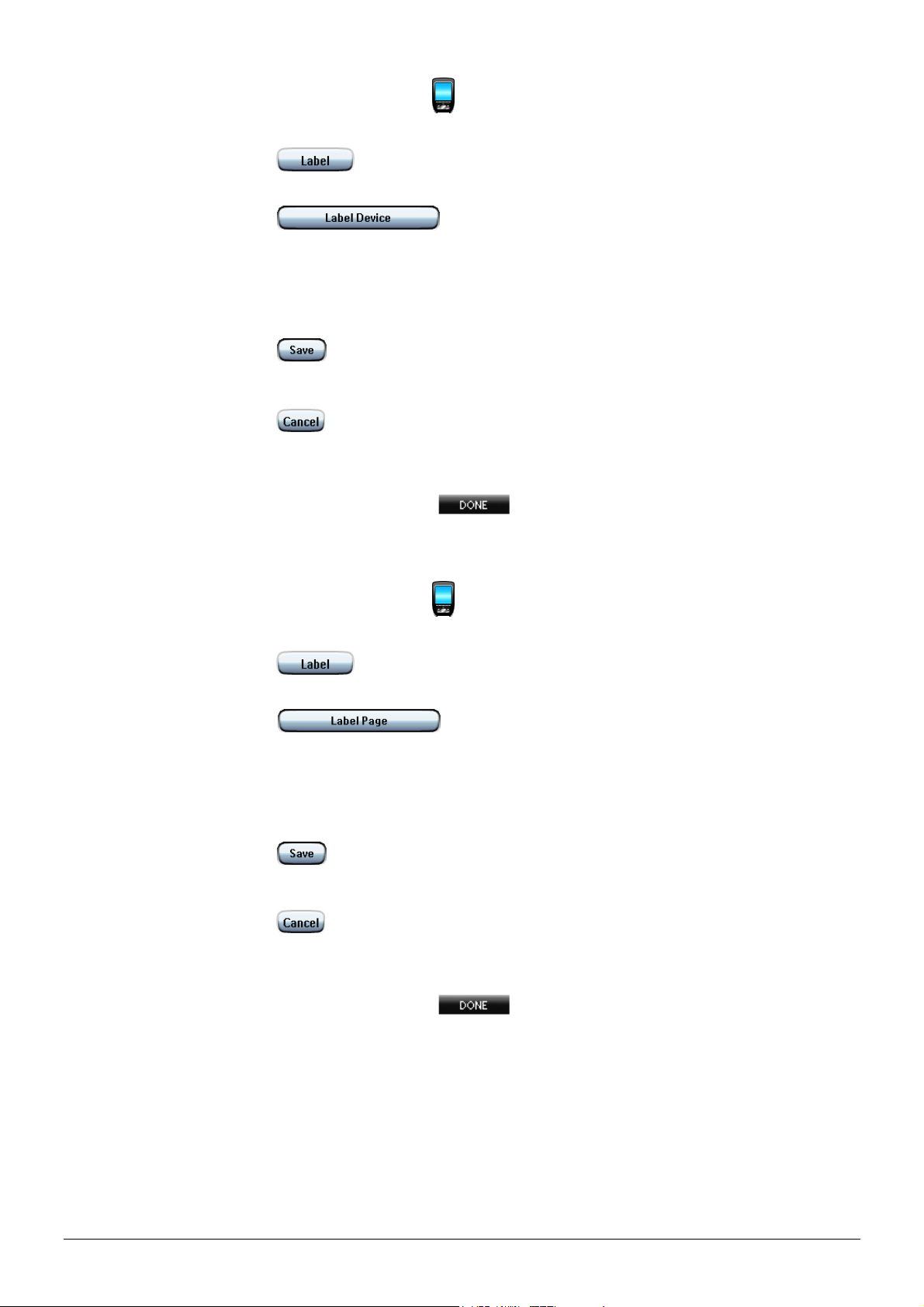

Label Tool: Labeling buttons, devices and pages (page 20)
Delete Tool: Deleting button actions or devices (page 24)

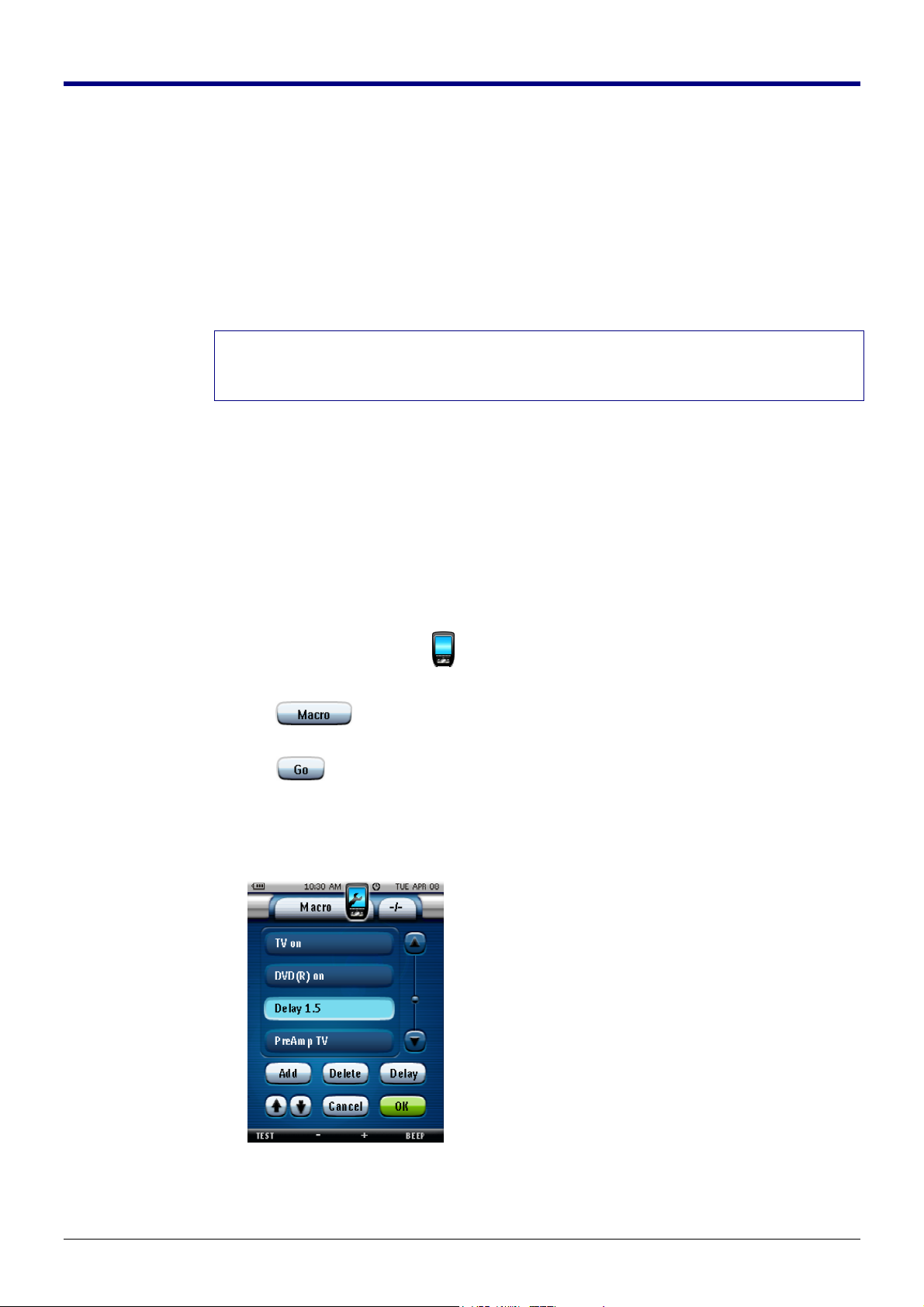

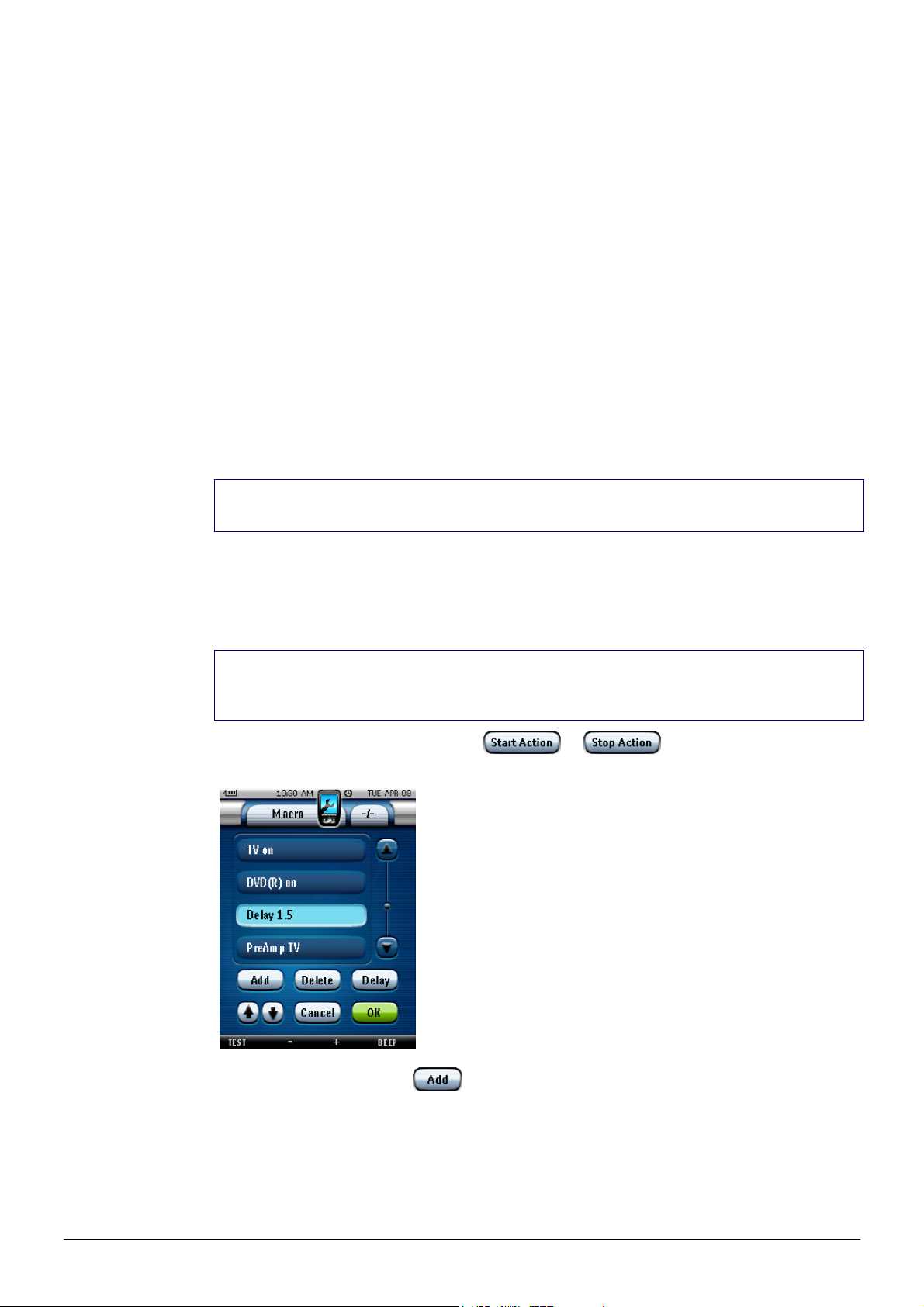

Macro Tool: Programming a sequence of commands for one single button (page 29)
To enter the Tools Menu, you have to tap the ProntoPro NG icon

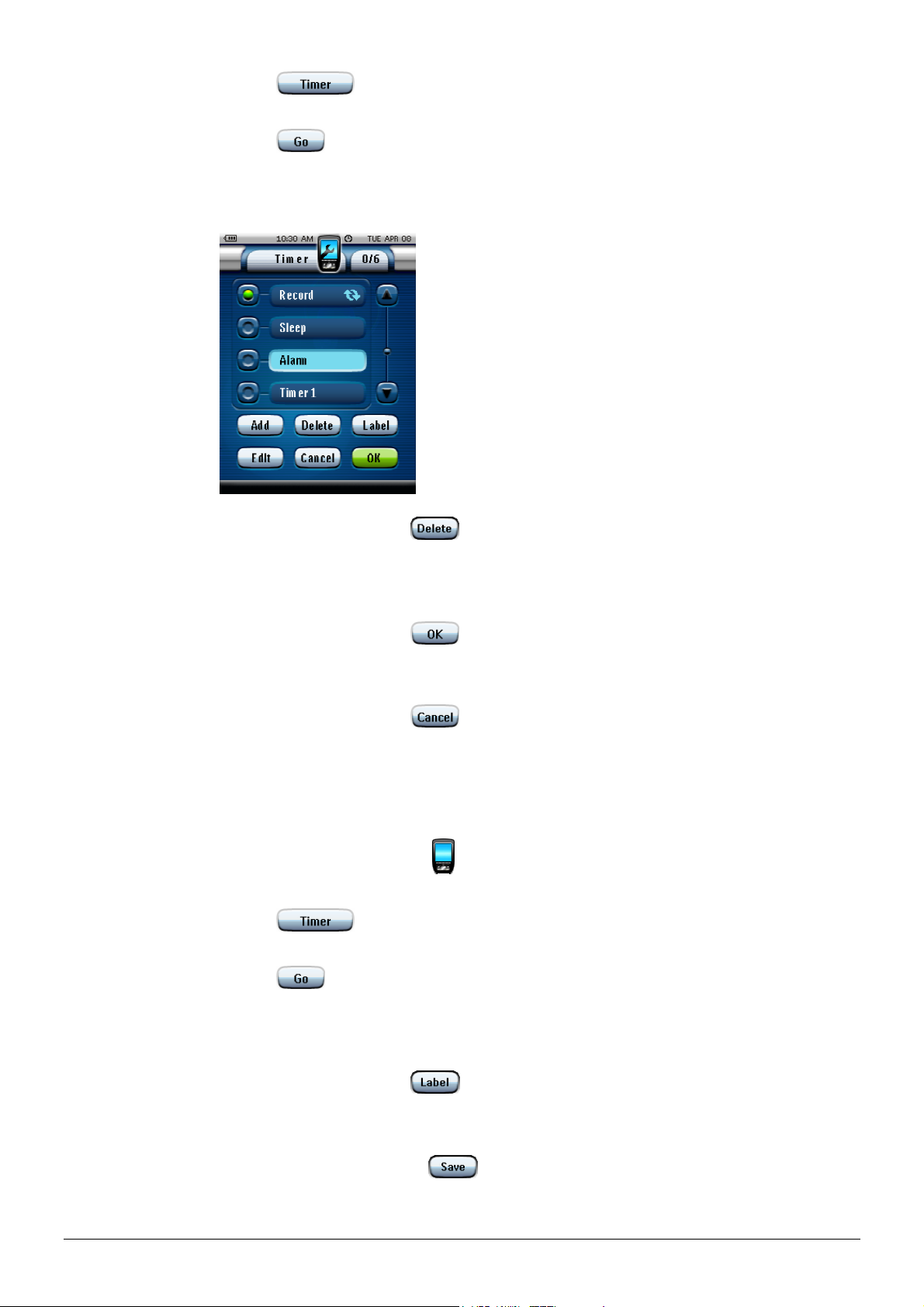

Defining timer actions to be carried out at predefined times (p 31).

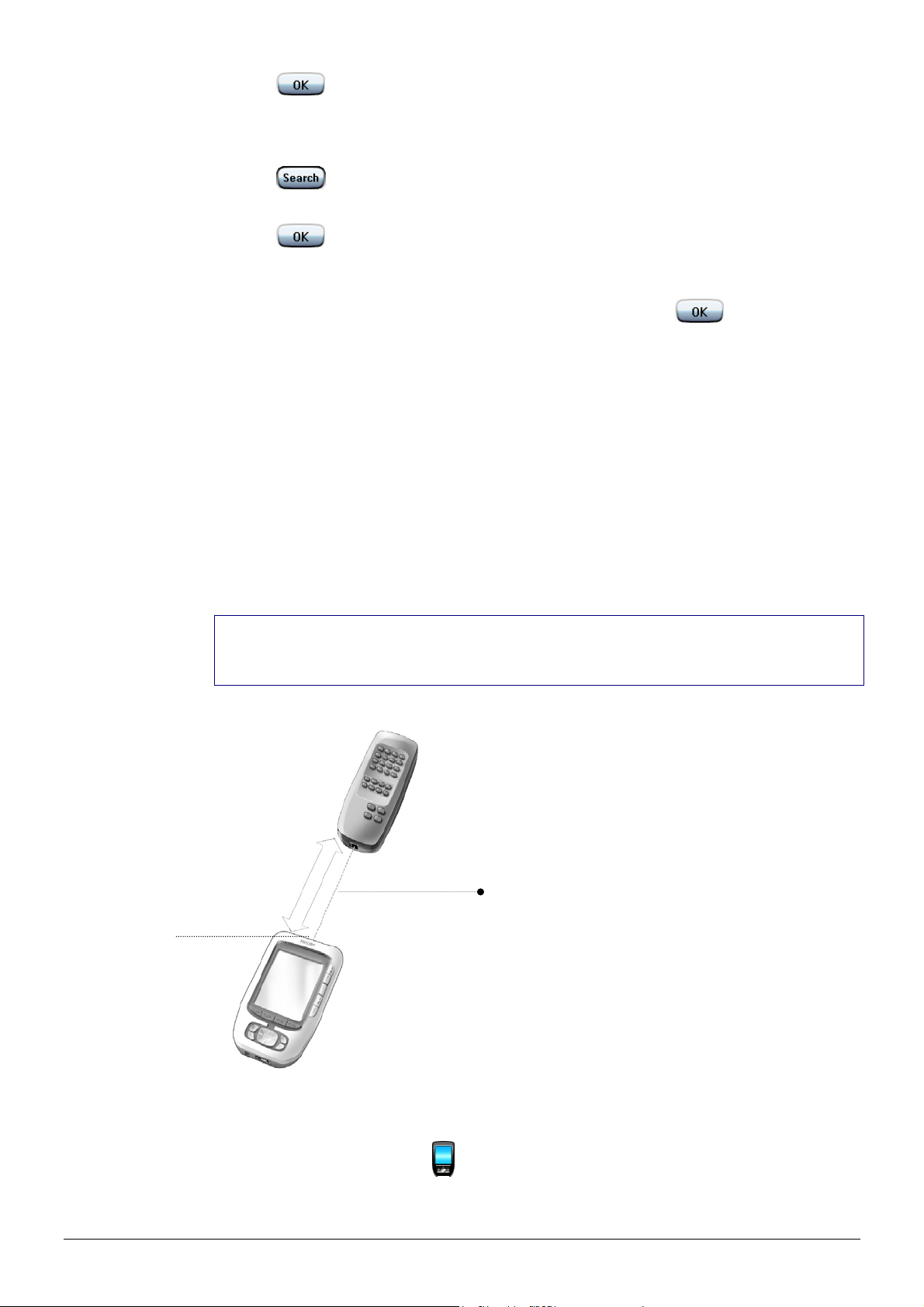

Learning IR codes from other remote controls (page 17)
Adding new devices or copying existing devices (page 23)
Moving devices in the Device Overview (page
24)
Defining to operate ProntoPro NG with IR signals or RF signals (page 37)
Timer Tool:
Learn Tool:
Add Tool:
Move Tool:
RF IR Tool:
in the top center of the touch
screen. You can exit all Tools by tapping the ProntoPro NG icon latested changes to the current page will not be saved. In the Tools:
Tap to start using the Tool.
Tap to go back to the Tools Menu.
Tap to confirm an action and save the changes you made.
Tap to cancel an action without saving the changes.
Press the firm key labeled to end a series of actions and go back to the Tools Menu.
. Keep in mind that your
Customizing ProntoPro NG 16

Defining the Brand for a Device

ProntoPro NG contains a huge list of brands and their according IR codes in its database. ProntoPro NG uses these IR codes to control devices. Because there are several brands using specific IR codes, you have to define the brands and the corresponding code sets for each device. You can either have ProntoPro NG autosearch the brand or select it yourself. If a device’s brand contains more than one IR code set, you also have to select it.
On the Device Overview you find buttons for the most common video and audio devices. ProntoPro NG is set by default to operate Philips and Marantz devices. For all devices other than Philips or Marantz, you first have to define the brand before you can operate them with ProntoPro NG.
Selecting the Brand and Code Set for your Device
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Brand Tool’ screen appears.
3 Tap in the ‘Brand Tool’ screen.
The Device Overview appears.
4 In the Device Overview, tap the Device for which you want to define the brand.
A message screen appears.
5 Tap .
The ‘Brands’ screen appears.
Selecting the brand
1 Tap the Scroll Down button or the Scroll Up button next to the Brands list.
The Brands list scrolls down/up.
Note
You can also select the brand via the virtual keyboard by tapping one or more of the brand’s name characters.
2 Tap the brand for the selected Device in the Brands list.
3 Tap in the ‘Brands’ screen.
A message screen appears. If there is only one code set, the ‘Installing the Brand’ screen appears. Go to “Installing the
brand” on page 17.
-or­If there is more than one possible code set, a message screen appears.
4 Tap .
The ‘Code sets’ screen appears.
Selecting the code set
1 Tap the Scroll Down button or the Scroll Up button next to the Code Sets list.
The Code Sets list scrolls down/up.
2 Tap the code set for the selected Device in the Code Sets list.
3 Tap in the ‘Code Sets’ screen.
The ‘Installing the Brand’ screen appears.
Installing the brand
1 Tap in the ‘Installing the Brand’ screen.
Customizing ProntoPro NG 17
Loading...
+ 37 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
