Taking a First Look

A

Intelligent Remote Control

The Intelligent Remote Control can be used for most devices that understand infrared (IR) remote control signals. Its easy­to-use touch screen with 256 colors and its intuitive interface makes it a perfect remote control for every user.

The Remote Control (RC) is completely customizable. In the memory of the Remote Control, RC codes are stored to
activate different brands for all kinds of video and audio devices. The Remote Control is set up by default to operate with
Philips or Marantz devices. When you have other brands, you simply define the brands of your devices when you use the
Remote Control for the first time.

The Remote Control can also learn RC codes from existing remote controls. It is designed to add devices and functions,
relabel buttons, record macros and set timers. With the ProntoPro Edit software you create your own control panels and
define your personal look.

If you want to operate devices from a distance or from an adjacent room, you can use the Remote Control with radio
frequency (RF) signals and an RF Extender.

The Appliance

Sending eye

Page Up button

Learning eye

Battery compartment

Latch

256 color LCD touch screen

Direct-access buttons

Page Down button

ction buttons

Serial port

Connection to the docking station

Contrast dial

Backlight button

Reset button

Battery cover

Taking a First Look 3

The Touch Screen

A

Remote Control icon:
Tap to enter the Mode menu and customize the
Remote Control
Touch and hold to enter Setup mode

Macro tab: To activate the
Macro menu

Panel number:
Shows active
control panel

Control panel: To send
commands to devices

Device tab: To activate
the Device menu

The Docking Station

The docking station is used

• to charge the Remote Control;

• to connect your Remote Control to your computer.

The serial port on the docking station can be used as an alternative for the serial port on the Remote Control.

Charging LED

Connection for the
Remote Control

Serial port

dapter connector

Taking a First Look 4

Before You Start

When you use the Remote Control for the first time, you will have to:

• install the battery pack;

• place the Remote Control in the docking station and charge the Remote Control.

Use the docking station only with the Philips NiMH rechargeable battery pack.
We strongly advise you not to plug other appliances (like mobile phones, PDA’s, …) into the docking station. This
causes damage to the connector and the appliance.

Installing the Battery Pack

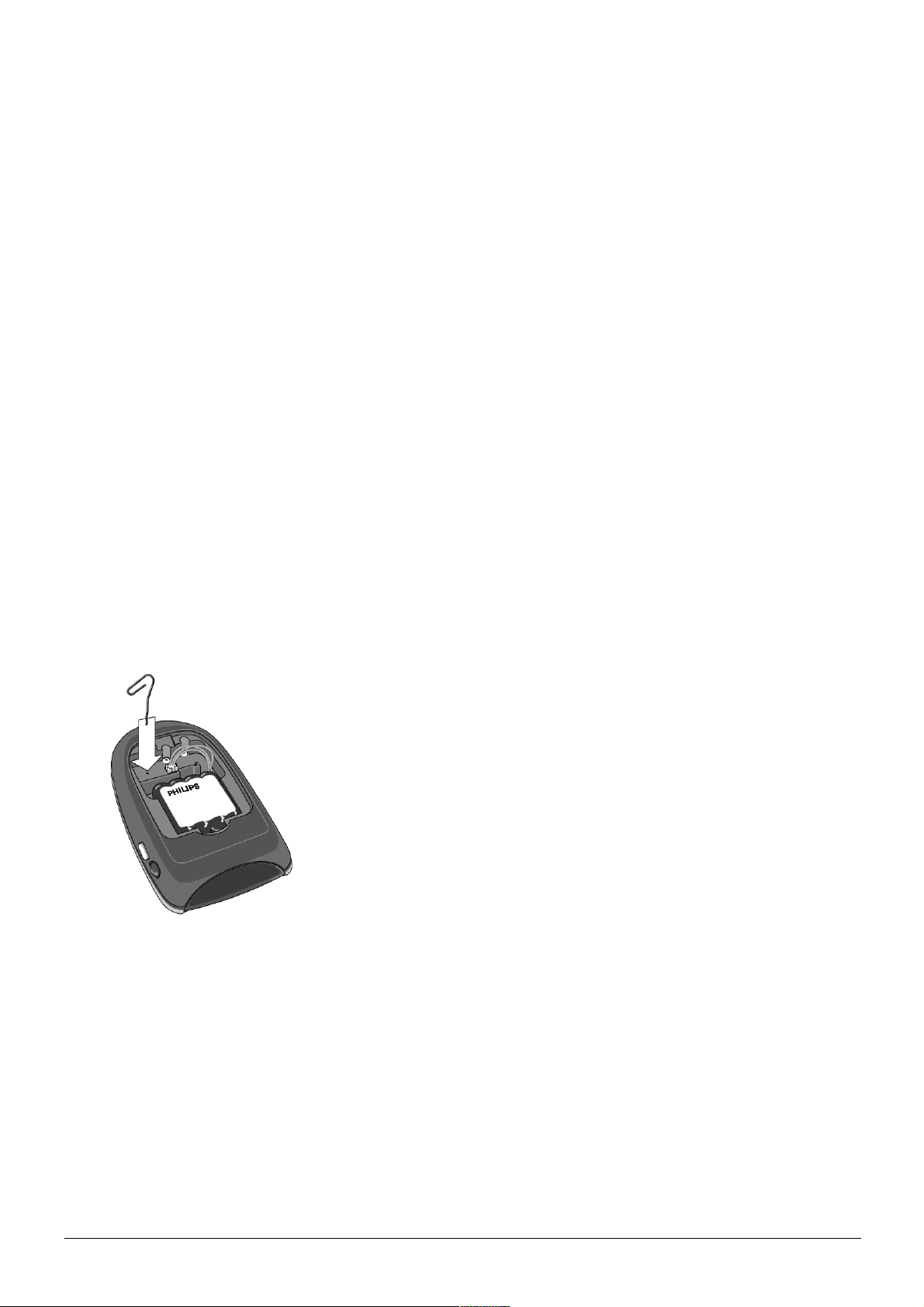

1. Press the latch on the battery cover and remove the battery cover from the Remote Control.

2. Place the battery pack in the battery compartment.

3. Plug the cable of the battery pack in the connector as illustrated.

4. Place the battery cover back on.

Make sure the cable of the battery pack does not get stuck between the mould and the battery cover.

After a few seconds, the Remote Control starts up automatically and an Introduction screen appears. The Remote
Control beeps twice to indicate that it has finished starting up.

Because the battery pack of the Remote Control is not fully pre-charged, you will have to charge it as described
below.

Taking a First Look 5

Charging the Remote Control

For charging the Remote Control you use the docking station.

1. Plug the power adapter into a wall outlet and connect it to the docking station.

2. Place the Remote Control in the docking station.
Make sure you hold the Remote Control at an angle of 30° to 45° when you place the it in the docking station.

30° - 45°

Charging starts immediately. The green charging LED on the front of the docking station indicates charging takes
place. When the Remote Control is fully charged, the LED goes off.

Normal charging time is 2 to 3 hours, depending on the condition of the battery pack.
You can operate the Remote Control while it is being charged.
The battery pack does not have to be entirely empty before recharging. You can place the Remote Control in
the docking station at any time.

When the battery pack is running low, the Low Battery icon flashes on the Remote Control icon . Recharge
the Remote Control as soon as possible to ensure perfect performance.

The Remote Control retains all settings when the battery pack has run out. You will only have to set the clock.
See “Adjusting the Settings” on page 16.

Taking a First Look 6

Getting Started

Activating the Remote Control

Turning on the Display and the Backlight

The Remote Control’s display can be activated in three different ways:

• Tap the screen gently with your finger or a blunt, soft object like a pencil eraser.

The display is activated.

• Tilt the Remote Control more than 50 degrees as illustrated.

50°

The display and the backlight of the direct-access buttons are activated.

In the settings (p. 16) you can choose to deactivate the Pick Up sensor.

• Press the backlight button on the left side.

The display and the backlight of the direct-access buttons are activated.

When you turn on the display you see the Home panel. If another panel is displayed, tap the Home button

If the screen stays black or becomes blank, adjust the contrast using the contrast dial on the left side.
The Remote Control has a switch-off feature: it automatically turns off to save power.
In the settings (p. 16) you can define the switch-off time for the touch screen.

Activating Modes

The Remote Control has different modes. In Use mode the Remote Control icon
(like

or ) covers the icon, see page 20 to switch your Remote Control to Use mode.

is entirely visible. If a label

.

Getting Started 7

Defining the Brands of Your Devices

The Remote Control uses RC codes to activate devices. Because there are several brands using specific RC codes, you have
to define the brands of your devices.

On the Home panel you find buttons for most common video and audio devices. When you select a device on the Home
panel for the first time, you will notice that the Remote Control is set up by default to operate Philips or Marantz devices.
For all devices other than Philips or Marantz, you will have to define the brand before you can operate them with the
Remote Control.

1. Select a device on the Home panel.
The following screen appears.

2. When the brand of your device is Philips or Marantz, click No.
The Remote Control switches to Use mode. To operate the device in Use mode, see p. 14.

-or-

When you want to adjust the Remote Control to operate with your brand, click Yes.
The Remote Control switches to Brand mode. Follow the instructions as described below.

There are three possible scenarios for defining brands:

• You can select the brand and the code set of your device.

• You can select the brand of your device and search the code set.

• You can search the brand of your device.

Getting Started 8

Selecting Brands and Code Sets

A list of brands and their corresponding RC codes are stored in the Remote Control’s memory.
You have to select your brand from the list. Because not every device of a certain brand uses the same RC codes, you
might also have to select a set of RC codes for your brand.

1. Tap Next.

A scrollable list of brands for the selected device and a “virtual auto-zooming” mini-keyboard appears.

2. Navigate through the list of brands using the scroll buttons and to scroll up or down in the list of brands.

• By tapping the scroll buttons, you scroll through the brands one by one.

• By holding down the scroll buttons, the scrolling speed increases.

-or-

Navigate through the list of brands using the mini-keyboard to jump through the list of brands.

• To enter a character, tap the keyboard near the character you want to use.

The keyboard is zoomed in, allowing you to tap exactly the character you need.

After you have tapped the character, the keyboard is zoomed out. Repeat this action for every character.

You can zoom out again without tapping a character by pressing the right action button (labeled Zoom).

• To delete a character, press the right action button (labeled Del).

• To enter a space, tap the lower left corner of the keyboard. When the keyboard is zoomed in, tap the empty key.

Every time you enter a character the list displays the brands that match the character(s). The Remote Control
makes a pre-selection of the (first) matching brand. You only have to type as many characters as needed to
display your brand.

When your brand is not displayed in the list of brands, you can use Search mode. See “Searching Brands and
Code Sets” on p. 11.

Getting Started 9

3. Select your brand in the list.

The selected brand is highlighted. The Search button switches into Next.

4. Tap Next.

When your brand uses only one set of RC codes, the Remote Control switches to Try mode. Continue with step 5.

When there are several code sets for your brand, a list of code sets for the selected brand appears.

You can select the code set for your device:

The RC code sets are ranked. The first code set in the list is used for most devices of the selected brand.

1. Select a code set from the list.
The selected code set is highlighted. The Search button switches to Next.

2. Tap Next.
The Remote Control switches to Try mode. Continue with step 5.

-or-

When you do not know which code set to select for your device, you can search the code set in Remote Control’s
memory:

1. Tap Search.
The Remote Control automatically searches through all available RC code sets to find the matching codes for
your device.

2. Tap Next to start sending appropriate commands for the selected device.
The progress bar indicates how many of the available code sets have been tried out.

Getting Started 10

3. Tap OK when the device reacts.
The Remote Control switches to Try mode. Continue with step 5.

The name of the responding code set is displayed when you tap the OK button, so you know which code set to
select from the list after you have tried out other code sets.

5. Tap Next.
The first control panel of selected device is displayed.

6. Try out the buttons on the different control panels and check if the device is responding to the RC codes the Remote
Control is sending.

Even when the device is responding to the current code set, it is advised to try out other code sets. When your
device responds to more than one code set, install the most suitable one.

7. When you are satisfied with the way the device is responding to the selected code set, tap Install.

-or-

When you are not satisfied with the selected code set, tap Back to select another code set.
When the RC codes for your device are installed, the Remote Control beeps and returns to Use mode. Your brand is
now defined for the selected device.

8. Define all other devices on the Home panel you want to operate.

Searching Brands and Code Sets

When the brand of your device is not listed, the Remote Control can search through all available brands and code sets in
its memory to find the matching code set for your device.

1. Tap Next.
The display shows a scrollable list of brands for the selected device and a “virtual auto-zooming” mini-keyboard.

2. Tap Search.
The Remote Control automatically searches through all available brands and RC code sets to find the matching
codes for your device.

3. Tap Next to start sending appropriate commands for the selected device.
The progress bar indicates how many of the available code sets have been tried out.

Getting Started 11

4. Tap OK when the device reacts.
The Remote Control switches to Try mode.

5. Tap Next.
The first control panel of selected device is displayed.

6. Try out the buttons on the different control panels and check if the device is responding to the RC codes the Remote
Control is sending.

Even when the device is responding to the current code set, it is advised to try out other code sets. When your
device responds to more than one code set, install the most suitable one.

7. When you are satisfied with the way the device is responding to the selected code set, tap Install.

-or-

When you are not satisfied with the selected code set, tap Back to to continue the automatic search.
When the RC codes for your device are installed, the Remote Control beeps and returns to Use mode. Your brand is
now defined for the selected device.

8. Define all other devices on the Home panel you want to operate.

Getting Started 12

Working with the Home Panel

A

A

On the Home panel you find buttons to activate the Device menu or the Macro menu and to select devices.

ctivate the Macro menu

ctivate the Device menu

Select a device on the
Home panel

You can customize the Home panel by adding (see p. 28) or deleting devices (see p. 29).

Activating the Device Menu

• Tap the Device tab icon

on the Home panel.

The Device menu is activated. The dynamic interface displays the Device menu on the right side of the touch screen.

Macro tab icon:
To activate the
Macro menu

Home button:
To navigate to the
Home panel

Device control panel:
To operate the device

Go to page 14 and the following to learn how to work with the different devices.

Activating the Macro Menu

• Tap the Macro tab icon

on the Home panel.

The Macro menu is activated. The dynamic interface displays the Macro menu on the right side of the touch screen.

Device tab icon:
To activate the
Device menu

Home button:
To navigate to the
Home panel

Macro control panel:
To operate macros and timers

Go to page 31 and the following to learn about macros and timers.

Selecting a Device on the Home Panel

• Tap one of the device you want to operate on the Home panel.

The first control panel of the selected device appears.

Getting Started 13

Operating a Device

You select the device you want to operate via the Device menu.
You operate devices using four kinds of buttons:

• Touch screen buttons;

• Action buttons (below the touch screen);

• Page Up and Page Down buttons (below the touch screen);

• Direct-access buttons (to the right of the touch screen).

Selecting a Device via the Device menu

The Device menu allows you to easily switch to another device without having to return to the Home panel.

Device tab

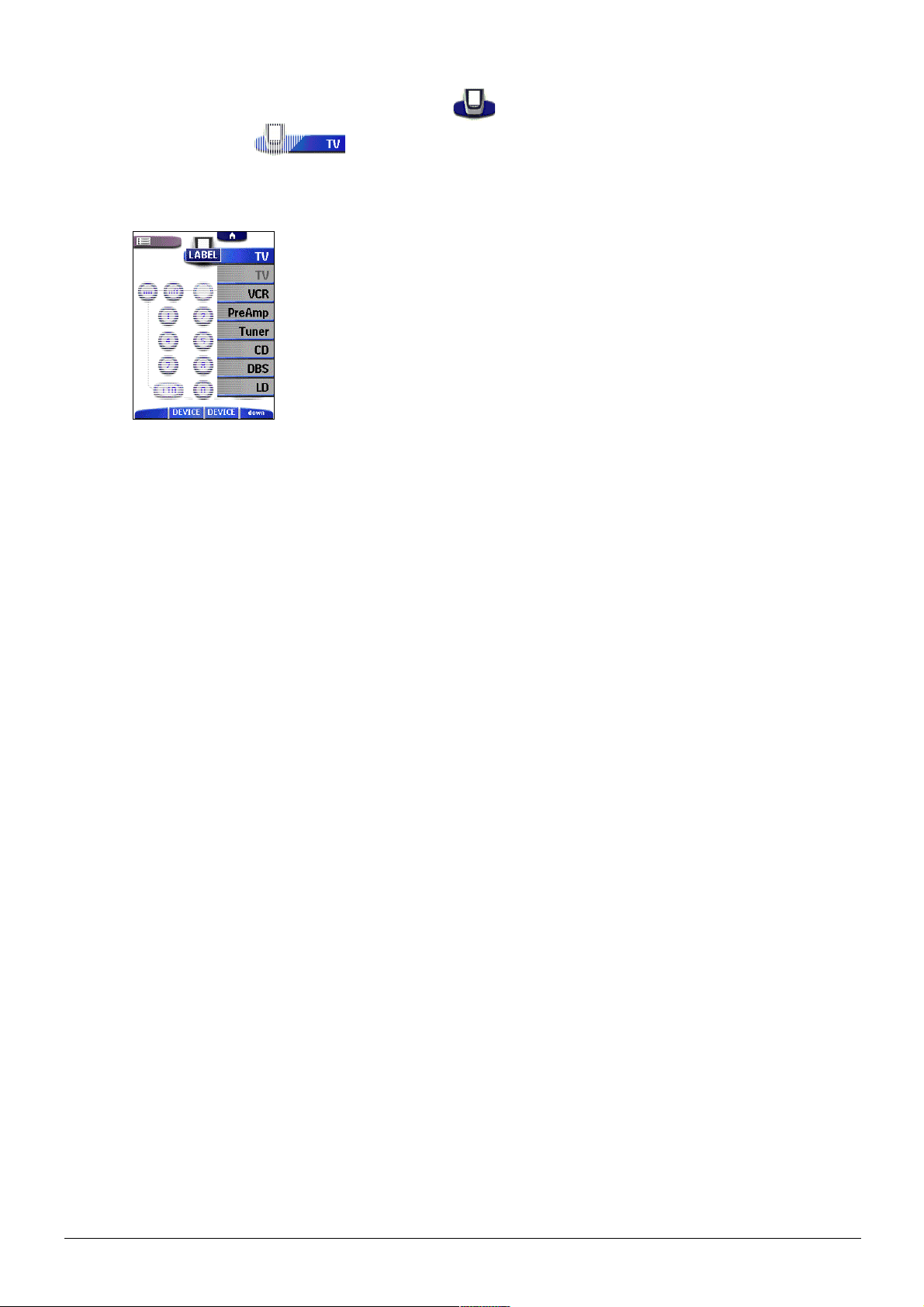

1. From within any device control panel, tap the Device tab next to the Remote Control icon.
The Device menu appears. You can scroll through this menu using the Page Up and Page Down buttons below the
touch screen.

Currently selected device

Device menu

2. In the Device menu, tap the device you want to operate.
The control panel that was last accessed for this device appears.

Using Touch Screen Buttons

Sending commands

By tapping the touch screen buttons you send commands to the device you have selected. When you send a command,

the Remote Control icon shows transmitting signals

.

The name of the active device is indicated on the Device tab.

Getting Started 14

Selecting a device without affecting other devices

When you select a device that is programmed with a device action (see p. 24), the following happens:

• the Remote Control sends commands to the selected device to execute the device action;

• the control panel of the selected device is displayed.

Sometimes, sending device action commands can cause unwanted behavior of other devices.

Example

You have defined a device action for the VCR: when you select the VCR, the TV switches to channel number 10.
Now you want to keep watching channel 2 on the TV when you switch to the VCR for rewinding a tape.

To display the control panel of the selected device without sending device action commands, follow this procedure:

1. Tap the Device tab

2. Press and hold one of the action buttons (labeled NO IR).

The Remote Control icon turns around
none of your devices will be affected.

3. Tap the device you want to select.
The control panel of the new selected device appears and the Remote Control icon turns to its original

position

Using the Action Buttons

The action buttons change function depending on the device the Remote Control is operating. The current function is
displayed on the touch screen right above the button. The function can either be an IR (infrared) command which is
transmitted, system commands or a jump to a specific device page.

IR commands System commands

Using the Page Up and Page Down Buttons

Most devices have more than one control panel. You can scroll through these control panels using the Page Up and
Page Down buttons below the touch screen. The panel number on the left of the touch screen indicates the active panel
number and the total number of panels, for example 1/6.

. You can now operate the new selected device without affecting the previously active device.

next to the Remote Control icon to open the Device menu.

, indicating that it will not send IR codes to the selected device so that

When there are more items in the Device menu or the Macro menu than can be displayed, you can scroll through the
menu with the Page Up and Page Down buttons.
The color of the action buttons and the Page Up/Page Down buttons indicates in which menu or panel you are working.

The Page Up and Page Down buttons are only displayed when necessary. If all items in the menu are displayed
or if a device only has one panel, the buttons are inactive.
By holding down one of the scroll buttons, you go repeatedly through the control panels of a device in a loop.

Using the Direct-access Buttons

Mute, Channel and Volume can be operated at any time, even without turning on the touch screen.

Getting Started 15

Adjusting the Settings

Most of the Remote Control’s features can be set to your own wishes.

1. Touch and hold the Remote Control icon for three seconds.
The Remote Control switches to Setup mode. The first setup panel appears.

2. Tap the button of the setting you want to adjust.
The button is activated.

3. Tap the button repeatedly to toggle between the different options for the selected setting.

-or-

Use the action buttons to adjust the setting.

4. Use the Page Up and Page Down buttons to display the second and third setup panel.

First setup panel

Setting Function Adjusting

Shows the battery level.

Turns the clock display
on or off and lets you set
12 or 24h time display.
Sets the clock. Tap the time button and use

Sets the day. Tap the day button and use

Sets how long the touch
screen and the backlight
of the touch screen stay
on.
Sets how long the
backlight of the buttons
stays on.
Adjusts the brightness of
the touch screen in 4
levels. Level 3 is the
default brightness level

Tap the clock repeatedly.

the action buttons

the action buttons

Tap the LCD button and use
the action buttons

Tap the Button Light button
and use the action buttons

Tap the Brightness button
and use the action buttons

.

.

.

.

.

When you set the brightness level above the default level (3), battery life time will be reduced.
When you set the brightness level below the default level (3), battery life time will be prolonged.

Getting Started 16

Second setup panel

Setting Function Adjusting

Indicates the amount of
free memory that is
available.
Turns on or off the
option to activate the
Remote Control by
picking it up.
Hides or shows the Mode
menu, activated with the

the Remote Control icon.

Adjusts or turns off the
touch screen beep.

Tap the Pick Up Sensor
button.

Tap the Mode Menu button.

Tap the Touch button
repeatedly.

Adjusts or turns off the
button beep

Calibrates the touch
screen.

Reverts the Remote
Control to the factory
default configuration.

Activating the Pick Up sensor will turn on the Remote Control more often and will reduce the battery life time.

Third setup panel

Tap the Button button
repeatedly.

Tap the Calibrate button and
follow the on-screen
instructions.
Tap the Revert button and
follow the on-screen
instructions.

This panel provides two buttons:

• Show Intro: to view the Intro animation;

• Specs: to display technical information about your Remote Control.

Getting Started 17

To exit Setup Mode

• Tap the Remote Control icon

The Remote Control switches to Use mode.

When you tap the Device tab, the Macro tab or the Home button from within the Setup panel, you exit Setup
Mode and the Remote Control immediately switches to the selected menu or to the Home panel.

.

Getting Started 18

Getting the Maximum out of it

Introduction

What makes the Remote Control so powerful is the ability to extend its functionality in multiple ways like programming
additional functions, adding supplementary devices, recording macros and changing the interface as it suits you best.

The Remote Control provides different modes. When you operate your devices, the Remote Control is in Use mode. For
customizing the Remote Control (like learning buttons, recording macro’s, adding devices, and so on) you have to switch to
the appropriate mode.

Working with Modes

For operating devices.

For learning commands from other
devices.

For recording macros and setting
timers.

For labeling buttons and commands.

For adding new devices.and macros.

For deleting buttons, actions, devices
and macros.

For changing the order in a menu.

For defining brands using the Remote
Control’s database.

For configuring the Remote Control to
operate devices with RF or IR signals.

Switching to another mode

1. Tap the Remote Control icon

The Mode menu appears.

2. Tap the mode you want to use.

at the top of the touch screen.

The label of the active mode appears on the Remote Control icon
You can now work in the selected mode.

Getting the Maximum out of it 19

.

Disabling the Mode menu

To prevent accidental changes to the Remote Control interface and commands, you can disable the Mode menu.

1. Make sure the Remote Control is in Use mode.

2. Touch and hold the Remote Control icon for a few seconds.

The Remote Control switches to Setup mode.

3. Scroll down to the second setup panel.

4. Tap the Mode Menu button.

The label on the Mode Menu button changes to “Mode Menu Off”.

5. Tap the Remote Control icon

The Remote Control switches to Use mode.

When you tap the Device tab or the Macro tab from within the Setup panel, you exit Setup Mode and the
Remote Control immediately switches to the selected menu.

There is no visual feedback to indicate that the Mode menu is disabled. This means that the Mode menu will not appear
when you tap the Remote Control icon.
To enable the Mode menu again, return to Setup mode and turn the Mode Menu button back on.

.

Getting the Maximum out of it 20

Redefining Brands

If you replace an existing device with a new one, you might have to redefine the brand of the device. You can redefine
brands by selecting or by searching.

1. Switch to Brand mode via the Remote Control icon
The Device menu appears.

2. Select the device for which you want to redefine the brand.

3. Complete instructions 1 to 7 in “Selecting Brands and Code Sets” on page 9.

-or-

Complete instructions 1 to 7 in “Searching Brands and Code Sets” on page 11.

.

Getting the Maximum out of it 21

Learning Commands

You can program the Remote Control commands by transmitting infrared signals from your existing remote controls to the
Remote Control’s learning eye. To do this, place the Remote Control and the device’s remote control on a flat surface, 100
to 200 mm (4 to 8 inches) apart.

100 to 200 mm
4 to 8 inches

The following buttons can be programmed:

• control panel buttons;

• device actions;

• direct-access buttons and action buttons.

You cannot program the Page Up/Page Down buttons on the Remote Control directly. You have to program them via
ProntoPro Edit.
You cannot program Home panel buttons directly. You have to program them via the Device menu (see p. 24).

The Remote Control also offers empty control panel buttons which you can program and label as existing buttons. They are
only visible in Learn and Label mode and appear with label (intended for a specific function) or without label. You will
also see previously deleted buttons: you can restore them by reprogramming them or you can reuse them for other
commands.

Learning Control Panel Buttons

1. Navigate to the control panel button you want to program.

2. Switch to Learn mode via the Remote Control icon

.

Additional empty buttons and previously deleted buttons appear.

3. Point the device’s original remote control to the Remote Control’s learning eye as shown above.

4. Tap the Remote Control button you want to program.

The button starts flashing

Getting the Maximum out of it 22

5. Press and hold the corresponding button on your device’s original remote control.

If the Remote Control has learned the command successfully, OK flashes on the Remote Control icon.

If the Remote Control has not learned the command successfully, you hear a short buzz and FAIL appears on the
Remote Control icon.

6. Program all other buttons you want and relabel them if necessary (see p. 24).

7. Return to Use mode via the Remote Control icon.

Getting the Maximum out of it 23

Learning Device Actions

A device action is a command that is assigned to a Device button on the Home panel or a device in the Device menu.
The action is executed every time you select the device.

When you program a device action, RC codes are sent the moment you select the device. This might affect the
operation of the active device. For selecting a device without sending RC codes and without affecting the active
device, see page 15.

1. Make sure the Device tab is active.

The Device tab is active when the name of a device is displayed at the right side of the touch screen

2. Switch to Learn mode via the Remote Control icon

3. Point the device’s original remote control to the Remote Control’s learning eye as described above.

4. Tap the Device tab to open the Device menu.

5. Touch and hold either the Remote Control’s left or right action button (both labeled Device) and tap the device you

want to program.
Even when you want to program a device action for the currently active device, you have to tap it in the Device
menu.

The label Device starts flashing on the Remote Control icon.

6. Press and hold the button the Remote Control has to learn as device action on your device’s original remote control.

The command for the device action is assigned to the Device button on the Home panel and in the Device menu.

If the Remote Control has learned the command successfully, OK flashes on the display.
If the Remote Control has not learned the command successfully, you hear a short buzz and FAIL appears on the
Remote Control icon.

7. Program all other device actions you want and return to Use mode via the Remote Control icon.

.

.

Learning Direct-access and Action Buttons

Direct-access and action buttons can be programmed with a global function or with functions per device.

• Buttons with functions per device execute commands depending on the active device. For example, the left action

button is the Play command when the VCR is active.

• Buttons with global functions always execute the same command, no matter what device is active.

Per device functions overrule global functions. For example, when you program the Volume buttons globally,
but you assign a specific function to them with the tuner, the specific command will be executed when the tuner is
the active device.

Learning a button per device

1. Switch to the device for which you want to program the button.

2. Complete instructions 2 to 7 in “Learning Control Panel Buttons” on page 22. Instead of tapping a button on the

touch screen, press the direct-access button or the action button you want to program.
The label for the direct-access button you have pressed (e.g. chan +) starts flashing on the Remote Control icon.
The label above the action button you have pressed (e.g. play) starts flashing.

Getting the Maximum out of it 24

Learning a button globally

1. Tap the Home button

2. Complete instructions 2 to 7 in “Learning Control Panel Buttons” on page 22. Instead of tapping a button on the

touch screen, press the direct-access button or the action button you want to program.
The label for the direct-access button you have pressed (e.g. chan +) starts flashing on the Remote Control icon.
The label above the action button you have pressed (e.g. play) starts flashing.

.

Getting the Maximum out of it 25

Learning a button globally

1. Tap the Home button

2. Complete instructions 2 to 7 in “Learning Control Panel Buttons” on page 22. Instead of tapping a button on the

touch screen, press the direct-access button or the action button you want to program.
The label for the direct-access button you have pressed (e.g. chan +) starts flashing on the Remote Control icon.
The label above the action button you have pressed (e.g. play) starts flashing.

.

Getting the Maximum out of it 25

Labeling Elements

The following elements can be labeled:

• control panel buttons, action buttons, macros and timers;

• devices, macro groups and timer groups (see p. 27).

Labeling Control Panel Buttons, Action Buttons, Macros and Timers

You cannot label Home panel buttons directly. You have to label them via the Device menu (see p. 27).

1. Navigate to the panel containing the button you want to label.

2. Switch to Label mode via the Remote Control icon

3. Tap the button you want to label.

The display shows a “virtual auto-zooming” mini-keyboard. The button you want to label is displayed above the
keyboard.

4. Edit the label.

• To delete a character, press the right action button (labeled Del).

• To display a keyboard with capital letters and symbols, press the left action button (labeled Shift) repeatedly.

• To enter a character or symbol, tap the keyboard near the character or symbol you want to use.

The keyboard is zoomed in, allowing you to tap exactly the character or symbol you need.

.

After you have tapped the character or symbol, the keyboard is zoomed out. Repeat this action for every
character.

You can zoom out again without tapping a characteror symbol by pressing the right action button
(labeled Zoom).

• To enter a space, tap the lower left corner of the keyboard. When the keyboard is zoomed in, tap the empty key.

5. Tap Enter to save the changes and return to the panel you were.

-or­Tap Cancel to return to the panel you were without saving changes.

6. Label all other elements you want and return to Use mode via the Remote Control icon.

Getting the Maximum out of it 26

Labeling Devices, Macro Groups and Timer Groups

1. Switch to Label mode via the Remote Control icon

2. Tap the Device tab

Touch and hold either the Remote Control’s left or right action button (labeled Device) and tap the device you want
to label.

Even when you want to label the currently active device, you have to tap it in the Device menu.

The display shows a “virtual auto-zooming” mini-keyboard. The button you want to label is displayed above the
keyboard.

3. Complete instructions 4 to 6 in “Labeling Control Panel Buttons, Action Buttons, Macros and Timers” on page 26.

to open the Device menu.

.

Getting the Maximum out of it 27

Adding and Moving

Adding Devices

If you have a device that is not provided in the Device menu, you can add it to the Remote Control.

You cannot add devices to the Home panel directly. You have to add them via the Device menu (see p. 24).

1. Make sure the Device tab is active.

The Device tab is active when the name of a device is displayed at the right side of the touch screen

2. Switch to Add mode via the Remote Control icon

The Remote Control displays the following choices:

• Create New Device: Choose this option to add a completely new device.

• Copy Existing Device: Choose this option to copy a device already provided in the Device menu (for example

for a second television).

• Restore Deleted Device: Use this option to restore a device you have deleted.

3. Tap the device you want to add in the Device menu.

If the device you want to add is not provided, choose a similar one. You can customize it later.

The Remote Control gives you the possibility to add the new device with or without RC codes.

• Create with RC codes: Choose this option if you think the new device understands RC codes. The new device is

added with operational buttons.

• Don’t add RC codes: If you choose this option, the new device is added without operational buttons. You have to

program them as explained in “Learning Control Panel Buttons” on page 22.
You cannot define the device in Brand mode, because there are no RC codes available.

4. Tap the button of your choice.

The new device is automatically displayed in Use mode.

Moving Devices, Macro Groups or Timer Groups

You can change the order in the Device menu and the Macro menu. Changes you make in the Device menu are
automatically updated on the Home panel.

1. Make sure the Device tab or Macro tab is active.

The Device tab or Macro tab is active when the name of a device, macro or timer is displayed at the right side of the
touch screen.

.

.

2. Switch to Move mode via the Remote Control icon

The Remote Control displays the Device menu or the Macro menu.

3. Tap the device or group you want to move.

The menu item is highlighted.

4. Use the action buttons to move the menu item up or down.

5. Tap Accept to save the changes.

You return to Use mode.

.

Getting the Maximum out of it 28

Deleting and Restoring

Deleting

You can delete the following elements:

• control panel buttons and actions associated with a direct-access or an action button;

• device actions;

• devices, macro groups and timer groups.

Home panel buttons cannot be deleted directly. You have to delete them via the Device menu (see p. 29).

Buttons that are programmed in Learn mode and deleted afterwards, will disappear from the control panel.
When you redefine the device in Brand mode, those buttons will stay empty. You will have to reprogram them in
Learn mode.

Deleting buttons or button actions

Touch screen labels cannot be deleted. You can only hide them by removing their label text: .
(see “Labeling Elements” on page 26)

1. Switch to Delete mode via the Remote Control icon .

2. Tap the button you want to delete.

3. Tap Delete Button Action.

The result depends on the element you are deleting:

• Control panel button: The button disappears from the display.

• Action button command: The corresponding label disappears from the display.

• Direct-access button: The button becomes inactive.

4. Delete all the buttons and button actions you want and return to Use mode via the Remote Control icon.

Deleting device actions

1. Switch to Delete mode via the Remote Control icon

2. Tap the Device tab to open the Device menu.

When you open the Device menu, the left action button label changes into Device and the right action button label
changes into Action.

3. Press and hold down the right action button (labeled Action).

4. Tap the device associated with the device action you want to delete.

5. Tap Delete Device Action.

The device action is deleted.

6. Delete all the device actions you want and return to Use mode via the Remote Control icon.

Deleting devices, macro groups or timer groups

1. Switch to Delete mode via the Remote Control icon

2. Navigate to the device or group you want to delete.

If you have opened the Device menu, the left action button label changes into Device and the right action button
label into Action.
If you have opened the Macro menu, the action button labels change into Group.

3. Press and hold down the left or right action button depending on what you are deleting:

• left action button labeled Device: For deleting a device in the Device menu.

• left or right action button labeled Group: For deleting a macro group or a timer group in the Macro menu.

4. Tap the device or group you want to delete.

5. Tap Delete Device, Delete Macro Group or Delete Timer Group.

The Device (and its associated Home panel button), the Macro Group (including its macros) or the Timer Group
(including its settings) is deleted.

6. Delete all the devices, macro groups and timer groups you want and return to Use mode via the Remote Control

icon.

.

.

Getting the Maximum out of it 29

Restoring

When you have deleted elements, they are no longer visible in Use mode but remain in the Remote Control’s memory.
This allows you to restore them.

• When you have deleted a button or a device action you can restore it in Learn mode.

• When you have deleted a device, a macro group or a timer group you can restore it in Add mode.

Actions associated with direct-access or action buttons cannot be restored. You have to reprogram them as explained in
“Learning Direct-access and Action Buttons” on page 24.

Restoring buttons and button actions

1. Switch to Learn mode via the Remote Control icon

The empty buttons become visible.

2. Complete instructions 3 to 7 in “Learning Control Panel Buttons” on page 22.

The button is restored.

Restoring device actions

1. Switch to Learn mode via the Remote Control icon

2. Complete instructions 3 to 7 in “Learning Device Actions” on page 24.

The device item is restored.

Restoring devices, macro groups or timer groups

1. Make sure the Device tab or Macro tab is active.

The Device or Macro tab is active when the name of a device, macro or timer is displayed at the right side of the
touch screen.

2. Switch to Add mode via the Remote Control icon

3. Tap Restore Deleted Device or Restore Deleted Group.

The deleted devices, macro groups or timer groups become visible.

4. Tap the item you want to restore.

The item is restored and you return to Use mode.

Only the macro group or timer group itself is restored, not the macros or timers it contained. You will have to
record the macros and set the timers again in Edit mode.

.

.

.

Getting the Maximum out of it 30

Recording Macros and Setting Timers

A macro allows you to send a sequence of IR commands using one single button.

With a timer you can activate a device at the time you prefer. See page 32 to do this.

To record a macro or to set a timer, there must be at least one macro group or timer group in the Macro menu. To
create these groups, see page 33.

Recording Macros

1. Tap the Macro tab icon

The Device tab and the Macro tab change places. The Macro tab is active when the name of a macro is displayed at
the right side of the touch screen.

2. Tap the Macro tab

The Macro menu appears. You can scroll through this menu using the Page Up and Page Down buttons below the
touch screen.

3. In the Macro menu select a macro group.

4. Switch to Edit mode via the Remote Control icon .

Empty macro buttons appear in the macro control panel.

5. Tap the button you want to use for your macro.

6. Enter the sequence of commands you want to record.

You can navigate to whatever control panel you want, just as you do in Use mode.

7. Tap the Macro tab icon again.

The contents of the macro appear. You can now play, edit or close the macro.

8. Press the left action button (labeled Close) to close the macro.

A confirmation screen appears where you can save or cancel the macro.

9. Tap Save and assign a label to the macro.

You return to Use mode and the macro is ready to be used.

at the left side of the touch screen.

next to the Remote Control icon.

There are two extra commands you can record in a macro:

Source switching

To record a device action containing a source switching command, open the Device menu, hold down the right action
button (labeled Action) and tap the device you want to switch to.

Ending with a device control panel

To end a macro with displaying a device, open the Device menu, hold down the left action button (labeled Device) and
tap the device you want.

Getting the Maximum out of it 31

Editing Macros

You can edit any macro you have recorded.

1. Open the macro group that contains the macro.

2. Switch to Edit mode via the Remote Control icon

3. Tap the macro you want to edit.

The contents of the macro appear.

4. Edit the macro.

You can move or delete listed commands or you can record new commands.
You can also add delays to the macro (for example, to insert a short pause between turning on a device and sending
commands to it allowing the device to warm up):

1. Tap Delay.

2. Tap

3. Use the arrow buttons

5. Press the left action button (labeled Close) to close the macro.

A confirmation screen appears where you can save or cancel the macro.

6. Tap Save.

You return to Use mode and the macro is ready to be used.

or to decrease or increase the length of the delay.

and to move the delay to the right place.

.

Setting Timers

To activate a device at the time you prefer, you can use the timer.

1. Tap the Macro tab

The Macro menu appears.

2. In the Macro menu select a timer group.

3. Switch to Edit mode via the Remote Control icon

Empty timer buttons appear in the timer control panel.

4. Tap the button you want to set a timer for.

The first timer control panel appears in which you can set the start time.

5. Enter the command the timer has to execute.

A timer can contain either a single command or a macro.
You can navigate to whatever control panel you want, just as you do in Use mode.

6. Tap the clock button and set the start time using the action buttons.

7. Tap one or more day buttons to select or deselect days for the timer.

You can choose to repeat the timer weekly.

8. Scroll down to display the second timer control panel in which you can set the stop time.

.

.

Getting the Maximum out of it 32

9. Enter the command the timer has to execute.

10. Tap the clock button and set the stop time using the action buttons.

11. Press the left action button (labeled Close) to close the timer.

A confirmation screen appears where you can save or cancel the timer.

12. Tap Save.

You return to Use mode and the timer is activated.

The timer only works when the Remote Control’s sending eye is pointed towards the controlled device and no
obstructions interfere the infrared signal.

When a timer command is executed, the Alarm icon

Editing Timers

You can edit any timer you have set.

1. Open the timer group that contains the timer.

appears on the Remote Control icon.

2. Switch to Edit mode via the Remote Control icon

3. Tap the timer you want to edit.

The contents of the timer appear.

4. Edit the timer.

5. Press the left action button (labeled Close) to close the timer.

A confirmation screen appears where you can save or cancel the timer.

6. Tap Save.

The timer is edited.

Adding Macro Groups and Timer Groups

You can create as many macro groups or timer groups as you like. Each group can contain up to 25 macros or timers.

1. Open any macro or timer group.

2. Switch to Add mode via the Remote Control icon

You can create a new group, copy an existing group or restore a previous deleted group.

• Create New Group: You add a new group in which you can record new macros or set new timers.

• Copy Existing Group: You copy a group and its macros or timers and use it for new macros or timers.

• Restore Deleted Group: You restore a deleted group and reuse the macros or timers.

3. Tap Create Macro Group or Create Timer Group.

A new macro group or timer group is added.

To add macros in a macro group, see “Recording Macros” on page 31.
To add timers in a timer group, see “Setting Timers” on page 32.

To organize macro groups or timers groups, see “Moving Devices, Macro Groups or Timer Group” on page 28.

.

.

Getting the Maximum out of it 33

Using the Remote Control with Radio Frequency

To use the Remote Control with radio frequency (RF) you need an RF Extender, which is not included with the
Remote Control.

By default, the Remote Control uses infrared (IR) signals to operate devices. This means that you have to point the
Remote Control’s sending eye towards the device you’re operating. IR signals have an operating distance of 10 meters
(33 feet).

IR signals

You can choose to operate devices using radio frequency (RF) signals instead of IR signals. RF signals have an operating
distance of approximately 20 meters (66 feet) in house and can, unlike IR signals, go through obstacles like furniture or
walls.
The RF signals sent out by the Remote Control are picked up by the RF Extender. The RF Extender translates the RF
signals in IR signals and sends the IR signals to the appropriate device. Therefore, the RF Extender has to be placed near
the device you’re operating with the RF Extender’s sending eye pointed to the device.

RF signals

IR signals

RF Extender

The Remote Control can send out IR signals or RF signals to operate the same devices. In both cases the devices will
receive IR signals. But instead of receiving IR signals directly from the Remote Control, the devices receive IR signals
from the RF Extender.

Getting the Maximum out of it 34

Changing the Remote Control’s RF IR Settings

All devices are set up by default to work with IR signals. To be able to operate one or more devices with RF signals,
you have to change the Remote Control’s RF IR settings for those devices.

1. Make sure the Device tab is active.

The Device tab is active when the name of a device is displayed at the right side of the touch screen

2. Switch to RF IR mode via the Remote Control icon

The Device menu appears.

3. Select the device for which you want to change the RF IR settings.

The RF IR settings appear. The red label on the button
operated with IR signals.

.

indicates that the selected device is currently

.

4. Tap .

The RF IR settings for the selected device are changed from IR to RF.

When you have only one RF Extender, you can accept the default settings for the Extender ID and the Channel.
Continue with step 5.

-or-

When you have several RF Extenders to operate devices, you have to assign the correct Extender ID to the selected
device. Follow the instructions as described in “Changing the Extender ID”.

The ID on the RF Extender has to match the Extender ID on the Remote Control.

Getting the Maximum out of it 35

Changing the Extender ID

1. Make sure the button
The button is active when the button label is red.

2. Press the action buttons
The Remote Control offers 16 Extender ID’s.

5. Tap Accept to save the RF IR settings for the selected device and return to the first screen.

-or-

Tap Cancel to return to the first screen without changing the RF IR settings.

is active.

to change the Extender ID.

6. Repeat instructions 3 to 5 for all devices for which you want to change the RF IR settings.

7. Tap Close.
The Remote Control switches back to Use mode. The Remote Control is configured to operate the devices you have
set with RF signals.

8. Try out the devices for which you just changed the RF IR settings.

Philips cannot guarantee that all commands for all devices work properly with RF signals.
If a device does not respond properly to RF signals, you might better reconfigure the Remote Control to operate
the device with IR signals.

Choosing Another Channel

When you notice interference from other RF channels, for instance from your neighbours, you have to choose another
Channel to operate your devices.

Choosing another Channel always affects all devices that work with RF signals.

1. Switch back to RF IR mode.
The Device menu appears.

2. Select a device that is set with RF signals.
The RF IR settings appear.

Getting the Maximum out of it 36

3. Tap .
The button label turns red indicating that the button is active.

4. Press the action buttons
The Remote Control offers 4 RF Channels.

The Channel on the RF Extender has to match the Channel on the Remote Control.

5. Tap Accept to save the selected Channel for all devices that work with RF signals and return to the first screen.

-or-

Tap Cancel to return to the first screen without changing the Channel.

6. Tap Close.
The Remote Control switches back to Use mode. The Remote Control is configured to operate the devices you have
set with RF signals through the selected Channel.

7. Try out all devices for which you just changed the Channel.

to change the Channel.

Getting the Maximum out of it 37

ProntoPro Edit

If you want to personalize your Remote Control even more beyond its standard programming features, ProntoPro Edit is
the tool for you to use. ProntoPro Edit is the Remote Control’s companion software that you find on the included CD­ROM. For more information, go to http://www.pronto.philips.com.

With ProntoPro Edit you can:

• upload and download new configurations to and from your Remote Control. You do this with the serial cable included

with your Remote Control;

1. Plug one end of the serial cable in the serial port on your computer.

2. Plug the other end of the serial cable in the serial port on the Remote Control or the serial port of the docking
station.

• add, delete, modify and move control panels, devices and commands anywhere on the touch screen;

• save, duplicate and share configuration files, codes or devices with other Remote Controls;

• preview new configuration files on ProntoPro Emulator;

In this way you can check how the Remote Control’s interface will look like.

• import new graphics to create new buttons and designs;

• personalize configuration files to optimize the use of your Remote Control.

Getting the Maximum out of it 38

When you become familiar with ProntoPro Edit, you can achieve results like:

Minimum System Requirements

• PC

• Windows 95/98/ME/XP or NT 4.0/2000

• 16 MB of RAM

• 16 MB of free hard disk space

• Free serial port

Getting the Maximum out of it 39

Troubleshooting

General Problems

The display is black

• Tap the screen to make sure the Remote Control is turned on.

Tilt the Remote Control to make sure the Remote Control is turned on.
Press the Backlight button to make sure the Remote Control and the backlight are turned on.
See “Activating the Remote Control” on page 7.

• Adjust the contrast using the contrast dial on the left side of the Remote Control.

• Make sure the battery pack is properly installed.

See “Installing the Battery Pack” on page 5.

• Make sure the battery pack is charged sufficiently.

See “Charging the Remote Control” on page 6.

The display is too light or too dark

• Adjust the contrast dial on the left side.

• Adjust the brightness of the display in the Settings (see p. 16).

The Remote Control shuts off automatically

• This is a feature of the Remote Control to save power. You can change the time the Remote Control stays on in the

Settings (see p. 16).

The touch screen buttons on the Remote Control do not respond properly

• Calibrate the touch screen (see p. 44).

Devices do not respond to commands from the Remote Control

• Make sure the Remote Control is in Use mode (see p. 19).

• Make sure the Remote Control’s sending eye is pointed towards the device you’re operating.

• Check if the Low Battery icon is flashing at the right top of the touch screen. If so, recharge the battery pack.

• Check if you have defined the correct brands for your devices.

• Check if the button you are trying to use is assigned properly via Brand mode (see p. 20) or via Learn mode (see p.

21).

• Check if your device understands Philips-Marantz RC codes. Normally you can find this in the documentation of

your device.

• If you have set up your Remote Control to operate devices with RF signals:

• Check in the RF IR mode if the devices you want to operate are set up properly (see p. 35).

• Check if the Extender ID and the Channel on your Remote Control match the ID and the Channel on the RF

Extender.

• Make sure the RF Extender is placed near the devices you want to use with RF signals.

• Change the Channel if you notice interferences from other RF channels (see p. 36).

• If you want to use RF signals for devices on different locations, more than one RF Extender is needed.

• Please refer to the documentation of the RF Extender for detailed information about using the RF Extender.

The Remote Control beeps 4 times after installing the battery pack

• Four beeps indicate an invalid software version.

Use ProntoPro Edit to update the Remote Control’s software (ProntoPro Edit > Tools > Update).

Troubleshooting 40

Programming Problems

Buttons are not sending the correct commands

• Check whether the button is learned globally or per device (see p. 24).

• Check if you have defined the correct brands for your devices.

Macros do not work

• Make sure the Remote Control’s sending eye is pointed towards the device the entire time the macro is being

executed.

• Insert delays to allow devices to start up properly (see p. 32).

• Check for inactive buttons in your macro.

• Check if you do not have reprogrammed the buttons. Macros do not store commands, they store buttons. If you

reprogram a button, the macro executes the new command assigned to the button.

The TV goes blank or the input source changes

• The device action for the device you selected might be programmed to switch the input source. Operate the device

without affecting the input source (see p. 15).

The Remote Control will not learn, label or delete commands

• If the label locked appears on the Remote Control icon, the device control panels have been locked to prevent

unwanted changes. You cannot modify or delete commands for this device.

• Make sure your devices are positioned as shown on page 20.

When the sending eye of your existing remote control is not pointed towards the learning eye of the Remote Control,
the Remote Control might not receive the signals properly. Align the remote controls as correctly as possible.
When the distance between your existing remote control and the Remote Control is too short or too long, the
Remote Control might not receive the signals properly. Try out several distances between 100 and 200 mm (4 and 8
inches) to learn the commands.

• Avoid programming the Remote Control under bright fluorescent light: it might affect the infrared signals.

• Make sure the button you want to edit is not a touch screen label, because touch screen labels cannot be

programmed. Touch screen labels are flat, buttons are three dimensional.

The Remote Control will not switch modes

• When the battery pack is low the Remote Control prevents you from switching to customizing modes so that no

customization can get lost. Recharge the battery pack (see p. 4).

The Remote Control is low on memory

• The Remote Control displays a message to clean up the memory. The Remote Control will do this by permanently

removing devices and macro and timer groups you have deleted.

Cleaning up memory can take 30 minutes or longer. Never remove the battery pack during the clean-up
process. This might damage the configuration file resulting in loss of your customized commands.

The configuration file is corrupted

• When this very unlikely event occurs, you have to revert to the original configuration or use ProntoPro Edit to

upload a new configuration file. All your customized commands devices and macros will be lost and you will have
to reprogram your Remote Control.

Remote Control error messages

• If one of the following error messages occurs, please contact your dealer or the Philips customer service:

• Can’t open configuration file;

• Configuration file error;

• No configuration file found;

• Invalid configuration file version.

Troubleshooting 41

Recharging Problems

The battery pack will not recharge

• Make sure the battery pack is properly installed in your Remote Control (see p. 5).

The indicator light flashes on the docking station

• Make sure the battery pack is properly installed in your Remote Control.

See “Installing the Battery Pack” on page 5.

• Make sure the Remote Control lies placed properly in the docking station. You need to hold the Remote Control at

an angle of 30 to 45° to plug it in the connector of the docking station.
See “Charging the Remote Control” on page 6.

• Check if the connector in the docking station is clean and free of obstructions.

Troubleshooting 42

FAQ

Can I program a button to execute more than one command?

With the Remote Control you can only create a macro to execute a sequence of commands (see p. 31). But you can
program a button to execute more than one command with ProntoPro Edit.

How do I program source switching?

See “Learning Device Actions” on page 24.

How can I program, label or delete buttons on the Home panel?

You can do this via the Device menu. All changes you make to the devices in the Device menu are automatically
updated on the Home panel.

Can I recharge the Remote Control any time I want?

Yes, you can. It is not necessary to use the Remote Control until the battery pack has ran out completely. The docking
station is the most suitable place for the Remote Control when not in use.

How do I reset the Remote Control?

Under normal circumstances, you will never have to reset the Remote Control. However, on rare occasions, if the
Remote Control’s touch screen freezes or if you notice unusual behavior, you need to perform a reset to get the Remote
Control running again. All saved programmed commands or macros are retained.

1. Slide the battery cover off the back of the Remote Control.
You will see the Reset button in the battery compartment.

2. Use an unfolded paperclip or a sharp pencil to carefully press the Reset button.
The Remote Control restarts and a Introduction screen appears. The Remote Control beeps twice to indicate it is
ready for use.

How do I revert to the original configuration?

Reverting to the original configuration restores the Remote Control’s devices and commands to its state when you
purchased it. This means that all programming is lost permanently. Normally, you never have to revert the Remote
Control.

1. Touch and hold the Remote Control icon for a few seconds.
The first setup panel appears.

2. Scroll to the second setup panel.

3. Tap the Revert button.

4. Tap Revert to confirm the action.

FAQ 43

How do I calibrate the touch screen?

The Remote Control is calibrated when it leaves the factory. It is possible you have to calibrate the touch screen:

• when the touch screen buttons do not respond properly.

Complete instructions 1 to 6 in “Calibrating the touch screen” described below.

• when the Remote Control displays a message to calibrate the touch screen.

Complete instructions 4 and 5 in “Calibrating the touch screen” described below.

Calibrating the touch screen

1. Touch and hold the Remote Control icon
The Remote Control switches to Setup mode.

2. Scroll to the second setup panel.

3. Tap the Calibrate button .
The first instruction “Touch TOP LEFT corner” appears.

4. Tap as close as possible in the upper left corner using a blunt tip of a pencil.
The second instruction “Touch BUTTOM RIGHT corner” appears.

5. Tap as close as possible in the lower right corner using a blunt tip of a pencil.
The setup panel appears again.

6. Tap the Remote Control icon
The Remote Control switches to Use mode.

Why does a device respond to some RF signals and not to others?

Philips cannot guarantee that all commands for all devices work properly with RF signals.
In some cases, if a device does not respond properly to RF signals sent out by the Remote Control, you might better
reconfigure the Remote Control to operate the device with IR signals.

.

for three seconds.

FAQ 44

Maintaining the Remote Control

Important notices

Take care not to scratch the touch screen

Use your finger to tap the touch screen or use plastic-tipped pens intended for use with touch screen.
Never use an actual pen, pencil or other sharp object on the touch screen.

Protect the Remote Control from temperature extremes

Keep the Remote Control away from heaters and other heat sources.

The Remote Control is not waterproof

The Remote Control should not be exposed to rain or moisture.
Do not store or use the Remote Control in any location that is extremely damp or wet.

When you have spilled water on the Remote Control, you have to take out the battery pack and let the Remote Control
dry for 48 hours before you replace the battery pack.

When you have spilled other liquids on the Remote Control, you can clean it with distilled water.

The touch screen of the Remote Control contains a glass element

Do not drop the Remote Control or subject it to any strong impact.

Cleaning the Remote Control

Use a soft, damp cloth to clean the Remote Control.
If the touch screen of the Remote Control is spoiled, clean it with a soft cloth moistened with a diluted window-cleaning
solution.

Do not use a corrosive detergent or an abrasive sponge.
Avoid the use of abundant water.

Maintaining the Remote Control 45

Overview of Symbols

Pause

Stop

Normal run; normal speed

Normal run; normal speed

Fast run; fast speed

Fast run; fast speed

Slow run; slow speed

Slow run; slow speed

Eject

Recording, general

Key

Navigate

Still mode

Tape running direction

Next track

Previous track

Fast forward to index

Rewind to index

Frame by frame, general

Frame by frame, general

Subtitle

Cancel picture

Picture-in-picture mode

Menu

Picture-in-picture shift

Picture-in-picture swap

Multi-picture display

Picture-in-picture select

Teletext mode

Page number up

Page number down

Page enlargement

TV and text mixed

1st or 2nd language

Last view; previous program

Stand-by

Zone focus: long distance

Zone focus: very short distance

Single or multi-digit selection

Brightness; brilliance

Contrast

Brightness/contrast

Color saturation

Lamp; lighting; illumination

Split screen freeze / double screen freeze

Split screen swap / double screen swap

Split screen / double screen

Movie expand

Personal preference

Picture-in-picture freeze

Overview of Symbols 46

Main index page

Picture freeze

Programmable timer; general

Tracking

Application assistance

Actual time on screen

EPG / Electronic Program Guide

Video output

Read data from store

Write data into store

Page hold

Sound muting

Additional information on screen

Viewing angle

Spatial sound effect

Television; video

Sound; audio

Surround sound

Picture size adjustment

Active control

Overview of Symbols 47

Specifications

The specifications and design of this product are subject to change without notice.

Hardware High-resolution (320 x 240) liquid crystal display (LCD) with

256 color, contrast and brightness control
Large touch screen
Nine programmable direct-access buttons
Backlighting for LCD and direct-access buttons
Pick Up sensor
Infrared sending and learning eyes
3-wire (RS232) serial port connector

Software Dynamic, animated interface with 256 colors

Built-in Philips-Marantz RC codes
Database with RC codes to operate different brands
Editable macros (up to 255 commands per macro)
Total number of devices and macros limited only by memory

Infrared (IR) Operating distance of 10 meters (33 feet)

Learning frequency up to 56 KHz

Learning distance 50 mm (2 inch) up to 300 mm (1 foot)
Radio
frequency (RF)

Memory 8 MB non-volatile flash memory (retains commands when

Battery pack NiMH 4,8V rechargeable battery pack

Operating distance of approximately 20 meters depending on

the surrounding conditions

Band: 418 MHz

Bandwidth: +/- 100 kHz

16 Extender ID’s and 4 Channels

battery pack is not present)

512 K SRAM

Power
management

Dimensions 141mm x 94mm x 33mm (5.6 inch x 3.7 inch x 1.3 inch)
Operating
temperature
Accessories Docking station and power adapter

Database information:

Designed by UEI Technology
Licensed under U.S. Patent 5,689,353

Portions  UEI 1999

Power on by tapping the touch screen, by pressing the backlight

button or by tilting

Power off automatically

0°C to 50°C (32°F to 122°F)

Battery pack

RS232 cable for PC connection

CD-ROM with ProntoPro Edit software

RF Extender (RFX6000)

Specifications 48

Index

A

action buttons, 3, 15

deleting, 27

labeling, 24

learning globally, 23

learning per device, 23

restoring, 28

activating the Remote Control, 7

Add mode, 19, 26, 31

adding

delays, 30

devices, 26

devices to the Home panel, 26

macro groups, 31

timer groups, 31

adjusting the settings, 16

B

backlight

switching off, 7

turning on, 7

backlight button, 3, 7

battery cover, 3, 5

battery level, 16

battery pack, 5

charging, 6

installing, 5

NiMH, 5

running low, 6

battery setting, 16

beep

buttons, 17

four beeps, 38

touch screen, 17

two beeps, 5

Brand mode, 8, 19, 21

brands

defining, 8

redefining, 21

searching, 11

selecting, 9

brightness setting, 16

button light setting, 16

buttons

action, 3, 15

backlight, 3, 7

direct-access, 3, 15

Home, 7

labeling, 24

Page Up and Page Down, 3, 15

reset, 3, 41

touch screen, 14

C

calibrating, 17

changing

Extender ID, 34

RF IR settings, 33

changing order. See Move mode

Channel

on the Remote Control, 34

on the RF Extender, 34

charging

charging LED, 4, 6

frequency, 6

Remote Control, 6

time, 6

choosing another Channel, 34

clock setting, 16

code sets

searching, 10, 11

selecting, 10

commands

learning, 22

sending, 14

sequence, 29

timing, 29

configuration files

adding, 36

saving, 36

sharing, 36

connection

adapter, 4, 6

docking station, 6

Remote Control, 3, 4, 6

contrast dial, 3, 7

control panel buttons

deleting, 27

labeling, 24

learning, 22

restoring, 28

Copy Existing Device, 26

Copy Existing Group, 31

Create New Device, 26

Create New Group, 31

customizing. See ProntoPro Edit. See learning. See

redefining brands

D

day setting, 16

defining brands

searching brands and code sets, 11

selecting brands and code sets, 9

selecting brands and searching code sets, 9

delays, 30

Index 49

Delete mode, 19, 27

deleting

buttons and button actions, 27

device actions, 27

devices, 27

macro groups, 27

timer groups, 27

touch screen labels, 27

device actions

deleting, 27

learning, 23

restoring, 28

Device menu, 14

selecting a device, 14

Device tab, 14

icon, 13

devices

adding, 26

deleting, 27

labeling, 25

moving, 26

operating, 14

restoring, 28

selecting, 13, 14

direct-access buttons, 3, 15

deleting, 27

learning globally, 23

learning per device, 23

restoring, 28

disabling the Mode menu, 20

display

cleaning, 43

switching off, 7

turning on, 7

docking station, 4

charging, 6

connecting to PC, 36

loading, 36

downloading new configurations, 36

E

Edit mode, 19, 29, 30

editing

macros, 30

timers, 31

empty buttons, 22

empty macro buttons, 29

empty timer buttons, 30

Extender ID

on the Remote Control, 34

on the RF Extender, 34

eye

for learning commands, 3, 22

for sending commands, 3, 14

F

first time usage

activating, 7

defining brands, 8

free memory, 17

G

graphics, 36

H

Home button, 7

Home panel, 13

activating Device menu, 13

activating Macro menu, 13

selecting a device, 13

I

importing graphics, 36

infrared (IR), 32

inserting delays, 30

installing

RC codes, 11, 12

the battery pack, 5

intro, 17

IR signals, 32

K

keyboard

character, 9, 24

deleting a character, 9, 24

space, 9, 24

symbols, 24

virtual auto-zooming, 9, 24

zoom, 9, 24

L

Label mode, 19, 24

labeling

buttons, 24

devices, 25

LCD setting, 16

Learn mode, 19, 22

learning

action buttons globally, 23

action buttons per device, 23

commands from existing remote controls, 22

control panel buttons, 22

device actions, 23

direct-access buttons globally, 23

direct-access buttons per device, 23

empty buttons, 22

eye, 3, 22

Home panel buttons, 22

LED as charging indication, 6

list of brands

navigating, 9

scrolling, 9

Low Battery icon, 6

M

macro groups

deleting, 27

labeling, 25

Index 50

moving, 26

restoring, 28

Macro menu, 29

Macro tab, 29

icon, 13, 29

macros

editing, 30

labeling, 24

organized into groups, 31

recording, 29

memory, 9

menu

Device, 14

Macro, 29

Mode, 19

mode, 7

Add mode, 19, 26, 31

Brand mode, 8, 19, 21

Delete mode, 19, 27

Edit mode, 19, 29, 30

Label mode, 19, 24

Learn mode, 19, 22

Move mode, 19, 26

RF IR mode, 19, 33

Search mode, 10, 11

Setup mode, 16

switching between modes, 19

Try mode, 11, 12

Use mode, 19

Mode menu, 19

disabling, 20

setting, 17

Move mode, 19, 26

moving

devices, 26

macro groups, 26

timer groups, 26

N

number of panel, 15

O

operating a device

with IR, 14

with RF, 32

P

Page Up/Page Down buttons, 3, 15

panel number, 15

Pick Up sensor, 7, 17

power adapter, 6

powering

charging the Remote Control, 6

installing the battery pack, 5

ProntoPro Edit, 36

ProntoPro Emulator, 36

R

radio frequency (RF), 32

RC codes

installing, 11, 12

responding, 11, 12

searching, 10, 11

selecting, 10

sending, 10, 11

recharging. See charging

recording

ending macro with device control panel, 29

macros, 29

source switching, 29

redefining brands

searching brands and code sets, 21

selecting brands and code sets, 21

selecting brands and searching code sets, 21

relabeling. See labeling

Remote Control

appliance, 3

charging, 6

cleaning, 43

database, 9

docking station, 4

list of brands, 9, 11

list of code sets, 10

loading, 36

memory, 9

touch screen, 4

Remote Control icon, 7

transmitting signals, 14

turned around, 15

renaming. See labeling

reset button, 3, 41

resetting the Remote Control, 41

responding RC codes, 11, 12

Restore Deleted Device, 26

Restore Deleted Group, 31

restoring

buttons and button actions, 28

device actions, 28

devices, 28

macro groups, 28

timer groups, 28

reverting, 17

reverting the Remote Control, 41

RF Extender, 32

Channel, 34

ID, 34

RF IR mode, 19, 33

RF IR settings, 33

Channel, 34

Extender ID, 34

IR, 33

RF, 33

RF signals, 32

interference, 34

Index 51

S

scrolling

in a loop, 15

through control panels, 15

through menu items, 15

Search mode, 10, 11

searching

brands and code sets, 11

code sets, 10

selecting

a device without affecting other devices, 15

brands, 9

code sets, 10

devices, 13, 14

sending

commands, 14

IR signals, 14, 32

no IR, 15

RC codes, 10, 11

RF signals, 32

sending eye, 3

serial cable, 36

serial port

docking station, 4, 36

Remote Control, 3, 36

setting timers, 30

settings

adjusting, 16

reverting, 41

Setup mode, 16

setup panel

first, 16

second, 17

third, 17

signals

no IR, 15

source switching, 29

specifications, 17

start time, 30

stop time, 30

switch off, 7

switching

to another mode, 19

switching off display, 7

T

technical information, 17

time display, 16

timer

organized into groups, 31

timer groups

deleting, 27

labeling, 25

moving, 26

restoring, 28

timers

editing, 31

labeling, 24

setting, 30

starting, 30

stopping, 30

touch screen, 3

beep, 17

buttons, 14

touch screen labels, 27

Try mode, 11, 12

turning on

backlight, 7

display, 7

U

uploading new configurations, 36

Use mode, 19

using the Remote Control with RF, 32

Z

Zoom in and out (virtual keyboard), 9, 24

Documentation concept and elaboration: The Human Interface Group, de Regenboog 11, 2800 Mechelen,
http://www.higroup.com

3104 205 3231.1

Index 52
