Philips SBC HM800 User Manual

(Ü) English

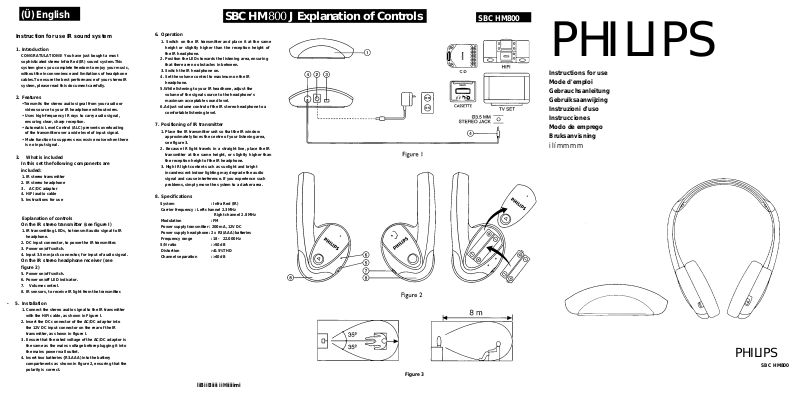

SBC HM800 J Explanation of Controls

SBC HM800

Instruction for use IR sound system

1. Introduction

CONGRATULATIONS! You have just bought a most
sophisticated stereo Infra Red (IR) sound system.This
system gives you complete freedom to enjoy your music,
without the inconvenience and limitations of headphone
cables.To ensure the best performance of your stereo IR
system, please read this document carefully.

2. Features

•Transmits the stereo audio signal from your audio or

video source to your IR headphone without wires.

• Uses high-frequency IR rays to carry audio signal,

ensuring clear, sharp reception.

• Automatic Level Control (ALC) prevents overloading

of the transmitter over a wide level of input signal.

• Mute function to suppress excessive noise when there

is no input signal.

3. What is included

In this set the following components are

included:

1. IR stereo transmitter

2. IR stereo headphone

3. AC/DC adaptor

4. HiFi audio cable

5. Instructions for use

Explanation of controls

On the IR stereo transmitter (see figure I)

1. IR transmitting LEDs, to transmit audio signal to IR

headphone.

2. DC input connector, to power the IR transmitter.

3. Power on/off switch.

4. Input 3.5 mm jack connector, for input of audio signal.

On the IR stereo headphone receiver (see
figure 2)

5. Power on/off switch.

6. Power on/off LED indicator.

7. Volume control.

8. IR sensors, to receive IR light from the transmitter.

6. Operation

1. Switch on the IR transmitter and place it at the same
height or slightly higher than the reception height of
the IR headphone.

2. Position the LEDs towards the listening area, ensuring

that there are no obstacles in between.

3. Switch the IR headphone on.

4. Set the volume control to maximum on the IR

headphone.

5. While listening to your IR headhone, adjust the
volume of the signal source to the headphone’s
maximum acceptable sound level.

6. Adjust volume control of the IR stereo headphone to a
comfortable listening level.

7. Positioning of IR transmitter

1. Place the IR transmitter unit so that the IR window
approximately faces the centre of your listening area,
see figure 3.

2. Because IR light travels in a straight line, place the IR
transmitter at the same height, or slightly higher than
the reception height of the IR headphone.

3. High IR light content such as sunlight and bright
incandescent indoor lighting may degrade the audio
signal and cause interference. If you experience such
problems, simply move the system to a darker area.

8. Specifications

System : Infra Red (IR)
Carrier frequency : Left channel 2.3 MHz

Right channel 2.8 MHz

Modulation : FM
Power supply transmitter : 200 mA, 12V DC
Power supply headphone: 2 x R3(AAA) batteries
Frequency range : 18 - 22.000 Hz
S/N ratio : >50 dB
Distortion :<0.5%THD
Channel separation : >40 dB

PHILIPS

Instructions for use
Mode d'emploi
Gebrauchsanleitung
Gebruiksaanwijzing
Instruzioni d'uso
Instrucciones
Modo de emprego
Bruksanvisning

ilímmmm

- 5. Installation

1. Connect the stereo audio signal to the IR transmitter

with the HiFi cable, as shown in Figure I.

2. Insert the DC connector of the AC/DC adaptor into
the 12V DC input connector on the rear of the IR
transmitter, as shown in figure I.

3. Ensure that the rated voltage of the AC/DC adaptor is
the same as the mains voltage before plugging it into
the mains power wall outlet.

4. Insert two batteries {R3.AAA) into the battery
compartments as shown in figure 2, ensuring that the
polarity is correct.

PHILIPS

SBC HM800

Figure 3

liBiiBiiii iiHiiiiimi
