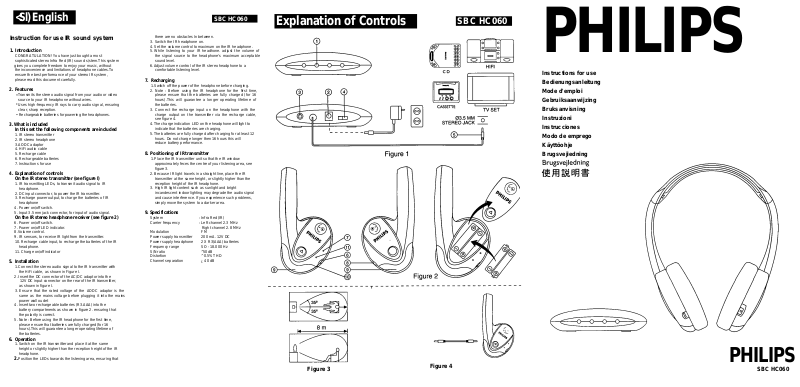

Instruction for use IR sound system
1. Introduction
CONGRATULATION! You have just bought a most sophisticated stereo Infra Red (IR) sound s/stem.This system gives you complete freedom to enjoy your music, without
the inconvenience and limitations of headphone cables.To ensure the best performance of your stereo IR system, please read this document carefully.
2. Features
«Transmits the stereo audio signal from your audio or video source to your IR headphone without wires.
*Uses high-frequency IR rays to carry audio signal, ensuring clear, sharp reception.
•Rechargeable batteries for powering the headphones.
3.What is included
In this set the following components are included
1.IR stereo transmitter
2.IR stereo headphone
3.AODC adaptor
4.HiFi audio cable
5.Recharge cable
6.Rechargeable batteries
7.Instructions for use
4.Explanation of controls
On the IR stereo transmitter (see figure I)
1.IR transmitting LEDs, to transmit audio signal to IR headphone.
2.DC input connector, to power the IR transmitter.
3.Recharge power output, to charge the batteries of IR headphone
4.Power on/off switch.
5.Input 3.5 mm jack connector, for input of audio signal.
On the IR stereo headphone receiver (see figure 2)
6.Power on/off switch.
7.Power on/off LED indicator.
8.Volume control.
9.IR sensors, to receive IR light from the transmitter.
10.Recharge cable input, to recharge the batteries of the IR headphone.
11.Charge on/off indicator
5.Installation
1.Connect the stereo audio signal to the IR transmitter with the HiFi cable, as shown in Figure I.
2.Insert the DC connector of the AC/DC adaptor into the 12V DC input connector on the rear of the IR transmitter,
as shown in figure I.
3.Ensure that the rated voltage of the AODC adaptor is the same as the mains voltage before plugging it into the mains power wall oudet
4.Insert two rechargeable batteries (R3.AAA) into the battery compartments as shown in figure 2. ensuring that the polarity is correct.
5.Note : Before using the IR headphone for the first time, please ensure that batteries are fully charged (for 16 hours).This will guarantee a longer operating lifetime of the batteries.
6.Operation
1.Switch on the IR transmitter and place it at the same height or slightly higher than the reception height of the IR headphone.
2.Position the LEDs towards the listening area, ensuring that
|
|
|
|
PHILIPS |
||
6.Adjust volume control of the IR stereo headphone to a |
|
Explanation of Controls |
|
|
||
|
SBC HC060 |
|
|
SBC HC060 |
|
|
|
|
|
|
|
|
|
there are no obstacles In between. |
|
|
|
|
||
|
|
|
|
|||
|
|
|
|
|||
3. Switch the IR headphone on. |
|
|
|
|
||
4. Set the volume control to maximum on the IR headphone. |
|
|
|
|
||
5. While listening to your IR headhone. adjust the volume of |
|
|
|
|
||
the signal source to the headphone's maximum acceptable |
|
|
|
|
||
sound level. |
|
|
|
|
||
comfortable listening level. |
|
|
|
Instructions for use |
||
|
|
|
|
|
|
|
7. Recharging |
|
|
|
Bedienungsanleitung |
||
1.Switch off the power of the headphone before charging. |
|
|
|
Mode d'emploi |
||
2. Note : Before using the IR headphone for the first time, |
|
|
|
|||
please ensure that the batteries are fully charged (for 16 |
|
|
|
Gebruiksaanwijzing |
||
hours).This will guarantee a longer operating lifetime of |
|
|
|
|||
the batteries. |
|
|
|
Bruksanvisning |
||
3. Connect the recharge input on the headphone with the |
|
|
|
|||
charge output on the transmitter via the recharge cable, |
|
|
|
Instruzioni |
||
see figure 4. |
|
|
|
|||
4.The charge indication LED on the headphone will light to |
|
|
|
Instrucciones |
||
indicate that the batteries are charging. |
|
|
|
|||
5.The batteries are fully charged after charging for at least 12 |
|
|
|
Modo de emprego |
||
hours. Do not charge longer then 16 hours this will |
|
|
|
|||
reduce battery performance. |
|
|
|
Käyttöohje |
||
|
|
|
|
|
|
|
8. Positioning of IR transmitter |
|
|
|
Brugsvejiedning |
||
1.Place the IR transmitter unit so that the IR window |
|
|
|
|
||
approximately feces the centre of your listening area, see |
|
|
|
|
||
figure 3. |
|
|
|
|
||
2. Because IR light travels in a straight line, place the IR |
|
|
|
|
||
transmitter at the same height, or slightly higher than the |
|
|
|
|
||
reception height of the IR headphone. |
|
|
|
|
||
3. High IR light content such as sunlight and bright |
|
|
|
|
||
incandescent indoor lighting may degrade the audio signal |
|
|
|
|
||
and cause interference. If you experience such problems, |
|
|
|
|
||
simply move the system to a darker area. |
|
|
|
|
||
9. Specifications
System
Carrier frequency
Modulation
Power supply transmitter Power supply headphone Frequency range
S/N ratio Distortion
Channel separation
:Infra Red (IR)
:Left channel 2.3 MHz Right channel 2.8 MHz FM
200 mA. 12V DC
2 X R3(AAA) batteries SO - 18.000 Hz
^50 dB
^0.5% THD ¿ 4 0 d B
