PHILIPS
Instructions for use
Mode d'emploi
Gebrauchsanleitung
Mini casse acustiche IFU
Gebruiksaanwijzing
Mini altifalantes IFU
Minialtavoces IFU
Minihogtalare IFU
® Right Top
0
©
©
©
L© ©
0
0
©
©
©
©
STEREO JACK
03.S MM CO
©
©
©
/
©
Ф ”0
Right Rear
©©0
(
1 -J-® L
DCC
|1 ?ib©
CASSETTE
■■
1

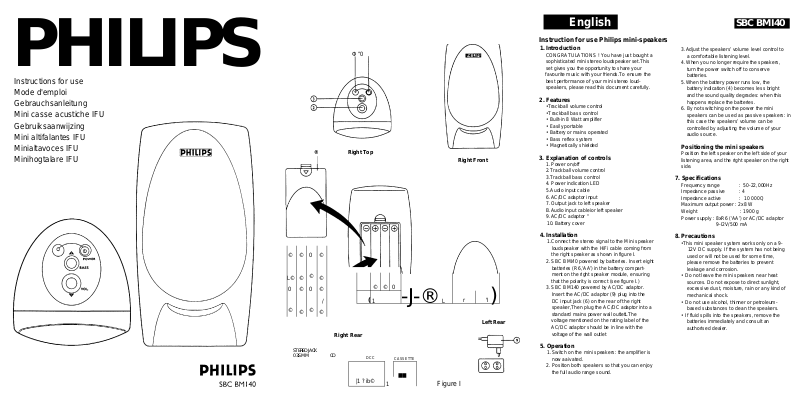

Figure I
Right Front
r 'I )
Left Rear
English
Instruction for use Philips mini-speakers
1. Introduction
CONGRATULATIONS ! You have just bought a
sophisticated mini stereo loudspeaker set.This
set gives you the opportunity to share your
favourite music with your friends.To ensure the
best performance of your mini stereo loud
speakers, please read this document carefully.
2. Features
•Trackball volume control
• Trackball bass control
• Built-in 8 Watt amplifier
• Easily portable
• Battery or mains operated
• Bass reflex system
• Magnetically shielded
3. Explanation of controls
1. Power on/off
2. Trackball volume control
3. Trackball bass control
4. Power indication LED
5. Audio input cable
6. AC/DC adaptor input
7. Output jack to left speaker
B.Audio input cableior left speaker
9. AC/DC adaptor ''
10. Battery cover
4. Installation
1. Connect the stereo signal to the Mini speaker
loudspeaker with the HiFi cable coming from
the right speaker as shown in figure I.
2. SBC ВМИ0 powered by batteries. Insert eight
batteries (R6,‘AA’) in the battery compart
ment on the right speaker module, ensuring
that the polarity is correct (see figure I.)
3. SBC BM140 powered by AC/DC adaptor.
Insert the AC/DC adaptor (9) plug into the
DC input jack (6) on the rear of the right
speaker,Then plug the AC/DC adaptor into a
standard mains power wall outletLThe
voltage mentioned on the rating label of the
AC/DC adaptor should be in line with the
voltage of the wall outlet
5. Operation
1. Switch on the mini speakers: the amplifier is
now aaivated.
2. Position both speakers so that you can enjoy
the full audio range sound.
SBC BMI40
3. Adjust the speakers’ volume level control to
a comfortable listening level.
4. When you no longer require the speakers,
turn the power switch off to conserve
batteries.
5. When the battery power runs low, the
battery indication (4) becomes less bright
and the sound quality degrades: when this
happens replace the batteries.
6. By not switching on the power the mini
speakers can be used as passive speakers: in
this case the speakers’ volume can be
controlled by adjusting the volume of your
audio source.
Positioning the mini speakers
Position the left speaker on the left side of your
listening area, and the right speaker on the right
side.
7.
Specifications
Frequency range : 50-22,000 Hz
Impedance passive : 4
Impedance active : 10 000 Q
Maximum output power : 2x8 W
Weight : 1900 g
Power supply : 8xR6 (‘AA’) or AC/DC adaptor
8. Precautions
•This mini speaker system works only on a 9-
12V DC supply. If the system has not being
used or will not be used for some tíme,
please remove the batteries to prevent
leakage and corrosion.
• Do not leave the mini speakers near heat
sources. Do not expose to direct sunlight,
excessive dust, moisture, rain or any kind of
mechanical shock.
• Do not use alcohol, thinner or petroleumbased substances to clean the speakers.
• If fluid spills into the speakers, remove the
batteries immediately and consult an
authorised dealer.
9-I2V/500 mA
