Philips MGD403, MGD203 User Manual

Published by GE 9845 Monitor Service Dept. Printed in Italy © Copyright reserved Subject to modification
3119 206 13832
H
GB
USER MANUAL
MGD203 MGD403
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC (U.S. Federal Communications Commission) rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the instruction, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The monitor described in this user manual has been certified/registered by the safety agencies/regulatory authorities as model n° MD0709BRM.
Modification
The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment.
Cables
Connections to this device must be made with shielded signals cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.
The lighting flash with arrowhead symbol is intended to alert the user of the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be suffi­cient magnitude to constitute a risk of electric shock to people.
The exclamation mark is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in literature accompanying the appliance.
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
WARNING:
TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR EXCESSIVE MOISTURE.
COPYRIGHT - CE II
Copyright © This manual is copyrighted with all rights reserved. Under the copyrights law, this manual may not be copied in whole or part, without written consent. Under the law, copying includes translating into another language or format. Apple, Macintosh/II, PowerMacintosh, Apple Quadra, Centris and Power Mac are trademark of Apple Computer Inc. IBM, IBM PC/XT, PC/AT, PS2 (Personal Sytem/2) , VGA (Video Graphics Array) , OS/2 and DOS are registered trademarks of International Business Machines Corporation. 386, 386SX, 486 and Pentium are registered trademarks of Intel Corporation. SunSparc station is a registered trademark of Sun Microsystems. Windows and Windows ‘95 are a registered trademark of Microsoft Corporation. DDC is trademark owned by the Video Electronics Standards Associations. All other trademarks and registered trademarks are the sole property of their respective companies or organisation. Cyberscreen ® monitor is a Philips technology
Printed in Italy
The manufacturer declares that this product satisfies the basic requirements of Electromagnetic Compatibility and Safety of the Directive:
- 93/42/EEC Medical Device regarding risk Class I
device.
- As having been designed and tested in conformity with
the requirements of the following Reference Standards:
- EN55011 - Limits and methods of measurements of
radio interference characteristics of Industrial Scientific and Medical (ISM) radio-frequency equipment; Class B
- EN60601-1-2 (1993) Medical electrical equipment -
Part 1: General requirements for Safety - 2 - Collateral Standard: Electromagnetic compatibility ­Requirements and tests.
- EN60601-1 Medical electrical equipment - Part 1:
General requirements for Safety.
- EN60950 (Safety of Information Technology equipment,
including electrical business equipment).
Conformity with the above basic requirements is certified by means of the CE Marking shown on the product.
1 ENGLISH
TABLE OF CONTENTS
PREFACE 2
INTRODUCTION 2 - 3
MAIN FEATURES 4 - 5
SETTING UP YOUR NEW MONITOR 6 - 9
Inspection and unpacking 6
Connecting your monitor 7 - 9
INFORMATION AND USE OF THE CONTROL PANEL
Control location and functions 10
HARDWARE OSD
Adjustment: size position, geometry and special functions 11 - 22
Technical Specification APPENDIX 1

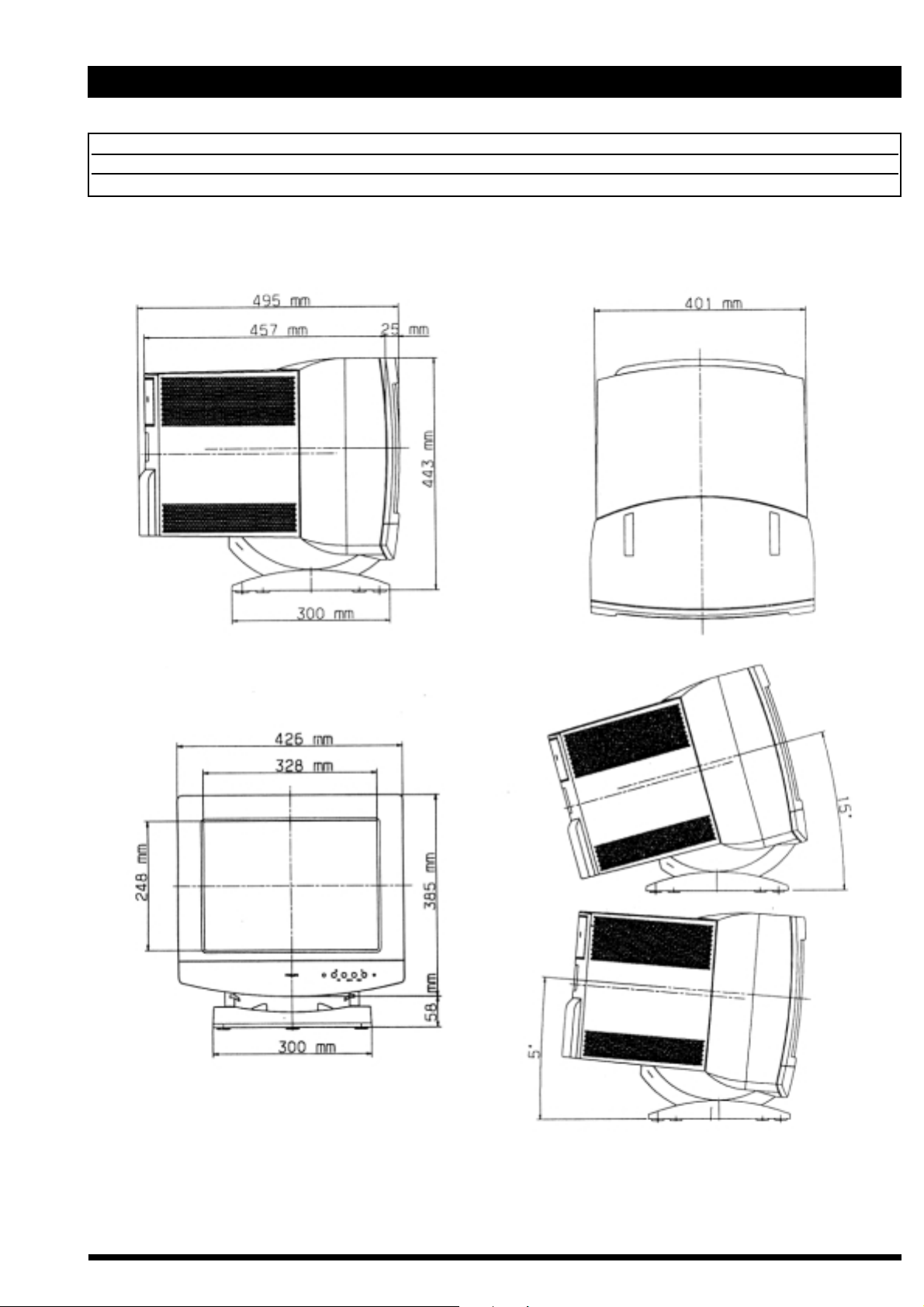

Mechanical Specification APPENDIX 2
Note for UK APPENDIX 3
Factory Pre-Set Video Timings APPENDIX 4
ENGLISH 2
Thank you for purchasing the new MGD 203/MGD 403 high brightness monochrome monitor. We hope you will enjoy using it and we are confident that this quality product will meet your highest expectations.
This user manual contains the following informations:
An introduction to the product featuresInstructions for unpacking and connecting to a computer: this allows you to quickly set-
up and receive the best performance from your new monitor
Guide to the On Screen DisplayInstructions for the care and maintenance of the monitor to extend its service lifeTrouble shooting information in case you encounter any difficulties while you are
installing or using the monitor
Technical performance
PREFACE
3 ENGLISH
The new MGD 203/MGD 403 is a very high brightness, high resolution digitally controlled autoscan monochrome monitor, based on the CyberScreen technology. ®
This new monitor, specifically designed for medical applications, gives unique performances in term of brightness, resolution and spot size. Typical applications are X-ray display systems, Tele Radiology (TR), Picture Archiving and Communications Systems (PACS), Radiology Information Systems (R.I.S.) Cardiac Workstation, etc. A rich set of functions allows quick installation, flexible user preference customization and easy maintenance.
Specifically designed for very high-end medical imaging applications, the new MGD 203/ MGD 403 monitor is capable of working with all the formats available from the most different monochrome as well as color video cards of both Apple and PC environments and from all the high-end workstations.
This monitor incorporates a DDC1/DDC2B function that allows bidirectional communications between the monitor and PC system for optimal video configuration.
It is also possible to use up to 15 of these monitors in Daisy Chain Mode, as explained later in this manual.
Almost all the internal functions of the monitor are digitally controlled, and they can be stored in a resident memory which may contain up to 28 different formats, 12 of which are factory pre­set. The monitor can store also five different ref. settings (all user adjustable) wich can be recalled at any moment.
The power saving is operating ONLY when used with VESA DPMS compliant PC’s and/or video controllers. By reducing power consumption to less than 15 W in suspend or stand­by mode and about 3 W in off mode, the monitor also complies with the Energy Star Computers Program initiated by the EPA.
INTRODUCTION
ENGLISH 4
The monitor will automatically sychronise within a wide range of scanning frequencies and determine the specific operating mode.

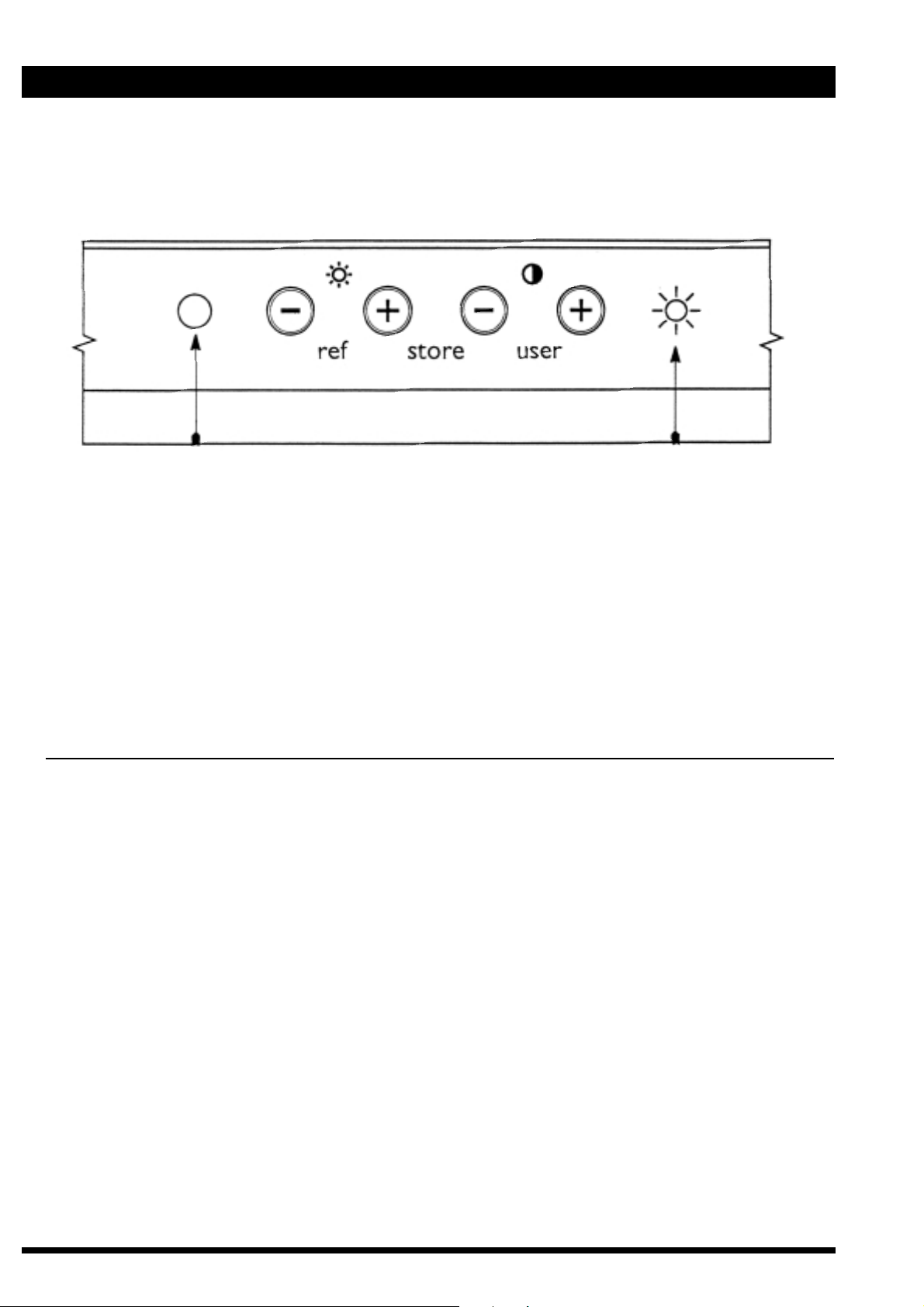

Monitor behaviour (degauss & reset), image quality and screen geometry adjustments can be changed or selected via the hardware OSD by means of the front panel push-buttons.
Your new monitor provides special features as:
´ Very high contrast, high definition image. ´ Digital brightness uniformity control (higher than 90%). ´ Automatic correction of the effect of the horizontal magnetic field. ´ Digital correction of geometric distortions. ´ Automatic calibration (with optional light probe and software tool). ´ Incredible high contrast (750 cd/sqm for 21” - 900 cd/sqm for the 17”). ´ Universal power supply. ´ Interactive On Screen Display with a rich set of functions for easy installation and cus-
tomization.
´ Fully autoscan from 30 to 95 KHz (Horizontal Frequency)
50 to 170 Hz (Vertical Frequency).
´ Most common video modes already factory stored in the monitor memory. ´ Large number of free memory locations to store up to 16 user-defined video modes. ´ Full compatibily with all mono and color video cards, progressive and interlaced timing ´ Black Level Stabilization for quick warm-up (4 min.) and perfect contrast stability over
time.
´ Integrated Ambient Light Compensation control function. ´ RS 485 - like ’Daisy chain’ bus connection (up to 15 monitors), allows simultaneous
adjustment of each enabled monitor from each monitor’s keyboard.
´ RS 232 serial connection to host computer or service laptop. ´ Large number of functions available through the interactive On Screen
Display, (including also Hours of Operating, Horizontal Scan Rate, Vertical Refresh Rate) to allow easy installation and optimal operation.
´ Orbiting function to increase CRT lifetime. ´ Loop-through input facility makes the connection of more monitors to the same video
source easy and economical.
´ Flexible inputs selection: 3 BNCs (for mono drivers), 5 BNCs or 15 pin D-sub (for color
drivers).
´ Six user selectable combinations of max Brightness and max Contrast
(5 preset + 1 available to the user).
´ Direct key access for most commonly used user commands:
BRIGHTNESS up/down, CONTRAST up/down, REF. SETTING, USER SETTING, USER STORE, KEYBOARD UNLOCK.
´ Automatic Brightess Control programmable. ´ Multi-level Keyboard lock facility. ´ Number of hours of operation recorded and readable at any time. ´ Power Saving (VESA DPMS) function according to latest Environmental
Regulations & Reccomendations, including also the Power Factor (IEC 555-2) control cir­cuit.
5 ENGLISH
ADVANCED TECHNOLOGY
The MGD 203/MGD 403 monitor includes the following advanced technologies:
- CYBERSCREEN®: digital technology that allows the optimization of the picture quality all over the screen, corners included.
- MAGNETOMETER: the magnetic field inside your monitor may dramatically change whenever you tilt or swivel the monitor, or when you bring a magnetic object, e.g. an audio speaker, close to the monitor. Changes to the magnetic field around a monitor can cause distortion of the image displayed on the screen. The automatic magnetic field compensation circuitry (horizontal component of earth magnetic field) of your MGD 203/ MGD 403 monitor, immediately correct these effects thus keeping the image always sharp.
- ABC: Automatic Brightness Control (ABC) function, when enabled, adjusts automatical­ly Brightness and Contrast according to the ambient light.
- Black Level Stabilization: The circuit reduces the time necessary to have a stabilized brightness level from 20 minutes to less than 4 minutes. The BLS circuit also automatically compensates the normal brightness decay due to the aging of the CRT.
- Digital Brightness Uniformity: thanks to the CyberScreen Technology, the screen brightness can be digitally controlled all over the screen, making possible to have a >90% brightness uniformity.
- Digital Control: all the monitor parameters, and display functions are accessible either via the Service Software package or by means of a set of direct commands, making it easy to remotly control the unit either from the System Console or from the Application Program.
- Digital Geometry Control: Full digital control of all geometry parameters to improve the overall performances (geometry up to 1% - linearity up to 5%)
- Brightness Calibrator: The optional MAP 201 HW/SW tool allows you to recalibrate the unit and to even improve the brightness uniformity of the image all other the screen.

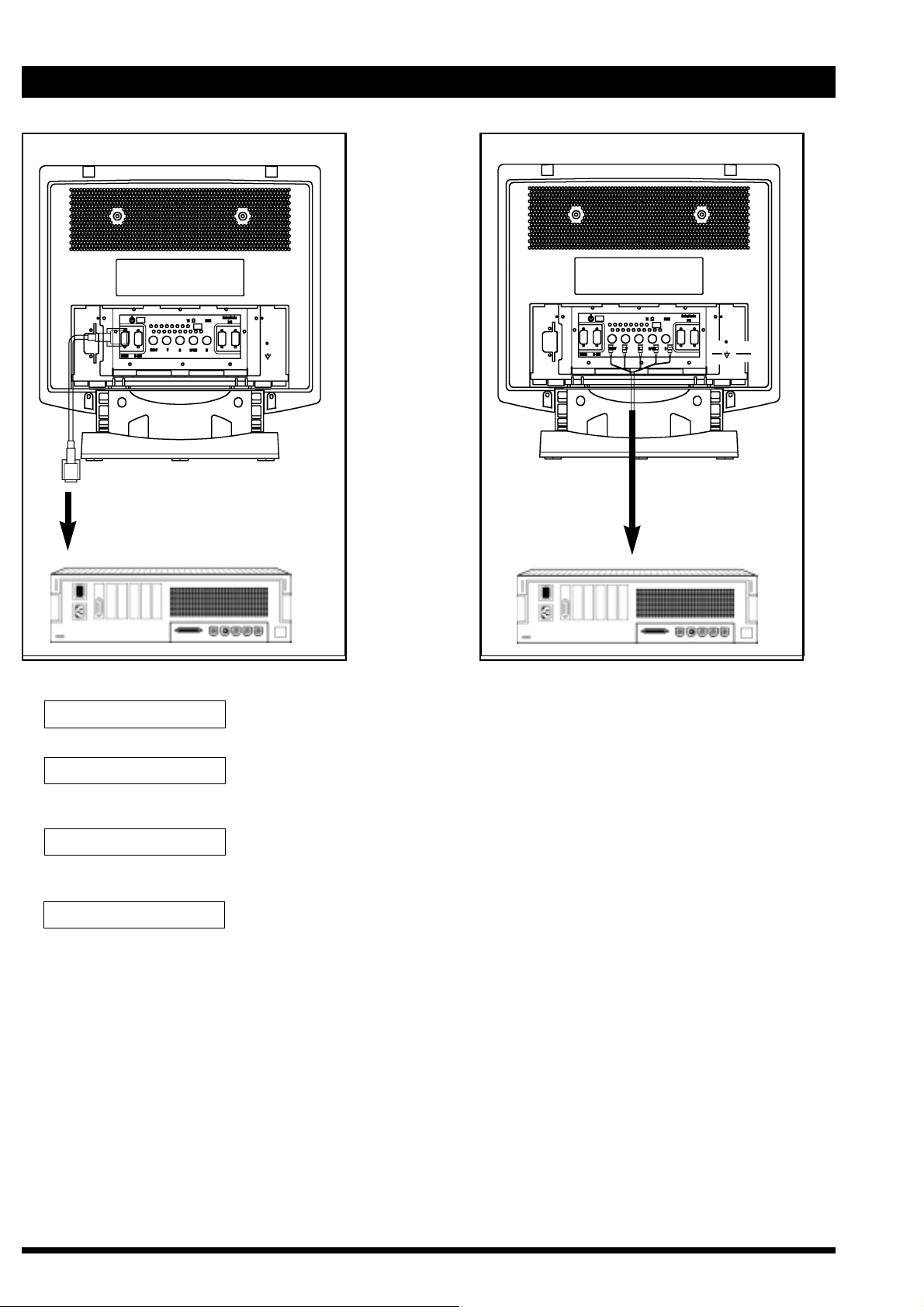

- Input Connection: Your new monitor can be operated either through the 3 (5) BNC input or via the 15 pin mini D-sub inputs to give you the maximum flexibility.
AGAS
The CRT of your new MGD203/MGD403 is finished with “AGAS” treatment, one of the most effective Anti-Glare/Anti-Static screen coating. With this treatment the intensity of reflected light is reduced to less than 0,5%, the picture contrast and sharpness remains unimpaired, and cleaning the screen is made easier.
MAIN FEATURES
ENGLISH 6
AUTOSCAN
This feature allows you to use your monitor with a wide range of video cards: the MGD 203/MGD 403 monitor will automatically synchronize at all horizontal frequencies in the range 30 - 95 KHz and vertical frequencies in the range 50-170 Hz, and will automatical­ly discriminate the specific operating mode.
CATHODE RAY TUBE
This new monitor incorporates a special monochrome 17”/21” CRT for brilliant and high contrast image (approximately three times the brightness of a standard monochrome CRT). The Flat Square screen has P45 phosphor for best performance, high resolution in­line electron polygon DAF (Dynamic Astigmatism and Focusing) triple gun and AGAS coating.
DDC (DISPLAY DATA CHANNEL)
This feature allows your operating system and application software to retrieve the display identity information directly from the display device.
Note: the DDC feature works only if the monitor is connected to the PC by a mini D-Sub 15 pins / mini D-Sub 15 pins video signal cable as explained in the chapter Connecting your monitor’ .
ENVIRONMENT
All the package materials are recyclable. This monitor does not contain any: Polychlorinated Biphenyl (PCB), Polyc. Diphenylether (PCDE), Polybromated Diphenylether (PBDE), Asbestos and Cadmium. The complete manufacturing process of the monitor does not emit the following sub­stances: Chlorinated Fluorohydrocarbons (CFC), Acrylonitrile, Styrol, Phenol, Benzol and Heavy Metals.
HARDWARE OSD (ON SCREEN DISPLAY)
An easy to use OSD menu allows the user to control and adjust some monitor parame­ters: Tilt, Hor. & Vert. Phase, Hor. and Vert. Size.
Plug
and
Play
7 ENGLISH
1GUN / 3 GUNS BRIGHTNESS
This function allows to select (via OSD menu) between Low Brigtness Mode (even better picture sharpness and reduced eye strain) and High Brightness Mode (full brightness).
WARNING: This function is available only if “1-BNC” input is selected since it has no much sence with color video cards.
MAP 201 - Calibration Package (optional)
Specifically designed for the Triple Gun monochrome monitor series, this package con­sists of a calibration software and an high sensitivity light probe sensor. The calibration package allows precise calibration of: brightness uniformity across the entire area, black level and white level, moreover it allows the user to correct the beam convergence from edge to edge for optimum display sharpness and accuracy.
ORBITING
The MGD 203/MGD 403 monitor includes a circuit specifically developed to increase the Cathode Ray Tube phosphors life-time by slightly moving, on a circular orbit, the entire dis­played image.

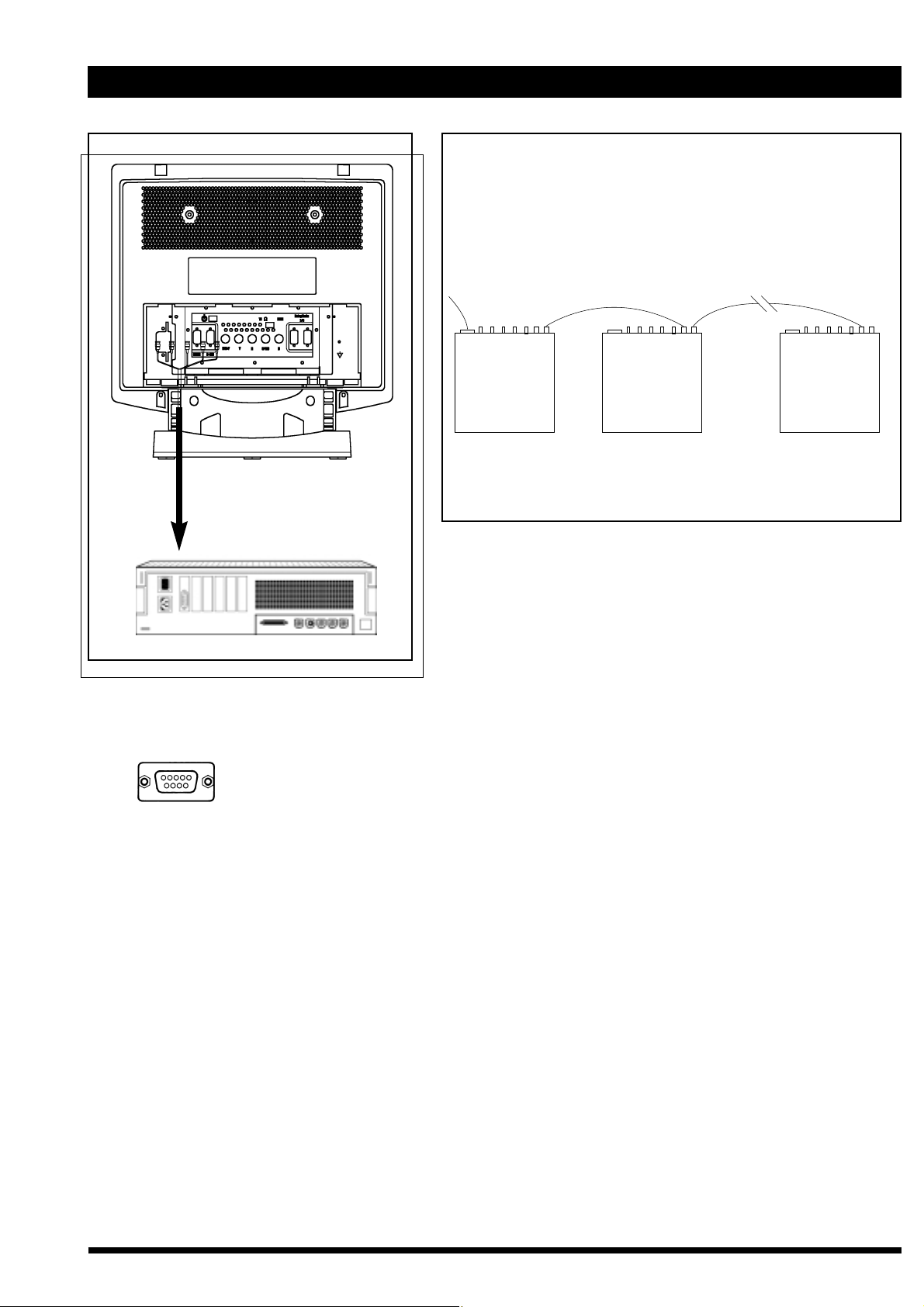

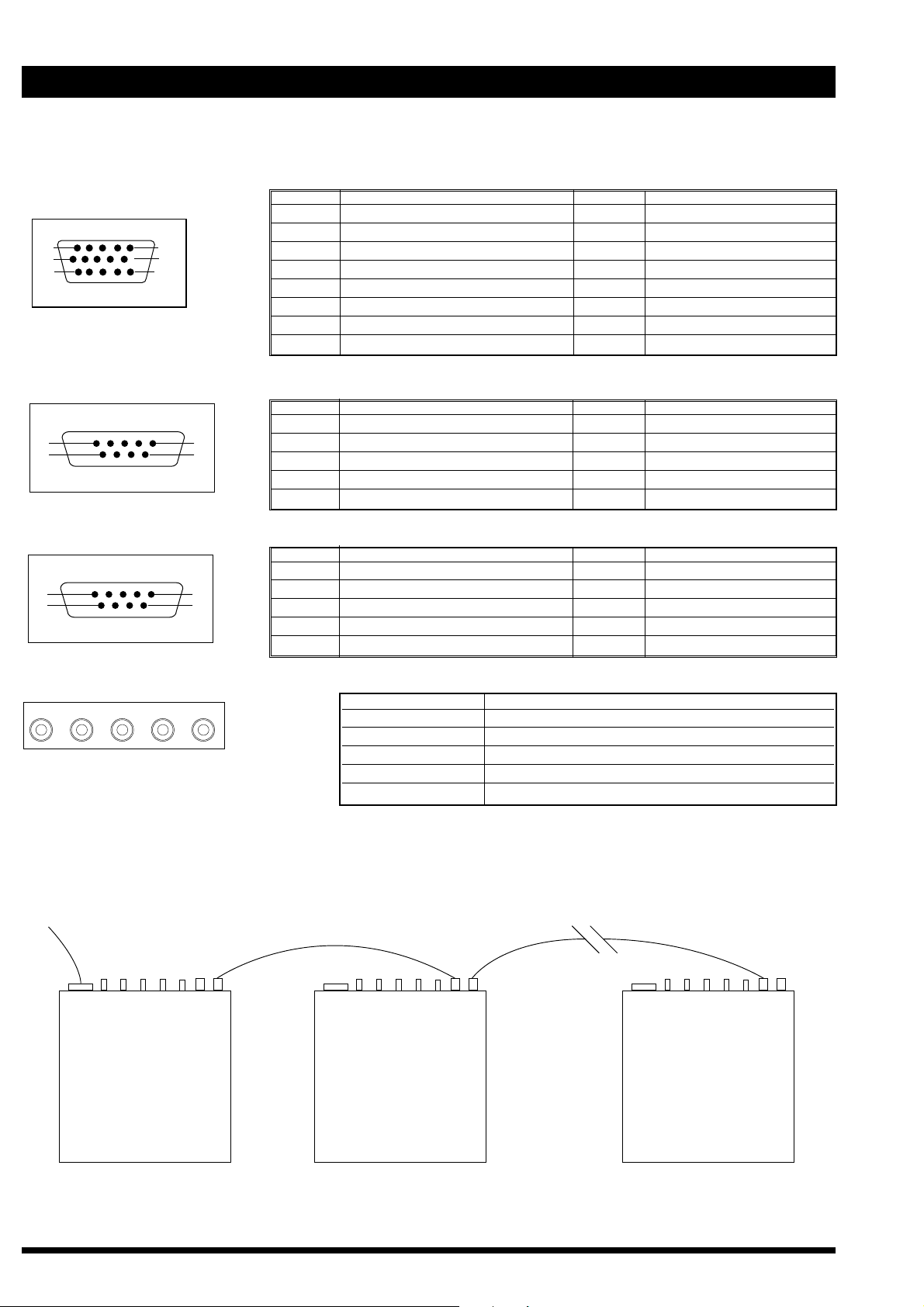

DAISY CHAIN INTERFACE
The two 9-pin DSUB (male and female) connectors are parallel-wired RS485-like Multi­Point Serial Interface to allow the connection of up to 15 units in daisy chained configura­tion, each one having unique address in the range from 1 to 15. The maximum total cable lenght between monitors is 15 m. If Daisy Chain Mode is ENABLED the RS232, KEYBOARD and ABC controls are trasmit­ted to all the other monitors and at the same time executed inside the monitors. (see specific chapter for details)
AUTOMATIC BRIGHTNESS CONTROL
The ABC feauture automatically adapts the contrast/brightness level to the ambient light (measured with a special sensor). The ABC function is selectable in one of the following three modes:
Active control range : 10 - 1000 lux ambient on the photo-sensor
ABC - FULL Adjustable Reduction Effect via OSD (20% - 100%) ABC - REDUCTION Derived from ABC - FULL ABC - OFF No reduction (100%) In case of daisy chain connection only one unit can be allowed to be “ABC master” (fly­ing master concept). See also pages 18 and 25 of this user manual.
SHOW CONFIGURATION
Via OSD it is possible to display the monitor unit information: firmware release, total working hours (to keep track of the real usage of the monitor), active video mode, horizontal and vertical frequencies.
ENGLISH 8
Note:
REFERENCE SETTING
Five different ‘pairs’of brightness and contrast combinations can be defined, and stored in the monitor and selected via OSD menu. This feature is particularly attractive for OEMs using the monitor with multiple systems wich will save a lot of time in the facto­ry and in the field as well (‘tailoring’ of the monitor adjustments on the specific system is no more needed).
POWER MANAGEMENT
The MGD 203/MGD 403 is ENERGY STAR compatible (requires “VESA DPMS” compliant signalling). The Power Management feature operates automatically by gradually powering down the monitor in three different status: ON: Display in full operation (GREEN/YELLOW/RED)
depending on reference setting status - see also’ LED LIGHT MEANING TABLE’.
SUSPEND OR STAND-BY: Either Hsync or Vsync is missing, the power con sum-
ption is less than 15 W, (Yellow blinking LED).
OFF: Both H & V signals are inactive, the power consum-
ption is about 3 W, LED off). This function can be easily disabled in a safe and permanent way through the Hardware OSD (Mode/Power Saver). The manufacturer is a partner in the EPA’s Energy Star computer program. The Energy Star emblem does not represent EPA endorsement of any product or ser­vice.
PRE-SET MODES
The monitor memory can store the geometry display parameters of each operating mode up to 28 modes (12 of them are factory pre-set; see appendix 4), thus allowing to auto-size the picture for the detected mode. For any “not found” mode, the microprocessor will automatically store the geometry set­tings as adjusted by the user in the first free location. The user has the possibility to change the adjustments at any time.
RESOLUTION
The maximum resolutions displayable on the screen are: MGD203 : 1280 x 1024 @ 90 Hz MGD403 : 1600 x 1280 @ 72 Hz
UNIVERSAL POWER SUPPLY
This unit will automatically detect and power up at any line voltage and frequency all over the world with no intervention of the operator.
