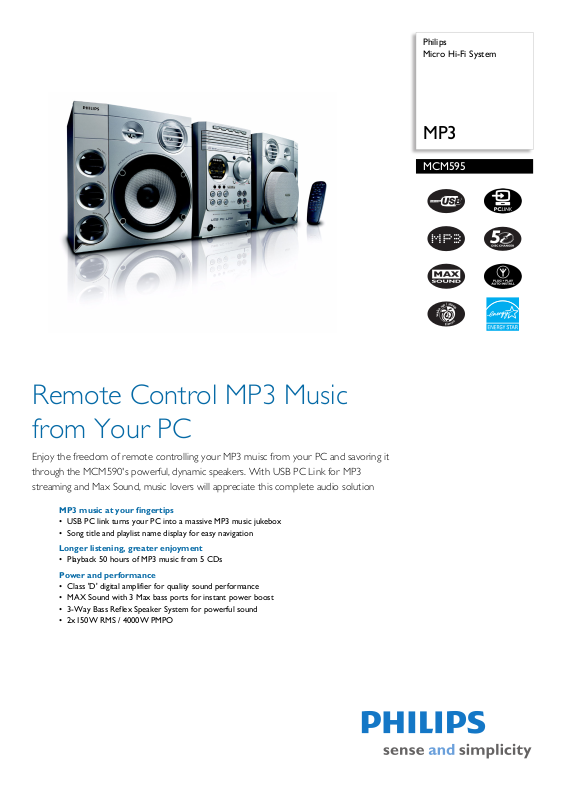

Philips MCM595 User Manual
Philips
Micro Hi-Fi System
MP3
MCM595
Remote Control MP3 Music
from Your PC
Enjoy the freedom of remote controlling your MP3 muisc from your PC and savoring it
through the MCM590's powerful, dynamic speakers. With USB PC Link for MP3
streaming and Max Sound, music lovers will appreciate this complete audio solution
MP3 music at your fingertips
• USB PC link turns your PC into a massive MP3 music jukebox
• Song title and playlist name display for easy navigation
Longer listening, greater enjoyment
• Playback 50 hours of MP3 music from 5 CDs
Power and performance
• Class 'D' digital amplifier for quality sound performance
• MAX Sound with 3 Max bass ports for instant power boost
• 3-Way Bass Reflex Speaker System for powerful sound
• 2x150W RMS / 4000W PMPO
Micro Hi-Fi System
MP3
MCM595/21
Specifications Product highlights
Sound
• Output Power: 4000 watts PMPO
• Sound Enhancement: MAX Sound, Digital Sound
Control 4 modes, Virtual Environment Control,
Class "D" Digital Amplifier
Loudspeakers
• Main Speaker: 3 way, Bass Reflex Speaker System,
6.5" woofer, 2" tweeter, 3 MAX bass port,
Speaker grilles detachable
Audio Playback
• Playback Media: CD, CD-R, CD-RW, MP3-CD
• Disc Playback Modes: 99-Track Programmable,
Repeat/one/disk/program, Shuffle Play
• ID3-tag support
• Loader Type: Motorised, Tray
• Number of Discs: 5
• PC Link playback mode: USB connection, By-pack
Musicmatch software, Navigate MP3 music via RC,
Track + playlist info display
• PC Link sound enhancement: By-pack Sound
Agent Software
Tuner/Reception/Transmission
• Tuner Bands: FM Stereo, MW
• Auto digital tuning
• Station presets: 40
• Tuner Enhancements: Auto Store, Easy Set (Plug
& Play)
Connectivity
• Aux in: Line in
• PC Link: USB 2.0
• Headphone: 3.5 mm
• Other connections: FM Antenna, MW Antenna
Convenience
• Alarms: CD Alarm, Radio Alarm, Sleep timer
• Clock: On main display
• Display Type: Green FTD
• Indications: DIM mode
• Eco Power Standby: 0.6 watt
Accessories
• Included Accessories: AC Power Cord, FM/MW
Antenna
• Remote control: 32-key with 2xAA Batteries
• USB cable: 3-meter
• CD-ROM: installation disc
Software
• USB PC Link driver
• Music Match Jukebox: Music Match Jukebox
• Phili ps Sou nd Age nt 2: Y es, fo r Wind ows 2000/X P
System Requirements
•CD-ROM drive
• USB: Free USB port
• PC OS: Windows 98 SE, 2000, ME, XP
• Processor: Intel Pentium MMX200 or higher
• Hard disk space: 80 MB
Dimensions
• Set dimensions (W x H x D):
175
x 268 x 316 mm
• Main speaker dimensions (W x H x D):
240
x 268 x 222 mm
• Packaging dimensions (W x H x D):
547
x 374 x 455 mm
• Weight incl. Packaging: 14.5 kg
•
USB PC Link
USB PC Link lets you playback your MP3 music through
the powerful speakers of Philips sound systems instead of
your PC speakers. By connecting a PC directly to your
audio system with a USB cable, you can stream MP3
mu si c direc tl y to your so und sys te m, transf or ming yo ur PC
into a 'massive MP3 music jukebox'. The control buttons
on the sound system and remote control provide easy
navigation and control of the MP3 music stored in the
MusicMatch Playlist. You can also view song title
information as well as elapsed play time on the sound
system's display.
50 hours of MP3-CD playback
MP3 is a revolutionary compression technology by which
large digital music files can be made up to 10 times
smaller without radically degrading their audio quality. A
singe CD can store up to 10 hrs of music. With 5 CDtray, it allows you to play 50 hours of music. MP3 has
become the standard audio compression format, allowing
quick and easy audio file transfer.
Class 'D' Amplifier
Class ‘D’ Digital Amplifier takes an analog signal,
converts it into a digital signal and then amplifies the
signal digitally. The signal then enters a demodulation
filter to give the final output. The amplified digital output
delivers all the advantages of digital audio, including
improved sound quality. In addition, Class ‘D’ Digital
Amplifier has greater than 90% efficiency compared to
traditional AB amplifiers. This high efficiency translates
into a powerful amplifier with a small footprint.
MAX Sound with 3 Max bass port
MAX Sound technology produces an instant boost in
bass, maximizes volume performance, and instantly
creates the most impressive listening experience with just
a touch of the MAX Sound button. The MAX Sound
electronic circuitry calibrates the existing sound and
volume setting, and instantly boosts bass and volume to
a maximum level without distortion. Both sound spectrum
and volume get noticeably amplified, creating a potent
audio boost that will add mileage to any music. MAX
Sound lets you get the most from your audio system
without having to alter complicated equalizer settings.
Issue date 2008-10-14
Version: 1.0.3
12 NC: 9073 100 12386
EAN: 87 10895 86420 6
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
