Philips MCD139 55 User Manual

DVD Micro Theatre

user manual

manual del usuario

manual do usuário

MCD139

México

Es necesario que lea cuidadosamente su instructivo de
manejo.

PRECAUCIÓN - ADVERTENCIA

No abrir, riesgo de choque eléctrico

ATENCIÓN

Verifique que el voltaje de alimentación

sea el requerido para su aparato

Para evitar el riesgo de choque eléctrico, no quite la tapa.

En caso de requerir servicio, dirijase al personal calificado.

Descripción: Minisistema de Audio
Modelo : MCD139/ 55
Alimentación: 110–127 / 220–240V~; 50/60 Hz
Consumo: 30 W
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Av. La Palma No.6

Col. San Fernando La Herradura
Huixquilucan

Localidad y Tel: Edo. de México C.P. 52784

Tel.[phone]

Exportador: Philips Electronics HK, Ltd.
País de Origen: China
Nº de Serie: ______________________________

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

AVISO IMPORTANTE

Philips Mexicana, S.A. de C.V. no se hace

responsable por daños o desperfectos causados por:

– Maltrato, descuido o mal uso, presencia de

insectos o roedores (cucarachas, ratones etc.).

– Cuando el aparato no haya sido operarado

de acuerdo con el instructivo del uso, fuera
de los valores nominales y tolerancias de las
tensiones (voltaje), frecuencia (ciclaje) de
alimentación eléctrica y las características
que deben reunir las instalaciones auxiliares.

– Por fenómenos naturales tales como:

temblores, inundaciones, incendios, descargas
eléctricas, rayos etc. o delitos causados por
terceros (choques asaltos, riñas

2

, etc.).

Index

Manufactured under license from Dolby
Laboratories.

"Dolby", "Pro-logic" and the double-D symbol are
trademarks of Dolby Laboratories.

MANUFACTURED UNDER LICENSE FROM
DIGITAL THEATER SYSTEMS, INC. US PAT. NO
5,451,942,5,956,674, 5,974,380, 5,978,762 AND
OTHER WORLDWIDE

PATENTS ISSUED AND PENDING. "DTS" AND
"DTS DIGITAL SURROUND" ARE RESISTERED
TRADEMARKS OF DIGITAL THEATER
SYSTEMS, INC. COPYRIGHT 1996, 2000
DIGITAL THEATER SYSTEMS, INC. ALL RIGHTS
RESERVED.

CAUTION

Use of controls or adjustments or
performance of procedures other
than herein may result in hazardous
radiation exposure or other unsafe
operation.

ATTENTION

L'utilisation des commandes ou
réglages ou le non-respect des
procédures ci-incluses peuvent se
traduire par une exposition
dangereuse à l'irradiation.

ATENCIÓN

El uso de mando o ajustes o la
ejecucción de métodos que no sean
los aquí descritos puede ocasionar
peligro de exposición a radiación.

English ------------------------------------------------ 4

Español --------------------------------------------- 40

Português ------------------------------------------ 76

CONSUMERS SHOULD NOTE THAT
NOT ALL HIGH DEFINITION
TELEVSION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT
AND MAY CAUSE ARTIFACTS TO BE
DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE
SCAN PICTURE PROBLEMS, IT IS
RECOMMENDED THAT THE USER
SWITCH THE CONNECTIN TO THE
‘STANDARD DEFINITION’ OUTPUT.
IF THERE ARE QUESTIONS REGARD­ING OUR TV SET COMPATIBILITY
WITH THIS MODEL 525p AND 625p
DVD PLAYER, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTER.

This product incorporates copy­right protection technology that is
protected by method claims of
certain U.S. patents and other
intellectual property rights owned
by Macrovision Corporation and
other rights owners. Use of this
copyright protection technology
must be authorized by Macrovision
Corporation, and is intended for
home and other limited viewing
uses only unless otherwise autho­rized by Macrovision Corporation.
Reserve engineering or disassembly
is prohibited.

English

Español
Português Español

3

Contents

English

General Information

Features .................................................................. 6

Supplied accessories ............................................ 6

Environment information ................................... 6

Safety information ................................................ 7

Maintenance .......................................................... 7

Connections

Step1: Placing speakers and subwoofer ........... 9

Step2: Connecting speakers and subwoofer... 9

Step3: Connecting TV set ............................ 9~10

Using Video in jack (CVBS)
Using Componet Video in jack (Pr Pb Y)
Using S-Video in jack
Using an accessory RF modulator

Step4: Connecting the FM antenna ................ 11

Step5: Connecting the power cord ................ 11

Step6: Connecting a VCR or cable/satellite

box......................................................................... .11

Step7: Connecting digital audio equipment....12

Functional Overview

Controls on the system .................................... 13

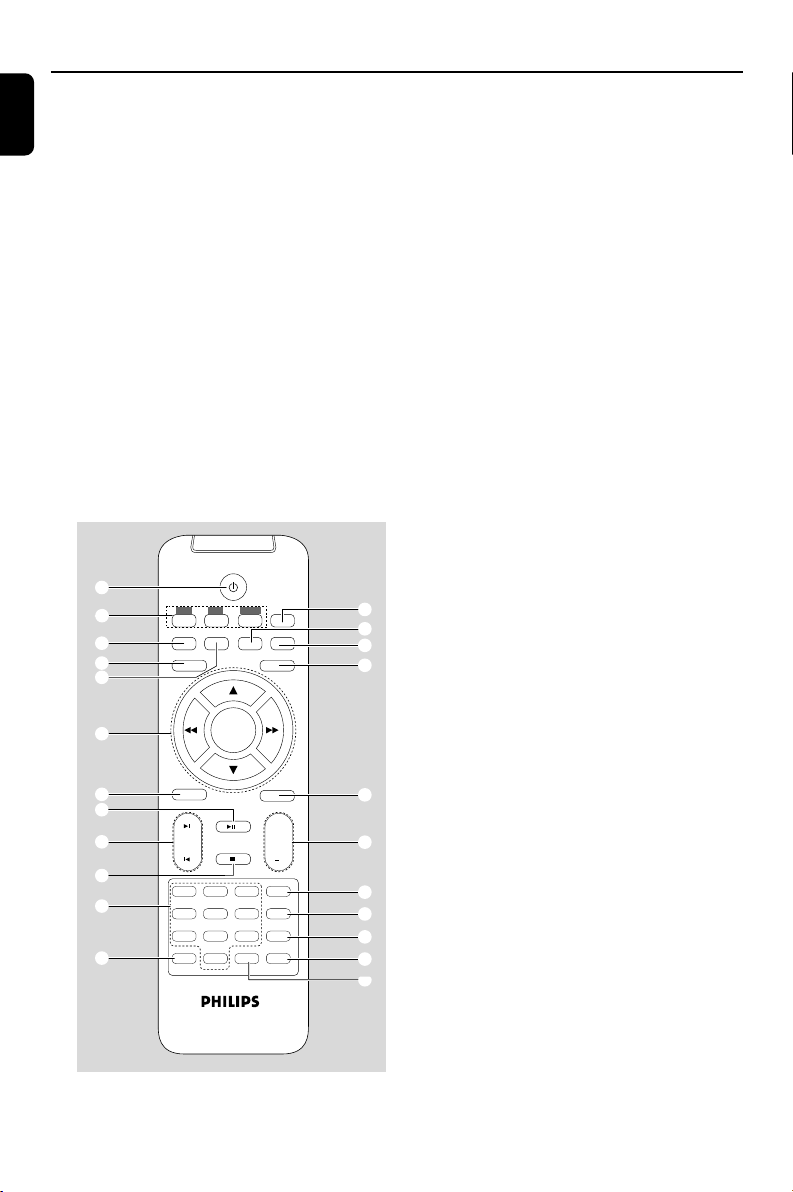

Remote control ........................................... 14~15

Getting Started

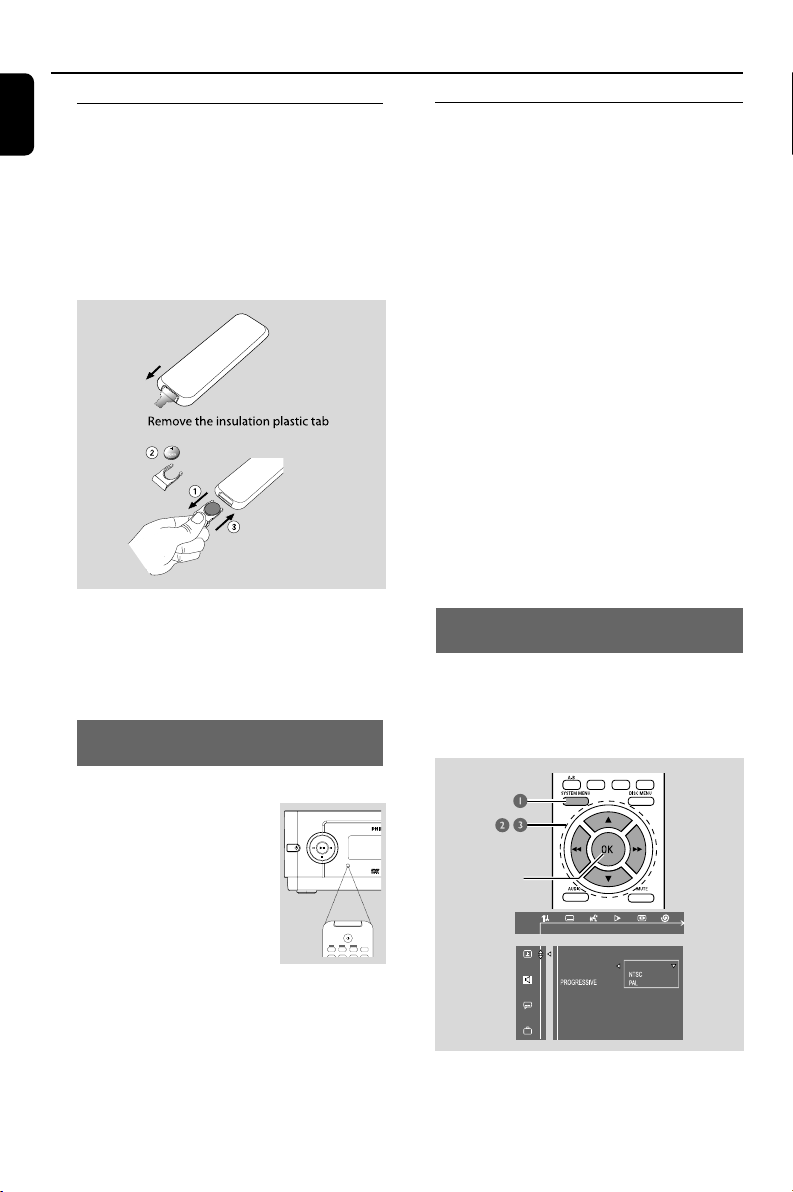

Step 1: Using Remote Control ........................ 16

Step 2: Setting up the TV ........................... 16~18

Selecting the color system that matches
your TV set
Setting up Progressive Scan feature
To deactivate Progressive manually

Step 3: Setting language preference ................ 18

Setting the OSD Language
Setting the Audio, Subtitle and Disc Menu
language

Basic Functions

Switching the system on/off ............................. 19

Power saving automatic standby ..................... 19

Volume control ................................................... 19

Sound Control .................................................... 19

DBB (Dynamic Bass Boost)
DSC (Digital Sound Control)

Disc Operations

Playable Discs ...................................................... 20

Region Codes ...................................................... 20

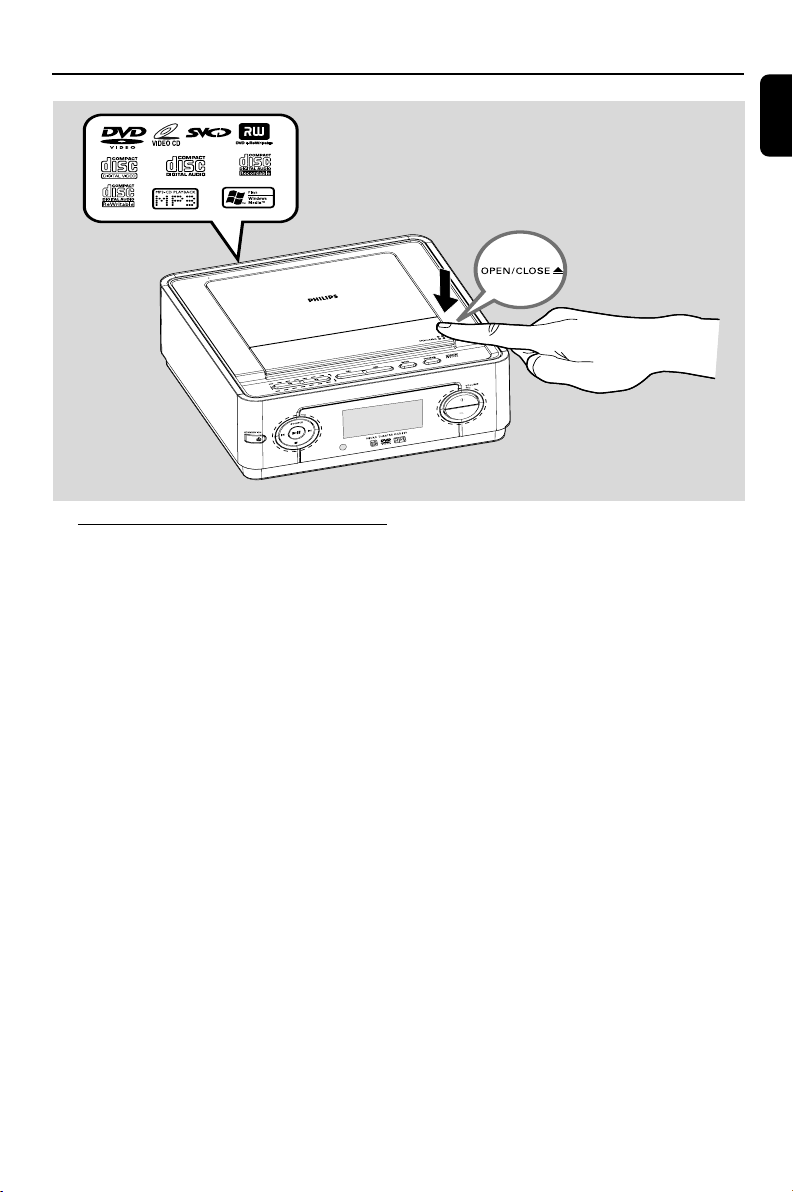

Playing discs ......................................................... 21

Using the Disc Menu.......................................... 21

Using PBC feature (available for 2.0-version
VCD only)

Resuming playback...............................................21

Selecting and searching .............................. 21~22

Selecting a different track/chapter
Fast forwarding/reversing

GOTO
Different play modes:

REPEAT, SHUFFLE and REPEAT A-B .............. 22

REPEAT

SHUFFLE

REPEAT A-B

Programming favourite tracks ......................... 23

Display information............................................ 23

ZOOM .................................................................. 24

AUDIO ................................................................. 24

SUBTITLE ............................................................. 24

Playing a title ........................................................ 24

Playing MP3/WMA/JPEG disc .......................... 24

Playing MP3 music and JPEG picture

simultaneously.....................................................25

Playing Kodak Picture disc ................................ 25

DVD MENU Operations

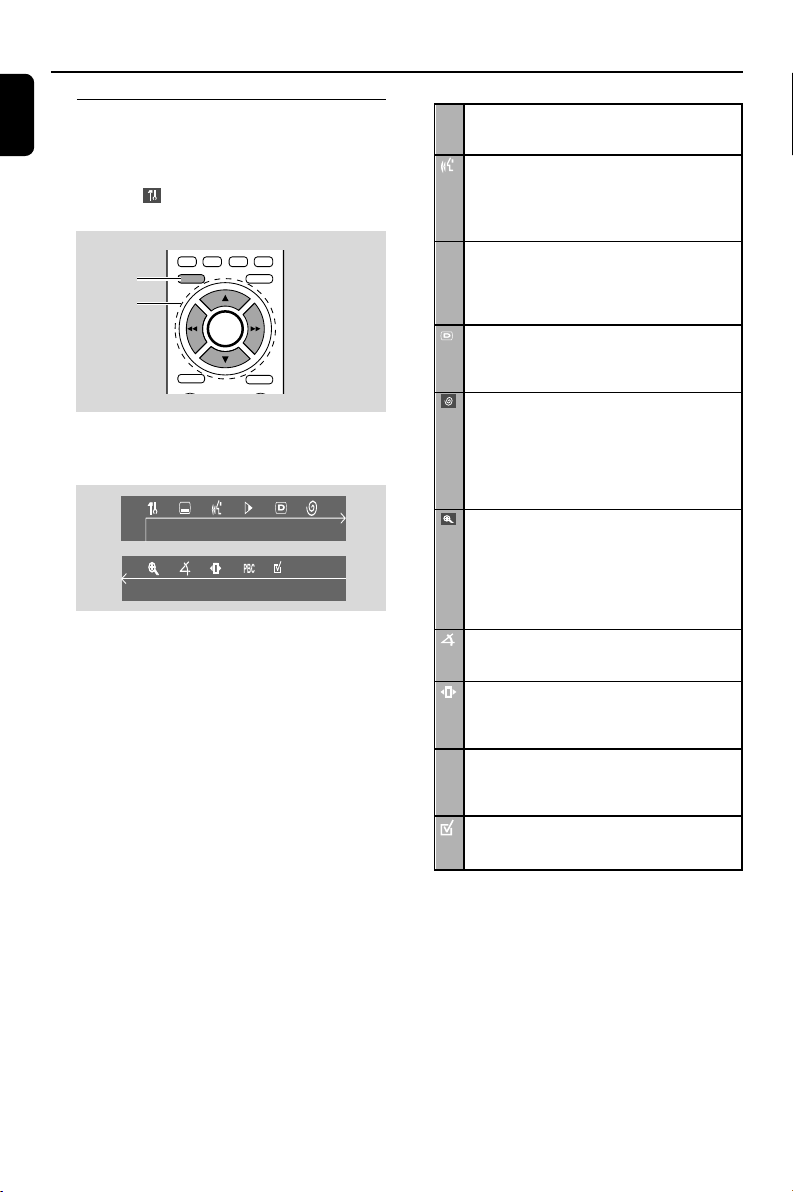

Using the menu bar ........................................... 26

Using setup menu (user preference settings)

........... .............................................................. 27~29

TV Display

Screen Saver

Night Mode

Test Tone

Changing the password

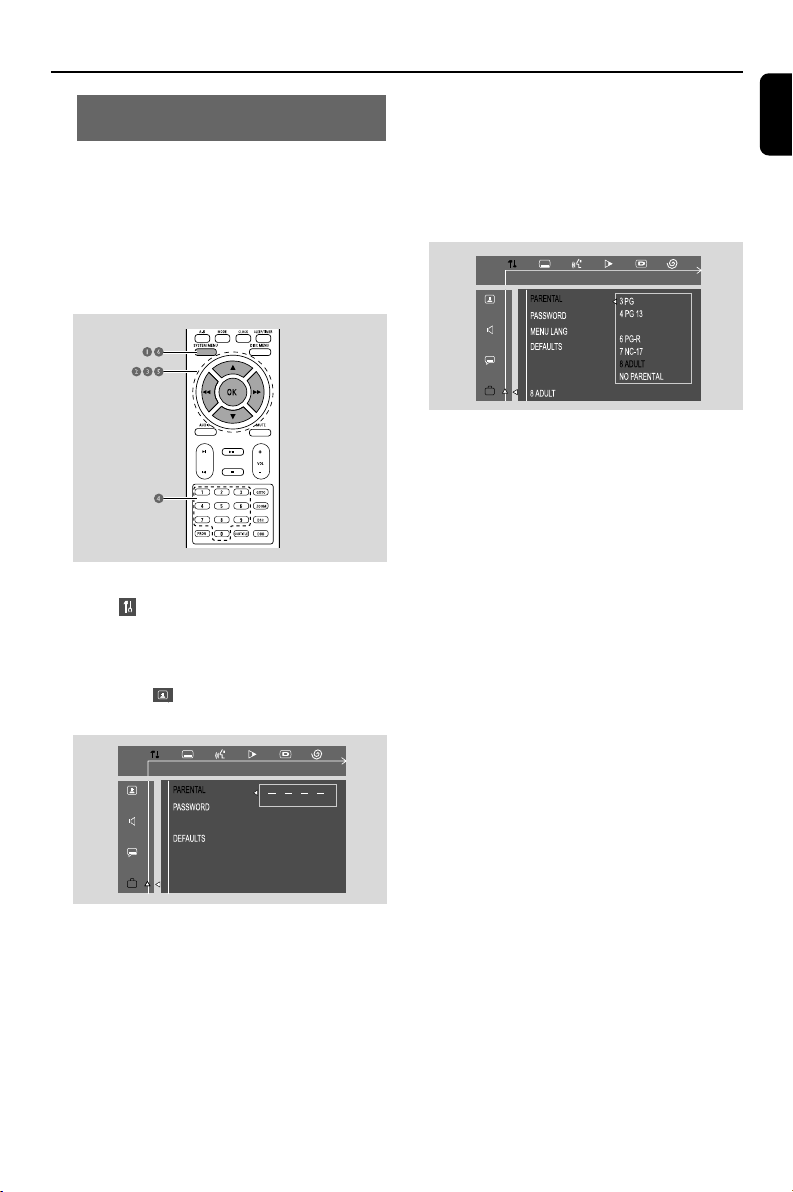

Restricting playback by setting parental level

Rating explanations

OSD language (menu lanuage)

Default

4

Tuner

Tuning to radio stations...................................... 30

Storing preset radio stations.............................30

Manual programming.......................................30

Automatic programming.................................30

Listening to preset radio stations.....................30

Deleting a preset radio station.........................30

Clock/Timer

Viewing clock........................................................31

Setting clock..........................................................31

Setting wake-up timer..........................................31

Setting sleep timer................................................31

Specifications ........................................... 32

Tr oubleshooting ............................. 33~35

Glossary ......................................................... 36

Contents

English

5

General Information

English

IMPORTANT!

PLEASE NOTE THAT THE VOLTAGE
SELECTOR LOCATED AT THE REAR OF
THIS SYSTEM IS PRESET AT 220V FROM
THE FACTORY. FOR COUNTRIES THAT
OPERATE AT 110V-127V, PLEASE ADJUST
TO 110V-127V BEFORE YOU SWITCH ON
THE SYSTEM.

Features

Your DVD MICRO THEATRE System with 2.1­channel full analog amplifier creates the same
dynamic sound qualities that you find in full
fledged cinemas and incorporates some of the
best features in home theater technology.

Other features include:

Built-in Dolby Digital decoder, supporting
Incredible Surround and DSC sound setting.

Additional Component Connections

Lets you connect other audio and audio/visual
components to the DVD micro system.

Night Mode

Lets you compress the dynamic range, reducing
the difference in loudness between different
sounds in Dolby Digital mode.

Supplied accessories

– Remote control with one CR2025 battery
–Two speakers and one subwoofer
–AC power cord
– DIN cable
– Composite video cable (yellow)
– FM wire antenna
– User Manual and Quick Start Guide

If any item is damaged or missing, contact
your retailer or Philips.

Environmental information

All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).

Your system consists of materials which can be
recycled and reused if disassembled by a
specialised company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old equipment.

Parental Control (Rating Level)

Lets you set a ratings level so that your children
cannot watch a DVD that has a rating higher
than you set.

Sleep/Wake-up Timer

Enables the system to switch on/off automatically
at a preset time.

Progressive Scan

Provides high quality flicker-free images for film
based sources. When a picture refreshes, its
vertical resolution can double to 525 lines.

Note:
–To fully enjoy the progressive scan feature, you
need a progressive scan TV.

6

General Information

Safety information

● Before operating the system, check that the

operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your system is identical with the
voltage of your local power supply. If not, please
consult your dealer.

● Place the system on a flat, hard and stable

surface.

● Place the system in a location with adequate

ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.

● The ventilation should not be impeded by

covering the ventilation openings with items,
such as newspapers, table-cloths, cur tains, etc.

● Do not expose the system, batteries or discs to

excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.

● No naked flame sources, such as lighted candles,

should be placed on the apparatus.

● No objects filled with liquids, such as vases, shall

be placed on the apparatus.

● If the system is brought directly from a cold to a

warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the system. Should this occur, the CD
player would not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.

● The mechanical par ts of the set contain self-

lubricating bearings and must not be oiled or
lubricated.

● When the system is switched to Standby

mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.

Maintenance

● When a disc becomes dirty,

clean it with a cleaning cloth.
Wipe the disc from the center
out, in a straight line.

● Do not expose the player,

batteries or discs to humidity,
rain, sand or excessive heat
(caused by heating equipment or direct sunlight).
Always keep the disc tray closed to avoid dust
on the lens.

● Do not use solvents such as benzene, thinner,

commercially available cleaners, or anti-static
spray intended for colour discs.

● The lens may cloud over when the player is

suddenly moved from cold to warm
surroundings, making it impossible to play a disc.
Leave the player in the warm environment until
the moisture evaporates.

English

7

Connections

English

Step 1: Placing speakers and

subwoofer

For best possible surround sound, locate your

speakers and subwoofer as follows:

● Place the left and right speakers at equal

distances from the TV set and at an angle of
approximately 45 degrees from the listening
position.

● Place the subwoofer on the floor.

Notes:
–To avoid magnetic interference, position the
speakers, subwoofer as far as possible from the
main unit, TV set or other radiation source.
– Allow adequate ventilation around the DVD
System.

IMPORTANT!
The type plate is located on the bottom
of the system.

Step 2: Connecting speakers

and subwoofer

ANTENNA
FM
(75Ω)

● Connect the supplied DIN cable to DVD player’s

DIN jack and the left speaker’s DIN jack.

● Connect the supplied speaker wires of the right

speaker to SPEAKER RIGHT on the left speaker,
red wire to red jack ( “+” ), black wire to black
jack ( “-“ ). Fully insert the stripped portion of
the speaker wire into the terminal as shown.

● Connect the supplied speaker wire of the

subwoofer to SUBWOOFER OUT on the left
speaker, green wire to green jack ( “+” ), white
wire to white jack ( “-” ).

To avoid overheating of the system, a
safety circuit has been built in. Therefore,
your system may switch to Standby
mode automatically under extreme
conditions. If this happens, let the system
cool down before reusing it.

8

Notes:
–For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.

Connections

Step 3: Connecting TV set

IMPORTANT!
–You only need to make one video
connection from the following options,
according to the capabilities of your TV
system.
– S-Video or Component Video
connection provides higher picture
quality. These options must be available
on your TV set.
– Connect the system directly to the TV
set.

Using Video In jack (CVBS)

● Use the supplied composite video cable (yellow)

to connect the system’s COMPOSITE
VIDEO jack to the video input jack (or labeled

as A/V In, Video In, Composite or Baseband) on
the TV set.

● To listen to TV channels through this system, use

the audio cables (white/red, not supplied) to
connect AUX IN (L/R) jacks to the
corresponding AUDIO OUT jacks on the TV set.

Or, to listen to disc playback of the system

through your TV, use the audio cables (white/red,
not supplied) to connect LINE OUT (L/R)
jacks to the corresponding AUDIO IN jacks on
the TV set.

ANTENNA
FM
(75Ω)

Using component Video In jack (Pr Pb Y)

● Use the component video cables (red/blue/

green, not supplied) to connect the system’s PR/
PB/ Y jacks to the corresponding Component

video input jacks (or labeled as Pr/Cr Pb/Cb Y or
YUV) on the TV set.

● To listen to TV channels through this system, use

the audio cables (white/red, not supplied) to
connect AUX IN (L/R) jacks to the
corresponding AUDIO OUT jacks on the TV set.

Or, to listen to disc playback of the system

through your TV, use the audio cables (white/red,
not supplied) to connect LINE OUT (L/R)
jacks to the corresponding AUDIO IN jacks on
the TV set.

ANTENNA
FM
(75Ω)

Notes for progressive scan video:
– The progressive scan video quality is only
possible when using Y Pb Pr, and a progressive scan
TV is required.
– If you are using a Progressive Scan TV (TV must
indicate Progressive Scan or ProScan capability), to
activate TV Progressive Scan, please refer to your TV
user manual. For DVD system’s Progressive Scan
function, see “Getting Started - Setting up
Progressive Scan feature’’.
– If your TV does not support Progressive Scan, you
will not be able to view the picture. Turn off
progressive scan in PROGRESSIVE menu of the
system setup menu.

English

9

ANTENNA
FM
(75Ω)

Connections

English

Using S-Video In jack

ANTENNA
FM
(75Ω)

● Use the S-Video cable (not supplied) to connect

the system’s S-VIDEO jack to the S-Video
input jack (or labeled as Y/C or S-VHS) on the
TV set.

● To listen to TV channels through this system, use

the audio cables (white/red, not supplied) to
connect AUX IN (L/R) jacks to the
corresponding AUDIO OUT jacks on the TV set.

Or, to listen to disc playback of the system

through the TV, use the audio cables (white/red,
not supplied) to connect LINE OUT (L/R)
jacks to the corresponding AUDIO IN jacks on
the TV set.

Using an accessory RF modulator

IMPORTANT!
– If your TV set only has a single
Antenna In jack (or labeled as 75 ohm or
RF In), you will need a RF modulator in
order to view the DVD playback via TV.
See your electronics retailer or contact
Philips for details on RF modulator
availability and operations.

● Use the supplied composite cable (yellow) to

connect the system’s COMPOSITE VIDEO
jack to the video input jack on the RF modulator.

● Use the RF coaxial cable (not supplied) to

connect the RF modulator to your TV’s RF jack.

10

Connections

Step 4: Connecting the FM
antenna

● Connect the supplied FM antenna to the FM (75

Ω) jack at the back of the main unit. Extend the
FM antenna and fix its end to the wall.

Step 5: Connecting the power

cord

IMPORTANT!
– Never make or change any
connection with the power switched on.

ANTENNA
FM
(75Ω)

● After ever ything is connected properly, plug in

the AC power cord to the power socket.

Step 6: Connecting a VCR or

cable/satellite box

Viewing and listening to playback

ANTENNA
FM
(75Ω)

1 Connect the VCR or Cable/Satellite Box to the

TV system as shown.

2 Using the audio cables (red/white, not supplied)

Connect the system’s AUX IN (L/R) jacks to
the AUDIO OUT jacks on the VCR or Cable/
Satellite box.

Before starting operation, press AUX on the
remote control to select “AUX” in order to
activate the input source.

English

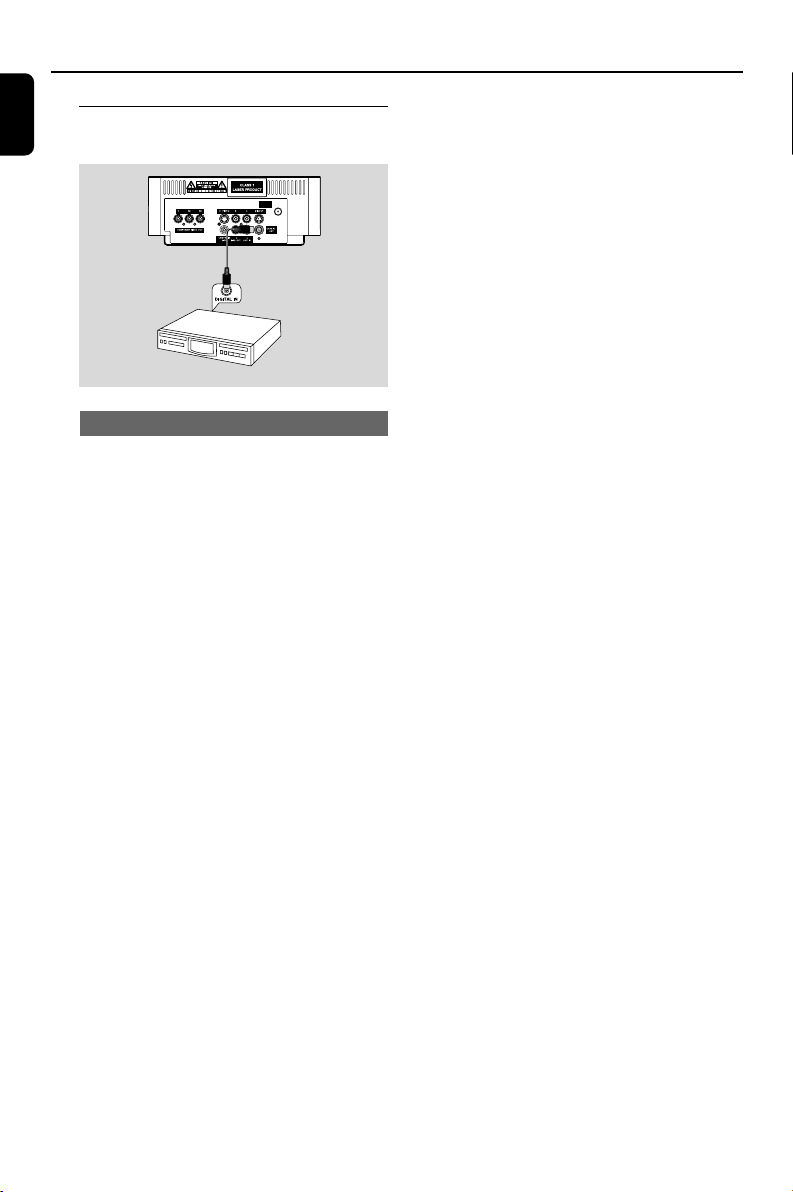

Using the VCR for recording DVDs

Some DVDs are copyright-protected. You cannot
record or dub protected discs using a VCR.

3 Connect the system’s COMPOSITE VIDEO

jack to the VIDEO IN jack on the VCR.

4 Connect the system’s LINE OUT (R/L) jacks

to the AUDIO IN jacks on the VCR. This will
allow you to make analog stereo (two channel,
right and left) recording.

To view DVD playback while recording

You must connect the system to your TV system

using the S-VIDEO (as shown above) or the
COMPONENT VIDEO OUT (Pr Pb Y)
video connection.

11
