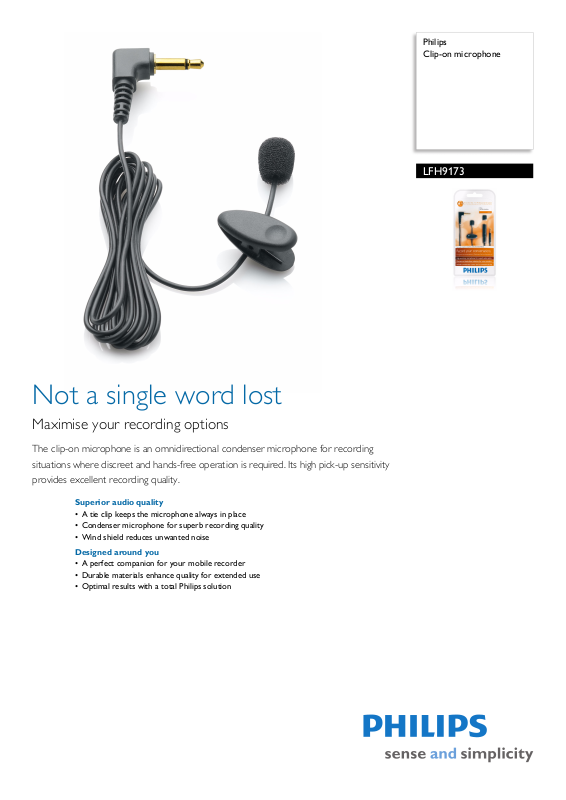

Philips LFH9173 User Manual

Philips
Clip-on microphone

LFH9173

Not a single word lost

Maximise your recording options

The clip-on microphone is an omnidirectional condenser microphone for recording
situations where discreet and hands-free operation is required. Its high pick-up sensitivity
provides excellent recording quality.

Superior audio quality

• A tie clip keeps the microphone always in place

• Condenser microphone for superb recording quality

• Wind shield reduces unwanted noise

Designed around you

• A perfect companion for your mobile recorder

• Durable materials enhance quality for extended use

• Optimal results with a total Philips solution

Clip-on microphone

LFH9173/00

Specifications

Connectivity

• Connector: mono, 3.5 mm

Sound

• Frequency response: 50-20,000 Hz

• Impedance: approx. 2.2 kOhm @ 1 kHz

• Sensitivity: -66 dB ± 3 dB @ 1 kHz

• Type: electret condenser microphone

• Directivity: omnidirectional

• Standard operating voltage: 1.5 V

Green specifications

• Compliant to 2002/95/EC (RoHS)

• Lead-free soldered product

Accessories

• Adapter plug (3.5 to 2.5 mm)

• Tie clip

• Wind shield

Design and finishing

• Colour(s): black

•

Highlights

Always in place

With the handy clip, the microphone can easily be
attached to collars, ties or other clothing. Just plug it
into your Digital Pocket Memo or Voice Tracer. No
other installation is necessary.

Condenser microphone

The sensitive electret condenser picks up every
acoustic detail for perfect sound reproduction and
studio quality.

A perfect companion

The handy plug-in microphone turns your mobile
voice recorder into an interviewing microphone.

Highly durable

Durable and premium quality materials make the
hands-free headset suitable for extended use.

A Total Philips Solution

The total Philips solution will produce outstanding
results in all situations.

Wind shield included

The included wind shield greatly improves sound
quality by preventing unwanted and disturbing noise.

Issue date 2010-10-04

Version: 1.1.7

12 NC: 8735 917 30011
UPC: 0 37849 98414 7
