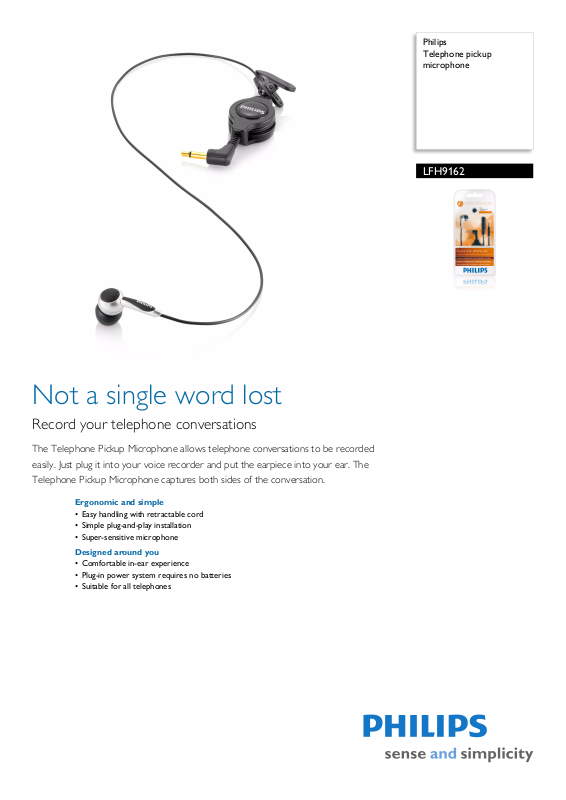

Philips LFH9162 User Manual

Philips
Telephone pickup
microphone

LFH9162

Not a single word lost

Record your telephone conversations

The Telephone Pickup Microphone allows telephone conversations to be recorded
easily. Just plug it into your voice recorder and put the earpiece into your ear. The
Telephone Pickup Microphone captures both sides of the conversation.

Ergonomic and simple

• Easy handling with retractable cord

• Simple plug-and-play installation

• Super-sensitive microphone

Designed around you

• Comfortable in-ear experience

• Plug-in power system requires no batteries

• Suitable for all telephones

Telephone pickup microphone

LFH9162/00

Specifications

Connectivity

• Cable length: 1.1 m/43.3 in.

• Connector: mono, 3.5 mm

Sound

• Frequency response: 50-20,000 Hz

• Impedance: approx. 2.2 kOhm @ 1 kHz

• Sensitivity: -35 dB @ 1 kHz

• Type: electret condenser microphone

• Directivity: omnidirectional

Green specifications

• Compliant to 2002/95/EC (RoHS)

• Lead-free soldered product

Accessories

•2 ear cushions

• Adapter cable (3.5 to 2.5 mm)

•Pouch

Design and finishing

• Colour(s): black/silver

•

Highlights

Comfortable in-ear experience

The handy pickup microphone comes with soft and
ergonomically shaped earplugs for an optimal user
experience.

Retractable cord

The practical retractable cord makes handling the
pickup microphone a pleasure.

Plug-in power

No batteries required. Just plug in and use instantly.

Plug-and-play installation

Convenient and simple plug-and-play installation.

Suitable for all telephones

The Telephone Pickup Microphone is suitable for all
telephones including mobile phones, home phones
or pay phones and therefore allows you to record all
your important conversations without an adapter.

Super-sensitive microphone

The Super-sensitive microphone captures every
spoken word in outstanding quality.

Issue date 2010-10-04

Version: 1.1.7

12 NC: 8735 916 20011
UPC: 0 37849 98410 9

© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com
