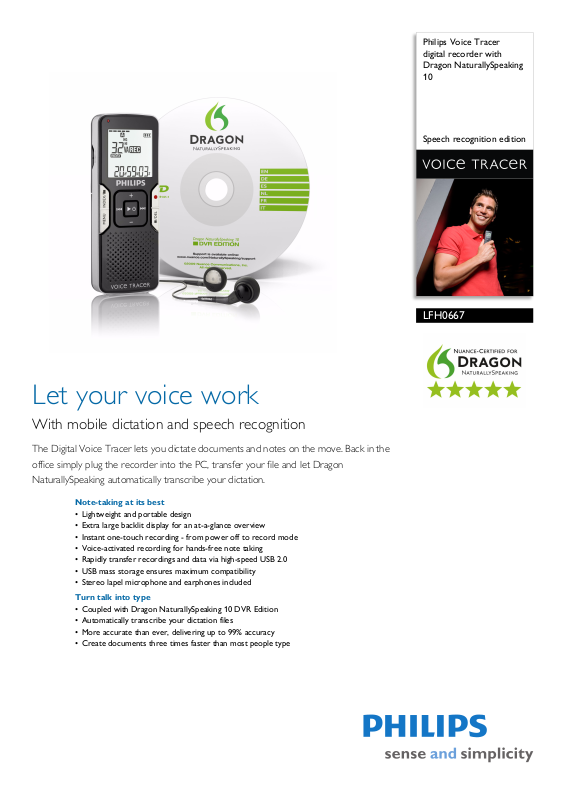

Philips LFH0667-00 User Manual
Philips Voice Tracer
digital recorder with
Dragon NaturallySpeaking
10
Speech recognition edition
LFH0667
Let your voice work
With mobile dictation and speech recognition
The Digital Voice Tracer lets you dictate documents and notes on the move. Back in the
office simply plug the recorder into the PC, transfer your file and let Dragon
NaturallySpeaking automatically transcribe your dictation.
Note-taking at its best
• Lightweight and portable design
• Extra large backlit display for an at-a-glance overview
• Instant one-touch recording - from power off to record mode
• Voice-activated recording for hands-free note taking
• Rapidly transfer recordings and data via high-speed USB 2.0
• USB mass storage ensures maximum compatibility
• Stereo lapel microphone and earphones included
Turn talk into type
• Coupled with Dragon NaturallySpeaking 10 DVR Edition
• Automatically transcribe your dictation files
• More accurate than ever, delivering up to 99% accuracy
• Create documents three times faster than most people type
Digital recorder with Dragon NaturallySpeaking 10
Speech recognition edition
LFH0667/00
Specifications
Connectivity
• Headphone: 3.5 mm
• Microphone: Built-in microphone, Microphone
cket
so
•USB: High-speed USB 2.0
Picture/Display
•Type: LCD
•Backlight
• Diagonal screen size: 39 mm / 1.5 in.
Storage Media
• Built-in memory type: NAND Flash
• Mass storage class compliant
• Built-in memory capacity: 2 GB
Audio Recording
• Recording formats: MPEG1 layer 3 (MP3), PCM
• Recording modes: SP (MP3/mono), LP (MP3/
o), SLP (MP3/mono), HQ (MP3/mono), PCM
mon
(WAV/mono), SHQ (MP3/mono)
• Sample Rate: 44.1 kHz (SHQ mode), 22 kHz (HQ
de), 16 kHz (SP/LP/SLP mode)
mo
• Bit rate: 705,6 kbps (PCM mode), 192 kbps (SHQ
e), 64 kbps (HQ mode), 48 kbps (SP mode), 32
mod
kbps (LP mode), 16 kbps ( SLP mode)
• Recording Time: 283 hours (SLP mode), 141 hours
ode), 94 hours (SP mode), 70 hours (HQ
(LP m
mode), 23 hours (SHQ mode), 6.4 hours (PCM
mode)
Audio Playback
• Compression format: MP3, WMA
• Digital Rights Management: No DRM support
• MP3 bit rates: 8 – 320 kbps
• WMA bit rates: 48 – 320 kbps (44 kHz), 64 – 192
Hz), stereo
(48 k
Speaker
• Output Power: 110 mW
• Speaker Type: Built-in 30 mm round dynamic
eaker
sp
Power
• Batteries included
• Battery type: AAA / LR03 Alkaline, AAA Nickel-
Hydride
Metal
• Battery lifetime: 50 hours in LP mode
• Rechargeable: Yes, via USB
Speech recognition
• Language support: English, German, French,
Spanish, Italian, Dutch
• Software edition: Dragon Naturall
Digital Voice Recorder Edition (supports portable
recorders only)
ySpeaking 10
System Requirements
• Operating System: Windows Vista (32-bit),
Windows XP (32-bit, SP2 or higher), Windows
2000 (SP4 or higher), Windows Server 2003,
Windows Server 2000
• Processor: Intel Pentium 4 or later or AMD Athlon
1 GHz or later (SSE2 instruction set required),
64
L2 Cache: 512 KB
• RAM memory: 512 MB RAM (1 GB RAM for
ws Vista)
Windo
• Hard disk space: 1 GB (2 GB for localized non-
glish versions)
En
•DVD-ROM drive
• USB: Free USB port
Green Specifications
• Lead-free soldered product
Product dimensions
• Product dimensions (W x H x D):
1.5 x 4.2 x 0.7 inch
• Product dimensions (W x H x D):
3.9 x 10.7 x 1.8 cm
• Weight: 0.128 lb
• Weight: 0.058 kg
Accessories
• Included accessories: Dragon Naturally Speaking
10 - DVR edition software, USB cable, neck strap,
stereo headphones, lapel microphone, 2
rechargeable AAA batteries, user manual
• Optional accessories: Mic
combi, Plug-in Microphone LFH9171, Tie Clip
Microphone LFH9173, Stereo Headphones
LFH2236
•
rophone/earphone
Highlights
Digital Voice Tracer
Small and lightweight, you'll hardly notice it's with
you. Pop it in your pocket or bag and take it
anywhere. The durable casing and attractive,
ergonomic design will make you want to carry it
everywhere you go. The Digital Voice Tracer is
Nuance-certified and passed all tests with Dragon
NaturallySpeaking.
Extra large backlit display
The large graphical display lets you view all important
file information at a glance, thanks to the backlit
display, even in poor lighting conditions.
Instant one-touch recording
Press and hold the record button for a moment to
switch the Digital Voice Tracer on and start
recording instantly.
Voice-activated recording
Voice-activated recording is a convenience feature
for hands-free recording. When enabled, recording
will start automatically when you start speaking.
Recordings stop automatically after you stop
speaking and restart automatically when you start
speaking again.
Dragon NaturallySpeaking 10
Dragon NaturallySpeaking 10 is here, and the
world’s best-selling speech recognition system just
keeps getting better. With more than 175 awards for
accuracy and ease of use, it’s the undisputed leader
in speech recognition software. Dragon
NaturallySpeaking is faster and more accurate than
ever, delivering up to 20% more accurate results
than version 9. Your transcribed words now appear
on the screen in half the time it took in the past.
Be productive on the go
For the busy professional moving between clients,
home and the office, flexibility is a must. The Digital
Voice Tracer lets you dictate documents and notes
on the move. Back in the office simply plug the
recorder into the PC, transfer your file and let
Dragon NaturallySpeaking DVR Edition
automatically transcribe your dictation. No need to
rely on manual transcription - saving you time and
money! Dragon NaturallySpeaking delivers the
performance that mobile professionals demand.
Issue date 2013-01-31
Version: 2.2.8
12 NC: 8735 066 70011
UPC: 0 37849 99022 3
Amazingly accurate
Dragon NaturallySpeaking 10 is more accurate than
typing and never makes a spelling mistake. Create
documents three times faster than most people type
with up to 99% accuracy, perfect for business and
advanced PC users.
Faster than ever
Most people speak over 120 words per minute but
type less than 40 words per minute. What if you
could create documents about three times faster
with Dragon NaturallySpeaking simply by speaking?
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
