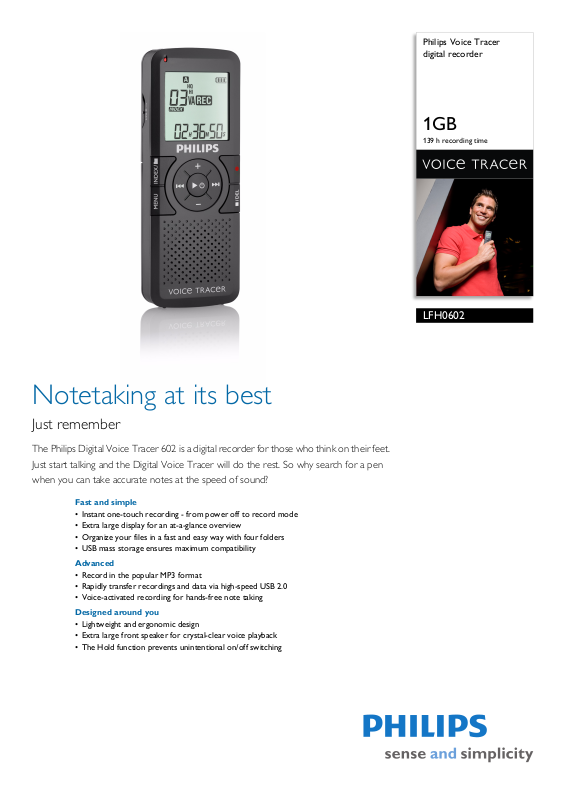

Philips LFH0602-00 User Manual
Philips Voice Tracer
digital recorder
1GB
139 h recording time
LFH0602
Notetaking at its best
Just remember
The Philips Digital Voice Tracer 602 is a digital recorder for those who think on their feet.
Just start talking and the Digital Voice Tracer will do the rest. So why search for a pen
when you can take accurate notes at the speed of sound?
Fast and simple
• Instant one-touch recording - from power off to record mode
• Extra large display for an at-a-glance overview
• Organize your files in a fast and easy way with four folders
• USB mass storage ensures maximum compatibility
Advanced
• Record in the popular MP3 format
• Rapidly transfer recordings and data via high-speed USB 2.0
• Voice-activated recording for hands-free note taking
Designed around you
• Lightweight and ergonomic design
• Extra large front speaker for crystal-clear voice playback
• The Hold function prevents unintentional on/off switching
Digital recorder
1GB 139 h recording time
LFH0602/00
Specifications
Connectivity
• Headphone: 3.5 mm
• Microphone: Built-in microphone, Microphone
cket
so
•USB: High-speed USB 2.0
Picture/Display
•Type: LCD
• Diagonal screen size: 39 mm / 1.5 in.
Storage Media
• Built-in memory capacity: 1 GB
• Built-in memory type: NAND Flash
• Mass storage class compliant
Audio Recording
• Recording formats: MPEG1 layer 3 (MP3)
• Recording modes: HQ (MP3/mono), SP (MP3/
mono), LP (MP3/mono), SLP (MP3
• Bit rate: 64 kbps (HQ mode), 48 kbps (SP mode),
kbps (LP mode), 16 kbps ( SLP mode)
32
• Recording Time: 139 hours (SLP mode), 69 hours
ode), 46 hours (SP mode), 34 hours (HQ
(LP m
mode)
• Sample Rate: 22 kHz (HQ mode), 16 kHz (SP/LP/
P mode)
SL
Speaker
• Speaker Type: Built-in 30 mm round dynamic
speaker
• Output Power: 110 mW
/mono)
Power
• Battery type: AAA / LR03 Alkaline
• Rechargeable: No
• Battery lifetime: 35 hours in LP mode
•Batteries included
System Requirements
• Operating System: Windows 7 / Vista / XP / 2000,
Mac OS X, Linux
• USB: Free USB port
Green Specifications
• Lead-free soldered product
Product dimensions
• Product dimensions (W x H x D):
3.9 x 10.7 x 1.8 cm
• Product dimensions (W x H x D):
1.5 x 4.2 x 0.7 inch
• Weight: 0.058 kg
• Weight: 0.128 lb
Accessories
• Included accessories: USB cable, 2 AAA batteries,
user manual
• Optional accessories: Mic
combi, Plug-in Microphone LFH9171, Tie Clip
Microphone LFH9173, Stereo Headphones
LFH2236
•
rophone/earphone
Highlights
Easy file organization
The VoiceTracer digital recorder supports up to 99
recordings in each of four available folders to
organize your files in a fast and easy way.
Extra large display
The large graphical display lets you view all important
file information at a glance.
Instant one-touch recording
Press and hold the record button for a moment to
switch the Digital Voice Tracer on and start
recording instantly.
Lightweight design
Small and lightweight, you'll hardly notice it's with
you. Pop it in your pocket or bag and take it
anywhere. The durable casing and attractive,
ergonomic design will make you want to carry it
everywhere you go.
USB mass storage device
As a USB mass storage device, the Voice Tracer
offers a convenient way to save, back up and move
files. The Voice Tracer connects to a computer using
a USB connection and does not require special
software to be installed. The Voice Tracer is
automatically displayed as a removable drive,
allowing you to simply drag and drop files to and
from the unit.
Voice-activated recording
Voice-activated recording is a convenience feature
for hands-free recording. When enabled, recording
will start automatically when you start speaking.
Recordings stop automatically after you stop
speaking and restart automatically when you start
speaking again.
Issue date 2013-02-01
Version: 3.4.4
12 NC: 8735 060 20011
UPC: 0 37849 99016 2
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
