Philips HD8750-47 User Manual

www.philips.com/welcome

English

Type HD8750

USER MANUAL

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE USING THE MACHINE

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against fire, electric shock and injury to persons do not immerse

cord, plugs, or appliance in water or other liquid.

4. Close supervision is necessary when the appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Always attach plug to appliance first, then plug cord into wall outlet. To

disconnect, turn any control to “off”, then remove plug from wall outlet.

12. Do not use appliance for other than intended use.

13. Save these instructions.

SAVE THESE INSTRUCTIONS

CAUTION

This appliance is for household use only. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service center. Do not immerse machine in water. To reduce the risk of fire or electric shock, do not disassemble the machine. There are no parts inside the machine serviceable by the user. Repair should be done by authorized service personnel only.

1. Check voltage to be sure that the voltage indicated on the nameplate corresponds with your voltage.

2. Never use warm or hot water to fill the water tank. Use cold water only.

3. Keep your hands and the cord away from hot parts of the appliance during

operation.

4. Never clean with scrubbing powders or harsh cleaners. Simply use a soft cloth dampened with water.

5. For optimal taste of your coffee, use purified or bottled water. Periodic descaling is still recommended every 2-3 months.

6. Do not use caramelized or flavored coffee beans.

INSTRUCTIONS FOR THE POWER

SUPPLY CORD

A. A short power-supply cord (or detachable power-supply cord) is to be

provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.

B. Longer detachable power-supply cords or extension cords are available

and may used if care is exercised in their use.

C. If a long detachable power-supply cord or extension cord is used,

1. The marked electrical rating of the detachable power-supply cord or

extension cord should be at least as great as the electrical rating of the appliance

2. If the appliance is of the grounded type, the extension cord should be a

grounding-type 3-wire cord, and

3. The longer cord should be arranged so that it will not drape over the

counter top or table top where it can be pulled on by children or tripped over.

ENGLISH

Congratulations on your purchase of a Saeco Intuita fully automatic co ee machine! To fully bene t from the support that Saeco o ers, please register your product at www.philips.com/welcome. This user manual applies to HD8750. This espresso machine is suitable for preparing espresso co ee using- whole co ee beans. In this user manual you will  nd all the information you need to install, use, clean and descale your machine.

ENGLISH

CONTENTS

IMPORTANT..................................................................................................... 4

Safety Instructions .......................................................................................................................... 4

Warning .......................................................................................................................................... 4

Cautions .......................................................................................................................................... 6

Compliance with Standards ............................................................................................................ 7

INSTALLATION ................................................................................................. 8

Product Overview ............................................................................................................................ 8

General Description ......................................................................................................................... 9

PREPARING FOR USE .......................................................................................10

Machine Packaging ....................................................................................................................... 10

Machine Installation ..................................................................................................................... 10

USING THE MACHINE FOR THE FIRST TIME ........................................................12

Circuit Priming .............................................................................................................................. 12

Automatic Rinse/Self-Cleaning Cycle.............................................................................................13

Manual Rinse Cycle........................................................................................................................ 14

“INTENZA+” WATER FILTER INSTALLATION .......................................................15

ADJUSTMENTS ................................................................................................16

Saeco Adapting System ................................................................................................................. 16

Adjusting the Ceramic Co ee Grinder ........................................................................................... 16

Adjusting the Aroma (Co ee Strength) ......................................................................................... 17

Adjusting the Dispensing Spout .................................................................................................... 18

Adjusting the Co ee Length ......................................................................................................... 19

ESPRESSO AND COFFEE BREWING ....................................................................20

Espresso and Co ee Brewing Using Co ee Beans. ......................................................................... 20

DISPENSING STEAM/CAPPUCCINO BREWING ....................................................21

HOT WATER DISPENSING .................................................................................23

CLEANING AND MAINTENANCE ........................................................................24

Daily Cleaning of the Machine ....................................................................................................... 24

Daily Cleaning of the Water Tank ................................................................................................... 25

Daily Cleaning of the Classic Milk Frother ...................................................................................... 25

Weekly Cleaning of the Machine ................................................................................................... 25

Weekly Cleaning of the Classic Milk Frother .................................................................................. 26

Weekly Cleaning of the Brew Group ..............................................................................................26

Monthly Lubrication of the Brew Group ........................................................................................ 29

Monthly Cleaning of the Co ee Bean Hopper ................................................................................ 30

DESCALING .....................................................................................................31

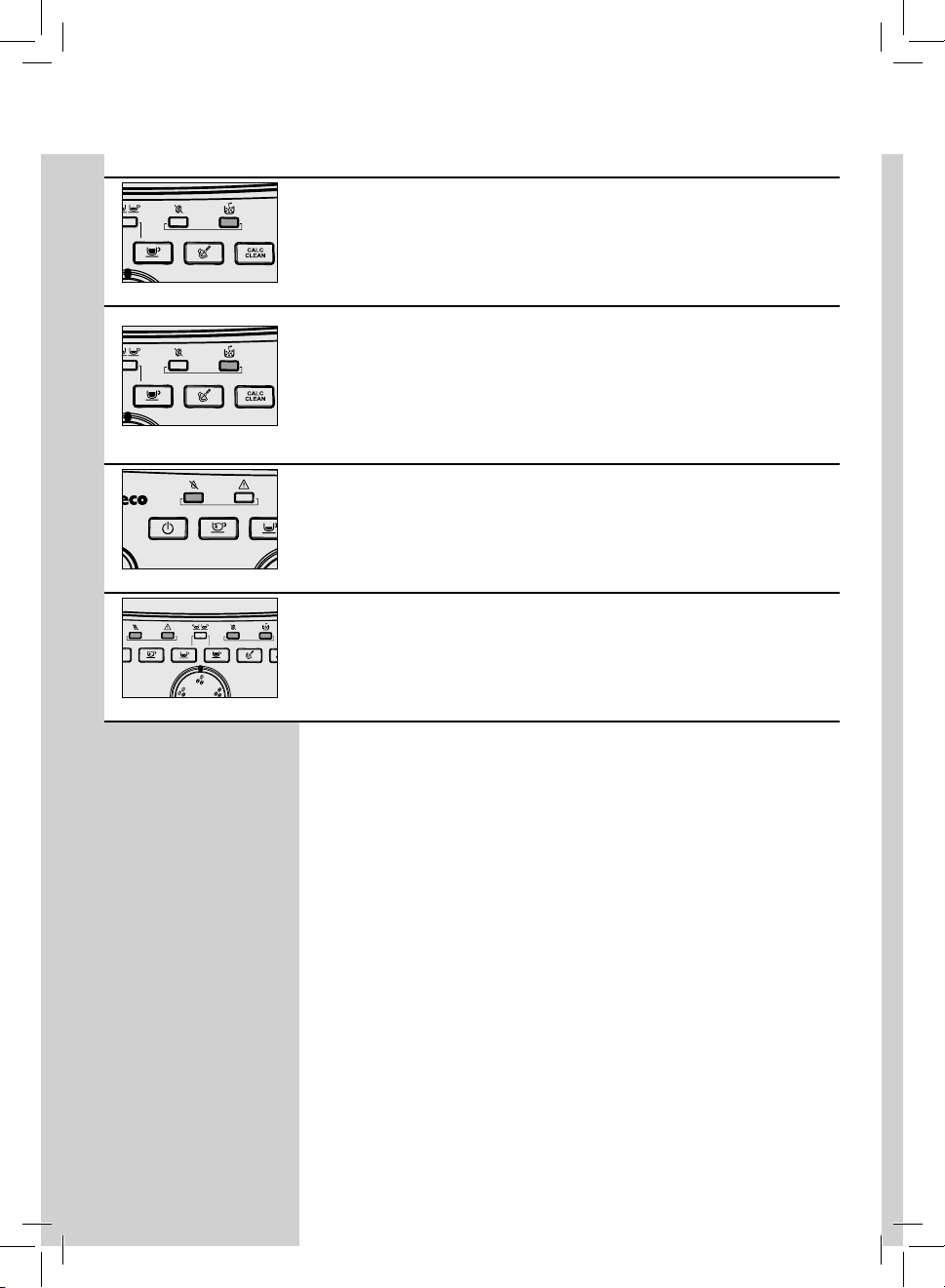

UNDERSTANDING THE DIFFERENT LIGHTS ........................................................35

Control panel display ..................................................................................................................... 35

TROUBLESHOOTING ........................................................................................39

ENERGY SAVING ..............................................................................................41

Stand-by ....................................................................................................................................... 41

Disposal ........................................................................................................................................ 41

TECHNICAL SPECIFICATIONS ............................................................................42

WARRANTY AND SERVICE ................................................................................42

Warranty ....................................................................................................................................... 42

Service .......................................................................................................................................... 42

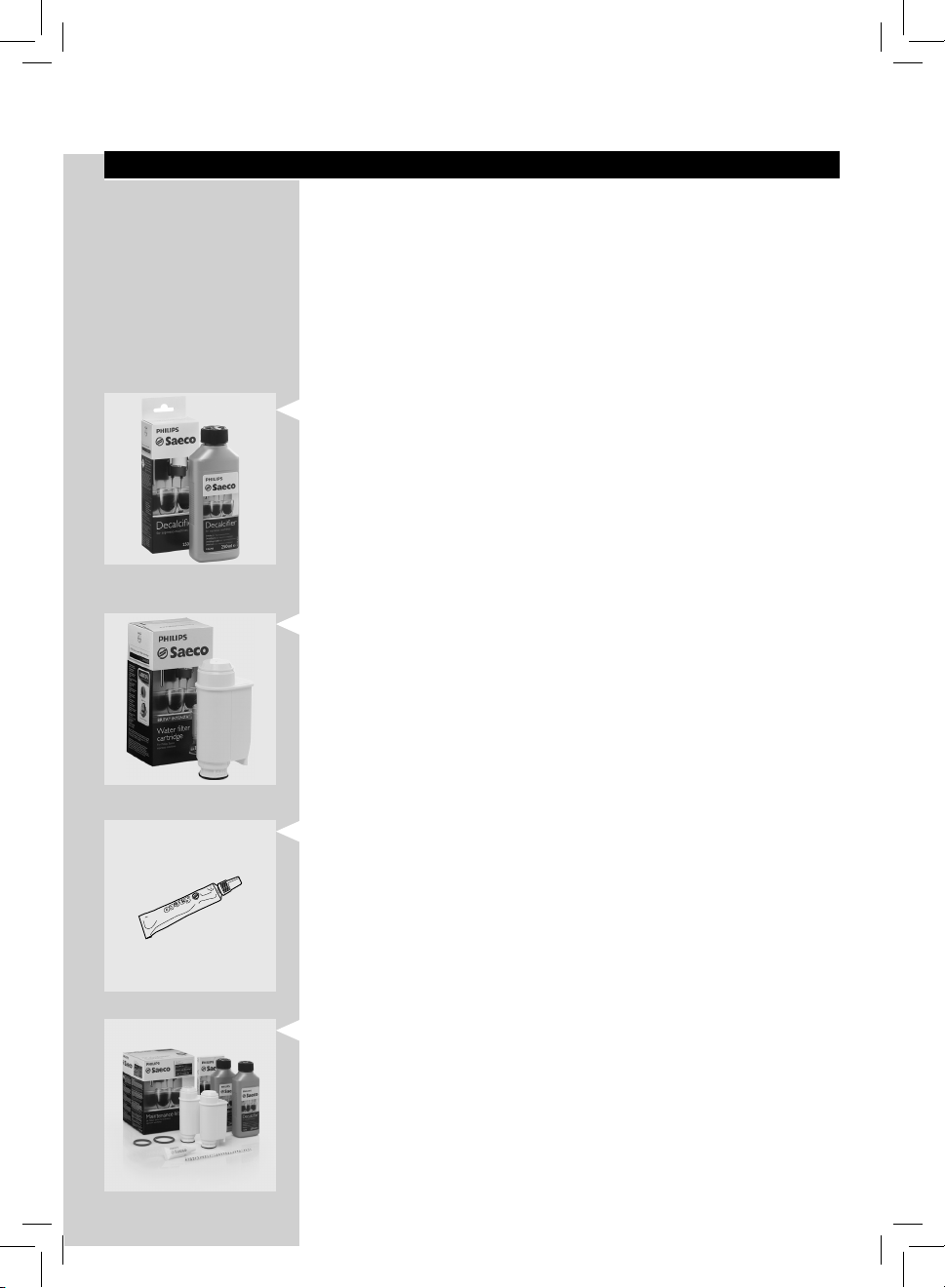

ORDERING MAINTENANCE PRODUCTS ..............................................................43

ENGLISH

IMPORTANT

Safety Instructions

This machine is equipped with safety features. Nevertheless read the safety instructions carefully and only use the machine as described in these instructions to avoid accidental injury or damage. Keep this user manual for future reference.

The term WARNING and this icon warn against possible severe injuries, danger to life and/or damage to the machine.

The term CAUTION and this icon warn against slight injuries and/or damage to the machine.

This icon requests to read carefully this instruction manual, before performing any use or maintenance operation.

Warning

• Connect the machine to a wall socket with a voltage matching the technical speci cations of the machine.

• Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces.

• Never immerse the machine, mains plug or power cord in water (danger of electrical shock!).

• Never direct the hot water jet towards body parts: danger of burning!

• Do not touch hot surfaces. Use handles and knobs.

ENGLISH

• Remove the mains plug from the wall socket:

- If a malfunction occurs.

- If the machine will not be used for a long time.

- Before cleaning the machine.

Pull on the plug, not on the power cord. Do not touch

the mains plug with wet hands.

• Do not use the machine if the mains plug, the power cord or the machine itself is damaged.

• Do not make any modi cations to the machine or its power cord. Only have repairs carried out by a service centre authorised by Philips to avoid a hazard.

• The machine should not be used by children younger than 8 years old.

• The machine can be used by children of 8 years and upwards if they have previously been instructed on the correct use of the machine and made aware of the associated dangers or if they are supervised by an adult.

• Cleaning and maintenance should not be carried out by children unless they are more than 8 years old and supervised by an adult.

• Keep the machine and its power cord out of reach of children under 8 years old.

• The machine may be used by persons with reduced physical, sensory or mental capabilities or lacking su cient experience and/or skills if they have previously been instructed on the correct use of the machine and made aware of the associated dangers or if they are supervised by an adult.

ENGLISH

• Children should be supervised to ensure that they do not play with the machine.

• Never insert  ngers or other objects into the co ee grinder.

Cautions

• The machine is for household use only. It is not intended for use in environments such as canteens, shop sta kitchens, o ces, farms or other work environments.

• Always put the machine on a  at and stable surface.

• Do not place the machine on hot surfaces, directly next to a hot oven, heater units or similar sources of heat.

• Only put co ee beans into the co ee bean hopper. If ground co ee, instant co ee or any other substance is put in the co ee bean hopper, it may damage the machine.

• Let the machine cool down before inserting or removing any parts.

• Never use warm or hot water to  ll the water tank. Use only cold non sparkling drinking water.

• Never clean with scrubbing powders or harsh cleaners. Simply use a soft cloth dampened with water.

• Descale your machine regularly. The machine indicates when descaling is needed. Not doing this will make your appliance stop working properly. In this case repair is not covered under your warranty!

• Do not keep the machine at temperature below 0 °C. Residue water in the heating system may freeze and cause damage.

ENGLISH

• Do not leave water in the water tank when the machine is not used over a long period of time. The water can be contaminated. Use fresh water every time you use the machine.

Compliance with Standards

The machine complies with art.13 of the Italian Legislative Decree dated 25 July 2005, no. 151 “Implementation of the Directives 2005/95/EC, 2002/96/EC and 2003/108/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment, as well as waste disposal”.

This machine complies with EU Directive 2002/96/EC.

This Philips appliance complies with all the applicable standards and regulations relating to the exposure to electromagnetic  elds.

INSTALLATION

Product Overview

6 7 8

10 11 13

1919

242322

21 25 26

27 3028 3129

General Description

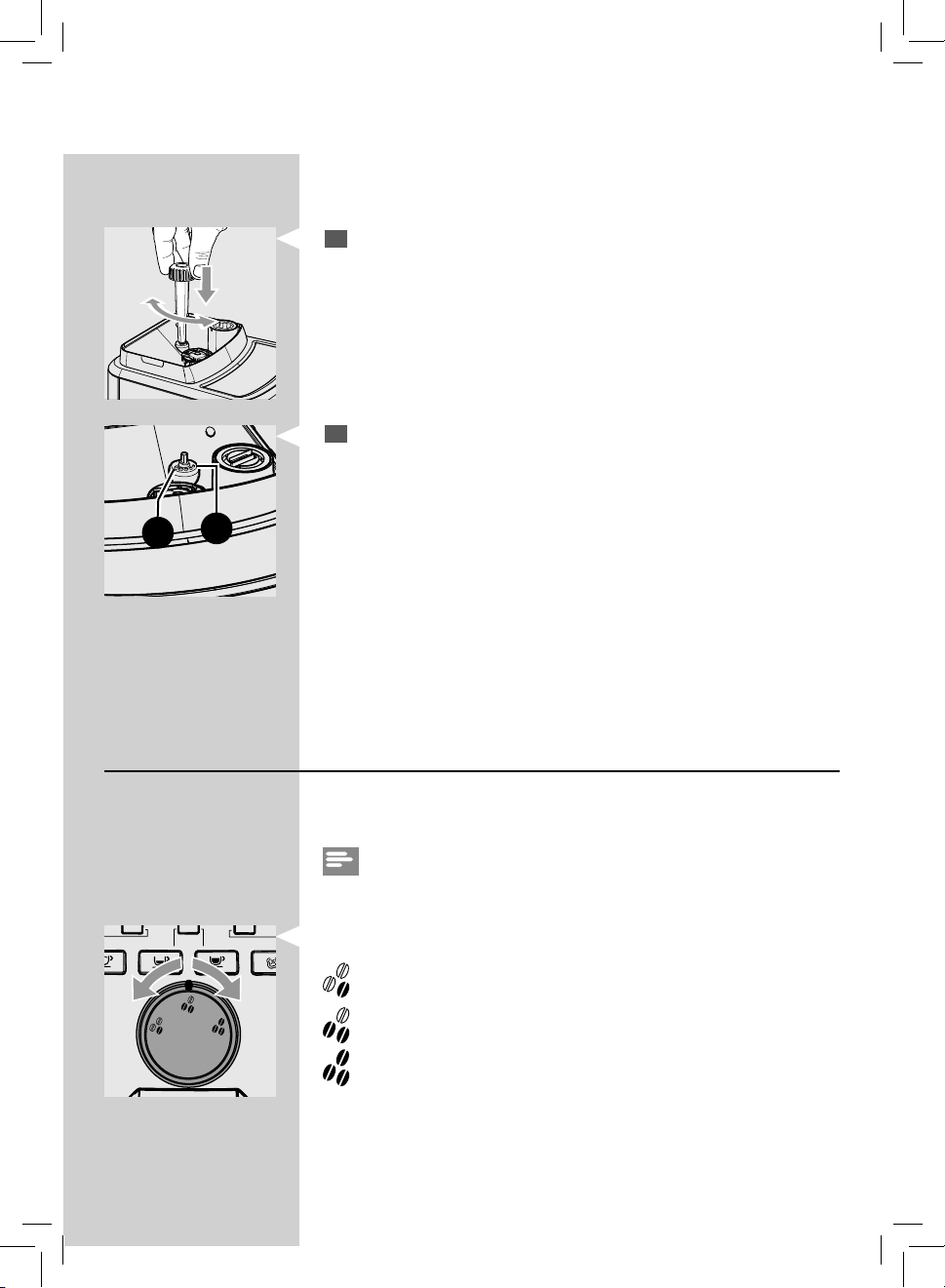

1. Co ee grinder adjustment pin

2. Co ee bean hopper

3. Co ee bean hopper lid

4. Control panel

5. Co ee dispensing spout

6. Cup holder grill

7. Full drip tray indicator

8. Drip tray

9. Grease for the brew group - to be purchased separately

10. Co ee grounds drawer

11. Brew group

12. Co ee residues drawer

13. Service door

14. Power cord

15. Wand protective gripper

16. Classic Milk Frother (for hot water/steam wand)

17. Water tank

18. Power cord socket

19. Power button

20. Co ee grinder adjustment key

21. "No water" light

22. "Warning" light

23. "Double co ee" light

24. "No co ee" light

25. "Co ee grounds drawer" light

26. ON/OFF button

27. Hot water dispensing button

28. Espresso brew button

29. "Aroma" selector switch

30. Co ee brew button

31. Steam dispensing button

32. Descaling button

33. Descaling solution- to be purchased separately

ENGLISH

PREPARING FOR USE

Machine Packaging

The original packaging has been designed and constructed to protect the machine during transport. We recommend keeping the packaging material for possible future transport.

Machine Installation

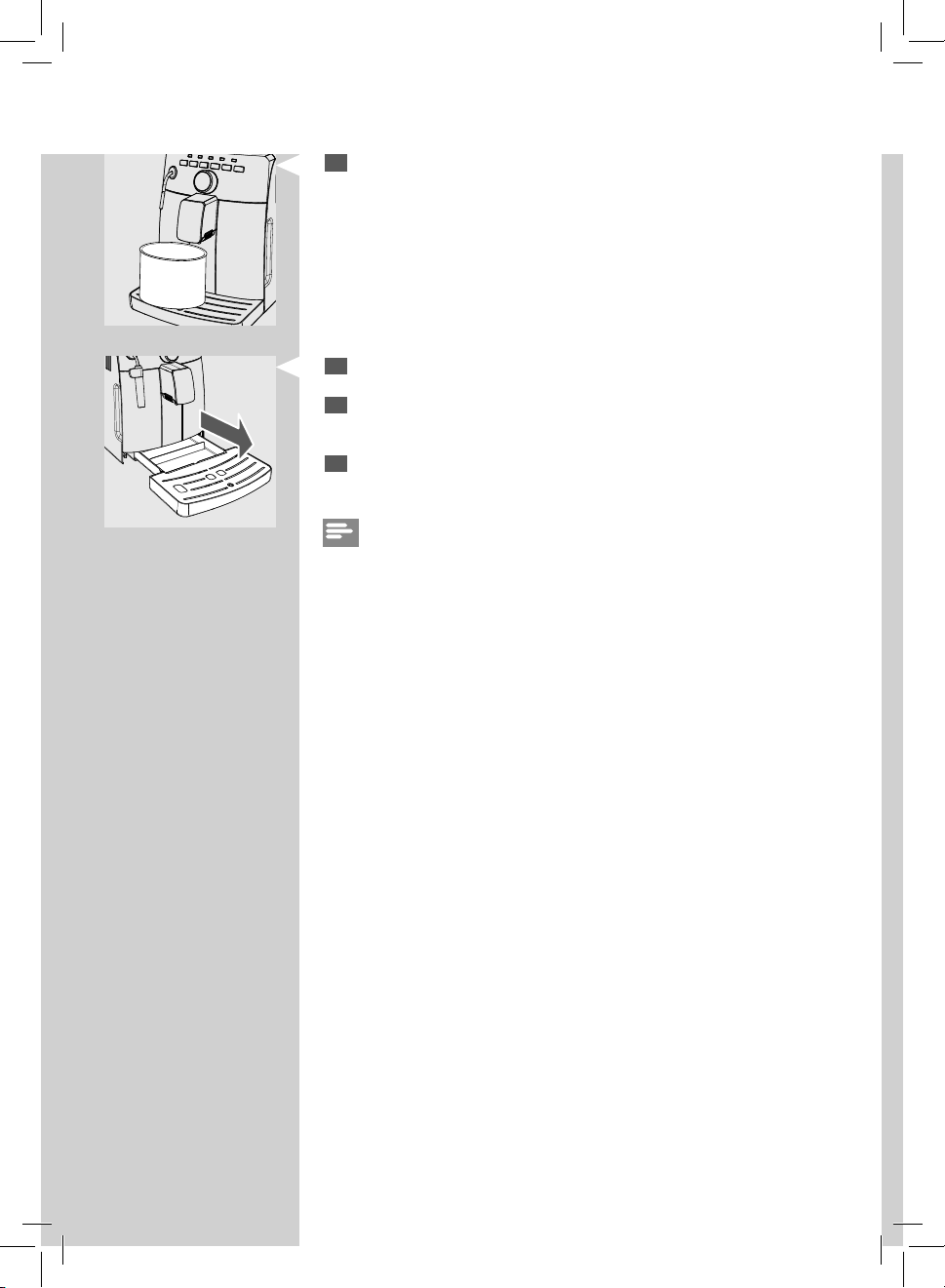

Remove the drip tray with grill from the packaging.

Remove the machine from the packaging.

For best use, it is recommended to:

• Choose a safe, level surface, where there will be no danger of overturning the machine or being injured.

• Choose a location that is su ciently well-lit, clean and near an easily reachable socket.

• Allow for a minimum distance from the sides of the machine as shown in the illustration.

Insert the drip tray with grill into the machine. Make sure it is fully

inserted.

Note: The drip tray collects the water that comes out of the dispensing spout during each rinse/self-cleaning cycle, as well as co ee that might be spilled during beverage preparation. Empty and wash the drip tray daily and each time the full drip tray indicator is raised.

Caution: NEVER remove the drip tray when the machine has just been turned on. Wait a couple of minutes for the machine to carry out a rinse/selfcleaning cycle.

Remove the water tank.

ENGLISH

Rinse the water tank with fresh water.

Fill the water tank with fresh water up to the MAX level and reinsert it

into the machine. Make sure it is fully inserted.

Caution: Never  ll the water tank with warm, hot, sparkling water or any other liquid, as this may cause damage to the water tank and the machine.

Remove the co ee bean hopper lid and slowly pour the co ee beans

into the co ee bean hopper.

Note: do not pour too many co ee beans into the co ee bean hopper as this will reduce the grinding performance of the machine.

Caution: Only co ee beans must be put into the co ee bean hopper. Ground co ee, instant co ee, caramelized co ee or any other object may damage the machine.

Put the lid on the co ee bean hopper.

Insert the plug into the socket on the back of the machine.

Insert the plug of the other end of the power cord into a wall socket

with suitable power voltage.

ENGLISH

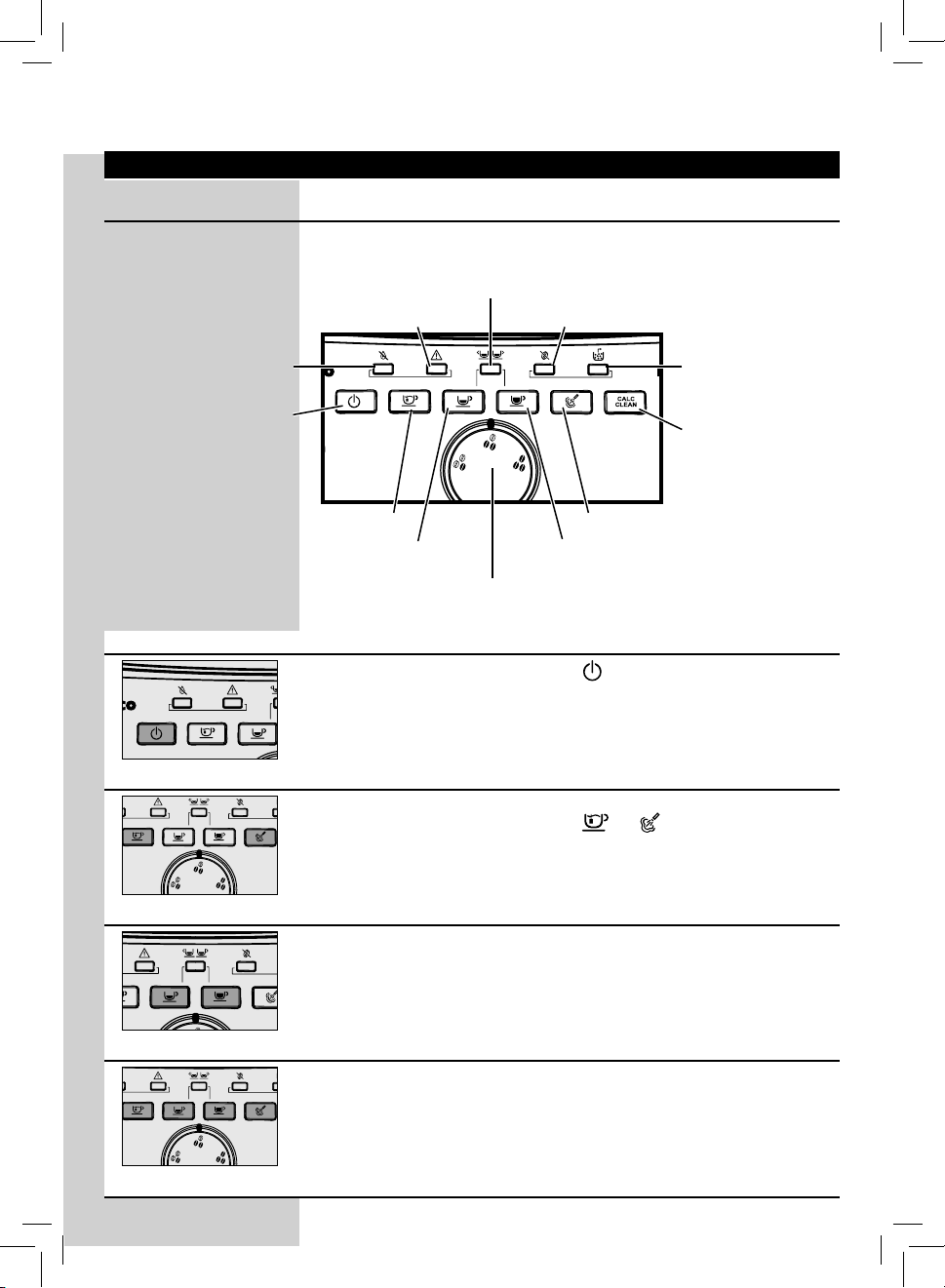

The “ ” button blinks on the control panel. Press the " " button to

turn on the machine.

The “ ” “ ” lights and the “ ” button light start to blink slowly to

indicate that the water circuit needs to be primed.

USING THE MACHINE FOR THE FIRST TIME

When using the machine for the  rst time, the following activities need to happen:

1) You need to prime the circuit.

2) The machine will perform an automatic rinse/self-cleaning cycle.

3) You need to initiate a manual rinse cycle.

Circuit Priming

During this process fresh water  ows through the internal circuit of the machine and the machine warms up. This takes a few minutes.

Insert a container under the Classic Milk Frother.

ENGLISH

Press the “ ” button to start the cycle. The machine starts the

automatic priming of the circuit by dispensing some water through the Classic Milk Frother.

When the process is complete, the“ ” and “ ” buttons will blink.

The machine is in the warm-up mode.

Automatic Rinse/Self-Cleaning Cycle

When warm-up is completed, the machine automatically performs a rinse/ self-cleaning cycle of the internal circuits with fresh water. This takes less than a minute.

Place a container under the dispensing spout to catch the small

amount of dispensed water.

The " " and " " buttons blink during the entire process.

Wait for the cycle to  nish automatically.

Note: You can stop the dispensing process by pressing either the " " or the " " button.

When the above steps are complete, check that the “ “, " ", " " and

" buttons are lit.

+ 33 hidden pages
