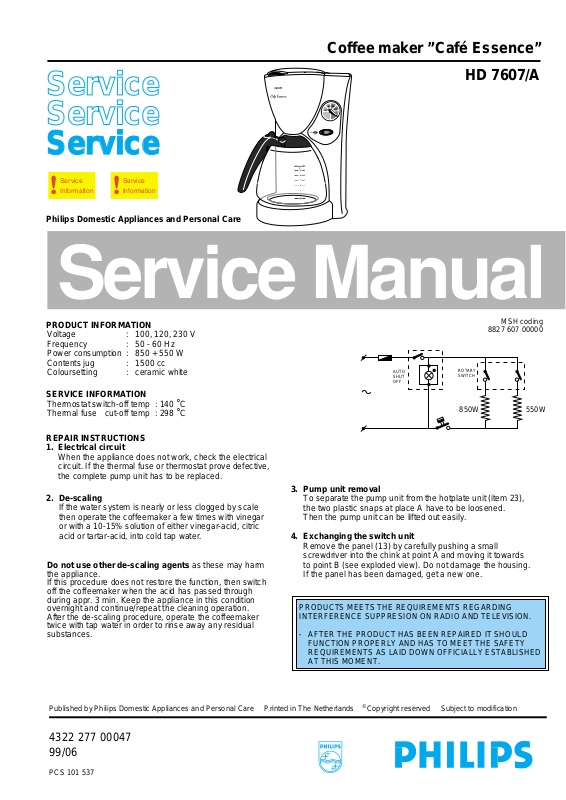

Philips hd 7607-a Service Manual
Service
Service
Service
Coffee maker ”Café Essence”
HD 7607/A
Service
Information
!
Philips Domestic Appliances and Personal Care
PRODUCT INFORMATION
Voltage
Frequency
Power consumption
Contents jug
Coloursetting
SERVICE INFORMATION
Thermostat
Thermal fuse
REPAIR INSTRUCTIONS
1.
Electrical circuit
When the appliance does not work, check the electrical
circuit. If the thermal fuse or thermostat prove defective,
the complete pump unit has to be replaced.
2.
De-scaling
If the water system is nearly or less clogged by scale
then operate the coffeemaker a few times with vinegar
or with a 10-15% solution of either vinegar-acid, citric
acid or tartar-acid, into cold tap water.
Do not use other de-scaling agents as these may harm
the appliance.
If this procedure does not restore the function, then switch
off the coffeemaker when the acid has passed through
during appr. 3 min. Keep the appliance in this condition
overnight and continue/repeat the cleaning operation.
After the de-scaling procedure, operate the coffeemaker
twice with tap water in order to rinse away any residual
substances.
switch-off temp
Service
Information
!
:
100, 120, 230 V
:
50 - 60 Hz
:
850 + 550 W
:
1500 cc
:
ceramic white
cut-off temp
: 140
: 298
C
˚
C
˚
MSH coding
8827 607 00000
AUTO
SHUT
OFF
3.
Pump unit removal
To separate the pump unit from the hotplate unit (item 23),
the two plastic snaps at place A have to be loosened.
Then the pump unit can be lifted out easily.
Exchanging the switch unit
4.
Remove the panel (13) by carefully pushing a small
screwdriver into the chink at point A and moving it towards
to point B (see exploded view). Do not damage the housing.
If the panel has been damaged, get a new one.
PRODUCTS MEETS THE REQUIREMENTS REGARDING
INTERFERENCE SUPPRESION ON RADIO AND TELEVISION.
- AFTER THE PRODUCT HAS BEEN REPAIRED IT SHOULD
FUNCTION PROPERLY AND HAS TO MEET THE SAFETY
REQUIREMENTS AS LAID DOWN OFFICIALLY ESTABLISHED
AT THIS MOMENT.
ROTARY
SWITCH
850W 550W
Published by Philips Domestic Appliances and Personal Care Printed in The Netherlands Copyright reserved Subject to modification
©
4322 277 00047
99/06
PCS 101 537
HD 7607/A
1
2
15
27
3
16
17
18
5
8
19
20
9
29
30
M
A
X
10
15
13
8
11
6
9
7
4
5
3
MIN
A
10
22
B
A
A
23
6
25
24
21
12
141311
7
1 4222 247 58520 Tank lid ceramic white
2 4222 247 58540 Disc zinc brown
3 4222 247 58530 Spout zinc brown
5 4222 247 58510 Rim zinc brown
6 4222 246 22890 Cord Euro black
7 4222 447 05680 Stud
8 4222 247 58440 Jug lever zinc brown
9 4222 247 55880 Spout pipe
10 4222 247 55780 Switch casing
11 4222 246 23640 Rota switch
12 4222 246 25390 Switch ASO zinc brown
13 4222 259 33470 Switch panel ceramic white
14 4222 247 58490 Rota button zinc brown
15 4222 247 58550 Filterholder 1) zinc brown
16 4222 240 06060 Dripstop spring
1) Optional part for use as an insert in item 15:
4822 480 50479 Permanent filter nylon
4822 480 10107 Permanent filter stainless steel
4822 480 50402 Permanent filter gold
2) Commercial trade number of the jug HD 7953
26
17 4222 247 06630 Ring
18 4222 247 58560 Dripstop zinc brown
19 4222 247 58260 Jug lid zinc brown
20 4222 256 32630 Jug assy 2) zinc brown
21 4222 259 28090 Pump assy
22 4222 240 06040 Hotplate
23 4222 247 55540 Hotplate ring
24 4222 259 20460 Valve
25 4222 247 06440 Hose piece
26 4222 245 71470 Wire spring
27 4222 247 40210 Spoon black
28 4222 001 91890 D.F.U.
GBR, FRA, GER, NLD, ESP, PRT
DNK, NOR, SWE, FIN, GRC, TUR.
29 4222 247 55690 Fload orange
30 4222 247 58430 Window wall zinc brown
PCS 101537
