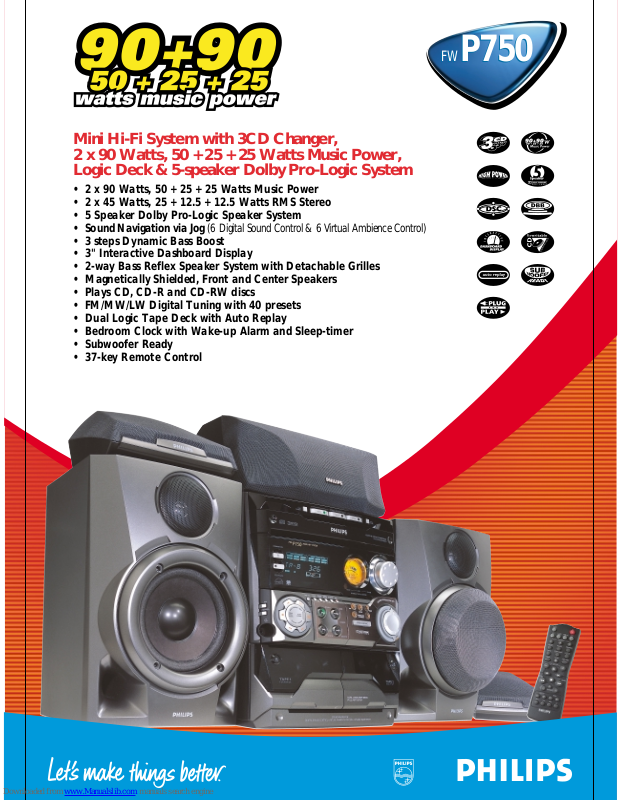

Page 1
Mini Hi-Fi System with 3CD Changer,
2 x 90 Watts, 50 + 25 + 25 Watts Music Power,
Logic Deck & 5-speaker Dolby Pro-Logic System
• 2 x 90 Watts, 50 + 25 + 25 Watts Music Power
• 2 x 45 Watts, 25 + 12.5 + 12.5 Watts RMS Stereo
• 5 Speaker Dolby Pro-Logic Speaker System
• Sound Navigation via Jog (6 Digital Sound Control & 6 Virtual Ambience Control)
• 3 steps Dynamic Bass Boost
• 3" Interactive Dashboard Display
• 2-way Bass Reflex Speaker System with Detachable Grilles
• Magnetically Shielded, Front and Center Speakers
• Plays CD, CD-R and CD-RW discs
• FM/MW/LW Digital Tuning with 40 presets
• Dual Logic Tape Deck with Auto Replay
• Bedroom Clock with Wake-up Alarm and Sleep-timer
• Subwoofer Ready
• 37-key Remote Control
FWP750
FWP750
Page 2
Mini Hi-Fi System with 3 CD Changer,
2 x 90 Watts, 50 + 25 + 25 Watts Music Power,
Logic Deck & 5-speaker Dolby Pro-Logic System
standard product information
FWP750
FWP750
amplifier
• 2 x 90 watts, 50 + 25 + 25 watts Music
Power
• 2 x 45 watts, 25 + 12.5 + 12.5 watts RMS,
±10%THD, 6 Ohm, 1 kHz
• 5-Speaker Dolby® Pro-Logic System
• Sound Navigation via Jog
- 6 Digital Sound Control
(Digital, POP, Classic, Rock, New Age, Electric)
- 6 Virtual Ambience Control
(Hall, Cinema, Ar cade, Concert, Disc, Cyber)
• 3 Dynamic Bass Boost
- Beat, Punch, Blast
compact disc player
• 3 CD Changer
• Plays CD, CD-R and CD-RW discs
• Digital servo technology
• Bit-check D/A converter
• 40-Track CD Random Program
• Play modes (repeat/shuffle/program)
• Change 2 discs while playing 1
tuner
• RDS : station name, program type,
RDS text, clock set
• RDS : 'NEWS' & Traffic Announcement
• FM/AM Digital Tuning with 40 presets
• Plug & Play for easy installation of radio
stations
tape deck
• Dual Logic Tape Deck
• Auto Replay
• Normal speed dubbing
• CD Synchro recording
• Automatic recording level control
• Automatic tape type selection
• Electronic speed control and full auto stop
loudspeaker boxes
• 2-way Bass Reflex Speaker
• 5 1/4" woofer
• 2" Ferro Fluid Tweeter
• Magnetically Shielded (front & center
speakers)
• 6 Ohm
• Detachable cloth grilles
surround speaker
• 3" full range surround speaker
• 3 Ohm
center speaker
• 3" full range center speaker
• 6 Ohm
• Magnetically shielded
connections
• Stereo headphones : 3.5mm stereo jack
• CDR/DVD-Aux/TV-Aux : cinch type socket
• Subwoofer-out : cinch type socket
• Color coded cables :
- Front : red/black
- Center : blue/black
- Surround : grey/white
general
• 3 Display modes include Dim mode
• Interactive Dashboard Display with
VU meter
• Demo mode
• Clock / Timer
• 2 timer modes (wake-up/sleep)
• 37-key remote control
• Automatic clock set via RDS
TV/AV
REPEAT
CLOCK
TV VOL TV VOL
à
2
TAPE 1/2 AUX/CDRTUNERCD
CD DIRECT
21
3
PROGRAMSHUFFLE
DISPLAYSLEEP TIMER ON/OFF
PAUSE
TEST TONE
Å
VOLUME
É
ë
í
Ç
á
DPL
LR
BALANCE
CENTER REAR
-+-+
DBBVACDSC MUTE
/21 /21M /22 /30 /33 /34
Asia Pacific
Australia/NZ
Middle East/S Africa
Latam
Europe
E Europe
Mexico
Korea
tuner
FM87.5-108MHz • •
MW522-1602kHz ••
LW153-279kHz
FM75 Ohm coaxial ••
mains supply
120/230V 50~60Hz
230V/50Hz ••
220V/60Hz
general
made in sticker
EAN: 87 10895 70301 7 (/22)
EAN: 87 10895 70302 4 (/34)
Product Dimensions:
265 mm W x 310 mm H x 390 mm D (center unit)
240 mm W x 310 mm H x 315 mm D (speakers)
260 mm W x 115 mm H x 240 mm D (center speaker)
178 mm W x 90 mm H x 178 mm D (surround speaker)
Package Dimensions:
772 mm W x 410 mm H x 474 mm D
Product weight: 18 kg
Carton contains: CD Mini System, Surround Sound Speakers, MultiFunction Remote Control, Batteries (2 x AA), Operating instructions,
Warranty information, FM antenna, AM antenna
Printed in Singapore
Date Printed : Feb 2001 (Version 1)
Specifications subject to change without notice.
© 2000 Royal Philips Electronics N. V.
All rights reserved.
