Philips FWM592 User Manual

MP3-CD Mini Hi-Fi System

www.philips.com/welcome

FWM592

México

Es necesario que lea cuidadosamente su instructivo de manejo.

PRECAUCIÓN - ADVERTENCIA

No abrir, riesgo de choque eléctrico

Verifique que el voltaje de alimentación

sea el requerido para su aparato

Para evitar el riesgo de choque eléctrico, no quite la tapa.

En caso de requerir servicio, dirijase al personal calificado.

Descripción: Minisistema de Audio Modelo : FWM592/55 Alimentación: 110–127 / 220–240V~ ; 50/60 Hz Consumo: 90W Importador: Philips Mexicana, S.A. de C.V. Domicilio: Av. La Palma No.6

Localidad y Tel: Edo. de México C.P. 52784

Exportador: Philips Electronics HK, Ltd. País de Origen: China Nº de Serie: ______________________________

ATENCIÓN

Col. San Fernando La Herradura Huixquilucan

Tel.52 69 90 00

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

AVISO IMPORTANTE

Philips Mexicana, S.A. de C.V.no se hace

responsable por daños o desperfectos causados por:

– Maltrato, descuido o mal uso, presencia de

insectos o roedores (cucarachas, ratones etc.).

– Cuando el aparato no haya sido operarado

de acuerdo con el instructivo del uso, fuera de los valores nominales y tolerancias de las tensiones (voltaje), frecuencia (ciclaje) de alimentación eléctrica y las características que deben reunir las instalaciones auxiliares.

– Por fenómenos naturales tales como:

temblores, in eléctricas, rayos etc. o delitos causados por terceros (choques asaltos, riñas

undaciones, incendios,descargas

, etc.).

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

1 2 3

§ ∞

≤ £

4 5

6 7

8 9 0

™

) (

& ^

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

ATENCIÓN

El uso de mando o ajustes o la ejecucción de métodos que no sean los aquí descritos puede ocasionar peligro de exposición a radiación.

CUIDADO A utilização de comandos ou ajustes ou a execução de procedimentos diferentes dos descritos neste manual podem provocar uma exposição a radiações perigosas ou outras operações inseguras.

(for tuner installation)

Index

English ------------------------------------------------ 6

Español --------------------------------------------- 24

Português ------------------------------------------ 52

English

Español

Por tuguês

Contents

English

General Information

Supplied accessories ............................................ 7

Environmental information ................................ 7

Safety information ................................................ 7

Preparations

Rear connections ............................................. 8~9

Optional connection .................................... 9~10

Inserting batteries into the remote control. 10

Controls

Controls on the system .................................... 11

Controls on remote control ........................... 12

Basic Functions

Plug and Play ........................................................ 13

Switching the system on ................................... 13

Switching the system to standby mode ........ 14

Power-saving automatic standby ..................... 14

Dim mode ............................................................ 14

Volume control ................................................... 14

Karaoke ................................................................ 14

Light control ................................................. 14~15

Sound control ..................................................... 15

Power Antenna connection Speakers connection

Connecting a USB device or memory card Connecting a non-USB device

Lighting in normal modes Light mode demonstration

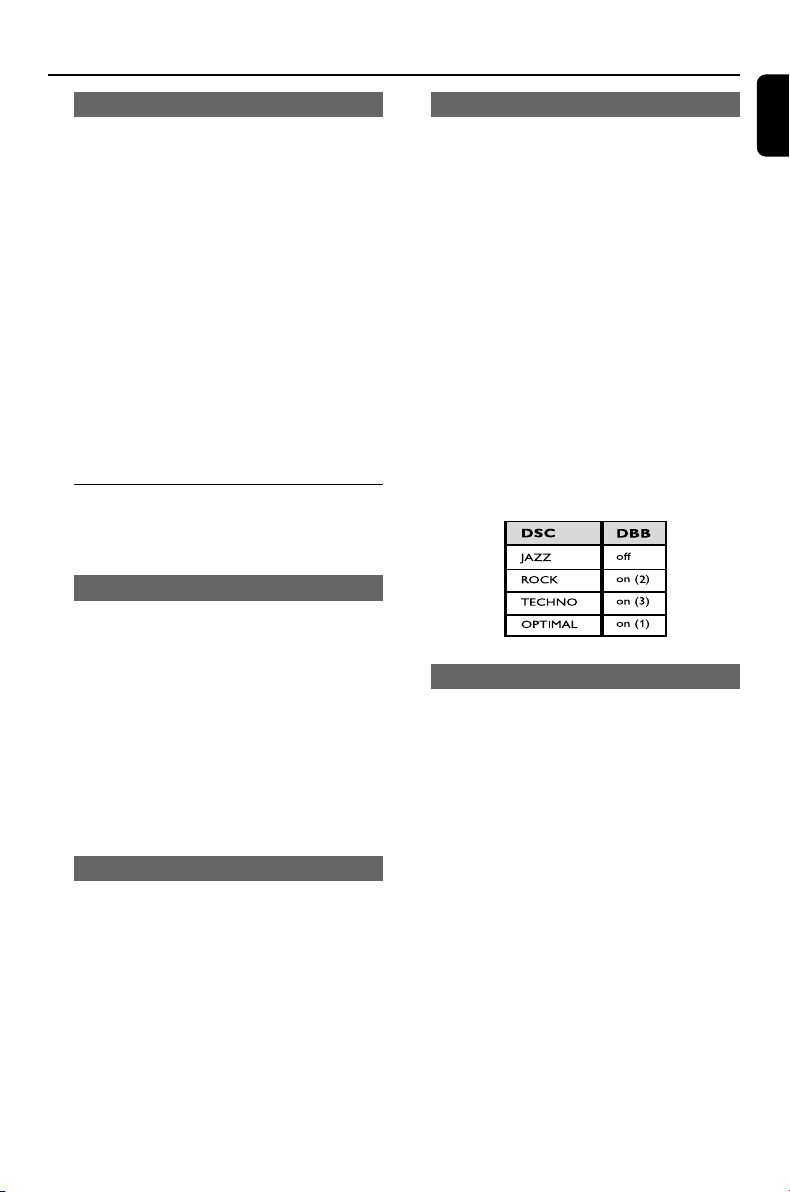

MAC sound DSC (Digital Sound Control) DBB (Dynamic Bass Boost) Incredible Surround

Programming the disc tracks ........................... 18

Erasing the programme ..................................... 18

Radio Reception

Tuning to radio stations .................................... 19

Programming radio stations ...................... 19~20

Automatic programming

Manual programming

Tuning to preset radio stations ....................... 20

Changing tuning grid .......................................... 20

USB

Using a USB mass storage device ............ 21~22

Ripping function .................................................. 23

Tuner record timer setting .............................. 24

To deactivate the TIMER

To activate the TIMER

External Sources

Listening to external sources .......................... 25

Clock/Timer

Clock setting ....................................................... 26

Timer setting ................................................ 26~27

To deactivate the TIMER

To activate the TIMER

Sleep timer setting ............................................. 27

Maintenance.............................................. 28

Specifications ........................................... 29

Tr oubleshooting ............................. 30–31

CD/MP3-CD/WMA Operations

Discs for playback .............................................. 16

About MP3 disc .................................................. 16

Loading discs ................................................ 16~17

Playing discs ......................................................... 17

Replacing discs during playback ...................... 17

Selecting a desired track/passage.................... 17

Selecting a desired Album/Title (MP3/WMA

disc only) .............................................................. 17

Different play modes: SHUFFLE and REPEAT ...

................................................................................ 18

General Information

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/ welcome.

IMPORTANT! PLEASE NOTE THAT THE VOLTAGE SELECTOR LOCATED AT THE REAR OF THIS SYSTEM IS PRESET AT 220V FROM THE FACTORY. FOR COUNTRIES THAT OPERATE AT 110V-127V, PLEASE ADJUST TO 110V-127V BEFORE YOU SWITCH ON THE SYSTEM.

Supplied accessories

–AC power cord –2 speaker boxes – remote control – AM loop antenna – FM wire antenna – MP3 link cable –2 pilhas AAA

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Safety information

● Before operating the system, check that the

operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer.

● Place the system on a flat, hard and stable

surface.

● Where the MAINS plug or an appliance coupler

is used as the disconnet device, the disconnet device shall remain readily operable.

● Place the system in a location with adequate

ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.

● The ventilation should not be impeded by

covering the ventilation openings with items, such as newspapers, table-cloths, cur tains, etc.

● Do not expose the system, batteries or discs to

excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.

● No naked flame sources, such as lighted candles,

should be placed on the apparatus.

● No objects filled with liquids, such as vases, shall

be placed on the apparatus.

● Don’t expose the system to dripping or

splashing.

● Install this unit near the AC outlet and where the

AC power plug can be reached easily.

● The lens may cloud over when the system is

suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the system in the warm environment until the moisture evaporates.

● The mechanical par ts of the set contain self-

lubricating bearings and must not be oiled or lubricated.

● Batteries (batter y pack or batteries installed)

shall not be exposed to excessive heat such as sunshine, fire or the like.

● When the system is switched to Standby

mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

English

Preparations

Fix the claw to the slot

English

FM antenna

Speaker

(right)

AC power cord

Rear connections

The type plate is located at the rear of the system.

A Pow er

Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made.

If your system is equipped with a Voltage

Selector, set the VOLTAGE SELECTOR to the local power line voltage.

WARNING! –For optimal performance, use only the original power cable. –Never make or change any connections with the power switched on. – High voltage! Do not open.You run the risk of getting an electric shock. – The machine does not contain any userserviceable parts. – Modification of the product could result in hazardous radiation of EMC or other unsafe operation.

To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode

AM antenna

Speaker

(left)

automatically under extreme conditions. If this happens, let the system cool down before reusing it (not available for all versions).

B Antennas Connection

Connect the supplied AM loop antenna to the AM ANTENNA terminal. Adjust the position of the antenna for optimal reception.

AM Antenna

● Position the antenna as far as possible from a TV,

VCR or other radiation source.

Preparations

FM Antenna

● For better FM stereo reception, connect an

outdoor FM antenna to the FM ANTENNA terminal.

C Speakers Connection

Front Speakers

Connect the speaker wires to the SPEAKERS terminals, right speaker to "R" and left speaker to "L", white wires to "+" and black wires to "-" of the woofer connection terminals, blue wires to "+" and black wires to "-" of the tweeter connection terminals.

● Fully inser t the stripped por tion of the speaker

wire into the terminal as shown.

Notes: –For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker terminals. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.

Optional connection

The optional equipment and connecting cords are not supplied. Refer to the operating instructions of the connected equipment for details.

Connecting a USB device or memory card

By connecting a USB mass storage device (including USB flash memory, USB flash players or memory cards) to the Hi-Fi system, you can enjoy the device's stored music through the powerful speakers of Hi-Fi system.

● Insert the USB device's USB plug into the

socket on the set.

for the devices with USB cables:

1 Insert one plug of the USB cable (not supplied)

to the socket on the set.

2 Insert the other plug of the USB cable to the

USB output terminal of the USB device.

for the memory card:

1 Insert the memory card into a card reader (not

supplied).

2 Use a USB cable (not supplied) to connect the

card reader into the socket on the set.

Connecting a non-USB device

Using AUX IN (white/red jacks)

● Use the audio cables (white/red, not supplied) to

connect AUX IN (L/R) jacks of the main unit (located on the back panel ) to the corresponding AUDIO OUT jacks on an external device (such as TV or VCR).

Note: – If you are connecting equipment with a mono output (a single audio out terminal), connect it to the AUX left terminal. Alternatively, you can use a “single to double” cinch cable (the output sound still remain mono).

English

Preparations

English

Using MP3 LINK (3.5 mm jack )

● Use a MP3 link cable (supplied) to connect

MP3 LINK jack of the main unit (3.5 mm, located on the front panel) to an AUDIO OUT or headphone jack on an external equipment (such as CD player, or VCR).

Inserting batteries into the remote control

Insert two batteries (Type R03 or AAA, supplied) into the remote control with the correct polarity as indicated by the "+" and "-" symbols inside the battery compar tment.

CAUTION! – Remove batteries if they are exhausted or will not be used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed of properly.

+ 21 hidden pages
