Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once, and take advantage of these important benefits.

Return your Warranty Registration card today to ensure

you receive all the benefits you’re entitled to

For Customer Use

Enter below the Serial No., which is located on the rear of the cabinet. Retain this information for future reference.

Model No. __________________________ Serial No. __________________________

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS.You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome-and thanks for investing in a PHILIPS product.

Sincerely,

Lawrence J. Blanford President and Chief Executive Officer

P. S. Remember, to get the most from your PHILIPS

product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Know these

safety symbols

This “bolt of lightning” indicates uninsulated material within your unit

may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention

to features for which you should read

the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION:Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Hurry!

Warranty Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS warranty.

Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

Visit our World Wide Web Site at http://www.philips.com

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong.The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus combination to avoid injury

from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product may contain lead or mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

16. Damage Requiring Service - The appliance should be

serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the

appliance; or

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or

exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

17. Tilt/Stability - All televisions must comply with recommended

international global safety standards for tilt and stability properties of its cabinets design.

• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18. Power Lines - An outdoor antenna should be located away

from power lines.

19. Outdoor Antenna Grounding - If an outside antenna is

connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 701984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure below.

20. Objects and Liquid Entry - Care should be taken so that

objects do not fall and liquids are not spilled into the enclosure through openings.

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

Note to the CATV system installer :This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the

NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE (NEC)

ANTENNA LEAD IN WIRE

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250, PART H)

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

English

Contents

Preparation.....................................................................................................4

Use of the remote control ....................................................................5-6

Buttons in front of the TV receiver box..................................................6

To use the menus ........................................................................................7

Select the menu language ...........................................................................7

Store TV channels ........................................................................................7

Select TV settings .....................................................................................8-9

Installation

Operation

TV menu

Picture menu...........................................................................................10

Sound menu ...........................................................................................11

Features menu

Closed Captions ...........................................................................11

Channels menu ...............................................................................12-14

Dual Screen/PIP/Multi-PIP ..................................................................15

Connecting accessory devices ..........................................................16-19

Selecting connected devices ....................................................................19

VGA menu ...................................................................................................20

Audio and Video equipment buttons ....................................................20

Record with your recorder .....................................................................21

Setting the Remote Control to work accessory devices .................21

Remote Control Direct Entry Codes for accessory devices ....22-23

Before Calling Service ........................................................................24

Tips ..............................................................................................................25

Index ...........................................................................................................25

Service/Warranty Information .................................................26-28

Help? If this instruction manual does not give an answer or if ‘Before Calling Service’ do not solve your TV problem, you can call your Local Philips Customer or Service Center. See the supplied World-wide guarantee booklet. Please, have the Model and Product number which you can find at the back of your television set or on the packaging, ready, before calling the Philips helpline (800-531-0039).

Model: ...................................

Product No: ..............................

Connect Accessory Devices

Do not insert the power plug in a wall socket before all connections are made.

& Place the receiver box wherever you want, but make sure

that air can circulate freely through the ventilation slots. Do not install the receiver box in a confined space such as a book case or a similar unit. To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity.Avoid heat, direct sunlight and exposure to rain or water. The equipment must not be exposed to dripping or splashing and no objects filled with liquids, such as vases, should be placed on it.

é Connect the antenna cable 1 and the VGA cable with

trailing audio cinch connectors 2 as shown in the inside frontcover of this handbook. Make sure all screws of the cable 2 are tightened well.

TV receiver box with speakerless monitor

In case you connect your TV receiver box with a speakerless monitor, all references made in this instruction book to sound reproduction, volume control, and audio connections, are not applicable (except for a headphone connection). The buttons on the remote control referring to sound have no function either.

“ To connect your computer, see the separate supplied

instruction manual with your monitor. To connect other accessory devices, see p. 16. In order to obtain the best result, please use only the supplied antenna cables between the receiver box and videorecorder, and between videorecorder and antenna connector.

‘ Insert the power cord supplied 3 into the MAINS at the

back of the monitor and the power cord 4 at the back of the receiver. Put both in the wall sockets with an AC power supply of 110 V. Consult your local dealer if your AC power supply is different. Please, only use the power cord 3 supplied with the monitor, for the monitor, and use the power cord supplied with the receiver, only for the receiver.

( Remote control: Remove the cover of the battery

compartment. Insert the 2 batteries supplied (Type R6AA-1.5V).

The batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless in many areas exhausted batteries may not be disposed of with your household waste. Please check on how to dispose of batteries according to local regulations.

§ Turn the receiver on : Press the power button A at the

right side of the monitor and the one on the front of the receiver box. A green indicator and the screen light up.

Note: After turning on your TV receiver box with the power switch,

wait about 5 seconds to turn on your PDP Flat TV monitor.

The green indicator blinks every time you press a button on the remote control. When you turn on your set for the first time, the menu

LANGUAGE automatically appears on the screen. Alternately

the explanation appears in different languages.

Preparation

min.

4 ft

Use of the remote control

Select

VCR DVD SAT AMP

123

456

789

Ò®‡π

†

Active Control

CBL

Press this button repeatedly to select AV1,

AV2,AV3,AV4,AV5, FRONT,VGA or TV

channels when in TV mode, according to

where you connected the accessory devices (p. 16).

Remark : in VGA mode only some buttons are valid. See VGA menu, p. 20.

CBL VCR DVD SAT AMP

Press the Select button repeatedly to select one of the system modes in which the remote control can be used. If no action is being undertaken within 60 seconds, the remote control returns to TV mode. After an action in the selected system mode the remote control will remain in this mode for 60 seconds and will then return to TV mode.

l Backlighting button

Press the Select button more than 2 seconds.The backlighting of the buttons

V, CH, ¬ and the digit buttons stays

on for 5 seconds after pressing the button.

POWER

Press to turn on/off the TV.

The TV is never powered off completely unless it is physically unplugged.

S Freeze/Replay/Photo finish

This function is not available with a VGA or HD source. To freeze the picture, see p 8.

OK Press this button to activate your choice or to confirm when in the menus.

0/9 Digit buttons

To select a TV channel. For a two or a three digit TV channel, enter the second digit within 2 seconds. To s witch immediately to a selected one digit TV channel, keep the digit button pressed a bit longer.

® Ò ‡ π †

Audio and Video equipment buttons. See p. 20.

U Time display

Q Sound mode

Press this button to select On/Off .

l Alternate audio

When you tune a channel where SAP (Second Audio Program) is available, you can toggle between

Main and SAP.

If not available, only Main can be selected.

CC Closed Caption

On/Off/On during mute see p. 12

MENU Main menu on/off see p. 7

q Picture format

Press this button to summon a list of available display formats for showing video images in the traditional 4:3 proportions. Press this button repeatedly or press the cursor up/down to select another picture format:Automatic, Super zoom, 4:3, Movie expand 14:9, Movie expand 16:9, 16:9 Subtitle, Wide screen. Automatic makes the picture fill the screen as much as possible. Super zoom removes the black bars on the sides of 4:3 programs with minimal distortion. When in Movie expand 14:9, 16:9 or Super zoom picture format, you can make subtitles visible with the cursor up/down.

Note : In VGAmode press the q button to switch between a 4:3 or a Widescreen picture format. In Dual screen mode press the q button to switch between a full or a 4:3 letterbox picture format.

4:3

Movie expand 14:9

Movie expand 16:9

Super zoom

Wide screen

16:9 Subtitle

Note : In case you connect your TV receiver box with a speakerless monitor, and without having connected an audio receiver, all references to sound

reproduction, volume control, and audio connections, are not applicable (except for a headphone connection).The keys on the remote control referring to sound have no function either.

Select

VCR DVD SAT AMP

123

456

789

Ò®‡π

†

Active Control

CBL

i Display information

Press to display (when available) information about the current channel and program or source: number, name, local time, video and audio formats of the incoming signal, CC availability, availability of alternate or secondary audio programs (a plus sign appears if you have more than one choice), ratings, display format, sound mode and (if on) the Sleeptimer icon and the minutes remaining, the On timer settings.

b Dual screen/PIP on/off

See Settings, General menu, Dual screen format, p. 8 and Dual screen, p. 15.

V Volume

To adjust the volume.

¬ Mute

Interrupt the sound or restore it.

CH Channel selection

To browse through the TV channels or sources stored.

x Pixel Plus demo on/off

In the right part Pixel Plus and Digital Natural Motion is switched on.

0 Surf

With this button you can easily switch between 2 up to 9 different TV channels/sources. See Settings, General, Surf, p. 8. Press the OK button or wait for the time out to dismiss the Surf display.

h Active Control

See p. 10.

Buttons in front of the TV receiver box

Should your remote be lost or broken you can still change some of the basic settings with the buttons in front of the TV receiver box.

Press:

• the

VOLUME - or + button to adjust the volume;

• the -

CH + button to select the TV channels or sources.

The

MENU button can be used to summon the main menu without the

remote control. Use:

• the V - and + buttons and the

CH- and CH+ buttons to select menu items

in the directions as shown;

• the

MENU button to confirm your selection.

Note: When activated via the

MENU button in front of the TV receiver box, only Exit lets

you dismiss the menu. Navigate to

Exit and press the MENU button.

VOLUME

CH/PR

Settings

Install

Exit

Picture Sound Features Channels

Note : In case you connect your TV receiver box with a speakerless monitor and without having connected an audio receiver, all references made to

sound reproduction and volume control are not applicable.

Antenna Automatic Cable

Select

VCR DVD SAT AMP

Ò®‡π

†

CBL

OK button to activate

cursor to select adjustments

return or switch main menu on/off

To use the menus

& Press the MENU button on the remote control to summon the main menu.

At any moment you can exit the menu by pressing the

MENU button again.

é Use the cursor in the up/down direction to select the TV, Settings or Install

menu.

Note: Sometimes not all the menu items are visible on the screen (indicated by a cluster of blue balls). Press the cursor down to reveal all items.

“ Use the cursor in the left/right direction to select the menu item. ‘ Use the cursor up/down again to select the control you want to select or to

adjust.

Note: Items temporary not available or not relevant are displayed in a light grey color and

cannot be selected.

The installation menu contains the following items :

Installation

Install

Language Autoprogram

& Press the MENU button on the remote control. é Use the cursor down to select Install. “ Use the cursor right to select Language.

Follow the instructions on screen.

‘ Use the cursor up/down to select your preferred language and press the OK

button to confirm your selection.

( Proceed with the Install menu.

Select the menu language

Language

English

Français

Español

Install

Store TV channels

Autoprogram

Install mode

Install

Start

& Select Autoprogram in the Install menu. é Press the cursor down to select Install mode. “ Press the cursor right.

Note: It is recommended to keep the predefined

Automatic way of autoprogramming.

In case of difficulties in autoprogramming with the automatic method, choose for Antenna or Cable whether antenna or cable signals are present.

When Automatic is selected, the TV will automatically detect whether or not cable signal input is present.

When

Antenna is selected, the TV will detect antenna signals and will search for all

antenna TV channels available in your local area. When

Cable is selected, the TV will detect cable signals and will search for all

cable TV channels available in your local area.

‘ Press the cursor down to select Install.

Note: All channels must be unlocked in order to autoprogram. If requested, enter your

PIN code to unlock all channels. (See Channels in the TV menu, p. 12.)

( Press the cursor right.

§ The message Searching appears and the progress of autoprogramming is displayed.

When Autoprogramming is complete, the puck navigates to Stop.A message appears confirming the completion together with the total number of channels found.

Note: when you navigate to Stop before autoprogramming is complete, you are given

the option to continue.

Available channels:

- with cable: max. from 1 to 125

- off air: max. from 2 to 69

Note: In case a particular channel is too weak for

the autoprogramming to identify, after installation is complete, you should tune to that channel by using the digit buttons on the remote control. If the channel is not acquired, a message will appear that the channel is not available.

Settings menu

General Source

Settings

Install

The General menu allows you to change settings that will typically be accessed only occasionally. The

Source menu allows you to select a source.

General

This menu allows you to change various settings that are presumably adjusted less frequently than most other settings.

Menu Background

& Select Menu Background with the cursor down. é Press the cursor right. “ Select On or Off to turn the Menu Background on or off.

Surf

& Select Surf. é With the cursor right, select :

•

2 channels if you want the 0 button to toggle between

the current and the previously selected channel,

•

9 channels if you want the 0 button to summon a list of

up to 9 channels which can be selected,

To add/remove a channel or source :

Tune to the channel or source you wish to add or remove. Press the 0 button and press the cursor right to add or remove.

Note: If there are already 9 channels/sources in the list, the one at the bottom of the list will be removed.

Dual screen format

This menu allows you to select the preferred format which can then be displayed toggling the b button on and off. See Dual Screen/PIP/Multipip, p. 15.

Select

Dual Screen, Large PIP, Medium PIP, Small PIP,

PIP3, PIP8 or PIP12

with the cursor down.

When Dual Screen mode is activated with the remote control b button, and when :

•

Dual screen is selected, the TV splits the screen into two

equally sized screens.

•

PIP is selected, the TV shows a full screen of video with a

pip window of video on top of it.

•

PIP3, PIP8 or PIP12 is selected, the TV will display 3, 8 or

12 pip screens.

Freeze format (not available for HD and VGA sources)

Freeze format allows you to select among three options: Freeze, Replay, Photo finish, to be activated when you press the S button on the remote control. See p. 5. In this menu you can select which option you prefer.

Note: Continuing to hold the S button down will also cycle the TV through the various formats. Changing the format this way does not store the selected format.

& Select Freeze format with the cursor down. é Press the cursor right. “ Select Freeze, Replay, Photo finish with the cursor up/down.

Reset AV settings

This function allows you to reset most of the picture and sound settings to their predefined factory states.

& Select Reset AV settings with the cursor down. é Press OK to erase settings and reset them to their default

values.

Caption Service

Closed Captioning allows you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired, this feature uses on-screen ‘text boxes’ to show dialogue and conversations while the TV program is in progress. Captions will appear on the screen during captioned broadcasts.

Note:The captions do not always use correct spelling and grammar. Not all TV programs and product commercials are made for broadcast with Closed Caption information included. Refer to your area’s TV program listings for the TV channels and times of Closed Caption shows.The captioned programs are usually noted in the TV listings with service marks such as ‘CC’.

& Select Caption Service with the cursor down. é Press the cursor right. “ Select the desired Caption Service

• CC 1, 2, 3 or 4 Dialogue (and descriptions) for the action on the captioned TV program shows on screen. Usually CC 1 is the most used. CC 2 may be used for alternate languages if they are being transmitted.

•

T 1, 2, 3 or 4

Often used for channel guide, schedules, bulletin board information for Closed Caption programs, news, weather informations or stock market reports.

Not all Caption Services are necessarily being used by a TV channel during the transmission of a Closed Caption program.

‘ See Closed Captions in the TV-Features menu, p. 12, to turn

the

Caption Service On or Off.

Note:This television receiver provides display of television Closed Captioning conforming with the EIA-608 standard and in accordance with Sections 15.119 of the FCC rules.

General

Menu background

Surf

Dual Screen format

Multi-PIP format

Freeze format

Reset AV settings

Caption Service

OSD

Time zone

Daylight saving

Set/Change pin

Settings

Source

AV1 AV2 AV3 AV4 AV5

Front

Center input

Settings

& Select Source with the cursor right. é Press the cursor down to select one of the external AV

inputs.

“ Press the cursor right to enter the list of types of devices

attached to the selected input.

‘ Select the accessory device with the cursor up/down.

Once you have named the source, e.g.VCR, this source will automatically be selected when your remote control is in VCR mode, see p.6, and when you press the

v button on

the remote control.

( Press the MENU button on the remote control to turn off

all menus on screen.

§ Press the v button on the remote control.

The Source Select menu appears in which you may select a source or peripheral connected to be displayed on screen.

Center input

When you have connected a multichannel surround receiver to the receiver box, the loudspeakers of the monitor (not available in combination with a speakerless monitor), can act as center speaker, making a separate center speaker unnecessary. Select Center input On.

OSD (On Screen Display)

& Select OSD with the cursor down. é Press the cursor right to select Normal or Minimum.

Normal to activate extended display of TV channel and

channel information on screen.

Minimum to activate the display of reduced channel

information.

Time zone

This function allows you to select your local time zone. Broadcasted time information will correct the clock display for your local time.

& Select Time zone with the cursor down. é Press the cursor right. “ Select your local time zone with the cursor up/down.

Daylight saving

Daylight saving time is automatically set by specially broadcasted signals.This menu item allows you to disable the automatic setting of daylight saving time.This is useful if you live in an area or state where daylight saving is not applied, but you receive channels from other areas where daylight saving signals are broadcasted.

& Select Daylight saving with the cursor down. é Press the cursor right to select Automatic for automatic

clock correction for daylight saving time, based on specially broadcasted signals.

“ Select Off to disable automatic clock correction based on

the specially broadcasted signals.

Set/Change pin

The Set/Change pin menu item allows you to create or change a Personal Identification Number (PIN).

& Select Set/Change pin with the cursor down. é If no PIN exists yet, the menu item is set to Set pin.Follow

the instructions on screen. If a PIN has previously been entered, the menu item is set to

Change pin.Follow the instructions on screen.

All number combinations from 0000 to 9999 are valid numbers.

“ The General menu reappears with a message confirming

that the PIN has been created.

Important:You have forgotten your PIN !

& Select Set/Change pin in the General menu. é Press OK. “ Press the cursor right. ‘ Enter the overriding pin 0-7-1-1. ( Press the cursor again and enter a new personal 4-digit pin.

The previous pin is erased and the new pin is stored.

Picture Sound Features Channels

Auto picture

Contrast

Brightness

Color

Sharpness

Color temperature

Digital processing

Dynamic contrast

DNR

Color enhancement

Tint

Picture format

Picture menu

Press the cursor right to select Picture. Select the menu items in the Picture menu with the cursor up/down.Adjust the settings with the cursor left/right or enter the list of submenu items with the cursor right. Select a submenu item with the cursor up/down.

Note:To remove the menu background before adjusting the picture settings, see Settings, General, p. 8.

Note:The items Sharpness,Digital processing, Dynamic contrast, DNR, Color enhancement and Picture format are not available for digital signals via AV4 and AV5.

Auto picture

Select

Auto picture to display a list of predefined picture

settings, each corresponding with specific factory settings.

Personal refers to the personal preference settings in the

picture menu.

Contrast

Allows you to adjust the contrast level of the picture.

Brightness

Allows you to adjust the brightness level of the picture.

Color

Allows you to adjust the color saturation of the picture.

Sharpness (not available for HD sources)

Allows you to adjust the edge definition of a picture.

Color temperature

Allows you to select from TV channels, the color temperature of the TV picture.

& Press the cursor right to enter the list. é Select Normal, Warm or Cool with the cursor up/down. “ Press the cursor left to return to the picture menu.

Digital processing (not available for HD sources)

•

Progressive scan = line doubling eliminates line flicker.

•

Pixel Plus = is the most ideal setting, but you may consider

to select Movie Plus in case a halo effect should disturb you. Dependent on your own preference, select Progressive scan (without motion compensation).

Note: Interference, caused by fluorescent lights just above the TV, may occur when having selected Pixel Plus.

TV menu

Press the MENU button on the remote control to summon the main menu.

Dynamic Contrast (not available for HD sources)

Automatically makes the contrast in the darker and the brighter picture areas more noticeable as the image on screen changes. Normally, select

Medium. It may be preferred to select Minimum,

Maximum or Off.

& Press the cursor right to enter the list. é Select one of the settings with the cursor up/down. “ Press the cursor left to return to the picture menu.

DNR (Digital Noise Reduction)

(not available for HD sources)

Automatically filters out and reduces the image noise and improves picture quality when receiving weak video signals.

& Press the cursor right to enter the list. é Select Off, Minimum, Medium or Maximum according to the

image noise.

“ Press the cursor left to return to the picture menu.

Color enhancement (not available for HD sources)

When activated, this feature automatically controls green enhancement and blue stretch. It makes the colors more vivid.

& Press the cursor right. é Select On or Off in order to activate/de-activate Color

Enhancement with the cursor right.

Tint (not available for HD sources)

Allows you to select the color mix (hue) of the picture.

Picture format (not selectable for HD sources)

This menu item performs the same as the q button on the Remote Control. See Use of the Remote Control, p. 5.

Active Control (not available for HD sources)

The TV continuously measures and corrects all incoming signals in order to provide the best picture possible.

& Press the h button on the remote control. é The Active Control menu appears. “ Press the cursor up/down to select the Active Control values

Off, Minimum, Medium (recommended) or Maximum.

The picture settings are being optimised continuously and automatically which is displayed by bars.The menu items can not be selected.

Note :When having connected a monitor without light sensor, the values are On or Off.

‘ Press the cursor right to select Auto Picture. ( Press the cursor up/down to select one of the predefined

picture settings.

§ Press the cursor right to select Active Display. è Press the cursor up/down to select Show bars, one of the

Dual screen demos or

Off. When you select Dynamic

Contrast, Pixel Plus, Digital Noise Reduction or Digital Natural Motion, the TV screen is divided into two parts: in the left part the selected picture quality setting is switched off; in the right part it is switched on.

! Press the h key again to switch off the Active Control menu.

(Sound menu)

Picture Sound Features Channels

Auto sound

Volume

Tr eble

Bass

Balance

Headphone volume

Sound mode

Alt audio

(Audio only)

Note : In case you connect your TV receiver box with a speakerless monitor and without having

connected an audio receiver, all references made to sound reproduction, volume control and audio connections are not applicable.

Press the cursor right to select

Sound.

Select the menu items with the cursor up/down and adjust the settings with the cursor left/right. Remember, control settings are at normal mid-range levels when the bar scale is centered.

Auto sound

Select Auto sound to display a list of predefined sound settings, each corresponding with specific factory settings of treble and bass. Press the cursor right to enter the list. Press the cursor up/down to select a predefined sound setting. Personal refers to the personal preference settings in the

Sound menu.

Note:The moment you are in a predefined Auto sound setting and you modify a setting in the Sound menu, all values of the menu will overwrite the previously made personal settings.

Volume

Allows you to adjust the volume level.

Tr eb le

Attenuates or amplifies the high-frequency response of the audio output signal.

Bass

Attenuates or amplifies the low-frequency response of the audio output signal.

Balance

Allows you to adjust the balance of the right and left speaker’s sound output.

Headphone volume

Allows you to adjust the volume level of the headphone.

Sound mode

Surround Mode can only be selected when the sound of the TV channels is stereo. When

Sound mode On is selected, it seems as though the loudspeakers are spread

further apart from one another.

Alt Audio

When you tune a channel where SAP (Second Audio Program) is available, you can toggle between

Main and SAP.

Press the cursor right to make your preferred audio selection. If SAP is not available, only Main is selected.

Audio only

Enables you to blank the TV picture if the monitor is used as center speaker in a configuration with an audio receiver. Select

Audio only On to only hear the sound and to switch off the picture.

Closed Captions

See Caption Service, Settings menu, General, p. 8.

& Select Closed Captions with the cursor down. é Press the cursor right. “ Select On, Off or On during Mute.

When

On is selected, the TV will display the currently

displayed Caption Service, assuming that the service is available in the broadcast. When

Off is selected, the TV will not display Closed

Captions information. When

On during Mute is selected, the TV will display the

currently selected Caption Service when the mute function is active.When the mute function is not active, the TV will not display Closed captions information.

Note:

- When Dual screen format is selected, Closed Captioning (if activated) appears for the main screen only, and it covers the full screen;

- When Multipip 12 is activated, Closed Caption is disabled.

Sleeptimer

With the Sleeptimer function you can set a time period after which the TV will turn itself off.

& Select Sleeptimer with the cursor down. é Press the cursor right to set the time.

Features

Closed Captions

Sleep Timer

On timer

Zoom

Off On On during mute

The counter runs from 0 up to 180 mins (in 5-min increments).When set to 0, the sleeptimer is turned off.

One minute before the sleeptimer expires, a message appears that the TV will turn off in 60 seconds or you may cancel the sleeptimer by pressing the OK button.You can always turn off your TV earlier or change the set time.

Note:When a VGA source is selected, the TV will not turn off when the sleeptimer expires.

On timer

Note:The On timer function is only available if time information is available via the local PBS channel.

& Select On timer with the cursor down. é Press the cursor right. “ Select On or Off to set the On timer On or Off. ‘ When you have selected On press the cursor right. ( Select the TV channel or external source you want the On

timer to activate with the cursor up/down.

§ Press the cursor right to select the day you would like the On

timer to become active. Select Daily to set the On timer for daily operation on the selected TV channel or source.

è Press the cursor right to select AM or PM. ! Press the cursor right to enter the time with the digit buttons

or with the cursor up/down, left/right.

ç Press the OK button to activate.

Zoom

& Select Zoom with the cursor down and press the OK button. é Press the OK button to select one of the zoom

magnifications (x1, x4, x9, x16).

“ Additionally you can shift the selected zoom window over the

screen with the cursor buttons up/down, left/right.

‘ Press the MENU key to switch off the zoom function.

Features menu

Channels menu

Picture Sound Features Channels

Channel list

Lock after

Channel lock

TV ratings lock

Movie ratings lock

Channel remove

Settings

Install

... TV-Y TV-Y7 (D) Dialogue TV-G TV-PG (L) Language TV-14 (S) Sex TV-MA (V) Violence

Press the cursor right to select Channels. Select the menu items in the menu with the cursor up/down and adjust the settings with the cursor left/right.

Channel List

The list will display all the stored TV channels.

& Select a channel number with the cursor up/down. é Press the OK button to switch over to the selected TV

channel or AV extension.

Lock after

This allows you to activate the childlock after a selectable time delay.

& Select Lock after with the cursor down. é Select On with the cursor right.

“ Press the cursor right again to select AM or PM. ‘ Press the cursor right once again to enter the time. ( Enter the time with the digit buttons or with the cursor

up/down.

§ Press the MENU button to turn off the menu.

Channel Lock

This feature provides the ability to prevent the viewing of a selected channel. Blocked channels can still be tuned with the digit buttons only, but the picture is greyed and the audio is muted.

& Select Channel Lock with the cursor down. é A list with all stored channel numbers appears.

Press the cursor right to enter the list.

“ Select the channel you want to lock/unlock with the cursor

up/down.

‘ Press OK.

This summons a message that prompts you to enter your PIN. (See Set/Change Pin, p. 9) Follow the instructions on screen. If the PIN is correct, the channel list reappears, and the color of the box-graphic of the selected channel changes from blue to yellow to indicate the channel is currently locked. You only have to enter your PIN code once while the menu is active.

( Repeat to lock other channels.

Age-based Rating Content-based Rating

All none None none TV-Y none TV-Y7 (FV) Fantasy Violence TV-G none TV-PG (D) Dialog

(L) Language (S) Sex (V) Violence

TV-14 (D) Dialog

(L) Language (S) Sex (V) Violence

TV-MA (L) Language

(S) Sex (V) Violence

TV Ratings Lock

TV-Y appropriate for children of all ages with themes and elements suitable

for children aged 2-6 TV-Y7 programs designed for children age 7 and older TV-Y7-FV programs include fantasy violence more intense than other programs in

the TV-Y7 category TV-G programs suitable for all ages.These programs contain little or no

violence, no strong language and little or no sexual dialogue or

situations TV-PG programs contain elements that some parents may find unsuitable for

younger children and which may need parental guidance.

The program may contain moderate violence, sexual dialogue and/or

situations and some strong language. TV-14 programs contain elements that may not be suitable for children under

14 years of age.These programs include one or more of the following:

intense violence, intense sexual situations,suggestive dialogue and strong

language. TV-MA programs are designed to be viewed by adults and may be unsuitable for

children under the age of 17.These programs may contain graphic

violence, explicit sexual activity and/or crude or indecent language.

Your TV is equipped with a V-chip.This allows you to control access to individual programs based on their movie and TV ratings. All settings apply to all AV inputs, except AV4 and AV5. The program content advisory data are sent by the broadcaster or program provider.

& Select TV ratings lock with the cursor down.

A list appears, showing the age-based TV ratings and a corresponding content-based ratings list.

é Press the cursor right to enter the list. “ Select an age-based TV rating with the cursor up/down, and

enter, if present, the list with content-based ratings with the cursor right, and select one content-based rating.

‘ Press OK to activate/de-activate the selected rating.

You are asked to enter your PIN. (See Set/Change PIN, p. 9). If the code is correct, the TV ratings lock menu reappears.

( Select another content-based rating if you like and press

OK again. You need only enter your PIN-code once while the menu is active.You can lock/unlock any number of ratings on the list without re-entering your code.

Each ratings item has a box-graphic in front of it to indicate whether or not programs carrying that rating are currently locked:

• a yellow-colored box: all items in the contents-based list are locked as well;

• a blue-colored box: the item is unselected;

• a half blue, half yellow-colored box: some content-based ratings are selected/unselected.

When

All has been selected, all items in the age-based and in

the contents-based lists are locked. If, while

All is selected, any other item, either an age-based or

content-based item, is unselected, then

All is automatically

unselected.

None is the selection for items that either have no rating

information or have a rating of None. Both will be locked. When an item on the age-based list is selected, all items below that item of the same group are locked as well. When you select a content-based rating, all identical contentbased ratings in the younger age-based categories are also selected.

Movie Ratings Lock

NR not rated Gmovies with a mild content, suitable for all ages PG movies for which parental guidance is recommended.

They may contain a few racy or violent scenes or maybe some bad language

PG-13 movies for which parental guidance may be

recommended if under age 13

Rrestricted.The movies usually contain offensive sex or

bad language and may be unsuitable for children under the age of 17. Parental guidance or permission needed.

NC-17 even with parental permission, forbidden under

age 17. More offensive sex, violence or bad language.

Xmovies which generally focus on sex, violence and/or

bad language.Also known as pornography.

This function allows you to control access to individual movies based on their MPAA ratings (Motion Picture Association of America).

& Select Movie ratings lock with the cursor down.

A list appears, showing all valid MPAA content ratings.

é Press the cursor right to enter the list. “ Select a movie rating with the cursor up/down. ‘ Press OK to activate/de-activate the selected rating.

You are asked to enter your code. (See Set/Change PIN, p. 9.) If the code is correct, the Movie ratings lock menu reappears.

Each rating item has a box-graphic in front of it to indicate whether or not programs carrying that rating are currently locked:

• a yellow-colored box: movies with this rating are locked;

• a blue-colored box: movies with this rating are unlocked.

When

All has been selected, all items on the movie ratings list

become selected. (All movies are locked.) If, while

All is selected, any other item is unselected, then All is

automatically unselected. When

NR has been selected, no other item is selected.

When any other item has been selected, all ratings below are selected as well, thus all movies with those ratings will be locked.

Picture Sound Features Channels

Channel list

Lock after

Channel lock

TV ratings lock

Movie ratings lock

Channel remove

Settings

Install

Channel remove

This feature provides the ability to remove a channel number from the channel list.

& Select Channel remove with the cursor down. é Press the cursor right to enter a list with all stored

channel numbers.

“ Select the channel you want to remove with the cursor

down and press OK.

‘ Repeat to remove other channels.

Picture Sound Features Channels

Channel list

Lock after

Channel lock

TV ratings lock

Movie ratings lock

Channel remove

Settings

Install

Display options

- Press the cursor right to highlight the right screen.

- Press the cursor down to highlight the single (large, medium or small) PIP screen.

- Press the cursor right to enter the Multipip screen and then use the cursor buttons to navigate through the PIP screens and to highlight a PIP screen.

Define the position of the single PIP screen

&Select a Dual screen mode with a single PIP screen.

éPress the cursor down to highlight the PIP screen. A PIP

menu appears with which you can define the position of the PIP screen.

Note:When the PIP menu is timed out, press the

OK button to

make it reappear.

“Press the cursor down again to select

Position.

‘Press the

OK button or the cursor right to activate.

(Use the cursor buttons to define the position of the PIP

screen.

§Press the

OK button. The PIP menu reappears.

èPress the cursor up twice to highlight the main screen again

and press the

OK button to switch off the menu.

On-Screen information

The highlighted On-Screen information,which appears when changing channels, always refers to the active screen

Position

Dual screen / PIP / Multipip

Press the b button to switch on Dual screen or one of the PIP modes according to the format selection made in the Dual screen format list in the General menu. See Settings, General, p. 8. Press the b button again.The screen that has a yellow border will become the full main screen picture.

Notes:

- Continuing to hold the

b button down will cycle the TV through the various formats

(Dual screen, Large PIP, Medium PIP, Small PIP, PIP3, PIP8 or PIP12) launching a new format after each second the button is held down.After standby of the TV, the preference as set in the Settings, General menu is used.

- It is not possible to display a VGA or HD source in a Dual screen/PIP screen.

- When Dual screen mode is selected, two picture formats are supported: Full screen or 4:3 letterbox picture format (vertical squeeze).

- Audio from the right screen or the PIP plays to the headphones.

Dual screen

AUX

PIP 3 PIP 8

PIP1 PIP1 PIP5

PIP2

PIP3

PIP 12

PIP1 PIP2 PIP3

PIP5 PIP6 PIP7

PIP9 PIP10 PIP11 PIP12

PIP8

PIP4

PIP2 PIP6 PIP3 PIP7

PIP4

PIP8

789

Active Control

Changing TV channels or external sources in left, right, PIP or Multipip screen

Press the -

CH+ button or the 0button or the digit buttons in

order to change the TV channels or external sources in the highlighted screen.

Scan

PIP 3, PIP 8 or PIP 12

Press the cursor down to the lowest PIP to display a following series of PIP screens.

PIP

AUX

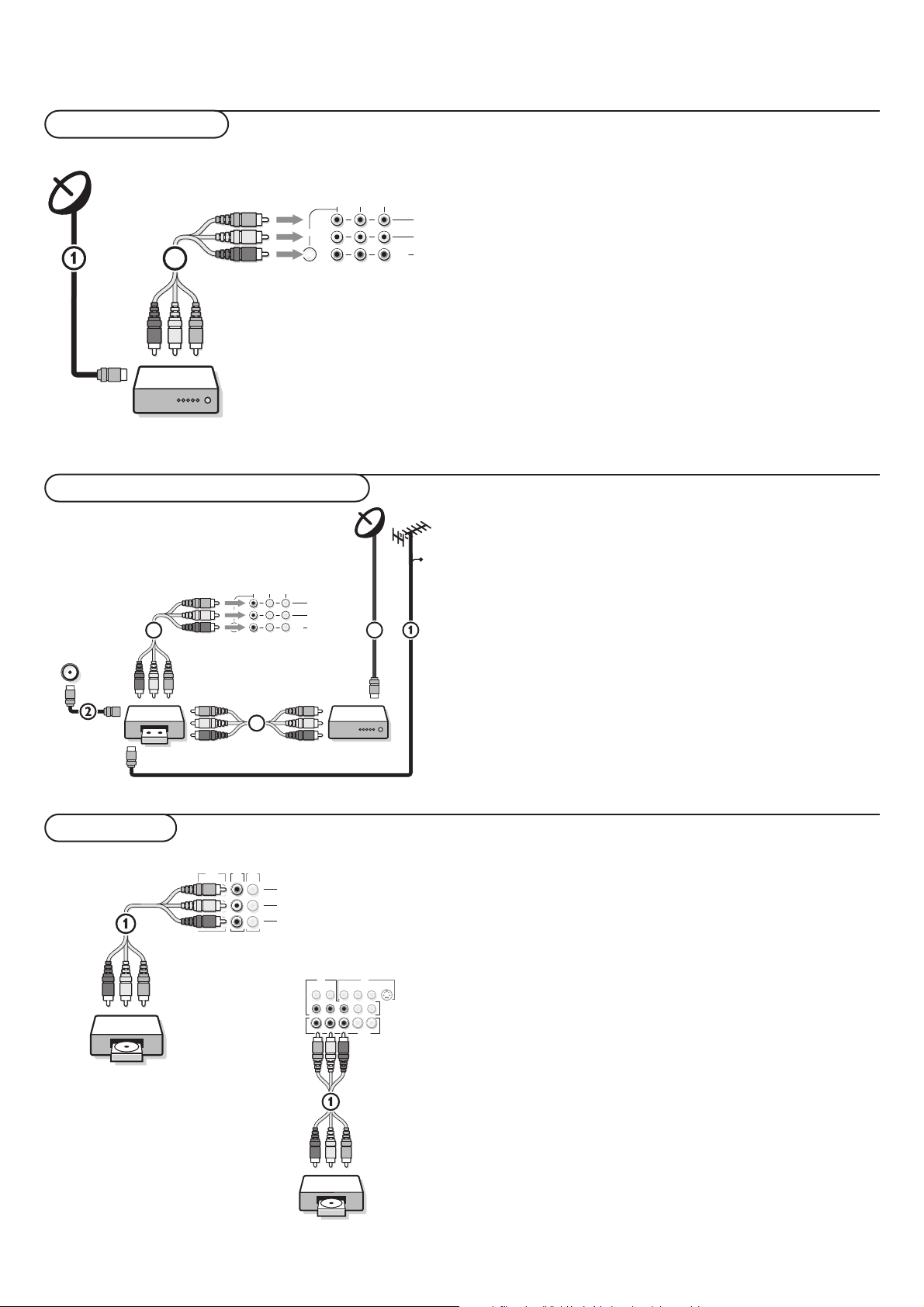

Note: Do not place your recorder too close to the screen as some recorders may be susceptible for signals out of the display. Keep a minimum distance of 20” to the screen.

& Connect the Cable TV cable 1 to the RF IN socket of

your recorder.

é Connect another RF cable 2 from the output OUT of

your recorder to the receiver’s

ANTENNA./CABLE jack.

“ Better playback quality can be obtained if you also connect

the Video,Audio Left and Right (only for stereo devices) AV cables 3 to the

VIDEO, L and R AUDIO input

AV1 IN jacks.

The

VIDEO OUT connectors can be used for daisy

chaining or to record programs from your TV. See Record with your recorder, p. 21.

If your recorder has an S-VHS video jack:

For improved picture quality, connect a S-video cable with the

S-VIDEO input instead of connecting the recorder to

the

VIDEO jack of AV1 IN.

S-Video does not provide audio, so audio cables must still be connected to provide sound.

Note: You can also connect your recorder to the AV3 IN jacks.

CABLE

VCR

R AUDIO

L AUDIO

VIDEO

AV 1

OUT

OUT IN

AV 2INVIDEO

OUT

S VIDEO

ANTENNA / CABLE

& Interconnect your recorder with an extra RF cable 2. é To obtain better picture quality, also connect the Video,

Audio left and Audio right (only for stereo devices) cables 3 to the

VIDEO, L and RAUDIO input AV 2

jacks.

Recorder with other AV peripherals

Connect Accessory Devices

There is a wide range of audio and video devices that can be connected to your receiver.The following connection diagrams show you how to connect them to the back or the front side of the receiver.

Note: In case of the monitor in a stand alone situation without the receiver box connected, see the instructions with the monitor.

AV1 IN can handle CVBS and YPbPr; AV2 and AV3 IN CVBS and Y/C: AV4 IN YPbPr 1080i,YPbPr 576p and YPbPr 480p; AV5 IN RGB 1080i,

RGB 576p, RGB 480p,YPbPr 1080i and YPbPr 576p. The low quality of some digital picture material may be the cause of digital image distortion.

According to the connected digital equipment, select

DVD, Game, SAT or Digital STB in the Settings/Source menu.

(In case the digital transmission is still poor, select the Auto Picture setting

SOFT without changing the picture setting manually.

Recorder

Recorder and Cable Box

& Connect the TV antenna cable 1 to the cable box’s

IN jack.

é Connect the cable box’s OUT jack to the recorder’s

RF IN socket.

“ Proceed with the as above described procedure for

recorder, starting with step

é.

RECORDER

(VCR - DVD+RW)

ANTENNA / CABLE

OUT

OUT IN OUT IN

S VIDEO

VIDEO

L AUDIO

R AUDIO

CABLE

ANTENNA / CABLE

VCR

AV 2

VIDEO

AV 1

OUT

S VIDEO

OUT

OUT IN OUT IN

VCR

VIDEO

L AUDIO

R AUDIO

Cable Box

CABLE

OUT

& Connect the satellite antenna cable 1 to the satellite

receiver’s

SATELLITE IN jack.

é Connect the Video,Audio left and right (only for stereo

devices),AV cables 2 to the

VIDEO, L and R AUDIO

input AV1 IN, AV2 IN or AV3 IN jacks.

If your satellite receiver has an S-VHS video jack:

For improved picture quality, connect a S-VHS video cable with the

S-VIDEO input instead of connecting the satellite

receiver to the

VIDEO jack of AV1 IN or AV3 IN.

Satellite Receiver

& Connect the Cable TV cable 1 to the RF IN socket of

your recorder.

é Connect another RF cable 2 from the output of your

recorder to the receiver’s

ANTENNA/CABLE jack.

“ Connect the satellite antenna cable 3 to the satellite

receiver’s

SATELLITE IN jack.

‘ Connect the AV cables 4 to the satellite receiver’s

AV OUT jacks and to the recorder’s AV IN jacks.

( Connect the recorder’s AV OUT jacks 5 to the receiver’s

AV1, AV2 or AV 3 IN jacks.

Satellite Receiver with a recorder

VCR

CABLE

SAT

≈

R AUDIO

L AUDIO

VIDEO

AV 1

OUT

IN OUT

SAT

AV 2INVIDEO

OUT

S VIDEO

OUT

ANTENNA / CABLE

DVD player with AV connectors

Connect the AV cables to the DVD player’s AV

OUT jacks

and to the receiver’s

AV2 I N jacks.

If your DVD player has an

S-VIDEO out(put) jack:

Connect the AV cables to the DVD player’s

AV OUT jacks

and to the receiver’s

AV3 IN jacks.

Connect an

S-VIDEO cable with the S-VIDEO input instead

of connecting the DVD player to the video jack.

DVD player with Component Video Output Connectors (AV4)

& Connect the three separate component video cables to the

DVD player’s

Y, Pb and Pr jacks and to the Y, Pb and Pr

AV4 IN jacks on the receiver.

é Connect the audio cable to the DVD player’s AUDIO L and

R jacks and to the L and R audio AV4 jacks on the receiver.

DVD player with Progressive scan output (480p 2 Fh)

Connect the DVD player to the

AV4 or AV5 IN jacks on

the receiver. See AV5 Digital HD input, p. 18.

DVD Player

DVD

R AUDIO

L AUDIO

VIDEO

OUT

VIDEO

AUDIO

AV1

AV 2

VIDEO

OUT

S•VIDEO

DVD

OUT

AV3

AV 4

AV 5

VIDEO AUDIORS•VIDEO

G/YYB/PbPbR/PrPrLLR

RECORDER

AV 1

S VIDEO

SAT

≈

OUT

SAT

AV 2INVIDEO

OUT

VIDEO

L AUDIO

R AUDIO

& Connect the audio cable to the multi channel Surround receiver

and to

AUDIO OUT L and R at the back of your TV receiver

box 1.

Note:Turn off the TV and your surround receiver before connecting them. Set the Surround receiver’s volume to minimum.

é If you want the loudspeakers of your monitor to act as center

speaker, also connect an audiocable to the multi channel Surround receiver and to the

SURROUND SOUND CENTER IN at the back

of your TV receiver box 2.

“ Select Center input On in the Source menu. See p. 9.

The loudspeakers of the monitor will now only produce center sound, the loudspeakers connected to the audio receiver will produce Surround Sound.The volume has to be controlled via the multi channel Surround receiver.

Note: No sound will be heard when a TV channel or external source is blocked via the Channel Lock menu (see p. 12).

Multi channel Surround receiver

AUDIO OUT

CENTER

Connect your Set top Box to the AV5 input.

Connect a Set top Box with 2 Fh RGB output to the H, V, Y, Pb and

jacks and to the L and R AUDIO jacks. Connect a Set top Box with 2Fh Pr, Pb,Y output to the Pr, Pb and Y jacks and to the

L and R AUDIO jacks.

See also the manual of your High Definition Set top Box.

Note:This television is designed to accept high definition signal standards 480p, 576p and 1080i as specified by the Electronic Industries Association standard EIA770.3. Set-top boxes from different manufacturers have the possibility of differing output standards which may cause difficulties for the television to properly display.

Warning: in case you notice scrolling images, wrong colors or no color, no picture, or even combinations of these on your screen, check if the connections are done in the right way:

- for Y, Pb, Pr 2Fh: check if the cable colors match with the input connector colors

- for RGB-HV 2Fh: check additionally if the H and V cables are connected to the respective H and V input connectors, and if necessary exchange both connections.

AV5 Digital Set Top Box

AV 3

AV 5

AV 4

VIDEO AUDIORS•VIDEO

G/YYB/PbPbR/PrPrLLR

See the separate supplied instruction manual with your monitor.

Connect your computer

& Connect your camera or camcorder to the front input behind the

door at the front side of your receiver. Press the center of the door to open.

é Connect the equipment to VIDEO IN 2 and AUDIO L 1 for

mono equipment.

“ For stereo equipment also connect AUDIO R 1.

S-VHS quality with an S-VHS, Hi-8 or Digital camcorder is obtained by connecting the S-VHS cables with the S-VHS input 3 (instead of

VIDEO IN 2) and AUDIO inputs 1.

Camera & camcorder

S•VHS

VIDEO IN

AUDIO

1 2

& Insert the plug into the headphone socket L behind the door at

the front side of the receiver. Press the center of the door to open.

é Press ¬ on the remote control to switch off the internal

loudspeakers of the TV.

The headphone impedance must be between 8 and 2000 Ohm. The headphone socket has a 3.5 mm jack.

In the

SOUND menu select Headphone volume to adjust the

headphone volume.

Note:When a TV channel or external source is blocked via the Channel Lock menu (see p. 12), also the headphone is muted. When Dual Screen/PIP is activated (see p. 15):

- if the main screen displays a TV channel picture, you hear the sound from the Dual Screen/PIP picture through your headphone.

Headphone

Devices connected to the rear or on the front side of the receiver box

& Press the v button to select AV1 , AV2,AV3,AV4,AV5, FRONT,VGA or TV

channels according to where you connected your devices at the rear or on

the front side of your receiver.

é Press the cursor up/down. “ Press OK.

Remark : most equipment (decoder, video recorder) carries out the switching itself.This is

however never the case with a computer connected to the VGA input.

If you want to change to TV channels?

Enter the channel number of the TV channel which you want to watch with the digit buttons.

To select connected devices

CBL

Ò®‡π

VCR DVD SAT AMP

Select

†

Audio and video equipment buttons

Select

VCR DVD SAT AMP

123

456

789

Ò®‡π

†

Active Control

CBL

Most of the audio and video equipment from our range of products can be operated with the remote control of your TV.

Press one of the buttons after you pressed the

Select button repeatedly according to the

equipment you want to operate with this remote control. See Use of the remote control, p. 5.

Notes:

- If no action is being undertaken within 60 seconds, the remote control returns to TV mode.

- After an action in the selected system mode, the remote control will remain in this mode for 60 seconds and will then return to TV mode or press the

Select button to return to TV mode immediately.

B to switch to standby (

VCR)

S for pause (

DVD , CD)

® for record, Ò for rewind (

VCR, CD);

search down (

DVD , AMP)

‡ for stop, π for play, † for fast forward (

VCR, CD);

search up (

DVD/AMP)

i display information

MENU to switch the menu on or off

- CH + for chapter, channel, track

selection

0 to 9 digit entry, 0 tape index (

VCR),

select a DVD chapter, select a frequency (

AMP)

U VCR timer

Q surround on/off (

AMP, CD)

cursor up/down

to select the next or the previous disc (

CD)

cursor left/right

to select the previous or following track (

CD)

Only available when a VGA source has been connected and activated. See also the separate supplied instruction manual with your monitor.

Note : In case you connect your VGA source with a speakerless monitor and without having connected an audio receiver, all references made to sound reproduction are not applicable.

& Select VGA with the v button. é Press the MENU button to switch on the VGA menu.

“ Select one of the menus with the cursor left/right.

Note: Only when you have chosen the US English language, the menu items will be displayed with additional icons.

‘ Select one of the menu items with the cursor up/down.

See the separate booklet supplied with the monitor.

( Press the cursor left/right to alter the selected adjustment.

§ Press the MENU button again to switch off the VGA menu.

VGA menu

Picture 1 Picture 2 Sound Setup

VGA

Example:

Brightness

Contrast

Color temp.

Sharpness

Picture 1

(Format) 4:3

Wide screen

Zoom

Zoom factor

(Shift)

‹

(Clock frequency)

(Phase)

ﬁ

(Auto align)

Volume

Bass

Treble

Sound mode

Sound M

Language ‡US English

Power savings

)

English

AV3

(

Nederlands

VGA2

Deutsch

Français

Español

Setup º

‡

)

(

Z Â ‹ S ﬁ X

Picture 2

Your remote control is set to work your TV and many infrared remote (IR) control VCRs, Cable TV Converter Boxes, DVD players, Satellite Receivers, etc. Press the

Select button repeatedly to select CBL,VCR, DVD, SAT or AMP according to the accessory device you want to operate with

this remote control. See Use of the Remote control, p. 5. Press the B button. If the function buttons on the remote control also work the selected accessory device, then the remote is ready and no further steps are needed.

If the function buttons do not work with the selected accessory device, according to the device(s) you own, you may make your remote control ready for them by a direct entry code. Proceed as following.

Code setup

& Press the Select and B buttons at the same time, then

release.

é NOTE:When inputting the digits as described below, you

must not allow more than 20 seconds to pass between the input of each digit or you will need to return to step 1 and begin the programming process again. Input the appropriate digit provided below for the type of accessory device you want to operate:

1 Cable (CBL) 2 VCR 3 DVD 4 Satellite (SAT) 5 Amplifier (AMP).

“ Input the 4-digit code for the type and brand of accessory

device.The codes are listed on pages 22-23.

‘ The green light behind the B button will blink for 3 seconds

to show that a valid code was input. If a valid code was not entered, the light will stay on continuously for 3 seconds. If that occurs, go back to step 1 and begin the programming process again.

( Now you will try to use the TV remote with the accessory

device. Press the Select button on the remote to cycle across the accessory mode dial. Stop pressing the button when the mode you desire is lighted.The light will stay on for 2 seconds and then begin blinking.The blinking means that the remote is in the accessory mode you have selected.

§ Within 60 seconds from the time the blinking starts, point the

remote toward the accessory device and press the B button. If the device does not respond to the B command, follow the steps for programming the remote again using a different setup code for the type and brand of accessory device you wish to operate. Refer again to the code list on pages 22-23. If no more codes are listed for the type and brand of accessory device, the remote likely will not operate your particular model of accessory device.

Notes:

- Your TV remote is not necessarily capable of being programmed to operate all models of the brands of accessory devices listed on pages 22-23.You may want to try the programming process again.Try using the number(s) that are listed for your type and brand of device to be sure you did not make a mistake in inputting the digits during your first attempt at programming.

-If the remote control is in one of the accessory modes (a mode light is flashing) — CBL,VCR, DVD, SAT,AMP— and you don’t press any of the remote buttons for sixty seconds, a “time-out” occurs, returning the remote to TV mode.

Setting the remote control to work accessory devices

To r ecord S-VHS quality, connect an S-VHS peripheral directly to the recorder.

Record a TV program

You can record a TV program using your recorders tuner without affecting your TV.

& Select the channel number on your recorder. é Set your recorder to record.

See the handbook for your recorder.

Switching channel numbers on your TV does not disturb recording !

Record a recorder from

VIDEO OUT

You can record a program on your recorder from the TV tuner via

VIDEO OUT.

& Switch on the device. é Select the correct channel on your TV and the correct input on

your recorder.

“ Set your recorder to record.

You record the tuner channel of the TV, even when you switch to an AV input using the

v button on the remote control.

Do not switch channels or turn off your TV when you are recording through

VIDEO OUT.

Note:When a TV channel or AV source is blocked because of a rating set via the Channels menu (see p. 12), also the record output picture and sound are muted.

Record with your Recorder

Remote Control Direct Entry Codes for Accessory Devices

Amplifier

Carver . . . . . . . . . . . . . . . . . . . . . . . . . . .0296

Curtis Mathes . . . . . . . . . . . . . . . . . . . . .0327

GE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0105

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0358

Linn . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0296

Magnavox . . . . . . . . . . . . . . . . . . . . . . . . .0296

Marantz . . . . . . . . . . . . . . . . . . . . . . . . . .0296

Optimus . . . . . . . . . . . . . . . . . . . .0422, 0327

Philips . . . . . . . . . . . . . . . . . . . . . . . . . . .0296

Pioneer . . . . . . . . . . . . . . . . . . . . . . . . . .0327

Polk Audio . . . . . . . . . . . . . . . . . . . . . . . .0296

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . . .0327

Realistic . . . . . . . . . . . . . . . . . . . . . . . . . .0422

Sony . . . . . . . . . . . . . . . . . . . . . . . .0716, 0247

Soundesign . . . . . . . . . . . . . . . . . . . . . . . .0105

Victor . . . . . . . . . . . . . . . . . . . . . . . . . . .0358

Wards . . . . . . . . . . . . . . . . . . . . . . . . . . .0105

Yamaha . . . . . . . . . . . . . . . . . . . . . . . . . .0381

Cable Box

ABC . . . . . . . . . . . . . . . . . . .0030, 0034, 0035

Allegro . . . . . . . . . . . . . . . . . . . . .0180, 0342

Americast . . . . . . . . . . . . . . . . . . . . . . . .0926

Archer . . . . . . . . . . . . . . . . . . . . . .0180, 0824

BellSouth . . . . . . . . . . . . . . . . . . . . . . . .0926

Century . . . . . . . . . . . . . . . . . . . . . . . . .0180

Citizen . . . . . . . . . . . . . . . . . . . . .0180, 0342

Comtronics . . . . . . . . . . . . . . . . . . . . . . .0067

Contec . . . . . . . . . . . . . . . . . . . . . . . . . .0046

Emerson . . . . . . . . . . . . . . . . . . . . . . . . .0824

Everquest . . . . . . . . . . . . . . . . . . .0042, 0067

Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . .0427

Garrard . . . . . . . . . . . . . . . . . . . . . . . . .0180

Gemini . . . . . . . . . . . . . . . . . . . . . . . . . .0042

General Instrument . . . . . . . . . . . .0503, 0837

GoldStar . . . . . . . . . . . . . . . . . . . . .0067, 0171

Goodmind . . . . . . . . . . . . . . . . . . . . . . .0824

Hamlin . . . . . . . . . . . . .0047, 0036, 0286, 0061

Hytex . . . . . . . . . . . . . . . . . . . . . . . . . . .0034

Jasco . . . . . . . . . . . . . . . . . . .0042, 0180, 0342

Jerrold . . . . . . . . . . . . .0030, 0039, 0503, 0042,

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0837

Memorex . . . . . . . . . . . . . . . . . . . . . . . .0027

Motorola . . . . . . . . . . . . . . . . . . . . . . . . .1133

Movie Time . . . . . . . . . . . . . . . . . . . . . . .0090

NSC . . . . . . . . . . . . . . . . . . . . . . . . . . . .0090

Oak . . . . . . . . . . . . . . . . . . . . . . . .0046, 0034

Optimus . . . . . . . . . . . . . . . . . . . . . . . . .0048

Panasonic . . . . . . . . . . . . . . .0048, 0134, 0027

Paragon . . . . . . . . . . . . . . . . . . . . . . . . .0027

Philips . . . . . . . . . . . . . . . . . .0180, 0332, 0344

Pioneer . . . . . . . . . . . . . . . . .0171, 0560, 0904

Popular Mechanics . . . . . . . . . . . . . . . . . .0427

Pulsar . . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Quasar . . . . . . . . . . . . . . . . . . . . . . . . . .0027

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . . .0048

Radio Shack . . . . . . . . .0042, 0910, 0342, 0824

Recoton . . . . . . . . . . . . . . . . . . . . . . . . . .0427

Regal . . . . . . . . . . . . . . . . . . . . . . .0047, 0286

Runco . . . . . . . . . . . . . . . . . . . . . . . . . . .0027

SL Marx . . . . . . . . . . . . . . . . . . . . . . . . .0067

Samsung . . . . . . . . . . . . . . . . . . . . .0067, 0171

Scientific Atlanta . . . . . . . . . .0035, 0504, 0904

Signal . . . . . . . . . . . . . . . . . . . . . . .0042, 0067

Sprucer . . . . . . . . . . . . . . . . . . . . . . . . . .0048

Starcom . . . . . . . . . . . . . . . . . . . . .0030, 0042

Stargate . . . . . . . . . . . . . . . .0067, 0042, 0824

Starquest . . . . . . . . . . . . . . . . . . . . . . . . .0042

TV86 . . . . . . . . . . . . . . . . . . . . . . . . . . . .0090

Teleview . . . . . . . . . . . . . . . . . . . . . . . . . .0067

Tocom . . . . . . . . . . . . . . . . . . . . . . . . . .0039

Toshiba . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Tusa . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0042

Unika . . . . . . . . . . . . . . . . . . . . . . . . . . . .0180

United Artists . . . . . . . . . . . . . . . . . . . . .0034

Universal . . . . . . . . . . . . . . . . . . . .0180, 0218

Viewstar . . . . . . . . . . . . . . . . . . . . . . . . .0090

Zenith . . . . . . . . . . . . . . . . . .0027, 0552, 0926

Zentek . . . . . . . . . . . . . . . . . . . . . . . . . . .0427

Surround Sound Receiver

ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . .0558

Aiwa . . . . . . . . . . . . . . . . . . . . . . . . . . . .0148

Capetronic . . . . . . . . . . . . . . . . . . . . . . .0558

Carver . . . . . . . . . . . . . . . . .0069, 1116,1216

Casio . . . . . . . . . . . . . . . . . . . . . . . . . . . .0222

Clarinette . . . . . . . . . . . . . . . . . . . . . . . .0222

Denon . . . . . . . . . . . . . . . . . . . . . .1187, 1131

Fisher . . . . . . . . . . . . . . . . . . . . . . . . . . .0069

Garrard . . . . . . . . . . . . . . . . . . . . . . . . .0490

Harman/Kardon . . . . . . . . . . . . . . . . . . .0137

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0101

Kenwood . . . . . . . . . . .1054, 0069, 0213, 1340

. . . . . . . . . . . . . . . . . . . . . . . . . . .1596, 1597

Lloyd's . . . . . . . . . . . . . . . . . . . . . . . . . . .0222

MCS . . . . . . . . . . . . . . . . . . . . . . . . . . . .0066

Magnavox . . . . . . . . . . .0418, 1116, 0558, 1216

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0222

Marantz . . . . . . . . . . . . . . . .1116, 1216, 0066

Modulaire . . . . . . . . . . . . . . . . . . . . . . . .0222

Nakamichi . . . . . . . . . . . . . . . . . . . . . . . .0124

Onkyo . . . . . . . . . . . . . . . . . . . . . . . . . . .0162

Optimus . . . . . . . . . . . .1050, 0213, 0558, 0069

Panasonic . . . . . . . . . . . . . . . . . . . .0066, 1545

Penney . . . . . . . . . . . . . . . . . . . . . . . . . . .0222

Philips . . . . . . . . . . . . .1116, 1216, 1296, 0418

Pioneer . . . . . . . . . . . . . . . . .0177, 0558, 1050

Proscan . . . . . . . . . . . . . . . . . . . . . . . . .1281

Quasar . . . . . . . . . . . . . . . . . . . . . . . . . .0066

RCA . . . . . . . . . . . . . . . . . . .1281, 0558, 1050

Realistic . . . . . . . . . . . . . . . . . . . . . . . . . .0222

Sansui . . . . . . . . . . . . . . . . . . . . . . . . . . .1116

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . . . .0213

Sherwood . . . . . . . . . . . . . . . . . . . . . . . .0529

Sony . . . . . . . . . . . . . . . . . . .1185, 1085, 1285

Sunfire . . . . . . . . . . . . . . . . . . . . . . . . . .1340

Teac . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0490

Technics . . . . . . . . . . . .0066, 1335, 1545,1336

Thorens . . . . . . . . . . . . . . . . . . . . . . . . . .1216

Victor . . . . . . . . . . . . . . . . . . . . . . . . . . .0101

Yamaha . . . . . . . . . . . . . . . . .0203, 0213, 1203

Yorx . . . . . . . . . . . . . . . . . . . . . . . . . . . .0222

Satellite Receiver

AlphaStar . . . . . . . . . . . . . . . . . . . . . . . . .0799

Echostar . . . . . . . . . . . . . . . . . . . . .1032, 0802

Expressvu . . . . . . . . . . . . . . . . . . . . . . . .0802

GE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0593

General Instrument . . . . . . .0388, 0896, 0654

HTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0802

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . . .0846

Hughes Network Systems . . . . . . . . . . . .0776

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0802

Jerrold . . . . . . . . . . . . . . . . . . . . . .0388, 0654

Magnavox . . . . . . . . . . . . . . . . . . .0749, 0751

Memorex . . . . . . . . . . . . . . . . . . . . . . . . .0751

Next Level . . . . . . . . . . . . . . . . . . . . . . . .0896

Panasonic . . . . . . . . . . . . . . . . . . . . . . . .0728

Philips . . . . . . . . . . . . . . . . . .1103, 0749, 0751

Primestar . . . . . . . . . . . . . . . . . . . .0654, 0388

RCA . . . . . . . . . . . . . . .0593, 0170,0419, 0882

Radio Shack . . . . . . . . . . . . . . . . . . . . . . .0896

Samsung . . . . . . . . . . . . . . . . . . . . . . . . . .1136

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . . .0666

Star Choice . . . . . . . . . . . . . . . . . . . . . . .0896

Toshiba . . . . . . . . . . . . . . . . . . . . .0776, 0817

Uniden . . . . . . . . . . . . . . . . . . . . . .0751, 0749

Zenith . . . . . . . . . . . . . . . . . . . . . . . . . . .0883

VCR

Admiral . . . . . . . . . . . . . . . . . . . . .0075, 0236

Adventura . . . . . . . . . . . . . . . . . . . . . . . .0027

Aiko . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0305

Aiwa . . . . . . . . . . . . . . . . . . . . . . . .0027, 0064

Akai . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0068

America Action . . . . . . . . . . . . . . . . . . . .0305

American High . . . . . . . . . . . . . . . . . . . . .0062

Asha . . . . . . . . . . . . . . . . . . . . . . . . . . . .0267

Audiovox . . . . . . . . . . . . . . . . . . . . . . . .0064

Beaumark . . . . . . . . . . . . . . . . . . . . . . . .0267

Bell & Howell . . . . . . . . . . . . . . . . . . . . .0131

Broksonic . . . . .0148, 0211, 0029, 0236, 0506

CCE . . . . . . . . . . . . . . . . . . . . . . .0099, 0305

Calix . . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Canon . . . . . . . . . . . . . . . . . . . . . . . . . .0062

Carver . . . . . . . . . . . . . . . . . . . . . . . . . . .0108

Cineral . . . . . . . . . . . . . . . . . . . . . . . . . .0305

Citizen . . . . . . . . . . . . . . . . . . . . .0305, 0064

Colt . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Craig . . . . . . . . . .0064, 0099, 0074, 0267, 0298

Curtis Mathes . . . . . . .0062, 0068, 0087, 0189

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0787

Cybernex . . . . . . . . . . . . . . . . . . . . . . . .0267

Daewoo . . . . . . . . . . . . . . . . . . . . .0305, 0072

Denon . . . . . . . . . . . . . . . . . . . . . . . . . . .0069

Dynatech . . . . . . . . . . . . . . . . . . . . . . . . .0027

Electrohome . . . . . . . . . . . . . . . . . . . . . .0064

Electrophonic . . . . . . . . . . . . . . . . . . . . .0064

Emerex . . . . . . . . . . . . . . . . . . . . . . . . . .0059

Emerson . . . . . . . . . . .0211, 0029, 0236, 0305,

. . . . . . . . . . . . . . . . . .0148, 0506, 0027, 0064,

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0070

Fisher . . . . . . . . . . . . . . . . . . . . . .0074, 0131

Fuji . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0062

Funai . . . . . . . . . . . . . . . . . . . . . . . . . . . .0027

GE . . . . . . . . . . . . . . . .0062, 0087, 0075, 0267,

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0787

Garrard . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Go Video . . . . . . . . . . . . . . . . . . . .0459, 0553

GoldStar . . . . . . . . . . . . . . . . . . . . .0064, 0065

Gradiente . . . . . . . . . . . . . . . . . . . . . . . .0027

HI-Q . . . . . . . . . . . . . . . . . . . . . . . . . . . .0074

Harley Davidson . . . . . . . . . . . . . . . . . . .0027

Harman/Kardon . . . . . . . . . . . . . . .0065, 0108

Harwood . . . . . . . . . . . . . . . . . . . . . . . .0099

Hitachi . . . . . . . . . . . . . . . . .0069, 0027, 0068

Hughes Network Systems . . . . . . . . . . . .0069

JVC . . . . . . . . . . . . . . . . . . . . . . . . .0094, 0068

Jensen . . . . . . . . . . . . . . . . . . . . . . . . . . .0068

KEC . . . . . . . . . . . . . . . . . . . . . . .0064, 0305

KLH . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Kenwood . . . . . . . . . . . . . . .0068, 0094, 0065

Kodak . . . . . . . . . . . . . . . . . . . . . . .0062, 0064

LXI . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Lloyd's . . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Logik . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

MEI . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0062

MGA . . . . . . . . . . . . . . . . . . . . . . .0070, 0267

MGN Technology . . . . . . . . . . . . . . . . . . .0267

MTC . . . . . . . . . . . . . . . . . . . . . . .0027, 0267

Magnasonic . . . . . . . . . . . . . . . . . . . . . . .0305

Magnavox . . . . . .0062, 0108, 0027, 0066, 0176

Remote Control Direct Entry Codes for Accessory Devices

VCR (continued)

Magnin . . . . . . . . . . . . . . . . . . . . . . . . . . .0267

Marantz . . . . . . . . . . . . . . . . . . . . . .0108, 0062

Marta . . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Matsushita . . . . . . . . . . . . . . . . . . . .0062, 0189

Memorex . . . . . . . . . . .0131, 0074,0506, 0027

. . . . . . . . . . . . . . . . . . .0064,0075, 0062,0267

. . . . . . . . . . . . . . . . . . .0066, 0189,0236, 1189

Minolta . . . . . . . . . . . . . . . . . . . . . . . . . . .0069

Mitsubishi . . . . . . . . . . . . . . . .0070, 0075, 0094

Motorola . . . . . . . . . . . . . . . . . . . . .0062, 0075

Multitech . . . . . . . . . . . . . . . . . . . . .0027, 0099

NEC . . . . . . . . . . . . . . .0065, 0068, 0094, 0131

Nikko . . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Noblex . . . . . . . . . . . . . . . . . . . . . . . . . . .0267

Olympus . . . . . . . . . . . . . . . . . . . . . . . . . .0062

Optimus . . . . . . . . . . . .0189, 1189, 0075,0064,

. . . . . . . . . . . . . . . . . . . . . . . . . . . .0131, 0459

Orion . . . . . . . . . . . . .0506, 0029, 0211, 0236

Panasonic . . . . . . . . . . .0062, 0189,1189, 0643

Penney . . . . . . . . .0062, 0267, 0064,0069, 0065

Pentax . . . . . . . . . . . . . . . . . . . . . . . . . . .0069

Philco . . . . . . . . . . . . . . . . . . .0062, 0236, 0506

Philips . . . . . . . . . . . . . . . . . .0108, 0062, 0645

Pilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Pioneer . . . . . . . . . . . . . . . . . . . . . . . . . . .0094

Polk Audio . . . . . . . . . . . . . . . . . . . . . . . .0108

Profitronic . . . . . . . . . . . . . . . . . . . . . . . .0267

Proscan . . . . . . . . . . . . . . . . . . . . . .0087, 0787

Protec . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Pulsar . . . . . . . . . . . . . . . . . . . . . . . . . . . .0066

Quasar . . . . . . . . . . . . . . . . . .0062, 0189, 1189

RCA . . . . . . . . . . . . . .0087, 0176, 0069, 0062,

. . . . . . . . . . . . . . . . . . . . . . .0075, 0267,0787

Radio Shack . . . . . . . . . . . . . . . . . . . . . . .0027

Radix . . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Randex . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Realistic . . . . . . . . . . . .0027,0131, 0074, 0075,

. . . . . . . . . . . . . . . . . . . . . . . . . . . .0064, 0062

ReplayTV . . . . . . . . . . . . . . . . . . . . .0641, 0643

Runco . . . . . . . . . . . . . . . . . . . . . . . . . . . .0066

STS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0069

Samsung . . . . . . . . . . . . . . . . . . . . .0072, 0267

Sanky . . . . . . . . . . . . . . . . . . . . . . . .0066, 0075

Sansui . . . . .0068, 0506, 0027, 0094,0236, 0298

Sanyo . . . . . . . . . . . . . . . . . . .0074, 0131, 0267

Scott . . . . . . . . . . . . . . .0211, 0148, 0070, 0072

Sears . . . . . . . . . . . . . .0064, 0069, 0027, 0062,

. . . . . . . . . . . . . . . . . . . . . . . . . . . .0074, 0131

Semp . . . . . . . . . . . . . . . . . . . . . . . . . . . .0072

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . . . .0075

Shintom . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Shogun . . . . . . . . . . . . . . . . . . . . . . . . . . .0267

Singer . . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Sony . . . . . . . . . . . . . . .0059, 0027, 0062, 0063

Sylvania . . . . . . . . . . . . .0062, 0108,0027, 0070

Symphonic . . . . . . . . . . . . . . . . . . . . . . . .0027

TMK . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0267

Tatung . . . . . . . . . . . . . . . . . . . . . . . . . . .0068

Teac . . . . . . . . . . . . . . . . . . . . . . . .0027, 0068

Technics . . . . . . . . . . . . . . . . . . . . .0062, 0189

Teknika . . . . . . . . . . . . . . . . . .0027, 0062, 0064

Thomas . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Tivo . . . . . . . . . . . . . . . . . . . . . . . . .0645, 0663

Toshiba . . . . . . . . . . . . . . . . . . . . . .0072, 0070

Totevision . . . . . . . . . . . . . . . . . . . .0064, 0267

Unitech . . . . . . . . . . . . . . . . . . . . . . . . . .0267

Vector . . . . . . . . . . . . . . . . . . . . . . . . . . .0072

Vector Research . . . . . . . . . . . . . . . . . . . .0065

Video Concepts . . . . . . . . . . . . . . . . . . . .0072

Videosonic . . . . . . . . . . . . . . . . . . . . . . . .0267

Wards . . . . . . . . . . . . .0062, 0087,0027, 0074,

. . . . . . . . . . . . . . . . . . .0267, 0069,0075, 0099

. . . . . . . . . . . . . . . . . . . . . . .0108, 0176,0787

White Westinghouse . . . . . . .0099, 0305, 0236

XR-1000 . . . . . . . . . . . . . . . .0099, 0027, 0062

Yamaha . . . . . . . . . . . . . . . . . . . . . . . . . . .0065

Zenith . . . . . . . . . . . . . .0066, 0027, 0236, 0506

Digital Video Disc (DVD)

Apex . . . . . . . . . . . . . . . . . . . . . . . . . . . .0699

Denon . . . . . . . . . . . . . . . . . . . . . . . . . . .0517

Fisher . . . . . . . . . . . . . . . . . . . . . . . . . . . .0697

GE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0549

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . . .0691

Hiteker . . . . . . . . . . . . . . . . . . . . . . . . . . .0699

JVC . . . . . . . . . . . . . . . . . . . . . . . . .0650,0585

Kenwood . . . . . . . . . . . . . . . . . . . .0709,0561

Konka . . . . . . . . . . . . . .0746, 0738, 0747,0748

Magnavox . . . . . . . . . . . . . . . . . . . .0530, 0702

Marantz . . . . . . . . . . . . . . . . . . . . . . . . . .0566

Mitsubishi . . . . . . . . . . . . . . . . . . . . . . . . .0548

Onkyo . . . . . . . . . . . . . . . . . . . . . . . . . . .0530

Optimus . . . . . . . . . . . . . . . . . . . . . . . . . .0598

Oritron . . . . . . . . . . . . . . . . . . . . . . . . . .0678

Panasonic . . . . . . . . . . . . . . . . . . . .0517, 0659

Philips . . . . . . . . . . . . . . . . . . . . . . .0566, 0530

Pioneer . . . . . . . . . . . . . . . . .0598, 0552, 0659

Proscan . . . . . . . . . . . . . . . . . . . . . . . . . .0549

RCA . . . . . . . . . . . . . . . . . . . . . . . .0549, 0598

Samsung . . . . . . . . . . . . . . . . . . . . . . . . .0600

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . . . .0657

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0560

Technics . . . . . . . . . . . . . . . . . . . . . . . . . .0517

Theta Digita . . . . . . . . . . . . . . . . . . . . . . .0598

Toshiba . . . . . . . . . . . . . . . . . . . . . . . . . .0530

Yamaha . . . . . . . . . . . . . . . . . . . . . .0517, 0572

Zenith . . . . . . . . . . . . . . . . . . . . . .0618, 0530

Please make these simple checks before calling service.These tips may save you time and money since charges for television installation and adjustments of customer controls are not covered under your warranty.

Before Calling Service

Items to Check and Actions to follow

• This may be caused by obstruction to the antenna due to high rise buildings or hills. Using a highly directional antenna may improve the picture.

• Check that the receiver’s AC power cord is plugged into the mains socket.

• Unplug the television, wait for 60 seconds. Then re-insert plug into the mains socket and turn on the television again.

• Check antenna connections at the rear of the receiver to see if it is properly connected to the receiver.

•Possible broadcast station trouble. Try another channel.

• Adjust the contrast and brightness settings.Try another auto picture setting.

• Check the Closed Captions control. Some TEXT modes could block the screen.

• Switch your VGA-source to a correct display mode.

• Check the Audio only option.

•Your TV has a protective mode in case there is too much heat build-up. Check the clearance around the vents of the device to be certain there are no blocking walls or cabinets which would limit the air flow.

• Increase the VOLUME.

• Check that the receiver/monitor is not muted, press the ¬ button on the remote control.

• When no signal is detected, the receiver automatically switches off the sound. This is proper operation and does not indicate a malfunction.

• Has the center mode been switched off?

• Adjust the contrast, color, tint and brightness setting.Try another auto picture setting.

• Check the VGA connection.

• Check the antenna connection.

• Check whether the batteries are working. Replace if necessary.

• Clean the remote control sensor lens on the monitor.

• Operating range between receiver and the remote control should not be more than 240”.

•You can still use the buttons at the front of your receiver.

• Check if you have selected the correct VGA mode in your PC

• The infrared signals of the screen may influence the reception sensibility of other peripherals. Solution: Replace the batteries of the remote control of other devices. Eg. keep away a wireless headphone from within a radius of 50”.

Symptoms

“Ghost” or double images

No power

No picture

No picture and power switched on

No sound

Good sound but poor color or no picture

Poor picture

Snowish picture and noise

Television not responding to remote control

No stable or not synchronized VGA picture

Control of accessory devices

If your problem is not solved Telephone number Philips Customer Care Center Turn your TV receiver off and then on again once. 800-531-0039 Never attempt to repair a defective TV yourself.

Check with your dealer or call a TV technician.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio or television technician for help.

Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Philips Consumer Electronics may void the user’s authority to operate the equipment.

Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canadian notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Avis Canadien Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Regulatory Notices - Federal Communications Commission Notice

Care of the screen

Clean the TV with a slightly damp soft cloth. Do not use abrasive solvent as it can damage the TV screen.

End of life directives

We are paying a lot of attention to using environmentally-friendly production methods.Your new TV contains materials which can be recycled and reused. At the end of its life specialized companies can dismantle the discarded TV to concentrate the reusable materials and to

minimize the amount of materials that must be disposed. Please ensure that you dispose of your old TV according to local regulations.

How to dispose of batteries?

The batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless in many areas batteries may not be disposed of with your household waste. Please ensure you dispose of batteries according to local regulations.

TV receiver box with speakerless monitor

a active control,

alt audio, 11 audio and video control buttons, 20 auto picture, 10 autoprogramming, 7 auto sound, 11

b backlighting, 5

bass, 11 buttons in front of the receiver box, 6

c camera/camcorder, 19

channel list, 12 channel lock, 12 channel selection, 7 closed captions, 12

d display information, 6

Dual Screen/PIP/Multipip, 15 DVD, 17

f freeze format, 8 h headphone, 19 m menu language, 7

movie ratings, 14 mute, 5

p picture adjustments, 10

picture format, 5 Pixel Plus, 10

r recording, 21

remote control, 5-6 reset AV settings, 8

s satellite receiver, 17

set/change PIN, 9 sleeptimer, 12 sound adjustments, 11 source select, 19 store TV channels, 7 surf, 8 S-VHS, 21

t treble, 11

turn TV receiver on, 4 TV ratings, 13

v VCR - DVD+RW recorder, 16

volume, 5

z zoom, 12

Miscellaneous

. Ambient temperature: + 5~ + 40°C . Mains: 50/60 Hz Auto Voltage ranging from

95 V to 264 V .Power consumption: around 35 W . Standby consumption: 2 W .Weight (excl. packaging): 8,82 lbs . Dimensions (wxhxd):

Receiver: 17.2 x 4.2 x 13.0 in.

Tips

Index



★



•



Tampa/W Florida

★

•

San Francisco/Metro Area

•

¥

•

Philadelphia/S New Jersey



•

Atlanta/N Georgia

•

Houston

Knoxville/E Tennessee

Charlotte

Los Angeles★

★

Indicates In-Home Service Only



Milwaukee: call Chicago Cincinnati and Columbus: call Cleveland Nashville and Chattanooga: call Knoxville Washington/Baltimore: call Philadelphia Charlotte: call Atlanta All Florida locations: call Tampa Los Angeles: call San Francisco

Toll-free numbers provided on the next page

•Indicates In-Home/Carry-In Service



Toll-free numbers provided on the next page



★

Milwaukee

Nashville

★



Chattanooga

★

Cincinnati

Orlando

Ft. Myers/SW Florida

Miami/SE Florida

•

Dallas-Fort Worth

★

Washington/Baltimore



★

Cleveland/N Ohio

★

Columbus

•

Chicago

•

Detroit/Toledo

•

Note: If you reside in one of our Philips Factory Service Branch areas (see directory on back), you can contact the nearest Service Branch to obtain efficient and expedient repair for your product. If your product is In-Warranty, you should have proof-of-purchase to ensure No Charge Service. For Out-of-Warranty service, call the location nearest you.

Nota: Si vous résidez dans une des régions desservies par une succursale de service après vente du fabricant Philips (voir liste cidessous), vous pourrez contacter la branche de service après vente la plus près de chez vous pour obtenir un service après vente rapide et efficace. Si le produit est sous garantie, il suffira de présenter une preuve d`achat pour bénéficier d'un service sans frais. Pour les produits non couverts par la garantie, contactez le center le plus près de chez vous.

Nota: Si Ud. reside en una de nuestras zonas para sucursales Philips de servicio al de fábrica (ver directorio más abajo), Ud. puede comunicarse con la sucursal de servicio más cercana para obtener una reparación oportuna y eficaz de su producto. Si su producto está todavía bajo garantía, Ud. debe presentar comprobante de compra para no ocasionar ningunos cargos por servicio. Para servicio después del vencimiento de la garantía, llame al lugar más cercano de los abajo indicados.

FACTORY SERVICE LOCATIONS

In Canada

How you can obtain efficient and expedient carry-in, mail-in, or in-home service for your product Please contact Philips at 1-800-661-6162 (French speaking)

1-800-531-0039 (English or Spanish speaking)

Au Canada

Comment obtenir le service après-vente pour les produits apportés ou envoyés par la poste à notre center de service ou le service à domicile Veuillez contacter philips á: 1-800-661-6162 (Francophone)

1-800-531-0039 (Anglais ou Espagnol)

En el Canadá

Cómo recibir servicio efficiente para su producto, en persona, por correo o a domicillo Favor de comunicarse con Philips al: 1-800-661-6162 (Francés)

1-800-531-0039 (Inglés o Español)

Qualiy service is as close as your telephone! Simply look over the list below for the number of a Factory Service Center near you. Your product will receive efficient and expedient carry-in, mail-in, or in-home service, and you will receive peace of mind, knowing youru product is being given the expert attetin of Philips’ Factory Service.

Comment obtenir notre service après vente rapide et efficace soit par courrier, à domicile, ou en se présentant à un centre de service Philips. Plus de 600 centres de réception de produits à réparer à travers le pays: contacter le centre de service aux consommateurs le plus proche pour savoir l’emplacement de ces dépôts dans un rayon de 50 à 75 miles (80 km à 120 km) du centre de service local.

Cómo obtener un servicio oportuno y eficiente por correo, en casa o en persona para su producto a través de un centro Philips de servicio. Mas de 600 sitios por todo el país para la recepción de productos necesitados de reparaciones: comunicarse con el centro de servicio de fabrica mas cercano para estos lugares dentro de un radio de 80 a 120 km (50 a 75 millas) del centro de servicio local.

ATLANTA

Philips Factory Service 550 Franklin Road., Suite F Marietta, GA 30067 800-273-1501

TAMPA

Philips Factory Service 1911 US Highway 301 North Tampa, FL 33619 800-442-2027

SAN FRANCISCO

Philips Factory Service 681 East Brokaw Rd. San Jose, CA 95112 800-300-9103

HOUSTON

Philips Factory Service 1110 N. Post Oak Rd., Suite 100 Houston,TX 77055 800-952-3254

CLEVELAND

Philips Factory Service 950 Keynote Circle Brooklyn Heights, OH 44131 800-331-7037

DETROIT

Philips Factory 25173 Dequindre Madison Heights, MI 48071 800-438-1398

DALLAS-FORT WORTH

Philips Factory Service 415 N. Main Street, #107 Euless,TX 76040 800-952-3254

CHICAGO

Philips Factory Service 1279 W. Hamilton Pkwy. Itasca, IL 60143 800-531-2922

KNOXVILLE

Philips Factory Service 6700 D Papermill Rd. Knoxville,TN 37919 800-821-1767

PHILADELPHIA

Philips Factory Service 352 Dunks Ferry Rd. Bensalem, PA 19020 800-847-9320

FACTORY SERVICE LOCATIONS

WHO IS COVERED?

You must have proof of purchase to receive warranty service.A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For one year thereafter, all parts will be repaired or replaced and labor is free.After one year from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges. All parts, including repaired and replaced parts, are covered only for the original warranty period.When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

•product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.

•reception problems caused by signal conditions or cable or antenna systems outside the unit.

•a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized,or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.This includes, but is not limited to,prerecorded material, whether copyrighted or not copyrighted.)

•a product used for commercial or institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP ...

Please keep your sales receipt or other document showing proof of purchase.Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE ...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE....

Repair must be performed by an authorized service center or a factory service center. If you do not live near a factory service center, contact your dealer. If your dealer is an authorized service center, he will arrange repair. If your dealer is not an authorized service center he will direct you to the authorized service center engaged by him to service the products he sells.

(In U.S.A., Puerto Rico and U.S.Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

IF YOU HAVE QUESTIONS IN CANADA

Please contact Philips at:

1-800-661-6162 (French speaking) 1-800-363-7278 (English speaking)

REMEMBER...

Please record the model and serial numbers found on the product below.Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

SERIAL # _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

LIMITED WARRANTY

One Year Free Labor

One Year Free Service on Parts

Philips FTR9965/17SB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
