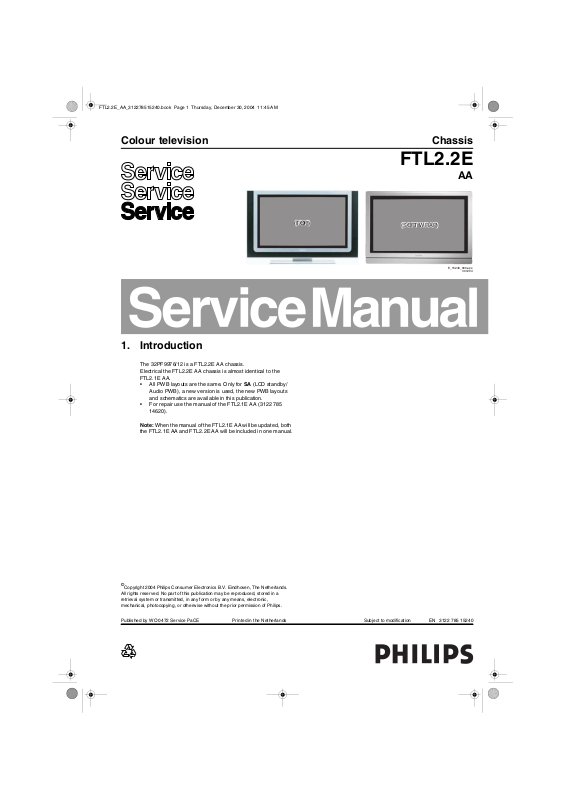

Colour television Chassis
FTL2.2E
AA
1. Introduction
The 32PF9976/12 is a FTL2.2E AA chassis.
Electrical the FTL2.2E AA chassis is almost identical to the
FTL2.1E AA.
• All PWB layouts are the same. Only for SA (LCD standby/
Audio PWB), a new version is used, the new PWB layouts
and schematics are available in this publication.
• For repair use the manual of the FTL2.1E AA (3122 785
14620).
(TOP)
(SOFT WRAP)
(SOFT WRAP)
E_15240_000.eps
301204
Note: When the manual of the FTL2.1E AA will be updated, both
the FTL2.1E AA and FTL2.2E AA will be included in one manual.
©
Copyright 2004 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Published by WO 0472 Service PaCE Printed in the Netherlands Subject to modification EN 3122 785 15240
![](/html/0a/0ae2/0ae2b3cb8cd3a9a62e5fdcae300ccf8be5b0de5b770b78e3e4c3bd297d7b4401/bg2.png)
EN 2 FTL2.2E AA2.
Delta FTL2.2 vs. FTL2.1
2. Delta FTL2.2 vs. FTL2.1
The differences of the FTL2.2E chassis with respect to the
FTL2.1E chassis are listed below.
2.1 Option codes
Table 2-1 Option codes of the 32PF9976/12
46436 40992 49472 04096
04118 01537 16448 49601
2.2 Mechanical
The main difference between the FTL2.1 and FTL2.2 is the
mechanical styling. The FTL2.1 uses a “Top” styling, the
FTL2.2 uses a “Soft Wrap” styling. See photo above.
2.3 DFU (Directions For Use)
Model specific DFU’s can be downloaded from the following
website:
http://www.philips.com/support
2.4 Commercial specifications
Table 2-2 Commercial specifications
FTL2.1 FTL2.2
Ambi-light No Ambi-light
PixelPlus II PixelPlus
Sound 3*15W Sound: 2*15W
5 speakers 4 speakers
Full Dual Window No Full Dual Window
2.5 Spare Parts
In the update manual the complete Spare Part list will be
available. At this moment, a model specific spare part list, can
be downloaded from the following website:
http://www.atyourservice.ce.philips.com
![](/html/0a/0ae2/0ae2b3cb8cd3a9a62e5fdcae300ccf8be5b0de5b770b78e3e4c3bd297d7b4401/bg3.png)
Circuit Diagrams and PWB Layouts
3. Circuit Diagrams and PWB Layouts
LCD Standby Audio Panel: Connections
1234
CONNECTIONS
A
B
C
D
E
TO
DISPLAY
PH-B
GND screw
1314
1
2
3
4
5
6
7
8
9
10
0001
1
GND-SSP
GND-SSP
TO
DISPLAY
1315
1
2
3
4
5
6
7
8
9
10
PH-B
TO
DISPLAY
1316
1
2
3
4
5
6
7
8
9
10
11
12
B12P-PH-K
GND-SSP
TO
DISPLAY
1317
1
2
3
4
5
6
7
8
9
10
11
12
B12P-PH-K
1318
1
2
3
4
5
6
B6B-PH-K
GND-SSP
3FTL2.2E AA 3.
56
+5V_SW
9008
9002
F137
RES
+5V_SW
RES
9009
DIM_CONTROL
F138
RES
9003
GND-SSP
DIM_CONTROL
9V_STBY_SW
ON_OFF
SA1 (3x)
GND-SSP
SA1
ON_OFF
SA1 (3x)
+5V2-RELAY-IO2
+8V6
+12V
+5V_SW
GND-SSP
F114
VTUN
+12V
9V_STBY
DIM_CONTROL
SA1
ON_OFF
SA1 (3x)
DIM_CONTROL
SA1
POR
SA2
ON_OFF
SA1 (3x)
+5V_SW
STANDBY
SA2
PROT_AUDIOSUPPLY
SA2
F113
F115
GND-SSP
9113
F121
F139
TO 1M03
F131
F109
+5V2
9001
GND-SSP
F136
F117
F135
F111
F122
F132
1
2
3
4
5
6
7
8
9
10
OR
1M46
B11B-PH-K
78910
TO
DISPLAY
1313
16
15
14
13
PH-B
12
11
10
9
8
7
6
5
4
3
2
1
440091-7
1M03
SSB EMG
SSB JAGUARTO 1M03
1
2
3
4
TO 1M46 SSB EMG
5
6
7
8
TO 1M46 SSB JAGUAR
9
10
11
F104
F105
F106
F107
F119
GND-SSP
OR
F102
F120
TO
DISPLAY
1312
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
440091-7
TO 1303
LCD SUPPLY
TO 1320
LCD SUPPLY
42"
9004
5018
68u
RES
9010
9005
5019
68u
RES
9011
42"
1303
1
2
3
4
B4P-VH
1320
1
2
3
B3P-VH
F103
GND-SSP
3190
GND-SSP
1K2
F110
9006
3191
+24V_2
9007
1K2
1M10
B4B-PH-K
1304
1
2
3
4
B4P-VH
LCD SUPPLY
1309
1
2
3
B3P-VH
1K2
3192
TO
1
2
3
4
AMBI LIGHT
F101
9018
TO 1304
A2
30"/37"/42"
F112
GND-SSP
+12V_+24V
F108
TO 1304
AS1
LC04
TO 1309
A2
LCD SUPPLY
30"/37"/42"
TO 1309
AS2
LC04
+12V_A
A
B
C
D
E
0001 E1
1303 A9
1304 B9
1309 D9
1312 A8
1313 A7
1314 B1
1315 B2
1316 A3
1317 A4
1318 A5
1320 B9
1M03 B7
1M10 A9
1M46 D7
3190 D9
3191 D9
3192 D9
5018 C8
5019 D8
9001 E6
9002 B5
9003 B5
9004 C8
9005 D8
9006 C9
9007 C9
9008 A5
9009 A5
9010 C8
9011 D8
9018 B10
9113 B6
F101 B10
F102 A8
F103 A9
F104 A7
F105 A7
F106 A7
F107 B7
F108 B10
F109 E6
F110 B9
F111 B6
F112 D10
F113 B6
F114 E6
F115 B6
F117 E6
F119 B7
F120 C8
F121 B6
F122 C6
F131 D6
F132 E6
F135 D6
F136 D6
F137 A5
F138 B5
F139 C6
