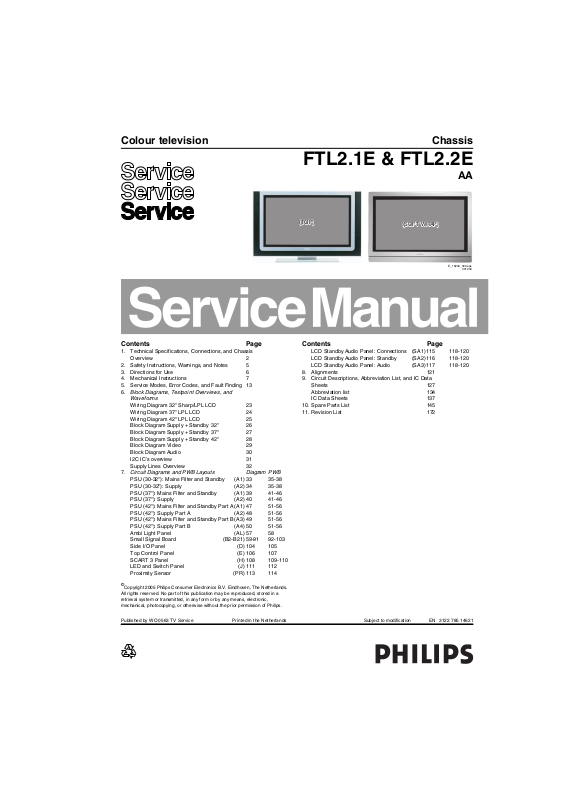

Philips FTL2.1, FTL2.2E Service Manual

Colour television Chassis

(TOP)

(SOFT WRAP)

FTL2.1E & FTL2.2E

(TOP)

(SOFT WRAP)

Contents Page Contents Page

1. Technical Specifications, Connections, and Chassis Overview 2

2. Safety Instructions, Warnings, and Notes 5

3. Directions for Use 6

4. Mechanical Instructions 7

5. Service Modes, Error Codes, and Fault Finding 13

6. Block Diagrams, Testpoint Overviews, and

Waveforms

Wiring Diagram 32" Sharp/LPL LCD 23 Wiring Diagram 37" LPL LCD 24 Wiring Diagram 42" LPL LCD 25 Block Diagram Supply + Standby 32" 26 Block Diagram Supply + Standby 37" 27 Block Diagram Supply + Standby 42" 28 Block Diagram Video 29 Block Diagram Audio 30 I2C IC’s overview 31 Supply Lines Overview 32

7. Circuit Diagrams and PWB Layouts Diagram PWB PSU (30-32"): Mains Filter and Standby (A1) 33 35-38 PSU (30-32"): Supply (A2) 34 35-38 PSU (37"): Mains Filter and Standby (A1) 39 41-46 PSU (37"): Supply (A2) 40 41-46 PSU (42"): Mains Filter and Standby Part A (A1) 47 51-56 PSU (42"): Supply Part A (A2) 48 51-56 PSU (42"): Mains Filter and Standby Part B (A3) 49 51-56 PSU (42"): Supply Part B (A4) 50 51-56 Ambi Light Panel (AL) 57 58 Small Signal Board (B2-B21) 59-91 92-103 Side I/O Panel (D) 104 105 Top Control Panel (E) 106 107 SCART 3 Panel (H) 108 109-110 LED and Switch Panel (J) 111 112 Proximity Sensor (PR) 113 114

Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.

LCD Standby Audio Panel: Connections (SA1) 115 118-120 LCD Standby Audio Panel: Standby (SA2) 116 118-120 LCD Standby Audio Panel: Audio (SA3) 117 118-120

8. Alignments 121

9. Circuit Descriptions, Abbreviation List, and IC Data Sheets 127 Abbreviation list 134 IC Data Sheets 137

10. Spare Parts List 145

11. Revision List 172

E_15240_000.eps

301204

Published by WO 0563 TV Service Printed in the Netherlands Subject to modification EN 3122 785 14621

EN 2 FTL2.1, FTL2.2E AA1.

Technical Specifications, Connections, and Chassis Overview

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:

1.1 Technical Specifications

1.2 Connections

1.3 Chassis Overview

Note: Figures below can deviate slightly from the actual situation, due to the different set executions.

1.1 Technical Specifications

1.1.1 Vision

Display type : LCD, VA Screen size : 32” (82 cm), 16:9

: 37” (94 cm), 16:9

: 42” (107 cm), 16:9 Resolution (HxV pixels) : 1366(*3)x768 WXGA Contrast ratio : 800:1 (32-inch)

Light output (cd/m

) : 450 (32-inch)

LCD response time (ms) : 12 Viewing angle (HxV degrees) : 170 (32-inch)

Tuning system : PLL Colour systems : PAL B/G, D/K, I

Supported computer formats : VGA (640x480)

Supported video formats : 640x480i - 1fH

AV (playback only) : NTSC, PAL, SECAM Channel selections : 100 presets

1.1.2 Sound

Sound systems : AV stereo,

Maximum power (W

) : 2 x 15 (int.)

RMS

1.1.3 Miscellaneous

: 800:1 (37-inch)

: 500:1 (42-inch)

: 450 (37-inch)

: 400 (42-inch)

: 176 (37-inch)

: 176 (42-inch)

: SECAM B/G, D/K, L/L’

: SVGA (800x600)

: XVGA (1024x768)

: WXGA (1280x768)

: 720x576i - 1fH

: 640x480p - 2fH

: 720x576p - 2fH

: 1920x1080i - 2fH

: 1280x720p - 3fH

: UVSH

:FM/FM B/G

: NICAM B/G, D/K, I

1.2 Connections

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1.2.1 Side I/O

SIDE I/O

R AUDIO L

CVBS

SVHS

E_14620_022.eps

050404

Figure 1-1 Side I/O connections

Headphone (Output)

- Headphone 32 - 600 ohm / 10 mW ot

Cinch: Video CVBS - In, Audio - In

Rd - Audio R 0.5 V Wh - Audio L 0.5 V Ye -Video CVBS 1 V

SVHS (Hosiden): Video Y/C - In

1 -Ground Y Gnd H 2 -Ground C Gnd H 3 -Video Y 1 V 4 -Video C 0.3 V

1.2.2 Rear Connections

CENTRE

RLR

MAINS

(PLASMA SETS)

AERIAL IN EXT2 EXT1

SUBW

OUT

Figure 1-2 Rear connections

Aerial - In

- IEC-type Coax, 75 ohm D

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

/ 75 ohm jq

/ 75 ohm j

P / 75 ohm j

SERVICE

AUDIO

DVI

AUDIO OUT

EXT3

MAINS

(LCD SETS)

E_14620_023.eps

170604

Mains voltage (V Mains frequency : 50 / 60 Hz

) : 220 - 240

Ambient temperature (°C) : +5 to +40 Maximum humidity (R.H>) : 90%

Power consumption

- Normal operation (W) : 185 (32-inch)

: 200 (37-inch)

: 240 (42-inch)

- Stand-by (W) : < 2

Technical Specifications, Connections, and Chassis Overview

EN 3FTL2.1, FTL2.2E AA 1.

SCART2: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out

E_06532_001.eps

050404

Figure 1-3 SCART connector

1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V 4 -Ground Audio Gnd H

/ 1 kohm k

RMS

/ 10 kohm j

RMS

/ 1 kohm k

RMS

5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue/C-out 0.7 V 8 -Function Select 0 - 2 V: INT

/ 10 kohm j

RMS

/ 75 ohm jk

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j 9 -Ground Green Gnd H 10 - Easylink P50 0 - 5 V / 4.7 kohm jk 11 - Video Green 0.7 V 12 - n.c.

/ 75 ohm j

13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V

/ 75 ohm j

16 - Status/FBL 0 - 0.4 V: INT

1 - 3 V: EXT / 75 ohm j 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V

/ 75 ohm k

/ 75 ohm j

21 - Shield Gnd H

SCART1: Video RGB - In, CVBS - In/Out, Audio - In/Out

1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V 4 -Ground Audio Gnd H

/ 1 kohm k

RMS

/ 10 kohm j

RMS

/ 1 kohm k

RMS

5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue 0.7 V 8 -Function Select 0 - 2 V: INT

/ 10 kohm j

RMS

/ 75 ohm jk

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j 9 -Ground Green Gnd H 10 - Easylink P50 0 - 5 V / 4.7 kohm jk 11 - Video Green 0.7 V 12 - n.c.

/ 75 ohm j

13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red 0.7 V

/ 75 ohm j

16 - Status/FBL 0 - 0.4 V: INT

1 - 3 V: EXT / 75 ohm j 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS 1 V

/ 75 ohm k

/ 75 ohm j

21 - Shield Gnd H

Cinch: Sub woofer - Out, Centre - In

Bu -Centre 0.5 V Bk - Sub woofer 0.5 V

/ 10 kohm jq

RMS

/ 10 kohm kq

RMS

Cinch: Audio - Out

Rd - Audio - R 0.5 V Wh - Audio - L 0.5 V

/ 10 kohm kq

RMS

/ 10 kohm kq

RMS

DVI-I: Digital/Analogue Video - In

18 916

C1 C2

C3 C4

E_06532_004.eps

050404

Figure 1-4 DVI-I connector

1-D2- j 2-D2+ j 3 -Shield Gnd H 4-D4- j 5-D4+ j 6 -DDC_SCL DDC clock k 7 -DDC_SDA DDC data jk 8 - V-sync 0 - 5 V j 9-D1- j 10 - D1+ j 11 - Shield Gnd H 12 - D3- j 13 - D3+ j 14 - +5V j 15 - Ground Gnd H 16 - HPD Hot Plug Detect j 17 - D0- j 18 - D0+ j 19 - Shield Gnd H 20 - D5- j 21 - D5+ j 22 - Shield Gnd H 23 - CLK+ j 24 - CLK- j C1 - Video Red 0.7 V C2 - Video Green 0.7 V C3 - Video Blue 0.7 V

/ 75 ohm j

C4 - H-sync 0 - 5 V j C5 - Ground Gnd H

Service connector (ComPair)

1 - SDA-S I 2 - SCL-S I

C Data (0 - 5 V) jk

C Clock (0 - 5 V) j

3 - Ground Gnd H

SCART3: Video CVBS - In, Audio - In

1-n.c. 2 - Audio R 0.5 V

/ 10 kohm j

RMS

3-n.c. 4 - Ground Audio Gnd H 5 - Ground Blue Gnd H 6 - Audio L 0.5 V 7-n.c.

/ 10 kohm j

RMS

8 - Function Select 0 - 2 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j

9 - Ground Green Gnd H 10 - n.c. 11 - n.c. 12 - n.c. 13 - Ground Red Gnd H 14 - Ground Data Gnd H 15 - n.c. 16 - n.c. 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - n.c. 20 - Video CVBS 1 V 21 - Shield Gnd H

/ 75 ohm j

Cinch: DVI Audio - In

Rd - Audio - R 0.5 V Wh - Audio - L 0.5 V

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

EN 4 FTL2.1, FTL2.2E AA1.

1.3 Chassis Overview

Technical Specifications, Connections, and Chassis Overview

AMBI LIGHT PANEL

STANDBY SUPPLY / AUDIO PANEL

LED + SWITCH PANEL

SSP PANEL

Figure 1-5 PWB locations (FTL2.1 “Top” model)

TOP CONTROL PANEL

MAIN SUPPLY PANEL

SIDE IO PANEL

PROXIMITY SENSOR PANEL

SCART3 / SIDE I/O (optional)

PA NE L

E_14620_163.eps

ASA

050105

AMBI LIGHT PANEL

(OPTIONAL)

STANDBY SUPPLY/

AUDIO PANEL

SIDE CONTROL PANEL

SMALL SIGNAL

PA NE L

LED PANEL

Figure 1-6 PWB locations (FTL2.2 “Wrap” model)

MAIN SUPPLY

PA NE L

SIDE I/O PANEL

SCART3 PANEL

E_14620_167.eps

310105

Safety Instructions, Warnings, and Notes

2. Safety Instructions, Warnings, and Notes

EN 5FTL2.1, FTL2.2E AA 2.

Index of this chapter:

2.1 Safety Instructions

2.2 Warnings

2.3 Notes

2.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains (AC Power) via an isolation

transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,

only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the

mounted cable clamps.

• Check the insulation of the Mains (AC Power) lead for

external damage.

• Check the strain relief of the Mains (AC Power) cord for

proper function.

• Check the electrical DC resistance between the Mains (AC

Power) plug and the secondary side (only for sets that have a Mains (AC Power) isolated power supply):

1. Unplug the Mains (AC Power) cord and connect a wire between the two pins of the Mains (AC Power) plug.

2. Set the Mains (AC Power) switch to the "on" position (keep the Mains (AC Power) cord unplugged!).

3. Measure the resistance value between the pins of the Mains (AC Power) plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 Mohm and 12 Mohm.

4. Switch "off" the set, and remove the wire between the two pins of the Mains (AC Power) plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

2.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential. Available ESD protection equipment: – Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable) 4822 310 10671.

– Wristband tester 4822 344 13999.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched "on".

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

2.3 Notes

2.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the

Service Default Mode (see chapter 5) with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or

61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages

with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

• The semiconductors indicated in the circuit diagram and in the parts lists, are interchangeable per position with the semiconductors in the unit, irrespective of the type indication on these semiconductors.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the “double-D symbol”, are trademarks of Dolby Laboratories.

2.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 kohm).

• Resistor values with no multiplier may be indicated with either an "E" or an "R" (e.g. 220E or 220R indicates 220 ohm).

• All capacitor values are given in micro-farads (µ= x10 nano-farads (n= x10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An "asterisk" (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed in the Spare Parts List. Therefore, always check this list when there is any doubt.

2.3.3 Rework on BGA (Ball Grid Array) ICs

General

Although (LF)BGA assembly yields are very high, there may still be a requirement for component rework. By rework, we mean the process of removing the component from the PWB and replacing it with a new component. If an (LF)BGA is removed from a PWB, the solder balls of the component are deformed drastically so the removed (LF)BGA has to be discarded.

Device Removal

As is the case with any component that, is being removed, it is essential when removing an (LF)BGA, that the board, tracks, solder lands, or surrounding components are not damaged. To remove an (LF)BGA, the board must be uniformly heated to a temperature close to the reflow soldering temperature. A uniform temperature reduces the risk of warping the PWB. To do this, we recommend that the board is heated until it is certain that all the joints are molten. Then carefully pull the component off the board with a vacuum nozzle. For the appropriate temperature profiles, see the IC data sheet.

Area Preparation

When the component has been removed, the vacant IC area must be cleaned before replacing the (LF)BGA. Removing an IC often leaves varying amounts of solder on the mounting lands. This excessive solder can be removed with either a solder sucker or solder wick. The remaining flux can be removed with a brush and cleaning agent. After the board is properly cleaned and inspected, apply flux on the solder lands and on the connection balls of the (LF)BGA. Note: Do not apply solder paste, as this has been shown to result in problems during re-soldering.

-9

), or pico-farads (p= x10

-12

-6

EN 6 FTL2.1, FTL2.2E AA3.

Directions for Use

Device Replacement

The last step in the repair process is to solder the new component on the board. Ideally, the (LF)BGA should be aligned under a microscope or magnifying glass. If this is not possible, try to align the (LF)BGA with any board markers. So as not to damage neighbouring components, it may be necessary to reduce some temperatures and times.

More Information

For more information on how to handle BGA devices, visit this URL: www.atyourservice.ce.philips.com (needs subscription, not available for all regions). After login, select “Magazine”, then go to “Workshop Information”. Here you will find Information on how to deal with BGA-ICs.

2.3.4 Lead-free Solder

Philips CE is producing lead-free sets (PBF) from 1.1.2005 onwards.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 5 and 6 refer to the production year, digits 7 and 8 refer to production week (in example below it is 1991 week 18).

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilise the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilised at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

• Use only original spare-parts listed in the Service-Manuals. Not listed standard material (commodities) has to be purchased at external companies.

• Special information for lead-free BGA ICs: these ICs will be delivered in so-called "dry-packaging" to protect the IC against moisture. This packaging may only be opened shortly before it is used (soldered). Otherwise the body of the IC gets "wet" inside and during the heating time the structure of the IC will be destroyed due to high (steam-) pressure inside the body. If the packaging was opened before usage, the IC has to be heated up for some hours (around 90°C) for drying (think of ESD-protection!). Do not re-use BGAs at all!

• For sets produced before 1.1.2005, containing leaded soldering tin and components, all needed spare parts will be available till the end of the service period. For the repair of such sets nothing changes.

E_06532_024.eps

230205

Figure 2-1 Serial number example

Regardless of the special lead-free logo (which is not always indicated), one must treat all sets from this date onwards according to the rules as described below.

Figure 2-2 Lead-free logo

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin Philips SAC305 with order code 0622 149 00106. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

In case of doubt whether the board is lead-free or not (or with mixed technologies), you can use the following method:

• Always use the highest temperature to solder, when using SAC305 (see also instructions below).

• De-solder thoroughly (clean solder joints to avoid the mixing of two alloys).

Caution: For BGA-ICs, you must use the correct temperature profile, which is coupled to the 12NC. For an overview of these profiles, visit the website www.atyourservice.ce.philips.com (needs subscription, but is not available for all regions). You will find this and more technical information within the "Magazine", chapter "Workshop information". For additional questions please contact your local repair help desk.

2.3.5 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock. While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3. Directions for Use

You can download this information from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

4. Mechanical Instructions

Mechanical Instructions

EN 7FTL2.1, FTL2.2E AA 4.

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assy/PWB Removal (for FTL2.1 “Top” sets)

4.4 Assy/PWB Removal (for FTL2.2 “Wrap” Sets)

4.5 Set Re-assembly

4.1 Cable Dressing

4.1.1 Chassis

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

• Follow the disassemble instructions in described order.

• As this chassis has two different mecanical stylings, the dismantle instructions are splitted in two parts: one for the “Top” version and one for the “Wrap” version.

Figure 4-1 Chassis cable dressing (FTL2.1 “Top” model)

E_14620_026.eps

090704

Figure 4-2 Chassis cable dressing (FTL2.2 “Wrap” model)

E_14620_168.eps

310105

EN 8 FTL2.1, FTL2.2E AA4.

Mechanical Instructions

4.2 Service Positions

For easy servicing of this set, there are a few possibilities created:

• The buffers from the packaging (see figure "Rear cover").

• Foam bars (created for service).

• Aluminium service stands (created for Service).

4.2.1 Foam Bars

E_06532_018.eps

Figure 4-3 Foam bars

The foam bars (order code 3122 785 90580 for two pieces) can be used for all types and sizes of Flat TVs. By laying the TV face down on the (ESD protective) foam bars, a stable situation is created to perform measurements and alignments. By placing a mirror under the TV, you can monitor the screen.

4.2.2 Aluminium Stands

170504

4.3 Assy/PWB Removal (for FTL2.1 “Top” sets)

4.3.1 Metal Back Plate

Caution: Disconnect the mains power cord before you remove

the metal back plate.

2 2

E_14620_028.eps

280704

Figure 4-5 Metal back plate

1. Place the TV set upside down on a table top, using the foam bars (see part "Foam Bars"). Caution: do not put pressure on the LCD display, but let the monitor lean on the speakers or the Front cover.

2. Remove all T10 parker screws (1) from the topside of the back plate.

3. Remove all T10 tapping screws (2) from the centre, bottom, and left and right sides of the back plate.

4. Lift the back plate from the set. Make sure that wires and flat foils are not damaged during the back plate removal.

E_06532_019.eps

170504

Figure 4-4 Aluminium stands (MkI)

The new MkII aluminium stands (not on drawing) with order code 3122 785 90690, can also be used to do measurements, alignments, and duration tests. The stands can be (dis)mounted quick and easy by means of sliding them in/out the "mushrooms". The new stands are backwards compatible with the earlier models. Important: For (older) FTV sets without these "mushrooms", it is obligatory to use the provided screws, otherwise it is possible to damage the monitor inside!.

4.3.2 Rear Cover

4 5

Figure 4-6 Rear cover

1. Disconnect all connectors (3) from the Ambient Light inverter panel.

2. Remove all tapping screws (4) around the edges of the rear cover (some of them are indicated on the figure above).

3. Remove all parker screws (5) from the rear cover (some of them are indicated on the figure above).

4. Lift the rear cover from the set (it hinges at the bottom side).

E_14620_027.eps

130504

4.3.3 Ambient Light Panel

1. Remove all mounting screws from the Ambient Light panel.

2. Disconnect all cables from the Ambient Light panel.

3. Take out the Ambient Light panel.

Mechanical Instructions

EN 9FTL2.1, FTL2.2E AA 4.

4.3.4 Main Supply Panel

1. Remove all mounting screws from the Main Supply panel.

2. Disconnect all cables from the Main Supply panel.

3. Take out the Main Supply panel (it hinges at the right (speaker) side).

4.3.5 SCART3 Panel

1. Disconnect all cables from the SCART3 panel.

2. Remove the two mounting screws (7) near the SCART3 at the connector plate (see figure "Connector plate").

3. Take out the SCART3 panel.

4.3.6 Stand-by Supply / Audio Panel

1. Disconnect all cables from the Stand-by Supply / Audio panel.

2. Remove all mounting screws from the Stand-by Supply / Audio panel.

3. Take out the Stand-by Supply / Audio panel (it hinges at the bottom side).

4.3.7 Side I/O Panel

2. Remove the mounting screws from the panel shielding and remove it.

3. Remove the mounting screws from the LED/Switch panel.

4. Take out the LED/Switch panel.

4.3.11 Small Signal Board (SSB)

Figure 4-8 SSB top shielding

E_14620_030.eps

130504

Figure 4-7 Side I/O Panel

1. Disconnect the cable from the Side I/O panel.

2. Remove the mounting screws (1) if present.

3. Slide the Side I/O bracket to the right (2).

4. Release the clamp (3) and take out the Side I'O panel from its bracket.

4.3.8 Top Control

1. Remove the mounting screws from the Top Control panel bracket.

2. Disconnect the cable.

3. Release the clamps and take out the Top Control panel.

4.3.9 Proximity Panel

1. Remove the mounting screws.

2. Take out the Proximity panel and disconnect the cable.

4.3.10 LED / Switch Panel

1. Disconnect all cables from the LED / Switch panel.

E_14620_029.eps

130504

E_14620_031.eps

130504

Figure 4-9 Connector plate

E_14620_032.eps

130504

Figure 4-10 SSB

1. Remove the LVDS fixing tape (1).

2. Remove all fixing screws (2).

3. Lift the shielding at the top. The panel hinges at the SCART side. Caution: do not damage the EMC shielding foam while you remove the shielding.

4. Remove mounting screws (3) from the connector plate. Use a 5 mm socket screwdriver to remove both DVI connector distance bolts (4).

5. Remove the mounting screws from the SSB (5).

6. Disconnect the LVDS cable (6).

7. Lift the SSB, disconnect all cables, and take out the SSB.

EN 10 FTL2.1, FTL2.2E AA4.

s 4

4.3.12 Woofer

1. Remove all mounting screws.

2. Take out the woofer unit together with its cable.

Caution: the woofer unit must remain airtight.

4.3.13 Speakers

Mechanical Instructions

E_14620_036.ep

13050

E_14620_033.eps

130504

Figure 4-11 Speaker mounting screws at the rear side

2 2

E_14620_034.eps

130504

Figure 4-12 Front cover removal

Figure 4-14 Speaker removal

1. Remove all speakers mounting screws (1) at the rear side of the set (one screw is located under the Side I/O).

2. Flip the set over (be aware that the front cover is loose now), and remover the front cover (2).

3. Remove all speakers mounting screws (3) at the LCD side.

4. Take out the speaker unit (4).

4.3.14 LCD Panel

Figure 4-15 LCD panel (photo: “Top” model)

E_14620_037.eps

090704

E_14620_035.eps

090704

Figure 4-13 Speaker mounting screws at the front side

Caution: Before you start, be sure that the foam bars support

the LCD panel border, to prevent the display from falling when its mounting screws are released.

1. Remove the screws from the wall mounting brackets and remove the brackets.

2. Unplug the LVDS connector (1) at the LCD panel.

3. Unplug the backlight connectors (2).

4. Remove all mounting LCD panel screws (3).

5. Lift the plastic frame together with metal frame and PWBs from the LCD panel.

Mechanical Instructions

EN 11FTL2.1, FTL2.2E AA 4.

4.3.15 Ambient Lights

Figure 4-16 Ambient light

Ambient lights are located in the rear cover of the set.

1. Remove all mounting Ambient lights screws (1) (some of them are shown on the Figure above).

2. Remove the screw from the cable clamp (2).

3. Unplug the cables (3).

4. Shift the Ambient light unit to the side (4) and take out the unit.

E_14620_052.eps

130504

4.4 Assy/PWB Removal (for FTL2.2 “Wrap” Sets)

Note: Use figures from “Assy/PWB Removal (for FTL2.1 “Top”

Sets)“. Mind you that the different models can deviate slightly from each other w.r.t. the mechanical construction. Where necessary, you will find separate figures for clarification.

4.4.1 Metal Back Plate

Caution: Disconnect the AC Power (mains) cord before you

remove the metal back plate.

1. Place the TV set upside down on a table top, using the foam bars (see part "Foam Bars"). Caution: do not put pressure on the display, but let the monitor lean on the speakers or the Front cover.

2. Remove all T10 screws from the metal back plate.

3. Remove the four "mushrooms" (2) from the back plate.

4. Lift the back plate from the set. Make sure that wires and flat foils are not damaged during the back plate removal.

4.4.2 Rear Cover

1. Remove all T10 parker screws (2) around the edges of the rear cover.

2. Lift the rear cover from the set.

4.4.3 Main Supply Panel

1. Disconnect all cables from the Main Supply panel.

2. Remove all T10 mounting screws from the Main Supply panel.

3. Take out the Main Supply panel.

4.4.4 Ambient Light Panel

1. Remove all mounting screws from the Ambient Light panel.

2. Disconnect all cables from the Ambient Light panel.

3. Take out the Ambient Light panel.

4.4.5 SCART3 Panel

1. Disconnect all cables from the SCART3 panel.

2. Remove the two mounting screws (7) near the SCART3 at the connector plate (see figure "Connector plate").

3. Take out the SCART3 panel.

4.4.6 Stand-by Supply/Audio Panel

1. Disconnect all cables from the Stand-by Supply/Audio panel.

2. Remove all T10 mounting screws from the Stand-by Supply/Audio panel.

3. Take out the Stand-by Supply/Audio panel (it hinges at the bottom side).

4.4.7 Side I/O Panel

1. Disconnect the cable(s) from the panel.

2. Remove the T10 mounting screws that hold the assy.

3. Release the clamps and take out the panel from its bracket.

4.4.8 Top/Side Control

1. Disconnect the cable(s) from the panel.

2. Remove the T10 mounting screws that hold the assy.

3. Release the clamps and take out the panel from its bracket.

4.4.9 LED Panel

1. Disconnect the cable(s) from the panel.

EN 12 FTL2.1, FTL2.2E AA4.

2. Remove the T10 mounting screws that hold the panel.

3. Take out the panel.

4.4.10 Speakers

1. After removal of the rear cover, you can access the speakers. Note: In the rear cover itself, two additional “passive” speakers are mounted.

2. Be sure that the foam that makes the unit airtight is not damaged. Otherwise, replace it.

4.4.11 SSB

1. Remove the LVDS fixing tape (1).

2. Remove all fixing screws (2).

3. Lift the shielding at the top and shift it upwards. The shielding clamps at the connector side. Caution: Be careful not to damage the EMC shielding foam while you remove the shielding.

4. Remove all connector fixation screws from the connector plate.

5. Remove the mounting screws from the SSB (5).

6. Disconnect the LVDS cable (6).

7. Lift the SSB, disconnect all cables, and take out the SSB.

Mechanical Instructions

4.4.12 LCD Panel

Figure 4-17 LCD panel (photo: “Wrap” model)

Caution: Before you start, be sure that the foam bars support

the LCD panel border, to prevent the display from falling when its mounting screws are released.

1. Remove the T10 screws (1) from the mounting frame.

2. Remove all mounting LCD panel screws (2).

3. Important: Unplug the LVDS connector (3) at the LCD panel. Be careful, as this is a very fragile connector!

4. Unplug the backlight and loudspeaker connectors (4).

5. Lift the metal frame (together with all PWBs) from the LCD panel. During lift, free the backlight and speaker cables.

6. After removal of the frame, you can lift the LCD display from the set.

E_14620_154.eps

300904

4.5 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

Note: While re-assembling, make sure, that all cables are placed and connected in their original position

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

EN 13FTL2.1, FTL2.2E AA 5.

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Problems and Solving Tips (related to CSM)

5.4 ComPair

5.5 Error Codes

5.6 The Blinking LED Procedure

5.7 Protections

5.8 Repair tips

5.9 Software Downloading

5.1 Test Points

The chassis is equipped with test points printed on the circuit board assemblies.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

Service Default Mode (SDM) and Service Alignment Mode (SAM) offer several features for the service technician, while the Customer Service Mode (CSM) is used for communication between a Philips Customer Care Centre (P3C) and a customer.

There is also the option of using ComPair, a hardware interface between a computer (see requirements below) and the TV chassis. It offers the ability of structured troubleshooting, test pattern generation, error code reading, software version readout, and software upgrading. Minimum requirements: a Pentium processor, Windows 95/ 98, and a CD-ROM drive (see also paragraph “ComPair”).

5.2.1 Service Default Mode (SDM)

Purpose

• To create a pre-defined setting, to get the same measurement results as given in this manual.

• To override SW protections.

• To start the blinking LED procedure.

Specifications

Table 5-1 SDM default settings

Region Freq. (MHz)

Europe, AP-PAL/Multi 475.25 PAL B/G NAFTA, AP-NTSC, LATAM 61.25 (ch. 3) NTSC M

Default system

How to activate SDM

Use one of the following methods:

• Use the standard RC-transmitter and key in the code

“062596”, directly followed by the “MENU” button. Note: It is possible that, together with the SDM, the main

menu will appear. To switch it off, push the “MENU” button again.

SDM

SAM

SW UPGRADE

MODE

Figure 5-1 Service pads

• Short for a moment the two solder pads on the SSB, with the indication “SDM”. Activation can be performed in all modes, except when the set has a problem with the main microprocessor. Caution: If the SDM is activated via the pins, all the software-controlled protections are de-activated.

• Use the DST-emulation feature of ComPair.

• Use the “DEFAULT” button on the Dealer Service Tool (RC7150).

After activating this mode, “SDM” will appear in the upper right corner of the screen.

How to navigate

When you press the “MENU” button on the RC transmitter, the set will toggle between the SDM and the normal user menu (with the SDM mode still active in the background).

How to exit SDM

Use one of the following methods:

• Switch the set to STANDBY via the RC-transmitter.

• Press the “EXIT” button on the DST.

• Via a standard customer RC-transmitter: key in “00”sequence.

NORMAL TV MODE

E_14620_151.eps

290704

• All picture settings at 50% (brightness, colour, contrast).

• All sound settings at 50%, except volume at 25%.

• All service-unfriendly modes (if present) are disabled, like: – (Sleep) timer. – Child/parental lock. – Blue mute. – Automatic volume limiter (AVL). – Auto switch-off (when no video signal was received for

10 minutes). – Skip/blank of non-favourite pre-sets. – Smart modes. – Auto store of personal presets. – Auto user menu time-out.

5.2.2 Service Alignment Mode (SAM)

Purpose

• To perform (software) alignments.

• To change option settings.

• To easily identify the used software version.

• To view operation hours.

• To display (or clear) the error code buffer.

Specifications

• Operation hours counter.

• Software version.

• Option settings.

EN 14 FTL2.1, FTL2.2E AA5.

Service Modes, Error Codes, and Fault Finding

• Error buffer reading and erasing.

• Software alignments.

How to activate SAM

Use one of the following methods:

• Via a standard RC transmitter: key in the code “062596” directly followed by the “OSD [i+]” button. After activating SAM with this method a service warning will appear on the screen, you can continue by pressing any digit key on the RC.

• Short for a moment the two solder pads on the SSB with the indication "SAM". Depending on the software version, it is possible that a service warning will appear. You can continue by pressing any digit key on the RC.

• Use the DST-emulation feature of ComPair.

• Press the ALIGN button on the DST while the set is in the normal operation

After activating this mode, “SAM” will appear in the upper right corner of the screen.

Contents of SAM:

• OPERATION HOURS. Displays the accumulated total of operation hours (not the stand-by hours).

• HARDWARE INFO. – ROM VERSION. Displays the date of the software and

the software version of the ROM (example: TX21EU_1.0_01234 = AAAABB_X.Y_NNNNN).

• AAAA= the chassis name.

• BB= the region: EU= Europe, AP= Asia Pacific PAL/Multi, AN= Asia Pacific NTSC, US= USA, LT= LATAM.

• X.Y= the software version, where X is the main version number (different numbers are not compatible with one another) and Y is the sub version number (a higher number is always compatible with a lower number).

• NNNNN= last five digits of 12nc code software.

– FBX Version. Displays the software version of the

FBX

– SW VERSION EPLD. Displays the software version of

the EPLD.

• ERRORS. (followed by maximal 10 errors). The most recent error is displayed at the upper left (for an error explanation see paragraph “Error Codes”).

• DEFECTIVE MODULE. Here the module that generates the error is displayed. If there are multiple errors in the buffer, which are not all generated by a single module, there is probably another defect. It will then display the message “UNKNOWN” here.

• RESET ERROR BUFFER. When you press the “OK” button, the error buffer is reset.

• ALIGNMENTS. This will activate the “ALIGNMENTS” submenu.

• DEALER OPTIONS. Extra features for the dealers.

• SERVICE OPTIONS. Extra features for Service.

• INITIALISE NVM. When an NVM was corrupted (or replaced) in the former EM3 chassis, the microprocessor replaced the content with default data (to assure that the set can operate). However, all pre-sets and alignment values are gone now, and option numbers are not correct. Therefore, this was a very drastic way. In this chassis, the procedure is implemented in another way: The moment the processor recognises a corrupted NVM, the “initialise NVM” line will be highlighted. Now, you can do two things (dependent of the service instructions at that moment): – Save the content of the NVM via ComPair for

development analysis, before initialising. This will give the Philips Service department an extra possibility for diagnosis (e.g. when Development asks for this).

– Initialise the NVM (same as in the past, however now it

happens conscious).

• STORE. All options and alignments are stored when pressing the “OK”-button

• FUNCTIONAL TEST. All devices are tested via the “OK” button. Eventual errors are displayed in the error buffer. The error buffer is not erased, the content returns when this test is terminated.

• DAILY MENUS. With the “OK” button, you can go to the normal user menu. SAM is still active in the background. With the “MENU” button, you return from the user menu to SAM menu. This feature can be helpful to quickly change some settings in the user menu.

• SW MAINTENANCE.

• UPGRADE. More info see paragraph Software

downloading.

• EVENTS. Not useful for Service purposes. In case of

specific software problems, the development department can ask for this info.

• BDM INFO. Broadcast Debug Menu info. The purpose

of this menu is to debug the broadcast, not the TV. The menu gives an overview of what is received on the current preset.

Following items are displayed:

P r e s e t n r : -- UTC: - - : - - : -- P r e s e t n a m e : ----- LTO: - - : - - : -- Time: - - : - - : -- C N I N V M : ---- Date: - - / - - / ---- C N I F 1 : ---- C N I F 2 : ---- Time TXT: - - : - - : -- C N I V P S : ---- Time 8/30 F1: - - : - - : -- M o r n i n g P r o g : --- Date 8/30 F1: - - / - - / ---- N a m e 8 / 3 0 F 1 : ----- LTO 8/30 F1: - - : - - : -- N a m e 8 / 3 0 F 2 : ----- N a m e T X T : ----- WSS G1: - - - - S i g n a l S t r e n g t h :--- WSS G2: - - - - WSS G3: - - - E P G S e r v i c e : --- WSS G4: - - -

E_14620_050.eps

170504

Figure 5-2 Broadcast debug menu overview.

Table 5-2 Broadcast debug menu explanation

Item Source Description

Presetnr Set Preset number of the current selected preset. Presetname Set Preset name of the current selected preset. CNI NVM Broadcaster CNI number stored in NVM for the current preset. CNI F1 Broadcaster CNI number from transmitted Packet 8/30 Format

CNI F2 Broadcaster CNI number from transmitted Packet 8/30 Format

CNI VPS Broadcaster CNI number from transmitted VPS line. Morning Prog Broadcaster "ARD" or "ZDF" according to dedicated bit in 8/30

Name 8/30 F1 Broadcaster Name extracted from status message of 8/30

Name 8/30 F2 Broadcaster Name extracted from status message of 8/30

Name TXT Broadcaster Name extracted from TXT header. Signal Strength FBX Noise figure measured for selected preset. EPG Service Set EPG Service stored in NVM for current preset

UTC Set UTC (Universal Time Code formerly known as

LTO Set LTO (Local Time Offset) used in the set. Used by

Time Set Current time running in the set. Was extracted at

Date Set Current date running in the set. Was extracted at

Time TXT Broadcaster TXT header time from the selected preset. Time 8/30 F1 Broadcaster UTC time from 8/30 Format 1. Date 8/30 F1 Broadcaster Date from 8/30 Format 1. LTO 8/30 F1 Broadcaster LTO from 8/30 Format 1. WSS G1 Broadcaster WSS Group 1 (Aspect Ratio) bits 0 1 2 3 WSS G2 Broadcaster WSS Group 2 (Enhanced Services) bits 4 5 6 7 WSS G3 Broadcaster WSS Group 3 (Subtitles) bits 8 9 10 WSS G4 Broadcaster WSS Group 4 (Reserved) bits 11 12 13

Format 1.

Format 2.

displayed as "TXT", "MCP", "SCP", "OCP".

Greenwich Mean Time) used in the set.

EPG for all Nextview displays. (= Time TXT header - Time 8/30 F1 )

start-up, then maintained by software.

Service Modes, Error Codes, and Fault Finding

EN 15FTL2.1, FTL2.2E AA 5.

How to navigate

• In SAM, you can select the menu items with the “CURSOR UP/DOWN” key on the RC-transmitter. The selected item will be highlighted. When not all menu items fit on the screen, move the “CURSOR UP/DOWN” key to display the next/previous menu items.

• With the “CURSOR LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – Change the value of the selected menu item. – Activate the selected submenu.

How to exit SAM

Use one of the following methods:

• Press the “MENU” button on the RC-transmitter, or

• Switch the set to STANDBY via the RC-transmitter, or

• Press the “EXIT” button on the DST.

5.2.3 Customer Service Mode (CSM)

Purpose

When a customer is having problems with his TV-set, he can call his dealer. The service technician can than ask the customer to activate the CSM, in order to identify the status of the set. Now, the service technician can judge the severity of the complaint. In many cases, he can advise the customer how to solve the problem, or he can decide if it is necessary to visit the customer. The CSM is a read only mode; therefore, modifications in this mode are not possible.

How to activate CSM

Use one of the following methods:

• Press the “MUTE” button on the RC-transmitter simultaneously with the “MENU” button on the TV (top control) for at least 4 seconds.

• Key in the code “123654” via the standard RC transmitter.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

How to navigate

By means of the “CURSOR-DOWN/UP” knob on the RCtransmitter, you can navigate through the menus.

Contents of CSM

CUSTOMER SERVICE MENU 1

• SOFTWARE VERSION (example: TX21EU_1.0_01234). Displays the built-in software version. In case of field problems related to software, software can be upgraded (for more details, see paragraph Software downloading). You will find details of the software versions in the chapter “Software Survey” of the “Product Survey - Colour Television” publication. This publication is generated four times a year.

• FEATURE BOX. The 12NC-number of the built-in Feature Box software.

• SET TYPE. This information is very helpful for a help desk/ workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set.

• CODE 1. Gives the latest five errors of the error buffer. As soon as the built-in diagnose software has detected an error the buffer is adapted. The last occurred error is displayed on the leftmost position. Each error code is displayed as a 3-digit number. When less than 10 errors occur, the rest of the buffer is empty (000). See also paragraph Error Codes for a description.

• CODE 2. Gives the first five errors of the error buffer. See also paragraph Error Codes for a description.

• VOLUME. Gives the last status of the volume as set by the customer. The value can vary from 0 (volume is minimum)

to 100 (volume is maximum). Volume values can be changed via the volume key on the RC-transmitter.

• BRIGHTNESS. Gives the last status of the brightness as set by the customer. The value can vary from 0 (brightness is minimum) to 100 (brightness is maximum). Brightness values can be changed via the “CURSOR LEFT” and “CURSOR RIGHT” keys on the RC-transmitter after pressing the “MENU” button and selecting “PICTURE” and “BRIGHTNESS”.

• CONTRAST. Gives the last status of the contrast as set by the customer. The value can vary from 0 (contrast is minimum) to 100 (contrast is maximum). Contrast values can be changed via “CURSOR LEFT” and “CURSOR RIGHT” keys on the RC-transmitter after pressing the “MENU” button and selecting “PICTURE” and “CONTRAST”.

• COLOUR. Gives the last status of the colour saturation, as set by the customer. The value can vary from 0 (colour is minimum) to 100 (colour is maximum). Colour values can be changed via “CURSOR LEFT” and “CURSOR RIGHT” keys on the RC-transmitter after pressing the “MENU” button and selecting “PICTURE” and “COLOUR”.

• HUE. Only relevant for NTSC-signals (e.g. some NTSCDVD-discs).

CUSTOMER SERVICE MENU 2

• SHARPNESS. Gives the sharpness value. The value can vary from 0 (sharpness is minimum) to 7 (sharpness is maximum). In case of bad antenna signals, a too high value of the sharpness can result in a noisy picture. Sharpness values can be changed via the “CURSOR LEFT” and “CURSOR RIGHT” keys on the RC-transmitter after pressing the “MENU” button and selecting “PICTURE” and “SHARPNESS”.

• HEADPHONE VOLUME. Gives the last status of the headphone volume, as set by the customer. The value can vary from 0 (volume is minimum) to 100 (volume is maximum). Headphone volume values can be changed via the “CURSOR LEFT” and “CURSOR RIGHT” keys on the RC-transmitter after pressing the “MENU” button and selecting “SOUND” and “HEADPHONE VOLUME”.

• DOLBY. Indicates whether the received transmitter transmits Dolby sound (“ON”) or not (“OFF”). Attention: The presence of Dolby can only be tested by the software on the Dolby Signalling bit. If a Dolby transmission is received without a Dolby Signalling bit, this indicator will show “OFF” even though a Dolby transmission is received.

• SURROUND MODE. Indicates the by the customer selected surround mode (or automatically chosen mode). Possible values are “OFF”, “INCREDIBLE SURROUND” OR “DOLBY VIRTUAL”. These settings can be influenced after pressing the “MENU” button and selecting “SOUND” and SURROUND MODE”. It can also have been selected automatically by signalling bits (internal software).

• TUNER FREQUENCY. Indicates the frequency the selected transmitter is tuned to. The tuner frequency can be changed via the “CURSOR LEFT” and “CURSOR RIGHT” keys for fine tune after opening the installation menu and selecting “INSTALL” and “MANUAL INSTALL”.

• DIGITAL OPTION. Gives the selected digital mode, “PROGRESSIVE SCAN”, “MOVIE PLUS” or “PIXEL PLUS”. Change via “MENU”, “PICTURE”, “DIGITAL OPTIONS”.

• CENTRE TRIM. Not applicable for this set.

• TV SYSTEM. Gives information about the video system of the selected transmitter. – BG: PAL BG signal received. – DK: PAL DK signal received. – I: PAL I signal received. – L/La: SECAM L/La signals received. – M: NTSC M signal received with video carrier on 38.9

MHz.

EN 16 FTL2.1, FTL2.2E AA5.

Service Modes, Error Codes, and Fault Finding

CUSTOMER SERVICE MENU 3

• BALANCE. Indicates the balance settings, between “-50” and “+50”. Change via “MENU”, “SOUND”, and “BALANCE”. Not applicable for Dolby Pro Logic sets.

• CENTRE MODE. Indicates if centre mode is set “ON” or “OFF”. When centre mode is on, all TV speakers are used as one centre speaker. Change Centre mode via “MENU”, “SETUP”, “SPEAKERS”, and “CENTRE MODE”.

• DNR. Gives the selected DNR setting (Dynamic Noise Reduction), “OFF”, “MINIMUM”, “MEDIUM”, or “MAXIMUM”. Change via “MENU”, “PICTURE”, “DNR”

• NOISE FIGURE. Gives the noise ratio for the selected transmitter. This value can vary from 0 (good signal) to 127 (average signal) and to 255 (bad signal). For some software versions, the noise figure will only be valid when “Active Control” is set to “medium” or “maximum”.

• SOURCE. Indicates which source is used and the video/ audio signal quality of the selected source. (Example: Tuner, Video/NICAM) Source: “TUNER”, “EXT1”, “EXT2”, “EXT3”, “EXT4”, “SIDE”, “AV1”, “AV2”, “AV3” or “AV4”. Video signal quality: “VIDEO”, “S-VIDEO”, “RGB 1FH”, “YPBPR 1FH 480P”, “YPBPR 1FH 576P”, “YPBPR 1FH 1080I”, “YPBPR 2FH 480P”, “YPBPR 2FH 576P”, “YPBPR 2FH 1080I”, “RGB 2FH 480P”, “RGB 2FH 576P” or “RGB 2FH 1080I”. Audio signal quality: “STEREO”, “SPDIF 1”, “SPDIF 2”, or “SPDIF”.

• AUDIO SYSTEM. Gives information about the audio system of the selected transmitter: “ANALOGUE MONO”, “ANALOGUE STEREO”, “PCM 2/0”, “DD 1/0”, “DD 2/0 LtRt”, “DD 2/0 L0R0”, “DD 2/1”, “DD 2/2”, “DD 3/0”, “DD 3/ 1”, “DD 3/2”, “DD 1+1”, “MPEG 1/0”, “MPEG 2/0”, “MPEG 2/0 LtRt”, “MPEG 2/1”, “MPEG 2/2”, “MPEG 3/0”, “MPEG 3/1”, “MPEG 3/2”, “MPEG 1+1” or “MPEG 2+2”.

• TUNED BIT. Gives information about the tuning method of the stored pre-set. If a channel is found via “automatic installation”, you will see the value “YES”. When you change this (automatically found) frequency via “fine tune” adjustment (installation menu - manual installation), the displayed value will change to “NO”. Therefore, when you see the value “NO” in this line, it is an indication that the received channel is a non-standard signal (e.g. of a VCR).

• SURROUND SPEAKERS. Not applicable in this set.

• ON TIMER. Indicates if the “On Timer” is set “ON” or “OFF” and if the timer is “ON” also displays start time, start day and program number. Change via “MENU”, “TV”, “FEATURES”, and “ON TIMER”.

• PRESET LOCK. Indicates if the selected preset has a child lock: “LOCKED” or “UNLOCKED”. Change via “MENU”, “TV”, “FEATURES”, “CHILD LOCK”, and “CUSTOM LOCK”.

CUSTOMER SERVICE MENU 4

• CHILD LOCK. Indicates the last status of the general child lock: “UNLOCK”, “LOCK”, or “CUSTOM LOCK”. Change via “MENU”, “TV”, “FEATURES”, “CHILD LOCK”, and “LOCK”.

• AGE LOCK. Indicates the last status of the EPG rating for child lock: “OFF”, “4 YEARS”, “6 YEARS”, “8 YEARS”, “10 YEARS”, “12 YEARS”, “14 YEARS” or “16 YEARS”. This is only displayed if child lock is set to “CUSTOM LOCK”

• LOCK AFTER. Indicates at what time the child lock is set: “OFF” or e.g. “18:45” (lock time). This is only displayed if child lock is set to “CUSTOM LOCK”

• CATEGORY LOCK. Indicates the last status of the EPG theme childlock: “MOVIES”, “NEWS”, “SHOWS”, “SPORTS”, “CHILDREN”, “MUSIC”, “CULTURE”, or “SERIES”. This is only displayed if child lock is set to “CUSTOM LOCK”. It is possible that more than one value is shown.

• PROGRAM CATEGORY. Indicates the theme of the selected transmitter: “MOVIES”, “NEWS”, “SHOWS”, “SPORTS”, “CHILDREN”, “MUSIC”, “CULTURE”, or “SERIES”.

• TV RATINGS LOCK. Only applicable for US.

• MOVIE RATINGS LOCK. Only applicable for US.

• V-CHIP TV STATUS. Only applicable for US.

CUSTOMER SERVICE MENU 5

• V-CHIP MOVIE STATUS. Only applicable for US.

• OPTIONS 1. Gives the option codes of option group 1 as set in SAM (Service Alignment Mode).

• OPTIONS 2. Gives the option codes of option group 2 as set in SAM (Service Alignment Mode).

• AVL. Indicates the last status of AVL (Automatic Volume Level): “ON” or “OFF”. Change via “MENU”, “TV”, “SOUND”, “AVL”

• DELTA VOLUME. Indicates the last status of the delta volume for the selected preset as set by the customer: from “-12” to “+12”. Change via “MENU”, “TV”, “SOUND”, “DELTA VOLUME”.

• FRONT SPKR DIST. Not applicable for this set.

How to exit CSM

Use one of the following methods:

• After you press a key on the RC-transmitter (with exception of the “CHANNEL”, “VOLUME” and digit (0-9) keys), or

• After you switch the TV-set “OFF” with the mains switch.

5.3 Problems and Solving Tips (related to CSM)

Note: Below described problems are all related to the TV

settings (visible in the CSM menu). The procedures to change the value (or status) of the different settings are described above. New value(s) are automatically stored.

5.3.1 Picture Problems

Snowy/noisy picture

1. Check in CSM line NOISE FIGURE. In case the value is "127" or higher, and the value is also high on other programs, check the aerial cable/aerial system. For some software versions, the noise figure will only be valid when “Active Control” is set to “medium” or “maximum”.

2. Check in CSM lines SHARPNESS and NOISE FIGURE. In case the value of line SHARPNESS is "3" or "4" and the value of line NOISE FIGURE is high ("127" or higher), decrease the "Sharpness” value.

Picture too dark

1. Press “Menu”, “TV”, “Picture”, “Smart Picture”. In case the picture improves, increase the “Brightness” or the “Contrast” value. The new value(s) are automatically stored (in “personal” pre-set) for all TV channels.

2. Check in CSM line BRIGHTNESS and CONTRAST. If the value of these lines is low (< "10"), increase the “Brightness” or the “Contrast” value via the user menu.

Picture too bright

1. Press “Menu”, “TV”, “Picture”, “Smart Picture”. In case the picture improves, decrease the “Brightness” or the “Contrast” value. The new value(s) are automatically stored (in “personal” pre-set) for all TV channels.

2. Check in CSM lines BRIGHTNESS and CONTRAST. If the value of these line is high (> 50), decrease the “Brightness” value or increase the “Contrast” value via the user menu.

White line around picture elements and text

1. Press “Menu”, “TV”, “Picture”, “Smart Picture”. In case the picture improves, decrease the “Sharpness” value. The new value is automatically stored (in “personal” pre-set) for all TV channels.

2. Check in CSM line “Sharpness”. If the value is high, decrease it. The new value is automatically stored for all TV channels.

Service Modes, Error Codes, and Fault Finding

EN 17FTL2.1, FTL2.2E AA 5.

No picture

Check in CSM line TUNED BIT. In case the value is “No”, install the required program again. Open the installation menu and perform manual installation.

No picture

No proper signal is received. Check the aerial cable/aerial system.

No picture or unstable picture

A scrambled or decoded signal is received.

Black and white picture

Check in CSM line COLOUR. In case the value is low (< "10"), increase the “Colour” value via the user menu. The new value is automatically stored for all TV channels.

No colours/colour lines around picture elements or colours not correct or unstable picture

1. Check in CSM line TV SYSTEM. If a “strange” system pops up, something has gone wrong during installation. Reinstall the channel.

2. If in CSM line TV SYSTEM is “L”, the installed system for this pre-set is “France”, while “West Europe” is required. Install the required program again: open the installation menu and perform manual installation. Select system “West Europe”.

Menu text not sharp enough

1. Press “MENU”, “TV”, “PICTURE”, “SMART PICTURE”. In case picture improves, decrease the contrast value. The new value(s) are automatically stored for all TV channels.

2. Check line “Contrast”. If the value is high, decrease the contrast value.

5.3.2 Sound Problems

No sound from left and right speaker

Check line 6 “Volume”. The value is low. Increase the value of “Volume”. The new value(s) are automatically stored (in “personal” pre-set) for all TV channels.

5.4 ComPair

For this chassis, the ComPair interface box and the TV communicate via a bi-directional service cable via the service connector.

The ComPair fault finding program is able to determine the problem of the defective television. ComPair can gather diagnostic information in two ways:

• Automatic (by communication with the television): ComPair can automatically read out the contents of the entire error buffer. Diagnosis is done on I

the I

C bus of the television. ComPair can send and

receive I

C commands to the micro controller of the television. In this way, it is possible for ComPair to communicate (read and write) to devices on the I

C level. ComPair can access

C buses

of the TV-set.

• Manually (by asking questions to you): Automatic diagnosis is only possible if the micro controller of the television is working correctly and only to a certain extends. When this is not the case, ComPair will guide you through the fault finding tree by asking you questions (e.g. Does the

screen give a picture? Click on the correct answer: YES / NO) and showing you examples (e.g. Measure test-point I7 and click on the correct oscillogram you see on the oscilloscope). You can answer by clicking on a link (e.g.

text or a waveform picture) that will bring you to the next step in the fault finding process.

By a combination of automatic diagnostics and an interactive question / answer procedure, ComPair will enable you to find most problems in a fast and effective way.

Beside fault finding, ComPair provides some additional features like:

• Up- or downloading of pre-sets.

• Managing of pre-set lists.

• Emulation of the Dealer Service Tool (DST).

• If both ComPair and SearchMan (Electronic Service Manual) are installed, all the schematics and the PWBs of the set are available by clicking on the appropriate hyperlink.

Example: Measure the DC-voltage on capacitor C2568 (Schematic/Panel) at the Mono-carrier.

– Click on the “Panel” hyperlink to automatically show

the PWB with a highlighted capacitor C2568.

– Click on the “Schematic” hyperlink to automatically

show the position of the highlighted capacitor.

5.4.1 Introduction

ComPair (Computer Aided Repair) is a service tool for Philips Consumer Electronics products. ComPair is a further development on the European DST (service remote control), which allows faster and more accurate diagnostics. ComPair has three big advantages:

• ComPair helps you to quickly get an understanding on how to repair the chassis in a short time by guiding you systematically through the repair procedures.

• ComPair allows very detailed diagnostics (on I is therefore capable of accurately indicating problem areas. You do not have to know anything about I yourself because ComPair takes care of this.

• ComPair speeds up the repair time since it can automatically communicate with the chassis (when the microprocessor is working) and all repair information is directly available. When ComPair is installed together with the SearchMan electronic manual of the defective chassis, schematics and PWBs are only a mouse click away.

5.4.2 Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair interface box is connected to the PC via a serial or RS232 cable.

C level) and

C commands

5.4.3 Stepwise Start-up

Under normal circumstances, a fault in the power supply, or an error during start-up, will switch the television to protection mode. ComPair can take over the initialisation of the television. In this way, it is possible to distinguish which part of the startup routine (hence which circuitry) is causing the problem. Take notice that the transition between two steps can take some time, so give the set some time to reach a stable state. During the transition time, the LED can blink strangely.

Stepwise start- up explanation

This is realised via ComPair and is very helpful when a protection is activated (see also chapter “Protections”). The following diagram shows the start-up procedure of the set. Every step of the stepwise start-up (also called trapped startup) in the diagram corresponds with the number of times the led blinks.

EN 18 FTL2.1, FTL2.2E AA5.

Mains cord IN

start time extraction

start P50 recording

start EPG loading

Standby bit = off

Ambient light ON

Trapped Startup 1

activate protection algorithms for +8V and +5V and I²C (start I²C protection the moment the component

Trapped Startup 2

Initialize HIP: IF, source selection, 2fh input, video

Switch on the syncoutput: set_syncout_tristate= off

OTC gets supply voltage

OTC resets, Initialise IO pins

Reset Audio=high

Read NVM identification

enable watchdog

Stand-by

Put Stand-by line LOW

CPU GO becomes HIGH

Set STBYEN,VCCON,PFCON = 1

Only FHP (opt 2, 8)

Keep sound amplifiers muted with

sound enable = high

+5V and +8V is switched on

+8V and +5V get their nominal level,

detected by the OTC

is initialised).

Read rest of NVM information

processing

Initialize tuner

Initialize 3D Combfilter

or Initialize Columbus

Initialize PICNIC + screen info

Initialize rest of PIP/DW module

Start TXT acquisition

and time extraction

Reset Audio = low and Initialize MSP

Initialize EBILD

Screen type

OUT

OFF

Stand-by bit = OFF

Service Modes, Error Codes, and Fault Finding

5.4.4 How To Connect

This is described in the chassis fault finding database in ComPair.

Tact switch

Figure 5-5 ComPair interface connection

5.4.5 How To Order

ComPair order codes (EU/AP/LATAM):

• Starter kit ComPair32/SearchMan32 software and ComPair interface (excl. transformer): 3122 785 90450.

• ComPair interface (excl. transformer): 4822 727 21631.

400msec>t>200msec

• Starter kit ComPair32 software (registration version): 3122 785 60040.

• Starter kit SearchMan32 software: 3122 785 60050.

• ComPair32 CD (update): 3122 785 60070 (year 2002), 3122 785 60110 (year 2003 onwards).

• SearchMan32 CD (update): 3122 785 60080 (year 2002), 3122 785 60120 (year 2003), 3122 785 60130 (year 2004).

• ComPair firmware upgrade IC: 3122 785 90510.

• Transformer (non-UK): 4822 727 21632.

• Transformer UK: 4822 727 21633.

• ComPair interface cable: 3122 785 90004.

• ComPair interface extension cable: 3139 131 03791.

• ComPair UART interface cable: 3122 785 90630

UART SERVICE

CONNECTOR

PC VCR I2CPower

I2C SERVICE CONNECTOR

9V DC

E_06532_021.eps

180804

Start up LCD

opt 3,4,5,6

Initialize PDP FHP

opt 2,8

Initialize PDP SDI

opt 0,1,7

Figure 5-3 Stepwise start-up part 1

Start up LCD

Trapped Startup 3

Start

Stand-by bit set ?

yes

Semi stand by

Ebild Power ON

Output Blanking OFF

LAMP ON

Figure 5-4 Stepwise start-up part 2

Note (*):

• When the set is in stepwise mode and, due to stepping-up, a protection is activated, the set will really go into protection (blinking LED). The set will not leave the stepwise-mode however. If state X is the state where the set went to protection, stepwise start-up will return to state X-1. At state (X-1) diagnostic measurements can be performed. Also, in the short time the set is in state X but not yet in protection, you can also do some measurements.

E_14620_048.eps

LCD ON

Trapped Startup 4

E_14620_049.eps

170504

Note: If you encounter any problems, contact your local support desk.

5.5 Error Codes

5.5.1 Introduction

The error code buffer contains all detected errors since the last time the buffer was erased. The buffer is written from left to right, new errors are logged at the left side, and all other errors shift one position to the right. When an error has occurred, the error is added to the list of errors, provided the list is not full or the error is a protection error. When an error occurs and the error buffer is full, then the new error is not added, and the error buffer stays intact (history is maintained), except when the error is a protection error. To prevent that an occasional error stays in the list forever, the error is removed from the list after 50+ operation hours. When multiple errors occur (errors occurred within a short time span), there is a high probability that there is some relation between them.

5.5.2 How to read the Error Buffer

Use one of the following methods:

• On screen via the SAM (only if you have a picture).

Examples:

– 0 0 0 0 0: No errors detected – 6 0 0 0 0: Error code 6 is the last and only detected

error

– 9 6 0 0 0: Error code 6 was first detected and error code

9 is the last detected error

• Via the blinking LED procedure (when you have no picture). See next paragraph.

•Via ComPair.

Service Modes, Error Codes, and Fault Finding

EN 19FTL2.1, FTL2.2E AA 5.

5.5.3 How to clear the Error Buffer

Use one of the following methods:

• By activation of the “RESET ERROR BUFFER” command in the SAM menu.

• With a normal RC, key in sequence “MUTE” followed by “062599” and “OK”.

• When you transmit the commands “DIAGNOSE” - “99” “OK” with ComPair (or with a DST).

• If the content of the error buffer has not changed for 50+ hours, it resets automatically.

5.5.4 Error Codes

In case of non-intermittent faults, clear the error buffer before you begin the repair. This to ensure that old error codes are no

Table 5-3 Error Table

Error Device Description Def. item Def. Module indication Diagr.

1 M24Cxx NVM, spontaneous blinking error 1 7011 Control B5a 3 SAA4978 PICNIC 7713 Feature Box B3a 4 Supply 5 V 5V protection / +5V Supply B5a 5 Supply 8 V 8V protection / +8V Supply B5a

Slow I

C bus blocked

Spontaneous blinking error 6 /

6 8 TDA932x HIP High-end Input Processor 7323 Chroma IF IO B2 13 UV1318/... Tuner protection 1T01 Tuner B13a 14 MSPxxxx ITT sound processor 7A02 Audio module B6a 18

Fast I

C bus blocked

Spontaneous blinking error 18 / 21 M62320P I/O Expander 7P56 Video Dual Screen B15b 23 UV1318/... Sub tuner 1T02 Video Dual Screen B13b 24 SAB9083H PIP Muppet 7PA6 Video Dual Screen B15c 25 Z86130 V-CHIP (US only) 7P51 Video Dual Screen B15b 26 SAA4998 FEM (Falconic with Embedded Memory) 7760 +3V (FBX) Supply B3b 27 T6TX5ES Eagle 1C 7720 +3V (FBX) Supply B3c 32 M29W400BT Flash Ram (EPG) 7012 EPG Memory B5a 34 TDA932x Second HIP 7P09 Video Dual Screen B15a 35 T6TU5ES Columbus 7752 +3V (FBX) Supply B3d 53 AD9883A AD converter 7E23 HD B19c 55 DC/DC converter One of the voltages is not ok + protection error / Supply / 56 EPLD EPLD error 7V01 Video control B19d 76 Audio supply Audio supply protection / / / 82 TDA7309 Headphone processor 7A06 Video Dual Screen B6a 83 TEA6422 Source select matrix audio 7I17 Audio Source Select B14d

longer present. Before clearing the buffer, write down the content, as this history can give you significant information. If possible, check the entire contents of the error buffer. In some situations, an error code is only the result of another error code and not the actual cause (e.g., a fault in the protection detection circuitry can also lead to a protection). There are various errors:

•I

C device errors.

•I

C bus errors.

• Protection errors.

• Errors not related to an I

C device, but of importance:

– FEM (Falconic with Embedded Memory) (Error 26):

at start-up, after initialisation of the PICNIC, the presence of the FEM can be checked.

– Eagle (Error 27): at start-up, after initialisation of the

PICNIC, the presence of the Eagle can be checked.

Slow I2C Blocked

Fast I2C Blocked

Note:

• Error codes 1, 6, or 18 are protection codes and in this case, supplies of some circuits will be switched “off”. Also, in protection, the LED will blink the number of times equivalent to the most recent error code.

EN 20 FTL2.1, FTL2.2E AA5.

Service Modes, Error Codes, and Fault Finding

5.6 The Blinking LED Procedure

5.6.1 Introduction

Via this procedure, you can make the contents of the error buffer visible via the front LED. This is especially useful for fault finding, when there is no picture.

When the SDM is activated, the front LED will show (blink) the contents of the error-buffer. Error-codes > 10 are shown as follows: – A long blink of 750 ms (which is an indication of the decimal

digit), – A pause of 1.5 s, – “n” short blinks (where “n” = 1 - 9), – When all the error-codes are displayed, the sequence

finishes with a LED blink of 3 s, – The sequence starts again.

Example: Error 12 9 6 0 0. After activation of the SDM, the front LED will show: – 1 long blink of 750 ms (which is an indication of the decimal

digit) followed by a pause of 1.5 s, – 2 short blinks followed by a pause of 3 s, – 9 short blinks followed by a pause of 3 s, – 6 short blinks followed by a pause of 3 s, – 1 long blink of 3 s to finish the sequence, – The sequence starts again.

Note: If errors 1, 6, or 18 occur, the LED always gives the last occurred error even if the set is NOT in service mode.

5.6.2 How to Activate

Use one of the following methods:

• Activate the SDM (only via soldering pads marked “SDM”

on SSB). The blinking front LED will show the entire

contents of the error buffer (this works in “normal

operation” mode and in “protection” mode).

• Transmit the commands “MUTE” - “062500” - “OK” with a

normal RC. The complete error buffer is shown. Take

notice that it takes some seconds before the blinking LED

starts.

• Transmit the commands “MUTE” - “06250x” - “OK” with a

normal RC (where “x” is a number between 1 and 5). When

x= 1 the last detected error is shown, x= 2 the second last

error, etc.... Take notice that it takes some seconds before

the blinking LED starts.

• “DIAGNOSE X” with the DST (where “x” is a number

between 1 and 5). When x= 1 the last detected error is

shown, x= 2 the second last error, etc.... When x = 0 all

errors are shown.

5.7 Protections

5.7.1 Introduction

This chassis has only one microprocessor (OTC), which remains active during Stand-by. This because power of the microprocessor and the attached memory chip set is coming from the 3V3 supply, which is derived from the 5V Stand-bycircuitry. Therefore, in both Power-on as in Stand-by mode, the microprocessor is connected to this power supply.

If a fault situation is detected, an error code will be generated and if necessary, the set is put in protection mode. The protection mode is indicated by the blinking of the front LED at a frequency of 3 Hz (or by a coded blinking in special cases).

The content of the error buffer can be read via the service menu (SAM), the blinking LED procedure or via DST/ComPair.

To get a quick diagnosis, this chassis has three service-modes implemented:

• The Customer Service Mode (CSM).

• The Service Default Mode (SDM). Start-up of the set in a predefined way.

• The Service Alignment Mode (SAM). In this mode, items of the set can be adjusted via a menu.

You can activate both SDM and SAM modes via the “service pads” on the SSB, via an RC-transmitter (DST or standard RC), or via ComPair. It is not possible to activate the SAM in “standby”; the TV has to be in “normal operation” mode.

The “Protection Diagram” shows the structure of the protection system. See diagram below.

TUNER FAST I2C BUS BLOCKED SLOW I2C BUS BLOCKED

EPLD

FBX

3D COMB

DC_PROT (from audio)

+8V_CON

+5V_CON

DC/DC

PROTECTION

IRQ-DIGITAL (98)

+8V SENSE (105)

+5V SENSE (106)

I2C

Figure 5-6 Protection diagram

There are several types of protections:

•I

C related protections.

• OTC related protections (via polling on I/O pins or via algorithms).

• Hardware protection

All protections are explained below.

5.7.2 I

C Related Protections

In normal operation, some registers of the I are refreshed every 200 ms. During this sequence, the I buses and the I

An I

C protection will take place if the SDA and SCL lines are

C ICs are checked.

short-circuited to ground, or to each other. An I occur, if the power supply of the IC is missing.

DC/DC protection: When a 3V3 supply is short-circuited, the DC/DC converter switches “off” and goes in protection. The FBX, EPLD IC, and 3D comb IC have no supply voltage and give no acknowledge. In this case, the set should go into protection. An error code is written in the NVM: DC/DC error.

FBX protection: the FBX protection is not available any more. It is replaced by the DC/DC protection.

5.7.3 OTC Related Protections

If a protection is detected at an OTC input, the OTC will start to scan all protection inputs every 200 ms for 5 times. If the protection on one of the inputs is still active after 1 s, the microprocessor will put the set in the protection mode. Before the scanning is started, a so-called “ESD refresh” is carried out. This is done, because the interrupt on one of the inputs is possibly caused either by a flash or by ESD. As a flash or ESD can influence IC settings, the HIP, MSP, 3D Comb and wireless module (not used in this set) are initialised again, to ensure the normal picture and sound conditions of the set.

OTC

E_14620_051.eps

150704

C controlled ICs

C error will also

Service Modes, Error Codes, and Fault Finding

EN 21FTL2.1, FTL2.2E AA 5.

8 V and 5 V protections: The microprocessor senses the

presence of the 8 V and 5 V (via the “+5V_CON” and “+8V_CON” lines). If one (or both) of these voltages is (are) not present, an error code is stored in the error buffer of the NVM, and the set is put in the protection mode.

Audio DC protection: The OTC senses if the audio module is in protection via IRQ-DIGITAL (pin 98 of OTC). If this is the case, the OTC puts the set in protection.

5.7.4 Hardware Protection

Short-circuiting the 3V3 supply from the DC/DC converter will shut down the DC/DC converter. The absence of the 3V3 supply line is also sensed via I

C (see description DC/DC protection above), this is useful if there is something wrong in the detection circuit of the DC/DC converter. There are no hardware protections in this chassis, which switch off the main supply.

5.8 Repair tips

5.8.1 3V3 Supply (DC/DC converter)

As mentioned above, the DC/DC converter is switched “off” when something goes wrong (detection of a missing 3V3 supply at one of the devices supplied by the 3V3). Because of this, the set goes to protection (I logged. For further diagnoses, you need to overrule the I put the set in Service Default Mode by means of the solder pads on the SSB. The DC/DC converter is still not working because it is switched “off” by the 3V3_FAULT line (schematic B12). Now you have some possibilities:

1. First, measure the impedance over diode 6U06. In normal

conditions, you should measure approximately 120 ohm (if possible, verify this with another set). If the impedance is much too low, do not try to start up the converter as mentioned below. Remind that if FET 7U03 is shortcircuited, this will also influence your measurement.

2. Desolder coils 5U05 and 5U06, connect an external 3V3

supply at capacitor 2U23 (current limitation to 500 mA) and a second external 3V3 supply at capacitor 2U31 (current limitation to 800 mA). The normal working current of the 3V3_SIM line is approximately 400 mA and the normal working current for the 3V3_DCDCFBX line is approximately 700 mA. Therefore, if one of the currents exceeds their nominal value you can determine in which circuit the overload is situated. If the set would start up and you have normal picture, there is probably no overload but a problem in the detection circuits.

3. If you do not have two external power supplies, you can do

the following: Desolder coils 5U02, 5U03, and 5U04 (you must desolder all three, otherwise the circuit could be damaged), connect an external power supply of 3V3 at the cathode of diode 6U06. Make sure to limit the current of this external supply to approximately 1200 mA. If the supplied current exceeds 1100 mA (approximately normal working current) you can conclude that one of the devices supplied by 3V3 is short-circuited.

4. Another possibility is to force the converter to start up by

short-circuiting (and keep short-circuited) resistor 3U25 (B12). Caution: Be aware that this can damage the set. Even if you measure approximately 120 ohm over diode 6U06, there can still be something wrong in the converter itself. By short-circuiting resistor 3U25, the internal protection of the converter is disabled.

C protection). Error code 55 is

C protection:

5.8.2 ComPair

This chassis does not have an IR transmitting LED (as in MGsets). Therefore, a “Service” (ComPair) connector is implemented at the rear side of the set, which is directly accessible. In addition to this, there is also a blinking LED procedure to show the contents of the error buffer.

When you use ComPair, you have the possibility to activate a “stepwise start-up” mode. With this mode, you can initiate the start-up sequence step by step. This also means that in certain steps, some protections are not activated. This is sometimes very convenient during repair.

5.8.3 Protections

Activating SDM via the “service pads” will overrule the processor-controlled protections, but not the hardware protections. This means, that the A/D-input protections (5 and 8 V) and the I

C “not-acknowledging” info of FBX + EPLD + 3D Comb and of the tuner are overruled. Caution: When doing this, the service technician must know what he is doing, as it could lead to damaging the set.

EN 22 FTL2.1, FTL2.2E AA5.

5.8.4 Repair tip table

Table 5-4 Repair tips

Phenomenon Possible Cause Repair tip

F in right corner of the screen and set is not reacting on remote control. The local keyboard is functioning.

No picture, LED blinking at 3 Hz. Set is in protection due to various causes.

No picture, LED blinking with code 6-6-6 or 18-18-18.

No picture, LED blinking with code 1-1-1. No communication on NVM-I2C bus to the uP. As the uP cannot communicate with the NVM I2C bus, it spontaneously starts blinking

No RC-reception. Blue LED does not echo RCcommands.

Picture is not synchronised. The sync is derived in the HIP. Check crystals in the HIP circuit on bad contacts. Picture is distorted. Check video-path in Service Default Mode. Investigate whether there is an error code present in the error buffer. In case there is

Picture with horizontal stripes. Pixel Plus processing is malfunctioning Check functionality on circuitry (B3a, B3b, B3c and B3d) of PICNIC, FEM, EAGLE,

No NextView (EPG). IC7012 defective or not powered. Check circuitry around IC7012 on diagram B5A. No Teletext. IC7007 defective or not powered. Check circuitry around IC7007 on diagram B5A. Problems caused by EPG (Electronic Program

Guide). The TV set "hangs".

NexTView EPG is not functioning only Teletext guide.

Various symptoms, due to missing local supply voltage.

No sound at the speakers but sound at monitor out.

No sound at the speakers not at monitor out, but sound at Scart 1 output.

No sound from any output (except headphone) Reset audio is high or MSP is not properly reset Check pin 16 of MSP (diagram B6a) and circuitry around MSP. No sound from the tuner but sound from any other

input. 32" Sharp display (LCD) remains black at 1/3 of

the bottom 42" LPL display (LCD) has no backlight. 24V adjustment not correct. Adjust 24V with pot meter 3U26 on diagram A4 or check circuitry around it.

Service Modes, Error Codes, and Fault Finding

TV is in factory mode. Press menu button on local keyboard for at least 3 seconds. Set will leave factory

For error codes see error-code list.

No communication on slow I2C- or fast I2C-bus. As processor cannot communicate with one of the 2 buses it the stand-by-led

uP circuitry or RC-receiver is defective. In case the set does react on a local keyboard operation, you must check the RC-

Problems with NexTView EPG broadcasts. To switch from EPG 2C3 to Teletext guide. Press for 4 seconds, simultaneously the

EPG version 2C3 is switched off during production.

An interrupted fuse, NFR-resistor or connection. When no symptom or error code leads you to a specific circuitry, use the supply lines

Possible problem with the class D amplifier Check circuitry around IC7700 on diagram SA3 (LCD) or C (PDP).

Sound enable from OTC is HIGH, speakers are muted

POR line is low, anti plop circuit mutes the sound Check pin 8 on connector 1739 on audio panel.

Problem with the delay line (PDP sets only) Check circuitry on diagram B6d.

Display is defect. Replace display.

mode and function normally again.

You have no picture, so:

- Read the error buffer via ComPair (error buffer is accessible when set is in protection, compare-file will guide you to this)

- Read the blinking LED information via standard remote command <mute>06250x<ok>.

- Or you read the error code sequence via standard remote command <mute>062500<ok>.

When you have found the error, check the circuitry related to the supply voltage and

C-communication or the circuitry that triggers the protection.

spontaneously starts blinking 6-6-6-etc or 18-18-18-etc... If in the error buffer somewhere is an error 6 or 18, these will have the highest priority starting the mentioned blinking. Measure dependent of the error on the I2C-bus which device is loading the bus. (Use I2C-overview)

1-1-1. Note: when there is no access to the NVM, a lot of picture setting can go wrong.

receiver circuitry (diagram J).

one, check the I Measure and check signal path Tuner-HIP-FBX-EPLD.

COLUMBUS and/or field memories. Tip: the whole Pixel Plus chipset (4 ICs + Field Memories) can be diagnosed via ComPair.

Menu button on the TV and digit 0 on the remote. The option settings for NexTView type and Flashram will not change.

To switch from Teletext guide to EPG 2C3. Press for 4 seconds, simultaneously the Menu button on the TV and digit 1 on the remote. The option settings for NexTView type and Flashram will not change.

overview (see supply lines overview), for a quick scan of all supply lines.

Check pin 95 of OTC on diagram B5a.

Diagram C for PDP sets and diagram SA3 for LCD sets

C-bus and/or supply lines (see overview supply lines).

5.9 Software Downloading

In this chassis, you can upgrade the Main software via ComPair without removing the back cover of the set (it is possible that early production sets don’t have a hole in the back plate, in this case you have to remove the back plate). The switch (see figure “Service pads”), which is needed for the software downloading procedure, can be reached through a gap in the back cover or the SSB shielding. The switch can be operated with a toothpick or something like that. Make sure that you do not damage the PWB with sharp objects. You can find more information on how this procedure works in the ComPair file. It is possible that not all sets are equipped with the hardware, needed to make software upgrading possible. To speed up the programming process the firmware of the ComPair interface can be upgraded. See paragraph “How To Order” for the order numbers.

Block Diagrams, Testpoint Overviews, and Waveforms

6. Block Diagrams, Testpoint Overviews, and Waveforms

Wiring Diagram 32" Sharp/LPL LCD

WIRING 32” SHARP / LPL

0345

23FTL2.xE AA 6.

Top Control

Ambient light lamps right

8313

right

8735

1M10

Ambient

Light

(Optional)

1M48

8310

8349

Connectors of Ambi-light inverter

Applied

Philips

Concepts

1008

1M14

1009

1M12

1006

1M13

1007

1M11

1001

1M08

1002

1M10

1003

1M48

1M14

1M12

1M11

1M13

Functions

1. GND (light)

2. GND (light)

3. GND (light)

1. Green light

6. Blue light

11. Red light

1. +12V_A

2. +12V_A

3. GND

4. GND

1. SCL-S

2. GND

3. SDA-S

1736

1735

1738

7P 9P

1M02

10P

1314

8314

1M52 1M48

2nd Tuner

1T02

Audio + Stand-by

1739

8192

1304

1309

1M10

10P

1315

8352

8315

1318

9P N.C.

8304

8309

1G50

31P

SSB

2P3

1306

1307

1305

1M46

1M03

11P 10P

8250

8350

1M49

1M17

3P 7P 11P

Only for

SHARP displays

8346

8317

1M46

8307

CN1 CN2

8303

10P

1M03

12P

1M20

N.C.

1M01

11P

1M36

8305

3th SCART

8337 8336

8306

8302

1304

1309

MF Supply

1307

2P3

1306

1305

1M02

1308

2P3

8318

8308

CN3

10P

CN4

Inverters

10P

CN5

8311

8736

left

Ambient light lamps left

8350

8220

(Optional)

1M20 1M01

0350

5P 12P 6P N.C.

LED panel

8345

0345 0244

N.C.

Tuner

splitter

1T01

center

3th SCART

8307

1M07

5P 11P 11P

3th SCART

1M37

1M36

AC inlet

0350

3th SCART

8336

1M36

11P

Proximity

Panel

Side I/O

(Optional)

E_14620_038.eps

220305

Block Diagrams, Testpoint Overviews, and Waveforms

Wiring Diagram 37" LPL LCD

WIRING 37” LPL

8313

0345

8310

24FTL2.xE AA 6.

Top Control

1M48

1M10

Ambient Light

(Optional)

Connectors of Ambi-light inverter

Applied Concepts

1M14 1M12

1M13 1M11

1M08 1M10

1M48

Functions

1. GND (light)

2. GND (light)

3. GND (light)

1. Green light

6. Blue light

11. Red light

1. +12V_A

2. +12V_A

3. GND

4. GND

1. SCL-S

2. GND

3. SDA-S

Philips

1008 1009

1006 1007

1001 1002

1003

8311

Ambient light lamps right

right

Inverter 1

8735

12P

1M11

1M13

1736

1735

1738

1M02

Inv1

12P

1316

8352

1M52

11P N.C.

1739

12P

1317

1M48

1304

1309

Audio

Stand-by

1M10

8250

8350

1G50

31P

1306

1305

11P

1M49

1M03

1M46

10P

8349

1M17

3P N.C. 11P

8305

8346

1M46

2nd Tuner

CN1

10P

12P

1M12

1M14

8303

1M03

1M20

2P3

1306

1305

1304

1309

3P 4P 7P

Supply

1M02

8302

Inv2

12P

Inverter 2

left

Ambient light lamps left

8350

(Optional)

0350

8220

1M20

12P 6P

LED panel

0345

834583458345834583458345834583458345

1M01

N.C.

0244

N.C.

1T02

Tuner

splitter

1T01

8192

center

SSB

11P

1M01

1M36

3th SCART

1M07

8336

8307

3th SCART

8337

1M07

5P 11P 11P

3th SCART

1M37

1M36

2P3

1308

3th SCART

8336

AC inlet

(Optional)

0350

Proximity

Panel

8736

1M36

11P

Side I/O

E_14620_039.eps

220305

Block Diagrams, Testpoint Overviews, and Waveforms

Wiring Diagram 42" LPL LCD

WIRING 42” LPL

25FTL2.xE AA 6.

0345

Top Control

Ambient light lamps right

8313

right

Connectors of Ambi-light inverter

Applied Concepts

1M14 1M12

1M13 1M11

1M08 1M10

1M48

8735

Functions

1. GND (light)

2. GND (light)

3. GND (light)

1. Green light

6. Blue light

11. Red light

1. +12V_A

2. +12V_A

3. GND

4. GND

1. SCL-S

2. GND

3. SDA-S

Philips

1008 1009

1006 1007

1001 1002

1003

Inverter 1

12P

8311

1M48

1M10

Ambient Light

(Optional)

8310

8349

1M11

1M13

1736

1735

8316

Inv1

1738

1M02

12P 12P

1316

1739

1317

8352

4P 4P

1303

1320

3P 3P

1M52

1304

1309

Audio

Stand-by

1M10

1M48

3P9P

1M12

1M14

31P

CN1

1306

1307

1305

1M03

1M46

10P11P

1G50 1M46

31P

1M49

8306

8307

8250OR8350

8305

8303

8346

1M17

11PN.C.3P

10P

1M03

2P3

1306

8303

1303

8320

1320

Supply

1307

8304

1304

1309

8309

1M02

8302

8317

Inv2

12P

Inverter 2

left

Ambient light lamps left

8350

(Optional)

0350

5P 12P 6P

8220

1M20 1M010345 0244

LED panel

8345

N.C.

2nd Tuner

1T02

Tuner

splitter

1T01

center

8192

SSB

12P

N.C.

11P

1M20

1M01

1M36

8307

3th SCART

1M07

1305

1B06

3P 3P 3P

8337

3th SCART

1M07

3th SCART

1M37

11P 11P

1C05

1M36

2P3

1308

8199

8336

3th SCART

AC inlet

0350

Proximity

(Optional)

Panel

8736

8336

3th SCART

11P

1M36

Side I/O

E_14620_040.eps

220305

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram Supply + Standby 32"

SUPPLY + STANDBY 32"

MAINS FILTER + STANDBY

5401

1308

MAINS IN

EUR: 198 - 264V~ CHINA: 160 - 270V~ US: 108 - 132V~ APmulti: 90 - 175V~

1400

T3.15AH

EUR, CHINA 1X MAINS FILTER + HORMONIC COIL US, AP 2X MAINS FILTER + IR INRUSH CURRENT

5402 5403

MAINS

FILTER

26FTL2.xE AA 6.

5040

2011

PRINTED COMPONENT

HOT COLD

5002

HOT COLD

7002 TCET1102

3057

5027

5028

5025

5026

DC_PROT

6021 STPS20H100CT

1007

T5A

DC_PROT

6044 STPS20L45CT

6045 STPS20L45CT

6025 STPS20H100CT

2291

6291

6293

2293

3030

5239

5291

5292

2038

2021

3022

7010 TL431ACD

VSND_POS

GND_SND

VSND_NEG

3052

3024

3026

VS Voltage Adj.

DC_PROT

+12V

+24V

1304

1M02

CONNECTIONS

SA1

1316

1 2

DISPLAY

4 5

1317

1 2

1304

4 3

2 1

TO 1M02

SA3

AUDI O

+12V_A

+12V_+24V

4 3

2 1

DISPLAY

4 5

1M10

1 2

AMBI LIGHT

Block Diagram Supply + Standby 37"

SUPPLY + STANDBY 37"

MAINS FILTER + STANDBY

5301 5302 5305

1314

T5AH

5306 5307

MAINS

FILTER

6506 DF06M

MAINS IN

EUR: 198 - 264V~ CHINA: 160 - 270V~ US: 108 - 132V~ APmulti: 90 - 175V~

1308

1002

EUR, CHINA 1X MAINS FILTER + HORMONIC COIL US, AP 2X MAINS FILTER + IR INRUSH CURRENT

27FTL2.xE AA 6.

400V_HOT

5500

HOT COLD

HOT

5110

7501 TCET1102

3158

7150 TCET1102

7002 TCET1102

5011

5003

5006

5025

5026

5002

COLD

6504

5103

3128

OVERVOLTAGE PROTECTION

PROT-OVV

3057

7507 7506 7512

3509

DC_PROT

6044 STPS20L40CFP

2029

6021

6041

2045

1007

STANDBY

7511

6140

6505

6107

2513

6122

3030

5021

5022

T5A

5506

+5V2-RELAY-IO2

DC_PROT

3022

7010 TL431ACD

6029

6030

2021

7531

+5V2

2009

3052

3024

VS Voltage Adj.

3026

2042

6031

6040

2049

5020

5018

5019

5507

STANDBY: LOW = ON HIGH = STBY

7508

9110

2020

2022

VSND_POS

GND_SND

VSND_NEG

+12V_A

STANDBY

VTUN

+11V

+12V

+8V6

7131

+5V2

+5V_SW

+12V

+24VA

+24Vb

+5V2-RELAY-IO2

POR

1304

1M02

CONNECTIONS

SA1

1316

1 2

DISPLAY

4 5

1317

1 2

STANDBY

1M10

1M03

1M46

3 4 5

1 2

DISPLAY

AMBI LIGHT

TO 1M03

B21

CONNECTIONS

1304

4 3

2 1

TO 1M02

SA3

AUDIO

SA1

+12V

+12V_+24V

CONNECTIONS

4 3

2 1

2 3

TO 1M46

B21

CONNECTIONS

8 9

10 11

E_14620_042.eps

240804

SUPPLY

2327

2319 6304

1350

HOT

COLD

2303

1401

T1AE

6307 GBJ6J

3318

7307 TCET1102

LATCH

1004

1 2

N.C.

1305

1306

25V_HOT

400V_HOT

STANDBY

SA2

1305

1306

1 2

5007

7011 7012

CURRENT

PROTECTION

THYRISTOR 7505/7509/7560

5008

SOFT

START

399V_HOT

7001 MC34067P

3007

+5V2-RELAY-IO2

OVERVOLTAGE PROTECTION

STANDBY

OSCC

CONTROL

ERROR

SOST

VREF

7004 7009

PROTECTION

OVER

VOLTAGE

VCC

BIAS SUPPLY

3000

5001

7007

7008

HIGH

SIDE

DRIVE

LOW SIDE

DRIVE

60246025

2003

STU16NB501

7006

STU16NB501

PRINTED COMPONENT

7005

2011

COLD

HOT

7100 7101 7105

7102

CONTROL

5105

3108

N.C.

1307

1 2

3 4

6150

6153

6151

3155

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram Supply + Standby 42"

SUPPLY + STANDBY 42"

MAINS FILTER + STANDBY PART A

EUR, CHINA 1X MAINS FILTER + HORMONIC COIL

MAINS FILTER + STANDBY PART B

MAINS IN

EUR: 198 - 264V~ CHINA: 160 - 270V~ US: 108 - 132V~ APmulti: 90 - 175V~

US, AP 2X MAINS FILTER + IR INRUSH CURRENT

0308

1400

T3.15AH

5400 5401 5402 5403

MAINS FILTER

6506 DF06M

28FTL2.xE AA 6.

5040

COLD

HOT

5105

HOT COLD

5002

HOT COLD

5500

7002 TCET1102

7501 TCET1102

3057

5027

5028

5025

5026

5110

3158

7150 TCET1102

DC_PROT

6044 STPS20L45CT

6021 STTH2003CFP

3030

7507 7506 7512

6504

3509

5103

3128

OVERVO LTAGE PROTECTION

PROT-OVV

DC_PROT

3022

7010 TL431ACD

STANDBY

6140

6505

6107

2513

6122

3052

3024

7511

5506

VS Voltage Adj.

3026

7531

+5V2

+5V2-RELAY-IO2

2020

2022

5507

STANDBY: LOW = ON HIGH = STBY

7508

9110

+5V2-RELAY-IO2

+12V_A

STANDBY

VTUN

+11V

+12V

+8V6

7131

+5V2

+5V_SW

POR

1304

CONNECTIONS

SA1

1316

1 2

DISPLAY

4 5

1304

4 3

2 1

+12V_A

4 3

+12V_+24V

1M10

AMBI LIGHT

1M03

TO 1M03

B21

CONNECTIONS

1M46

1 2 3

TO 1M46

B21

CONNECTIONS

7 8

10 11

SUPPLY PART A

3000

VCC

CONTROL

OVER

VOLTAGE

PROTECTION

BIAS SUPPLY

6153

5001

7007

7008

7100 7101 7105

CONTROL

6150

HIGH SIDE

DRIVE

LOW SIDE

DRIVE

6151

60786079

2003

7005

STU16NB501

7006

STU16NB501

7102

3155

3V MAX 1V MAX STBY

3108

VOLTAGE DOUBLER

US DOUBLER AP AUTO DOUBLER WITH TRIAC

3810

2815

2816

6157

400V_HOT_B

6156

6155

HOT_P+

6A55

6154

3406

HOT_P-

6A54

1450

6807 GBJ6J

7805 7806

(for 110V only)

HOT

COLD

1401

HOT

COLD

2503

T1AE

1B06

1C05

213

1305

1306

1307

25V_HOT_A

400V_HOT_A

7001 MC34067P

OSCC

3007

7 7017 7018

SOFT

START

CURRENT

PROTECTION

STANDBY

SA2

1305

1306

1307

+5V2-RELAY-IO2

THYRISTOR 7505/7509/7560

ERROR

SOST

VREF

7003 7004

OVERVOLTAGE PROTECTION

STANDBY

1D00

T3.15AH

9U01 9U06 5D02 5D03

MAINS FILTER

1D50

3H10

6H07 GBJ6J

7H05 7H06

VOLTAGE DOUBLER

(for 110V only)

US DOUBLER AP AUTO DOUBLER WITH TRIAC

2H15

2H16

SUPPLY PART B

25V_HOT_B

400V_HOT_B

7U17 7U18

SOFT

START

CURRENT

PROTECTION

5U02

7U02 TCET1102

5U25

5U26

3U57

DC_PROT

6U21 STTH2003CFP

3U30

DC_PROT

3U22

7U10 TL431ACD

3U52

3U24

VS Voltage Adj.

3U26

1U07

T5A

2U20

2B91

6B91

6B93

2B93

+24V

5B93

5B91

5B92

1303

1317

1 2

DISPLAY

1M02

080704

4 5

TO 1M02

SA3

AUDI O

1303

+24V_2

VSND_POS

VSND_NEG

E_14620_043.eps

HOT COLD

5U40

HOT COLD

3U00

BIAS SUPPLY

7U01 MC34067P

VCC

OSCC

3U07

CONTROL

ERROR

SOST

VREF

7U03 7U04

VOLTAGE

PROTECTION

OVER

5U01

7U07

7U08

HIGH SIDE

DRIVE

LOW SIDE

DRIVE

6U786U79

2003

7U05

STP15NK50ZFP

7U06

STP15NK50ZFP

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram Video

VIDEO

MAIN TUNER

B13A

UV1318ST

B13B

1T02

UV1318ST

B14C

CVBS-TER-OUT

R-SC1_V-IN

G-SC1-IN_Y-IN

B-SC1-IN_U-IN

FBL-SC1-IN

SUB-V

SUB-Y

SUB-U

CVBS-TER-OUT

+5V

5T25

1T01

7,3

MAIN TUNER

S-SDA-PIP

CVBS-SC1_AV1-IN

SEL-SVHS-RR_STATUS2

CVBS-AV3-IN

Y-CVBS-SC2_AV2-IN

C-SC2_SVHS-IN

Y-CVBS-FRONT-IN

C-FRONT-IN

PIP-OUT CVBS-SC2-MON-OUT R/G/B-SC1-Y/U/V-IN SC2-FBL-IN

SC2-R_C-IN_AV2 SC2-G-IN SC2-B-IN_C-OUT

SUB TUNER

+33V

+5V

5T04

7,3

SUB TUNER

S-SDA

S-SCL

IN-CVBS-SC1_AV1-SUB

AV3-CVBS-IN

IN-Y-CVBS-SC2_AV2

SC2-R_C-IN

Y-CVBS-PIPDW-OUT

C-PIPDW-OUT

PIP-OUT1

SUB-Y/U/V

SC2-FBL-IN

SC2-R_C-IN_AV2

SC2-G-IN

SC2-B-IN_C-OUT

IO3 SWITCH

S-SCL-PIP

5T02

7I12 74HC4053

7I32 74HC4053

7I33 74HC4053

+33V

6TO8

AGC

MONITOR

AGC2

13 12

3 5

B14b

B13b

B14b

B15a

B14b

B14a

N.C. B14b B14c B14g

B13a

B14b

B14a

N.C.

B14c

B14g

B15a

IF, I/O VIDEOPROCESSING

7402

5403

IF-TER

40,4

SAW FILTER

AUDIO

1409-A

AGC

B5A

PIP HIP

B15A

5P07

IF-TER2

40,4

SAW FILTER

AUDIO

1P04-A

B14B CONNECTIONS

B14B

SC1-R

SC1-G

SC1-B

CVBS-SC2_MON-OUT

C-SC2_SVHS-IN

SC2-R_C-IN

SC2-G

SC2-B_C-OUT

B15a

SCART 1

21 19

SCART 2

21 19

SAW FILTER

7411

VIDEO

VIF1 VIF2

1410 1408

TUNER AGC

SIF2

SIF1

SOUND-OUTPUT

7P05

VIDEO

VIF1 VIF2

1P05-A 1P06-A

TUNER AGC

SIF2 SIF1

CVBS-SC1_AV1-IN

IN-CVBS-SC1_AV1-SUB SC1-FBL

SC1-STATUS

IN-Y-CVBS-SC2_AV2

Y-CVBS-SC2_AV2-IN SC2-FBL

B5A

OTC

P50

SEL-SVHS-RR_STATUS2

1407

SOUND FILTER

I6 7323 TDA9321H

10 12 13 14

PLL

DEM

QSS

MIXER

DEMO

QSS-AM

7410

1P09

SOUND FILTER

I6 7P09 TDA9321H

10 12 13 14

PLL

DEM

QSS

MIXER

DEMO

MONO-HIP-OUT

PIP-AM

7P07-2

B15A

B15a

B2 B14a

QSS-AM

GROUP DELAY

COR.

GROUP

DELAY

COR.

SVHS

B6A

B14A

SCART3

SCART 3

SIDE I/O

CVBS

7322

HIP

SEE BLOCK DIAGRAM AUDIO

7415

7P06

HIP

SEE BLOCK DIAGRAM AUDIO

251

1002

CVBS-SC3-IN

STATUS-SC3-F

1001

29FTL2.xE AA 6.

AUDIO

B6A

DEMODULATOR

CVBS-TXT

B5A

OTC

7320

26 29

7414

1305

PAL

4.43MHz

1308

NTSC M

3.57MHz

SCL-F

SDA-F

49 50 51

1P00

PAL

4.43MHz

1P03

NTSC M

3.57MHz

SCL-S

SDA-S

CONNECT

FRONT-Y-CVBS-IN

FRONT-C-IN

MMC

C-PIPDW-OUT

SC2-FBL

B14b

B15a

Y50

U50

V50

HA50

VA50

Y-HIP-OUT

U-HIP-OUT

V-HIP-OUT

VS-HIP-OUT

HS-HIP-OUT

C-FRONT-IN

Y-CVBS-PIPDW-OUT

PIP MUPPET

B15C

7PA7

IN-Y50

7PA8

IN-U50

7PA9

IN-V50

VA50-PIP

7PB2

HA50

7PB6

7PA0

7PA1

3PB8

7PA2

PIP SWITCH

B15B

DIGITAL INPUT

B14F

DVI-I INPUT CONNECTOR

C3 C4

C1 C2

916

Y-CVBS-FRONT-IN

B15a

PROC.

Y/U/V

SEPAR.

PROC.

SYNC

PROC.

SYNC

SEPAR.

G B

SCART1

36 37 38 39

SCART1

36 37 38 39

G B

SWITCH

DECODER

PAL

NTSC

SECAM

H-SYNC

PROC.

V-SYNC

PROC.

RGB/YUV

MATRIX

PIP-CVBS-MON

Y/U/V

SWITCH

DECODER

NTSC

SECAM

H-SYNC

PROC.

V-SYNC

PROC.

RGB/YUV

MATRIX

VIDEO

SWITCH

CONTROL

32 34

7P08

VIDEO

SWITCH

CONTROL

PAL

VY V

R G B

41 42 43 40

Y U V

VY V

R G B

41 42 43 40

49 50 51

SCART2

B15B

SCART2

B21

7132 74HC4053

SEL_FRONT_SC3

FRONT-SC3-Y-CVBS

FRONT-SC3-Y-C

1M36

24Y 3

FRONT-Y-CVBS

2 3

FRONT-C

1M36

B14A

7I35 7I36 7I37

CONTROL

SC2-B_C-OUT

B14b,c

B15B

98 8

100

SDA-S

SCL-S

1D01

15 16

7PA6 SAB9083H

7P56 M62320

PIP SWITCH

7P54

BA7609F 8 9

1 16

14 11

MUPPET-BLK

MUPPET

DOUBLE

WINDOW

PROC.

73 75

I/O

EXP

1I59

SCL_DVI

SDA_DVI

AV6- V

1I56

168

7PB5

SWITCH-MAIN

PIP_RESET

SWITCH-SUB

7I51 7I52

1I57

1I53

MF (1-17)

Y-2 F H

V-2FH

U-2FH

SDA-F3

SCL-F3

B3B

CLK32I

B3c

B19A

FALCONIC

7760 SAA4998H

FALCONIC

EMBEDDED

MEMORY

CLKP

1:2

CLK-OSD

B19C

7L01 AD9883AKST

A/D

COVERTER

SYNC

PROC.

CLOCK

GENERATOR

SERIAL

POWER

MAN.

CONVERTION

U-AD (0-7)

2-9

70-77

12-19

66 64 65 67

B15a

UVF (0-7)

UV-AD (0-7)

H-2FH-AD-OUT V-2FH-AD-OUT SYNCDET CLK-2FH

YF (0-7)

PICNIC

B3A

64K

7711

PROM

M27C512

7713 SAA4978H

Y-PIP+MAIN-OUT

U-PIP+MAIN-OUT

V-PIP+MAIN-OUT

B19d

B3D

B15b

B19a B19a

B19a

B3a

DVI

F162

F164

F165

3727

F166

3728

COLUMBUS

7753 MSN56V16160F-7TS

SDRAM

B19B

+2V5-IO

+3V3-IO

+1V5-INT

+1V5-PLL

H-2FH-AD-OUT

V-2FH-AD-OUT

SYNCDET

B3a

Href-EXT

B3a

HD-E

VD-E

IOR

IOG

IOB

VSYNC

18 HDVI

HSYNC

ADC

SCL-F

SDA-F

COL_SD

EPLD CONTROL

7V03 MSM56V16160F

7752-1 T6TU5XB

Href-EXT

B3a

7V01 EP1C12F256C8

DEFLECTION

AV6- R R-DV1

AV6- G G-DVI

AV6- B B-DVI

AV6- V V-DVI

AV6- H

SWITCH-MAIN

B15B

HA50

VA50

7PB1

GATE

MUPPET_BLK

SDA-S

7PA5

SCL-S

PIP-RESET

B15B

FBLK

B14C

B15C

B14C

7I18 SII907

RX2-

RX2+

SCLS SDAS

RX1-

RX1+

RECEIVER

RX0-

RX0+

RXC+

RXC-

LATCH

AD(0-7)

DIGITAL

SIGNAL PROCESSING

PICNIC

SYNC PROCESSING

BUS A

UVA / YA

COLUMBUS

SUPPLY

STANDARD

SYNC

CONTROL

INPUT

CONTROL

SD-A

DRAM

512KX16X2

B14G

7I55 BA7657F

R1-IN

R2-IN

G1-IN

G2-IN

B1-IN

B2-IN

VD1-IN

VD2-IN

HD1-IN

HD2-IN

HD-S-SIG-DET

C-V-IN

CTL

74HC573

BUS B

I/O

B19D

SD-DQ

I/O7

+5VIO

GROUND

468

7712

UVB / YB

VD-OTC HD3-OTC PWR-OK-PDP LCD-PWR-ON LAMP-ON

CLK32E Vref Href RSTR REF FALREF REFIN

SWITCH-1FH SWITCH-2FH

VCC

DET

SYNC SEPA

LOGIC

B15A

BUS C

EPLD I/O

R-OUT

G-OUT

B-OUT

VD-OUT

HD-OUT

C-S-OUT

DA (0-15)

CLI6

WEC

RSTW

SN-DA

SN-CL

Href-EXT

B19a

B3c

B3a

B19d

B3c B3c

B3c B3c B3c

B19b B19b

B19b

B19d

R-VGA

G-VGA

B-VGA

SC2-R_C-IN_AV2

SC2-B-IN_C-OUT

7714 MS81V04160A

FIELD

MEMORY

FM1

B3c,d,B19d

CLK-2FH CLK-64

CLK-VID

SDA-F3

SCL-F3

SN-CL

SN-DA

CLK32P_EPLD

SWITCH-2FH

CLK32E

SWITCH-2FH

7I56

7I57

7I58

SC2-G-IN

7154 TSH95

SNDA

SNCL

7E03

7E04

PATH

FOR 3FH

ONLY

Y-AD (0-7)

B3C

Y-OUT (0-9)

UV DEMUX CONTRAST

SATURATION

BRIGHTNESS

EPLD

EAGLE

U-VOUT (0-9)

B19d B19d B19d B19b

UVF (0-7)

YF (0-7)

YUV

RGB

CLKP

B5A

YG (0-7)

UVG (0-7)

YF (0-7)

UVF (0-7)

CLK32I FALR EF

B19b

REFIN

B19d

Vref

B19d

SNDA

SNCL

Href CLK32E

B19d B19d

OSD

INSERTION

R-OSD (0-5)

G-OSD (0-5)

OTC

7001 SAA5801H

OTC

77 R-TXT 2FHR-GFX

78 G-TXT 2FHG-GFX

DIPLAY

INTERFACE

79 B-TXT 2FHB-GFX

80 FB-TXT 2FHFB-GFX

Block Diagram Audio

AUDIO

SEE ALSO BLOCK DIAGRAM VIDEO

3P48

3P93

1P11

1P10

1P12

+8VP

7410

B21

SNDR-IN

SNDL-IN

MONO-HIP-OUT

SIF-OUT

QSS_AM

B6a

B14D

7P55-M

7P55-BG

7P55-DK

7P55-I

SNDL-SEC-IN

SNDR-SEC-IN

7P07

AUDIO I/O

7I17 TEA6422D

SWITCH

PIP-AM

PIP-FM

MATRIX

B15A

B15B

SDA-S

SCL-S

B6A

SEE ALSO BLOCK DIAGRAM VIDEO

PIP I/O

7P56 M62320

AUDIO I/O

B65

SND-CENTRE-IN

B14b

SNDR-MAIN-IN

SNDL-MAIN-IN

SNDR-DVI-IN

B14c

SNDL-DVI-IN

SNDR-SEC-IN

B14c

SNDL-SEC-IN

B6a

SNDR-SC2-OUT

SNDL-SC2-OUT

SEL-PIP-SOUND1

I/O

EXP

SEL-PIP-SOUND2

PROXIMITY SENSOR

1040

SENSOR

+5V2-STBY

7020

30FTL2.xE AA 6.

CONNECTIONS

B6C

9ID0

SNDR-SC1-OUT

SNDL-SC1-OUT

SNDR-SC2-OUT

SNDL-SC2-OUT

SNDR-MON-OUT

SNDL-MON-OUT

1M36

B21

B14B

SUBW

1M36

SIDE I/O

IRQ-AUDIOSUPPLY

B5A

I/O

SCART 1

SCART 2

HEADPHONE-OUT

DETECT

AUDIO-R

AUDIO-L

GND-AUD

7010

SOUND-ENABLE

POR

N.C.

AUDIO-SW

7Y01

+5V2-STBY

1I06

SUBW

OUT

B5A

EXT 1

3 1

1I05

AUDIO

L/R OUT

EXT 2

AUDIO

L/R OUT

AUDIO

L/R OUT

17 18 20

14 13 11

N.C.

7A06 TDA7309

7A02 MSP3411G

IF1

IF2

SDA-F-AUD

7P55 TDA9820T

SC4

SC1

SC3

I2S-MSP-OUT

I2S-MSP-WS

I2S-MSP-CLK

SCL-F-AUD

ADC

MONO-IN

7A03

B68

B66

B67

HPN-R

HPN-L

MSP-CENTER

MSP-SURR

DACM-SUB

SNDR-SC1-OUT-DC

SNDL-SC1-OUT-DC

SNDR-MON-OUT

SNDL-MON-OUT

N.C.

LM833D

7A00-A

I2S

HEADPHONE-L

HEADPHONE-R

LOUD-

SPEAKER

SOUND

PROCESSING

HEADPHONE/

SURROUND

SOUND

PROCESSING

DAC

SCART OUTPUT SELECT

B21

LOUD

DACM-SUB

FRONT-DECT

I2S-DPL-OUT

I2S-DPL-CLK

I2S-DPL-WS

CONNECTIONS

PRESCALE

DE-

7A07 MC33178D

PRE-PROCESSING

ADC

PRESCALE

SOURCE SELECT

INTERFACE

MODULATOR

SCART

DSP

INPUT

SELECT

HPN-L

HPN-R

AUDIO-R

AUDIO-L

B69

AUDIO-SW

N.C.

N.C. N.C.

N.C. 7A00 LM833D

AUDIO_SW

B14D

2IA2

2I99

7I20

9.10

REG-SW

7I22-B

SCART 3

1M36

BLOCK DIAGRAM CONTROLS

CONNECTIONS

B21

PIP-FM

INTERCARRIER

SOUND

DEMODULATOR

(MONO)

B14D

LED + SWITCH

PROXIMITY

7020 7021

CONTROL

0350

RC2

6020

7021

PWM-OUT

PULSE-OUT

PWM-OUT

RC2

PULSE-OUT

7075 P87LPC760BDH

MICRO

CONTROLLER

TOP CONTROL

6060

BLUE

6051

RED

1040

SENSOR

7070 LM358P

6070

LIGHT SENSOR

LED1

+8V

SCL-S

SDA-S

LED2

KEYBOARD

RC-IN

0345

1M20

KEYBOARD

CON-SND

LED1

LIGHT_SENSOR

5Y11

LED2

9Y06

SCL-SF

SDA-SF

+8V

+5V2-STBY

B14E

9ID0

ON / OFF CHANNEL+

CHANNEL-

VOLUME+ VOLUME-

COM-SND

LIGHT-SENSOR

+5V2-STBY

OTC FLASH

B5A B3A

CVBS-TXT

SEE ALSO BLOCK DIAGRAM VIDEO

+5V2-CON

7005 LF33AB

B3A

OUT

+3V3 INTOTC

B14B

HD3-EPLD

VD-EPLD

N.C.

ON-OFFOLED

LED2

LIGHTSENSOR

7015

7016

CVBS-Y-RECORD-IN

7002 : 7004

RESET

7013, 7014

RESET FLASH

RAM

STATUS_SC3

STATUS_SC4

CON-SND

P50

7008

+3V3

7001 SAA5801H

OTC

114

RESET

109

108

99POR-FLASH

98IRQ-DIGITAL

93HD@HOME

96IRQ-FTV

118

7009

120

7022

115

7022

115

100

107KEYBOARD

110

AUDI O

SA3

1739

1M52

775

88 SDA-F

87 SCL-F

86 SDA-S

85 SCL-S

90 TXD

N.C.

RXD

3099-3 3081

119

3074-4 3097

104 STANDBY

95 SOUND-ENABLE

94 RESET AUDIO

117

116

103

7011 MC24C32

SDA

EEPROM

NVM. 4kByte

SCL

ADDRESS

DATA

CONTROL

1001

6Mhz

R-TXT

G-TXT

B-TXT

FBL-TXT

SEL_IN_2

SEL_IN_1

PWW-BLACKLIGHT

7715

SAM

SDM

2016

7007 MSM51V18165F

AUDIO-R

AUDIO-L

SOUND-ENABLE

PROT-AUDIO-SUPPLY

SEE ALSO BLOCK DIAGRAM VIDEO

B14B

7012 M29W400BT

EPG-

FLASH-RAM

4Mbit

-16V-19V

PRE

SOUND ENABLE

AUDIO SUPPLY PROT, CIRCUIT

R-OSD

G-OSD

B-OSD

BL-OSD

24 22

PWM

OSC

PWM

14,15 11,13

OUT

PWM

DCPROT

PROT1

B5C

+16 +19V

I778

I776

+16V+19V

OTC-FLASH

(OCTAL BUS TRANSCEIVER)

7018

74LVC245APW

7019

74LVC245APW

AUXILIARY

FLASH

PROGRAM

CIRCUIT

FOR

FLASH RAM

5701

3718

5720

3728

5702

3717

3745

6745

1404 SSSS811

SWITCH FOR SOFTWARE DOWNLOAD

+16V+19V

-16V-19V

5730

5731

5733

DCPROT

1735

1736

1738

SUBWOOFER

1M02

TO 1M02

LCD 42"

TO 1M02

LCD 30"/37"

E_14620_045.eps

260405

15W/ 8Ω

+ 142 hidden pages
