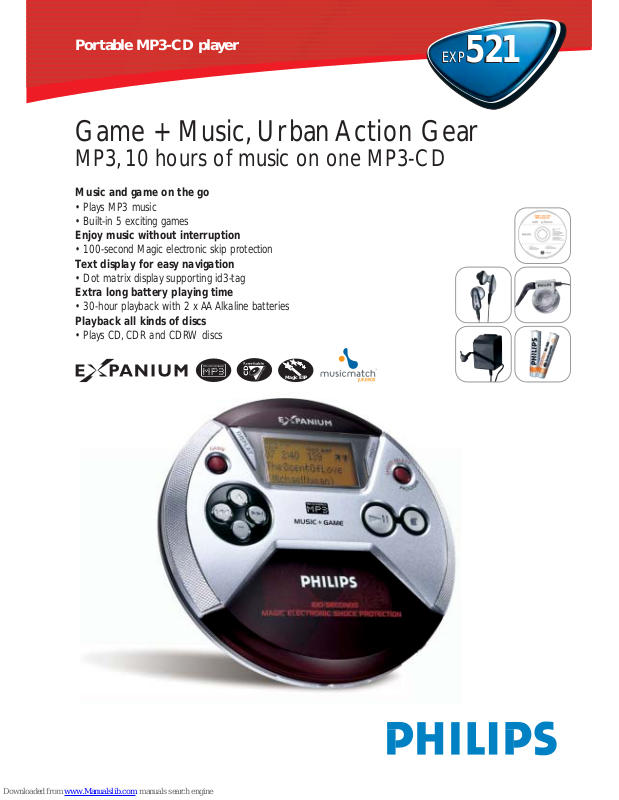

Philips eXpanium EXP521 Specifications

EXP52 1

EXP52 1

Portable MP3-CD player

Music and game on the go

• Plays MP3 music

• Built-in 5 exciting games

Enjoy music without interruption

• 100-second Magic electronic skip protection

Text display for easy navigation

• Dot matrix display suppor ting id3-tag

Extra long battery playing time

• 30-hour playback with 2 x AA Alkaline batteries

Playback all kinds of discs

• Plays CD,CDR and CDRW discs

Game + Music, Urban Action Gear

MP3, 10 hour s of music on one MP3-CD

Magic ESP

Portable MP3-CD player

Standard product information

Amplifie/ system

• Output power (headphone)
2 x 5mW RMS

• 1-Bit D/A convertor for pure sound reproduction

• Digital dynamic bass boost

• Digital volume control

• S/N ratio (A weighted) >85 dB

•Frequency response 20 Hz - 20 kHz

• Audible feedback

CD player

• Supports the CD-ROM,CD-Recordable and
CD-Rewritable in ISO-9660,Joliet format and UDF.

• Playback possibility of 32,40, 48,56, 64,80, 96,
112,128,160, 192,224, 256 and 320 Kbps per
MP3 track

• Supports variable bit rate per track

• Supports CD's that contains music tracks with
mixed bit rates

• 50-Track programmable, shuffle album/all,repeat
one/album/all

• Search forward/ backward in tracks

• Resume and hold

Electronic skip protection

• MP3-CD 100 seconds ESP

at 128 Kbps

• Audio CD 45 seconds ESP

LCD display

• Indications for track & album number,time,
DBB,CD functions, ESP and battery status

• Indications for song titles, ar tist name , album
name and filename

Games

• Muncher

•Breaker

• Snatcher

• Matcher

• Copter

Connections

• Headphone/ line out stereo,3.5 mm

• DC in 4.0 mm,4.5V, centre ‘+’

Power supply

• Batteries 2 x 1.5V,type

AA/LR6/UM3 cell

• Battery playing time 30 hours

(2 AA Alkaline,MP3-CD)

• Battery playing time 12 hours (2 AAA

Alkaline,MP3-CD)

• Automatic power switch-off

General

• Material High temperature
resistant plastic

•Weight 180g

•Product dimensions 137D x 137W x 25 H

(mm)

• D-box dimensions 243W x 148L x 53 H

(mm)

• Master carton dimensions 253W x 158L x 181 H

(mm)

• Master carton quantity 3

Accessories

• Stereo in-ear headphone

•AC/DC Adapter

•4 key remote control

• Rechargeable batteries

•Free MusicMatch software

More than 10 hours of music on one MP3-CD

One MP3-CD can contain over 10 hours of music
or more than 150 tracks.

Built-in 5 exciting games

Allows to have extra enjoyments on the go.

100-second Magic electronic skip protection

Automatically stores up to 100 seconds of music
at 128 Kbps (MP3 format) to prevent music
interruptions caused by shocks.

30-hour playback with 2 x AA Alkaline
batteries (MP3-CD)

Powersaving technology extends battery playing time to 30
hours with 2 regular LR6-size (AA) alkaline batteries.

Large and easy to read text display
(supporting id3-tag)

Display that shows name of track,artist and
album & track number for easy navigation.

Build-in recharge capability

Built-in recharge capability for ECO-PLUS Ni-MH
batteries (batteries AY3362 included).

ECO-PLUS Ni-MH rechargeable battery supplied

Durable and environmental friendly rechargeable
battery type which is quick and easy to c harge.

Plays CD,CDR and CDRW discs

Ensures that all CD's including CD-Recordable and
CD-Rewritable discs, made by any CD-Recorder,
can be played.

Playback of MP3 (32-320 Kbps) and variable
bitrate

Supports 32 upto 320 Kbps per MP3 track and
variable bitrate per MP3 track.

Digital Dynamic Bass Boost

Enhances bass at low,mid and high volume, to give
deep,ric h sounds .

Compact disc audio player

Compact Disc technology that provides uncompressed
superb digital sound quality.

Heat resistant body

Unique composite material enables the CD player
to withstand very high temperature.

1-Bit D/A converter

Advanced digital conversion technology ensures
crystal-clear sound.

Hold

Locks all buttons to prevent interruption of play
or change of program settings.

Resume

Bookmark function that ensures the CD starts
precisely from the point it was stopped.

Automatic power off

Automatically switches off the CD player at the end
of a compact disc.

Album/ track - Plus/ Minus

Scrolls through albums and very fast through all songs.

CD next/ previous

Plays the next or previous track at the touch
of a button.

Repeat one/ album/ all

Repeat the current track,the current album or the
total CD.

Shuffle album/ all

Plays album or disc randomly,giving you each time
a new sequence of tracks.

50-track programmable

Stores up to 50 of your favorite tracks for playing
back in your order of preference.

Audible feedback

Confirms any key-push with friendly beep
to acknowledges that a command has been given.

Printed in Hong Kong 2002-11-21
Specifications subject to modification
without notice
2002 © Koninklijke Philips Electronics N.V.
All rights reserved

www.philips.com
www.audio.philips.com

EXP52 1

EXP52 1
