English ––––––––––––––––––––––––––––––––––––––––––– 6
Français ––––––––––––––––––––––––––––––––––––––––– 29
Español –––––––––––––––––––––––––––––––––––––––––– 52
∑ ––––––––––––––––––––––––––––––––––––––––––––– 75
Guarantees –––––––––––––––––––––––––––––––––––––– 98
5
English
FrançaisEspañol
Guarantees
∑
Quick start ––––––––––––––––––––––––––––––––––––––––––– 7
Controls –––––––––––––––––––––––––––––––––––––––––––––– 8
General Information
Maintenance ––––––––––––––––––––––––––––––––––––––––– 9
Environmental information –––––––––––––––––––––––––––––– 9
MP3 and AAC music files –––––––––––––––––––––––––––––– 10
Power supply
Batteries ––––––––––––––––––––––––––––––––––––––––––– 13
Mains adapter ––––––––––––––––––––––––––––––––––––––– 14
Headphones ––––––––––––––––––––––––––––––––––––––––– 14
Basic functions
Playing a disc ––––––––––––––––––––––––––––––––––––––– 15
Pause ––––––––––––––––––––––––––––––––––––––––––––– 16
Playing Enhanced Music CDs ––––––––––––––––––––––––––– 16
Volume and sound ––––––––––––––––––––––––––––––––––– 17
Selecting and searching ––––––––––––––––––––––––––––––– 18
Selecting an album ––––––––––––––––––––––––––––––––––– 19
Features
Programming track numbers ––––––––––––––––––––––––––– 20
Clearing the programme –––––––––––––––––––––––––––––– 20
Storing the last position played – RESUME –––––––––––––––– 21
Locking all buttons – HOLD ––––––––––––––––––––––––––– 21
Selecting different playback possibilities – MODE ––––––––––– 22
ESP – Electronic Skip Protection –––––––––––––––––––––––– 23
Acoustic feedback ––––––––––––––––––––––––––––––––––– 23
Accessories
In-car connections ––––––––––––––––––––––––––––––––––– 24
Belt clip ––––––––––––––––––––––––––––––––––––––––––– 25
Troubleshooting –––––––––––––––––––––––––––––––––––––– 26
6
Contents
English
7

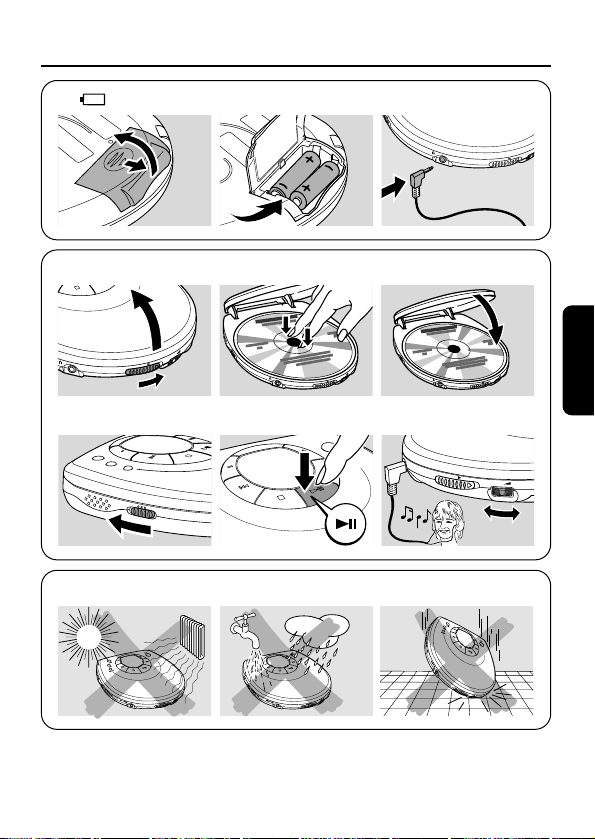

Quick start
English
!!!
12p
3 #
4 HOLD ➠ OFF 5 PLAY 2; 6 VOL E
/
This set complies with the radio interference requirements of the
European Community.
O
F
F
•
R
E
S
U
M
E
•
H
O
L
D
L
I
N
E
O
U
T
/
.
L
O
V
N
E
P
O
O
F
F
•R
E
S
U
M
E
•
H
O
L
D
L
I
N
E
O
U
T
/
.
L
O
V
N
E
P
O
O
F
F
•
R
E
S
U
M
E
•
H
O
L
D
L
I
N
E
O
U
T
/
P
S
E
E
L
T
I
T
•
M
U
B
L
A
L
B
U
M
•
T
I
T
L
E
O
F
F
•
R
E
S
U
M
E
•
H
O
L
D
A
H
C
R
A
E
S
E
S
S
E
A
U
R
A
CH
P
•
Y
A
L
P
S
T
O
P
O
L.
O
V
N
E
P
O
.
L
O
V
N
E
P
O
P
E
N
V
O
L
1 OPEN2
opens the CD lid
2 VOL E
adjusts the volume
3 9
stops playback,clears a programme
and switches the set off
4 2;
switches the set on,starts
playback and interrupts playback
5 §
skips forward and
searches forward
6 ESP
Electronic Skip Protection
prevents music interruptions
caused by shocks or vibrations
7 +
MP3-CD only:selects the next
album or skips forward
8 display
9 −
MP3-CD only:selects the
previous album or skips backward
0 DBB
Dynamical Bass Boost,selects
the bass enhancement
! MODE
selects the different playing
possibilities such as SHUFFLE
or REPEAT
@ PROGRAM
programs tracks and lets you
review the programme
# OFF·RESUME·HOLD
OFF switches RESUMEand
HOLD off
RESUME stores the last
position played
HOLD locks all buttons
$ ∞
skips backward and
searches backward
% LINEOUT/p
3.5 mm line out to connect
– the headphones
– this set to the audio input
of your stereo equipment
^ 4.5V DC
to connect the external
power supply
& battery compartment
* type plate
( belt clip hole
8
Controls,refer to the illustrations on page 3
English
CAUTION
Use of controls or adjustments or performance of
procedures other than herein may result in hazar dous
radiation exposure or other unsafe operation.
Maintenance

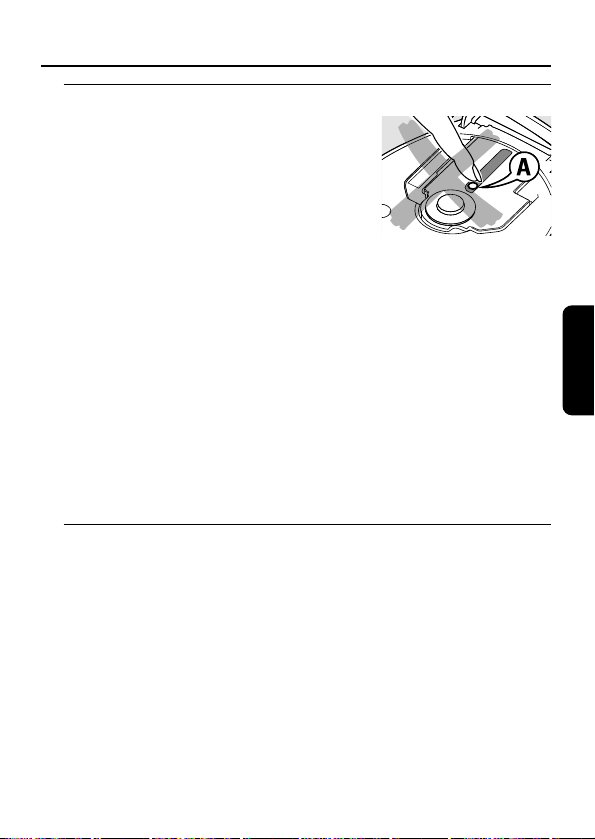

Do not touch the lens A of the set.
Do not expose the set,batteries or discs to
humidity,rain,sand or excessive heat (caused
by heating equipment or direct sunlight).
The lens may cloud over when the set is
suddenly moved from cold to warm
surroundings. Playing is not possible then.
Leave the set in a warm environment until the moisture evaporates.
Active mobile phones in the vicinity of this set may cause malfunctions.
Avoid dropping the set as this may cause damage.
Clean the set with a soft,slightly dampened lint-free cloth.Do not use any
cleaning agents as they may have a corrosive effect.
To clean a disc, wipe it in a straight line from the centre towards the edge
using a soft,lint-free cloth.Cleaning agents may damage the disc.
Environmental information
All redundant packing material has been omitted.We have done our utmost
to make the packaging easily separable into three mono materials: cardboard
(box),polystyrene foam (buffer) and polyethylene (bags,protective foam sheet).
Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the disposal
of packing materials, exhausted batteries and old equipment.
9
General information
English
MP3 and AAC music files
The music compression technologies MP3 (MPEG Audio Layer 3) and AAC
(Advanced Audio Coding) reduce the digital data of an audio CD significantly
while maintaining CD-like sound quality.With MP3, for example, you can
record up to 10 hours of CD-like music on a single CD-ROM.This set plays
MP3 and AAC music files.
How to get music files
Either download legal music files from the internet to your computer harddisc
or create them from your own audio CDs.For this, insert an audio CD into
your computer´s CD-ROM drive and convert the music using an appropriate
encoder software.To achieve a good sound quality,a bit rate of 128 kbps or
higher is recommended for MP3 music files.
Some encoder software offers an option to protect music files,i.e.the files
can only be played on the computer which created them.If you burn such
files on a CD-ROM,you cannot play them on this set. Make sure to deactivate
the protection option in the encoder software before creating the music files.
In this case you are responsible for adherence to all local or international
copyrights.
How to organize music files
In order to easily handle the large number of music files on a CD-ROM,
you can organize them in folders (“albums”).
The tracks of an album will be played in alphabetical order. If you want to
arrange them in a certain order,let the file names start with numbers.
For example:
001-ONEWORLD.MP3
002-FIRESTARTER.MP3
003-DEEP.MP3
10
General information
English

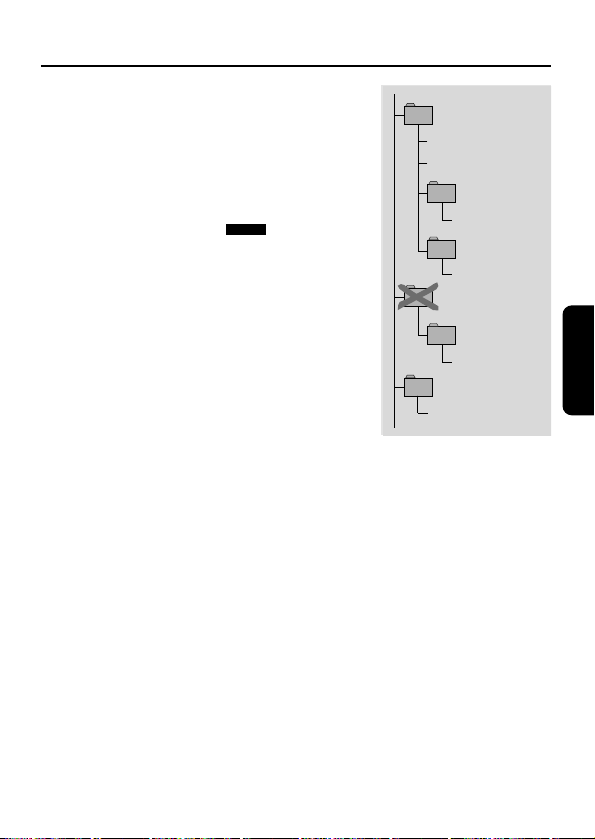

This set will play all albums in alphabetical
order.An album name includes all folders in
which the album is located,e.g.the album
VERDI in CLASSIC has the album name
CLASSIC\VERDI.
The albums in the illustration will be played
in the following way:

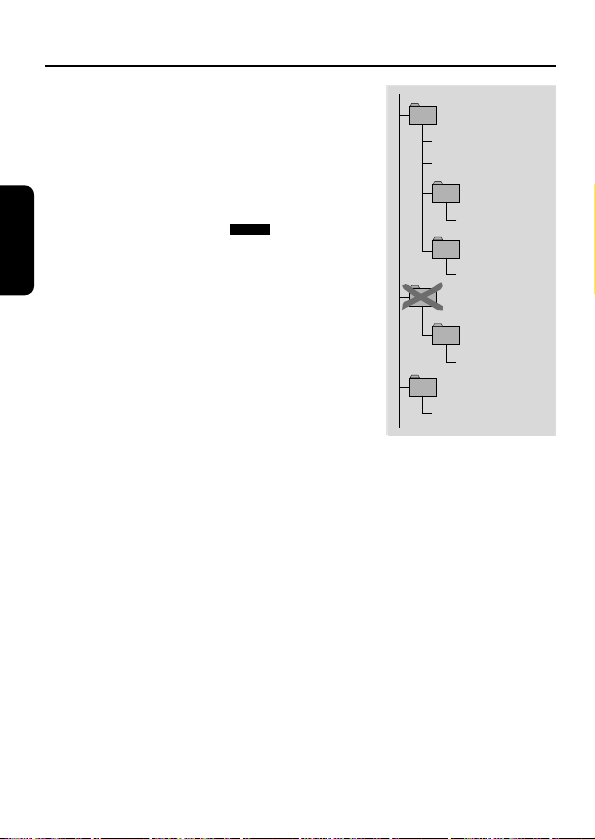

CLASSIC 1
CLASSIC\MOZART 2
CLASSIC\VERDI 3
POP\BLUR 4
REGGAE 5
In POP there are no MP3 or AAC files.
POP is therefore skipped.
There may be an album 0 which will be played
before all other albums.Album 0 contains all
tracks which you did not put into an album.
How to make a CD-ROM with MP3 or AAC files
Record (“burn”) the music files from your harddisc on a CD-ROM
with your computer´s CD burner.
Make sure that the file names of the MP3 and AAC files end with .mp3
and .aac respectively.
Use ISO 9660 disc format when burning the CD-ROM.
UDF disc format (e.g.“DirectCD”) is not supported.
11
General information
English
ALBUM
1 CLASSIC
.mp3
.mp3
2 MOZART
.mp3
3 VERDI
.mp3
4 BLUR
.mp3
5 REGGAE
.mp3
POP
Supported formats
This set supports:
– Disc format: ISO9660, Joliet, Multisession
– Music file formats: MP3,AAC
MP3 bit rate (data rate): 32–320 kbps and variable bit rate
AAC format: ISO 13818-7 MPEG-2 (low complexity profile),Stereo,
ADTS or ADIF header,AAC bit rate ≤ 160 kbps
– Total number of music files and albums:around 350
(with a typical file name length of 20 characters)
Note:The number of music files that can be played depends on the length
of the file names.With short file names more files will be supported.
Visit the EXPANIUM
homepage
http://www.expanium.philips.com
All trademarks used are owned by their respective owners.
12
General information
English
Batteries (not supplied)
Inserting batteries

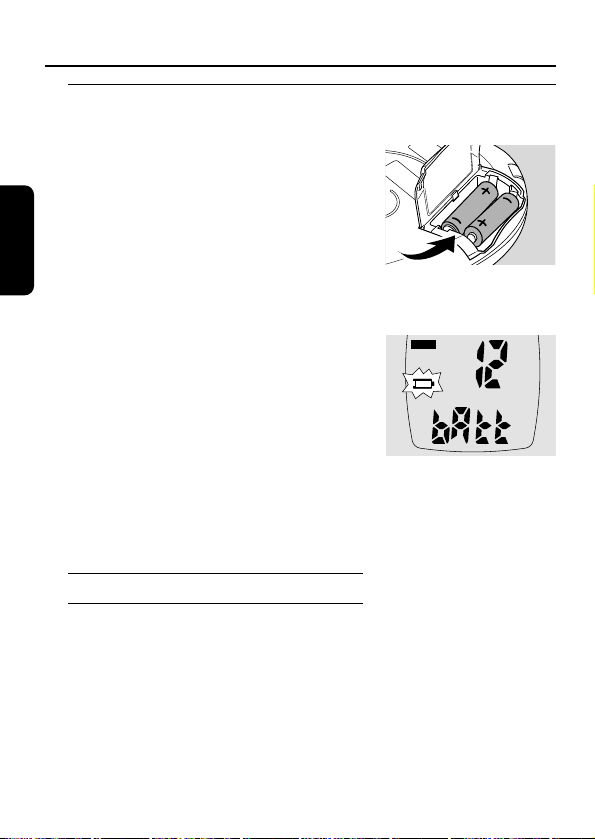

Open the battery compartment and insert
2 alkaline batteries of type AA (LR6, UM3).
Do not use old and new or different types
of batteries in combination.
Remove batteries if they are empty or if the
set will not be used for a long time.
Indication of empty batteries
● Replace the batteries or connect the mains
adapter as soon as blinks and bAtt
is displayed.
Batteries contain chemical substances,
so they should be disposed of properly.
Average battery lifetime of 2 alkaline batteries
of type AA (LR6,UM3):
Playback of Audio disc MP3-CD
ESP off 20 hours 20 hours
ESP on 20 hours 13 hours
Note:20 seconds after pressing 9 ,the display
switches off.After 90 seconds the set switches
off automatically.
A
13
Power supply
English
TITLE
Mains adapter

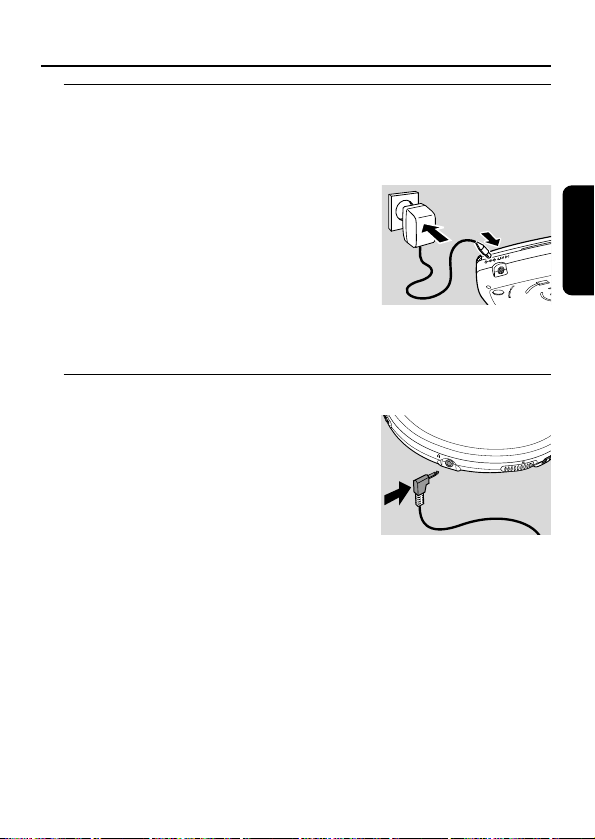

Only use the AY 3170 mains adapter (4.5V/300 mA direct current, positive
pole to the centre pin).Any other product may damage the set.
1 Make sure the local voltage corresponds to
the adapter´s voltage. If your mains adapter
is equipped with a voltage selector, set this
selector to the local mains voltage if necessary.
2 Connect the mains adapter to 4.5V DC on
the set and to the wall socket.
Note:Always disconnect the adapter if you are
not using it.
Headphones (SBC HE 545)
● Connect the supplied headphones
to LINE OUT/p.
Note:LINEOUT/p can also be used for
connecting this set to your HiFi system.Set
VOL E on this set to position 8 and adjust
volume and sound with your HiFi system.
Use your head when using headphones
Hearing safety
Do not play your headphones at a high volume.Hearing experts advise that
continuous use at high volume can permanently damage your hearing.
Traffic safety
Do not use headphones while driving a vehicle. It may create a hazard and it
is illegal in many countries.Even if your headphones are an open-air type
designed to let you hear outside sounds,do not turn up the volume so high
that you cannot hear what is going on around you.
14
Power supply/Headphones
English
O
F
F
•
R
E
S
U
M
E
•
H
O
L
D
L
I
N
E
O
U
T
/
.
L
O
V
N
E
P
O
Playing a disc
With this set you can play
– all pre-recorded audio CDs
– all finalized audio CDR(W)s
– MP3-CDs (CD-ROMs with MP3 or
AAC files)

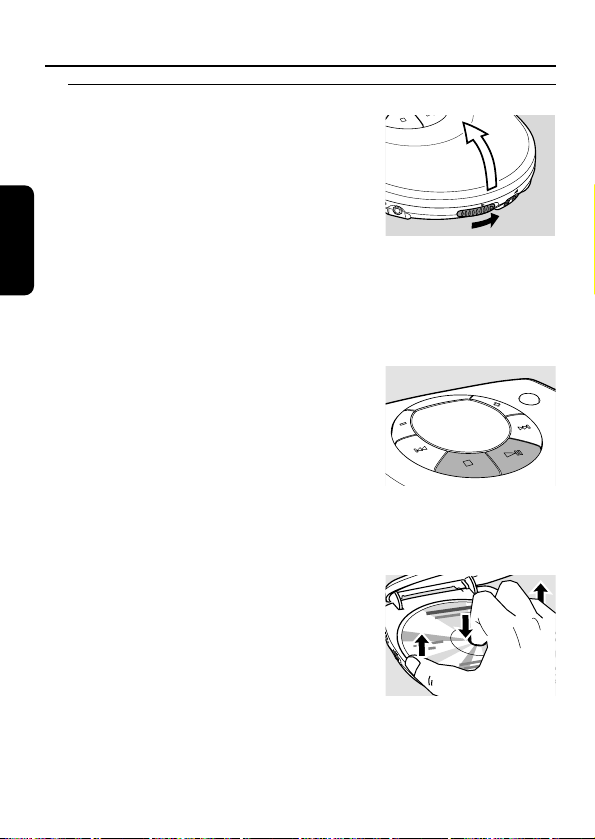

1 Push the OPEN2 slider to open the CD lid.
2 Insert a disc, printed side up, by pressing gently
on the disc´s centre so that it fits onto the hub.
Close the lid by pressing it down.
3 Press 2; to start playback.
➜ Cd rEAd is displayed.Playback starts.
Audio disc:The current track number and
the elapsed playing time are displayed.
MP3-CD: MP3 or AAC is shown.The
current album number,track number and
the elapsed playing time are displayed.
4 Press 9 to stop playback.
➜ Audio disc:The total number of tracks and
the total playing time of the disc are displayed.
MP3-CD:The total number of albums and
tracks are displayed.
5 To remove the disc, hold it by its edge and
press the hub gently while lifting the disc.
Note: After pressing 2; it may take some time
until the first MP3 or AAC track is played.
15
Basic functions
English
.
L
O
V
N
E
P
O
P
S
E
E
L
T
I
T
•
M
U
B
L
A
L
B
U
M
•
T
I
T
L
E
S
E
A
R
C
H
O
F
F
•
RES
U
ME
•
H
O
L
D
L
I
N
E
O
U
A
H
C
R
A
E
S
E
S
U
A
P
•
Y
A
L
P
S
T
O
P
T
/
N
E
P
.
L
O
V
Pause
1 Press 2; to interrupt playback.
➜ The time where playback was interrupted
will blink.
2 To resume playback press 2; again.
Playing Enhanced Music CDs
With this set you can play Enhanced Music CDs with CD audio tracks as
well as MP3 or AAC files on the same disc. Select either CD audio playback
or MP3 and AAC playback.
1 Insert the disc and press 2; to start playback.
➜ Cd rEAd is displayed.The first CD audio
track is played and MP3 or AAC will blink.
All CD audio tracks will be played,then
playback will stop.
2 To select MP3 and AAC playback,keep MODE
pressed for 2 seconds during playback or while
playback is stopped.
➜ Cd rEAd is displayed.Playback starts with
the first track of the first album.All MP3 and
AAC tracks will be played.
3 To return to CD audio playback,keep MODE
pressed for 2 seconds.
16
Basic functions
English
S
TITLE
TITLE
MP3
AAC
A
L
B
U
M
•
T
I
T
L
E
B
B
D
E
D
O
M
M
A
R
G
O
PR
Volume and sound
Volume adjustment
● Adjust the volume by using VOL E.
Sound adjustment

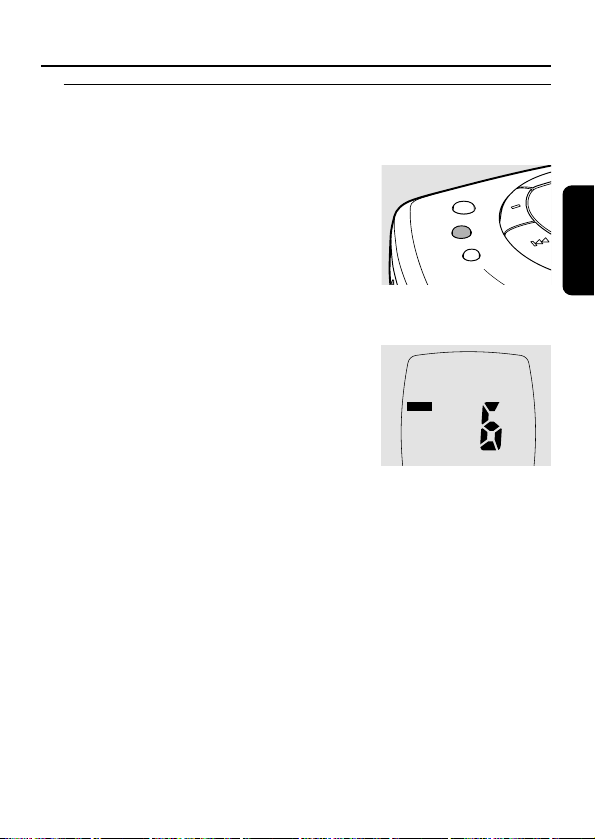

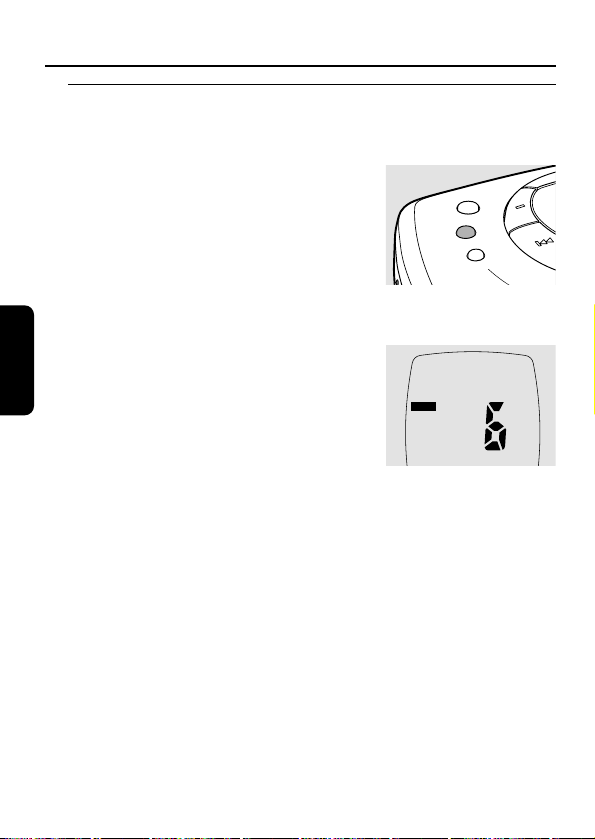

1 Press DBB for a moderate bass enhancement.
➜ is shown and dbb1 is displayed.
2 Press DBB again for a strong bass
enhancement.
➜ is shown and dbb2 is displayed.
3 Press DBB again to switch the bass
enhancement off.
➜ disappears.
17
Basic functions
English
S
DBB
DBB
DBB
O
P
E
N
V
O
L
A
L
B
U
M
•
T
I
T
L
E
B
B
D
E
D
O
M
M
A
R
G
O
PR
TITLE
DBB
Selecting and searching (on all discs)
Selecting a track during playback
● Briefly press ∞ or § once or several times to
skip to the beginning of the current, previous
or subsequent track.
➜ Playback continues with the selected track.
Searching for a passage during playback
1 Keep ∞ or § pressed to find a particular
passage in backward or forward direction.
➜ Searching is started and playback continues
at a low volume.After 2 seconds the search
speeds up.
2 Release the button at the desired passage.
➜ Normal playback continues.
Note:During REPEAT,SHUFFLE,SHUFFLE ALL
or while playing a programme,searching is only
possible within the current track.
18
Basic functions
English
P
S
E
E
L
T
I
T
•
M
U
B
L
A
L
B
U
M
•
T
I
T
L
E
S
E
A
R
C
H
A
H
C
R
A
E
S
E
S
U
A
P
•
Y
A
L
P
S
T
O
P

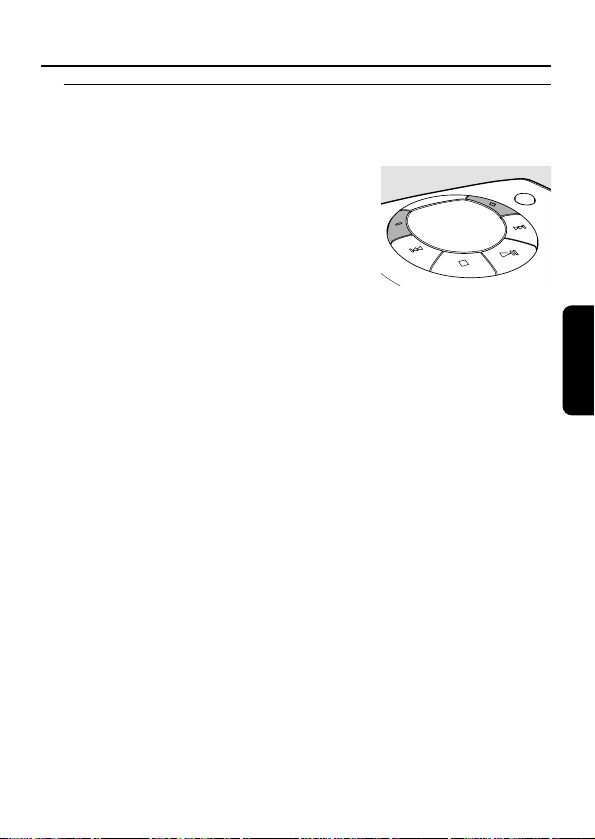

Selecting an album (on MP3-CDs only)
Selecting an album during playback
● Briefly press − or + once or several times to
skip to the first track of the current,previous
or subsequent album.
➜ The first track of the selected album is played.
Selecting a track during playback
1 Keep − or + pressed to skip quickly to previous
or subsequent MP3 or AAC tracks.
➜ Skipping starts and speeds up after 2 seconds.
2 Release the button at the desired track.
➜ Playback continues with the selected track.
Note:To skip from track to track at low speed,
use ∞ or §.
19
Basic functions
English
P
S
E
E
L
T
I
T
•
M
U
B
L
A
L
B
U
M
•
T
I
T
L
E
S
E
A
R
CH
A
H
C
R
A
E
S
E
S
U
A
P
•
Y
A
L
P
S
T
O
P
Programming track numbers
You can select up to 50 tracks and store them in the memory in a desired
sequence.You can store any track more than once.
1 Select a track with ∞ or §.
2 Press PROGRAM to store the track.
➜ PROGRAM is shown and P with the number
of stored tracks is displayed.
3 Select and store all desired tracks in this way.
4 If necessary press 9 to stop normal playback.
Press 2; to start playback of the programme.
➜ Playback of the programme starts.
00
To add additional tracks to your programme,
press 9 to stop playing the programme and
continue with step 1.
00
You can review the programme by pressing
PROGRAM for more than 3 seconds.
➜ All stored tracks are displayed in sequence.
Clearing the programme
1 If necessary press 9 to stop playback.
2 Press 9 to clear the programme.
➜ CLr is displayed,PROGRAM disappears
and the programme is cleared.
Notes:
The programme will also be cleared if you
open the CD lid or interrupt the power supply.
After storing 50 tracks,FULL is displayed.
20
Features
English
S
TITLE
D
D
O
M
PR
B
B
E
M
A
R
G
O
PROGRAM
PROGRAM
A
L
B
U
M
•
T
I
T
L
E
Storing the last position played – RESUME
You can store the last position played.When restarting, playback continues
from where you have stopped.

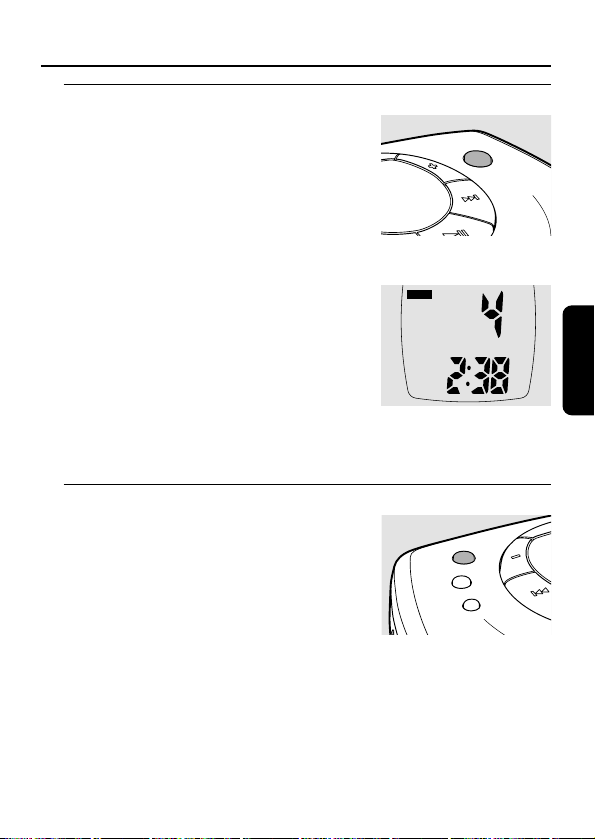

1 Switch the slider to RESUME during playback
to activate RESUME.
➜ RESUME is shown.
2 Press 9 whenever you want to stop playback.
3 Press 2; to resume playback.
➜ Audio disc: Playback continues from
where you have stopped.
MP3-CD: Playback continues from the
beginning of the last track you played.
00
To deactivate RESUME, switch the slider
to OFF.
➜ RESUME disappears.
Locking all buttons – HOLD
You can lock all buttons of the set.When you press any key, no action will be
executed then.
● Switch the slider to HOLD to activate HOLD.
➜ HOLD is shown and all buttons are locked.
When pressing any key, HoLd is displayed.
00
To deactivate HOLD,switch the slider to OFF.
➜ HOLD disappears.
21
Features
English
TITLE
O
F
F
•
R
E
S
U
RESUME
M
E
•
HOLD
H
O
L
D
Selecting different playback possibilities – MODE
It is possible to play tracks in random order or to repeat a track, an album
or the entire disc.
1 Press MODE repeatedly during playback to
select either:
– SHUFFLE (with MP3-CDs only):
All tracks of the current album are played
in random order until all of them have been
played once.
– SHUFFLE ALL:All tracks of the disc are
played in random order until all of them
have been played once.
– SHUFFLE REPEAT (with MP3-CDs only):
All tracks of the current album are played
repeatedly in random order.
– SHUFFLE REPEAT ALL: All tracks of the disc
are played repeatedly in random order.
– REPEAT:
Audio disc:The current track is played repeatedly.
MP3-CD:The current album is played repeatedly.
– REPEATALL:The entire disc is played repeatedly.
When playing a programme, you can select either:
– SHUFFLE PROGRAM:All tracks of the programme are played in random
order until all of them have been played once.
– SHUFFLE REPEAT PROGRAM:All tracks of the programme are played
repeatedly in random order.
– REPEAT PROGRAM:All tracks of the programme are played repeatedly.
2 Playback starts in the chosen mode after 2 seconds.
3 To return to normal playback,press MODE repeatedly until the display
indication disappears.
22
Features
English
S
SHUFFLE
TITLE
M
D
O
PR
B
B
E
D
R
G
O
M
A
REPEAT
ALL
A
L
B
U
M
•
T
I
T
L
E
ESP – Electronic Skip Protection
With a conventional portable disc player the
music may stop while you are jogging,for
example.The Electronic Skip Protection
protects this set against loss of sound caused
by light vibrations or shocks.Continuous
playback is ensured.ESP does not protect
the set against damage caused by
dropping!
● Press ESP during playback to activate the
skip protection.
➜ ESP is shown and the protection is activated.
00
To deactivate the skip protection, press ESP
again.
➜ ESP disappears and the protection is
deactivated.
Acoustic feedback
An acoustic signal accompanies various key
operations.
● Keep DBB pressed for more than 2 seconds.
If the acoustic feedback has been deactivated:
➜ bEEP is displayed and the acoustic
feedback is activated.
If the acoustic feedback has been activated:
➜ no bEEP is displayed and the acoustic
feedback is deactivated.
23
Features
English
S
E
L
T
I
T
•
M
A
L
P
S
T
O
P
TITLE
ESP
ESP
U
B
L
A
H
C
R
A
E
S
E
S
U
A
P
•
Y
B
B
D
E
D
O
M
M
A
R
G
O
PR
A
L
B
U
M
•
T
I
T
L
E

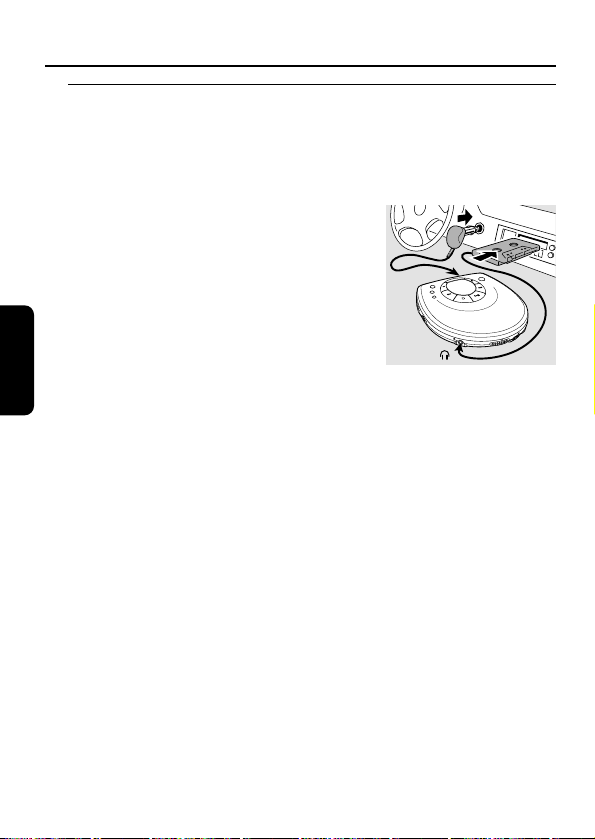

In-car connections (supplied or optionally available)
Only use the AY 3545 car voltage converter (4.5 V DC, positive pole to
the centre pin) and the AY 3501 car adapter cassette.Any other product
may damage the set.
1 Put the set on a horizontal,vibration-free and
stable surface. Make sure it is in a safe place,
where the set is neither a danger nor an
obstacle to the driver and the passengers.
2 Connect the DC plug of the voltage converter
to 4.5V DC on the set (only for a 12 V car
battery,negative grounding).
3 Insert the voltage converter into the cigarette
lighter socket.If necessary,clean the cigarette lighter socket to obtain a good
electrical contact.
4 Turn down the volume and connect the adapter cassette plug to LINE OUT/p
on the set.
5 Carefully insert the adapter cassette into the car radio’s cassette compartment.
6 Make sure the cord does not hinder your driving.
7 Set VOL E on the set to position 8.Start playback on the set and adjust
the sound with the car radio controls.
Always remove the voltage converter from the cigarette lighter socket
when the set is not in use.
Note:If your car radio has a LINE IN socket,it is better to use it for the
car radio connection instead of the adapter cassette.Connect the signal lead to
this LINE IN socket and to LINEOUT/p on the set.
24
Accessories
English
4.5 V DC
E
L
A
L
B
U
M
•
T
I
T
L
E
B
B
D
S
E
A
R
C
H
E
D
S
T
O
P
O
M
M
A
R
G
O
R
P
O
F
F
•R
E
S
U
M
E
•
H
O
L
D
L
I
N
E
O
U
T
/
P
S
E
T
I
T
•
M
U
B
L
A
H
C
R
A
E
S
E
S
U
A
P
•
Y
A
L
P
.
L
O
V
N
E
P
O

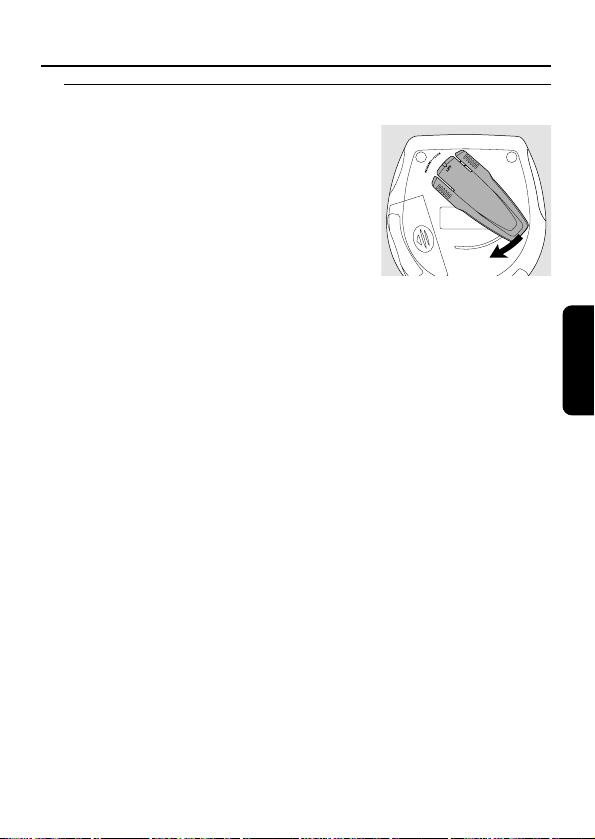

Belt clip
1 Align the belt clip as indicated in the illustration
and press on PUSH to insert the shaped pin of
the clip into the hole in the set.
2 Turn the clip clockwise as indicated to lock the
belt clip to the set.
3 To detach,gently lift the belt clip at the
indicated end and turn it counter-clockwise.
25
Accessories
English
1
2
PUSH
Loading...
