8239 300 15421

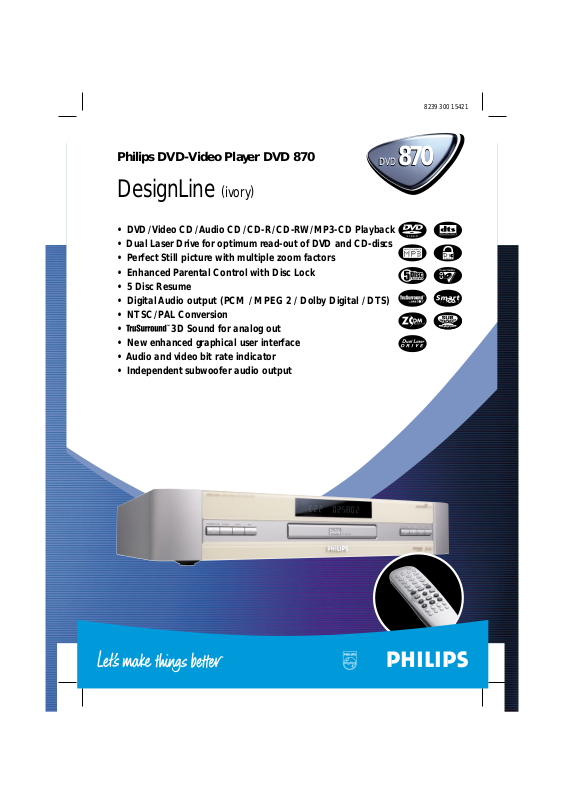

Philips DVD-Video Player DVD 870
(
DesignLine
•
DVD/Video CD/Audio CD/CD-R/CD-RW/MP3-CD Playback
• Dual Laser Drive for optimum read-out of DVD and CD-discs
• Perfect Still picture with multiple zoom factors
• Enhanced Parental Control with Disc Lock
• 5 Disc Resume
• Digital Audio output (PCM / MPEG 2 / Dolby Digital / DTS)
• NTSC/PAL Conversion
• 3D Sound for analog out
• New enhanced graphical user interface
ivory
)
DVD 870
DVD
870
• Audio and video bit rate indicator
• Independent subwoofer audio output
8239 300 15421
DVD-Video player
Technical specifications DVD 870
Playback system
• DVD-Video
• Video CD
• CD (CDR and CD-RW)
• DVD+RW
• MP3-CD
Optical read-out system
• Laser type Semiconductor AlGaAs
• Numerical Aperture 0.60 (DVD)
• Wavelength 650 nm (DVD)
DVD disc format
• Medium Optical disc
• Diameter 12 cm (8 cm
• Playing time One layer 2.15
(12cm) Dual layer 4 h
TV standard PAL NTSC
• Number of lines 625 525
• Playback Multi standard (PAL / NTSC)
Video format
• D/ A converter 10 bits
• Signal handling Components
• Digital compression MPEG 2 for DVD
DVD 50H 60Hz
Horiz. resolution 720 720
Vertical resolution 576 lines 480 lines
VCD 50Hz 60Hz
Horiz. resolution 352 pixels 352 pixels
Vertical resolution 288 lines 240 lines
Video performance
• Video output 1 Vpp into 75 ohm
• S-Video Output Y: 1 Vpp into 75 ohm
• RGB output 0.7 Vpp into 75 ohm
• Black Level Shift On/off
• Video Shift Left/right
Audio format
• Digital Mpeg/ AC-3/ DTS Compressed Digital,
PCM 16, 20 bits
• Analog sound stereo
• Dolby Pro Logic downmix from Dolby Digital
multi-channel sound
• 3D sound for virtual 5.1 channel sound on 2
speakers
0.45 (VCD/CD)
780 nm (VCD/CD)
)
1
h
1
Two side, 4.30
single layer h
Two side, 8 h
dual layer
50 Hz 60Hz
MPEG 1 for VCD
pixels pixels
C: 0.3 Vpp into 75 ohm
fs, 44.1, 48, 96 kHz
1
1
Audio performance (typical)
• D/A converter 24 bits
DVD: Fs 96 kHz 4 Hz- 44 kHz
Fs 48 kHz 4 Hz- 22 kHz
Video CD: Fs 44.1 kHz 4 Hz- 20 kHz
CD: Fs 44.1 kHz 4 Hz- 20 kHz
SVCD: Fs 44.1 kHz 4 Hz- 20 kHz
Fs 48.1 kHz 4 Hz- 22 kHz
• Signal-noise (1kHz) 100 dB
• Dynamic Range (1kHz) 97 dB
• Crosstalk (1kHz) 110 dB
• Distortion/noise (1kHz) 88 dB
• MPEG MP3 MPEG Audio L3
Connection
• Scart Euroconnector
• S-Video output Mini DIN, 4-pins
• Video output Cinch (yellow)
• Audio L+R Output Cinch (white/ red)
• Audio Centre Cinch (blue)
• Audio Subwoofer Cinch (black)
• Digital Output 1 coaxial, 1 optical
IEC958 for CDDA/
LPCM
IEC1937 for MPEG 1/2,
AC-3, DTS
• Cinemalink on SCART
Power supply
• Power inlet 230 V, 50 Hz
• Power usage 20 watt
• Power usage standby less than 5 watt
Cabinet
• Dimension 435 x 92 x 320 mm
(w x h x d)
• Weight Approx. 4 kg
Package contents
• DVD-video player
• Remote control with batteries
• User manual
• Audio cable
• Video cable
• SCART cable (euroconnector)
DVD 870
DVD 870
General functionality
• Stop/ play/ pause
• Fast forward/ backward
• Time search
• Step forward/ backward
• Slow motion
• Title/ chapter/ track select
• Skip next/ skip previous
• Repeat (Chapter/ title/ all) or (Track/ all)
• A-B repeat
• Shuffle
• Scan
• New enhanced user graphical interface
• Perfect still with digital multi-tap filter
• Zoom (x1.33, x2, x4) with picture enhancement
• Screen saver (dim 75% after 15 min.)
• Cinemalink interconnection for plug & play
• 3D sound
• Virtual Jog Shuttle
• Audio and video bit rate indicator
• Smart Picture
DVD functionality
• Multi-angle selection
• Audio selection (1 out of max. 8 languages)
• Subtitles selection (1 out of max. 32 languages)
• Aspect ratio conversion
(16:9, 4:3 letterbox, 4:3 Pan Scan)
• Parental control and disc lock
• Disc Menu support (title menu and root menu)
• Resume (5 discs) after stop/ standby
• Programming titles/ chapters with favorite
selection
Video CD functionality
• Playback control for VCD 2.0 discs
• Disc lock
• Resume (5 discs) after stop/ standby
• Programming tracks with favorite selection
Audio CD functionality
• Time display (total/ track/ remaining track time)
• Full audio functionality with remote control
• Programming with favorite track selection
MP3 functionality
• Time Display (Track)
• Album and Track Selection
• Repeat (Disc/Album/Track)
1 Typical playing time for movie with 2 spoken
languages and 3 subtitle languages.
Dolby Prologic is trademark of Dolby Laboratories Licensing Inc. , and the symbol are trademarks of SRS Labs, Inc. *** Only available in certain countries.
DRAFT - specifications subject to change without prior notice. 870-EU
