Page 1

DVD-VIDEO

DVD840

Ш227 3615755

Page 2

SAFETY PRECAUTIONS

WARNING

RISK OF ELECTRIC SHOCK

WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA

CAUTION: This Digital Video Disc Player employs a Laser System.

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE NE

_________

OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’ AU FOND.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location - see service procedure.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open and interlocks defeated. DO NOT STARE INTO BEAM.

PAS OUVRIR

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instruc tions in the literature accompanying the appliance.

WARNING: Changes or modifications made to this equipment, not expressly approved by Philips Consumer

Electronics Company, or parties authorized by Philips Consumer Electronics Company, could void the user’s authority to operate the equipment.

In the spaces provided below, record the Model and Serial No. located on the rear panel of your DVD video player.

Model No..

Retain this information for future reference.

Serial No.

Page 3

Location of the required label

WARNING

TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DISTRIBUTED BY:

PHILIPS CONSUMER

ELECTRONICS CO.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER’S MANUAL AND

THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you If you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can' be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read owner’s manual

After unpacking this product, read the owner’s manual carefully, and follow all the operating and other Instructions.

3. Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect It from over heating. These openings must not be blocked or covered. The open ings should never be blocked by placing the product on a bed, sofa, rug or other similar

2. Power Sources This product should be operated only from the type of power source indicated on the marking label. If

surface. This product should not be placed In a built-in installation such as a bookcase or rack unless proper venti lation is provided or the manufacturer’s instructions have been adhered to.

you are not sure of the type of power supply to your home, con sult your product dealer or local power company. For products in tended to operate from battery power, to the operating instructions.

Page 4

IMPORTANT SAFETY INSTRUCTIONS

4. Heat The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including am plifiers) that produce heat.

5. Water and Moisture Do not use this product near wa ter - for example, near a bath tub, wash bowl, kitchen sink, or laun dry tub; in a wet basement; or near a swimming pool and the like.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol clean ers. Useadamp cloth forcleaning.

7. Power-Cord Protection Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, pay ing particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

yi \

10. Object and Liquid Entry Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

11. Attachments Do not use attachments not recommended by the product manufacturer as they may cause hazards.

12. Accessories Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table rec- ^ ommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recom mended by the manufacturer. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

13. Disc Tray Keep your fingers well clear of the disc tray as it is closing. It may cause serious personal injury.

8. Overloading

Do not overload wall outlets, extension cords, or integral con venience receptacles as this can result in a risk of fire or electric shock.

9. Lightning For added protection for this prod uct during a storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will pre vent damage to the product due to lightning and power-line surges.

14. Burden Do not place a heavy object on the product or step on it. The object may fall, causing serious personal injury and serious dam age to the product.

Page 5

15.Headphones When you use the headphones, keep the volume at a moderate level. If you use the headphones continuously at a high volume, it may cause hearing damage.

16. Disc Do not use a cracked, de formed, or repaired disc. These discs are easily broken and may cause serious personal injury and product malfunction.

17. Damage Requiring Service Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged.

If liquid has been spilled, or objects have fallen into the

product. If the product has been exposed to rain or water.

If the product does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as an improper

adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

If the product has been dropped or damaged in any way.

When the product exhibits a distinct change in per

formance - this indicates a need for service.

20. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

18. Servicing Do not attempt to service this prod uct yourself as opening or removing covers may expose you to dangerous voltage or other haz ards. Refer all servicing to qualified service personnel.

19. Replacement Parts When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Page 6

Introduction^

Precautions

Notes on Handling

When shipping the DVD video player, the original shipping carton and packing materials come in handy. For maximum protection, repack the unit as it was originally packed at the factory. Do not use volatile liquids, such as insect spray, near the DVD video player. Do not leave rubber or plastic products in contact with the DVD video player for a long time. They will leave marks on the cabinet. The top and rear panels of the DVD video player may become warm after a long period of use. This is not a malfunction. When the DVD video player is not in use, be sure to remove the disc and turn off the power. If you do not use the DVD video player for a long time, the unit may not function properly in the future. Use the DVD video player occasionally.

Notes on Location

When you place this DVD video player near a TV, radio, or video cassette recorder (VTR), the playback picture may become poor and the sound may be distorted. In this case, place the DVD video player away from the TV, radio, or VTR.

Notes on Cleaning

Notes on Moisture Condensation

Moisture condensation damages the DVD video player. Please read the following carefully.

Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the DVD video player.

Moisture condensation occurs during the following cases.

When you bring the DVD video player directly from a cold place to a warm place.

When you use the DVD video player in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit.

In summer, when you use the DVD video player in a hot and humid place just after you move the unit from an air conditioned room. When you use the DVD video player in a humid place.

Use a soft, dry cloth for cleaning.

• For stubborn dirt, soak the cloth in a weak detergent solution, wring the cloth well, and wipe the unit. Use a dry cloth to wipe it dry. Do not use any type of solvent, such as thinner and benzine, as they may damage the surface of the DVD video player.

• If you use a chemical saturated cloth to clean the unit, follow that product’s instructions.

To Obtain a Clear Picture

The DVD video player is a high technology, precision device.

If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality becomes poor. To obtain a clear picture, we recommend regular inspection and maintenance (cleaning or parts replaoement) every 1,000 hours of use depending on the operating environment. For details, contact your nearest dealer.

Do not use the DVD video player when moisture

condensation may occur.

If you use the DVD video player in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the DVD video player to the wall outlet, turn on the DVD video player, and leave it on for two or three hours. After two or three hours, the DVD video player will have warmed up and evaporated any moisture. Keep the DVD video player connected to the wall outlet and

moisture condensation will seldom occur.

Page 7

Introduction^

Table of Contents

Introduction

■ SAFETY PRECAUTIONS

■ IMPORTANT SAFETY

INSTRUCTIONS..........................................2-4

■ Precautions.....................................................5

................................

Connections

■ Connecting to a TV.......................................11

■ Connecting to an Audio System

sj Basic Playback

Playing a Disc

Basic Playback Using the Shuttle Ring Using the Jog Dial Resuming Playback from the Same Location

..........................................

^ Advanced Playback

■ Playing Repeatedly

Repeating a Title, Chapter, or Track Repeating a Specific Segment

■ Playing in a Favorite Order...........................22

Setting Titles, Chapters, or Tracks in a Favorite Order

■ Playing in Random Order

Playing Titles in Random Order Playing Chapters or Tracks in Random Order

■ Zooming a Picture

Zooming a Picture

......................................

.............................

.........................................

...............

15-18

Identification of Controls

Front Panel/Rear Panel/DVD Display Remote Control Preparing the Remote Control Operating with the Remote Control

Connecting to Optional Equipment... 13, 14

Enjoying Dolby Digital (AC-3) Sound Enjoying MPEG 2 Sound Enjoying Dolby Pro Logic Surround Sound Enjoying Two-channel Digital Stereo Sound

Locating a Specific Title, Chapter,

or Track...................................................19, 20

Locating a Title Using the Title Menu Locating a Title Locating a Specific Chapter or Track Directly Locating a Specific Chapter or Track Locating a Specific Location on the Disc

Selecting the Camera Angle/Selecting a Language

Changing the Camera Angle Selecting a Playback Audio Setting

Selecting Subtitles

Displaying Subtitles

Selecting a Subtitle Language

Playing Karaoke............................................27

Playing Karaoke

Various Function Setting

Using the On-Screen Display

Checking the Operational Status Checking the Remaining Time and Setting Status

.................

........................................

.......................

.7-10

..........

^ Function Setup

■ Customizing the Settings

Displaying the SET UP MENU Screen Setting the Audio Sound ■ Setting the Functions Setting the Displays

others

■ Notes on Discs....................................

■ Before Calling Service Personnel...

■ Specifications......................................

....................

...30-36

........

42 43 44

Setting the Parental Lock

■ Setting the Parental Lock

....................

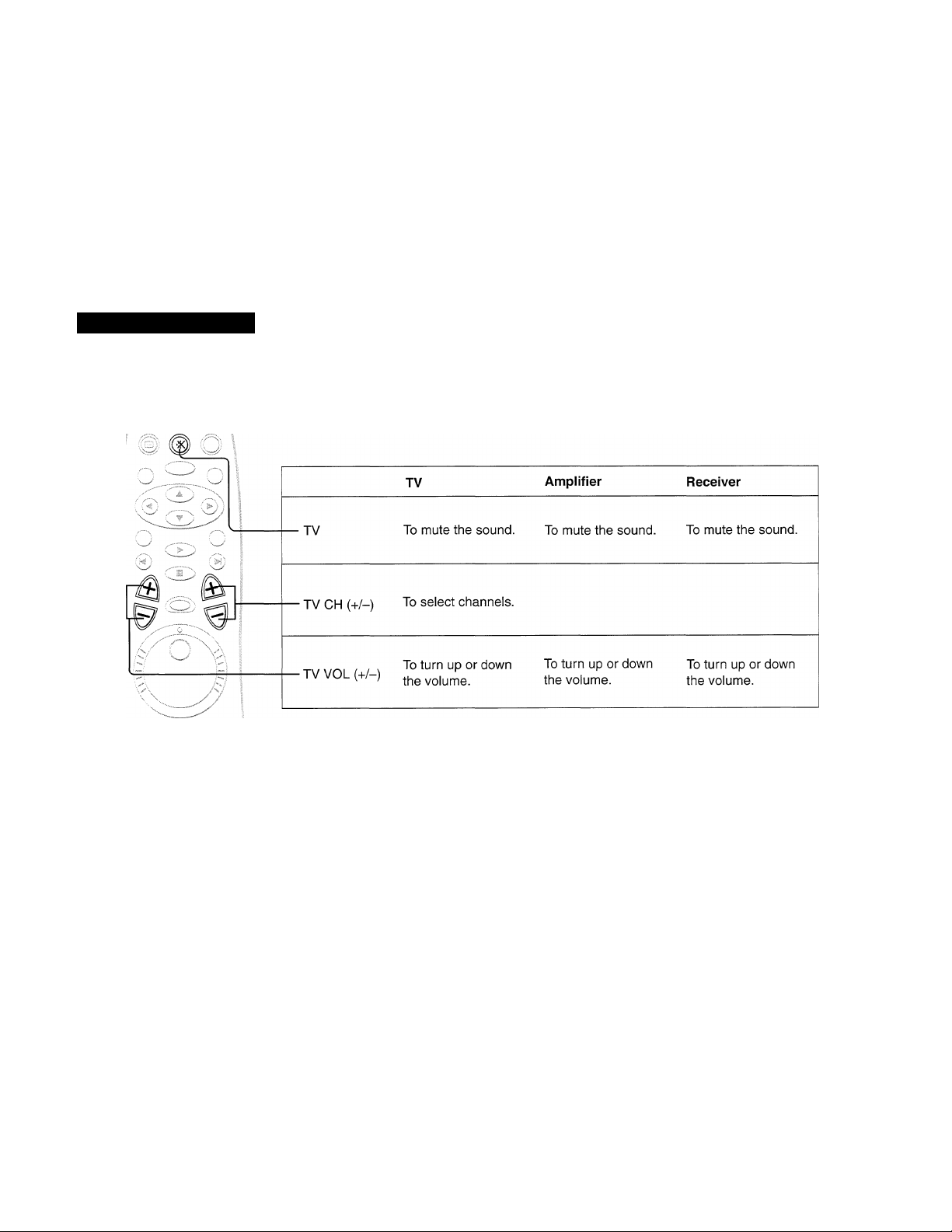

Operating Other Equipment with the

Remote Control...................................

Programming the Remote Control Brand Code Table Buttons to Operate

Table of Languages

■

Memo

■

.................................................

............................

37, 38

, 39, 40

......

Page 8

Introduction^

Identification of Controls

See the page number inside the | ^for details.

Front Panel/Rear Panel/DVD Display

OOP I

POWER ON / STANDBY indicator [l5^

— POWER ON / STANDBY button [iF)

------------------------

- LEVEL knob [TT^ PHONES jack ¡V\}

REPEAT button [21 y

---------

Disc tray |15^

DVD display [~8^

± (Open/Close) button 115^

MIC CONTROL jack ¡27}

■ PREVI (Previous) button ¡20^

- KEY CONTROL buttons ¡27}

■ PAUSE button |-|5^ — PLAY button pl^

STOP button |16^

MIO 1/2 knobs \z7}

MIC 1/2 jacks [27)

NEXT button [20^-

Page 9

DVD Display

VIDEO CD/Audio CD indicator Operating status indicator Title number indicator

TITLE

o o

LI LI

Chapter/track number indicator DVD indicator

The indicators vary depending on the kinds of discs you play.

-----------------------

-------

CHP/TRACK

o o o

LI LI LI

¥=

'CD TOTAL REMAIN

0-0 0*0 0

LI U LI'Ll LI

Total playing time/remaining time/elapsed time indicators

MEMORY) I

IREPEATIA-BALL

• MEMORY indicator

-SHUFFLE indioator

-------

PBC indicator

I laa»»

-Angle icon indicator

■ Repeat playback mode indicators

Other indicators

When playing back the same title, chapter or

(repeatI repeatedly.

When playback is

II paused,

' During random

playback.

iREPEATl A«B

MEMORY]

’ When playing back a

specific segment r^eatedly. (A-B repeat)

. di) _!=:

During memory playback.

When playing back the entire disc repeatedly.

Hi)

------------------

When the camera angle can be changed.

Page 10

Introduction^

Identification of Controls (continued)

The instructions in this manual describe the functions on the remote control. See the page number inside the | ^ for details.

Remote Control

Page 11

Preparing the Remote Control

Operating with the Remote Control

Insert the batteries into the remote control so you can use it to operate the DVD video player.

Make sure to match the + and - on the batteries to the marks inside the battery compartment.

Close the cover.

This section shows you how to use the remote control.

Point the remote control at the remote sensor and press the buttons.

30^ 30°

Within about seven meters

Distance: About seven meters from the

front of the remote sensor

Angle:

About 30° in each direction of the front of the remote sensor

= Do not expose the remote sensor of the

DVD video player to a strong light source such as direct sunlight or illumination. If you do so, you may not be able to operate the DVD video player with the remote control.

Improper use of batteries may cause battery leakage and corrosion.

To operate the remote control correctly, follow the instructions below.

• Do not insert the batteries into the remote control in the wrong direction (follow the +/- signs).

• Do not charge, heat, open, or short-circuit the batteries. Do not throw the batteries into a fire.

• Do not leave dead or exhausted batteries in the remote control.

• Do not use different types of batteries together, or mix old and new batteries.

• If you do not use the remote control for a long period of time, remove the batteries to avoid possible damage from battery corrosion.

• If the remote control does not function correctly or if the operating range becomes reduced, replace all batteries with new ones.

• If battery leakage occurs, wipe the battery liquid from the battery compartment, then insert new batteries.

• Point the remote control at the remote sensor of the DVD video player.

• Do not drop the remote control.

• Do not leave the remote control near an extremely hot or humid place.

• Do not spill water into or put anything wet on the remote control.

• Do not open the remote control.

Page 12

Connections J For details of output sound, see 5^ ■

Connecting to a TV

Connect the DVD video player to your TV.

Connecting to a TV

Setting of the sound output

From the on-screen displays, set “AUDIO OUT SEL.” to “ANALOG/PCM.”

To wall outlet

If your TV has an RF (Antenna In) jack only, use an RF modulator (not supplied) to connect the DVD player to your TV.

Notes ---------------------------------------------------

► Refer to the owner’s manual of the connected TV as well. * When you connect the DVD video player to your TV, be sure to turn off the power and unplug both units from the wall outlet before

making any connections. * If your television set has one audio input, use a Y cable adapter (not supplied) to connect to your TV. ► Connect the DVD video player directly to your TV. If you connect the DVD video player to a video cassette recorder (VTR), or TVA/TR

combination or video selector, the playback picture will be distorted because DVD video discs are copy protected.

Headphones connection

Connect headphones that have a stereo large size connector. Before connecting, temporarily lower the sound volume, then adjust the volume.

See your TV owner’s manual for details.

Down Up

Page 13

Connections^ For details of output sound, see .

Connecting to an Audio System

You can listen to the sound of the discs in stereo.

Connecting to an Audio System

Setting of the sound output

From the on-screen displays, set “AUDIO OUT SEL” to “ANALOG/PCM.” [sT)

To wall outlet

cable. When using the S video cable, there is no need to connect the yellow video cable.

Notes

► Refer to the owner’s manual of the connected equipment (TV, audio system) as well. * When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall

outlet before making any connections.

► If you place the DVD video player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the DVD video

player away from the tuner and radio.

* The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening

level. Otherwise, the speakers may be damaged by a sudden high volume sound.

» Turn off the amplifier before you connect or disconnect the DVD video player’s power cord. If you leave the amplifier power on, the

speakers may be damaged.

a video input jack

12\

Page 14

Connections J For details of output sound, see ^.

Connecting to Optional Equipment

You can enjoy the high quality dynamic sound of Dolby Digital (AC-3), Dolby Pro Logic, MPEG 2 and 2 Channel Digital Stereo.

Enjoying Dolby Digital (AC-3) Sound

Dolby Digital (AC-3)

Dolby Digital is the surround sound technology used in movie theaters; it is now available in the home. You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound by connecting the DVD video player to a sixchannel amplifier equipped with a Dolby Digital (AC-3) decoder or Dolby Digital (AC-3) processor. If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of Pro Logic from the same DVD movies that provide full 5.1-channel Dolby Digital soundtracks, as well as from titles with the Dolby Surround mark.

Enjoying MPEG 2 Sound

MPEG 2 sound

You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound by connecting a six- or eightchannel amplifier equipped with an MPEG 2 audio decoder or MPEG 2 audio processor.

Setting of the sound output

• Center speakers (left/right) are not used for MPEG 2 5.1 ch sound playback.

• From the on-screen displays, set the “AUDIO OUT SEL.” to “MPEG/AC-3.”

• Set the sound recording system to “AC-3” on the audio setting indication.

I Setting of the sound output

• From the on-screen displays, set the “AUDIO OUT SEL.” to “MPEG/AC-3”. ^

• Set the sound recording system to “MPEG” on

Karaoke \27} is not available with this connection.

Manufactured under license from Dolby Laboratories Licensing Corporation. “Dolby,” “AC-3,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

the audio setting indication. [2^

Karaoke [27^ is not available with this connection.

Notes

• DO NOT connect the PCM/AC-3 DIGITAL AUDIO OUT jack of the DVD video player to the AC-3 RF input of a Dolby Digital Receiver. This input on your A/V Receiver is reserved for Laserdisc use only and is incompatible with the PCM/AC-3 DIGITAL AUDIO OUT jack of the DVD video player.

• Connect the PCM/AC-3 DIGITAL AUDIO OUT jack of the DVD video player to the “DIGITAL’ or “COAXIAL’ input of a Dolby Digital Receiver or Processor.

• Connect the speakers according to the instructions in the owner’s manual for the speaker system.

• Refer to the owner’s manual of the connected equipment as well.

• When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making

any connections.

• The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the

speakers may be damaged by a sudden high volume sound.

• Turn off the amplifier before you connect or disconnect the DVD video player’s power cord. If you leave the amplifier power on, the speakers may be damaged.

Page 15

Warning

Do not set “AUDIO OUT SEL.” to “MPEG/AC-3” via the on-screen displays [3?) unless you are connecting (via the PCIVi/AC-3 DIGITAL AUDIO OUT jack) an AV decoder that has the Dolby Digital (AC-3) decoding function. High volume sound may damage your hearing as well as the speakers.

Enjoying Dolby Pro Logic Surround Sound

Dolby Pro Logic Surround

You can enjoy Dolby Pro Logic Surround sound by connecting an amplifier and speaker system (right and left front speakers, a center speaker, and one or two rear speakers).

■ With an amplifier equipped with Dolby Digital (AC-3),

connect the equipment the same way as described in “Enjoying Dolby Digital (AC-3) Sound” . Refer to that amplifier’s owner’s manual and set the amplifier so you can enjoy Dolby Pro Logic Surround sound.

■ With an amplifier not equipped with Dolby Digital (AC-3),

connect the equipment as follows.

Enjoying Two-channel Digital Stereo Sound

Two-channel Digital Stereo

You can enjoy Two-channel Digital Stereo sound by connecting an amplifier equipped with a digital audio input and speaker system (right and left front speakers).

Set “AUDIO OUT SEL.” to “ANALOG/PCM” via the

on-screen displays. [sT)

Karaoke [27^ is not available with this connection.

Set “AUDIO OUT SEL.” to “ANALOG/PCM” via the on-screen displays.

Notes

• Connect the speakers according to the instructions in the owner’s manual for the speaker system.

• Refer to the owner’s manual of the connected equipment as well. ' When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making

any connections.

• The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

• Turn off the amplifier before you connect or disconnect the DVD video player’s power cord. If you leave the amplifier power on, the speakers may be damaged.

Page 16

Basic Playback ^

Playing a Disc

CAUTION

Keep your fingers well clear of the disc tray as it is closing. It may cause serious personal injury.

POWER ON / STANDBY indicator

DVD

display

II PAUSE

I STOP

i I

—I ^ \ ’ll II I

lLT *

This section shows you how to play a disc.

Basic Playback

I Preparations

• When you want to play DVD video discs or VIDEO CDs, turn on the TV and put the TV in Auxiliary (Line) input mode.

• When you want to enjoy the sound of a disc from the audio system, turn on the audio system and set the amplifier to receive Auxiliary input.

• For connection details, see “Connections.” [Ti> -

• Set the playback picture size according to the picture tube shape or aspect ratio of the connected TV via the on-screen displays. [|^

• If you do not have the necessary equipment to enjoy Dolby Digital (AC-3) sound, set “AUDIO OUT SEL.” to “ANALOG/PCM”

via the on-screen displays.

POWER ON! STANDBY

Press POWER ON / STANDBY

on the front panel.

The DVD video player turns on and the POWER ON / STANDBY indicator on the player lights.

± (Open/Close) ^

Press ± on the front panel

(or hold down B/EJECT on the remote control

for longer than one second).

The disc tray opens.

Place the disc in the

disc tray.

With the label facing up

W il ►play

Notes --------------------------------------------------------------------------------------------------------------------------------------------------------

► Do not move the DVD video player during playback. Doing so may damage the disc. ► Use the ■ /EJECT button on the remote control or the ^ button on the DVD video player to open and close the disc tray. Do not push the disc

tray while it is moving. Doing so may cause the DVD video player to malfunction.

► Do not push up on the disc tray or put any objects other than discs on the disc tray. Doing so may cause the DVD video player to malfunction.

Press PLAY(^).

The disc tray closes and playback starts. If you insert a DVD video disc that contains a title menu, or

insert a PBC (Playback Control)-controllable VIDEO CD, a menu screen may appear. See “To start playback from the menu screen.” To start playback of a PBC-controllable VIDEO CD from the menu screen, set “PBC” to “ON” via the on-screen displays.

• There are two different disc sizes. Place the disc in the correct guide in the disc tray. If the disc is out of the guide, it may damage the disc and cause the DVD video player to malfunction.

* Do not place anything except DVD video discs,

VIDEO CDs, or audio CDs in the disc tray.

* For PBC (Playback Control) of VIDEO CDs,

see “On VIDEO CD.”

» You may need to press the TITLE or MENU

button on the remote control to display the menu screen, depending on the disc.

Notes

Page 17

TITLE -

L/T/-</^-

®®®

-€e:>

-Cj>-

■MENU

- ENTER

■ B/EJECT

■ JOG/PAUSE

To obtain a higher quality picture

Occasionally, some picture noise may appear on the TV screen while playing back a DVD video disc because the high resolution pictures on these discs include a lot of information. While the amount of noise depends on the TV, you should reduce the sharpness adjustment on your TV from the position you usually set for normal broadcasts.

About .3^ 3^

The symbols on the heading bars in this manual show the playable discs for the function described under that heading.

: You can use this function with DVD video discs.

3^ : You can use this function with VIDEO CDs.

: You can use this function with audio CDs.

To start playback from the menu screen To pause playback (still playback)

1 Press A/T/^/^or the number buttons to

select the title you want.

Example

2 Press ENTER. (You do not have to press

ENTER to start playback if you use the number buttons at step 1.)

enter video player starts playback

When not using the menu screen of a PBCcontrollable VIDEO CD, set “PBC” to “OFF” via the on-screen displays.

To stop playback

ex:)

from the selected title.

Press ■/EJECT.

The DVD video player returns to chapter

1 or track 1.

Press JOG/PAUSE during playback.

To resume normal playback, press the

► button.

• The sound is muted during still playback.

To remove the disc

Hold down ■ /EJECT (for longer than one second) until the disc tray opens.

Remove the disc after the disc tray

opens completely.

• Be sure to press the ■ /EJECT button for longer than one second to close the disc tray after you remove the disc.

Note ----------------------------------------------------------------------------------------------------------------------------------------------------------

In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press the ■ /EJECT button once the movie is completed.

This owner’s manual explains the basic instructions of this DVD video player. Some DVD video discs are produced in a manner that allows specific or limited operation during playback. As such, the DVD video player may not respond to all operating commands. Refer to the instruction notes of discs.

“ M ” may appear on the TV screen during operation. A white “ M ” means that the operation is not permitted by the DVD video player; a red “ M ” means the operation is not permitted by the DVD video disc.

Page 18

Basic Playback J

Playing a Disc

(continued)

Slow- Fast reverse

Motion

You can play discs at various speeds, then resume normal playback from the location where you stopped playback.

_________________________________________

Fast forv/ard

Frame by

frame

.DVDp .VC[p .CD^

Using the Shuttle Ring

You can play discs at various speeds by turning the Shuttle

Ring.

Press and hold JOG/PAUSE during playback.

The JOG/PAUSE button lights and the playback pauses.

Turn the Shuttle Ring.

Resume

Cï>-

- JOG/PAUSE

- Jog Dial

■ Shuttle Ring

play

____________

Using the Jog Dial

You can advance/reverse a disc frame-by-frame using the Jog Dial.

Press and hold JOG/PAUSE during playback.

The JOG/PAUSE button lights and the playback pauses.

Turn the Jog Dial.

DVin veto

The playback speed can be controlled by the extent of the wheel rotation.

To finish operating the Shuttle Ring

juo/гмиос

Notes

------------------------------------------------------------------

• The playback speed may differ depending on the disc.

• If you slow down the playback speed of a DVD video disc by turning the ring leftward, the DVD video player performs reverse frame

playback. The reverse frame playback may advance more rapidly

than a forward frame playback.

Press JOG/PAUSE again to turn it off.

Rightward: To advance the picture frame-

by-frame.

Leftward: To reverse the picture frame-

by-frame.

To finish operating the Jog Dial

ju/o/гмиос

* •

Notes

• The sound is muted during frame-by-frame playback.

• The reverse frame playback may advance more rapidly than a forward frame playback.

Press JOG/PAUSE again to turn it off.

Page 19

■ RESUME

,DVD^ . VCD> ,CD^

Resuming Playback from the Same Location

You can stop playback and resume playback later from the same location on the disc.

Press ■ /EJECT at the location

where you want to interrupt

RESUME Press RESUME.

playback.

The DVD video player memorizes the location where you stopped playback.

The DVD video player resumes playback from the location where you stopped playback.

Notes

* The playback resuming function is canceled when:

- you turn the power off by pressing the POWER ON / STANDBY button on the front panel (the POWER ON / STANDBY indicator

turns off), or you unplug the DVD video player from the wall outlet after you stop playback.

- you eject the disc.

- you adjust/change parental lock or select a disc menu

language setting g).

* There may be a difference of the location where playback resumes

depending on the disc.

Page 20

Basic Playback J

Locating a Specific Titie, Chapter, or Track

■ DVD video disc -

• Title 1 ■

Chapter 1 Chapter 2

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and Audio CDs are divided into tracks. You can quickly locate any specific title, chapter, or track.

Chapter 1 Chapter 2 Chapter 3

____^____ ______\_____ ______

Locating a Title Using the Titie Menu

-Title 2

^DVD;>

---------

VIDE

Track 1

j'jj]

Track 2

Locating a Title

10 CD/Audic

Track 3

)CD

----------

Track 41Track 5

^DVP2

If a DVD video disc contains a title menu, you can locate a

specific title using the title menu.

! MLC

®i®

I thi

Press TITLE.

The title menu appears on the TV screen.

Example of a title menu

Press A/ T / ◄ / ► to select the title

you want.

If the titles in the title menu are assigned a number, you can directly locate a specific title by pressing its assigned number with the number buttons.

Press ENTER.

The DVD video player starts playback from chapter 1 of the selected title.

(You may not need to press ENTER if you use the number buttons at step 2.)

You can locate a specific title by entering a title number.

CllI

m [~2i m m m m m m m

m pT|

Press T-C.

Make sure that the space next to TITLE is highlighted.

Example

________________

TITLE:« CHAPTER: 1

Press the corresponding number buttons for the title you want.

Example: To select title 2, press

TITLE:® CHAPTER: 1

To select title 12, press

CD-d]

Press ►.

The DVD video player starts playback from chapter 1 of the selected title.

TITLE:®

CHAPTER: 1

Notes ------------------------------------------------------------------

• The instructions above describe the basic procedure. The procedure varies depending on the contents of the DVD video disc. If different instructions appear on the TV screen, follow those instructions.

• If you display the title menu during playback and press the TITLE button again without selecting any title, the DVD video player may

resume playback from the point where you first pressed the TITLE

button. If it does not, press ► to resume playback.

Notes --------------------------------------------------------------

► You can shift the highlight between TITLE and CHAPTER by

pressing the A/T buttons.

► To clear the TITLE and CHAPTER display, press the T-C button

repeatedly.

• You can select a preferred language for on-screen displays.

* •

Page 21

TITLE -

RETURN/CLEAR -

N-

T-C-

OVDy ^VCK? CD~

Locating a Specific Chapter or Track Directly

If you know the ohapter or track nunnber you want to play, you

can locate it directly.

Press T-C.

®i®

m m m m m m m m m

rò~l Q

Skip steps 1 and 2 if you are using a VIDEO CD or an audio CD.

Example; DVD video disc

Press ▼ to highlight the space next

to CHAPTER.

Example: DVD video disc

Press the corresponding number

buttons of the chapter or track you want.

You can use the H button to select numbers from 10 through 99.

Example: To select chapter or track 25,

press

• r^-m

TITLE:B

CHAPTER: 1

TITLE: 1 CHAPTER:!

DVD video disc VIDEO CD/Audio CD

TITLE: 1 CHAPTER:!

- ENTER

m m m m m m LlJ LsJ

■N

■ Number buttons

Locating a Specific Chapter or Track

You can fast forward or reverse through consecutive chapters or tracks.

Note

--------------------------------------

Some titles may not display the chapter number.

Press !◄ or H repeatedly to

advance or reverse to the chapter

or track number you want.

The DVD video player starts playback from the selected chapter or track.

M: To locate preceding chapters or tracks

When you press the N button, the DVD video player starts playback from the

beginning of the current chapter or track.

When you press the M button twice, the

DVD video player starts playback from

the beginning of the preceding chapter

or track.

H: To locate succeeding chapters or tracks

Locating a Specific Location on the Disc

You can locate a specific location by entering the time (hours, minutes, seconds).

,dvd;p ,vc[p ,CD;

DVD2.VCp.CD.

Press ►.

To select a title and chapter number at the same time

Example: To select chapter 25 in title 2, press

Note -------------------------------------------------------------

To clear the TITLE and CHAPTER display, press the T-C button repeatedly.

The DVD video player starts playback from the selected chapter or track.

-► m-► ->• rr~i-► r5~i-► crp)

Title number

TITLE: 2,

CHAPTER:!

L__ _ _ _ _ I

Chapter number

Press T-C twice.

d] cm mu Press the number buttons to enter [T] CO im the time.

cm cm cm Example rT~i-^r2~i-»>im~i-»r3~i->-rTi

I cz>

Note

---------------------------------------

Some discs may not respond to this feature.

Press ►.

The DVD video player starts playback from the specified location.

TIME

TIME EUsMcM

Page 22

Advanced Playback J

Playing Repeatedly

You can play a specific title, chapter, track, or segment repeatedly. (Title repeat, chapter/track repeat, A-B repeat)

_____

.DVD^VCC^CDp

Repeating a Title, Chapter, or Track

--------------------

------------------

______

Repeating a Specific Segment

-RETURN/CLEAR

REPEAT A-B REPEAT

dvd2.vc^^cd¿

You can play the same title, chapter, or track repeatedly. (Title, chapter/track repeat)

Begin playback of the title, chapter or track you want to repeat. 5E>

REPEAT

Press REPEAT.

Each time you press the REPEAT button, the repeat mode changes as follows.

• DVD video disc

CHAPTER REPEAT

_______________ TITLE REPEAT

• VIDEO CD/Audio CD

TRACK REPEAT

ALL REPEAT

REPEAT OFF

Repeats the same chapter.

Repeats the same title.

Resumes normal

playback.

Repeats the same

track.

Repeats the entire

disc. Resumes normal

playback.

You can play a specific segment repeatedly.

(A-B repeat)

REPEAT

Ki REPEAT

1 o

qpl

During playback, press REPEAT A-B at the beginning of the segment (point A) you want to play

repeatedly.

Press REPEAT A-B again at the end of the segment (point B).

A-B

The DVD video player automatically

returns to point A and starts repeat

playback of the selected segment (A-B).

To resume normal playback

nc I UrilN

Hold down RETURN/CLEAR for longer than one second.

To resume normal playback

Mt I UMIN

Notes -----------------------------------------------------------------

• You can specify a segment only within the current title.

• You cannot set the A-B repeat function for a segment that includes multiple camera angles.

• There may be a slight difference between point A and the location where playback actually resumes, depending on the disc.

Hold down RETURN/CLEAR for longer than one second.

Page 23

Advanced Playback J

Playing in a Favorite Order

■A/T/M/P^

r©

TITLE : 2 CH^EHER ; 25

You can combine your favorite titles, chapters, or tracks and play them in any order. You can program up to 30 items into the memory. (Memory playback)

TIT13E : 2 , CHARTER : )fir2

Setting Titles, Chapters, or Tracks in a Favorite Order

The DVD video player automatically plays titles, chapters, or tracks in the order you program.

MEMORY

m m m

rri rr~i m

m m m

r~Ti Q

ENTER

While playback is stopped, insert a disc and press MEMORY.

The following menu appears.

0 MEMORY

2 T- -c- - 7 T--C--

T- -c- -

3 4 T- -c- - 9 T--C-5 T- -c- - 10 T--C--

EX 1

T; Title number C: Chapter number

SEL.

6 T--C--

8 T--C--

SiHSET

Enter the items you want, in order, by pressing the number buttons, then ENTER for each item.

Each time you press the ◄ / ► button, the -- indication next to T and C is highlighted in turn. Highlight the -indication next to T (to select a title) or C (to select a chapter), then press the number buttons.

Example: To play chapter 25 in title 2, chapter

Memoryl (j^-^| 2 2-

Memory 2 CO IHZI

MemoryS 1 |

Memory4

To select tracks from a VIDEO CD/Audio CD in order, press the number buttons for the track, then press the ENTER button for each item you want.

12 in title 2, all the chapters in title 1,

and chapter 2 in title 4.

Title number Chapter number

ENTER

_____

ENTER

►Q

ENTER

-----------------------------------

0 MEMORY SEL. 4^

EXITillsIia

To select another chapter in the same title, you do not need to select the title number.

CE>

To change the programmed items_______________

1 While the MEMORY menu appears on the TV screen,

press A / T to move the highlighted bar to the item you want to change.

2 Change the item following the instructions at step 2.

To cancel the programmed items

1 While the MEMORY menu appears on the TV screen,

press A / T to move the highlighted bar to the item you want to cancel.

2 Hold down the RETURN/CLEAR button for longer than

one second.

To resume normal playback from memory playback____________________________________

Mt I UlilN

Press ► while the MEMORY menu

appears on the TV screen.

The DVD video player starts memory playback.

Hold down RETURN/CLEAR for longer than one second.

The MEMORY indicator disappears.

T 0 2 C2 5 TO 2C1 2 T01C--

T 0 4 C 0 2

4 5

0- -0E

m m [3 m f8i m

6 T--C--

7 T--C- -

8 T--C-9 T--C--

10 T--C--

SiSlSET

■ RETURN/CLEAR

■2

DVD2.VC^.Cpp

Notes

* If you press the MEMORY button during memory playback, the programmed items will be displayed. * You cannot select title, chapter, and track numbers not included on the disc. * If you press the MEMORY button while the MEMORY menu appears on the TV screen, the MEMORY menu disappears. * The programmed items will be cleared when:

- you turn off the DVD video player, or

- you remove the disc.

Page 24

Advanced Playback J

Playing in Random Order

^TilTUE : 2^

CHAfgER : i

You can play titles, chapters within a title, or tracks in randon order. (Random playback)

Playing Titles in Random Order

The DVD video player automatically selects the titles in a DVD video disc and plays them randomly.

SHUFFLE

Press SHUFFLE twice while

playback is stopped.

TITLE SHUFFLE

If you press the SHUFFLE button during playback, the DVD video player automatically starts random playback after finishing the current title.

>T::"

llif

r©

CE>

■N

■ RETURN/CLEAR

• Number buttons

■T-C

-SHUFFLE

® ® ® #

m m m rri m rri

\in LgJ LiJ

Playing Chapters or Tracks in Random Order

The DVD video player automatically selects chapters within a title, or tracks on a VIDEO CD/Audio CD, and plays them randomly.

Press T-C, then press the appropriate number buttons for the title which contains the chapters

m m m

n~i i~5~i m

m m fin

ED CO ED

SHUFFLE

you want to play in random order.

Skip this step if you are using a VIDEO CD/ Audio CD.

Example: To play the chapters in title 2 in

random order, press

Press SHUFFLE while playback is stopped.

• DVD video disc • VIDEO CD/Audio CD

CHAPTER SHUFFLE TITLE: 2 CHAPTER: 1

• DVD video disc

TITLE:B

CHAPTER: 1

TRACK SHUFFLE TRACK :B

WCD? CD^

Press ►.

To resume normal playback To resume normal playback

Mt I UHIM

Note

------------------------------------------------------------

You cannot use the random playback function and the memory playback function at the same time.

The DVD video player starts random playback.

Press the ► button within about five seconds after you press the SHUFFLE button.

Hold down RETURN/CLEAR for longer than

one second.

CO)

hC 1 UnIN

Note

----------------------------------------- -----------------------

If you press the ►! button during random playback, the DVD video player goes to another chapter or track and starts playback.

If you press the SHUFFLE button during

playback, the DVD video player automatically starts random playback after finishing the current chapter or track.

Press ►.

The DVD video player starts random playback.

Press the ► button within about five seconds after you press the SHUFFLE

button.

Hold down RETURN/CLEAR for longer than one second.

Page 25

Advanced Playback J

-ZOOM

Zooming a Picture

You can magnify areas within a picture.

Zooming a Picture

You can zoom a picture. You can shift the zoom point as well.

(joo^ Press ZOOM during playback.

The DVD video player magnifies the center of the picture.

r£>

- RETURN/CLEAR

DMDz

To resume normal playback

(joo^^ Press ZOOM during zoom playback.

If you press the A / ▼ / ◄ / ► buttons during zoom playback, the zoom point shifts.

If the zoom point reaches the limit, the color of “ZOOM” changes.

If you hold down the RETURN/CLEAR

button for longer than one second, the zoom point returns to the center of the

picture.

Notes

• During still playback, the ZOOM button cannot turn the zoom on or off. ’ Zooming does not work on the sub-pictures such as subtitles or menu screens included on DVD video discs.

Page 26

Advanced Playback J

Se l e c t i n g t h e C a m e r a A n g l e / S e l e c t i n g a L a n g u a g e

Selecting the camera angle

ANGLE:2 ANGLE:3-

■ A/V

Selecting a language

A preferred angle can be selected from several angles. A preferred language can be selected from several languages.

Changing the Camera Angle

If the scene was recorded from multiple angles, you can easily change the camera angle of the scene you are watching.

ANGLE

Press ANGLE while playing a scene recorded from multiple angles.

Press the ANGLE button while the angle icon in the DVD display is flashing. ((a))

Current angle number appears

Press ANGLE or A while the angle number appears on the TV screen.

Each time you press the ANGLE or A button, the camera angle changes.

®i®

ANGLE n

- RETURN/ CLEAR

-------------------i------------------AUDIO

ANGLE

Selecting a Playback Audio Setting

You can easily select a preferred language and sound recording system from those included on the DVD video disc.

AUDIO

Press AUDIO during playback.

AUDIO 1 ENG PCM 2CH-

Language

Position number

The abbreviation of the language appears instead of the language name. Refer to the list of languages and their abbreviations.

Press AUDIO or A while the audio setting appears on the TV screen.

Each time you press the AUDIO or A button, the audio settings included on the DVD video disc change.

Example

AUDIO 1

ENG PCM

Audio channel

Recording system

2CH

■ Current audio setting appears for about three seconds

ANGLE 0

▼: Cycles backwards

• You can change the camera angle directly by pressing the number buttons for the angle number.

• Holding down the RETURN/CLEAR button for longer than one second clears the angle number indication.

Notes

------------------------------------------------------------------

You can change the camera angle during still playback. The camera angle changes to the new setting when you resume normal playback. While playing back a title that contains at least one scene recorded from multiple angles, the angle icon indicator flashes in the DVD display. To make the angle icon appear on-screen, see pages .

AUDIO 2 FRE AC-3

AUDIO 3

the audio setting indication.

About recording systems

This DVD video player uses the Dolby Digital (AC-3), MPEG 2 and PCM recording systems and cannot play DVD video discs recorded in any other recording system.

AC-3 5.1 Channel is displayed as “AC-3 6CH.”

Note -------------------------------------------------------------------

When you turn on the DVD video player or replace a disc, the player

returns to the initial default setting. When you select a sound which is not included on the disc, the DVD video player plays a prior sound programmed on the disc.

SPA PCM

▼ : Cycles backwards

Holding down the RETURN/CLEAR button for longer than one second clears

6CH

2CH

Page 27

Advanced Playback ^

Selecting Subtitles

A/T

RETURN/CLEAR

Good evening! K]

You can display subtitles on the TV screen and select a preferred subtitle

language.

Bonsojr! jJJ|i ¡Buenas tardes! K

Displaying Subtitles

You can display subtitles from those included on the DVD video disc.

SUBTITLE

(3)

To turn off the subtitles

SUBTITLE

(q)

Hold down SUBTITLE for longer

than one second during playback.

SUBTITLE 1 ENG ON-

Good morning! -

Hold down SUBTITLE for longer than one second.

The subtitles disappear.

-Appears for about three seconds

-Subtitles

Appears for about three seconds

■SUBTITLE

Selecting a Subtitle Language

You can easily select the subtitle language from those included on the DVD video disc.

SUBTITLE

®i®

Press SUBTITLE during playback.

SUBTITLE 1 ENG ON-

Language

Position number

The abbreviation of the language appears

instead of the language name. Refer to the list of languages and their abbreviations. [4h)

Press SUBTITLE or A while the subtitle setting appears on the TV screen.

Each time you press the SUBTITLE or A button, the subtitle languages included on the DVD video disc change.

Example

FRE

SPA

SUBII TLE 1 ENG

SUBII

TLE 2

SUBII TLE 3

Current subtitle setting appears for about three seconds

^DVPi

Notes

------------------------------------------------------------------

* Some DVD video discs are set to display subtitles automatically, and

you cannot turn them off even if you set the subtitle function to off.

► During some scenes, the subtitles may not appear immediately after

you press the SUBTITLE button.

T : Cycles backwards

To turn off the subtitle setting indication

ht I UnIN

Notes

► When you turn on the DVD video player or replace a disc, the player

returns to the initial default setting. When you select a subtitle language which is not included on the disc, the DVD video player plays a prior language programmed on the disc.

► During some scenes, the subtitles may not appear immediately after

you change the subtitle language by pressing the A/T buttons.

Hold down RETURN/CLEAR for longer than

one second.

------------------------------------------------------------------

Page 28

Advanced Playback J

Playing Karaoke

You can enjoy Karaoke with one or two microphones.

Playing Karaoke

I Preparations

• Connect the

• Set “AUDIO

MIC CONTROL

DVD video player to your TV using the ANALOG

OUT SEL.” to “ANALOG/PCM” via the on-screen

Connect the microphone to MIC 1 or MIC 2 jack.

When using a controllable microphone, connect it to the MIC CONTROL jack.

AUDIO OUT jacks,

displays.

----

KEY CONTROL

I » i H * I

Adjust the key.

To key up. To key down. To reset the key.

I Ct

ON/OFF

Press KARAOKE to turn on the karaoke mode.

The buttons for karaoke operation on the

remote control turn available.

If you press the KARAOKE button again, the karaoke mode turns off and the buttons do not work for karaoke.

Press KARAOKE ON/OFF.

Select the karaoke mode by pressing the

button repeatedly.

KARAOKE AUTO: The Karaoke mode is automatically turned on only when you play a

DVD karaoke disc.

KARAOKE ON: The Karaoke mode is on

regardless of kinds of discs.

KARAOKE OFF: The Karaoke mode is turned off.

KARAOKE AUTO

start playback.

To play karaoke using a controllable microphone

If you connect a controllable microphone to the MIC CONTROL jack, you can use the following functions on

the microphone.

For more details, refer to the Owner’s Manual of the microphone.

ONCE MORE

Pressing the button sends back the karaoke song for about five seconds. This function may turn off the superimposed lyrics.

KEY CONTROL

Key can be adjusted.

# : key up

I? : key down

To finish the karaoke play

1 Press the KARAOKE ON/OFF button to select

“KARAOKE OFF”.

KARAOKE OFF

Adjust the volume of the

microphone.

MIC 1: To adjust the volume of the microphone

connected to the MIC 1 jack.

MIC 2: To adjust the volume of the microphone

connected to the MIC 2 jack.

Notes ------------------------------------------

If a howl noise occurs, try as follows.

• Make the microphone away from the speaker.

• Lower the microphone volume.

• Lower the speaker volume.

When a DVD karaoke disc is played to the end in the KARAOKE AUTO mode, the karaoke mode is automatically turned off.

2 Press the KARAOKE button to return to the normal

mode.

3 Disconnect the microphone from the MIC jack.

Page 29

Functions available on this DVD video player (in the KARAOKE ON mode)

îZi

CE>-

■ ►

- KARAOKE VOCAL

- KARAOKE MODE

- KARAOKE

MELODY

- KARAOKE

■ KARAOKE ON/OFF

Button

MODE

VOCAL

MELODY

DVD video disc

• Echo adjustment

• Key adjustment

• Sound selection of Vocal 1 and Vocal 2

• Balance adjustment between Vocal 1 and Vocal 2

• Balance adjustment beween accompaniment and vocal

• Balance adjustment between accompaniment and melody

*Vocal cancel: puts off only a vocal part centered in stereo-recorded sound of a VIDEO CD or an audio

CD.

*Vocal change: As you sing into the microphone, a vocal part recorded in sound-multiplex is put off and

your vocal is heard.

_____________________________________________________________________,dvd2,vc^.cd2_

VIDEO CD/Audio CD

• Echo adjustment

• Key adjustment

• Sound selection of left and right channels

• Vocal cancel*

• Vocal change*

• Sound multiplex balance adjustment

Various Function Setting

Some DVD video discs are categorized as karaoke discs. In a karaoke disc, karaoke L (accompaniment for left channel), karaoke R (accompaniment for right channel), guide melody, vocal 1 and vocal 2 are recorded. In some discs, the guide melody, vocal 1 and

vocal 2 may not be recorded.

To adjust the echo level or key:

Press KARAOKE MODE.

MODE

Echo adjustment

W ECHO LEVEL 00

■ —

L KEY CONTROL H

---------------1----------------

Adjust with © -^©

Key adjustment

ECHO LEVEL 00

W L KEY CONTROL H

---------------1----------------

Adjust with

To select the sound:

VOCAL

Press KARAOKE VOCAL.

Select the sound type by pressing the button repeatedly.

• The display does not show indication of the sound which is not

recorded.

■ DVD video disc

1 VOCAL OFF

Vocal is not output.

lvOCAL1.2 1

Vocal 1 and Vocal 2 are

output. ^

IvOCALI 1

Only Vocal 1 is output.

lvOCAL2 I

Only Vocal 2 is output.

I VOCAL MIX I Vocal 1 and Vocal 2 is mixed

and output. 1

To adjust the balance:

MELODY

Press KARAOKE MELODY.

Select the adjustment item by pressing the button

repeatedly.

• The display does not show

■ VIDEO CD/Audio CD

1 L. R

Stereo sound is output.

1 L 1

Left channel sound is output. ^

1 R 1

Right channel sound is output. ^

1 M 1 X 1

Mixed sound of left and

right channel is output.

1 VOCAL CANCEL |

Puts off the vocal part in stereo

sound.

1 VOCAL CHANGE |

Vocal via microphone is output from left channel.

► The vocal cancel function

may not work in some

____________

indication of the sound which is not recorded.

■ DVD video disc

Balance adjustment between vocal 1(V1)and vocal 2 (V2)_________

I VI VOCAL BALANCE 1 V2

Adjust with © ^ 0.

(Adjust when VOCAL 1.2 or VOCAL MIX is selected with the KARAOKE VOCAL button.)

Balance adjustment between accompaniment and vocal

M VOCAL BALANCE 2 V

Adjust with © ' " ' ® .

Balance adjustment between accompaniment and melody

MUSIC MELODY MELODY

Adjust with © ' ® .

VIDEO CD/Audio CD

Sound multiplex balance adjustment

M MUSIC:VOCAL V

discs.

► The vocal change function

works with a disc recorded

in sound-multiplex.

Adjust with © " ® .

(Adjust when MIX is selected with KARAOKE VOCAL button.)

Page 30

Advanced playback: )

Using the On-Screen

Display

You can view information about a disc and its operational status on the

TV screen.

DVD^^ VCQ/ ,CD^

Checking the Operational Status

■OSD

,DVDy ,VCIp ,CP-

Checking the Remaining Time and Setting Status

You can view the current title number, track number, and total playing time of the disc on the TV screen.

OSD

Press OSD while playback is stopped.

DVD video disc

Example

title: 2—'

CHAPTER : 1 -

VIDEO CD/Audio CD

Example

TRACK : 1■

Total playing time of the disc is displayed in the DVD display.

TOTAL 0:46:30

- Current title number . First chapter number in

the current title

STOP-j- Operational

status

- First track number of the disc

STOP j- Operational

status

.Total playing

time of the disc

You can view the elapsed time, remaining time, and setting status of the disc on the TV screen.

Press OSD during playback.

DVD video disc

Example

TITLE: 3-* -0:50:45 CHAPTER: 2-“ -0:10:24^

ELAPSED 0:10:15 |

CHAPTER REPEAT

Remaining time in the current title appears in

the DVD display.

VIDEO CD/Audio CD

Example

TRACK: 3^ DISC

ELAPSED

TRACK REPEAT

Remaining time in the current track appears in

the DVD display.

---------

Current title number

---------

Current chapter number

I— Operational status

PLAY

------------

'in the current title

. Elapsed time of

Current track number

I— Operational status

PLAY

02:00

-------

43:00-1 01 : 20

Remaining time

■in the current chapter

the current title

- Playback mode

Remaining time in the current track

Remaining time

"of the disc .Elapsed time of

the current track

- Playback mode

To turn off the on-screen display

Press OSD again.

Press OSD again during playback.

When you play back a VIDEO CD/Audio CD, the

To turn off the on-screen display

feij) Press OSD again.

on-screen display turns off.

DVD video disc

Example

TITLE: 3 -0:50:45 CHAPTER: 2 -0:10:24

SUBTITLE12 ENG ON

ANGLE 1----------------------------1

The abbreviation of the language (e.g. ENG) appears instead of the language name. Refer to the list of languages, gi)

________________

ELAPSED 0:10:15

AUDIO 1 ENG AC-3 2CH

------------------

PLAY

-Current audio

-Current subtitle

"setting

setting

Current angle

Page 31

Function Setup J

-2

Customizing the Settings

SET UP MENU I

You can change the default settings to customize performance to your

preference.

Displaying the SET UP MENU Screen

The SET UP MENU screen asks you to select a setting for AUDIO SETTING, FUNCTION and DISPLAY. You may adjust the settings in the category using the succeeding screen.

■2

DV^.VC^,CD.

SETUP

®i®

ENTER

Press SETUP while playback is stopped.

The SET UP MENU screen appears.

0 SET

UP MENU

AUDIO

AUDIO OUT SEL.

D RANGE CONTROL

EX 1 tSU

AUDIO

SETTING

SEL.

The display language can be changed. Select DISPLAY in step 2, then select SCREEN DISPLAYS to change the display language .

Press A/T to select the category (AUDIO SETTING, FUNCTION or DISPLAY), then press ENTER.

0 SET

UP MENU SEL.

AUDIO SETTING

AUDIO AUDIO OUT SEL.

D RANGE CONTROL

ExiTgua Bsia

ENTER

in™ IIIIHI^

0 AUDIO SETTING

AUDIO

AUDIO OUT SEL. D RANGE CONTROL

ExiTum igia

SEL. 4^

ENG

PCM

For details on the AUDIO SETTING category, see pages

[IiXId-

i® t®

0 SET UP MENU SEL. 4^

1 FUNCTION 2 BLACK LEVEL 3 TITLE STOP

PBC REMOTE CONFIRM. OSD

pal:AUTO

EX 1 THIS isssig

0 FUNCTION

ENTER BLACK LEVEL

..........

TITLE STOP PBC

REMOTE CONFIRM. ON

OSD ON

PAL:AUTO

EX 1 THUS

SEL. NML.

OFF

AUTO

For details on the FUNCTION category, see pages

i® t®

0 SET

UP MENU SEL. 4^

EX 1 TSSS

Note

The SET UP MENU screen disappears if you press the SETUP button while it is displayed.

DISPLAY

SCREEN DISPLAYS TV SHAPE

ANGLE ICON SUBTITLE DISC MENU

ENTER

0 DISPLAY

SCREEN DISPLAYS ENG

TV SHAPE 16:9

ANGLE ICON SUBTITLE DISC MENU

EX 1 THUS

SEL. 4^

—

ENG

For details on the DISPLAY category, see pages

Page 32

Function Setup J

Customizing the Settings (continued)

AUDIO SETTING

0 AUDIO SETTING SEL.

AUDIO ENG AUDIO OUT SEL. PCM D RANGE CONTROL ON

IFaiiisik^ii

ExiTsm

Setting the Audio Sound

After you select AUDIO SETTING on the SET UP MENU screen [3^, adjust the categories to your preference.

Press A/T to select the item, then press ENTER.

®i®

The setting screen of your selected item appears.

To select a preferred language from those included on the disc. |2^

. To switch MPEG/AC-3 and ANALOG/PCM. E) ED li5>

To turn on or off the function that makes faint sounds easier to hear, even if you lower the volume in late hours playback.

ENTER

When AUDIO is selected: ^

0 AUDIO

ENGLISH I TALI AN FRENCH JAPANESE SPAN ISH

CHINESE

GERMAN

DESCRIPT IVE

EX I Tima

• Some DVD video discs contain special audio that describes the actions on-screen for visually impaired persons. When you set DESCRIPTIVE SERVICE to “ON” by pressing the AUDIO button, the DVD video player automatically plays this special feature.

When AUDIO OUT SEL. is selected:

0 AUDIO OUT

AUDIO OUT SEL.

ANALOG PCM

: iratia

EX I Tim

* Select the output sound type according to your

system connection. (33> ED ED ED

SEL. 4^

DUTCH KOREAN MALAY

SERVICE OFF

BSl

SEL.

SEL. 4^

MPEG AC-3

BIBl

Select a preferred language by pressing A /▼/◄/► , then press ENTER.

®§® O

yCD^

Select the output sound type MPEG/AC-3 or ANALOG/PCM by pressing ◄ / ► , then press ENTER.

® ■ > o

0 AUDIO SETTING

AUDIO ENG AUDIO OUT SEL. PCM D RANGE CONTROL ON

• Some DVD video discs may not include your pre-selected language. In this case, the DVD video player automatically plays the disc’s initial language offering.

0 AUDIO SETTING

AUDIO ENG AUDIO OUT SEL.

D RANGE CONTROL

BlSi

EX I Tma

SEL. 4^

PCM

When D RANGE CONTROL is selected: ^

0 D RANGE CONTROL SEL.

D RANGE CONTROL El

OFF

Select ON or OFF by pressing

◄ / ► , then press ENTER.

0 - ©40

EX I Tliili

ON: Dynamic range is reduced. OFF: Full dynamic range is heard.

0 AUDIO SETTING

AUDIO AUDIO OUT SEL.

D RANGE CONTROL

tlN I tM

EX I THIS

This function works on playback of Dolby Digital (AC-3) recorded discs. The level of dynamic range reduction may differ depending on the DVD video disc.

_________________________________________________________ y

SEL. 4^

ENG PCM

Page 33

RETURN/ ■ CLEAR

■ ENTER

SETUP

-AUDIO

: If you press the RETURN/CLEAR button while a menu appears on

the screen, you will return to the previous menu screen.

Press SETUP.

The setting screen disappears.

Page 34

Function Setup J

Customizing the Settings (continued)

FUNCTION

0 FUNCTION

BLACK LEVEL NML. TITLE STOP PBC

REMOTE CONFIRM. ON OSD PAL;AUTO

EX 1 Tim

SEL.

AUTO -

Setting the Functions

After you select FUNCTION on the SET UP MENU screen |3^, adjust the categories to your preference.

Press A/T to select the item, then press ENTER.

®®®

The setting screen of your selected item appears.

— To select the black level (contrast) of playback pictures, (for NTSC TVs only) — To turn on or off the function that automatically stops playback after playing one title.

OFF -

ON ON -

To use the menu screens when playing PBC-controllable VIDEO CDs. T- To turn on or off the confirmation beeper for each press of a remote control button. — To turn on or off the operational status display (on-screen display) on the TV screen. — To select to the video system of a disc.

ENTER

When BLACK LEVEL is selected: <3?

0 BLACK LEVEL

BLACK LEVEL

NORMAL: Standard black level (contrast). LIGHT: Brighter than in NORMAL.

When TITLE STOP is selected:

0 TITLE STOP

TITLE STOP

EXtTUll

OFF: Player continues playing the disc after playback of a title is completed. ON: Player stops playing the disc after playback of a title is completed.

L I GHT

OFF

SEL.

wwm

SEL.

Select a preferred black level by pressing ◄ / ► , then press ENTER.

ENTbH

® •* o

DVD:)

Select ON or OFF by pressing

◄ / ► , then press ENTER.

® 4 o

0 FUNCTION SEL. ^0

BLACK LEVEL NML.

TITLE STOP

PBC

REMOTE CONFIRM. ON

OSD

PAL:AUTO

EX 1 Tim

0 FUNCTION

BLACK LEVEL NML. TITLE STOP PBC

REMOTE CONFI OSD

PAL:AUTO

EX 1 Tins

AUTO

msi

SEL.

1RM. ON

AUTO

imi

OFF

ON ON

OFF

ON ON

When PBC is selected: <3^

0 PBC

PBC

ON 1 OFF

iSlS'l

1 EX 1 TBBi El'Bsi 1

ON: To use the menu screen when playing a PBC-controllable VIDEO CD. OFF: When playing without using the menu screen.

• PBC is the abbreviation of Playback Control.

SEL.

Select ON or OFF by pressing

◄ / ► , then press ENTER.

® 4 o

FUNCTION SEL.

BLACK LEVEL

TITLE STOP OFF

PBC ON

REMOTE CONFIRM. OSD

PAL:AUTO

EX I Tim

NML.

AUTO

ON ON

Page 35

RETURN/CLEAR

■3

■ ENTER

ht1UhN

: If you press the RETURN/CLEAR button while a menu appears on

When REMOTE CONFIRM, is selected:

the screen, you will return to the previous menu screen.

0 REMOTE CONFIRM. SEL.

REMOTE CONF 1 RM. El

OFF

Sill

EXiTsm

ON: Beeper sounds with each press of a remote control button. OFF: The beeper does not sound.

o..

Select ON or OFF by pressing

◄ / ► , then press ENTER.

® 4 O

When OSD is seiected: ^ ¿9^

OFF

Hisl

SEL.

Select ON or OFF by pressing

◄ / ► , then press ENTER.

0 OSD

OSD

EX 1 tE^5

ON: Operational modes are displayed on-screen, (e.g. “PLAY”) OFF: Operational modes are not displayed.

When PAL:AUTO is selected: ¿¡SP

0 PAL:AUTO

PAL:AUTO

PAL

SsHSH

EX 1 THM2

SEL. <0

7uZZ

Select PAL or AUTO by pressing

◄ / ► , then press ENTER.

0 FUNCTION

BLACK LEVEL TITLE STOP PBC

REMOTE CONFIRM. ON

OSD ON

PAL:AUTO

iSIITl

EX 1 Tigiilli

0 FUNCTION

BLACK LEVEL

TITLE STOP

PBC

REMOTE CONFIRM. ON

OSD ON

PAL : AUTO

EXITgSS

0 FUNCTION

BLACK LEVEL

TITLE STOP

PBC

REMOTE CONFIRM. ON

OSD

PAL : AUTO AUTO

SHH

EX 1 tSsTI

I51I5I

ESSI

SEL. NML.

OFF

AUTO

SEL. ©>

NML.

OFF

AUTO

SEL. 4^

NML.

OFF

ON ON

PAL: For PAL discs. Connect a PAL TV. AUTO: NTSC discs and PAL discs are automatically identified.

Connect a multi-TV (compatible with PAL and NTSC). A picture may be disturbed when the NTSC or PAL signal recorded is switched.

Press SETUP.

The setting screen disappears.

Page 36

Function Setup J

Customizing the Settings (continued)

DISPLAY

D1 SPLAY SEL.

SCREEN DISPLAYS TV SHAPE ANGLE ICON ON SUBTITLE DISC MENU

EX 1 TBaMil

ENG

16:9

ENG

—

Setting the Displays

After you select DISPLAY on the SET UP MENU screen [^, adjust the categories to your preference.

Press A/T to select the item, then press ENTER.

®5®

The setting screen of your selected item appears.

To select the display language. To select a picture size according to the aspect ratio of your TV.

To display the angle icon indicator on screen.

To select a preferred subtitle language from those included on the DVD video disc.

To select a preferred disc menu language from those included on the DVD video

disc.

ENTER

When SCREEN DISPLAY is selected: ¿vd? 3^

0 SCREEN DISPLAYS SEL.

ENGLISH CHINESE

MALAY

Select a preferred language by pressing A/T , then press ENTER.

ilaigl

When TV SHAPE is selected: 3^

0 TV SHAPE

TV SHAPE

4:3

NORMAL

iSliistli

EXlTl^l

16:9 (WIDE): Select when a 16:9 wide TV is connected. 4:3 (NORMAL): Select when a 4:3 normal TV is connected.

SEL.

Select your TV type by pressing ◄ / ► , then press ENTER.

0 0 4 O

If you select 4:3 (NORMAL):

J TV SHAPE

DISPLAY MODE

PAN-SCAN P l5iBi

EXlTiaii

PS ■

SEL.

pjljSSl

Select PS or LB by pressing

◄ / ► , then press ENTER.

0 4 0

tIN 1 th

ENIEH

I'gl'iSl

SEL. <0

—

SEL. ^0

—

ENG

0 DISPLAY

SCREEN DISPLAYS ENG

TV SHAPE 16:9

'angle icon ON

SUBTITLE DISC MENU ENG

Iglil

EX 1T Siila

0 DISPLAY

SCREEN DISPLAYS ENG

TV SHAPE 16:9

ANGLE ICON SUBTITLE DISC MENU

mmm

EX 1 T^iffiS

• The displayable picture size is preset on the DVD video disc. Therefore, the playback picture of some DVD video discs may not conform to the picture size you select.

• When you play DVD video discs recorded in the 4:3 picture size only, the playback picture always appears in the 4:3 picture size, regardless of the TV shape setting.

PS (PAN-SCAN):

Displays pictures cropped to fill your TV screen. Either or both sides of the picture are cut off.

LB (LETTER BOX):

Displays theatrical images with masking bars above and below the picture.

PS (PAN-SCAN)

LB (LETTERBOX)

Page 37

TITLE ■

RETURN/-

CLEAR

ANGLE■

-MENU

-3

- ENTER

- SUBTITLE

MC1unw

: If you press the RETURN/CLEAR button while a menu appears on

the screen, you will return to the previous menu screen.

When ANGLE ICON ¡s selected:

Select ON or OFF by pressing

◄ / ► , then press ENTER.

UN I th

ON: The angle icon automatically appears in white on the TV screen while a

scene recorded from multiple angles is played back. When you display the angle number on the screen by pressing the ANGLE button, the angle icon is lit in red.

OFF; The angle icon is not displayed.

When SUBTITLE is selected:

1 TALI AN

KOREAN MALAY

SEL. 4^

Select a preferred language by pressing AlWIM I ► , then press ENTER.

®i®

0 SUBTITLE

ENGLISH

FRENCH JAPANESE

SPAN 1SH DUTCH

CH1NESE

GERMAN

NO SUBTITLES

EXTENDED

EX 1 Tsia

Some DVD video discs contain special subtitles, an enhancement of closed captioning for hearing impaired persons. When you set EXTENDED FEATURES to “ON” by pressing the SUBTITLE button, the DVD video player automatically displays these special subtitles.

FEATURES OFF

DVD>

When DISC MENU is selected:

0 DISPLAY

SCREEN DISPLAYS ENG

TV SHAPE

ANGLE ICON SUBTITLE

DISC MENU

ExiTpua

0 DISPLAY

SCREEN DISPLAYS ENG

TV SHAPE 16:9

ANGLE ICON ON SUBTITLE DISC MENU ENG

ISÌSS3

ExiTima

' Some DVD video discs may not include your pre

selected language. In this case, the DVD video player automatically displays subtitles consistent with the disc’s initial language setting.

SEL.

16:9

ENG

SEL.

—

SETUP

0 DISC MENU

ENGLISH 1 TALI AN FRENCH SPAN 1SH

CHINESE

GERMAN MALAY

EX ITSS

To change the language while a disc is inserted:

1) Press the TITLE or MENU button to display the disc menu.

2) Press the SETUP button. If the disc menu has only one language, the display does not appear.

SEL. ©►

JAPANESE DUTCH KOREAN

EFiSl

Select a preferred language by pressing A / T / ◄ / ► , then press ENTER.

®i®

DISC menu:ENG

Press SETUP.

The setting screen disappears.

0 DISPLAY

SCREEN DISPLAYS ENG

TV SHAPE 16: 9

ANGLE ICON SUBTITLE DISC MENU

3) Press the SETUP button repeatedly to select the language. Refer to “Table of languages.”

4) Press the ENTER button. The disc menu is displayed in the selected language.

EX iTsm

SEL. 0

ENG

—

Page 38

Function Setup J

4,5

■ 3, 4, 5

-■/EJECT

-RETURN/CLEAR

Setting the Parental Lock

You can use the parental lock function only with DVD video discs equipped with the parental lock feature.

m m m m fsn m Ld LsJ LiJ

Setting the Parental Lock

DVD video discs equipped with the parental lock function are rated according to their content. The contents allowed by a parental lock level and the way a DVD video disc can be controlled may vary from disc to disc. For example, you can cut out violent scenes unsuitable for children and replace them with more suitable scenes, or lock out playback of the disc altogether.

SETUP

Press SETUP while playback is

stopped.

The SET UP MENU appears on the TV screen.

0 SET

UP MENU SEL. 4^

AUDIO SETTING

AUDIO

3 AUDIO OUT SEL.

D RANGE CONTROL

imi

ExiTSS

©^©

Press < / >■ to select “ON,"

press ENTER.

The following menu appears.

0 PARENTAL LOCK

lEWABLE

EX ITl^3

LEVEL8I LEVEL? LEVELS LEVELS LEVEL4 LEVELS LEVEL2 LEVEL1

SEL.

gi'ill

then

CD CZ] B3

m m m m rp m

ENTER

Press 9 twice.

The following menu appears.

0 PARENTAL LOCK

PRESET SECURITY CODE

PRESS [0]-[9]

EX 1 tsus

Press the number buttons to create

a personal four-digit security code, then press ENTER.

Example

0 PARENTAL LOCK SEL.

PARENTAL LOCK

ON "

USAS

®i®

ENTER

SETUP

Press A/T to highlight the parental lock level, then press ENTER.

You cannot play DVD video discs rated higher than the level you selected unless you cancel the parental lock function. For example, when you select level 7, the discs rated higher than level 7 are locked out and cannot be played.

0 PARENTAL LOCK SEL.

"-''"'LI

V lEWABLE LEVEL?

EX 1 TSU

LEVELS LEVELS LEVEL4 LEVELS LEVELS LEVEL IBBDOBEBH

I51gl

The parental lock level is equivalent to the following USA movie ratings.

LEVEL 7: NC-17 LEVEL 6: R

LEVELS: LEVEL 1:

PG G

LEVEL 4: PG 13

Press SETUP.

The SET UP MENU disappears.

If you make a mistake before pressing the ENTER button, press the RETURN/CLEAR

button and start over again from step 2.

Page 39

hC I UtilM

: If you press the RETURN/CLEAR button while a menu appears on the screen, you will

return to the previous menu screen.

To change the parental lock level

You can change the parental lock level by following the steps in “Setting the Parental Lock.” At step 3, press the number buttons to enter your four digit security code, then continue to step 4.

To change your four-digit security code

You can change your four-digit security code.

1 Follow steps 1 and 2 in “Setting the Parental Lock.” 2 Press the ■ /EJECT button four times while the

security code menu appears on the TV screen.

EJECT EJECT EJECT EJECT

The four-digit security code Is cleared.

3 Press the number buttons to create a new four-digit

security code, then press the ENTER button.

4 Complete steps4-6 in “Setting the Parental Lock.”

To cancel the parental lock function

1 Follow steps 1 and 2 in “Setting the Parental Lock.” 2 Press the number buttons to enter your four-digit

security code, then press the ENTER button.

3 Press ◄ / ► to select “OFF,” then press the ENTER

button.

I 0 PARENTAL LOCK

PARENTAL LOCK

ON I

USA7 I

fealil

SEL.

The SET UP MENU appears again.

Press the SETUP button.

The SET UP MENU disappears, and the parental lock function is cancelled.

Note -------------------------------------------------------------------

DVD video discs may or may not respond to the parental lock settings. Make sure this function works with your DVD video discs.

Page 40

Function Setup J

Operating Other Equipment with the Remote Contrai

You can operate the basic functions of selected TVs, amplifiers and receivers using the supplied remote control.

CLEAR

Programming the Remote Control

You can operate other equipment with the DVD video player’s

remote control.

MClUiniN

CLEAR

ENTER

Press and hold RETURN/CLEAR

and ENTER simultaneously until JOG/PAUSE lights up.

Release RETURN/CLEAR and

ENTER.

Press the number buttons that

correspond to your equipment’s brand code (listed at right).

Example: To program brand code 040 press

ro~i-m-ro~i

When you press the last digit, the JOG/ PAUSE button blinks twice, then turns off.

Point the remote control at the

equipment you want to operate.

□□ Ш CE)

CD СЮ Ш

CD СЮ CO

СЮ

Brand Code Table

TV brand code

Brand name

Goldstar Grundig 267

Panasonic 037, 041, 093, 094, 138, 149, 190, 210 Philips Samsung Sanyo 080, 086, 091, 126, 141,211,234, 254 Sharp Sony 001,009, 056, 075

Toshiba

Amplifier brand code

Brand name

Accuphase

Can/er Denon Goldstar Harman/Kardon

JVC

Kenwood Luxman Marantz Nakamichi Panasonic 423 Philips Pioneer Sony

Technics 423, 434

Yamaha 408, 410, 427, 433

Receiver brand code

Brand name

Harman/Kardon Inkel

JVC 521, 630

Kenwood Luxman Marantz

Onkyo

Panasonic 511,588, 612 Philips 557, 677

Pioneer 544, 582, 645, 674 Sansui Sherwood Sony Technics 511,564, 588 Techwood 580, 599, 607 Yamaha

Brand code

002, 003, 017, 024, 026, 030, 032, 042, 072, 105, 164, 227, 247, 250

030, 040 017, 024, 026, 032, 042, 043, 059, 105, 184, 226, 237, 253

032, 062, 085, 089, 096, 136, 152, 162, 217, 222, 258, 278 029, 043, 082, 086, 088, 262

Brand code

429 420 411 402 405 425 428 412 420, 424 424

420 401,422 415

Brand code

530, 531 510, 517, 519, 595, 633, 637, 640, 641,655

510, 523, 556,589, 590 577, 596, 597, 622, 623 503, 511,536, 557, 560, 603, 628 528, 535, 539,542,610

557, 558, 594, 600, 661 517, 519, 595, 633, 637, 640, 655, 682 545, 549, 620, 632

525, 526, 551,556, 583, 650, 691

Notes

' The same brand may use different codes depending on the model. Enter the correct number, referring to the brand code table.

• For some brands, several codes are provided. Try each of them until the remote control operates your equipment.

• Some equipment may not respond to all of the functions in the table in the next page, or may not be operated at all with this remote control. In this case, operate that equipment with its own remote control.

• If you replace the remote control’s batteries, remember to reprogram the brand code.

Page 41

Buttons to operate

Page 42

Function Setup J

Table of Languages

Table of Languages and Their Abbreviations

Abbreviation

of the

Language

CHI OUT ENG FRE GER ITA JPN KOR MAY SPA AA AB AF AM AR AS AY AZ BA BE BG BH Bl BN BO BR CA CO CS CY DA DZ

Language

No alternate language Chinese Dutch English French German Italian Japanese Korean Malay Spanish Afar Abkhazian Afrikaans Amharic Arabic Assamese Aymara Azerbaijani Bashkir Belorussian Bulgarian Bihari Bislama Bengali, Bangla Tibetan Breton Catalan Corsican Czech Welsh

Danish Bhutani

Greek

Abbreviation

of the

Language

EO Esperanto

ET Estonian EU Basque FA

Fl FJ FO

GA GD Scottish Gaelic

GL Galician GN Guarani GU

HA Hausa

HR Croatian HU

HY Armenian

KL Groenlandie

KY Kirghiz

LA Latin

Language

Persian Finnish Fiji Faroese Frisian Irish

Gujarati

Hindi

Hungarian

Interlingua Interlingue Inupiak Indonesian

Icelandic Hebrew Yiddish Javanese Georgian

Kazakh

Cambodian

Kannada

Kashmiri

Kurdish

Abbreviation

of the

Language

LN Lingala

LO LT LV

ML Malayalam

MR Marathi

MY Burmese

NA Nauru

OM (Afan) Oro mo

PA Panjabi

SA Sanskrit

SK Slovak

Language

Laotian Lithuanian Latvian, Lettish Malagasy Maori Macedonian

Mongolian Moldavian

Maltese

Nepali Norwegian Occitan

Oriya

Polish

Pashto, Pushto

Portuguese Quechua Rhaeto-Romance

Kirundi

Rumanian

Russian

Kinyarwanda

Sindhi Sango Serbo-Croatian Singhalese

Abbreviation

of the

Language

SL SM SN Shona SO SO SR SS

ST Sesotho SU SV

SW TA TE Telugu TG

,TH

TI Tigrinya TK TL Tagalog TN Setswana TO TR Turkish TS

TT Tatar TW Twi

UZ VI

XH YO

Language

Slovenian Samoan

Somali

Albanian

Serbian Siswati

Sundanese Swedish Swahili

Tamil

Tajik Thai

Turkmen

Tongan

Tsonga

Ukrainian Urdu Uzbek Vietnamese Volapük Wolof Xhosa Yoruba Zulu

Page 43

Others ^

Notes on Discs

This section shows you how to handle, clean, and store discs.

Handling Discs

Do not touch the playback side of the disc.

Do not attach paper or tape to discs.

Cleaning Discs

Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outward with a soft cloth. Always keep the disc clean.

Playable Discs

This DVD video player can play the following discs.

Disc mark Contents

DVD video discs

VIDEO CDs

Audio CDs

You cannot play discs other than those listed above. This DVD video player uses the NTSC/PAL color system and

cannot play DVD video discs recorded in any other color system (SECAM, etc.).

DVD

□IGI

COMPACT

D§E

COMPACT

ITAL AUDIO

Audio

Video

(moving

pictures)

Audio +

Video

(moving

pictures)

Audio

Disc size

12 cm

8 cm

12 cm

8 cm

12 cm

8 cm (CD

single)

Maximum

playback time

Approx. 4 hours

(single sided disc)

Approx. 8 hours

(double sided disc)

Approx. 80 minutes

(single sided disc)

Approx. 160 minutes

(double sided disc)

Approx. 74 minutes Approx. 20 minutesIDIGITAL video!

Approx. 74 minutes Approx. 20 minutes

Notes on Region Numbers

If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth, then dry the disc

with a dry cloth.

Do not use any type of solvent such as thinner, benzine,

commercially available cleaners, or antistatic spray for vinyl

LPs. These may damage the disc.

storing Discs

Do not store discs in a place subject to direct sunlight or heat. Do not store discs in places subject to moisture and dust,

such as in a bathroom or near a humidifier.

Store discs vertically in a case. Stacking or placing objects on discs may cause warping.

About This Owner’s Manual

This owner’s manual explains the basic instructions of this

DVD video player. Some DVD video discs are produced in a manner that allows specific or limited operation during

playback. As such, the DVD video player may not respond to all operating commands. Refer to the instruction notes of discs.

“ B ” may appear on the TV screen during operation. A white “ M ” means that the operation is not permitted by the

DVD video player; a red “ M ” means the operation is not

permitted by the DVD video disc.

The region number of this DVD video player is 3. If region numbers, which stand for their playable area, are printed on your DVD video disc and you do not find § or Q , disc playback will not be allowed by the player. (In this case, the DVD video player displays a message.)

Notes on Copyright

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material without permission.

DVD video discs are copy protected, and any recordings made from these discs will be distorted.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Type of TV system

Connect this DVD video player to a TV compatible with PAU

3.58 NTSC system.

Page 44

Others J

Before Calling Service Personnel

Check the following guide for the possible cause of a problem before requesting service.

Symptoms and Correction

Symptom

No power.

No picture.

No sound.

The playback picture has

occasional distortion.

Brightness is unstable or noises are produced on playback pictures.

The DVD video player does

not start playback.

Buttons do not work.

The remote control does not work properly.

The MEMORY, REPEAT,

REPEAT A-B and SHUFFLE buttons do not work.

Cause

The power plug is disconnected.

• The TV is not set to receive DVD signal output.

• The video cable Is not connected securely.

• The equipment connected with the audio cable is not set to receive DVD signal output.

• The audio cables are not connected securely.

• The power of the equipment connected with the audio cable is turned off.

• The setting of output sound type is not correct.

• The disc is dirty.

• It is in fast forward or fast reverse playback.

• The copy protection is in effect.

• No disc is Inserted.

• An unplayable disc is Inserted.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• A menu is on the TV screen.

• The parental lock function is set.

Power supply fluctuations or other abnormalities such as static electricity may interrupt correct operations.

• The remote control is not pointed at the remote sensor of the DVD video player.

• The remote control is too far from the DVD video player.

• The batteries in the remote control are exhausted.

• The DVD video player is in the karaoke mode.

Correction

Connect the power plug into the wall outlet securely.

• Select the appropriate video input mode on the TV so the picture from the DVD video player appears on the TV screen.

• Connect the video cable into the jacks securely.

• Select the correct input mode of the audio receiver so you can listen to the sound from the DVD video player.

• Connect the audio cable to the jacks securely.

• Turn on the equipment connected with the audio cable.

• Set the audio setting correctly.

• Eject the disc and clean it.

• Sometimes a small amount of picture distortion may appear. This is not a malfunction.

• Connect the DVD video player to the TV directly.

• Insert a disc. (Check that the DVD or VCD or audio CD indicator in the DVD display is lit.)

• Insert a playable disc. (Check the disc type and color system.)

• Place the disc with the playback side down (label facing up).

• Place the disc correctly inside the guide in the disc tray.

• Clean the disc.

• Press the SETUP button to turn off the menu screen.

• Cancel the parental lock function or change the parental lock level.

Turn the power on or off with the POWER button. Or, disconnect the power plug and insert it into the wail outlet again.

• Point the remote control at the remote sensor of the DVD video player.

• Operate the remote control within about seven meters.

• Replace the batteries with new ones.

• Press the KARAOKE button to switch the mode from karaoke to normal.

Page

11, 12

11, 12, 13, 14

30, 31

37, 38

Page 45

others }

Specifications

DVD Video Player/Outputs/Supplied Accessories

[DVD Video Player]

Power supply Power consumption Mass External dimensions Signal system Laser Frequency range (digital audio)

Signal-to-noise ratio (digital audio)

Audio dynamic range (digital audio)

Harmonic distortion (digital audio)

Wow and flutter

Operating conditions

[Outputs]

Video output S video output

Audio output (digital audio) Audio output (analog audio) Headphone terminal

230 V AC, 50 Hz 20 VA

3.6 kg 430 X 81 X 308 mm (W/H/D) PALV3.58 NTSC Semiconductor laser, wavelength 650 nm DVD linear sound : 48 kHz sampling 4 Hz to 22 kHz

96 kHz sampling 4 Hz to 44 kHz

Audio CD : 4 Hz to 20 kHz More than 108 dB More than 96 dB Less than 0.004 % Below measurable level (less than ±0.001 % (W.PEAK)) Temperature: 5° C to 35° C, Operation status: Horizontal

1.0 V (p-p), 75 Q, negative sync., pin jack x 1

(Y) 1.0 V (p-p), 75 negative sync., Mini DIN 4-pin x 1 (C) 0.286 V (p-p), 75 Q

0.5 V (p-p), 75 Q, pin jack x 1

2.0 V (rms), 330 pin jack (L, R) x 2 32 Q. (30mW), Impedance: more than 8 Q.

[Supplied Accessories]

S video cable Audio/video cable

Remote control

Batteries (R06)

Designs and specifications are subject to change without notice.

.......................................

................................

....................................

...............................

1 1 1 3

Page 46

others 3

Memo

Discs and output sounds

Sound recording system

Audio setting on the setting screen

ANALOG AUDIO OUT jacks

DIGITAL AUDIO OUT jack

Dolby Digital

MPEG/

AC-3

Dolby Digital

bitstream

ANALOG/

PCM

(48 kHz)

MPEG 2

MPEG/

AC-3

MPEG 2

bitstream

DVD video discs

Linear PCM

48 kHz 96 kHz

MPEG/

ANALOG/

PCM

AC-3 or

ANALOG/

PCM

MPEG/

AC-3

ANALOG/

PCM

O O O* o** O O

PCM

(48 kHz)

PCM

(48 kHz)

PCM

(48 kHz)

VIDEO CDs

MPEG 1

MPEG/

AC-3 or

ANALOG/

PCM

(44.1 kHz)

: 48 kHz processed : 96 kHz processed

Linear PCM

On VIDEO CD

This DVD video player supports the VIDEO CDs equipped with the PBC (Version 2.0) function. (PBC is the abbreviation of Playback Control.) You can enjoy two playback variations depending on types of discs.

Type of disc

VIDEO CD not equipped with PBC function (Version 1.1)

How to enjoy

Sound and movie can be played on this DVD video player in the same way as an audio CD.

Audio CDs

44.1 kHz MPEG/

AC-3 or

ANALOG/

PCM

(44.1 kHz)

VIDEO CD equipped with PBC function (Version 2.0)

In addition to operations of a VIDEO CD not equipped with the

PBC function, you can enjoy playback with interactive software and with search function by using the menu displayed on the TV screen (Menu Playback). Some of the functions described in this owner’s manual may not work with some discs.

Page 47

Others 3

Memo

Page 48

482273615755

PHILIPS

Printed in Japan
