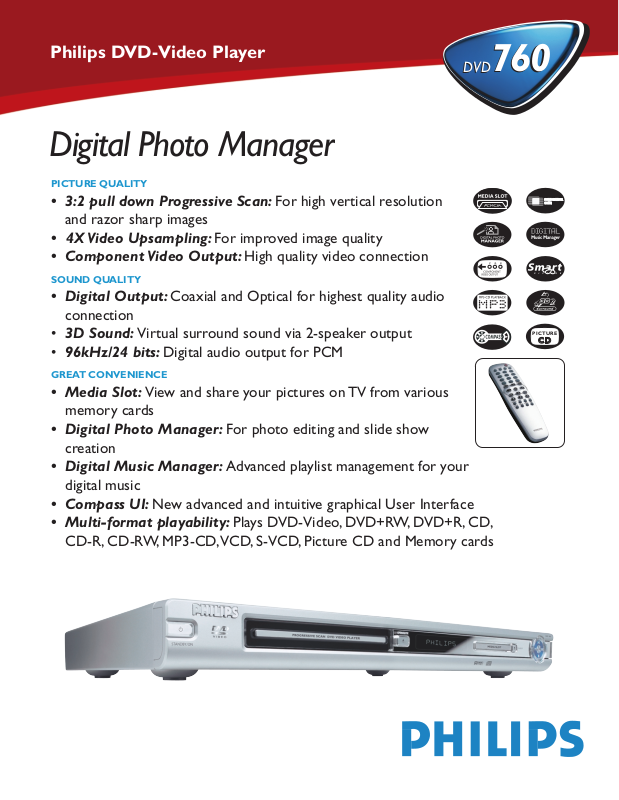

Philips DVD760AT User Manual
Digital Photo Manager
PICTURE QUALITY
• 3:2 pull down Progressive Scan: For high vertical resolution
and razor sharp images
• 4X Video Upsampling: For improved image quality
• Component Video Output: High quality video connection
SOUND QUALITY
• Digital Output: Coaxial and Optical for highest quality audio
connection
• 3D Sound: Virtual surround sound via 2-speaker output
• 96kHz/24 bits: Digital audio output for PCM
GREAT CONVENIENCE
• Media Slot: View and share your pictures on TV from various
memory cards
• Digital Photo Manager: For photo editing and slide show
creation
• Digital Music Manager: Advanced playlist management for your
digital music
• Compass UI: New advanced and intuitive graphical User Interface
• Multi-format playability: Plays DVD-Video, DVD+RW, DVD+R, CD,
CD-R, CD-RW, MP3-CD, VCD, S-VCD, Picture CD and Memory cards
Philips DVD-Video Player
DVD
DVD
760
760
Playback system
• DVD-Video
• Video CD (VCD)
• S-Video CD (SVCD)
• MP3-CD
• CD (CD-R and CD-RW)
1
• Picture CD
• Solid-state Memory cards
List of cards supported
- Compact Flash - Smart Media
- Secure Digital (SD) - Microdrives (1GB)
- Memory Stick - Extreme Digital (XD)
- MMC
• DVD+RW and DVD+R
DVD Disc format
• Medium Optical disc
• Diameter 12 cm (8 cm
)
• Playing time One layer 2.15 h
2
(12cm) Dual layer 4 h
2
Two side, 4.30 h
2
Single layer
Two side, 8 h
2
Dual layer
TV standard
PAL NTSC
50 Hz 60Hz
• Number of lines 625 525
• Playback Multi standard
(PAL/ NTSC)
Audio format
Mpeg/ Dolby Compressed Digital,
Digital /PCM 16, 20, 24 bits
fs, 44.1, 48, 96 kHz
MP3 (ISO 9660) 96, 112, 128, 256 kbps
& variable bit rate
fs, 32, 44.1, 48 kHz
• Analog sound stereo
• Dolby surround compatible downmix from
Dolby Digital multi-channel sound
• 3D sound for virtual surround sound on 2
speakers
Video format
• Digital compression MPEG 2 for DVD, SVCD
MPEG 1 for VCD
DVD 50Hz 60Hz
Horiz. resolution 720 pixels 720 pixels
Vertical resolution 576 lines 480 lines
VCD 50Hz 60Hz
Horiz. resolution 352 pixels 352 pixels
Vertical resolution 288 lines 240 lines
• NTSC / PAL conversion
• Resume (5 discs) after stop/ standby
3
• Parental control and Disc lock (120 disc)
• Smart power off for better energy saving
• New animated "Compass" User Interface
Digital Photo Manager
• Playback of JPG images from Picture-CDs
and Memory Cards
List of cards supported
- Compact Flash - Smart Media
- Secure Digital (SD) - Microdrives (1GB)
- Memory Stick - Extreme Digital (XD)
- MMC
• Thumbnail browsing
4
and full-screen viewing
• Setup slide shows of favorite photos
• Multi level zoom without pixellation effect
• Advanced photo editing capabilities - including
rotate and flip, RGB level adjustments,
sharpness control and filter effects
• Save back edited photos to Memory Card
Digital Music Manager
• Playback of digital audio from Audio-CDs,
MP3-CDs and Memory Cards
List of cards supported
- Compact Flash - Smart Media
- Secure Digital (SD) - Microdrives (1GB)
- Memory Stick - Extreme Digital (XD)
- MMC
• Intuitive User Interface for track and folder
navigation
• Enhanced playlist management - including
auto recognition of existing playlists
• Advanced CD text and MP3 text display on screen
DVD functionality
• Multi-angle selection
• Audio selection (1 out of max. 8 languages)
• Subtitles selection (1 out of max. 32 languages)
• Aspect Ratio conversion
(16:9, 4:3 letterbox, 4:3 Pan Scan)
• Disc Menu support (Title Menu and Root Menu)
Video-CD functionality
• Playback control for VCD 2.0 discs
SVCD functionality
• Playback control as per SVCD standard
• Audio Selection (1 out of max. 4 languages)
MP3 functionality
• Nested directory levels supported to 8 levels.
• Maximum album numbers possible is 32.
• Maximum Number of Tracks is 999.
1 Applicable for finalised multi-session discs only.
2 Typical playing time for movie with 2 spoken languages
and 3 subtitle languages.
3 Applicable only for DVD, VCD, SVCD discs.
4 Applicable only for JPG images stored in EXIF format
www.philips.com or AOL keyword: Philips
Audio performance (typical)
• D/A converter 24 bits
DVD Fs 96 kHz 4 Hz- 44 kHz
Fs 48 kHz 4 Hz- 22 kHz
CD/Video CD Fs 44.1 kHz 4 Hz- 20 kHz
S-Video CD Fs 48 kHz 4 Hz- 22 kHz
Fs 44.1 kHz 4 Hz- 20 kHz
• Signal-noise (1kHz) 100 dB
• Dynamic Range (1kHz) 100 dB
• Crosstalk (1kHz) 100 dB
• Distortion/noise (1kHz) 97 dB
• MPEG MP3 MPEG Audio layer3
Video performance
• Component video Y: 1 Vpp into 75 ohm
output (480i/p) PbPr: 0.7 Vpp into 75 ohm
• Video output 1 Vpp into 75 ohm
• S-Video output Y : 1 Vpp into 75 ohm
C : 0.3 Vpp into 75 ohm
• Video Shift Left/right
Connections
• Y, Pb, Pr output (480i/p) Cinch 3x (green, blue,red)
• Video output Cinch (yellow)
• S-Video output Mini Din, 4-pins
• Audio L+R output Cinch (white/ red)
• Digital Output 1 coaxial, 1 optical
IEC958 for CDDA/LPCM
IEC1937 for MPEG 1/2,
Dolby Digital, DTS
Power supply
• Power inlet 110-240V, 50-60 Hz
• Power usage Approx. 20 watt
• Power usage standby Less than 4 watt
Cabinet
• Dimension 17.1 x 2 x 12.0 inch
(w x h x d)
• Weight Approx. 6.6 lbs
• UPC 0 3784993486 9
Package contents
• DVD-Video player
• Remote control with batteries
• User manual
• Audio cable, Video cable
General functionality
• Stop / play/ pause
• Fast forward/ backward
• Step forward/ backward
• Slow motion
• Virtual Jog Shuttle
• Title/ chapter / Track select
• Skip next/ Skip previous
• Repeat (Chapter/ Title/ All) or (Track/ All)
• A-B repeat, Shuffle & Scan
• Zoom with picture enhancement
• Screen saver (dim 75% after 15 min.)
• 3D sound
• 3:2 pull down Progressive Scan (On/Off
selection switch on back-panel)
• Enhanced Smart Picture
Technical specifications DVD 760
Dolby Digital is trademark of Dolby Laboratories Licensing Inc.
Specifications subject to change without prior notice. 760-US
Philips DVD-Video Player
DVD 760
DVD 760
Printed in the USA
© 2003 Philips Consumer Electronics Co.
A Division of Philips Electronics North America Corp.
PDA Singapore/PDA Atlanta
All rights reserved.
Specifications subject to change without notice.
